Model Electrolux 31-4972-00-02 RANGE – Common Parts & Diagrams

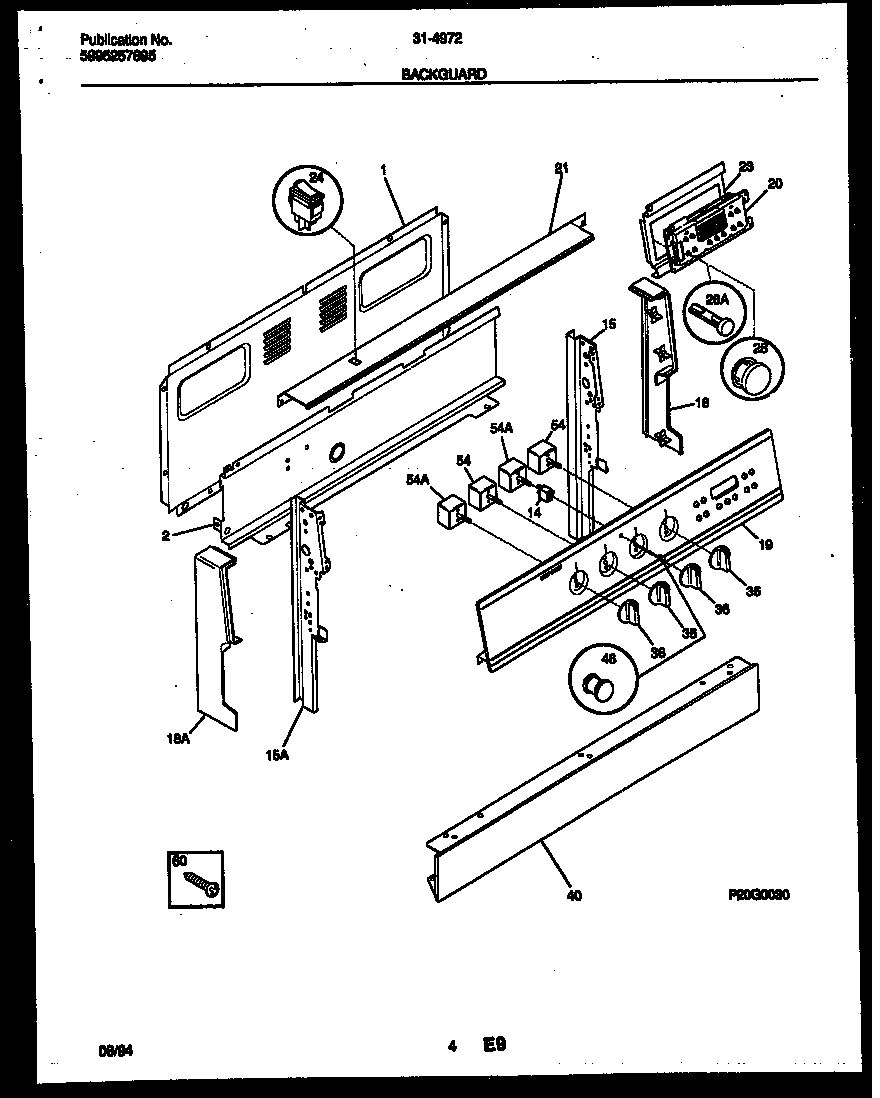

03 - BACKGUARD

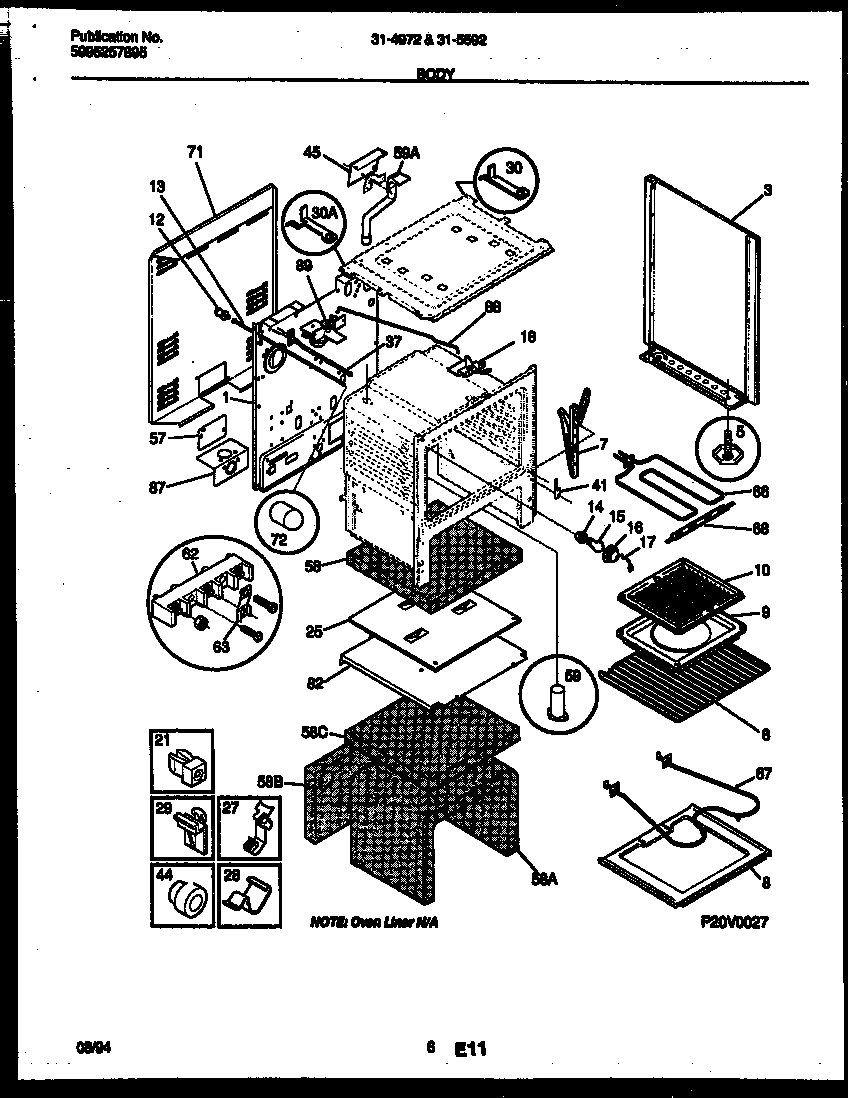

04 - BODY PARTS
05 - BODY PARTS

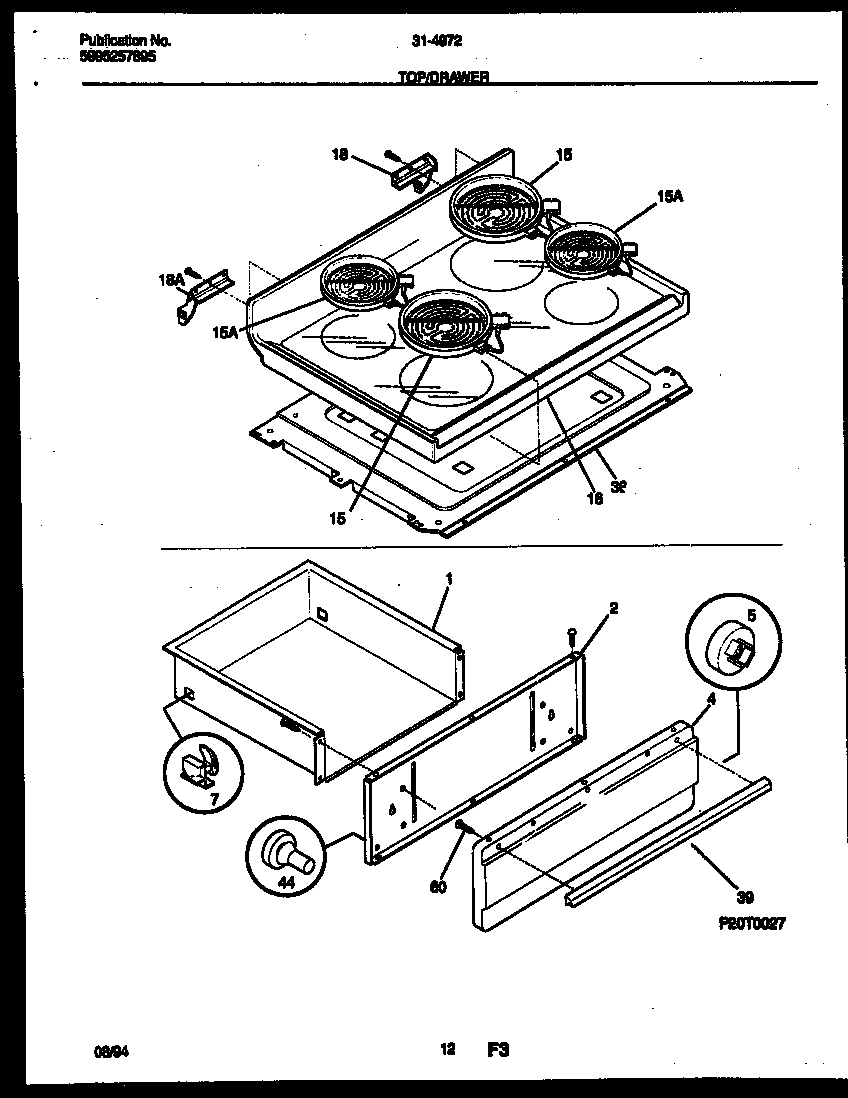

07 - COOKTOP AND DRAWER PARTS
08 - DOOR PARTS
Common parts from model Electrolux 31-4972-00-02 RANGE
*10612
WCI 3200846 WCI 3200846 Contact Us For Availability
*10612
WCI 5303281584 WCI 5303281584 Contact Us For Availability
*10612
WCI 5309951550 WCI 5309951550 Contact Us For Availability
*10612
WCI 316065300 WCI 316065300 Contact Us For Availability
*10612
RIVET-POP, WARING-PLATE WCI 3203618 Contact Us For Availability
*10612
WCI 5303212671 WCI 5303212671 Contact Us For Availability
*10612
WCI 5303269859 WCI 5303269859 Contact Us For Availability
1
WCI 316029405 WCI 316029405 Contact Us For Availability
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
2
WCI 3131975 WCI 3131975 Contact Us For Availability
3
PANEL-BODYSIDE, WHITE, RH WCI 5303269518 Contact Us For Availability
3
WCI 316067804 WCI 316067804 Contact Us For Availability
3A
PANEL-BODYSIDE, WHITE, LH (NON-ILLUSTRATED) WCI 5303269519 Contact Us For Availability
3B
SHIELD-HEAT, BODY SIDE (NON-ILLUSTRATED) WCI 3200834 Contact Us For Availability
4
WCI 316056205 WCI 316056205 Contact Us For Availability
4
WCI 316019718 WCI 316019718 Contact Us For Availability
4A
WCI 08067785 WCI 08067785 Contact Us For Availability
5
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
5
FASTENER-SPACER, PUSH-IN NUT, NYLON WCI 3131387 Contact Us For Availability
5
GLASS-OVEN DOOR, INNER WCI 5303209513 Contact Us For Availability
5A
ANTI-TIP KIT (NON-ILLUSTRATED) WCI 3934058 Contact Us For Availability
5B
WCI 5303288460 WCI 5303288460 Contact Us For Availability
6
SHIELD-INSULATION WCI 5303271181 Contact Us For Availability
7
WCI 316007002 No Longer Available
7
INSULATION-OVEN DOOR WCI 5303209514 Contact Us For Availability
8
PANEL-OVEN BOTTOM WCI 3203540 Contact Us For Availability
9
WCI 316073800 WCI 316073800 Contact Us For Availability
9
WCI 316066603 WCI 316066603 Contact Us For Availability
10
WCI 316073900 WCI 316073900 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24 X 3.375 WCI 316001001 Contact Us For Availability
12
SWITCH-OVEN LIGHT, DOOR FRAME WCI 316027701 Contact Us For Availability
13
WCI 316026800 WCI 316026800 Contact Us For Availability
14
REFLECTOR, ALUMINUM FOIL WCI 3131361 Contact Us For Availability
15
BRACKET-GLASS MTG WCI 5303209510 Contact Us For Availability
15B
WCI 5303305629 WCI 5303305629 Contact Us For Availability
15C
LIMITER SWITCH, SMALL/6 INCH (NON-ILLUSTRATED WCI 5303305628 Contact Us For Availability
16
GLASS-OVEN DOOR, HEAT BARRIER, (2) WCI 5303209512 Contact Us For Availability
16
WCI 316035513 WCI 316035513 Contact Us For Availability
16A
WCI 316034800 WCI 316034800 Contact Us For Availability
16B
WCI 316035700 WCI 316035700 Contact Us For Availability
17
RETAINER-GLASS WCI 3204585 Contact Us For Availability
17
WCI 5303209517 WCI 5303209517 Contact Us For Availability
18
WCI 316036300 WCI 316036300 Contact Us For Availability
18
HINGE-MAIN TOP (RH) WCI 5303273062 Contact Us For Availability
18
SEAL-ROPE, 0.25 DIA WCI 5303211085 Contact Us For Availability
18A
HINGE-MAIN TOP (LH) WCI 5303273063 Contact Us For Availability
19
WCI 316067600 WCI 316067600 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
25
WCI 3200848 WCI 3200848 Contact Us For Availability
28
PUSH BUTTON, CLOCK/TIMER/EOC, GRAY, (11) WCI 316015103 Contact Us For Availability
28
WCI 316045000 WCI 316045000 Contact Us For Availability
30
BRACKET-HINGE, MAIN TOP RH WCI 5303283574 Contact Us For Availability
30A
BRACKET-HINGE, MAIN TOP, LH WCI 5303283575 Contact Us For Availability
36
WCI 316033603 WCI 316033603 Contact Us For Availability
36A
CLIP-SPRING, ELEMENT MTG, (4) (NON-ILLUSTRATE WCI 316023301 Contact Us For Availability
36B
STUD-INDEX, TOP ELEMENT (NON-ILLUSTRATED) WCI 316041001 Contact Us For Availability
39
HANDLE-DRAWER, WHITE WCI 316019501 Contact Us For Availability
39
WCI 316008301 WCI 316008301 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
45
WCI 316066101 WCI 316066101 Contact Us For Availability
57
COVER-ACCESS WCI 3203405 Contact Us For Availability
58A
INSULATION, OVEN WRAPPER WCI 3200833 Contact Us For Availability
58B
WCI 316054200 WCI 316054200 Contact Us For Availability
58C
INSULATION, OVEN TOP WCI 3131304 Contact Us For Availability
59
WCI 316073602 WCI 316073602 Contact Us For Availability
59A
WCI 316023600 WCI 316023600 Contact Us For Availability
59B
WCI 316040100 WCI 316040100 Contact Us For Availability
60
SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/ WCI 5303281651 Contact Us For Availability
60
WCI 5303288574 WCI 5303288574 Contact Us For Availability
63
PLATE-GROUND STRAP WCI 5303212739 Contact Us For Availability
63A
WCI 316001161 WCI 316001161 Contact Us For Availability
71
WCI 316015803 WCI 316015803 Contact Us For Availability
72
COVER-LIGHT/SWITCH ROD WCI 5303285692 Contact Us For Availability
82
SHIELD, OVEN BOTTOM WCI 3200825 Contact Us For Availability
87
WCI 5303206618 WCI 5303206618 Contact Us For Availability
88
WCI 316026400 WCI 316026400 Contact Us For Availability
89
WCI 316028101 WCI 316028101 Contact Us For Availability
× ![]()
