Model Electrolux 31-4968-32-01 RANGE – Common Parts & Diagrams

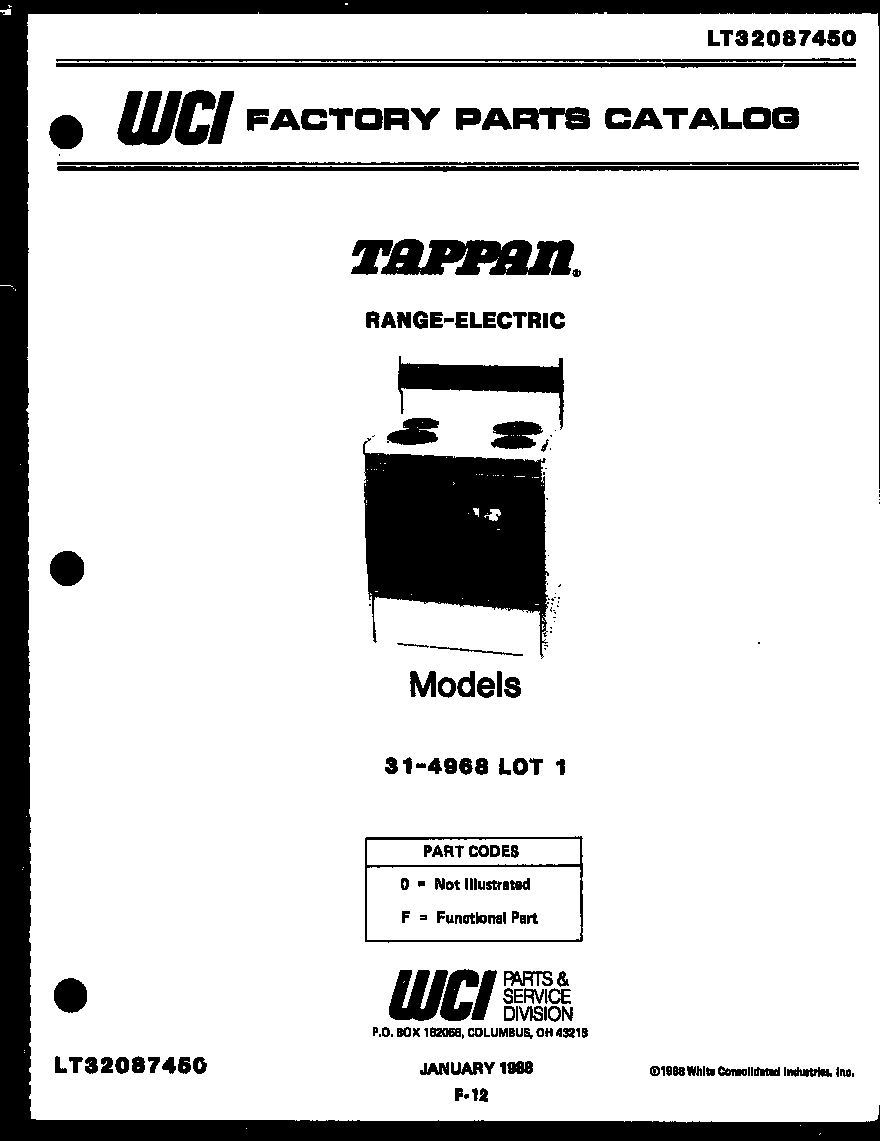

01 - COVER

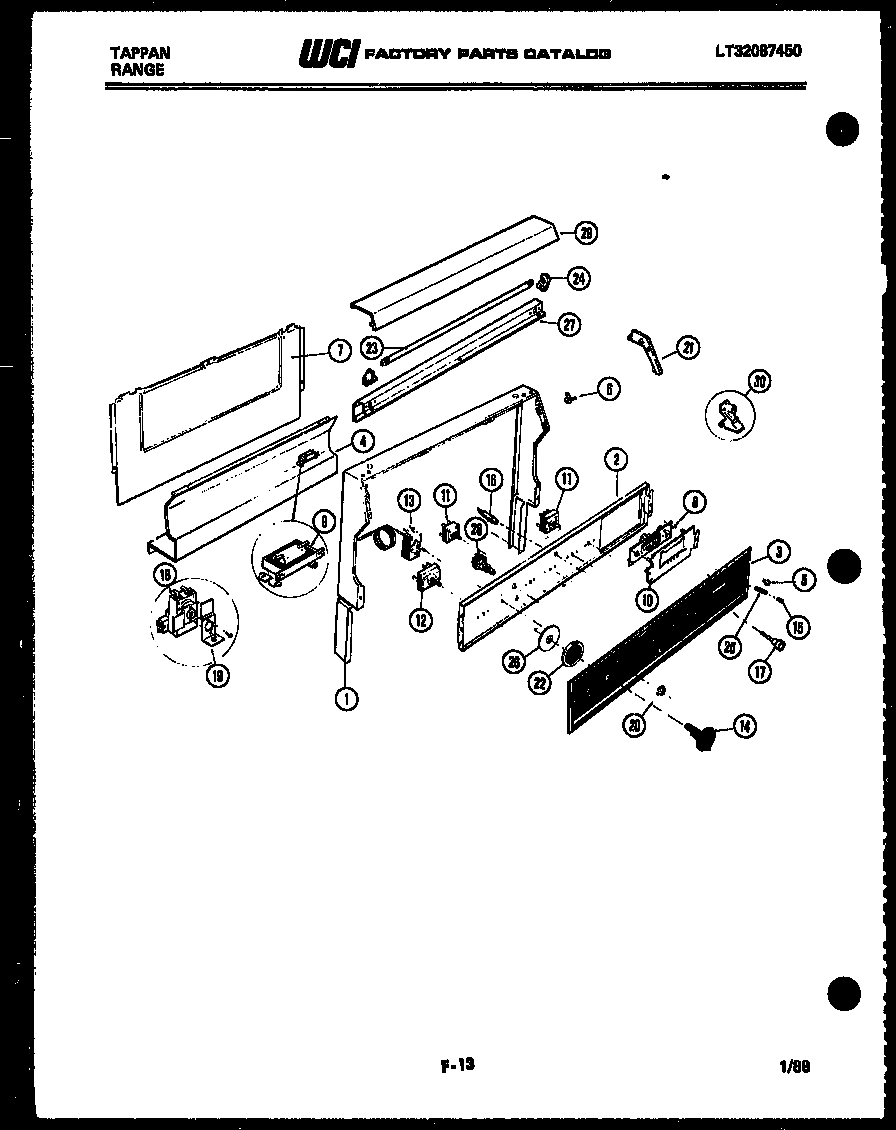

02 - BACKGUARD

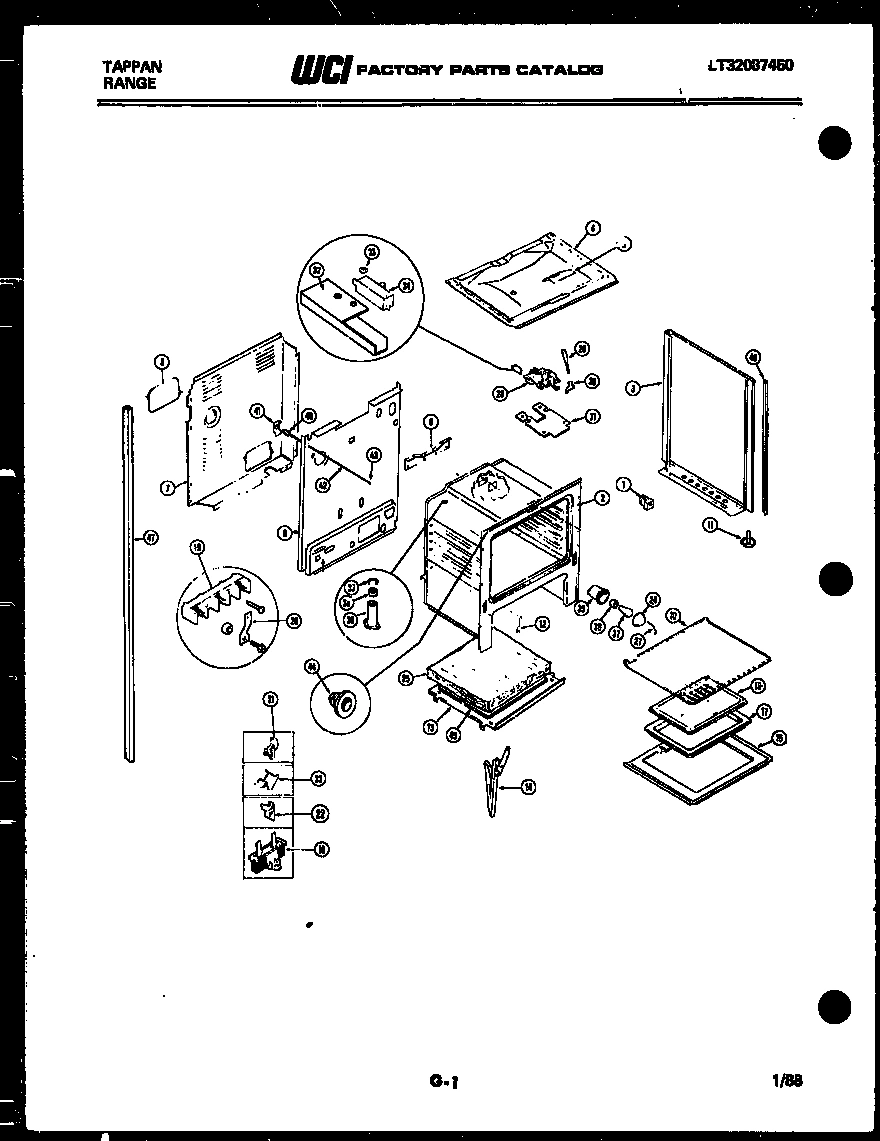

03 - BODY PARTS

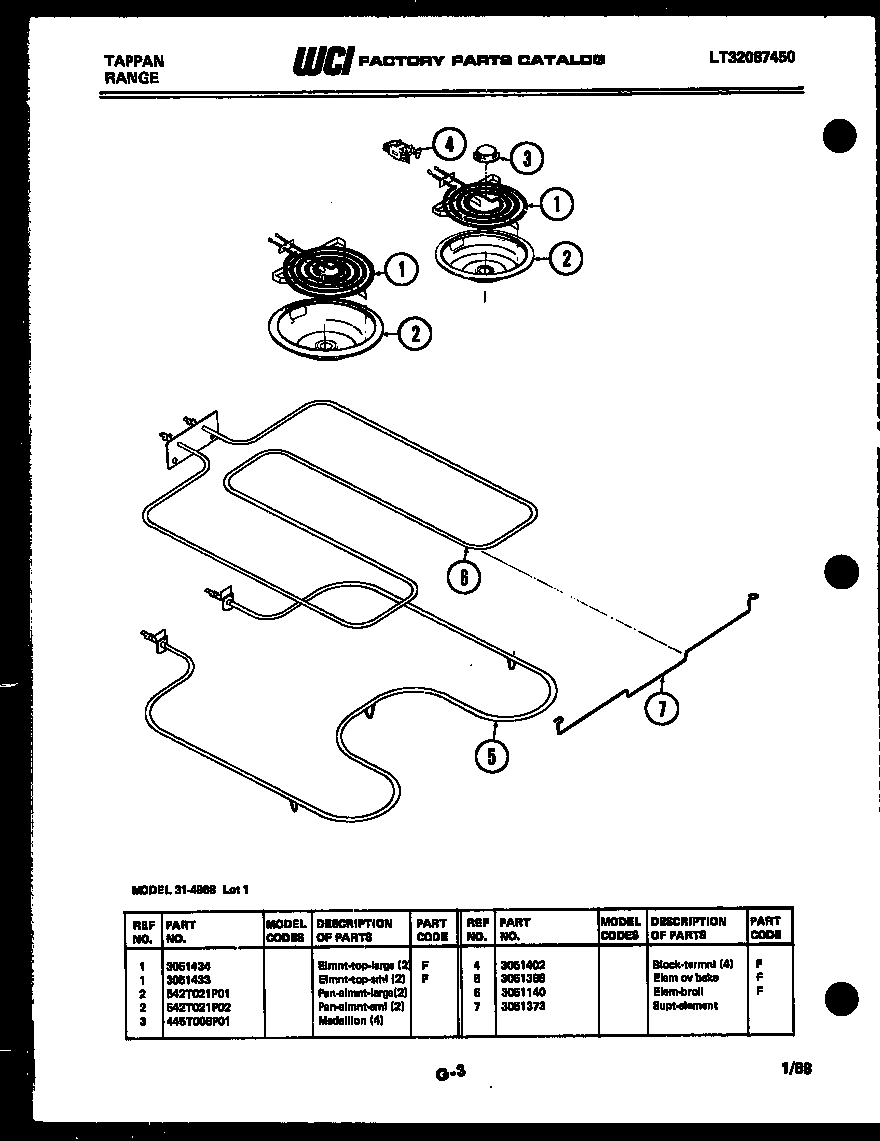

04 - BROILER PARTS

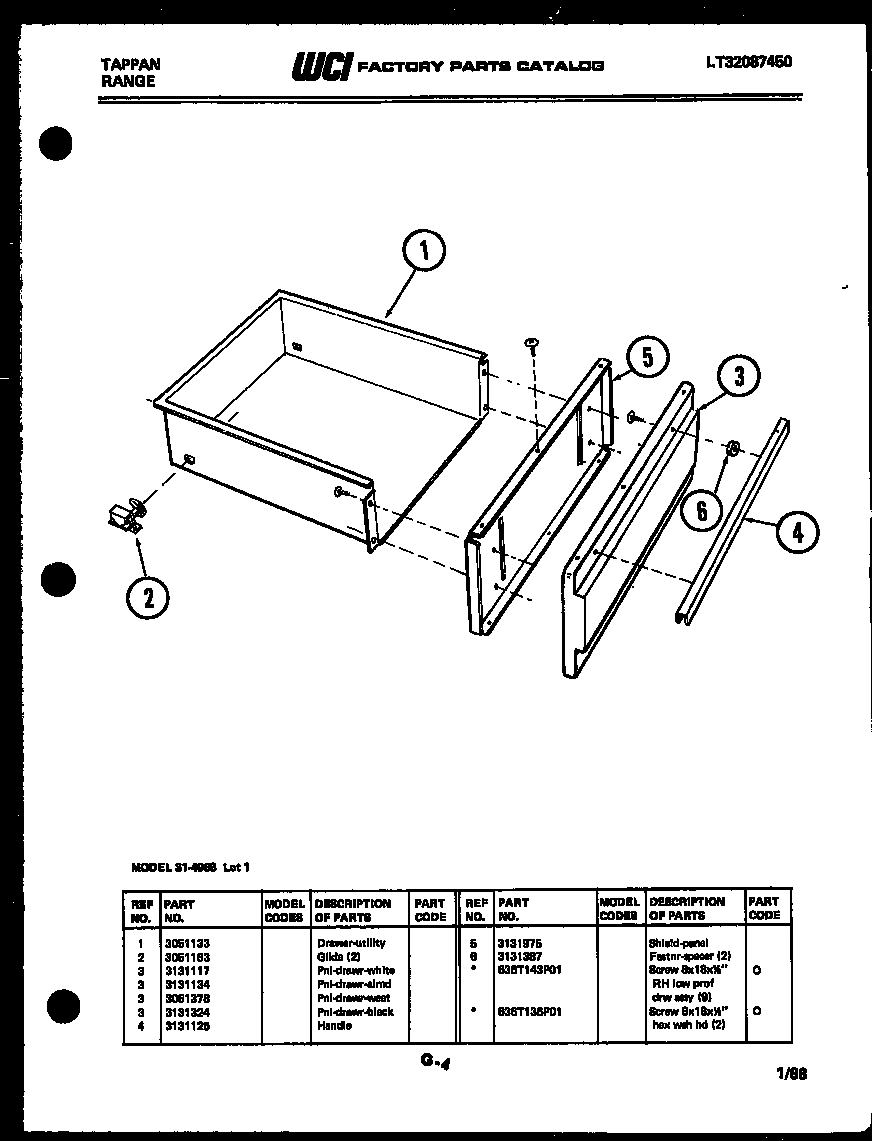

05 - DRAWER PARTS

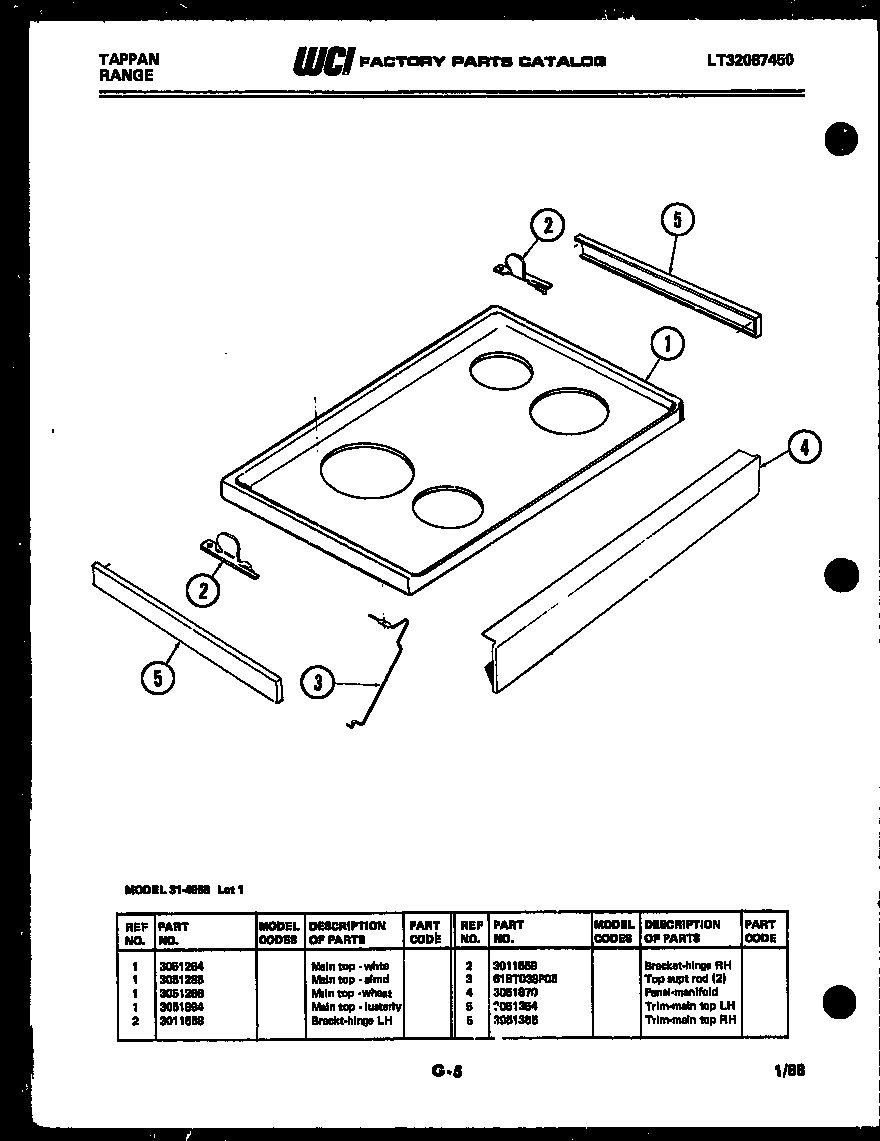

06 - COOKTOP PARTS

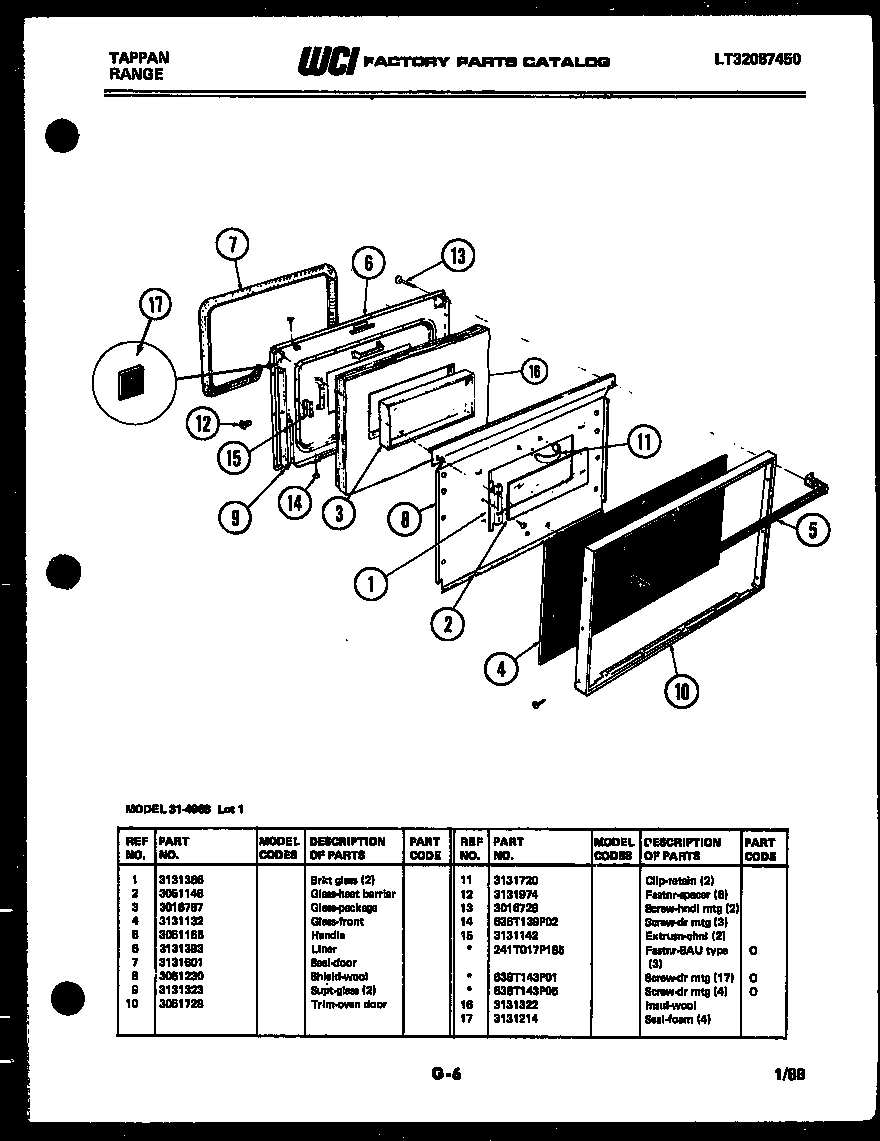

07 - DOOR PARTS
Common parts from model Electrolux 31-4968-32-01 RANGE
*10477
SCREW 8 X 18 X 1/2`` HEX WSH HD (2) WCI 636T135P01 Contact Us For Availability
1
SPACER-BDYSDE (8) WCI 3051736 Contact Us For Availability
1
DRAWER, UTILITY WCI 3051133 Contact Us For Availability
1
MAIN TOP (LUSTERLY) WCI 3051894 Contact Us For Availability
1
BRKT GLASS (2) WCI 3131366 Contact Us For Availability
2
BRACKT-HINGE LH WCI 3011558 Contact Us For Availability
2
WCI 3011559 WCI 3011559 Contact Us For Availability
2
WCI 3051148 WCI 3051148 Contact Us For Availability
3
PNL-BDYSD-RH-BLCK WCI 3131217 Contact Us For Availability
3
PNL-BDYSD-LH-BLCK WCI 3131221 Contact Us For Availability
3
WCI 445T006P01 WCI 445T006P01 Contact Us For Availability
3
PNL-DRAWR-BLACK WCI 3131324 Contact Us For Availability
3
TOP SUPT ROD (2) WCI 618T038P05 Contact Us For Availability
3
WCI 3016787 WCI 3016787 Contact Us For Availability
4
WCI 3051109 WCI 3051109 Contact Us For Availability
4
WCI 3131125 WCI 3131125 Contact Us For Availability
4
WCI 3051870 WCI 3051870 Contact Us For Availability
4
WCI 3131132 WCI 3131132 Contact Us For Availability
5
WCI 3131101 WCI 3131101 Contact Us For Availability
5
ELEM-OV BAKE WCI 3051388 Contact Us For Availability
5
WCI 3131975 WCI 3131975 Contact Us For Availability
5
WCI 3051354 WCI 3051354 Contact Us For Availability
5
WCI 3051355 WCI 3051355 Contact Us For Availability
5
WCI 3051165 WCI 3051165 Contact Us For Availability
6
FASTNR-GLASS (2) WCI 3131607 Contact Us For Availability
6
WCI 3131567 WCI 3131567 Contact Us For Availability
6
FASTNR-SPACER (2) WCI 3131387 Contact Us For Availability
6
LINER WCI 3131393 Contact Us For Availability
7
SHIELD, REAR WALL WCI 3131123 Contact Us For Availability
7
SHIELD-LWR WALL WCI 3051400 Contact Us For Availability
8
WCI 3051119 WCI 3051119 Contact Us For Availability
8
COVER-LWR ACCESS WCI 3051501 Contact Us For Availability
8
WCI 3051230 WCI 3051230 Contact Us For Availability
9
WCI 3051115 WCI 3051115 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
9
SUPT. GLASS (2) WCI 3131323 Contact Us For Availability
10
WCI 3131556 WCI 3131556 Contact Us For Availability
10
WCI 3051728 WCI 3051728 Contact Us For Availability
11
WCI 699T015P02 WCI 699T015P02 Contact Us For Availability
11
SCREW, LEVEL (4) WCI 636M004P01 Contact Us For Availability
11
CLIP-RETAIN. (2) WCI 3131720 Contact Us For Availability
12
CVR. HNG. CUTOUT (2) WCI 3131570 Contact Us For Availability
12
WCI 3051315 WCI 3051315 Contact Us For Availability
12
FASTNR-SPACER (6) WCI 3131974 Contact Us For Availability
13
THERMOSTAT, OVEN WCI 3051322 Contact Us For Availability
13
SHIELD-WOOL LWR WCI 3051398 Contact Us For Availability
13
SCREW-HNDL MTG (2) WCI 3016728 Contact Us For Availability
14
CHANL DR. HNG. (2) WCI 316007002 No Longer Available
14
KNOB, CONTROL (6) WCI 3051188 Contact Us For Availability
14
SCREW-DR MTG (3) WCI 636T139P02 Contact Us For Availability
15
WCI 358T206P01 WCI 358T206P01 Contact Us For Availability
15
WCI 3051104 WCI 3051104 Contact Us For Availability
15
EXTRUSN CHNL (2) WCI 3131142 Contact Us For Availability
15A
FASTNR 8A U-TYPE (3) (NON-ILLUSTRATED) WCI 241T017P185 Contact Us For Availability
15C
WCI 636T143P05 WCI 636T143P05 Contact Us For Availability
16
WCI 3091461 WCI 3091461 Contact Us For Availability
16
INDICATOR LITE-OVN WCI 3091462 Contact Us For Availability
16
FUSE-THERM. CUTOUT WCI 3051385 Contact Us For Availability
16
INSUL WOOL WCI 3131322 Contact Us For Availability
17
BTTN-EL CLOCK (4) WCI 106T051P01 Contact Us For Availability
17
WCI 539T010F01-86 WCI 539T010F01-86 Contact Us For Availability
17
SEAL, FOAM (4) WCI 3131214 Contact Us For Availability
18
WCI 3051324 WCI 3051324 Contact Us For Availability
18
WCI 3131356 WCI 3131356 Contact Us For Availability
19
ANGLE SUPT S/C THERMO. WCI 3131467 Contact Us For Availability
20
BEZEL-SW. WCI 3051727 Contact Us For Availability
20
GRND STRAP WCI 711T048P01 Contact Us For Availability
21
CAP, END LH WCI 3051134 Contact Us For Availability
21
CAP, END RH WCI 3051135 Contact Us For Availability
21
CLIP-THERM. BULB (2) WCI 3131295 Contact Us For Availability
22
DIAL-TOP ELMNT SW (4) WCI 3051128 Contact Us For Availability
22
WCI 3051129 WCI 3051129 Contact Us For Availability
22
DIAL-THERM. WCI 3051131 Contact Us For Availability
23
BULB-FLUOR WCI 3131275 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
24
RECEPT.-FLUOR LT LH WCI 3051222 Contact Us For Availability
24
RECEPT.-FLUOR LT RH WCI 3051223 Contact Us For Availability
24
WCI 3131298 WCI 3131298 Contact Us For Availability
25
WCI 3051347 WCI 3051347 Contact Us For Availability
25
WCI 3051429 WCI 3051429 Contact Us For Availability
26
SPACER, DIAL (5) WCI 3051304 Contact Us For Availability
26
WCI 3051344 WCI 3051344 Contact Us For Availability
27
SUPT-FLUOR RECEPT. MTG. WCI 3131277 Contact Us For Availability
27
WIRE-GLASS RETNR WCI 3131104 Contact Us For Availability
27A
INSUL - WRAP (NON-ILLUSTRATED) WCI 3131304 Contact Us For Availability
27B
WCI 3131303 WCI 3131303 Contact Us For Availability
27D
SCREW-HNG MTG (6) (NON-ILLUSTRATED) WCI 636T163P01 Contact Us For Availability
27E
NUT-HEX BRASS (6) (NON-ILLUSTRATED) WCI 479T069P41 Contact Us For Availability
28
SWITCH-FL. LT. WCI 3051312 Contact Us For Availability
28
SWITCH-OV LT WCI 695T211P02 Contact Us For Availability
28
WCI 3015361 WCI 3015361 Contact Us For Availability
29
WCI 3131466 WCI 3131466 Contact Us For Availability
29
WCI 3051473 WCI 3051473 Contact Us For Availability
30
SUPPORT-BACKGRD WCI 3131237 Contact Us For Availability
30
KNOB, LATCH WCI 358T158P02 Contact Us For Availability
30A
SCRW-SET LATCH KNOB (NON-ILLUSTRATED) WCI 636T144P01 Contact Us For Availability
31
SHIELD-LATCH WCI 3051413 Contact Us For Availability
32
SHIELD-BI MTL CATCH WCI 3131593 Contact Us For Availability
33
FASTNR-PUSH ON (3) WCI 3051733 Contact Us For Availability
34
SW.-LATCHING WCI 3051734 Contact Us For Availability
35
TUBE-OV. LT. WCI 3131363 Contact Us For Availability
38
WCI 244T041P01 WCI 244T041P01 Contact Us For Availability
39
RETAIN, CATALYST WCI 612T079P01 Contact Us For Availability
40
WCI 695T128P04 WCI 695T128P04 Contact Us For Availability
41
BRKT-LT SW. WCI 3131289 Contact Us For Availability
42
WCI 3051495 WCI 3051495 Contact Us For Availability
43
WCI 3051251 WCI 3051251 Contact Us For Availability
44
BTTN-REMOT LT SW WCI 3051731 Contact Us For Availability
45
WCI 3051430 WCI 3051430 Contact Us For Availability
45A
INSUL.-TOUCH (NON-ILLUSTRATED) WCI 3131305 Contact Us For Availability
46
TRIM-VERT. BDYSD (2) WCI 3051326 Contact Us For Availability
× ![]()
