Model Electrolux 31-4968-18-01 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - BASIC BODY

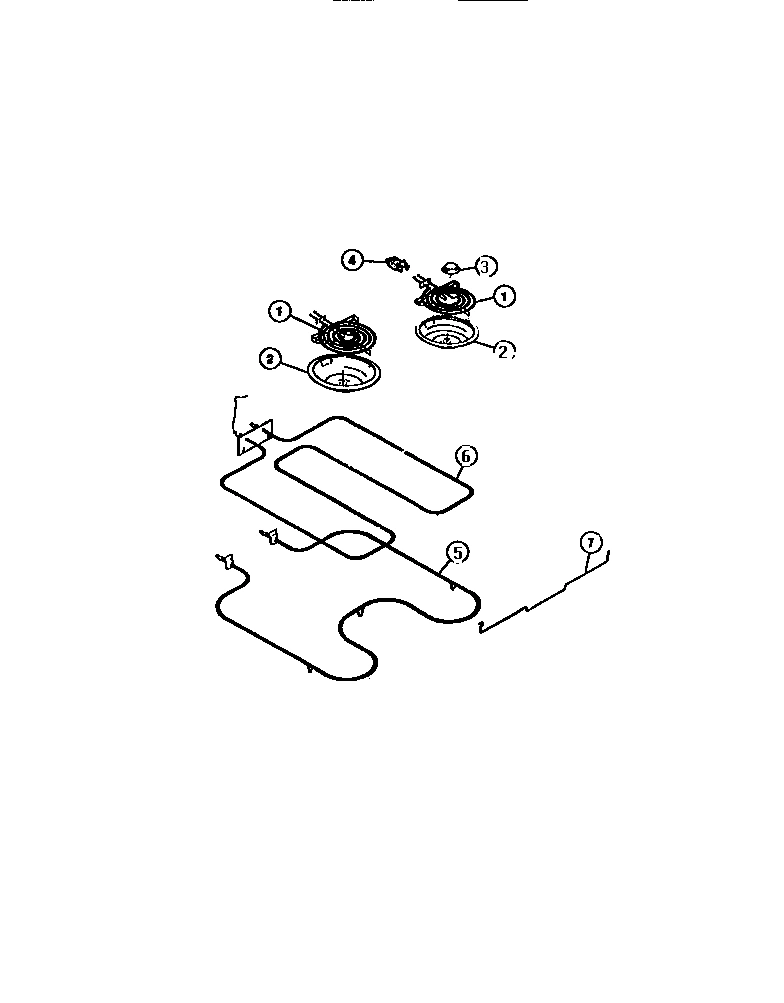

04 - ELEMENT

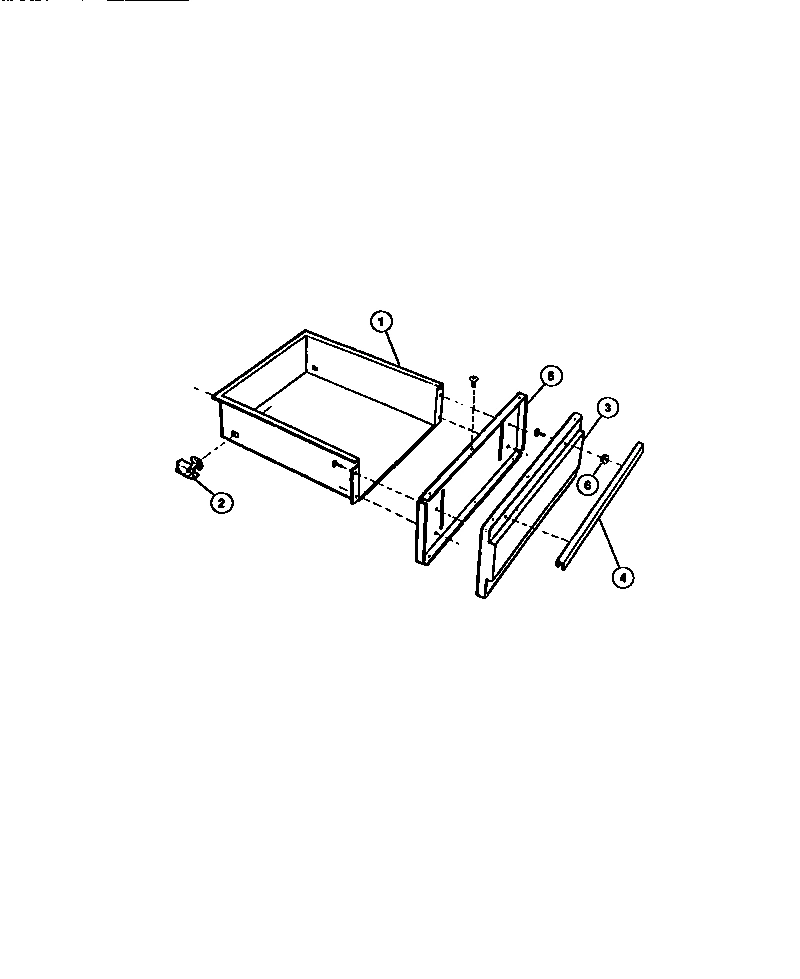

05 - UTILITY DRAWER

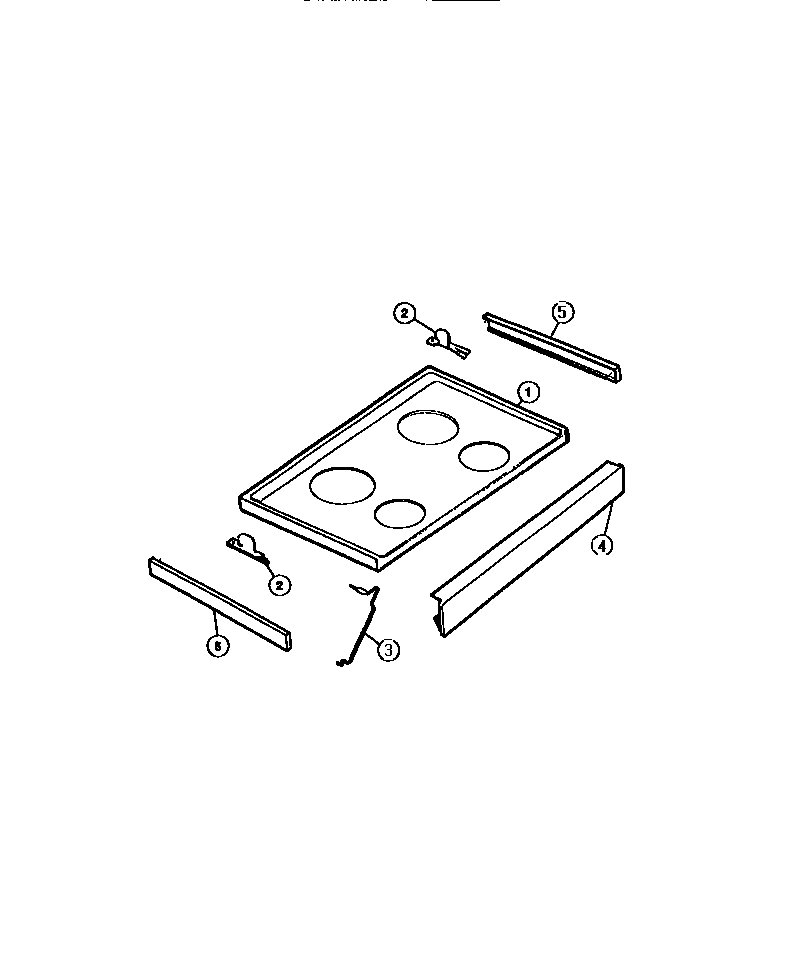

06 - TOP & RELATED PARTS

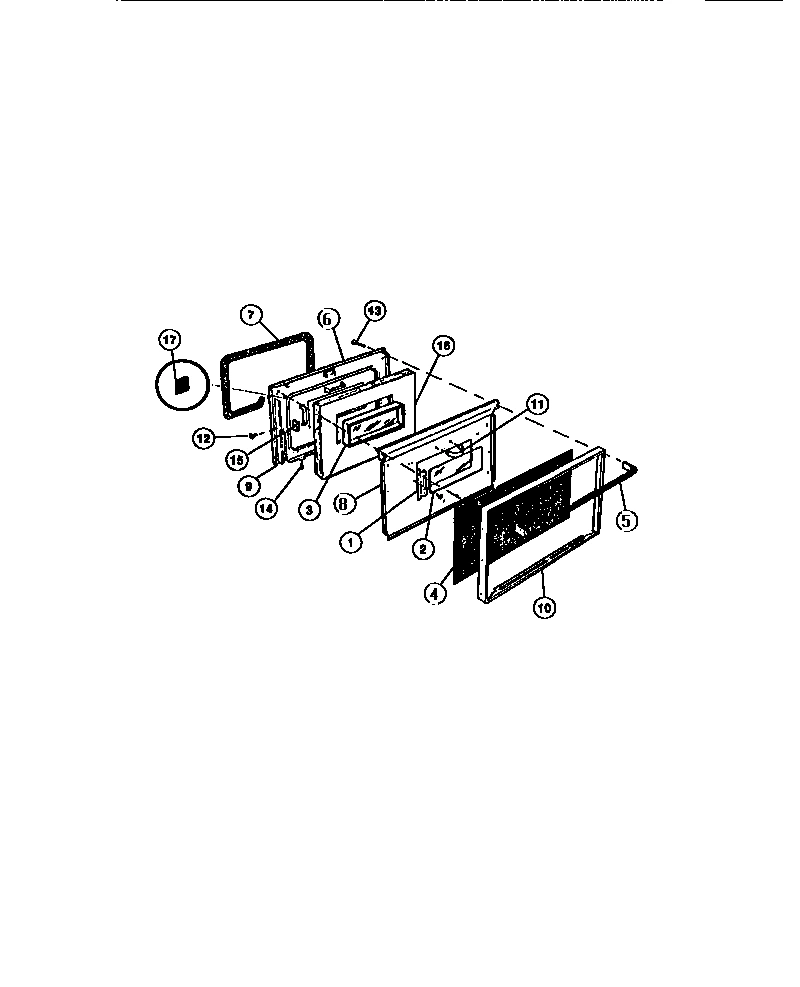

07 - OVEN DOOR
Common parts from model Electrolux 31-4968-18-01 RANGE
*69040
INSULATION, WRAP WCI 3131304 Contact Us For Availability
*69041
INSULATION, BACK WCI 3131303 Contact Us For Availability
*69043
SCREW, HINGE MOUNTING (6) WCI 636T163P01 Contact Us For Availability
*69044
WCI 479T069P41 WCI 479T069P41 Contact Us For Availability
*69045
INSULATION, TOUCH WCI 3131305 Contact Us For Availability
1
SPACER, BODYSIDE (8) WCI 3051736 Contact Us For Availability
1
DRAWER, UTILITY WCI 3051133 Contact Us For Availability
1
MAIN TOP (LUSTERLY) WCI 3051894 Contact Us For Availability
1
BRACKET, GLASS (2) WCI 3131366 Contact Us For Availability
2
WCI 3011558 WCI 3011558 Contact Us For Availability
2
WCI 3051148 WCI 3051148 Contact Us For Availability
2A
WCI 3011559 WCI 3011559 Contact Us For Availability
3
PANEL, BODYSIDE, LH (BLACK) WCI 3131221 Contact Us For Availability
3
WCI 445T006P01 WCI 445T006P01 Contact Us For Availability
3
PANEL-DRAWER (BLACK) WCI 3131324 Contact Us For Availability
3
TOP SUPPORT ROD (2) WCI 618T038P05 Contact Us For Availability
3
WCI 3016787 WCI 3016787 Contact Us For Availability
3A
PANEL, BODYSIDE, RH (BLACK) WCI 3131217 Contact Us For Availability
4
WCI 3051109 WCI 3051109 Contact Us For Availability
4
WCI 3131125 WCI 3131125 Contact Us For Availability
4
WCI 3051870 WCI 3051870 Contact Us For Availability
4
WCI 3131132 WCI 3131132 Contact Us For Availability
5
WCI 3131101 WCI 3131101 Contact Us For Availability
5
ELEMENT, OVEN BAKE WCI 3051388 Contact Us For Availability
5
WCI 3131975 WCI 3131975 Contact Us For Availability
5
WCI 3051354 WCI 3051354 Contact Us For Availability
5
WCI 3051165 WCI 3051165 Contact Us For Availability
5A
WCI 3051355 WCI 3051355 Contact Us For Availability
6
FASTENER, GLASS (2) WCI 3131607 Contact Us For Availability
6
WCI 3131567 WCI 3131567 Contact Us For Availability
6
FASTENER-SPACER (2) WCI 3131387 Contact Us For Availability
6
LINER WCI 3131393 Contact Us For Availability
6B
SCREW, 8 X 18 X 1/2``, HEX SHIM WASHER HEAD ( WCI 636T135P01 Contact Us For Availability
7
SHIELD, REAR WALL WCI 3131123 Contact Us For Availability
7
WCI 3051400 WCI 3051400 Contact Us For Availability
8
WCI 3051119 WCI 3051119 Contact Us For Availability
8
COVER, LOWER ACCESS WCI 3051501 Contact Us For Availability
8
WCI 3051230 WCI 3051230 Contact Us For Availability
9
WCI 3051115 WCI 3051115 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
9
WCI 3131323 WCI 3131323 Contact Us For Availability
10
PLATE, TIMER MOUNTING WCI 3131556 Contact Us For Availability
10
WCI 3051728 WCI 3051728 Contact Us For Availability
11
WCI 699T015P02 WCI 699T015P02 Contact Us For Availability
11
SCREW, LEVEL (4) WCI 636M004P01 Contact Us For Availability
11
CLIP, RETAINER (2) WCI 3131720 Contact Us For Availability
12
COVER-HINGE CUTOUT (2) WCI 3131570 Contact Us For Availability
12
WCI 3051315 WCI 3051315 Contact Us For Availability
12
FASTENER, SPACER (6) WCI 3131974 Contact Us For Availability
13
THERMOSTAT, OVEN WCI 3051322 Contact Us For Availability
13
WCI 3051398 WCI 3051398 Contact Us For Availability
13
SCREW, HANDLE MOUNTING (2) WCI 3016728 Contact Us For Availability
14
WCI 316007002 No Longer Available
14
KNOB, CONTROL (6) WCI 3051188 Contact Us For Availability
14
SCREW, DOOR MOUNTING (3) WCI 636T139P02 Contact Us For Availability
15
WCI 358T206P01 WCI 358T206P01 Contact Us For Availability
15
WCI 3051104 WCI 3051104 Contact Us For Availability
15
WCI 3131142 WCI 3131142 Contact Us For Availability
15A
FASTENER, 8 AU TYPE (3) (NON-ILLUSTRATED) WCI 241T017P185 Contact Us For Availability
15C
SCREW, DOOR MOUNTING (4) (NON-ILLUSTRATED) WCI 636T143P05 Contact Us For Availability
16
INDICATOR LITE, OVEN WCI 3091462 Contact Us For Availability
16
FUSE, THERMO CUTOUT WCI 3051385 Contact Us For Availability
16
INSULATION, WOOL WCI 3131322 Contact Us For Availability
16A
INDICATOR LITE, SURFACE UNIT WCI 3091461 Contact Us For Availability
17
BUTTON, ELECTRIC CLOCK (4) WCI 106T051P01 Contact Us For Availability
17
WCI 539T010F01-86 WCI 539T010F01-86 Contact Us For Availability
17
SEAL, FOAM (4) WCI 3131214 Contact Us For Availability
18
THERMOSTAT, OVEN, SELF CONTAINED WCI 3051324 Contact Us For Availability
18
WCI 3131356 WCI 3131356 Contact Us For Availability
19
ANGLE SUPPORT, SELF CONTAINED THERMOSTAT WCI 3131467 Contact Us For Availability
20
BEZEL SWITCH WCI 3051727 Contact Us For Availability
20
WCI 711T048P01 WCI 711T048P01 Contact Us For Availability
21
CAP, END LH WCI 3051134 Contact Us For Availability
21
CLIP, THERMAL BULB (2) WCI 3131295 Contact Us For Availability
21A
CAP, END RH WCI 3051135 Contact Us For Availability
22
WCI 3051128 WCI 3051128 Contact Us For Availability
22A
WCI 3051131 WCI 3051131 Contact Us For Availability
22B
DIAL, SELECTOR SWITCH WCI 3051129 Contact Us For Availability
23
BULB, FLOURESCENT WCI 3131275 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
24
RECEPTACLE, FLOURESCENT LITE, LH WCI 3051222 Contact Us For Availability
24
GLASS, OVEN LITE LENS WCI 3131298 Contact Us For Availability
24A
RECEPTACLE, FLOURESCENT LITE, RH WCI 3051223 Contact Us For Availability
25
SHAFT, ELECTRIC CLOCK WCI 3051347 Contact Us For Availability
25
INSULATION, BOTTOM WCI 3051429 Contact Us For Availability
26
SPACER, DIAL (5) WCI 3051304 Contact Us For Availability
26
WCI 3051344 WCI 3051344 Contact Us For Availability
27
SUPPORT, FLOURESCENT RECEPTACLE MOUNTING WCI 3131277 Contact Us For Availability
27
WCI 3131104 WCI 3131104 Contact Us For Availability
28
SWITCH, OVEN LITE WCI 695T211P02 Contact Us For Availability
28
WCI 3015361 WCI 3015361 Contact Us For Availability
28A
SWITCH, FLAT-LITE WCI 3051312 Contact Us For Availability
29
WCI 3131466 WCI 3131466 Contact Us For Availability
29
WCI 3051473 WCI 3051473 Contact Us For Availability
30
SUPPORT, BACKGROUND WCI 3131237 Contact Us For Availability
30
KNOB, LATCH WCI 358T158P02 Contact Us For Availability
30A
SCREW, SET LATCH KNOB WCI 636T144P01 Contact Us For Availability
31
SHIELD-LATCH WCI 3051413 Contact Us For Availability
32
SHIELD, BI METAL CATCH WCI 3131593 Contact Us For Availability
33
FASTENER, PUSH ON (3) WCI 3051733 Contact Us For Availability
34
WCI 3051734 WCI 3051734 Contact Us For Availability
35
TUBE, OVEN LITE WCI 3131363 Contact Us For Availability
38
WCI 244T041P01 WCI 244T041P01 Contact Us For Availability
39
RETAIN, CATALYST WCI 612T079P01 Contact Us For Availability
40
WCI 695T128P04 WCI 695T128P04 Contact Us For Availability
41
BRACKET, LITE SWITCH WCI 3131289 Contact Us For Availability
42
WCI 3051495 WCI 3051495 Contact Us For Availability
43
WCI 3051251 WCI 3051251 Contact Us For Availability
44
BOTTOM REMOTE LITE SWITCH WCI 3051713 Contact Us For Availability
45
SHIELD, HEAT LOWER WCI 3051430 Contact Us For Availability
46
TRIM-VERTICAL BODYSIDE (2) WCI 3051326 Contact Us For Availability
× ![]()
