Model Electrolux 31-4667-66-03 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - BODY PARTS

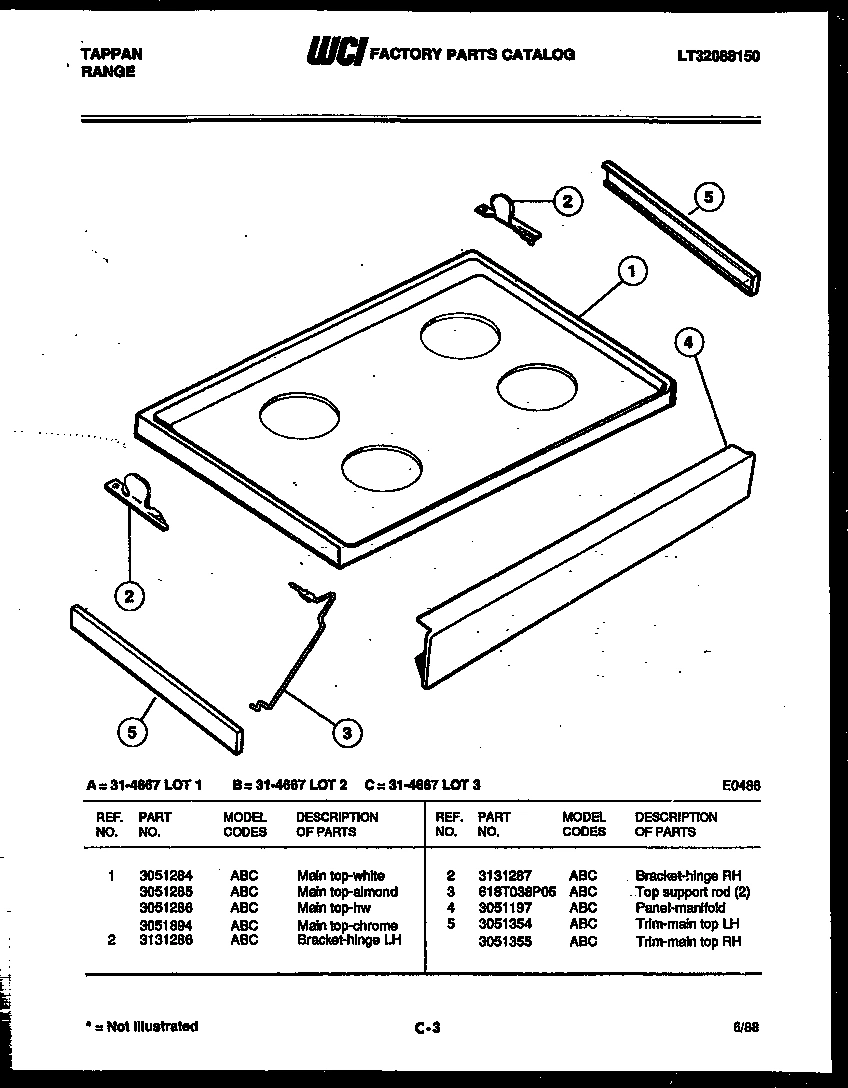

04 - COOKTOP PARTS

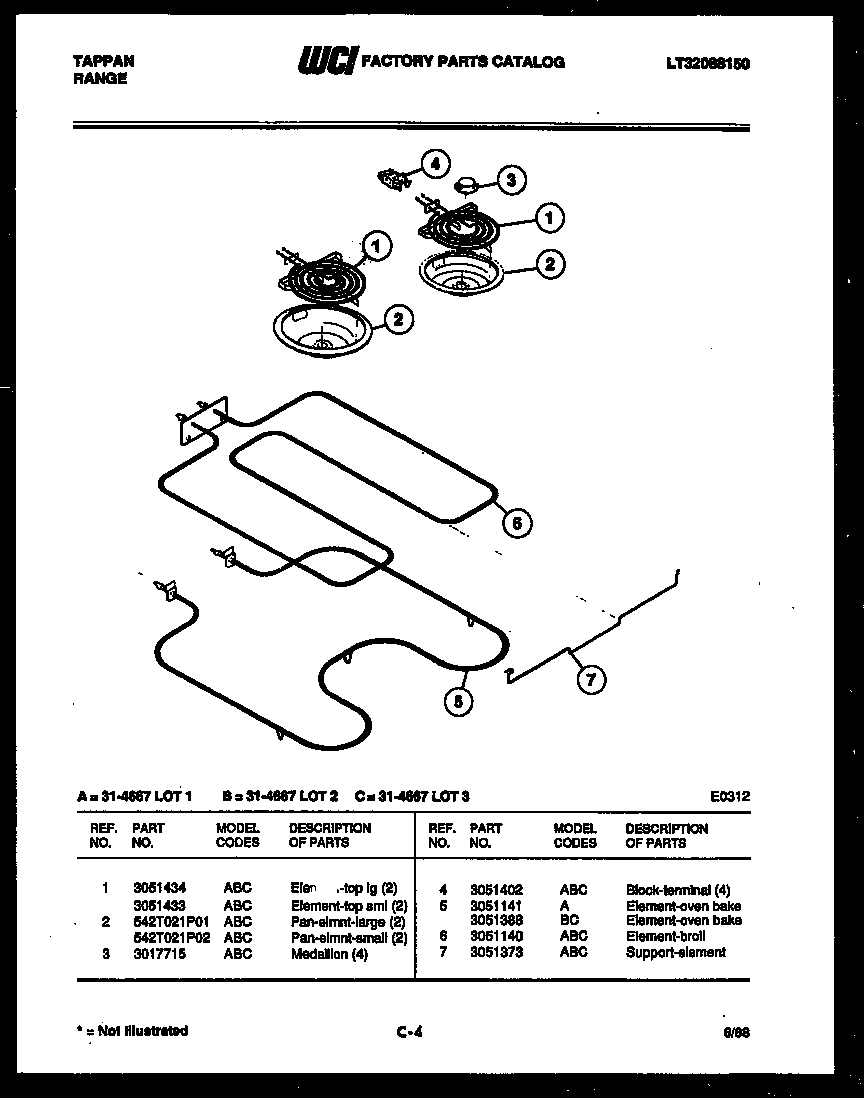

05 - BROILER PARTS

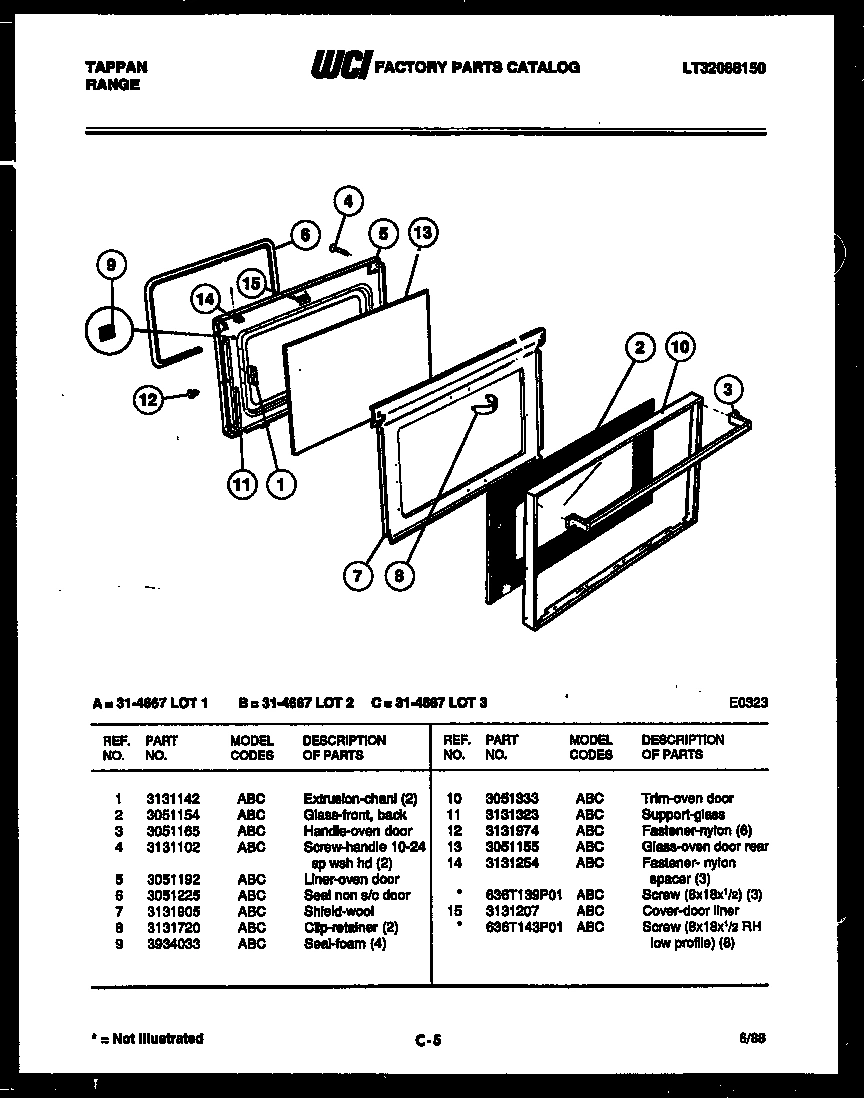

06 - DOOR PARTS

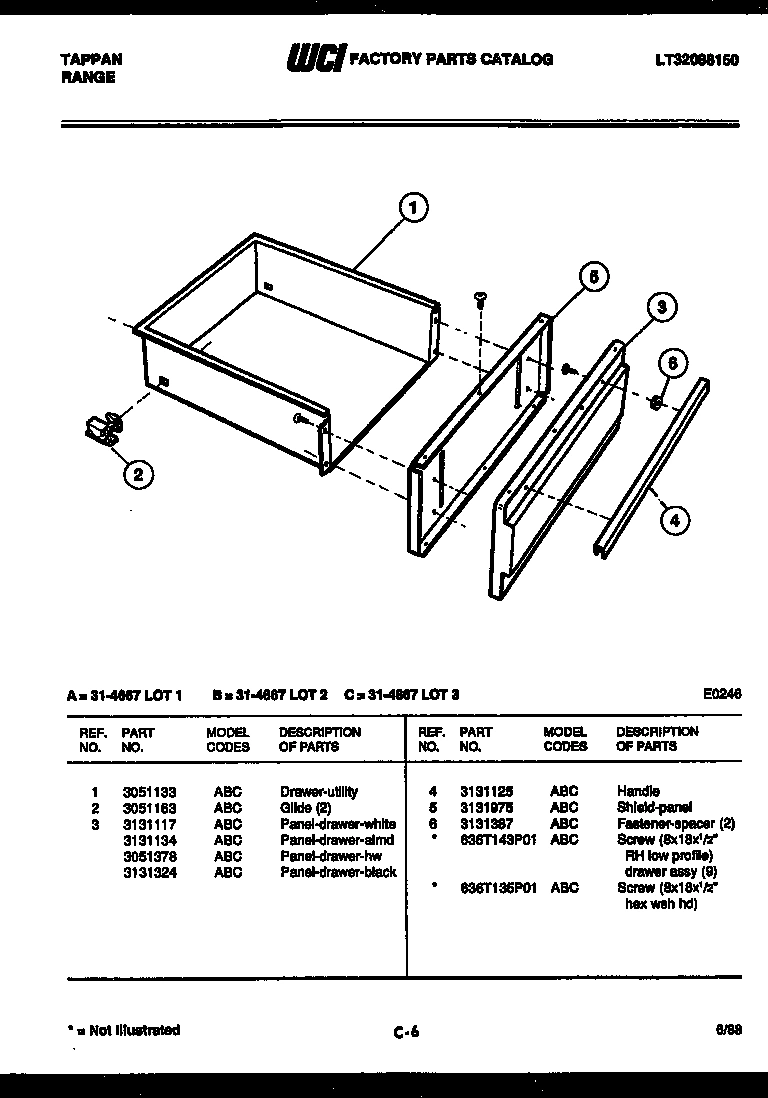

07 - DRAWER PARTS
Common parts from model Electrolux 31-4667-66-03 RANGE
*11691
SCREW (8 X 18 X 1/2`` HEX WSH HD) WCI 636T135P01 Contact Us For Availability
1
SPACER, BODYSIDE (8) WCI 3051736 Contact Us For Availability
1
MAIN TOP (HW) WCI 3051286 Contact Us For Availability
1
EXTRUSION-CHANL (2) WCI 3131142 Contact Us For Availability
1
DRAWER, UTILITY WCI 3051133 Contact Us For Availability
2
BRACKET, HINGE, LH WCI 3131286 Contact Us For Availability
2
BRACKET, HINGE, RH WCI 3131287 Contact Us For Availability
2
GLASS-FRONT, BACK WCI 3051154 Contact Us For Availability
3
PNL-BDYSDE-LH-BLCK WCI 3131221 Contact Us For Availability
3
PNL-BDYSDE-LH-H.W. WCI 3131478 Contact Us For Availability
3
TOP SUPPORT ROD (2) WCI 618T038P05 Contact Us For Availability
3
HANDLE OVEN DOOR WCI 3051165 Contact Us For Availability
3
PANEL-DRAWER-H.W. WCI 3051378 Contact Us For Availability
3
PANEL-DRAWER (BLACK) WCI 3131324 Contact Us For Availability
3A
PNL-BDYSDE-RH-BLCK WCI 3131217 Contact Us For Availability
3A
PNL-BDYSDE-RH-H.W. WCI 3131477 Contact Us For Availability
4
WCI 3017926 WCI 3017926 Contact Us For Availability
4
WCI 3051197 WCI 3051197 Contact Us For Availability
4
SCREW-HANDLE 10-24 SP WSH HD (2) WCI 3131102 Contact Us For Availability
4
WCI 3131125 WCI 3131125 Contact Us For Availability
5
WCI 3051354 WCI 3051354 Contact Us For Availability
5
ELEMENT, OVEN BAKE WCI 3051388 Contact Us For Availability
5
LINER-OVEN DOOR WCI 3051192 Contact Us For Availability
5
WCI 3131975 WCI 3131975 Contact Us For Availability
5A
WCI 3051355 WCI 3051355 Contact Us For Availability
6
FASTENER-GLASS (2) WCI 241T049P01 Contact Us For Availability
6
WCI 3131567 WCI 3131567 Contact Us For Availability
6
FASTENER-SPACER (2) WCI 3131387 Contact Us For Availability
7
SHIELD, REAR WALL WCI 3131123 Contact Us For Availability
7
WCI 3051400 WCI 3051400 Contact Us For Availability
7
WCI 3131905 WCI 3131905 Contact Us For Availability
8
WCI 3051118 WCI 3051118 Contact Us For Availability
8
COVER, LOWER ACCESS WCI 3051501 Contact Us For Availability
8
CLIP, RETAINER (2) WCI 3131720 Contact Us For Availability
9
WCI 3051115 WCI 3051115 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
9
SEAL, FOAM (4) WCI 3934033 Contact Us For Availability
10
PLATE, TIMER MOUNTING WCI 3131556 Contact Us For Availability
10
WCI 3051333 WCI 3051333 Contact Us For Availability
11
WCI 699T015P02 WCI 699T015P02 Contact Us For Availability
11
SCREW, LEVEL (4) WCI 636M004P01 Contact Us For Availability
11
SUPPORT, GLASS WCI 3131323 Contact Us For Availability
12
COVER-HINGE CUTOUT (2) WCI 3131570 Contact Us For Availability
12
WCI 3051316 WCI 3051316 Contact Us For Availability
12
FASTENER, NYLON (6) WCI 3131974 Contact Us For Availability
13
THERMOSTAT WCI 3051323 Contact Us For Availability
13
WCI 3051398 WCI 3051398 Contact Us For Availability
13
GLASS-OVEN DOOR REAR WCI 3051155 Contact Us For Availability
14
KNOB-CONTROL WCI 3051188 Contact Us For Availability
14
CHNL-DOOR HINGE (2) WCI 3131569 Contact Us For Availability
14
WCI 3131254 WCI 3131254 Contact Us For Availability
14A
SCREW 8 X 18 X 1/2`` (3) (NON-ILLUSTRATED) WCI 636T139P01 Contact Us For Availability
15
WCI 358T206P01 WCI 358T206P01 Contact Us For Availability
15
WCI 3051104 WCI 3051104 Contact Us For Availability
15
COVER, DOOR LINER WCI 3131207 Contact Us For Availability
16
INDICATOR-LIGHT OVEN WCI 3091462 Contact Us For Availability
16
FUSE-THERMAL CUT OUT WCI 3051147 Contact Us For Availability
16A
INDICATOR-LIGHT S/U WCI 3091461 Contact Us For Availability
17
BUTTON-ELECTRIC CLOCK (3) WCI 106T051P01 Contact Us For Availability
17
WCI 539T010F01-86 WCI 539T010F01-86 Contact Us For Availability
18
WCI 3051727 WCI 3051727 Contact Us For Availability
18
INSERT-BRIOLER PAN WCI 3131356 Contact Us For Availability
19
CAP, END LH WCI 3051134 Contact Us For Availability
19A
CAP, END RH WCI 3051135 Contact Us For Availability
20
WCI 3051128 WCI 3051128 Contact Us For Availability
20
WCI 711T048P01 WCI 711T048P01 Contact Us For Availability
20A
WCI 3051130 WCI 3051130 Contact Us For Availability
20B
WCI 3051131 WCI 3051131 Contact Us For Availability
21
BULB-FLUOR WCI 3131275 Contact Us For Availability
22
RECEPTACLE - FLUOR LIGHT LH WCI 3051222 Contact Us For Availability
22A
RECEPTACLE - FLUOR LIGHT RH WCI 3051223 Contact Us For Availability
23
SHAFT-ELECT. CLOCK WCI 3051347 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
24
SPACER, DIAL (5) WCI 3051304 Contact Us For Availability
24
COVER-FRONT MAIN WCI 3131548 Contact Us For Availability
25
SUPPORT-FLUOR RECEPTACLE MOUNTING WCI 3131277 Contact Us For Availability
26
WCI 695T211P02 WCI 695T211P02 Contact Us For Availability
26
WCI 3051344 WCI 3051344 Contact Us For Availability
26A
SWITCH - FLUOR LIGHT WCI 3051312 Contact Us For Availability
27
WCI 3051329 WCI 3051329 Contact Us For Availability
27A
INSULATION-WRAP (NON-ILLUSTRATED) WCI 3131201 Contact Us For Availability
27B
INSULATION-BACK (NON-ILLUSTRATED) WCI 3131200 Contact Us For Availability
27D
SCREW-HINGE MOUNT (6) (NON-ILLUSTRATED) WCI 636T163P01 Contact Us For Availability
27E
NUT-HEX BRASS (6) (NON-ILLUSTRATED) WCI 479T069P41 Contact Us For Availability
28
SUPPORT-BACKGUARD (2) WCI 3131237 Contact Us For Availability
28
BOTTOM-OV REMOVBLE WCI 3051417 Contact Us For Availability
29
TUBE-OVEN LIGHT WCI 3051343 Contact Us For Availability
31
TRIM-VERT. BODY SIDES (2) WCI 3051326 Contact Us For Availability
× ![]()
