Model Electrolux 31-3988-23-01 RANGE – Common Parts & Diagrams

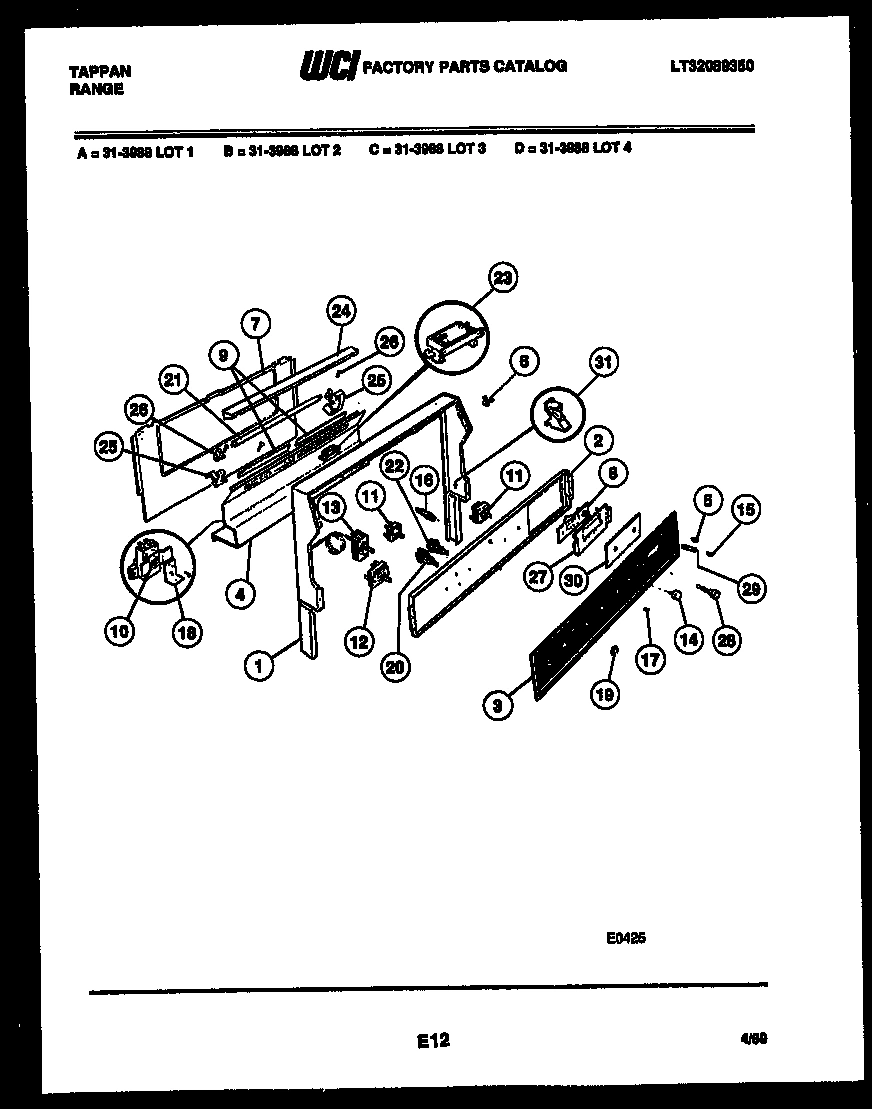

02 - BACKGUARD

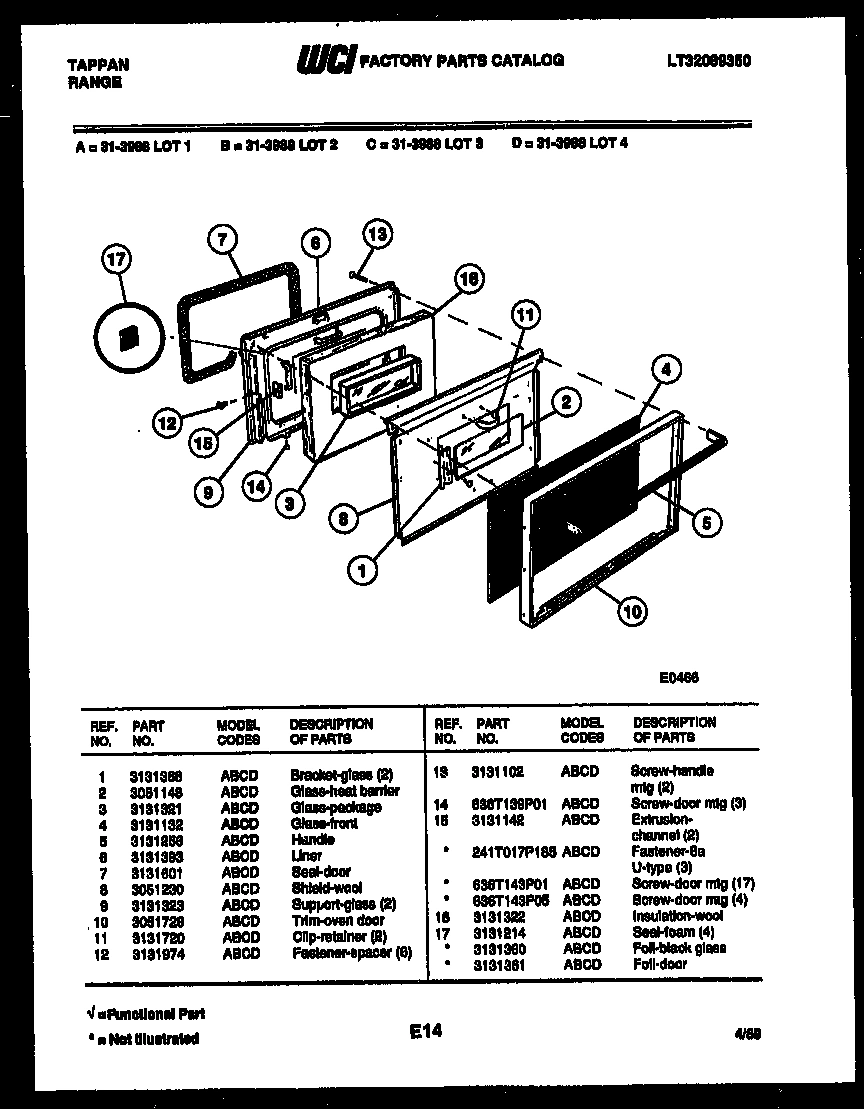

03 - DOOR PARTS

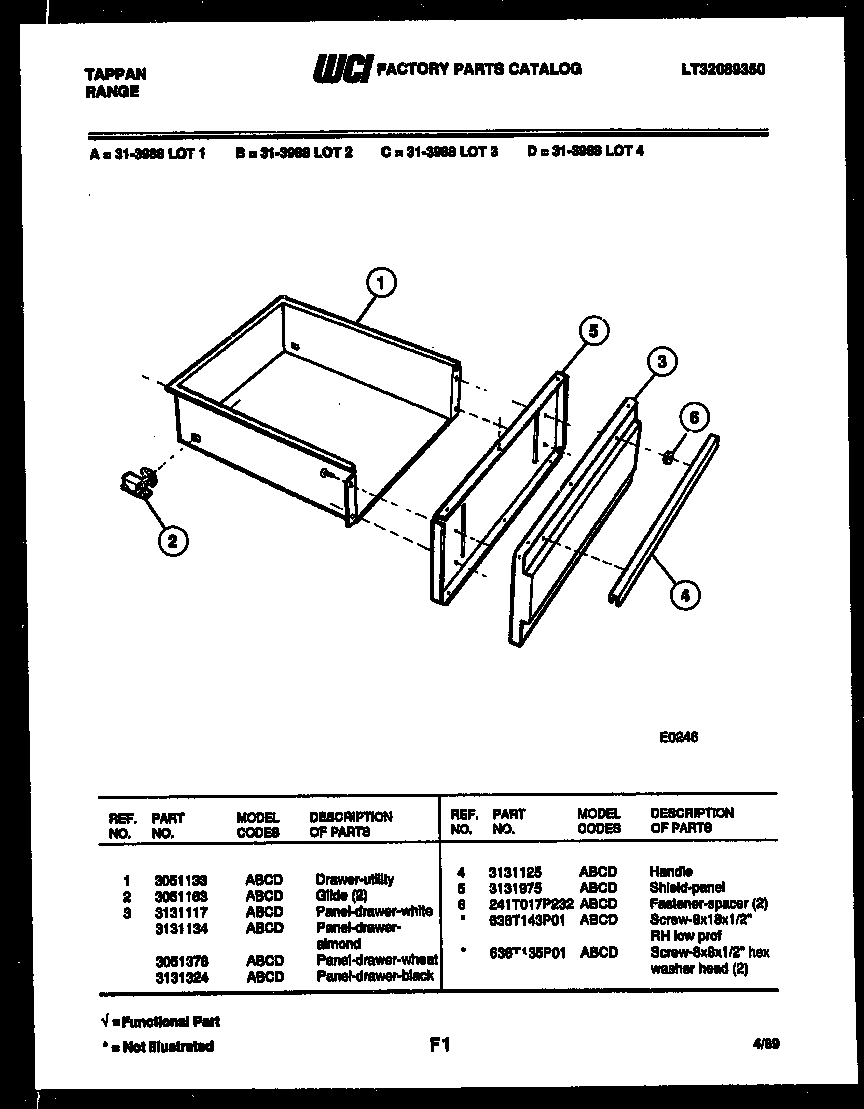

04 - DRAWER PARTS

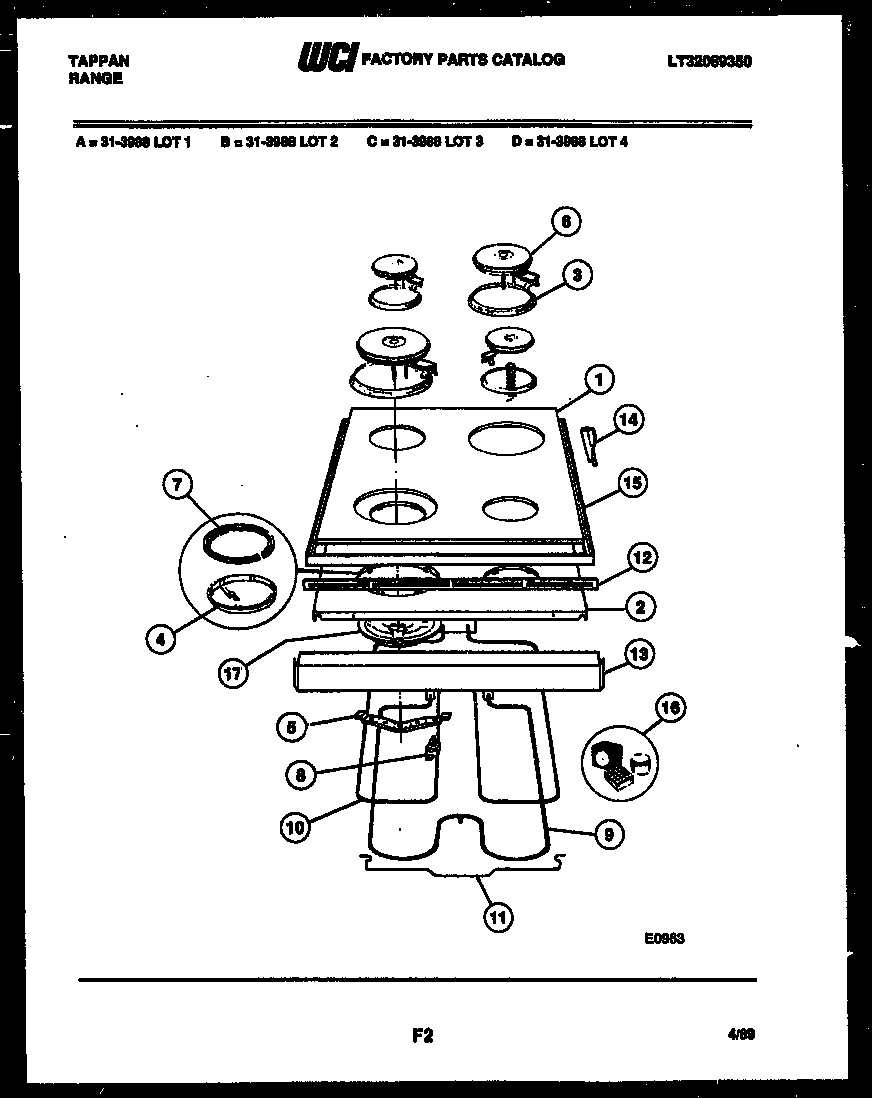

05 - COOKTOP AND BROILER PARTS

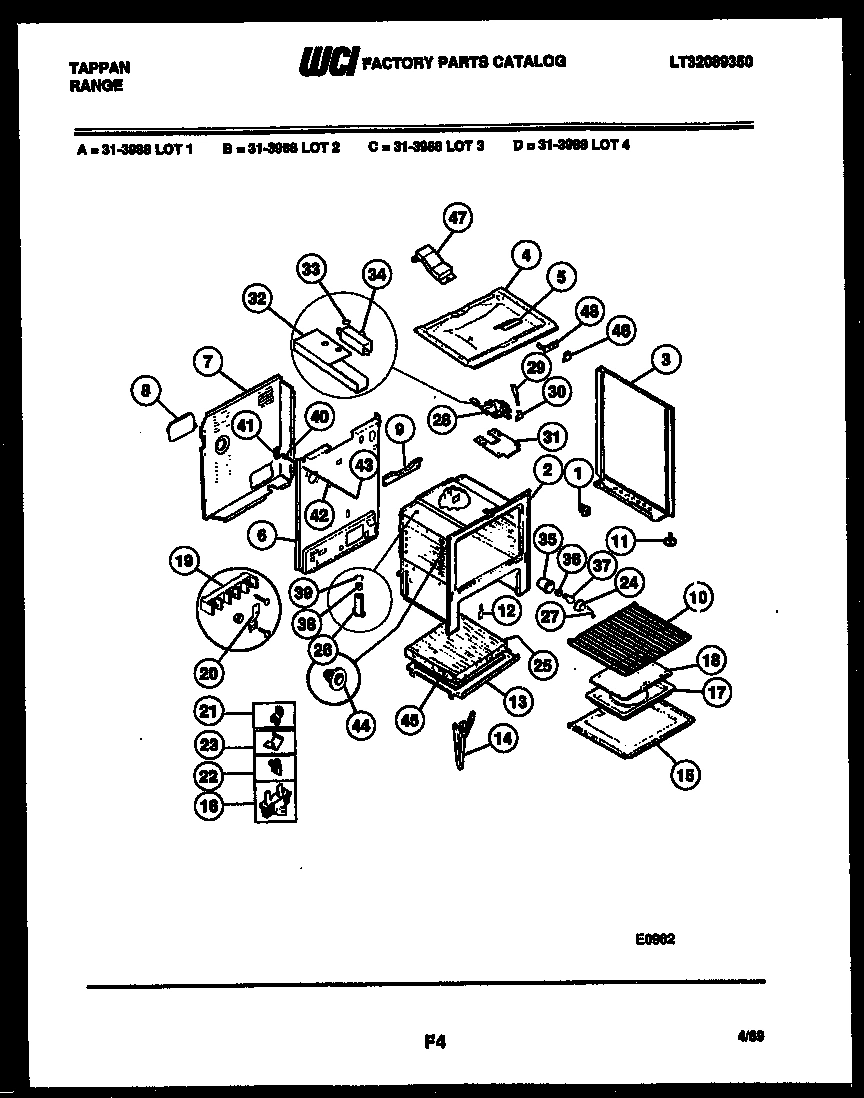

06 - BODY PARTS
Common parts from model Electrolux 31-3988-23-01 RANGE
*15937
FOIL-DOOR WCI 3131361 Contact Us For Availability
*15937
SCREW-8 X 8 X 1/2`` HEX WASHER HEAD (2) WCI 636T135P01 Contact Us For Availability
1
BRACKET, GLASS (2) WCI 3131366 Contact Us For Availability
1
DRAWER, UTILITY WCI 3051133 Contact Us For Availability
1
WCI 3051156 WCI 3051156 Contact Us For Availability
1
WCI 665T188P02 WCI 665T188P02 Contact Us For Availability
2
WCI 3051148 WCI 3051148 Contact Us For Availability
2
WCI 3018329 WCI 3018329 Contact Us For Availability
3
GLASS, PACKAGE WCI 3131321 Contact Us For Availability
3
WCI 3131134 WCI 3131134 Contact Us For Availability
3
PANEL-DRAWER (BLACK) WCI 3131324 Contact Us For Availability
3
WCI 3051334 WCI 3051334 Contact Us For Availability
3
PANEL B/S-LH BLACK WCI 3131221 Contact Us For Availability
3
PANEL B/S LH-ALMD WCI 3131453 Contact Us For Availability
3
PANEL B/S LH-BLACK WCI 3201000 Contact Us For Availability
3A
TRIM-RING OUTER MED WCI 3051335 Contact Us For Availability
3A
PANEL B/S-RH BLACK WCI 3131217 Contact Us For Availability
3A
PANEL B/S RH-ALMD WCI 3131454 Contact Us For Availability
3A
PANEL B/S RH-BLACK WCI 3201001 Contact Us For Availability
3B
WCI 3051336 WCI 3051336 Contact Us For Availability
4
WCI 3131132 WCI 3131132 Contact Us For Availability
4
WCI 3131125 WCI 3131125 Contact Us For Availability
4
WCI 3051337 WCI 3051337 Contact Us For Availability
4
WCI 3051109 WCI 3051109 Contact Us For Availability
4A
TRIM-RING INNER MED WCI 3051338 Contact Us For Availability
4B
WCI 3051339 WCI 3051339 Contact Us For Availability
5
WCI 3131256 WCI 3131256 Contact Us For Availability
5
WCI 3131975 WCI 3131975 Contact Us For Availability
5
CHANNEL-TOP ELEMENT MOUNTING SMALL (2) WCI 3051122 Contact Us For Availability
5
WCI 3131101 WCI 3131101 Contact Us For Availability
5A
CHANNEL-TOP ELEMENT MOUNTING LARGE WCI 3051120 Contact Us For Availability
6
FASTENER-GLASS (2) WCI 241T049P01 Contact Us For Availability
6
LINER WCI 3131393 Contact Us For Availability
6
FASTENER, SPACER (2) WCI 241T017P232 Contact Us For Availability
6
ELEMENT-TOP SMALL (2) WCI 3051142 Contact Us For Availability
6
WCI 3131567 WCI 3131567 Contact Us For Availability
6A
WCI 3051143 WCI 3051143 Contact Us For Availability
6B
WCI 3051144 WCI 3051144 Contact Us For Availability
7
SHIELD, REAR WALL WCI 3131123 Contact Us For Availability
7
WCI 3018330 WCI 3018330 Contact Us For Availability
7
SEAL-TOP ELEMENT MED WCI 3018331 Contact Us For Availability
7
WCI 3051400 WCI 3051400 Contact Us For Availability
7A
WCI 3018332 WCI 3018332 Contact Us For Availability
8
WCI 3131722 WCI 3131722 Contact Us For Availability
8
WCI 3051230 WCI 3051230 Contact Us For Availability
8
SWITCH-THERMAL PROTECTOR (4) WCI 3051885 Contact Us For Availability
8
COVER, LOWER ACCESS WCI 3051501 Contact Us For Availability
9
WCI 3131145 WCI 3131145 Contact Us For Availability
9
WCI 3131323 WCI 3131323 Contact Us For Availability
9
WCI 3051388 WCI 3051388 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
10
WCI 3015183 WCI 3015183 Contact Us For Availability
10
WCI 3051728 WCI 3051728 Contact Us For Availability
11
SWITCH-TOP (3) WCI 699T015P02 Contact Us For Availability
11
CLIP, RETAINER (2) WCI 3131720 Contact Us For Availability
11
SCREW, LEVEL (4) WCI 636M004P01 Contact Us For Availability
11A
WCI 3051318 WCI 3051318 Contact Us For Availability
12
COVER-HNG CUTOUT (1) WCI 3131570 Contact Us For Availability
12
WCI 3051315 WCI 3051315 Contact Us For Availability
12
FASTENER, SPACER (6) WCI 3131974 Contact Us For Availability
12
WCI 740T390P01 WCI 740T390P01 Contact Us For Availability
13
THERMOSTAT, OVEN WCI 3051322 Contact Us For Availability
13
SCREW-HANDLE MTG (2) WCI 3131102 Contact Us For Availability
13
WCI 3051870 WCI 3051870 Contact Us For Availability
13
WCI 3051398 WCI 3051398 Contact Us For Availability
14
CHANNEL-DR HINGE (2) WCI 316007002 No Longer Available
14
KNOB-TOP ELEMENT (3) WCI 3051487 Contact Us For Availability
14
SCREW-DOOR MTG. (3) WCI 636T139P01 Contact Us For Availability
14
BRACKET, MAIN TOP HINGE (LH) WCI 3131286 Contact Us For Availability
14A
WCI 3051490 WCI 3051490 Contact Us For Availability
14A
BRACKET, MAIN TOP HINGE (RH) WCI 3131287 Contact Us For Availability
14B
WCI 3051456 WCI 3051456 Contact Us For Availability
14C
WCI 3015335 WCI 3015335 Contact Us For Availability
15
WCI 358T206P01 WCI 358T206P01 Contact Us For Availability
15
WCI 3131142 WCI 3131142 Contact Us For Availability
15
WCI 3051325 WCI 3051325 Contact Us For Availability
15
WCI 3051104 WCI 3051104 Contact Us For Availability
15A
FASTENER, 8 AU TYPE (3) (NON-ILLUSTRATED) WCI 241T017P185 Contact Us For Availability
15B
SCREW-DOOR MTG (4) (NON-ILLUSTRATED) WCI 636T143P05 Contact Us For Availability
16
WCI 318T023P12 WCI 318T023P12 Contact Us For Availability
16
INSULATION, WOOL WCI 3131322 Contact Us For Availability
16
CLEANER-ELEMENT WCI 3051627 Contact Us For Availability
16
FUSE-THERM. CUTOUT WCI 3051385 Contact Us For Availability
16A
INDICATOR LIGHT S/U (3) WCI 318T023P11 Contact Us For Availability
17
WCI 342T017P01 WCI 342T017P01 Contact Us For Availability
17
SEAL, FOAM (4) WCI 3131214 Contact Us For Availability
17
SHIELD-ELEMENT AUTO WCI 3018333 Contact Us For Availability
17
WCI 539T010F01-86 WCI 539T010F01-86 Contact Us For Availability
17A
WCI 3015224 WCI 3015224 Contact Us For Availability
18
ANGLE-S/C THERM. MTG WCI 3131467 Contact Us For Availability
18
WCI 3131356 WCI 3131356 Contact Us For Availability
19
WCI 045T071P01 WCI 045T071P01 Contact Us For Availability
20
WCI 695T211P02 WCI 695T211P02 Contact Us For Availability
20
WCI 711T048P01 WCI 711T048P01 Contact Us For Availability
21
WCI 3131275 WCI 3131275 Contact Us For Availability
21
CLIP-THERM. BULB (2) WCI 3131295 Contact Us For Availability
22
SWITCH - FLUOR LIGHT WCI 3051312 Contact Us For Availability
23
WCI 3051115 WCI 3051115 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
24
WCI 3015336 WCI 3015336 Contact Us For Availability
24
GLASS-OVEN LIGHT LENS WCI 3131298 Contact Us For Availability
25
BRACKET-FLUOR LIGHT MOUNTING LH WCI 3131576 Contact Us For Availability
25
INSULATION, BOTTOM WCI 3051429 Contact Us For Availability
25A
BRACKET-FLUOR LIGHT MOUNTING RH WCI 3131577 Contact Us For Availability
26
RECEPTACLE - FLUOR LIGHT LH WCI 3051222 Contact Us For Availability
26
WCI 3051345 WCI 3051345 Contact Us For Availability
26A
RECEPTACLE - FLUOR LIGHT RH WCI 3051223 Contact Us For Availability
27
PLATE, TIMER MOUNTING WCI 3131556 Contact Us For Availability
27
WCI 3131104 WCI 3131104 Contact Us For Availability
27B
INSULATION-BACK (NON-ILLUSTRATED) WCI 3017133 Contact Us For Availability
27D
SCREW-HINGE MTG (6) (NON-ILLUSTRATED) WCI 636T163P01 Contact Us For Availability
27E
WCI 47T069P41 WCI 47T069P41 Contact Us For Availability
28
BUTTON-ELEC CLOCK (4) WCI 3131730 Contact Us For Availability
28
WCI 3015361 WCI 3015361 Contact Us For Availability
29
SHAFT-ELEC CLOCK WCI 3131508 Contact Us For Availability
29
WCI 296T101F06-08 WCI 296T101F06-08 Contact Us For Availability
30
WCI 3051161 WCI 3051161 Contact Us For Availability
30
WCI 358T158S02 WCI 358T158S02 Contact Us For Availability
30A
SCREW, SET, LATCH KNOB (NON-ILLUSTRATED) WCI 636T144P01 Contact Us For Availability
31
WCI 3131237 WCI 3131237 Contact Us For Availability
31
SHIELD-LATCH WCI 3051413 Contact Us For Availability
32
SHIELD, BI METAL CATCH WCI 3131593 Contact Us For Availability
33
FASTENER, PUSH ON (3) WCI 241T001P01 Contact Us For Availability
34
WCI 3051734 WCI 3051734 Contact Us For Availability
35
WCI 3131363 WCI 3131363 Contact Us For Availability
37
WCI 374T108P05 WCI 374T108P05 Contact Us For Availability
38
WCI 244T041P01 WCI 244T041P01 Contact Us For Availability
39
RETAINER, CATALYST WCI 612T079P01 Contact Us For Availability
40
WCI 695T128P04 WCI 695T128P04 Contact Us For Availability
41
BRACKET, LIGHT SWITCH WCI 3131289 Contact Us For Availability
42
WCI 3051495 WCI 3051495 Contact Us For Availability
43
WCI 174T329P01 WCI 174T329P01 Contact Us For Availability
44
BUTTON-REMOTE LIGHT SWITCH WCI 102T044P02 Contact Us For Availability
45
SHIELD, HEAT LOWER WCI 3051430 Contact Us For Availability
45A
INSULATION-TOP (NON-ILLUSTRATED) WCI 3131304 Contact Us For Availability
47
WCI 3051254 WCI 3051254 Contact Us For Availability
47A
WCI 3015337 WCI 3015337 Contact Us For Availability
48
WCI 3051242 WCI 3051242 Contact Us For Availability
48A
WCI 3051243 WCI 3051243 Contact Us For Availability
× ![]()
