Model Electrolux 31-3979-00-02 RANGE – Common Parts & Diagrams

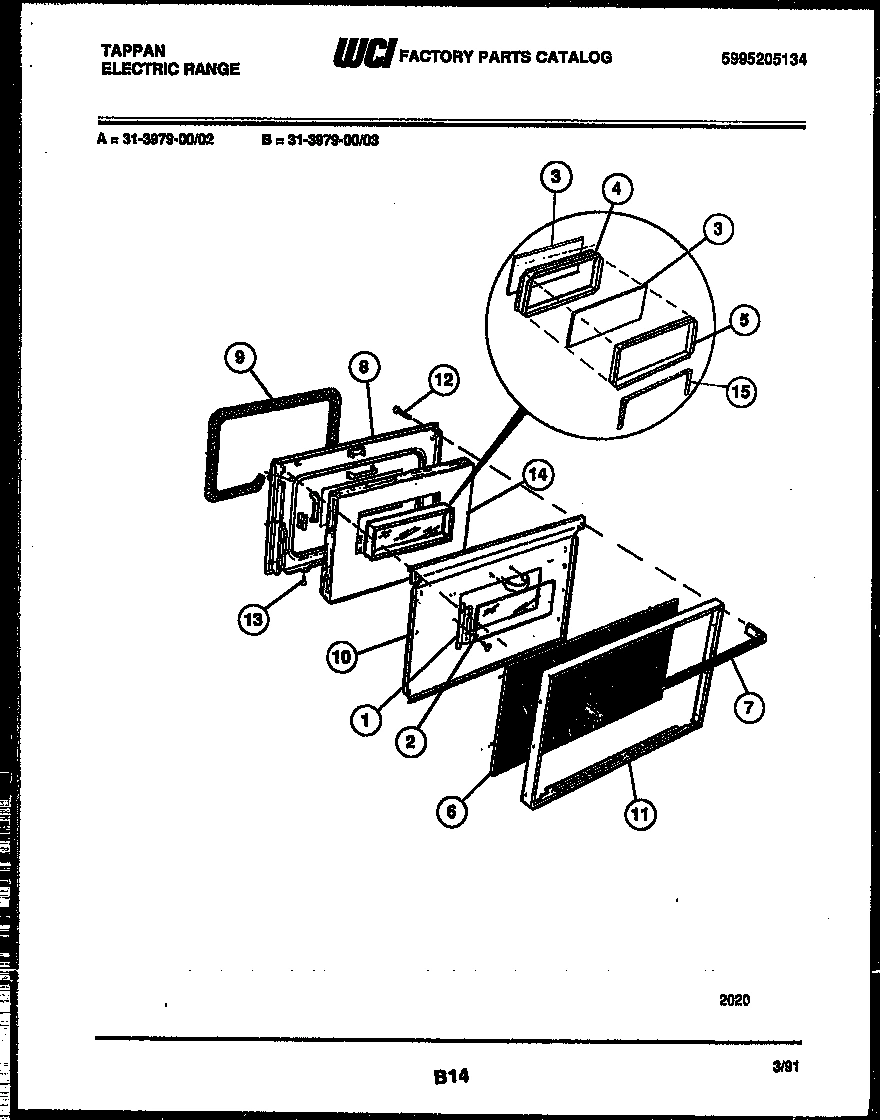

02 - DOOR PARTS

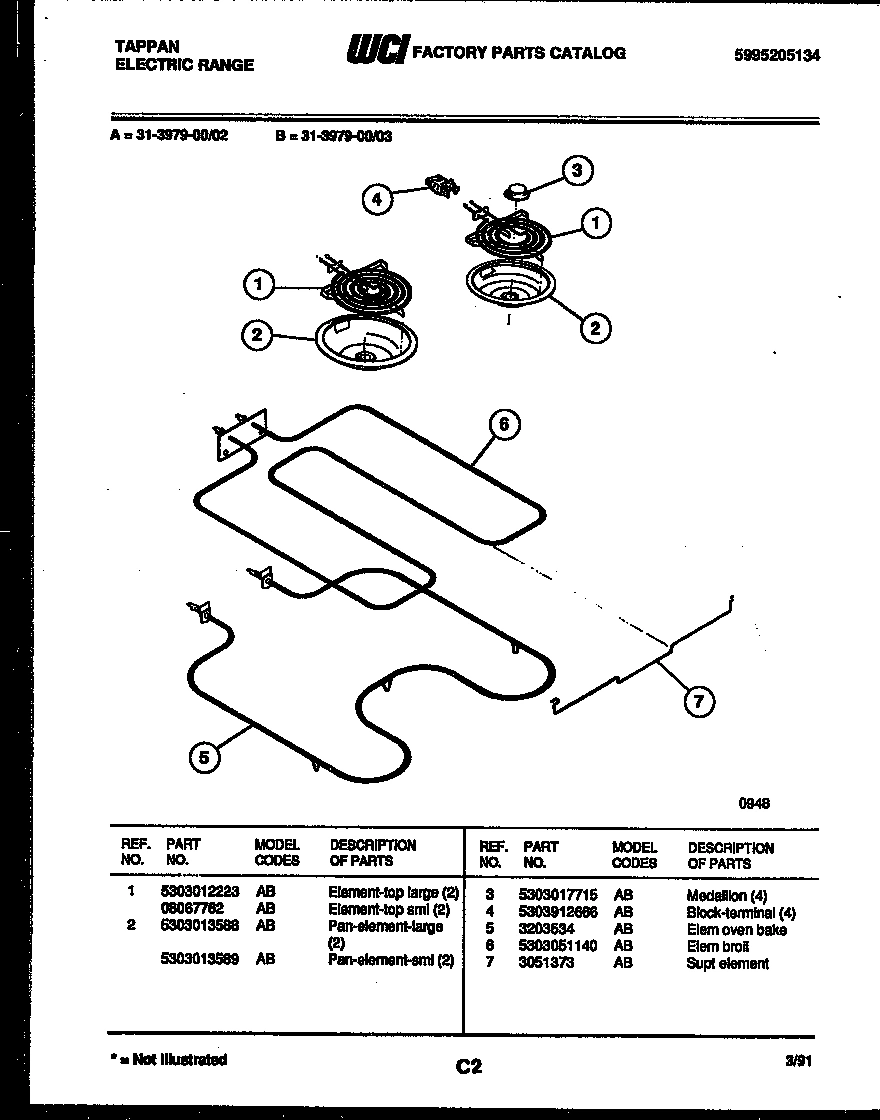

03 - BROILER PARTS

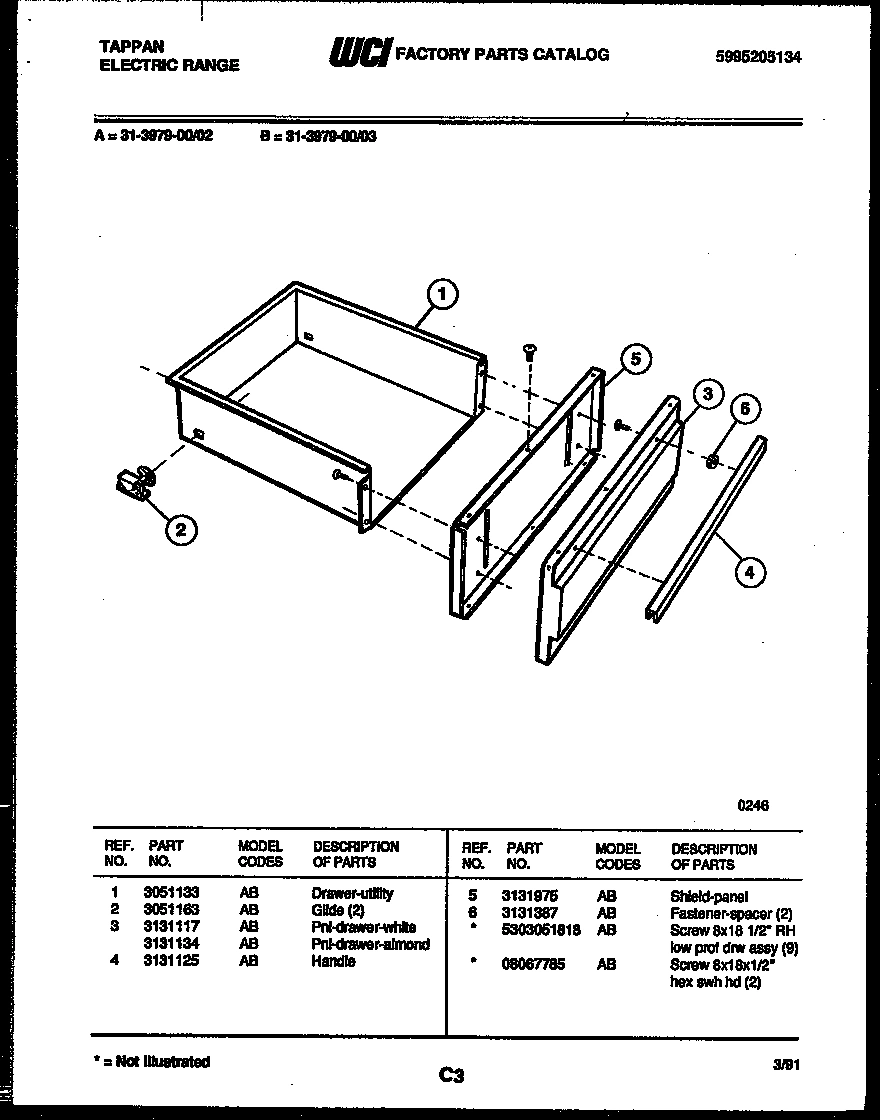

04 - DRAWER PARTS

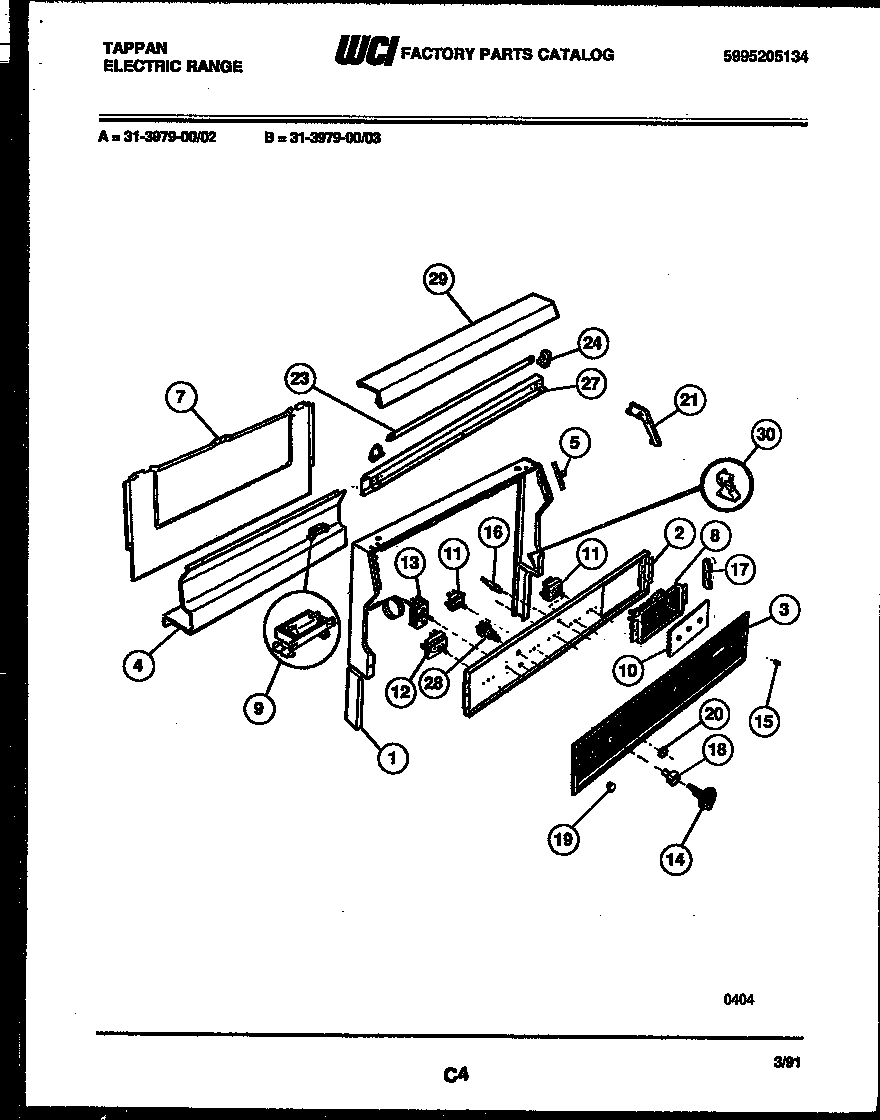

05 - BACKGUARD

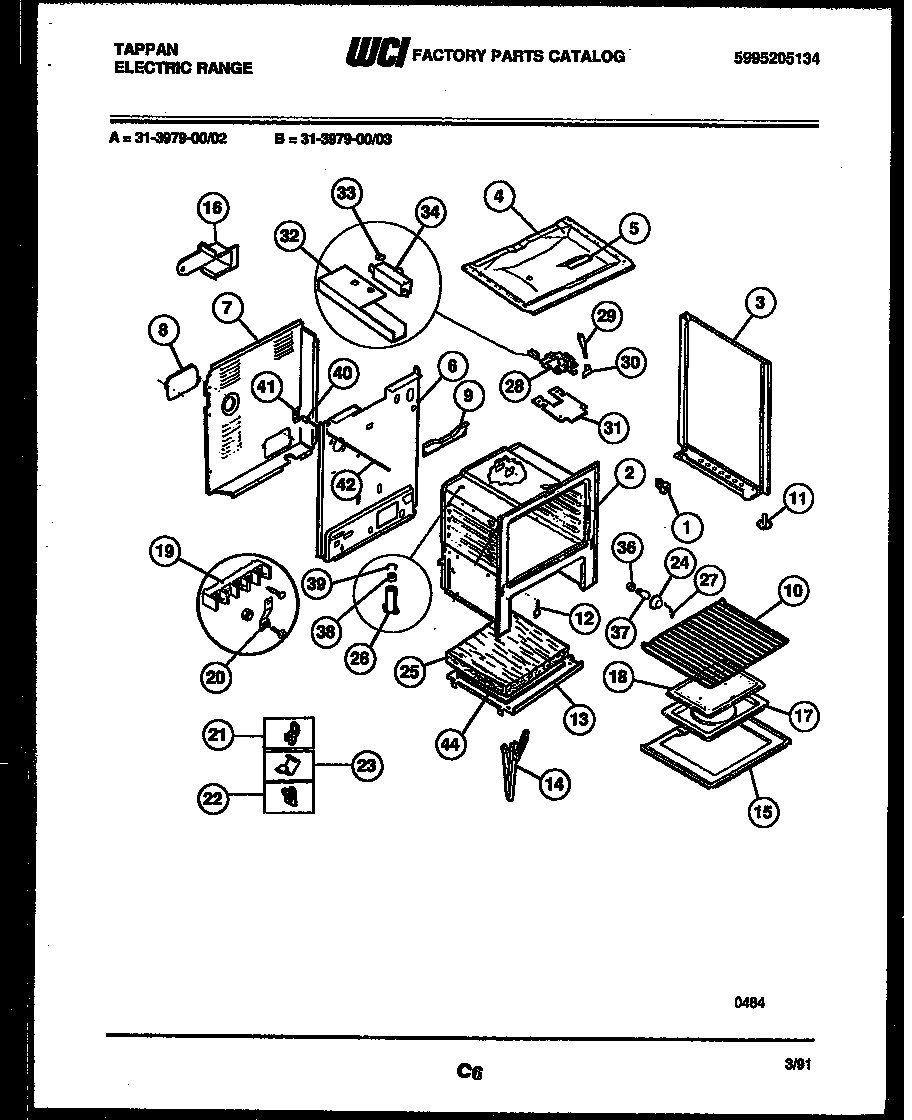

06 - BODY PARTS

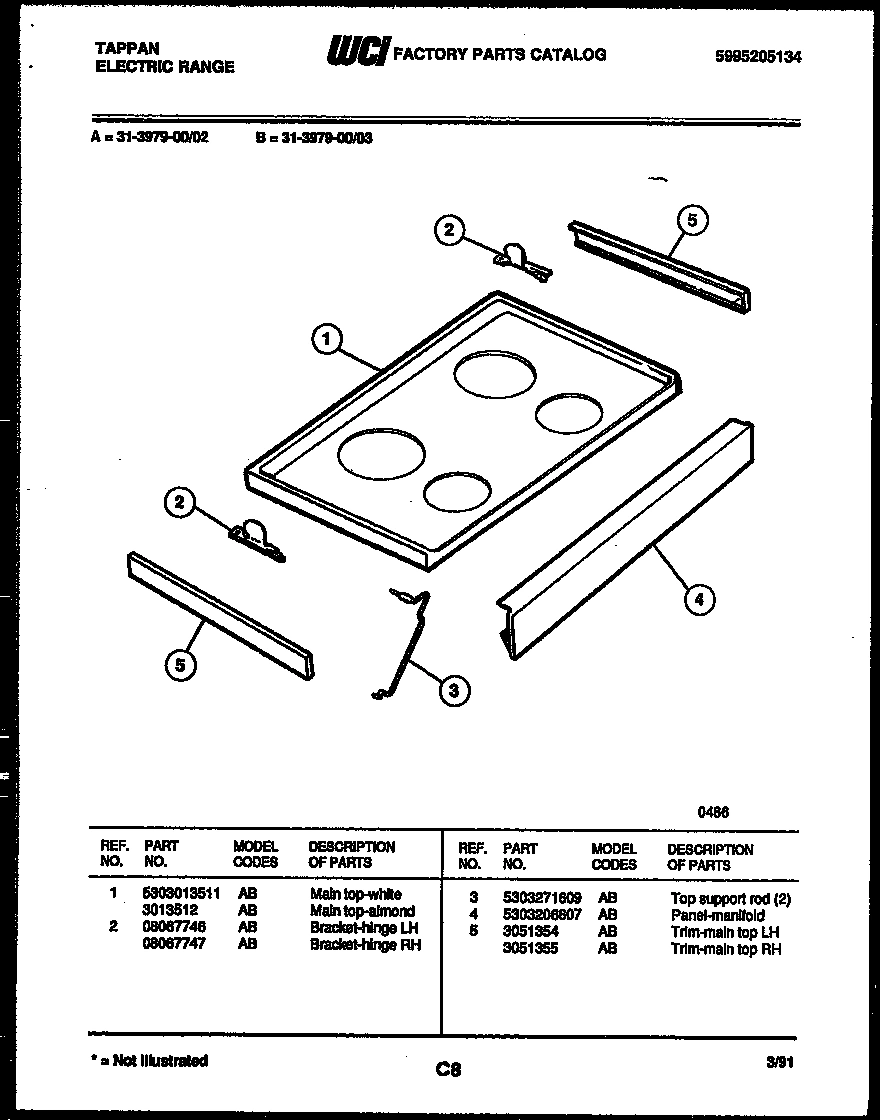

07 - COOKTOP PARTS
Common parts from model Electrolux 31-3979-00-02 RANGE
*46196
SCREW 8 X 18 X 1/2`` HEX SWH HD (2) WCI 08067785 Contact Us For Availability
*46203
RETAINER - IND LENS (4) WCI 3051224 Contact Us For Availability
*46203
WCI 3131468 WCI 3131468 Contact Us For Availability
*46210
INSUL-TOP WCI 3131304 Contact Us For Availability
*46211
SHIELD-HEAT BDYSD WCI 3200834 Contact Us For Availability
*46211
FASTENER-EDGE MTG (2) WCI 3200846 Contact Us For Availability
*46211
ANTI-TIP KIT WCI 3934056 Contact Us For Availability
*46211
WCI 5303206618 WCI 5303206618 Contact Us For Availability
*46212
WCI 19100210010 WCI 19100210010 Contact Us For Availability
1
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
1
DRAWER, UTILITY WCI 3051133 Contact Us For Availability
1
WCI 3204862 WCI 3204862 Contact Us For Availability
1
WCI 3013512 WCI 3013512 Contact Us For Availability
1
WCI 5303013511 WCI 5303013511 Contact Us For Availability
2
WCI 08067746 WCI 08067746 Contact Us For Availability
2
PLATE-INSTRUMENT MTG WCI 5303271603 Contact Us For Availability
2A
WCI 08067747 WCI 08067747 Contact Us For Availability
3
WCI 5303209512 WCI 5303209512 Contact Us For Availability
3
PNL DRAWER (WHITE) WCI 3131117 Contact Us For Availability
3
PNL DRAWER (ALMOND) WCI 3131134 Contact Us For Availability
3
WCI 3204861 WCI 3204861 Contact Us For Availability
3
PNL-BDYSD-LH-WHITE WCI 5303269519 Contact Us For Availability
3
WCI 5303269545 WCI 5303269545 Contact Us For Availability
3
TOP SUPPORT ROD (2) WCI 5303271609 Contact Us For Availability
3A
PNL-BDYSD-RH-WHITE WCI 5303269518 Contact Us For Availability
3A
WCI 5303269543 WCI 5303269543 Contact Us For Availability
4
WCI 3131125 WCI 3131125 Contact Us For Availability
4
TRIM-LWR SPLASHER (ALMOND) WCI 3204729 Contact Us For Availability
4
TRIM - LWR SPLASHER (WHITE) WCI 5303206628 Contact Us For Availability
4
WCI 08067749 WCI 08067749 Contact Us For Availability
4
WCI 5303206607 WCI 5303206607 Contact Us For Availability
5
WCI 3131975 WCI 3131975 Contact Us For Availability
5
WCI 3204753 WCI 3204753 Contact Us For Availability
5
WCI 08067757 WCI 08067757 Contact Us For Availability
5
WCI 3051354 WCI 3051354 Contact Us For Availability
5A
WCI 3204754 WCI 3204754 Contact Us For Availability
5A
WCI 3051355 WCI 3051355 Contact Us For Availability
6
FASTENER-SPACER (2) WCI 3131387 Contact Us For Availability
6
WCI 3203082 WCI 3203082 Contact Us For Availability
7
SHIELD, REAR WALL WCI 3131123 Contact Us For Availability
7
SHIELD - LWR ACCESS WCI 3203549 Contact Us For Availability
8
WCI 3204766 WCI 3204766 Contact Us For Availability
8
COVER, LWR. ACCESS WCI 3203405 Contact Us For Availability
9
WCI 5303051115 WCI 5303051115 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
10
GLASS - CLOCK WCI 3201695 Contact Us For Availability
11
SCREW-LEVEL (4) WCI 5303203397 Contact Us For Availability
12
CVR. HNG. CUTOUT (2) WCI 3131570 Contact Us For Availability
12
WCI 3201732 WCI 3201732 Contact Us For Availability
13
SCREW 8-18 X 1/2 BLK WCI 5303269859 Contact Us For Availability
13
THERMOSTAT-OVEN WCI 3204581 Contact Us For Availability
13
WCI 3200825 WCI 3200825 Contact Us For Availability
14
INSULATION-WOOL WCI 5303209514 Contact Us For Availability
14
KNOB-CONTROL (4) WCI 3204751 Contact Us For Availability
14A
KNOB-SELECTOR SWITCH WCI 3204768 Contact Us For Availability
14B
WCI 3204767 WCI 3204767 Contact Us For Availability
15
WCI 5303211085 WCI 5303211085 Contact Us For Availability
15
KNOB-CLOCK WCI 3131472 Contact Us For Availability
15
WCI 3203540 WCI 3203540 Contact Us For Availability
16
WCI 5308037896 WCI 5308037896 Contact Us For Availability
16
WCI 3203582 WCI 3203582 Contact Us For Availability
16A
INDICATOR LITE, OVEN (BLACK) WCI 3201727 Contact Us For Availability
16B
INDICATOR LITE, CLEAN (BLUE) WCI 3201726 Contact Us For Availability
16C
INDICATOR LITE, LOCK (RED) WCI 3201728 Contact Us For Availability
17
RETAINER - CLOCK GL (2) WCI 3201700 Contact Us For Availability
17
WCI 5303013568 WCI 5303013568 Contact Us For Availability
18
BUSHING-CONT SHAFT WCI 3204745 Contact Us For Availability
18
WCI 5303131356 WCI 5303131356 Contact Us For Availability
19
JEWEL-IND LT (4) WCI 5308037703 Contact Us For Availability
20
BEZEL-SWITCH (4) WCI 5303011507 Contact Us For Availability
20
GRND STRAP WCI 5303212739 Contact Us For Availability
21
CAP END - LH WCI 3204609 Contact Us For Availability
21A
CAP END - RH WCI 3204610 Contact Us For Availability
23
BULB-FLUOR WCI 3131275 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
24
RECEPT.-FLUOR LT LH WCI 3051222 Contact Us For Availability
24A
RECEPT.-FLUOR LT RH WCI 3051223 Contact Us For Availability
26
WCI 3051344 WCI 3051344 Contact Us For Availability
27
SUPT-FLUOR RECEPT. MTG. WCI 3131277 Contact Us For Availability
27
WIRE GLASS RETAINER WCI 3204585 Contact Us For Availability
27A
INSUL WRAP (NON-ILLUSTRATED) WCI 3200833 Contact Us For Availability
27B
INSUL-BACK (NON-ILLUSTRATED) WCI 3204582 Contact Us For Availability
27D
SCREW-HNG MTG (6) (NON-ILLUSTRATED) WCI 5303212740 Contact Us For Availability
28
SWITCH-OV LT WCI 5303200479 Contact Us For Availability
28
WCI 5303015361 WCI 5303015361 Contact Us For Availability
28A
SWITCH-FL-LT WCI 5303200480 Contact Us For Availability
29
WCI 3204614 WCI 3204614 Contact Us For Availability
29
WCI 5303131357 WCI 5303131357 Contact Us For Availability
30
SUPPORT-BACKGROUND WCI 5303131237 Contact Us For Availability
30
WCI 3203218 WCI 3203218 Contact Us For Availability
30A
WCI 08013188 WCI 08013188 Contact Us For Availability
31
SHIELD-LATCH WCI 3051413 Contact Us For Availability
32
SHIELD-BI MTL CATCH WCI 3131593 Contact Us For Availability
33
FASTENER-PUSH ON (3) WCI 08067776 Contact Us For Availability
34
WCI 3131672 WCI 3131672 Contact Us For Availability
38
WCI 08067810 WCI 08067810 Contact Us For Availability
39
WCI 08010606 WCI 08010606 Contact Us For Availability
40
SWITCH, DOOR WCI 5303202622 Contact Us For Availability
41
BRKT-LT SW WCI 5303131289 Contact Us For Availability
42
ROD LIGHT WCI 5303209316 Contact Us For Availability
44
WCI 3200848 WCI 3200848 Contact Us For Availability
× ![]()
