Model Electrolux 31-3978-00-05 RANGE – Common Parts & Diagrams

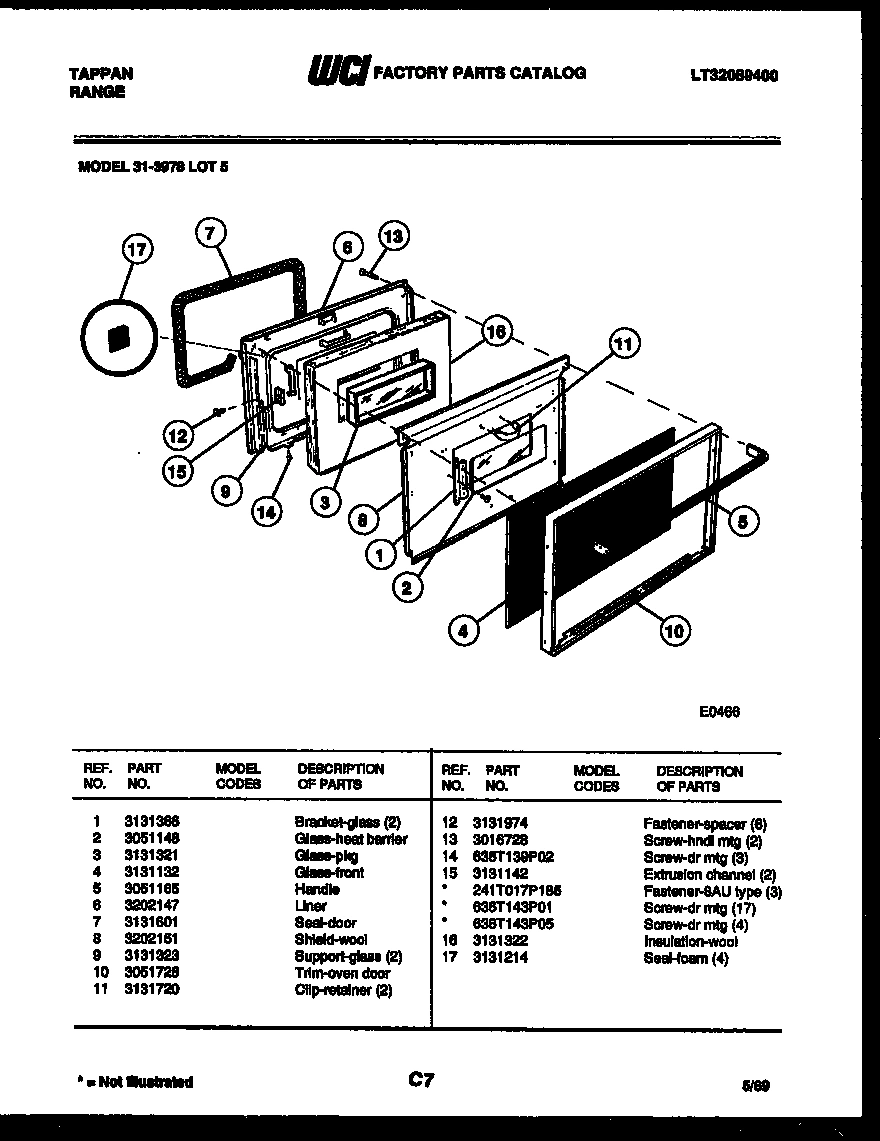

02 - DOOR PARTS
03 - BROILER PARTS
04 - DRAWER PARTS

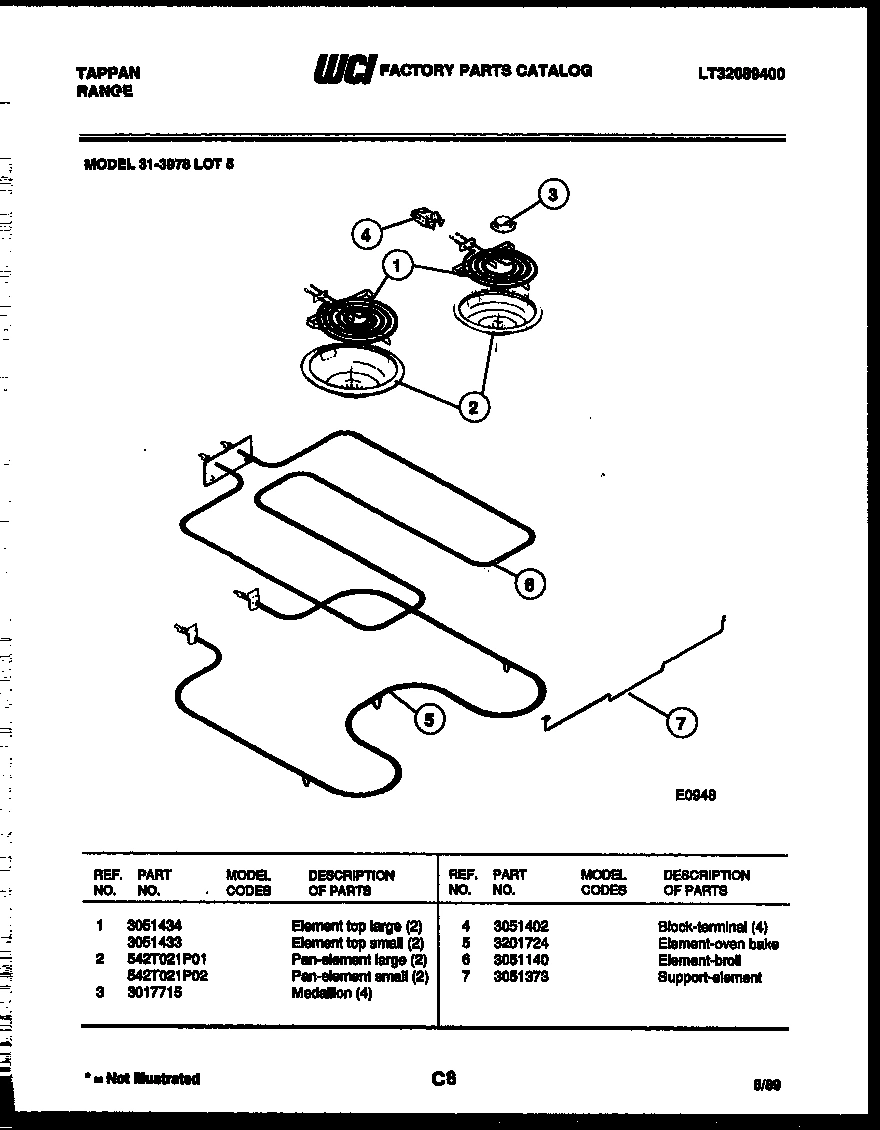

05 - COOKTOP PARTS
06 - BACKGUARD
07 - BODY PARTS
Common parts from model Electrolux 31-3978-00-05 RANGE
*23161
SCREW 8 X 18 X 1/2`` HEX WSH HD (2) WCI 636T135P01 Contact Us For Availability
*23172
INSULATION-TOUCH WCI 3131304 Contact Us For Availability
*23172
INSULATION, WRAP WCI 3200833 Contact Us For Availability
*23172
SHIELD HEAT BODYSIDE (2) WCI 3200834 Contact Us For Availability
*23172
FASTENER-EDGE MOUNT (2) WCI 3200846 Contact Us For Availability
*23172
ANTI-TIP KIT WCI 3934056 Contact Us For Availability
1
DRAWER, UTILITY WCI 3051133 Contact Us For Availability
1
WCI 3051284 WCI 3051284 Contact Us For Availability
1
WCI 3016779 WCI 3016779 Contact Us For Availability
1
SPACER, BODYSIDE (8) WCI 3051736 Contact Us For Availability
2
WCI 3011558 WCI 3011558 Contact Us For Availability
2
WCI 3051219 WCI 3051219 Contact Us For Availability
2A
WCI 3011559 WCI 3011559 Contact Us For Availability
3
WCI 3131117 WCI 3131117 Contact Us For Availability
3
TOP SUPPORT ROD (2) WCI 618T038P05 Contact Us For Availability
3
WCI 3201837 WCI 3201837 Contact Us For Availability
3
PANEL, BODYSIDE (LH) WHITE WCI 3200792 Contact Us For Availability
3A
PANEL, BODYSIDE (RH) WHITE WCI 3200789 Contact Us For Availability
4
WCI 3131125 WCI 3131125 Contact Us For Availability
4
WCI 3051870 WCI 3051870 Contact Us For Availability
4
TRIM, LOWER SPLASHER WCI 3051874 Contact Us For Availability
4
WCI 3051109 WCI 3051109 Contact Us For Availability
5
WCI 3201724 WCI 3201724 Contact Us For Availability
5
WCI 3131975 WCI 3131975 Contact Us For Availability
5
WCI 3051354 WCI 3051354 Contact Us For Availability
5
NUT - DECOR (2) WCI 3051194 Contact Us For Availability
5
WCI 3131101 WCI 3131101 Contact Us For Availability
5A
WCI 3051355 WCI 3051355 Contact Us For Availability
6
LINER WCI 3202147 Contact Us For Availability
6
FASTENER-SPACER (2) WCI 3131387 Contact Us For Availability
6
FASTENER, GLASS (2) WCI 3131607 Contact Us For Availability
6
WCI 3203404 WCI 3203404 Contact Us For Availability
7
SHIELD, REAR WALL WCI 3131123 Contact Us For Availability
7
SHIELD, LOWER WALL WCI 3203406 Contact Us For Availability
8
WCI 3202151 WCI 3202151 Contact Us For Availability
8
WCI 148T190P02 WCI 148T190P02 Contact Us For Availability
8
WCI 3203405 WCI 3203405 Contact Us For Availability
9
WCI 3131323 WCI 3131323 Contact Us For Availability
9
WCI 3051115 WCI 3051115 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
10
WCI 3051728 WCI 3051728 Contact Us For Availability
10
GLASS-CLOCK WCI 277T219P02 Contact Us For Availability
11
CLIP, RETAINER (2) WCI 3131720 Contact Us For Availability
11
WCI 699T015P02 WCI 699T015P02 Contact Us For Availability
11
SCREW, LEVEL (4) WCI 3203397 Contact Us For Availability
12
COVER-HNG CUTOUT WCI 3131570 Contact Us For Availability
12
FASTENER, SPACER (6) WCI 3131974 Contact Us For Availability
12
WCI 3201732 WCI 3201732 Contact Us For Availability
13
SCREW-HNDL MTG (2) WCI 3016728 Contact Us For Availability
13
THERMOSTAT, OVEN WCI 3201733 Contact Us For Availability
13
WCI 3200825 WCI 3200825 Contact Us For Availability
14
CHANNEL-DR HINGE (2) WCI 316007002 No Longer Available
14
SCREW-DR MTG (3) WCI 636T139P02 Contact Us For Availability
14
KNOB-CONTROL (4) WCI 3051487 Contact Us For Availability
14A
KNOB-SELECTOR SWITCH WCI 3201798 Contact Us For Availability
14B
WCI 3201797 WCI 3201797 Contact Us For Availability
15
WCI 3131142 WCI 3131142 Contact Us For Availability
15
KNOB, CLOCK (3) WCI 358T201P01 Contact Us For Availability
15
WCI 3051104 WCI 3051104 Contact Us For Availability
15A
FASTENER-8AU TYPE (3) (NON-ULLUSTRATED) WCI 241T017P185 Contact Us For Availability
15B
WCI 636T143P05 WCI 636T143P05 Contact Us For Availability
16
INSULATION, WOOL WCI 3131322 Contact Us For Availability
16
WCI 3091461 WCI 3091461 Contact Us For Availability
16A
INDICATOR LITE, OVEN (BLACK) WCI 3201727 Contact Us For Availability
16B
INDICATOR LITE, CLEAN (BLUE) WCI 3201726 Contact Us For Availability
16C
INDICATOR LITE, LOCK (RED) WCI 3201728 Contact Us For Availability
17
SEAL, FOAM (4) WCI 3131214 Contact Us For Availability
17
RETAINER-CLOCK GL (2) WCI 612T123P01 Contact Us For Availability
17
BROILER PAN WCI 3013568 Contact Us For Availability
18
THERMOSTAT-OVEN S/C WCI 3051324 Contact Us For Availability
18
WCI 3131356 WCI 3131356 Contact Us For Availability
19
ANGLE SUPPORT S/C THERMO WCI 3131467 Contact Us For Availability
20
BEZEL SWITCH WCI 3051727 Contact Us For Availability
20
WCI 711T048P01 WCI 711T048P01 Contact Us For Availability
21
CAP, END LH WCI 3051134 Contact Us For Availability
21A
CAP, END RH WCI 3051135 Contact Us For Availability
23
BULB-FLUOR WCI 3131275 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
24
RECEPTACLE-FLUOR LT LH WCI 3051222 Contact Us For Availability
24
GLASS, OVEN LITE LENS WCI 3131298 Contact Us For Availability
24A
RECEPTACLE-FLUOR LT RH WCI 3051223 Contact Us For Availability
25
INSULATION, BOTTOM WCI 3051429 Contact Us For Availability
26
WCI 3051344 WCI 3051344 Contact Us For Availability
27
SUPPORT-FLUOR RECEPT MOUNTING WCI 3131277 Contact Us For Availability
27
WIRE-GLASS RETNR WCI 3131104 Contact Us For Availability
27A
INSULATION-WRAP (NON-ILLUSTRATED) WCI 3131305 Contact Us For Availability
27B
INSULATION, BACK (NON-ILLUSTRATED) WCI 3131303 Contact Us For Availability
27D
SCREW-HINGE MTG (6) (NON-ILLUSTRATED) WCI 636T163P01 Contact Us For Availability
27E
NUT-HEX BRASS (6) (NON-ILLUSTRATED) WCI 479T069P41 Contact Us For Availability
28
WCI 695T211P02 WCI 695T211P02 Contact Us For Availability
28
WCI 3015361 WCI 3015361 Contact Us For Availability
28A
SWITCH - FLUOR LIGHT WCI 3051312 Contact Us For Availability
29
WCI 3131466 WCI 3131466 Contact Us For Availability
29
WCI 3051473 WCI 3051473 Contact Us For Availability
30
WCI 3131237 WCI 3131237 Contact Us For Availability
30
KNOB, LATCH WCI 358T158P02 Contact Us For Availability
30A
SCREW, SET, LATCH KNOB (NON-ILLUSTRATED) WCI 636T144P01 Contact Us For Availability
31
SHIELD-LATCH WCI 3051413 Contact Us For Availability
32
SHIELD-BI MTL CATCH WCI 3131593 Contact Us For Availability
33
FASTENER, PUSH ON (3) WCI 3051733 Contact Us For Availability
34
WCI 3131672 WCI 3131672 Contact Us For Availability
35
TUBE, OVEN LITE WCI 3131363 Contact Us For Availability
38
WCI 244T041P01 WCI 244T041P01 Contact Us For Availability
39
RETAINER, CATALYST WCI 612T079P01 Contact Us For Availability
40
WCI 695T128P04 WCI 695T128P04 Contact Us For Availability
41
BRACKET, LIGHT SWITCH WCI 3131289 Contact Us For Availability
42
WCI 3051495 WCI 3051495 Contact Us For Availability
43
WCI 3051251 WCI 3051251 Contact Us For Availability
44
WCI 3051731 WCI 3051731 Contact Us For Availability
45
WCI 3200848 WCI 3200848 Contact Us For Availability
× ![]()
