Model Electrolux 31-3969-00-03 RANGE – Common Parts & Diagrams

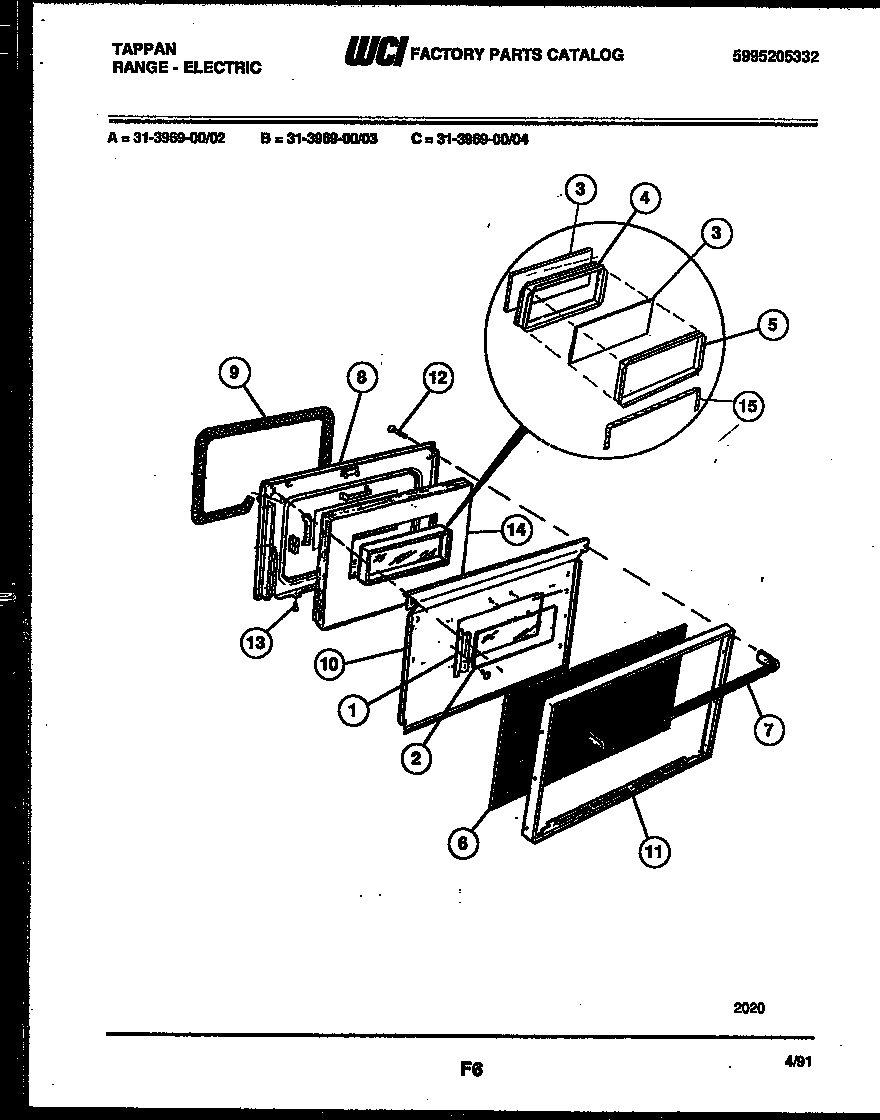

02 - DOOR PARTS

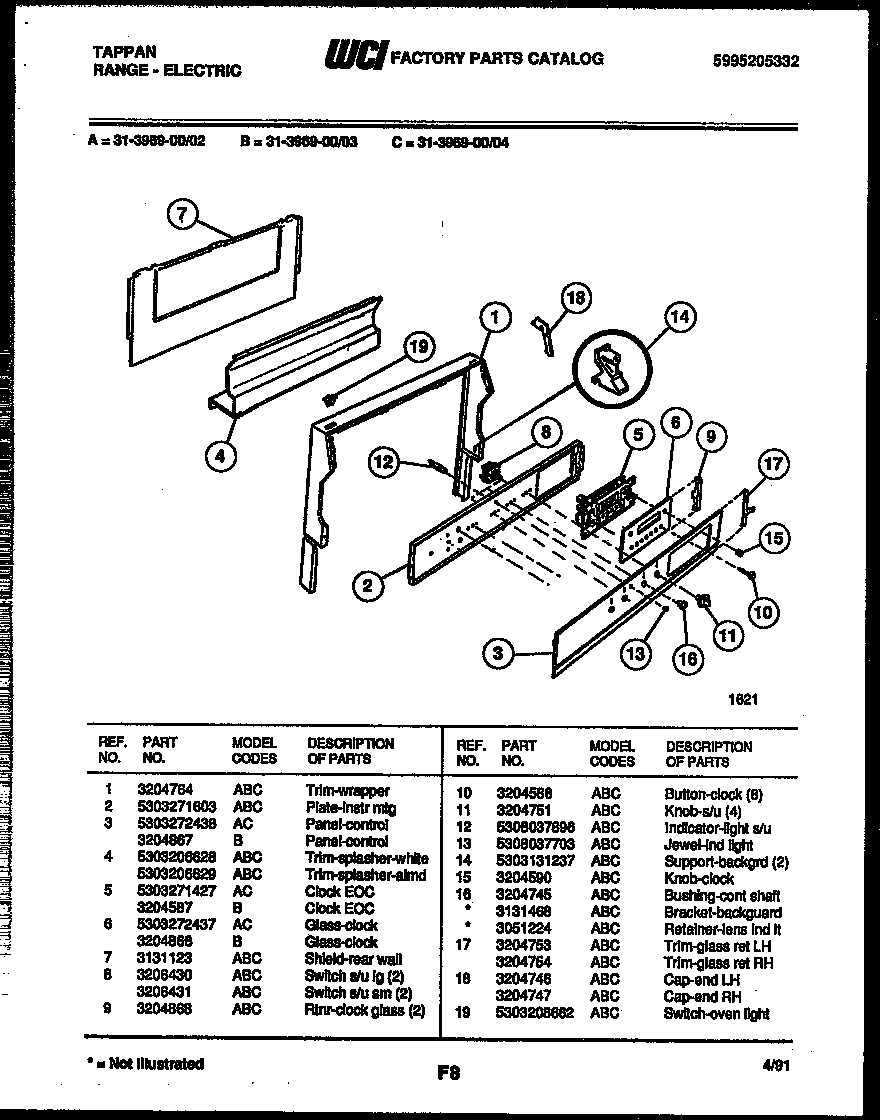

03 - BACKGUARD

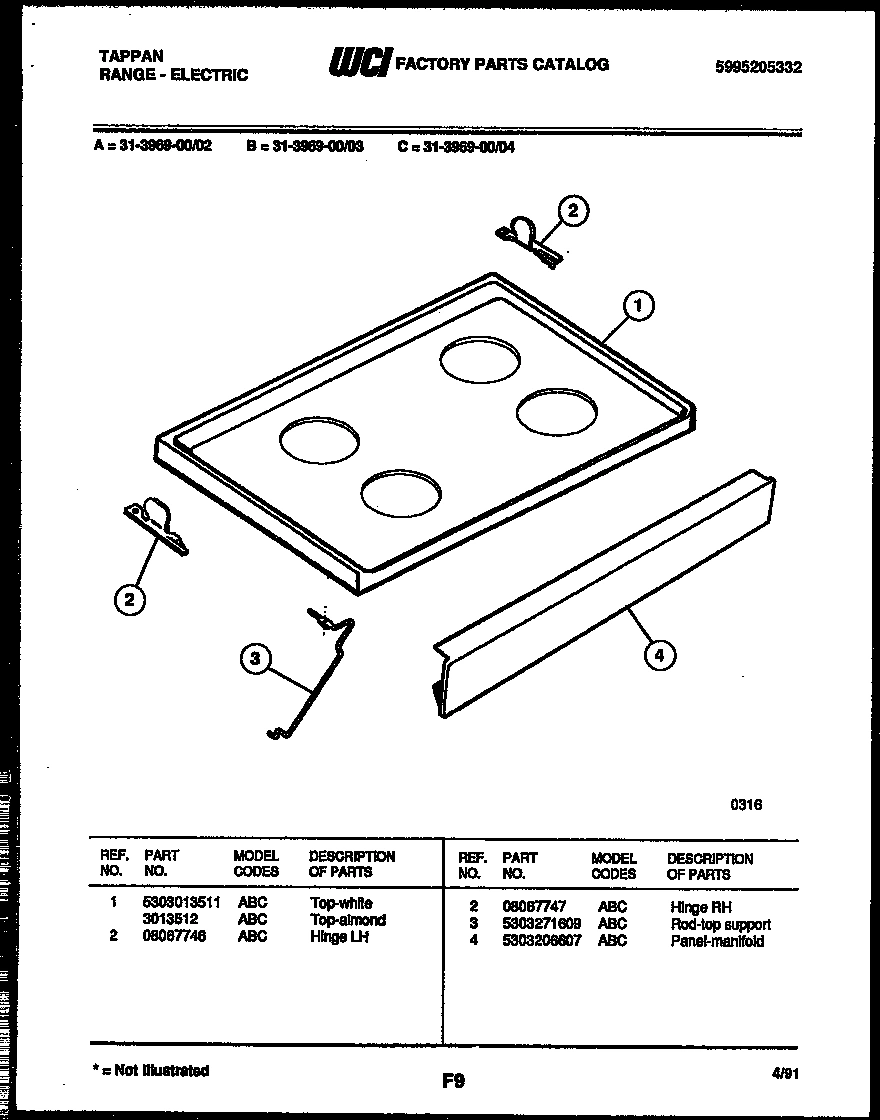

04 - COOKTOP PARTS

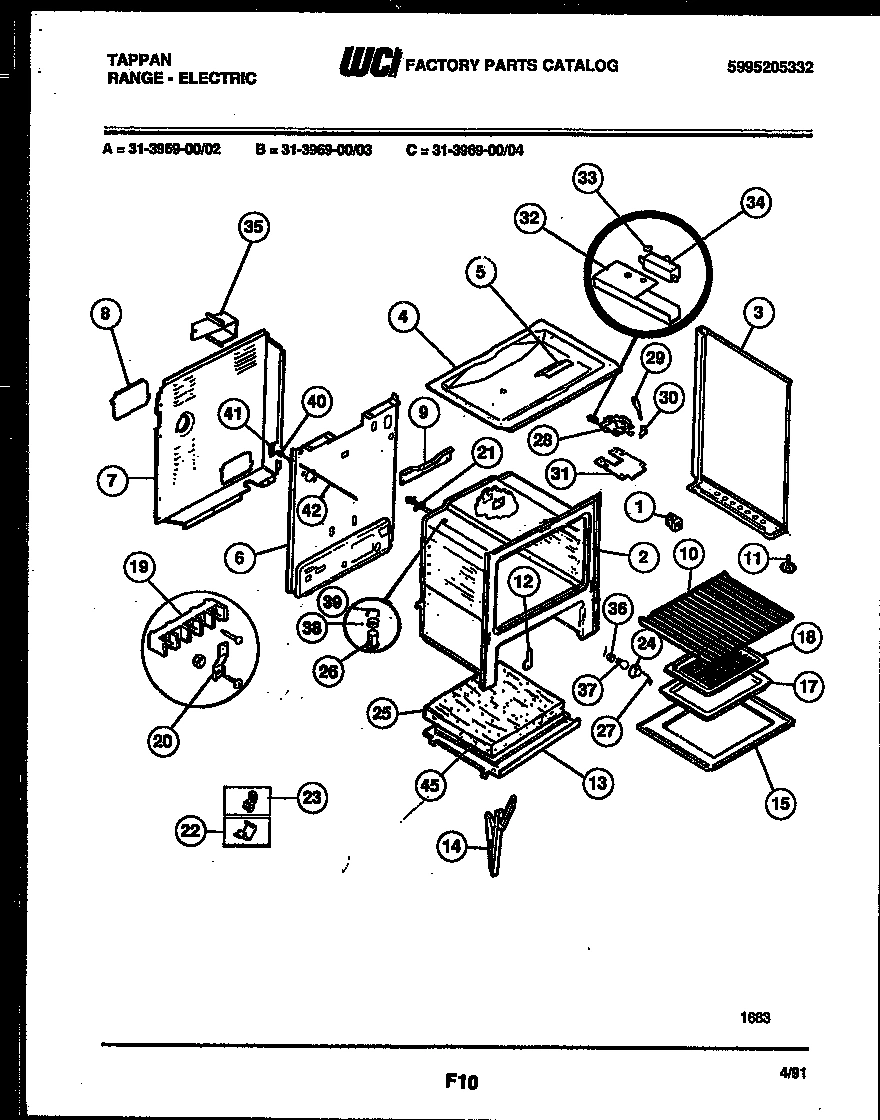

05 - BODY PARTS

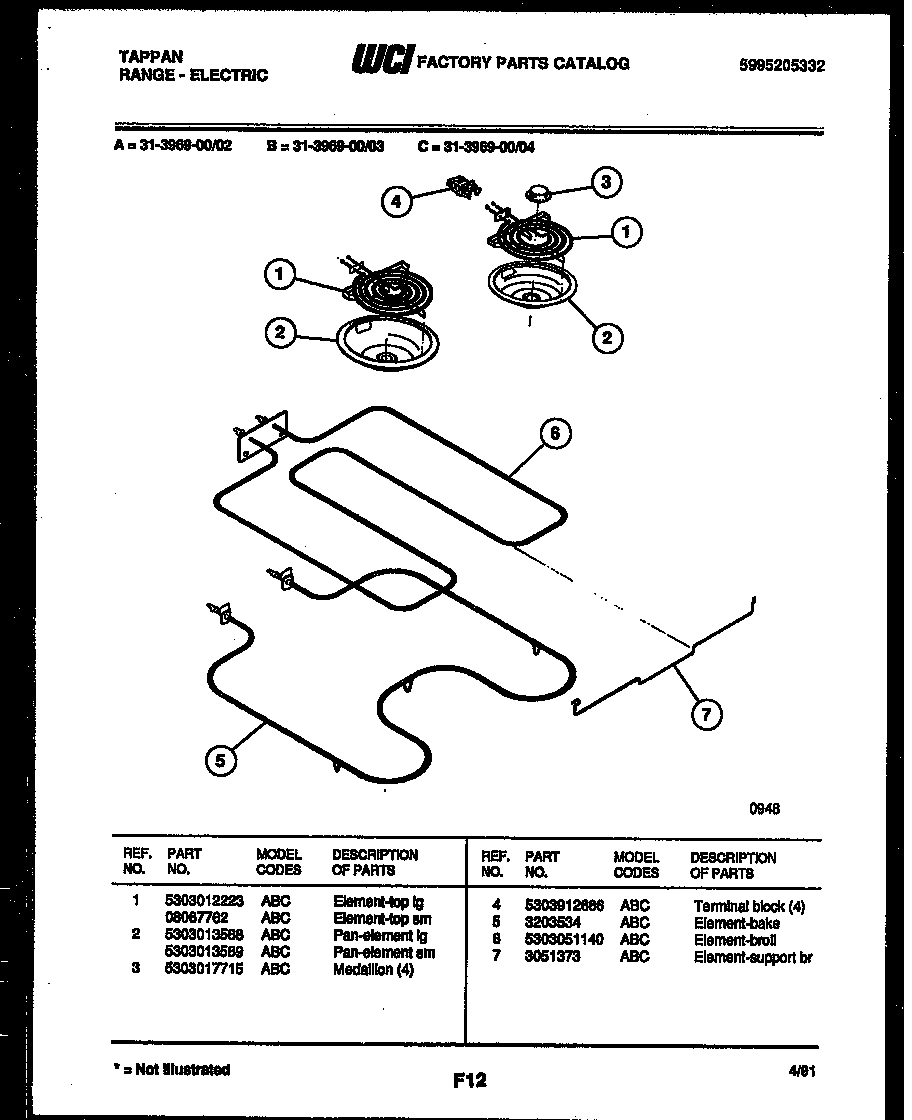

06 - BROILER PARTS

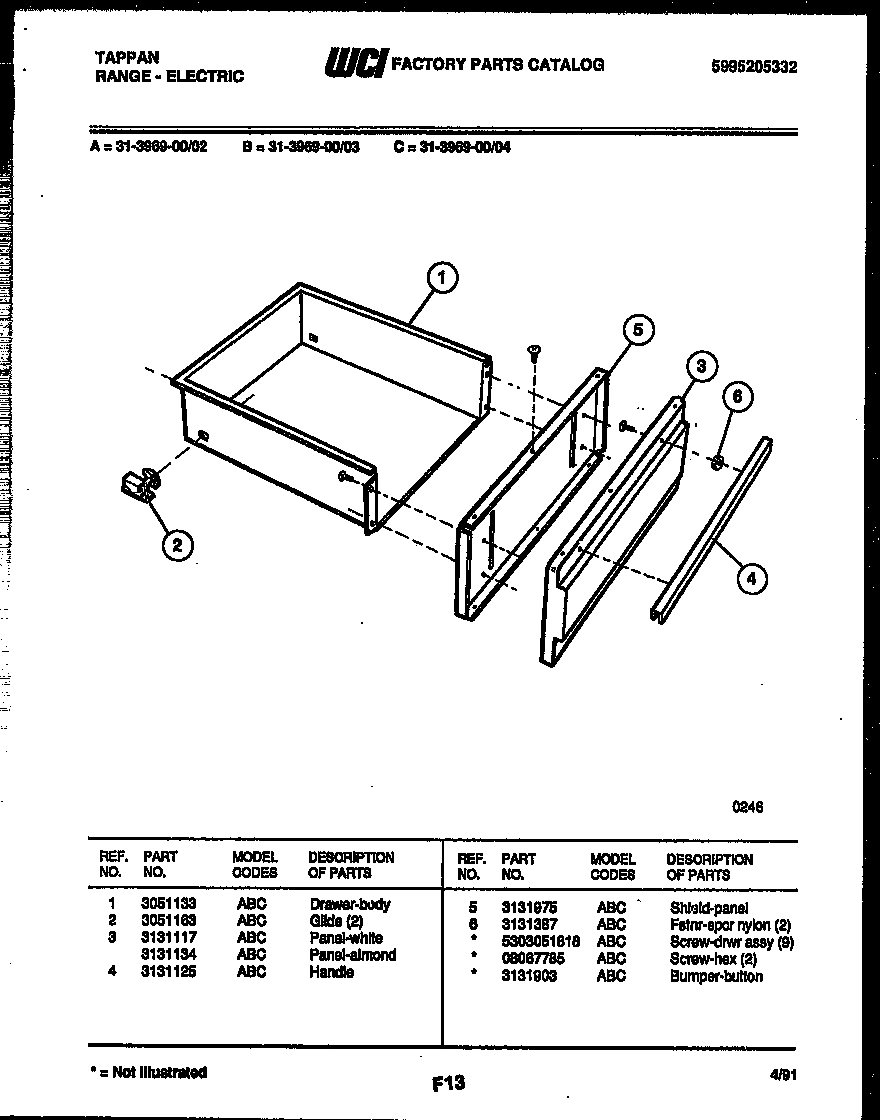

07 - DRAWER PARTS
Common parts from model Electrolux 31-3969-00-03 RANGE
*46658
WCI 19100210005 WCI 19100210005 Contact Us For Availability
*46658
INSULATION WCI 3131304 Contact Us For Availability
*46658
SHIELD HEAT B/S (2) WCI 3200834 Contact Us For Availability
*46658
FSTNR - EDGE MT (2) WCI 3200846 Contact Us For Availability
*46658
ANTI-TIP KIT WCI 3934056 Contact Us For Availability
*46658
BRKT-CABLE MTG WCI 5303206618 Contact Us For Availability
*46660
SCREW - HEX (2) WCI 08067785 Contact Us For Availability
1
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
1
WCI 3204764 WCI 3204764 Contact Us For Availability
1
TOP-ALMOND WCI 3013512 Contact Us For Availability
1
TOP-WHITE WCI 5303013511 Contact Us For Availability
1
WCI 3051133 WCI 3051133 Contact Us For Availability
2
HINGE LH WCI 08067746 Contact Us For Availability
2
PLATE-INSTR MTG WCI 5303271603 Contact Us For Availability
2
HINGE RH WCI 08067747 Contact Us For Availability
3
WCI 5303209512 WCI 5303209512 Contact Us For Availability
3
WCI 3204867 WCI 3204867 Contact Us For Availability
3
ROD-TOP SUPPORT WCI 5303271609 Contact Us For Availability
3
PNL-B/S-LH-WHITE WCI 5303269519 Contact Us For Availability
3
WCI 5303269545 WCI 5303269545 Contact Us For Availability
3
PANEL-WHITE WCI 3131117 Contact Us For Availability
3
PANEL-ALMOND WCI 3131134 Contact Us For Availability
3A
PNL-B/S-RH-WHITE WCI 5303269518 Contact Us For Availability
3A
WCI 5303269543 WCI 5303269543 Contact Us For Availability
4
TRIM-SPLASHER, WHITE WCI 5303206628 Contact Us For Availability
4
TRIM-SPLASHER-ALMD WCI 5303206629 Contact Us For Availability
4
WCI 5303206607 WCI 5303206607 Contact Us For Availability
4
WCI 5303271658 WCI 5303271658 Contact Us For Availability
4
WCI 3131125 WCI 3131125 Contact Us For Availability
5
CLOCK EOC WCI 3204587 Contact Us For Availability
5
WCI 3131101 WCI 3131101 Contact Us For Availability
5
WCI 3131975 WCI 3131975 Contact Us For Availability
6
WCI 3204866 WCI 3204866 Contact Us For Availability
6
WCI 3203082 WCI 3203082 Contact Us For Availability
6
FSTNR - SPCR NYLON (2) WCI 3131387 Contact Us For Availability
7
SHIELD, REAR WALL WCI 3131123 Contact Us For Availability
7
SHIELD-LOWER WALL WCI 3203549 Contact Us For Availability
8
WCI 3203405 WCI 3203405 Contact Us For Availability
9
WCI 3204868 WCI 3204868 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
10
BUTTON - CLOCK (8) WCI 3204586 Contact Us For Availability
11
SCREW-LEVEL (4) WCI 5303203397 Contact Us For Availability
11
WCI 5303209518 WCI 5303209518 Contact Us For Availability
11
KNOB - S/U (4) WCI 3204751 Contact Us For Availability
12
COVER HNG. CUTOUT (2) WCI 3131570 Contact Us For Availability
12
WCI 3016851 WCI 3016851 Contact Us For Availability
12
WCI 5308037896 WCI 5308037896 Contact Us For Availability
13
JEWEL-IND LIGHT WCI 5308037703 Contact Us For Availability
13
WCI 3200825 WCI 3200825 Contact Us For Availability
14
WCI 316007002 No Longer Available
14
INSULATION-WOOL WCI 5303209514 Contact Us For Availability
14
SUPPORT-BACKGRD (2) WCI 5303131237 Contact Us For Availability
15
WCI 5303211085 WCI 5303211085 Contact Us For Availability
15
KNOB-CLOCK WCI 3204590 Contact Us For Availability
15
WCI 3203540 WCI 3203540 Contact Us For Availability
16
BUSHING-CONT SHAFT WCI 3204745 Contact Us For Availability
16A
BRACKET-BACKGUARD (NON-ILLUSTRATED) WCI 3131468 Contact Us For Availability
16B
RETAINER - LENS IND LT (NON-ILLUSTRATED) WCI 3051224 Contact Us For Availability
17
TRIM - GLASS RET LH WCI 3204753 Contact Us For Availability
17
WCI 5303013568 WCI 5303013568 Contact Us For Availability
17A
TRIM - GLASS RET RH WCI 3204754 Contact Us For Availability
18
WCI 3204746 WCI 3204746 Contact Us For Availability
18
WCI 5303131356 WCI 5303131356 Contact Us For Availability
18A
WCI 3204747 WCI 3204747 Contact Us For Availability
20
WCI 5303212739 WCI 5303212739 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
26
WCI 3051344 WCI 3051344 Contact Us For Availability
27
WIRE GLASS RETAINER WCI 3204585 Contact Us For Availability
27A
WCI 3204582 WCI 3204582 Contact Us For Availability
27C
INSULATION-WRAP (NON-ILLUSTRATED) WCI 3200833 Contact Us For Availability
27D
WCI 5303212740 WCI 5303212740 Contact Us For Availability
28
WCI 5303015361 WCI 5303015361 Contact Us For Availability
29
WCI 5303131357 WCI 5303131357 Contact Us For Availability
30
WCI 3203218 WCI 3203218 Contact Us For Availability
30A
WCI 08013188 WCI 08013188 Contact Us For Availability
31
SHIELD-LATCH WCI 3051413 Contact Us For Availability
32
SHIELD, BI METAL LATCH WCI 3131593 Contact Us For Availability
33
FSTNR., PUSH ON (3) WCI 08067776 Contact Us For Availability
34
SWITCH-LATCHING WCI 3204592 Contact Us For Availability
35
WCI 3203582 WCI 3203582 Contact Us For Availability
38
WCI 08067810 WCI 08067810 Contact Us For Availability
39
WCI 08010606 WCI 08010606 Contact Us For Availability
40
SWITCH, DOOR WCI 5303202622 Contact Us For Availability
41
WCI 5303131289 WCI 5303131289 Contact Us For Availability
42
ROD LIGHT WCI 5303209316 Contact Us For Availability
45
WCI 3200848 WCI 3200848 Contact Us For Availability
× ![]()
