Model Electrolux 31-3968-23-02 RANGE – Common Parts & Diagrams
02 - BACKGUARD AND CONTROL PARTS
03 - CABINET PARTS

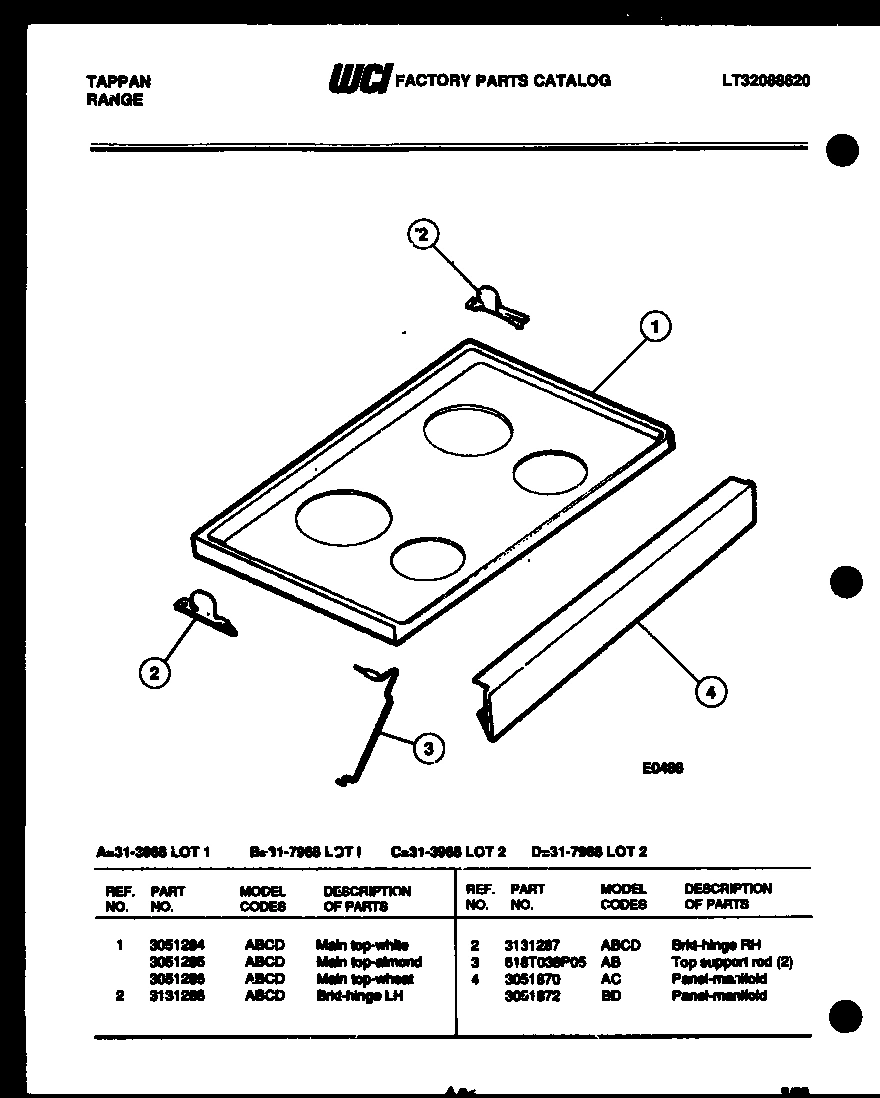

04 - COOKTOP PARTS

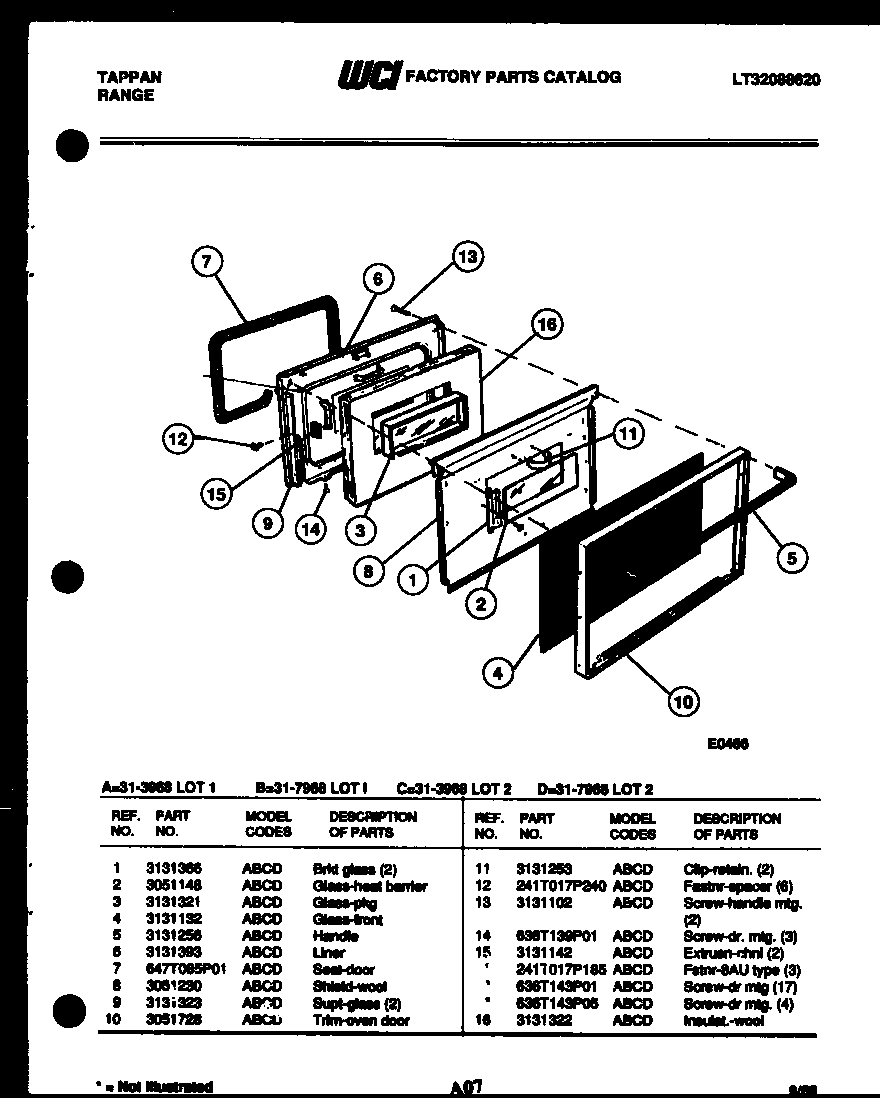

05 - DOOR PARTS

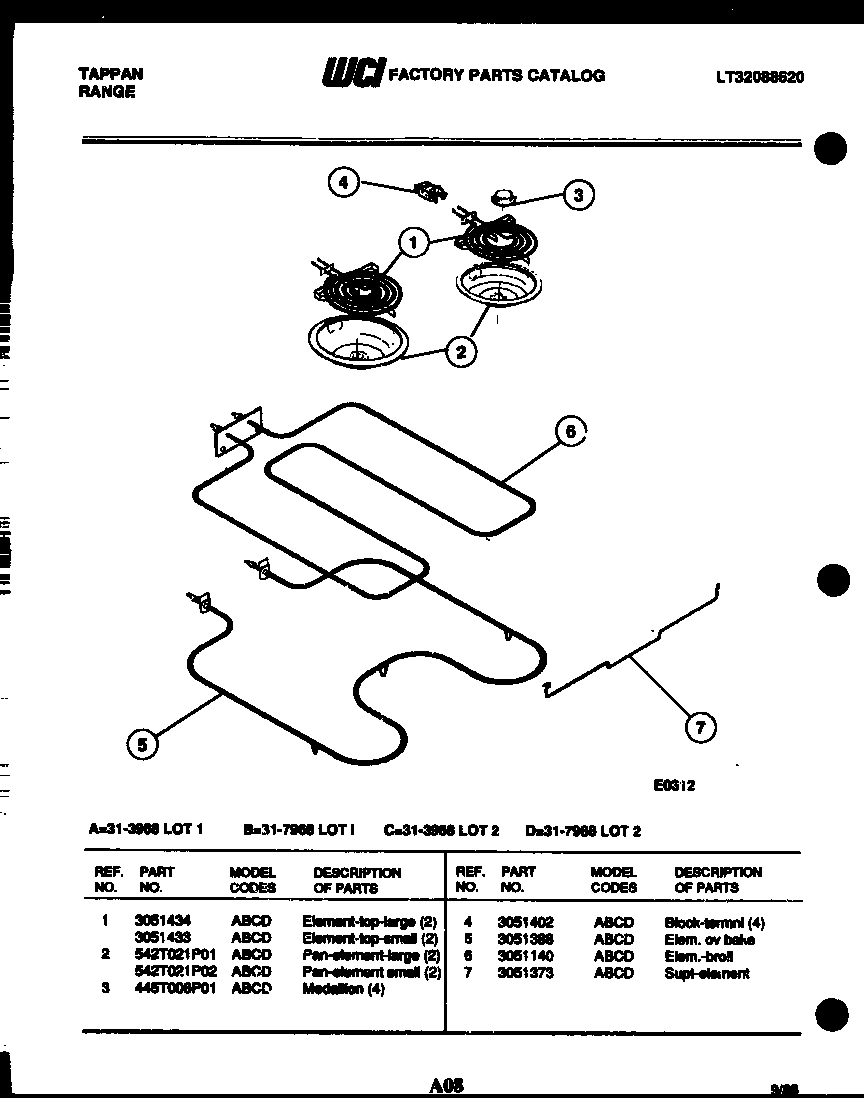

06 - BROILER PARTS

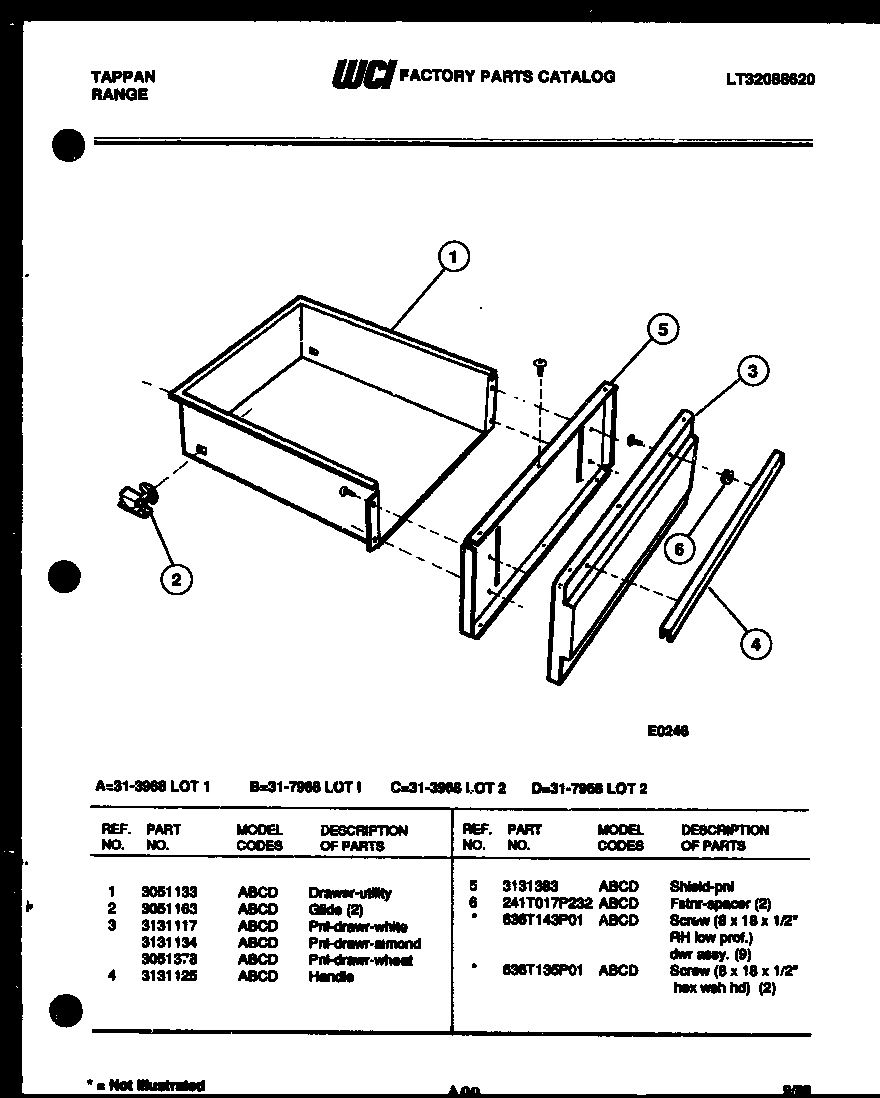

07 - DRAWER PARTS
Common parts from model Electrolux 31-3968-23-02 RANGE
*19373
INSUL. TOUCH WCI 3131305 Contact Us For Availability
*19377
SCREW 8 X 18 X 1/2`` HEX WSH HD (2) WCI 636T135P01 Contact Us For Availability
1
SPACER, BODYSIDE (8) WCI 665T188P02 Contact Us For Availability
1
MAIN TOP, ALMOND WCI 3051285 Contact Us For Availability
1
BRKT GLASS (2) WCI 3131366 Contact Us For Availability
1
DRAWER, UTILITY WCI 3051133 Contact Us For Availability
2
BRKT-HINGE LH WCI 3131286 Contact Us For Availability
2
BRKT-HINGE RH WCI 3131287 Contact Us For Availability
2
WCI 3051148 WCI 3051148 Contact Us For Availability
3
PNL BODYSIDE LH (ALMOND) WCI 3131453 Contact Us For Availability
3
PNL-BODYSIDE LH-ALMOND WCI 3200793 Contact Us For Availability
3
TOP SUPPORT ROD (2) WCI 618T038P05 Contact Us For Availability
3
WCI 3131321 WCI 3131321 Contact Us For Availability
3
WCI 445T006P01 WCI 445T006P01 Contact Us For Availability
3
PNL. DRAWR.-ALMOND WCI 3131134 Contact Us For Availability
3A
PNL-BODYSIDE RH-ALMOND WCI 3131454 Contact Us For Availability
3A
PNL-BODYSIDE RH-ALMOND WCI 3200790 Contact Us For Availability
4
WCI 3051109 WCI 3051109 Contact Us For Availability
4
WCI 3051872 WCI 3051872 Contact Us For Availability
4
WCI 3131132 WCI 3131132 Contact Us For Availability
4
WCI 3131125 WCI 3131125 Contact Us For Availability
5
NUT - DECOR (2) WCI 3051194 Contact Us For Availability
5
WCI 3131101 WCI 3131101 Contact Us For Availability
5
WCI 3131256 WCI 3131256 Contact Us For Availability
5
ELEM-OV BAKE WCI 3051388 Contact Us For Availability
5
SHIELD-PNL WCI 3131383 Contact Us For Availability
6
FSTNR-GLASS(2) WCI 241T049P01 Contact Us For Availability
6
WCI 3131567 WCI 3131567 Contact Us For Availability
6
LINER WCI 3131393 Contact Us For Availability
6
FSTNR-SPACER (2) WCI 241T017P232 Contact Us For Availability
7
SHIELD, REAR WALL WCI 3131123 Contact Us For Availability
7
SHIELD-LWR WALL WCI 3051400 Contact Us For Availability
8
WCI 3051119 WCI 3051119 Contact Us For Availability
8
CVR-LWR ACCESS WCI 3051369 Contact Us For Availability
8
WCI 3051230 WCI 3051230 Contact Us For Availability
9
GLASS-WORK LITE (2) WCI 3131145 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
9
SUPT. GLASS (2) WCI 3131323 Contact Us For Availability
10
THERMOSTAT-S/C WCI 3051324 Contact Us For Availability
10
WCI 3051728 WCI 3051728 Contact Us For Availability
11
WCI 699T015P02 WCI 699T015P02 Contact Us For Availability
11
SCREW, LEVEL (4) WCI 636M004P01 Contact Us For Availability
11
WCI 3131253 WCI 3131253 Contact Us For Availability
12
CVR. HNG. CUTOUT (2) WCI 3131570 Contact Us For Availability
12
WCI 3051315 WCI 3051315 Contact Us For Availability
12
FASTNR-SPACER (6) WCI 241T017P240 Contact Us For Availability
13
THERMO-OVEN WCI 3051322 Contact Us For Availability
13
SHIELD-WOOL LWR WCI 3051398 Contact Us For Availability
13
SCREW-HANDLE MTG (2) WCI 3131102 Contact Us For Availability
14
CHANL DR. HNG. (2) WCI 316007002 No Longer Available
14
KNOB-TOP ELM (4) WCI 3051487 Contact Us For Availability
14
SCREW DR MTG (3) WCI 636T139P01 Contact Us For Availability
14A
WCI 3051490 WCI 3051490 Contact Us For Availability
14B
KNOB-THERMO. WCI 3051456 Contact Us For Availability
15
WCI 358T206P01 WCI 358T206P01 Contact Us For Availability
15
WCI 3051104 WCI 3051104 Contact Us For Availability
15
EXTRUSN CHNL (2) WCI 3131142 Contact Us For Availability
15A
FSTNR-8AU TYPE (3) (NON-ILLUSTRATED) WCI 241T017P185 Contact Us For Availability
15C
WCI 636T143P05 WCI 636T143P05 Contact Us For Availability
16
INDIC. LITE S/U (3) WCI 318T023P11 Contact Us For Availability
16
INDICATOR-LITE OVN WCI 318T023P12 Contact Us For Availability
16
FUSE-THERM. CUTOUT WCI 3051385 Contact Us For Availability
16
INSULAT.-WOOL WCI 3131322 Contact Us For Availability
17
JEWEL-IND LENS (4) WCI 342T014P01 Contact Us For Availability
17
WCI 539T010F01-85 WCI 539T010F01-85 Contact Us For Availability
17A
RETAIN. LENS (4) (NON-ILLUSTRATED) WCI 3051224 Contact Us For Availability
18
ANGLE-S/C THERM. MTG WCI 3131467 Contact Us For Availability
18
INSERT-BROILR PAN WCI 3131356 Contact Us For Availability
19
WCI 045T071P01 WCI 045T071P01 Contact Us For Availability
20
SWITCH-OV LT WCI 695T211P02 Contact Us For Availability
20
GRND STRAP WCI 711T048P01 Contact Us For Availability
21
BULB-FLUOR WCI 3131275 Contact Us For Availability
21
CLIP-THERM. BULB (2) WCI 3131295 Contact Us For Availability
22
SW.-FLUOR. LT. WCI 3051312 Contact Us For Availability
23
WCI 3051115 WCI 3051115 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
24
SHIELD-FLUOR LT. WCI 3131137 Contact Us For Availability
24
WCI 3051298 WCI 3051298 Contact Us For Availability
25
BRKT-FLUOR LT MTG LH WCI 3131576 Contact Us For Availability
25
WCI 3051429 WCI 3051429 Contact Us For Availability
25A
BRKT-FLUOR LT MTG RH WCI 3131577 Contact Us For Availability
26
RECEPT.-FLUOR LT RH WCI 3051222 Contact Us For Availability
26
WCI 3051344 WCI 3051344 Contact Us For Availability
26A
RECEPT.-FLUOR LT. LH WCI 3051223 Contact Us For Availability
27
WCI 3131556 WCI 3131556 Contact Us For Availability
27
WIRE-GLASS RETNR WCI 3131104 Contact Us For Availability
27A
INSUL - WRAP (NON-ILLUSTRATED) WCI 3131304 Contact Us For Availability
27B
WCI 3131303 WCI 3131303 Contact Us For Availability
27E
SCREW-HNG MTG (6) (NON-ILLUSTRATED) WCI 636T163P01 Contact Us For Availability
27F
NUT-HEX BRASS (6) (NON-ILLUSTRATED) WCI 479T069P41 Contact Us For Availability
28
BTN.-ELEC. CLK. (4) WCI 3131489 Contact Us For Availability
28
WCI 3051258 WCI 3051258 Contact Us For Availability
29
SHAFT-ELEC. CLK. WCI 3051347 Contact Us For Availability
29
WCI 3051473 WCI 3051473 Contact Us For Availability
30
WCI 3051161 WCI 3051161 Contact Us For Availability
30
WCI 358T158S02 WCI 358T158S02 Contact Us For Availability
30A
SCREW, SET, LATCH KNOB (NON-ILLUSTRATED) WCI 636T144P01 Contact Us For Availability
31
SHIELD-LATCH WCI 657T018P01 Contact Us For Availability
32
SHIELD-BI MTL CATCH WCI 3131593 Contact Us For Availability
33
FSTNR PUSH ON (3) WCI 241T001P01 Contact Us For Availability
34
SW.-LATCHING WCI 3131672 Contact Us For Availability
35
TUBE-OV. LT. WCI 3131363 Contact Us For Availability
38
WCI 244T041P01 WCI 244T041P01 Contact Us For Availability
39
RETAIN, CATALYST WCI 612T079P01 Contact Us For Availability
40
WCI 695T128P04 WCI 695T128P04 Contact Us For Availability
41
BRKT-LT SW. WCI 3131289 Contact Us For Availability
42
WCI 3131600 WCI 3131600 Contact Us For Availability
43
WCI 174T329P01 WCI 174T329P01 Contact Us For Availability
44
BTN-REMOT LT. SW. WCI 102T044P02 Contact Us For Availability
45
WCI 3051430 WCI 3051430 Contact Us For Availability
× ![]()
