Model Electrolux 31-3858-00-04 RANGE – Common Parts & Diagrams
02 - DOOR PARTS
03 - BROILER PARTS

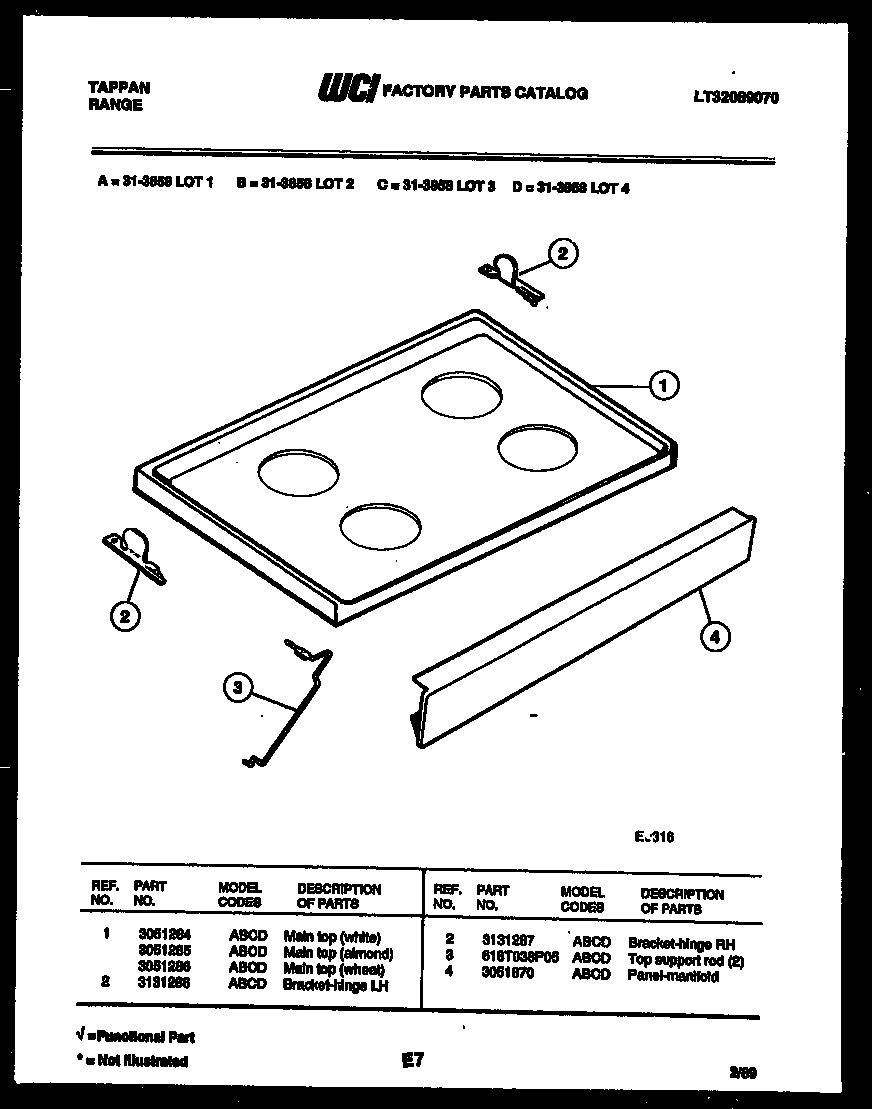

04 - COOKTOP PARTS

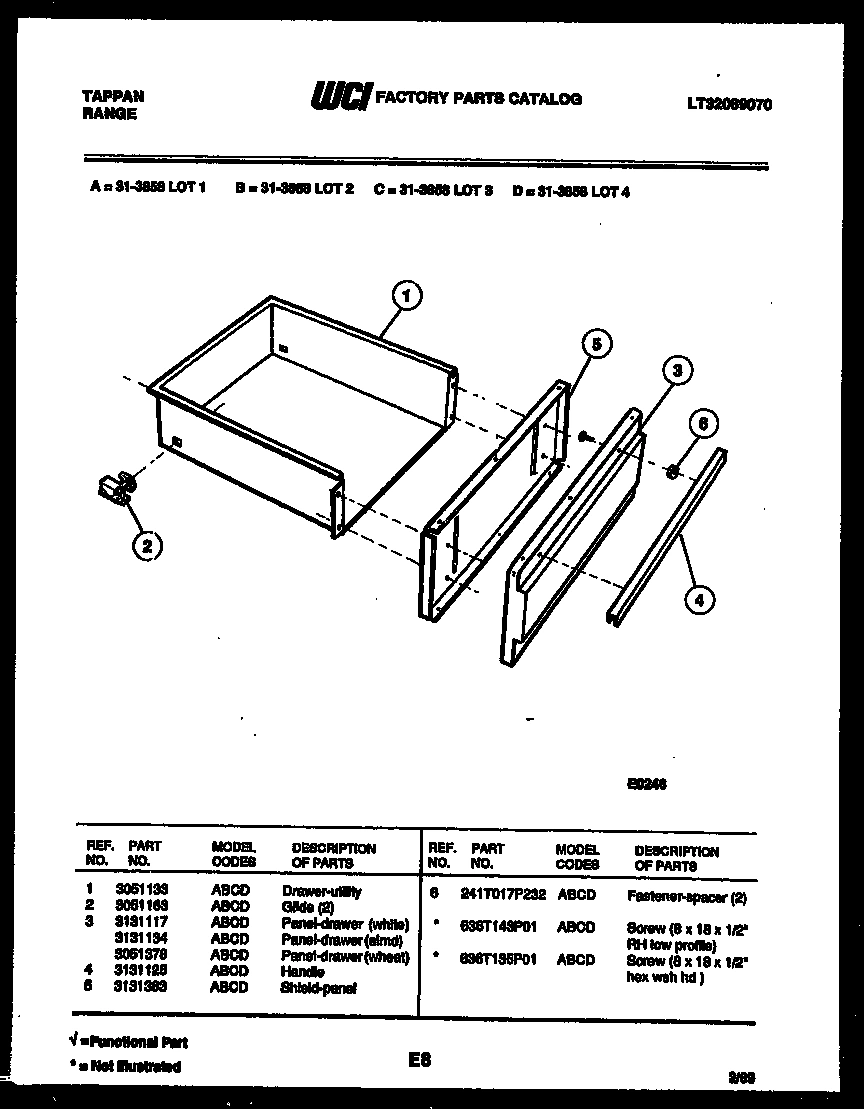

05 - DRAWER PARTS

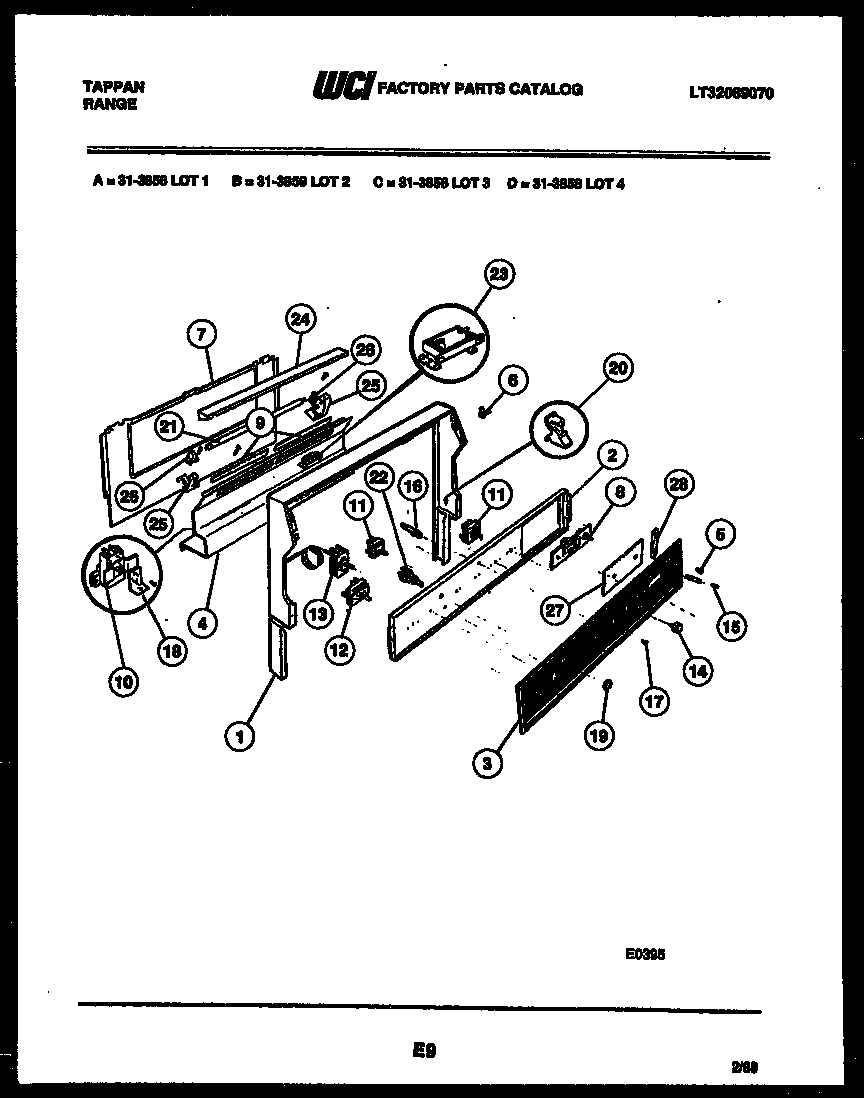

06 - BACKGUARD

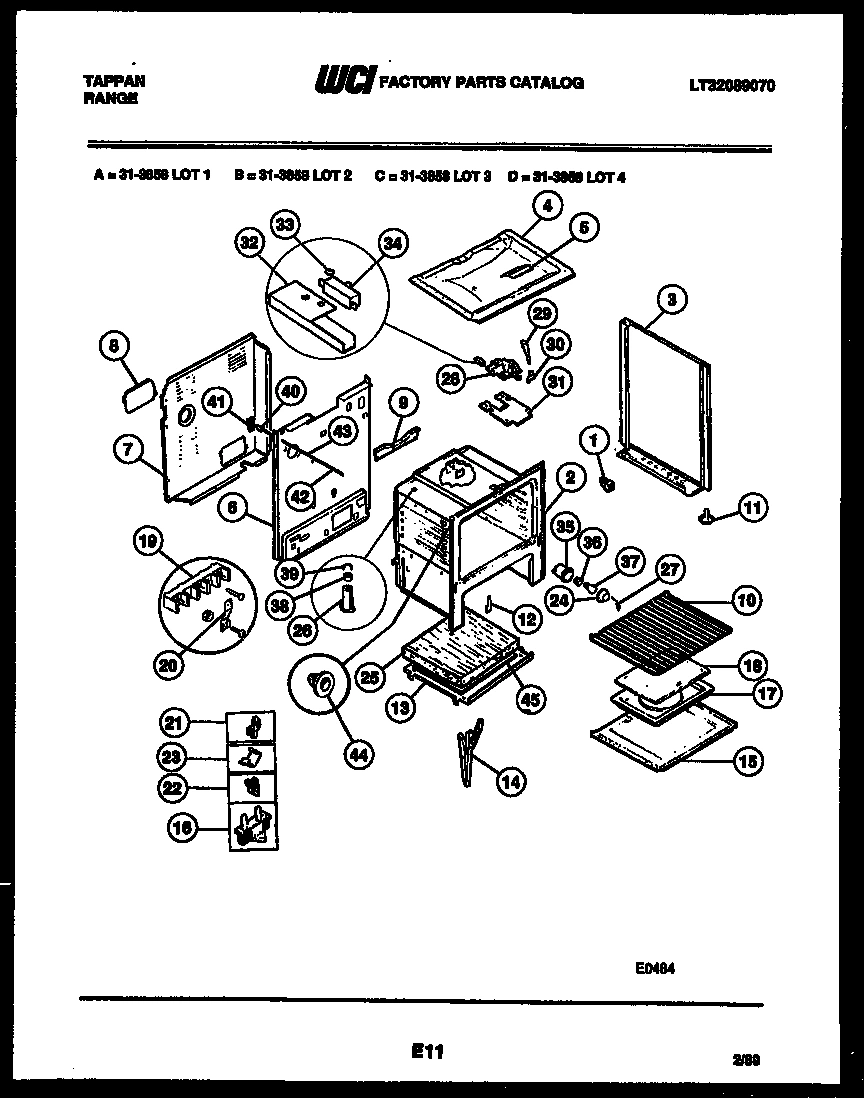

07 - BODY PARTS
Common parts from model Electrolux 31-3858-00-04 RANGE
*16669
SCREW (8 X 18 X 1/2`` HEX WSH HD) WCI 636T135P01 Contact Us For Availability
*16679
INSULATION, TOUCH WCI 3131305 Contact Us For Availability
*16679
SHIELD HEAT B/S (2) WCI 3200834 Contact Us For Availability
*16680
FASTENER-EDGE MNT (2) WCI 3200846 Contact Us For Availability
1
WCI 3051284 WCI 3051284 Contact Us For Availability
1
DRAWER, UTILITY WCI 3051133 Contact Us For Availability
1
WCI 3131436 WCI 3131436 Contact Us For Availability
1
WCI 665T188P02 WCI 665T188P02 Contact Us For Availability
2
BRACKET, HINGE, LH WCI 3131286 Contact Us For Availability
2
BRACKET, HINGE, RH WCI 3131287 Contact Us For Availability
2
PLATE-INST MTG WCI 3051219 Contact Us For Availability
3
WCI 445T006P01 WCI 445T006P01 Contact Us For Availability
3
TOP SUPPORT ROD (2) WCI 618T038P05 Contact Us For Availability
3
WCI 3131117 WCI 3131117 Contact Us For Availability
3
WCI 3201827 WCI 3201827 Contact Us For Availability
4
INSULATION, OVEN DOOR WCI 3131384 Contact Us For Availability
4
WCI 3051870 WCI 3051870 Contact Us For Availability
4
WCI 3131125 WCI 3131125 Contact Us For Availability
4
TRIM-LOWER SPLASHER WCI 3051864 Contact Us For Availability
4
WCI 3051109 WCI 3051109 Contact Us For Availability
5
WCI 3201692 WCI 3201692 Contact Us For Availability
5
WCI 3201724 WCI 3201724 Contact Us For Availability
5
WCI 3131383 WCI 3131383 Contact Us For Availability
5
NUT - DECOR (2) WCI 3051194 Contact Us For Availability
5
WCI 3131101 WCI 3131101 Contact Us For Availability
6
FASTENER, SPACER (2) WCI 241T017P232 Contact Us For Availability
6
FASTENER-GLASS (2) WCI 241T049P01 Contact Us For Availability
6
WCI 3131567 WCI 3131567 Contact Us For Availability
7
WCI 3201693 WCI 3201693 Contact Us For Availability
7
SHIELD, REAR WALL WCI 3131123 Contact Us For Availability
7
WCI 3051400 WCI 3051400 Contact Us For Availability
8
CLIP, RETAINER (2) WCI 3131253 Contact Us For Availability
8
CLOCK WCI 3131146 Contact Us For Availability
8
COVER, LOWER ACCESS WCI 3051501 Contact Us For Availability
9
SEAL, FOAM (4) WCI 3131214 Contact Us For Availability
9
WCI 3131145 WCI 3131145 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
10
WCI 3051728 WCI 3051728 Contact Us For Availability
10
THERMOSTAT-S/C WCI 3051324 Contact Us For Availability
11
WCI 3131323 WCI 3131323 Contact Us For Availability
11
WCI 699T015P02 WCI 699T015P02 Contact Us For Availability
11
SCREW-LEVEL WCI 636M004P01 Contact Us For Availability
12
COVER-HINGE CUTOUT (2) WCI 3131570 Contact Us For Availability
12
FASTENER-NYLON (6) WCI 241T017P240 Contact Us For Availability
12
WCI 3201732 WCI 3201732 Contact Us For Availability
13
SCREW HANDLE 10-24 SP. WSH. RHD. (2) WCI 3131102 Contact Us For Availability
13
THERMOSTAT WCI 3201733 Contact Us For Availability
13
WCI 3200825 WCI 3200825 Contact Us For Availability
14
FASTENER-NYLON SPCR (3) WCI 241T017P185 Contact Us For Availability
14
WCI 3051487 WCI 3051487 Contact Us For Availability
14
WCI 3201797 WCI 3201797 Contact Us For Availability
14
WCI 3201798 WCI 3201798 Contact Us For Availability
14
CHANNEL, DOOR HINGE (2) WCI 3131569 Contact Us For Availability
15
KNOB, CLOCK (3) WCI 358T201P01 Contact Us For Availability
15
WCI 3051104 WCI 3051104 Contact Us For Availability
16
INDICATOR LIGHT WCI 318T023P11 Contact Us For Availability
16
INDICATOR LT. OVEN-BLUE WCI 3201726 Contact Us For Availability
16
INDICATOR LT. OVEN-BLACK WCI 3201727 Contact Us For Availability
16
INDICATOR LT. OVEN-RED WCI 3201728 Contact Us For Availability
17
JEWEL-IND LENS (2) WCI 342T014P01 Contact Us For Availability
17
WCI 539T010F01-86 WCI 539T010F01-86 Contact Us For Availability
17A
RETAINER-LENS (2) (NON-ILLUSTRATED) WCI 3051224 Contact Us For Availability
18
ANGLE-S/C THERM. MTG WCI 3131467 Contact Us For Availability
18
WCI 3131356 WCI 3131356 Contact Us For Availability
19
WCI 045T071P01 WCI 045T071P01 Contact Us For Availability
20
SUPPORT-BACKGUARD (2) WCI 3131237 Contact Us For Availability
20
WCI 711T048P01 WCI 711T048P01 Contact Us For Availability
21
BULB-FLUOR WCI 3131275 Contact Us For Availability
22
SWITCH - FLUOR LIGHT WCI 3051312 Contact Us For Availability
23
WCI 3051115 WCI 3051115 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
24
WCI 3201738 WCI 3201738 Contact Us For Availability
24
GLASS-OVEN LIGHT LENS WCI 3131298 Contact Us For Availability
25
BRACKET-FLUOR LIGHT MTG LH WCI 3131576 Contact Us For Availability
25
BRACKET-FLUOR LIGHT MTG RH WCI 3131577 Contact Us For Availability
25
INSULATION, BOTTOM WCI 3051429 Contact Us For Availability
26
RECEPTACLE - FLUOR LIGHT LH WCI 3051222 Contact Us For Availability
26
RECEPTACLE - FLUOR LIGHT RH WCI 3051223 Contact Us For Availability
26
WCI 3051344 WCI 3051344 Contact Us For Availability
27
WCI 3051159 WCI 3051159 Contact Us For Availability
27
WCI 3131104 WCI 3131104 Contact Us For Availability
27B
INSULATION, BACK (NON-ILLUSTRATED) WCI 3131303 Contact Us For Availability
27D
INSULATION-WRAP (NON-ILLUSTRATED) WCI 3200833 Contact Us For Availability
27E
SCREW-HINGE MOUNT (6) (NON-ILLUSTRATED) WCI 636T163P01 Contact Us For Availability
27F
NUT-HEX BRASS (6) (NON-ILLUSTRATED) WCI 479T069P41 Contact Us For Availability
28
WCI 612T123F01 WCI 612T123F01 Contact Us For Availability
28
WCI 3051258 WCI 3051258 Contact Us For Availability
29
WCI 3051473 WCI 3051473 Contact Us For Availability
30
KNOB, LATCH WCI 358T158P02 Contact Us For Availability
30A
SCREW, SET, LATCH KNOB (NON-ILLUSTRATED) WCI 636T144P01 Contact Us For Availability
31
SHIELD-LATCH WCI 3051413 Contact Us For Availability
32
SHIELD-BL MTL LATCH WCI 3131593 Contact Us For Availability
33
FASTENER, PUSH ON (3) WCI 241T001P01 Contact Us For Availability
34
WCI 3131672 WCI 3131672 Contact Us For Availability
35
WCI 3131363 WCI 3131363 Contact Us For Availability
38
WCI 244T041P01 WCI 244T041P01 Contact Us For Availability
39
RETAINER, CATALYST WCI 612T079P01 Contact Us For Availability
40
WCI 695T128P04 WCI 695T128P04 Contact Us For Availability
41
BRACKET, LIGHT SWITCH WCI 3131289 Contact Us For Availability
42
WCI 3051495 WCI 3051495 Contact Us For Availability
43
WCI 174T329P01 WCI 174T329P01 Contact Us For Availability
44
BUTTON-REMOTE LT SWITCH WCI 102T044P02 Contact Us For Availability
45
SHIELD-HEAT LWR WCI 3200848 Contact Us For Availability
× ![]()
