Model Electrolux 31-3857-00-02 RANGE – Common Parts & Diagrams

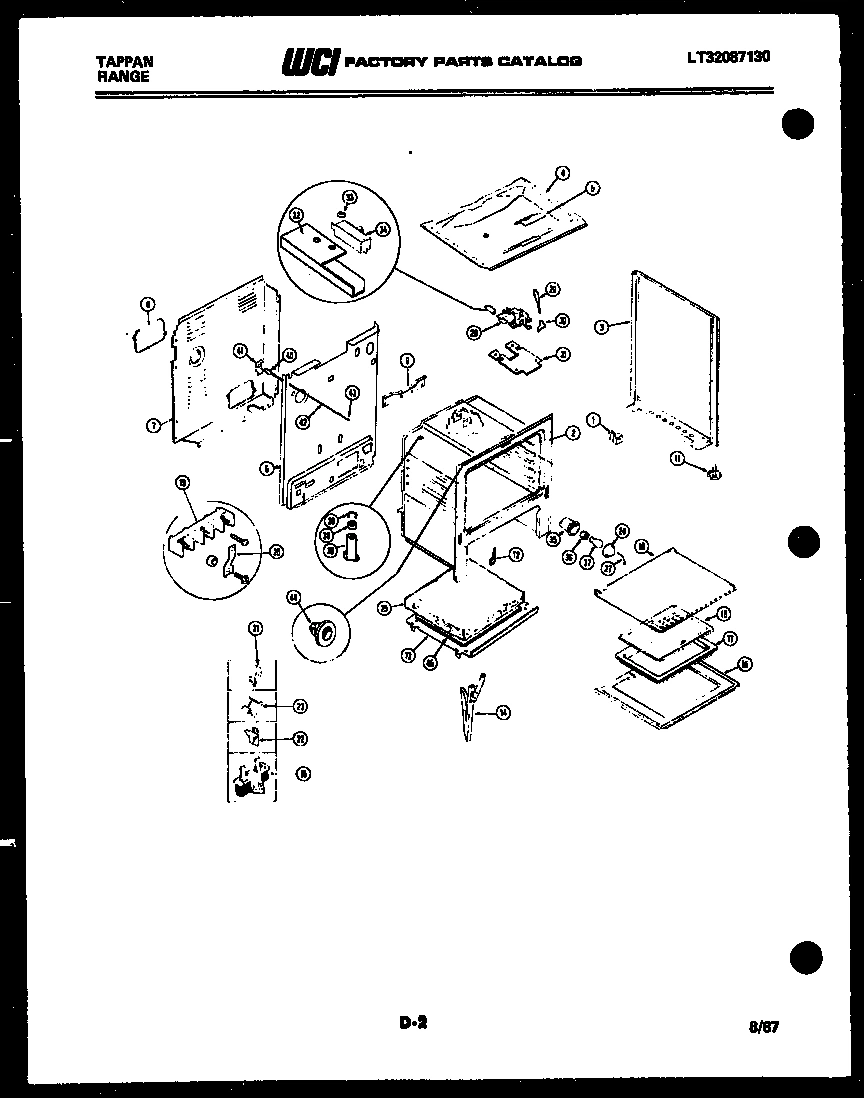

02 - BODY PARTS

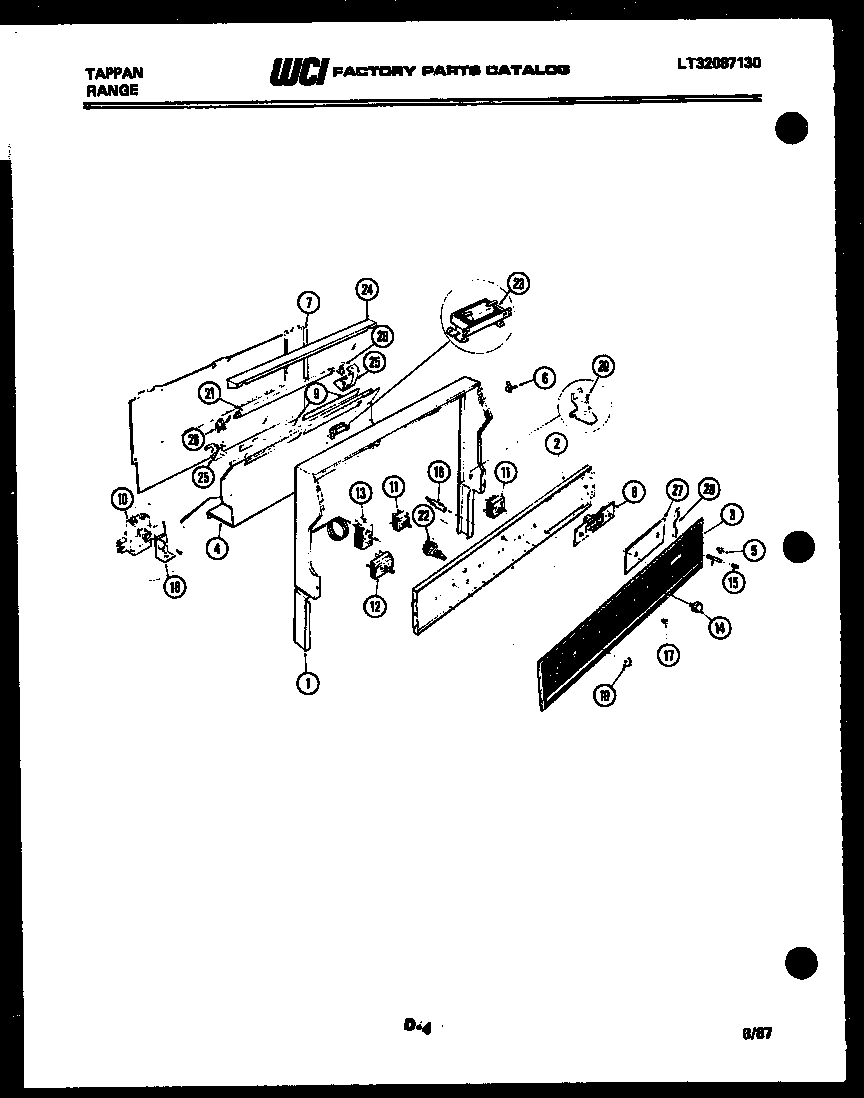

03 - BACKGUARD

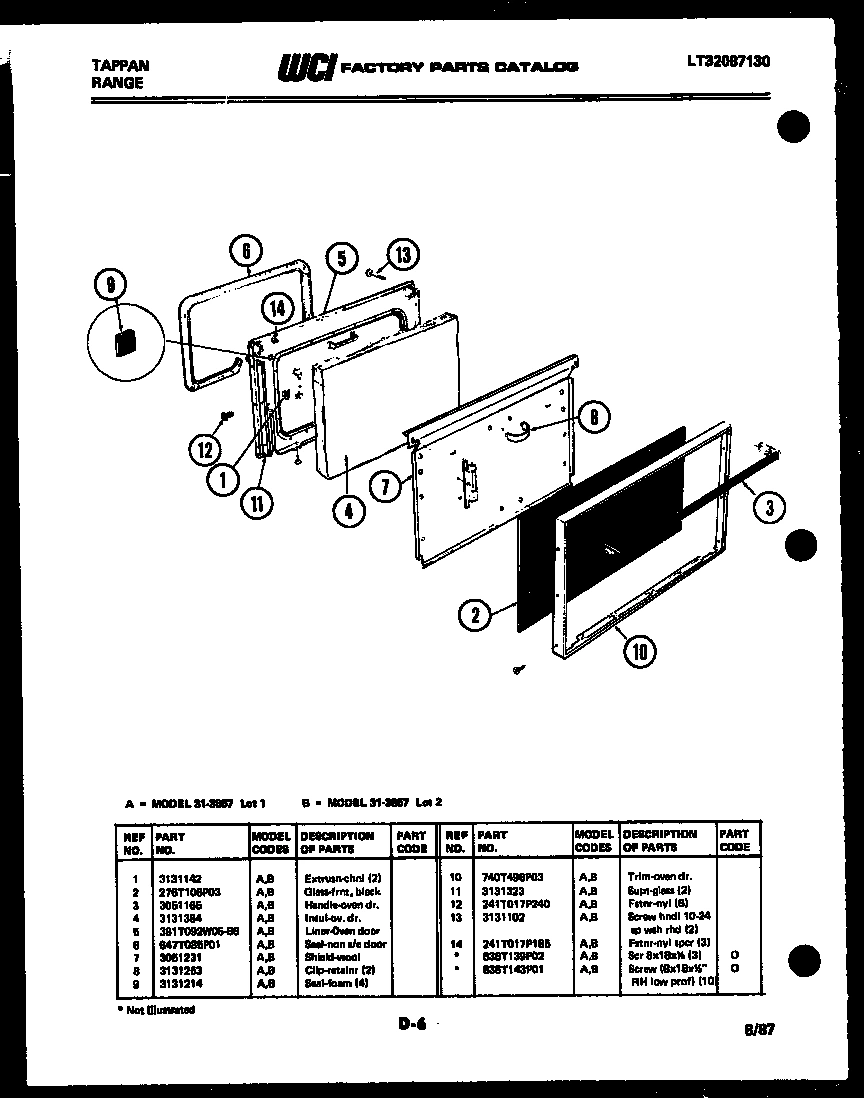

04 - DOOR PARTS

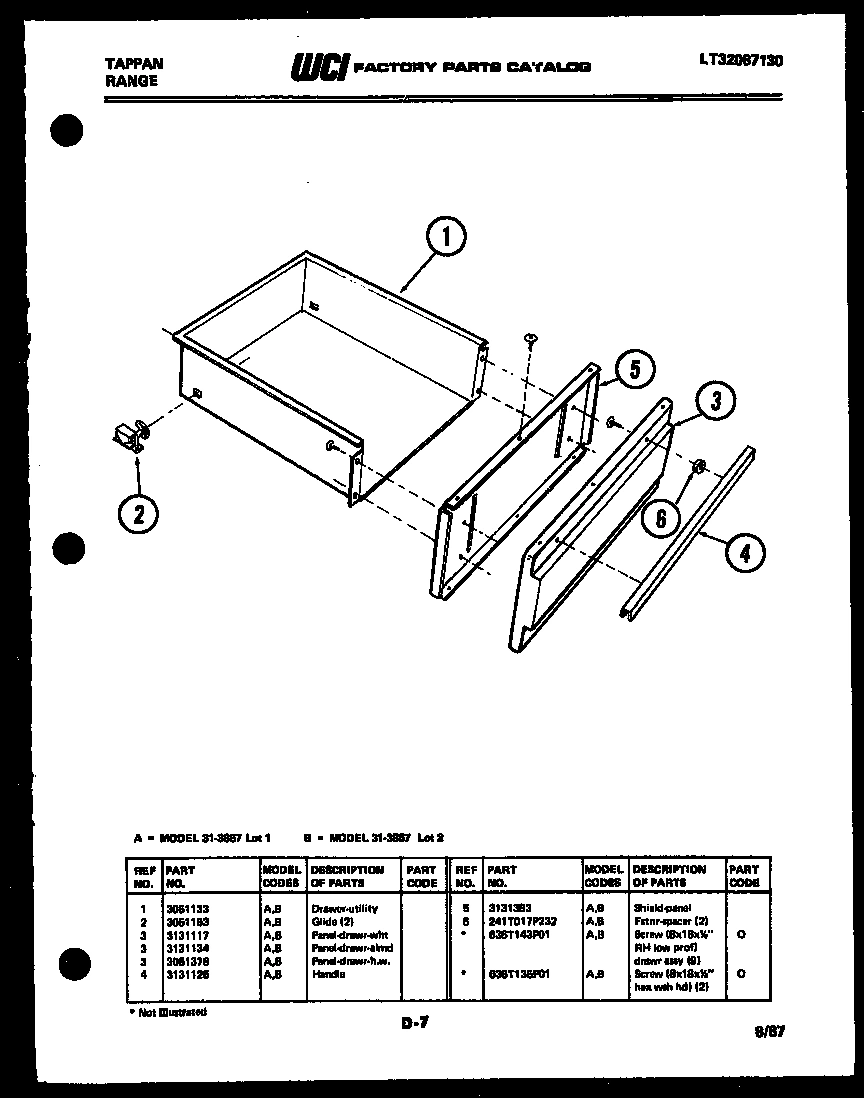

05 - DRAWER PARTS

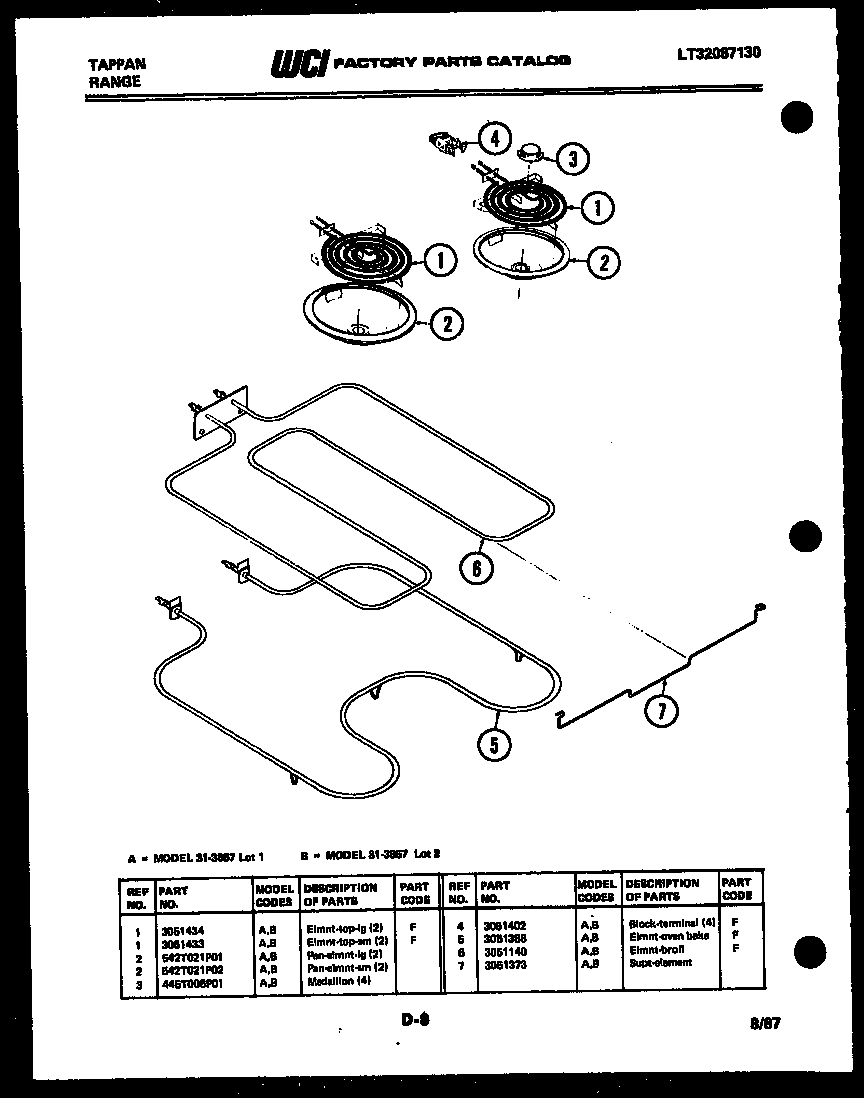

06 - BROILER PARTS

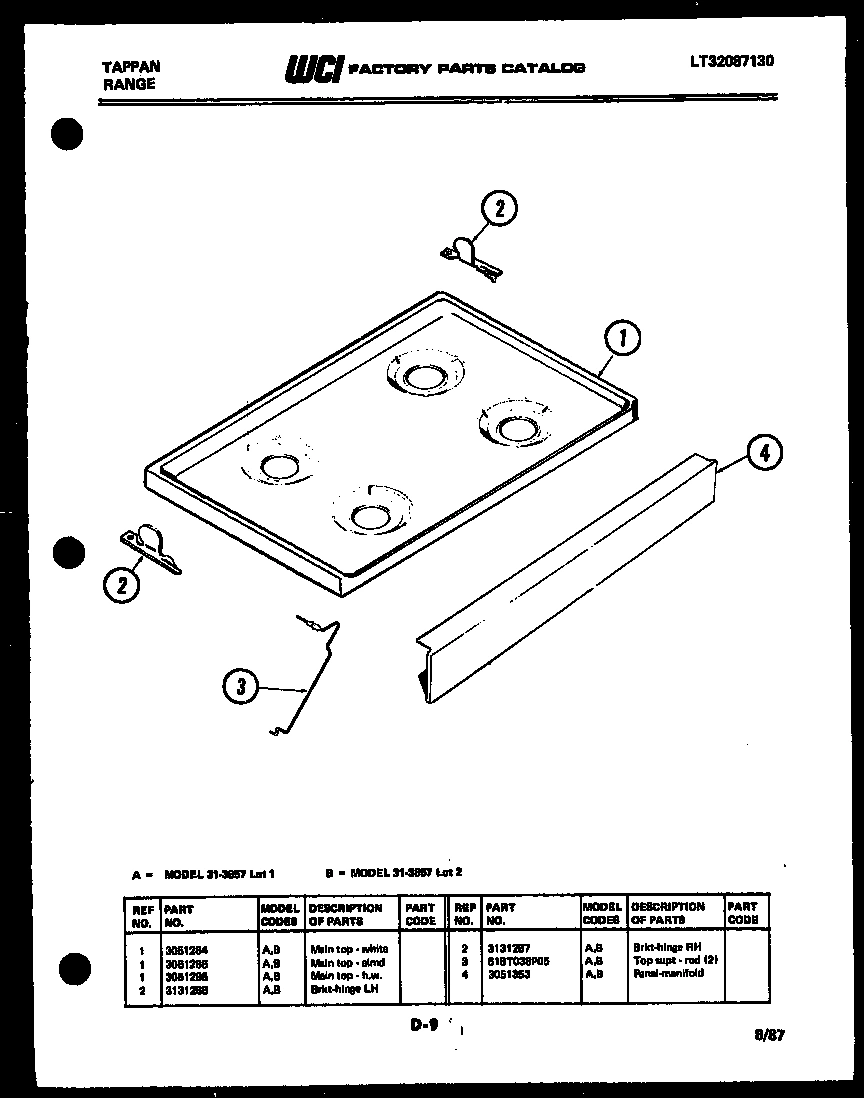

07 - COOKTOP PARTS
Common parts from model Electrolux 31-3857-00-02 RANGE
*64055
SCR 8 X 18 X 1/2 (3) WCI 636T139P02 Contact Us For Availability
*64061
SCREW 8 X 18 X 1/2`` HEX WSH HD (2) WCI 636T135P01 Contact Us For Availability
1
WCI 3131436 WCI 3131436 Contact Us For Availability
1
EXTRUSN CHNL (2) WCI 3131142 Contact Us For Availability
1
DRAWER, UTILITY WCI 3051133 Contact Us For Availability
1
WCI 3051284 WCI 3051284 Contact Us For Availability
2
PLATE-INSTRMNT MT WCI 3051219 Contact Us For Availability
2
GLASS FRNT BLACK WCI 276T106P03 Contact Us For Availability
2
BRKT-HINGE LH WCI 3131286 Contact Us For Availability
2
BRKT-HINGE RH WCI 3131287 Contact Us For Availability
3
PNL-BDYSDE-RH-H.W. WCI 3131477 Contact Us For Availability
3
WCI 3051503 WCI 3051503 Contact Us For Availability
3
HANDLE-OVEN DR. WCI 3051165 Contact Us For Availability
3
PANEL-DRAWR-WHT WCI 3131117 Contact Us For Availability
3
WCI 445T006P01 WCI 445T006P01 Contact Us For Availability
3
TOP SUPT ROD (2) WCI 618T038P05 Contact Us For Availability
4
WCI 3051109 WCI 3051109 Contact Us For Availability
4
TRIM-LWR SPLASHER WCI 3051432 Contact Us For Availability
4
INSUL-OV. DR. WCI 3131384 Contact Us For Availability
4
WCI 3131125 WCI 3131125 Contact Us For Availability
4
WCI 3051353 WCI 3051353 Contact Us For Availability
5
WCI 3131101 WCI 3131101 Contact Us For Availability
5
NUT - DECOR (2) WCI 3051194 Contact Us For Availability
5
LINER, OVEN DOOR WCI 381T092W05-86 Contact Us For Availability
5
WCI 3131383 WCI 3131383 Contact Us For Availability
5
ELMNT-OVEN BAKE WCI 3051388 Contact Us For Availability
6
WCI 3131567 WCI 3131567 Contact Us For Availability
6
FASTNR-GLASS (2) WCI 241T049P01 Contact Us For Availability
6
FSTNR-SPACER (2) WCI 241T017P232 Contact Us For Availability
7
SHIELD-LWR WALL WCI 3051400 Contact Us For Availability
7
SHIELD, REAR WALL WCI 3131123 Contact Us For Availability
7
WCI 3051231 WCI 3051231 Contact Us For Availability
8
CVR-LWR ACCESS WCI 3051501 Contact Us For Availability
8
CLOCK WCI 3131146 Contact Us For Availability
8
CLIP RETAINR (2) WCI 3131253 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
9
GLASS-WORK LITE (2) WCI 3131145 Contact Us For Availability
9
SEAL, FOAM (4) WCI 3131214 Contact Us For Availability
10
THERMOS. (SC) WCI 3051324 Contact Us For Availability
10
WCI 740T496P03 WCI 740T496P03 Contact Us For Availability
11
SCREW, LEVEL (4) WCI 636M004P01 Contact Us For Availability
11
WCI 699T015P02 WCI 699T015P02 Contact Us For Availability
11
SUPT. GLASS (2) WCI 3131323 Contact Us For Availability
12
CVR-HNGE CUTOUT 2 WCI 3131570 Contact Us For Availability
12
WCI 3051315 WCI 3051315 Contact Us For Availability
12
FSTNR NYL (6) WCI 241T017P240 Contact Us For Availability
13
SHIELD-WOOL LWR WCI 3051398 Contact Us For Availability
13
THERMOS.-OVEN WCI 3051322 Contact Us For Availability
13
SCREW HNDL 10-24 SP WSH RHD (2) WCI 3131102 Contact Us For Availability
14
CHANL-DR HNGE (2) WCI 3131569 Contact Us For Availability
14
KNOB-THERMOS. WCI 3051456 Contact Us For Availability
14
KNOB-TOP EL, (4) WCI 3051487 Contact Us For Availability
14
WCI 3051490 WCI 3051490 Contact Us For Availability
14
FSTNR-NYL SPCR (3) WCI 241T017P185 Contact Us For Availability
15
WCI 3051104 WCI 3051104 Contact Us For Availability
15
KNOB, CLOCK (3) WCI 358T201P01 Contact Us For Availability
16
FUSE-THERM. CUTOUT WCI 3051385 Contact Us For Availability
16
INDICATOR-LIT SW-(3) WCI 318T023P11 Contact Us For Availability
16
INDICATOR-LIT OVEN WCI 318T023P12 Contact Us For Availability
17
WCI 539T010F01-86 WCI 539T010F01-86 Contact Us For Availability
17
JEWEL-IND LENS (4) WCI 342T014P01 Contact Us For Availability
17A
RETAINR-LENS (4) (NON-ILLUSTRATED) WCI 3051224 Contact Us For Availability
18
INSERT-BROILR PAN WCI 3131356 Contact Us For Availability
18
ANGLE-S/C THERM. MTG WCI 3131467 Contact Us For Availability
19
WCI 045T071P01 WCI 045T071P01 Contact Us For Availability
20
WCI 711T048P01 WCI 711T048P01 Contact Us For Availability
20
SUPT-BACKGRD (2) WCI 3131237 Contact Us For Availability
21
BULB-FLUOR WCI 3131275 Contact Us For Availability
21
CLIP-THERM. BULB (2) WCI 3131295 Contact Us For Availability
22
SW-FLUOR LIGHT WCI 3051312 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
23
WCI 3051115 WCI 3051115 Contact Us For Availability
24
GLASS-OVN LT LENS WCI 3131298 Contact Us For Availability
24
SHIELD - FLUOR LIGHT WCI 3131137 Contact Us For Availability
25
WCI 3051429 WCI 3051429 Contact Us For Availability
25
BRKT-FLUOR LIT MTG. LH WCI 3131576 Contact Us For Availability
25
BRKT-FLUOR LT MTG RH WCI 3131577 Contact Us For Availability
26
TUQE-OVEN VENT WCI 3051344 Contact Us For Availability
26
RECEPT.-FLUOR LT LH WCI 3051222 Contact Us For Availability
26
RECEPT.-FLUOR LT RH WCI 3051223 Contact Us For Availability
27
WIRE-GLASS RETAINR WCI 3131104 Contact Us For Availability
27
WCI 3051159 WCI 3051159 Contact Us For Availability
27A
INSUL - WRAP (NON-ILLUSTRATED) WCI 3131304 Contact Us For Availability
27B
WCI 3131303 WCI 3131303 Contact Us For Availability
27D
SCREW-HNGE MTG-6 (NON-ILLUSTRATED) WCI 636T163P01 Contact Us For Availability
27E
NUT-HEX BRASS (6) (NON-ILLUSTRATED) WCI 479T069P41 Contact Us For Availability
28
WCI 3051258 WCI 3051258 Contact Us For Availability
28
RETAINR-CLK GLASS-2 WCI 612T123F01 Contact Us For Availability
29
WCI 3051473 WCI 3051473 Contact Us For Availability
30
KNOB, LATCH WCI 358T158P02 Contact Us For Availability
30A
SCREW, SET, LATCH KNOB (NON-ILLUSTRATED) WCI 636T144P01 Contact Us For Availability
31
SHIELD-LATCH WCI 3051413 Contact Us For Availability
32
SHIELD-BI MTL LATCH WCI 3131593 Contact Us For Availability
33
FASTNR-PUSH ON (3) WCI 241T001P01 Contact Us For Availability
34
WCI 695T226P01 WCI 695T226P01 Contact Us For Availability
35
TUBE-OV. LIGHT WCI 3131363 Contact Us For Availability
38
WCI 244T041P01 WCI 244T041P01 Contact Us For Availability
39
WCI 612T079P01 WCI 612T079P01 Contact Us For Availability
40
WCI 695T128P04 WCI 695T128P04 Contact Us For Availability
41
BRACKET-LT SW. WCI 3131289 Contact Us For Availability
42
WCI 3051495 WCI 3051495 Contact Us For Availability
43
WCI 174T329P01 WCI 174T329P01 Contact Us For Availability
44
BUTTON-REMOTE LT. SW. WCI 102T044P02 Contact Us For Availability
45
WCI 3051430 WCI 3051430 Contact Us For Availability
× ![]()
