Model Electrolux 31-3647-23-02 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - COOKTOP PARTS
04 - BODY PARTS

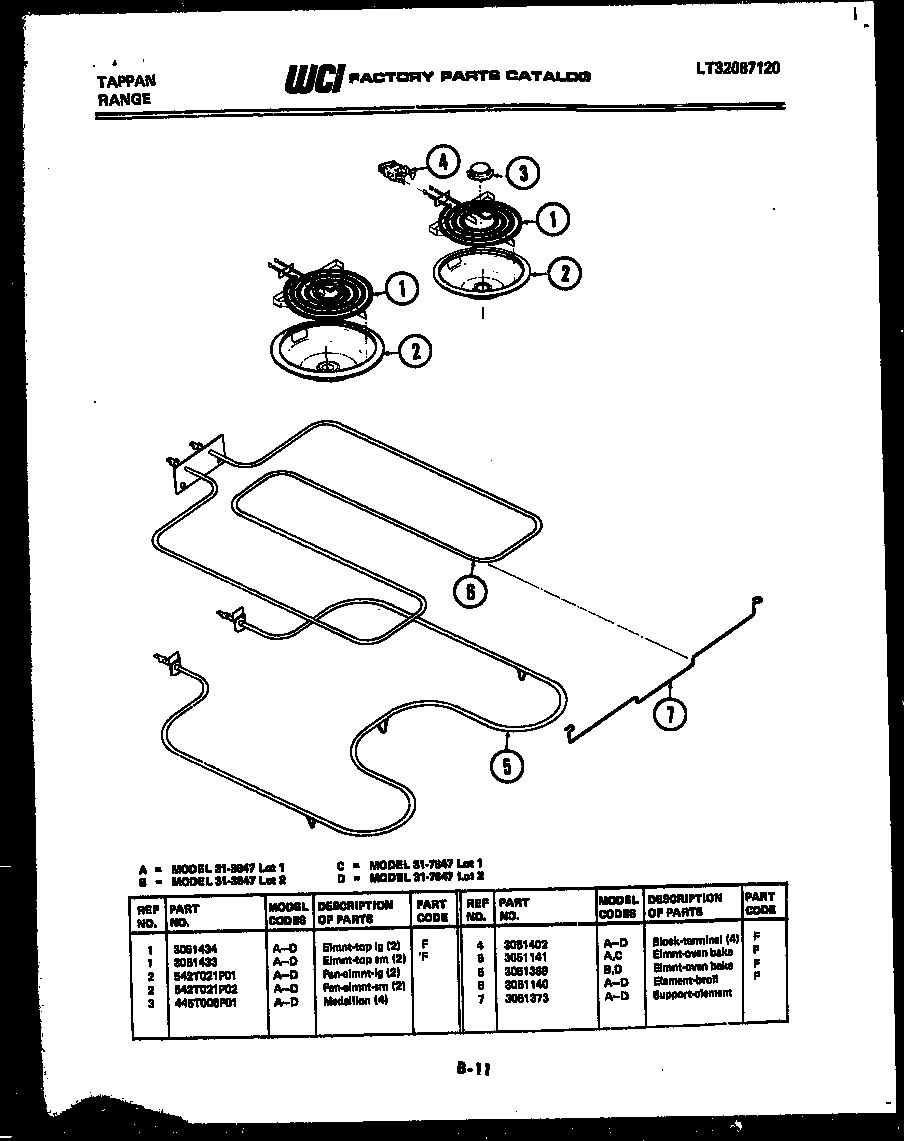

05 - BROILER PARTS

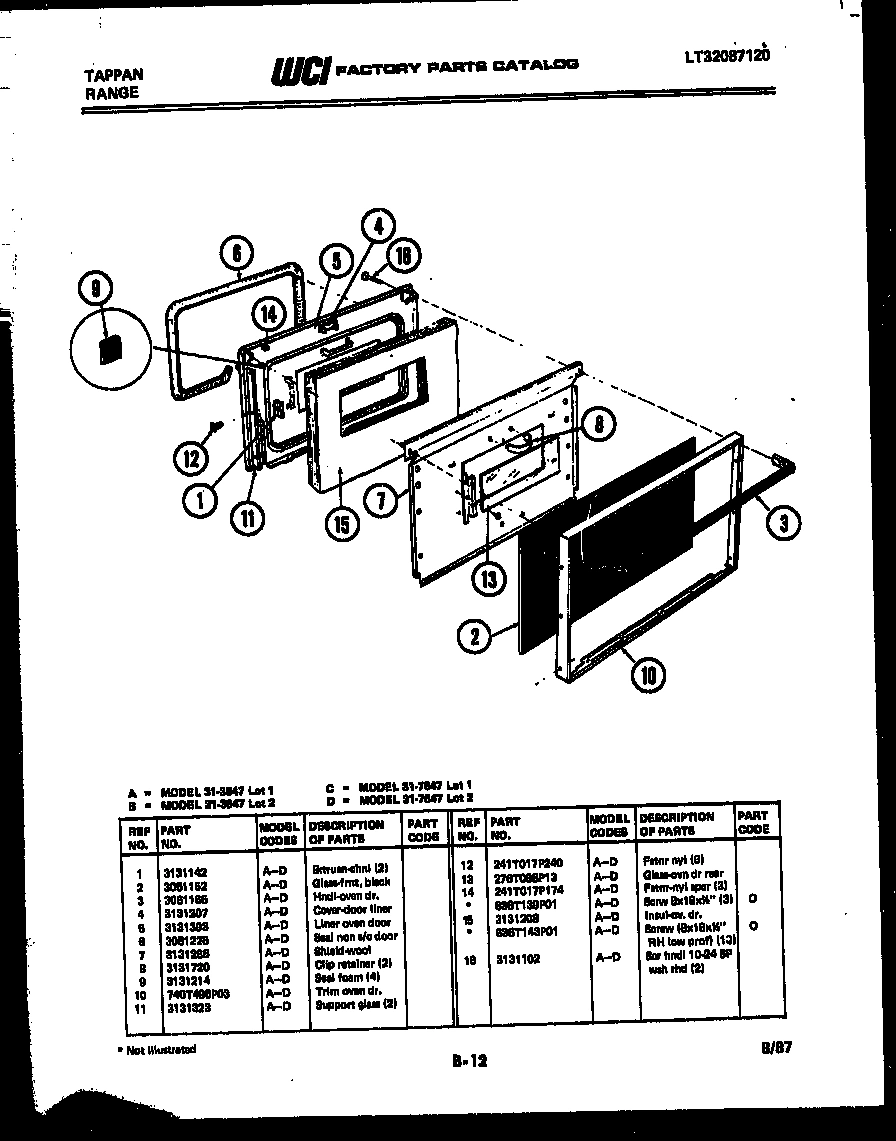

06 - DOOR PARTS

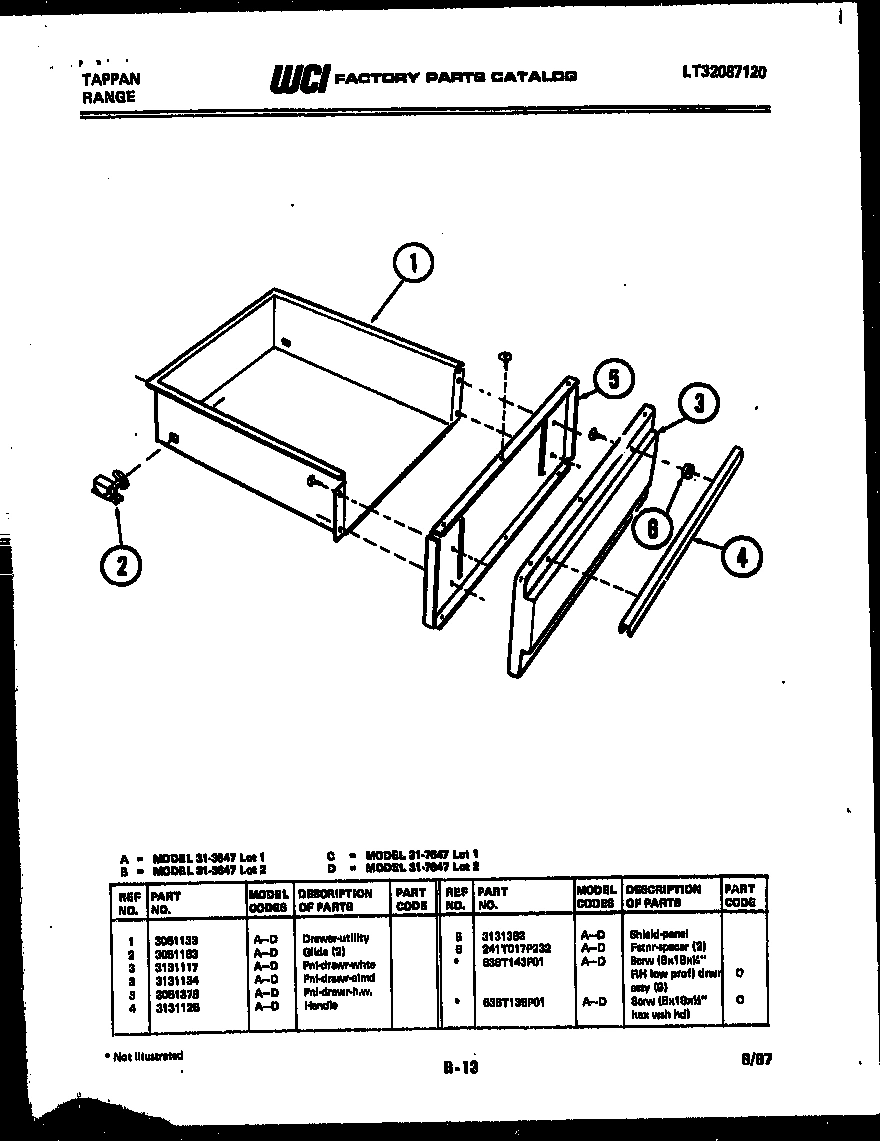

07 - DRAWER PARTS
Common parts from model Electrolux 31-3647-23-02 RANGE
*53783
SCRW (8 X 18 X 1/2`` HEX WSH HD) WCI 636T135P01 Contact Us For Availability
1
MAIN TOP (ALMD) WCI 3051285 Contact Us For Availability
1
SPACER-BDYSDE (8) WCI 665T188P02 Contact Us For Availability
1
EXTRUSN CHNL (2) WCI 3131142 Contact Us For Availability
1
DRAWER, UTILITY WCI 3051133 Contact Us For Availability
2
BRKT-HNGE - LH WCI 3131286 Contact Us For Availability
2
BRKT-HNGE RH WCI 3131287 Contact Us For Availability
2
GLASS-FRNT, BLACK WCI 3051152 Contact Us For Availability
3
TOP SUPT ROD (2) WCI 618T038P05 Contact Us For Availability
3
PNL-BDYSDE-LH-ALM WCI 3131453 Contact Us For Availability
3
PNL-BDYSDE-RH-ALM WCI 3131454 Contact Us For Availability
3
WCI 445T006P01 WCI 445T006P01 Contact Us For Availability
3
HNDL-OVEN DR. WCI 3051165 Contact Us For Availability
3
PNL-DRAWR-ALMD WCI 3131134 Contact Us For Availability
4
WCI 3051210 WCI 3051210 Contact Us For Availability
4
WCI 3051109 WCI 3051109 Contact Us For Availability
4
COVER, DOOR LINER WCI 3131207 Contact Us For Availability
4
WCI 3131125 WCI 3131125 Contact Us For Availability
5
WCI 3131101 WCI 3131101 Contact Us For Availability
5
ELMNT-OVEN BAKE WCI 3051388 Contact Us For Availability
5
WCI 3131393 WCI 3131393 Contact Us For Availability
5
WCI 3131383 WCI 3131383 Contact Us For Availability
6
FSTNR-GLASS(2) WCI 241T049P01 Contact Us For Availability
6
WCI 3131567 WCI 3131567 Contact Us For Availability
6
FSTNR-SPACER (2) WCI 241T017P232 Contact Us For Availability
7
SHIELD, REAR WALL WCI 3131123 Contact Us For Availability
7
SHIELD-LWR WALL WCI 3051400 Contact Us For Availability
7
WCI 3131266 WCI 3131266 Contact Us For Availability
8
WCI 3131488 WCI 3131488 Contact Us For Availability
8
CVR-LWR ACCESS WCI 3051501 Contact Us For Availability
8
CLIP, RETAINER (2) WCI 3131720 Contact Us For Availability
9
GLASS-WRK LIT (2) WCI 3131145 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
9
SEAL, FOAM (4) WCI 3131214 Contact Us For Availability
10
RATE-TIMER MTG. WCI 3131507 Contact Us For Availability
10
WCI 740T496P03 WCI 740T496P03 Contact Us For Availability
11
WCI 699T015P02 WCI 699T015P02 Contact Us For Availability
11
SCREW, LEVEL (4) WCI 636M004P01 Contact Us For Availability
11
WCI 3131323 WCI 3131323 Contact Us For Availability
12
CVR-HNGE CUTOUT 2 WCI 3131570 Contact Us For Availability
12
WCI 3051317 WCI 3051317 Contact Us For Availability
12
FSTNR NYL (6) WCI 241T017P240 Contact Us For Availability
13
THERMOS.-OVEN WCI 3051323 Contact Us For Availability
13
SHIELD-WOOL LWR WCI 3051398 Contact Us For Availability
13
GLASS-OVN DR REAR WCI 276T088P13 Contact Us For Availability
14
KNOB-THERMOS. WCI 3051456 Contact Us For Availability
14
KNOB-TOP ELM (4) WCI 3051487 Contact Us For Availability
14
WCI 3051488 WCI 3051488 Contact Us For Availability
14
CHNL DR HNGE (2) WCI 3131569 Contact Us For Availability
14
FSTNR-NYL SPCR (3) WCI 241T017P174 Contact Us For Availability
14A
SCRW 8 X 18 X 1/2`` (3) (NON-ILLUSTRATED) WCI 636T139P01 Contact Us For Availability
15
WCI 358T206P01 WCI 358T206P01 Contact Us For Availability
15
WCI 3051104 WCI 3051104 Contact Us For Availability
15
INSUL-OV DR WCI 3131208 Contact Us For Availability
16
INDICATOR LT SU WCI 318T023P11 Contact Us For Availability
16
IND.-LT OVEN WCI 318T023P12 Contact Us For Availability
16
FUSE-THERM. CUTOUT WCI 3051147 Contact Us For Availability
16
SCR HNDL 10-24 SP WSH RHD (2) WCI 3131102 Contact Us For Availability
17
JEWEL-IND LENS (2) WCI 342T014P01 Contact Us For Availability
17
WCI 539T010F01-86 WCI 539T010F01-86 Contact Us For Availability
17A
RETAINR-LENS (2) (NON-ILLUSTRATED) WCI 3051224 Contact Us For Availability
18
WCI 106T051P02 WCI 106T051P02 Contact Us For Availability
18
INSERT-BRLR PAN WCI 3131356 Contact Us For Availability
19
WCI 045T071P01 WCI 045T071P01 Contact Us For Availability
20
SWITCH-OV LT WCI 695T211P02 Contact Us For Availability
20
WCI 711T048P01 WCI 711T048P01 Contact Us For Availability
21
WCI 3131508 WCI 3131508 Contact Us For Availability
22
SW-FLUOR LIGHT WCI 3051312 Contact Us For Availability
23
WCI 3051115 WCI 3051115 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
24
SHIELD - FLUOR LIGHT WCI 3131137 Contact Us For Availability
24
COVER FRNT MAIN WCI 3131548 Contact Us For Availability
25
BRKT-FLUOR LT MTG LH WCI 3131576 Contact Us For Availability
25
BRKT-FLUOR LT MTG RH WCI 3131577 Contact Us For Availability
26
RECEPT.-FLUOR LT LH WCI 3051222 Contact Us For Availability
26
RECEPT.-FLUOR LT RH WCI 3051223 Contact Us For Availability
26
WCI 3051344 WCI 3051344 Contact Us For Availability
27
BULB-FLUOR WCI 3131275 Contact Us For Availability
27A
INSUL-WRAP (NON-ILLUSTRATED) WCI 3131201 Contact Us For Availability
27B
INSUL-BACK (NON-ILLUSTRATED) WCI 3131200 Contact Us For Availability
27D
SCREW-HNGE MT (6) (NON-ILLUSTRATED) WCI 636T163P01 Contact Us For Availability
27E
NUT-HEX BRASS (6) (NON-ILLUSTRATED) WCI 479T069P41 Contact Us For Availability
28
WCI 3051160 WCI 3051160 Contact Us For Availability
28
BTM-OVN REMOVABLE WCI 3051417 Contact Us For Availability
29
TUBE-OV LT WCI 3051343 Contact Us For Availability
30
WCI 374T018F05 WCI 374T018F05 Contact Us For Availability
× ![]()
