Model Electrolux 31-3437-66-01 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - BODY PARTS

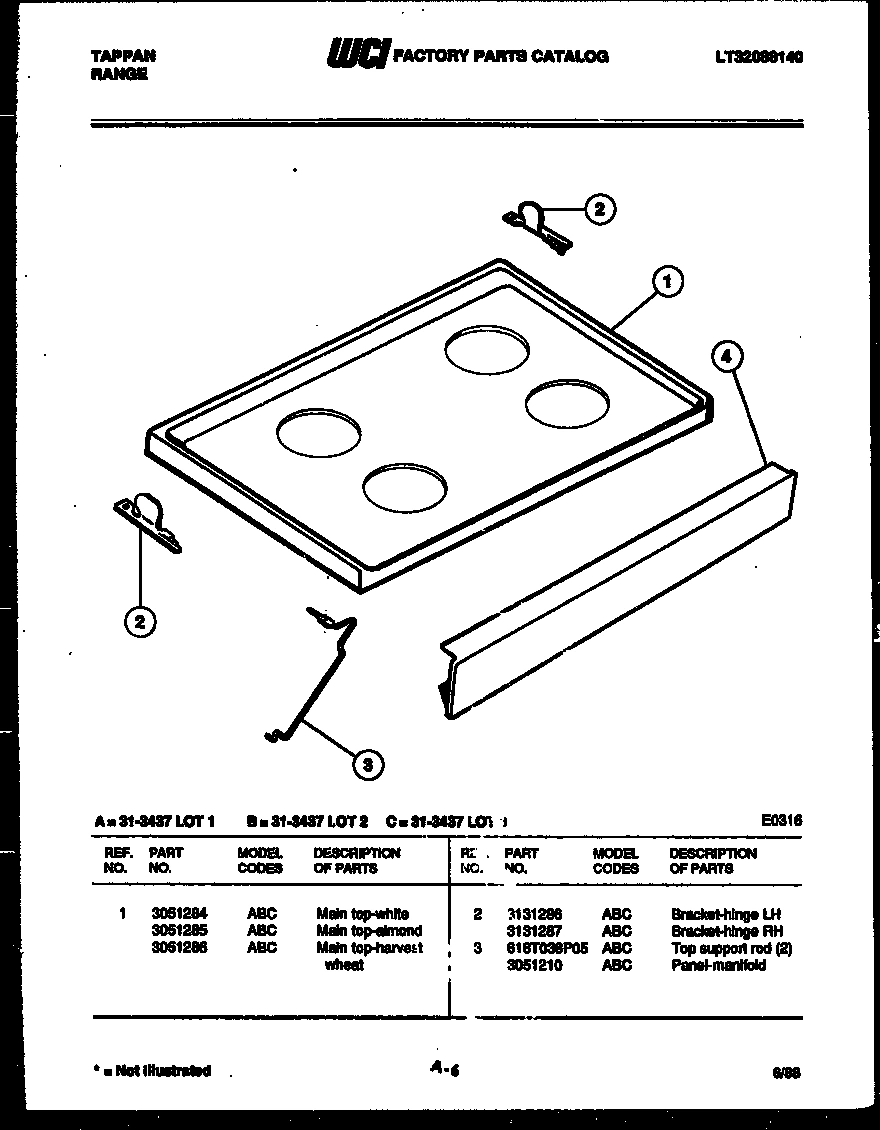

04 - COOKTOP PARTS

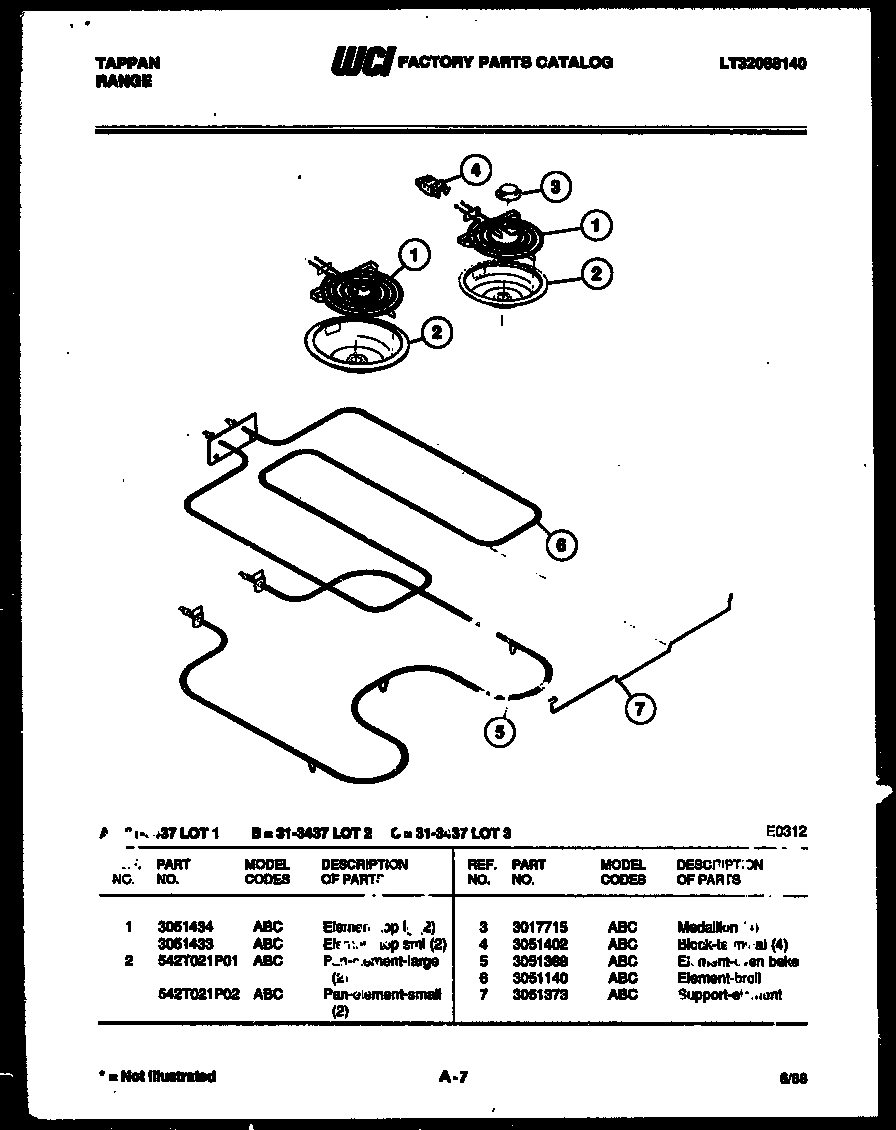

05 - BROILER PARTS

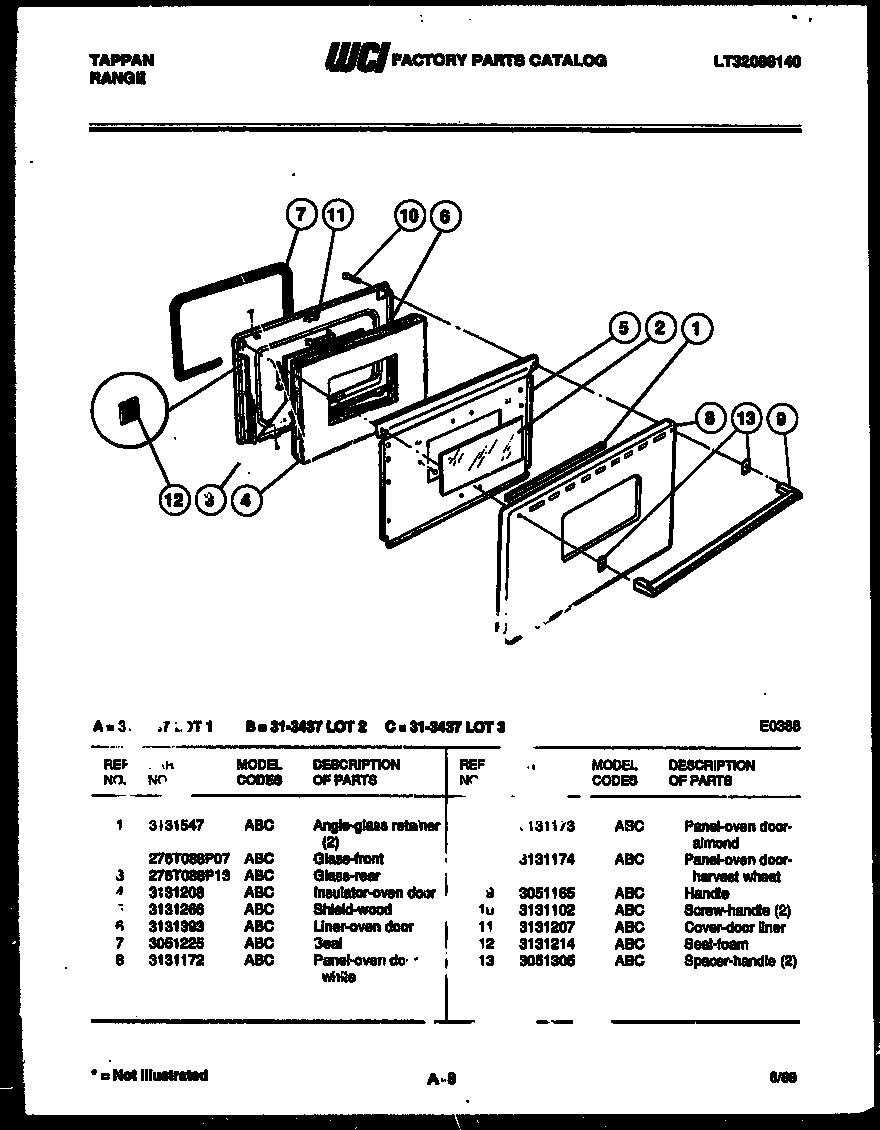

06 - DOOR PARTS

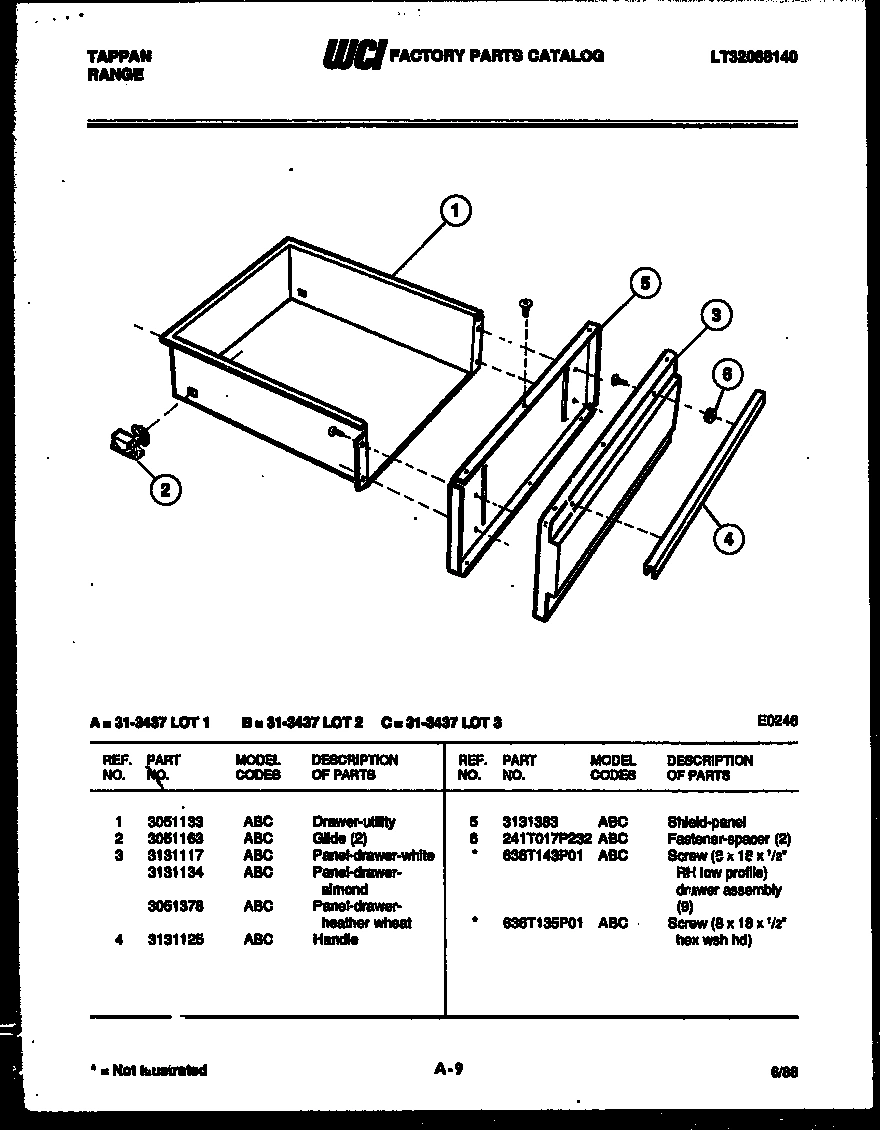

07 - DRAWER PARTS
Common parts from model Electrolux 31-3437-66-01 RANGE
*13024
SCREW (8 X 18 X 1/2`` HEX WSH HD) WCI 636T135P01 Contact Us For Availability
1
SPACER, BODYSIDE (8) WCI 665T188P02 Contact Us For Availability
1
MAIN TOP-HARVEST WHEAT WCI 3051286 Contact Us For Availability
1
ANGLE-GLASS RETAINER (2) WCI 3131547 Contact Us For Availability
1
DRAWER, UTILITY WCI 3051133 Contact Us For Availability
1A
GLASS-FRONT WCI 276T088P07 Contact Us For Availability
2
BRACKET, HINGE, LH WCI 3131286 Contact Us For Availability
2A
BRACKET, HINGE, RH WCI 3131287 Contact Us For Availability
3
PNL-BDYSDE-LH-HARVEST WHEAT WCI 3131478 Contact Us For Availability
3
WCI 3051210 WCI 3051210 Contact Us For Availability
3
TOP SUPPORT ROD (2) WCI 618T038P05 Contact Us For Availability
3
WCI 276T088P13 WCI 276T088P13 Contact Us For Availability
3
PANEL-DRAWER-HEATHER WHEAT WCI 3051378 Contact Us For Availability
3A
PNL-BDYSDE-RH-HARVEST WHEAT WCI 3131477 Contact Us For Availability
4
WCI 3051109 WCI 3051109 Contact Us For Availability
4
INSULATOR-OVEN DOOR WCI 3131208 Contact Us For Availability
4
WCI 3131125 WCI 3131125 Contact Us For Availability
5
NUT - DECOR (2) WCI 3051194 Contact Us For Availability
5
WCI 3131101 WCI 3131101 Contact Us For Availability
5
ELEMENT, OVEN BAKE WCI 3051388 Contact Us For Availability
5
SHIELD-WOOD WCI 3131266 Contact Us For Availability
5
WCI 3131383 WCI 3131383 Contact Us For Availability
6
FASTENER-GLASS (2) WCI 241T049P01 Contact Us For Availability
6
WCI 3131567 WCI 3131567 Contact Us For Availability
6
WCI 3131393 WCI 3131393 Contact Us For Availability
6
FASTENER, SPACER (2) WCI 241T017P232 Contact Us For Availability
7
SHIELD, REAR WALL WCI 3131123 Contact Us For Availability
7
WCI 3051400 WCI 3051400 Contact Us For Availability
8
WCI 3051411 WCI 3051411 Contact Us For Availability
8
WCI 3051369 WCI 3051369 Contact Us For Availability
8
PANEL-OVEN DOOR-HARVEST WHEAT WCI 3131174 Contact Us For Availability
9
WCI 3131145 WCI 3131145 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
9
WCI 3051165 WCI 3051165 Contact Us For Availability
10
WCI 277T219P03 WCI 277T219P03 Contact Us For Availability
10
SCREW, HANDLE (2) WCI 3131102 Contact Us For Availability
11
WCI 699T015P02 WCI 699T015P02 Contact Us For Availability
11
SCREW, LEVEL (4) WCI 636M004P01 Contact Us For Availability
11
COVER, DOOR LINER WCI 3131207 Contact Us For Availability
12
COVER-HINGE CUTOUT (2) WCI 3131570 Contact Us For Availability
12
WCI 3051317 WCI 3051317 Contact Us For Availability
12
WCI 3131214 WCI 3131214 Contact Us For Availability
13
WCI 3051323 WCI 3051323 Contact Us For Availability
13
WCI 3051398 WCI 3051398 Contact Us For Availability
13
WCI 3051305 WCI 3051305 Contact Us For Availability
14
WCI 3051487 WCI 3051487 Contact Us For Availability
14
CHNL-DOOR HINGE (2) WCI 3131569 Contact Us For Availability
14A
WCI 3051488 WCI 3051488 Contact Us For Availability
14B
WCI 3051456 WCI 3051456 Contact Us For Availability
15
WCI 358T201P01 WCI 358T201P01 Contact Us For Availability
15
WCI 3051104 WCI 3051104 Contact Us For Availability
16
INDICATOR-LIGHT SW WCI 318T023P11 Contact Us For Availability
16
WCI 318T023P12 WCI 318T023P12 Contact Us For Availability
16
FUSE-THERMAL CUT OUT WCI 3051147 Contact Us For Availability
17
JEWEL INDICATOR LENS (2) WCI 342T014P01 Contact Us For Availability
17
WCI 539T010F01-86 WCI 539T010F01-86 Contact Us For Availability
17A
RETAINER-LENS (2) (NON-ILLUSTRATED) WCI 3051224 Contact Us For Availability
18
WCI 045T071P01 WCI 045T071P01 Contact Us For Availability
18
WCI 3131356 WCI 3131356 Contact Us For Availability
19
WCI 695T211P02 WCI 695T211P02 Contact Us For Availability
20
SWITCH, FLUORESCENT LIGHT WCI 3051312 Contact Us For Availability
20
WCI 711T048P01 WCI 711T048P01 Contact Us For Availability
21
WCI 3051115 WCI 3051115 Contact Us For Availability
22
SHIELD, FLUORESCENT LIGHT WCI 3131137 Contact Us For Availability
23
BRACKET-FLUORESCENT LIGHT MOUNTING LH WCI 3131576 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
23A
BRACKET-FLUORESCENT LIGHT MOUNTING RH WCI 3131577 Contact Us For Availability
24
RECEPTACLE FLUORESCENT LIGHT-LH WCI 3051222 Contact Us For Availability
24
COVER-FRONT MAIN WCI 3131548 Contact Us For Availability
24A
RECEPTACLE FLUORESCENT LIGHT-RH WCI 3051223 Contact Us For Availability
25
WCI 3131275 WCI 3131275 Contact Us For Availability
26
RETAINER-CLOCK GLASS WCI 612T123F01 Contact Us For Availability
26
WCI 3051344 WCI 3051344 Contact Us For Availability
27
SUPPORT-BACKGUARD (2) WCI 3131237 Contact Us For Availability
27A
INSULATION-WRAP (NON-ILLUSTRATED) WCI 3131201 Contact Us For Availability
27B
INSULATION-BACK (NON-ILLUSTRATED) WCI 3131200 Contact Us For Availability
27D
SCREW-HINGE MOUNT (6) (NON-ILLUSTRATED) WCI 636T163P01 Contact Us For Availability
27E
NUT-HEX BRASS (6) (NON-ILLUSTRATED) WCI 479T069P41 Contact Us For Availability
28
BOTTOM-OVEN REMOVBLE WCI 3051417 Contact Us For Availability
29
TUBE-OVEN LIGHT WCI 3051343 Contact Us For Availability
× ![]()
