Model Electrolux 31-3349-00-01 RANGE – Common Parts & Diagrams

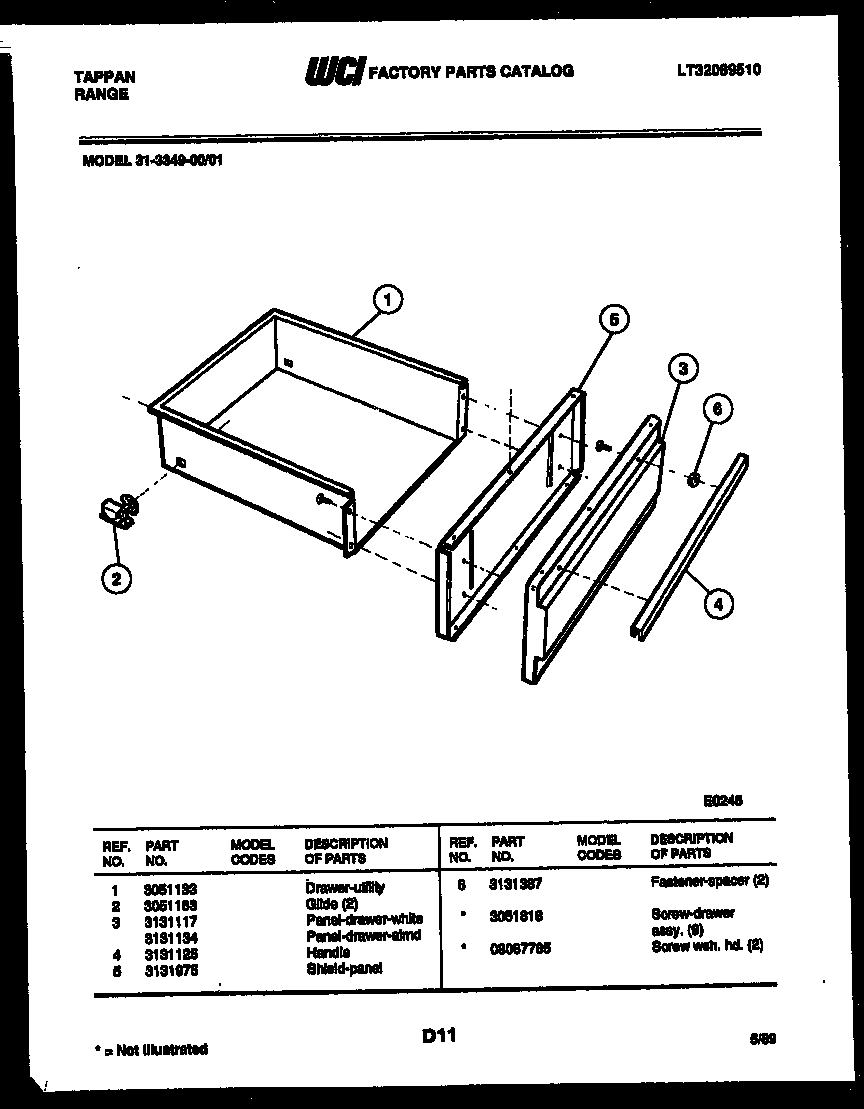

02 - DRAWER PARTS

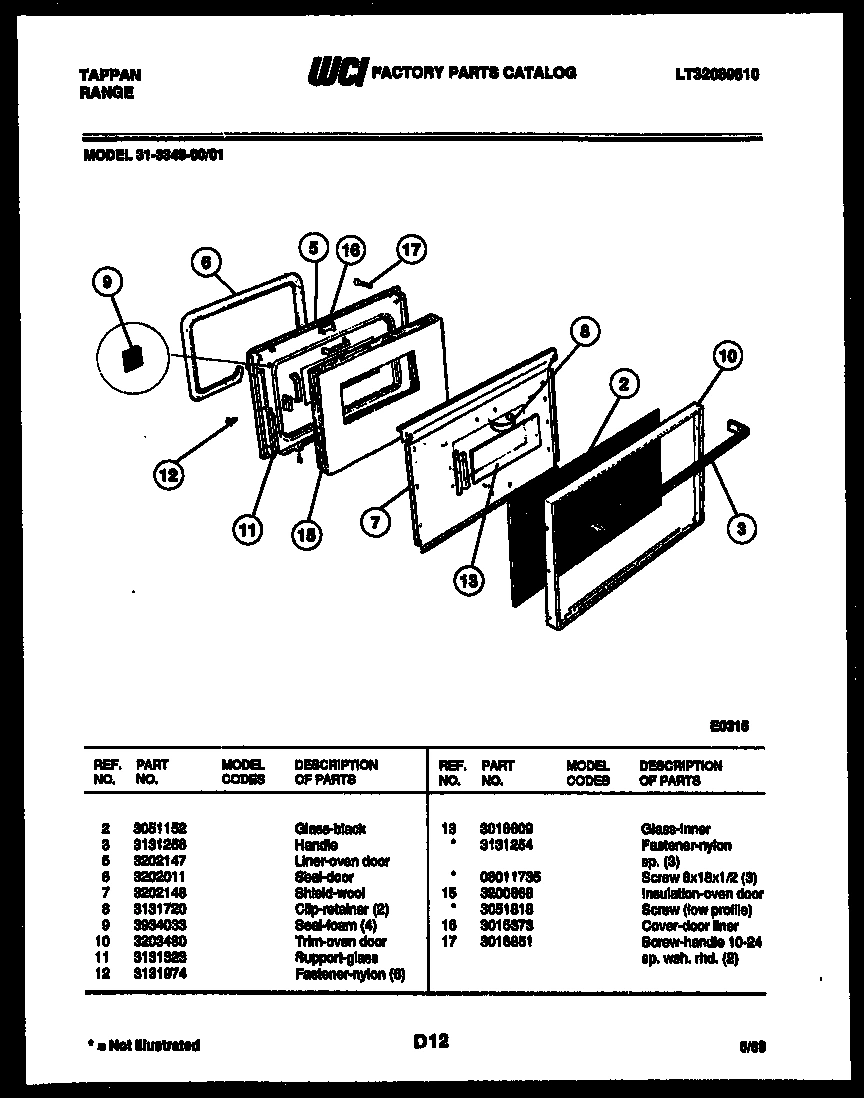

03 - DOOR PARTS
04 - COOKTOP PARTS
05 - BROILER PARTS
06 - BACKGUARD
07 - BODY PARTS
Common parts from model Electrolux 31-3349-00-01 RANGE
*26565
SCREW WSH HD (2) WCI 08067785 Contact Us For Availability
*26572
WCI 3204525 WCI 3204525 Contact Us For Availability
*26572
ANTI-TIP KIT WCI 3934056 Contact Us For Availability
1
SPCR. BODYSIDE (8) WCI 3014099 Contact Us For Availability
1
WCI 3051284 WCI 3051284 Contact Us For Availability
1
WCI 3204843 WCI 3204843 Contact Us For Availability
2
BRACKET, HINGE, LH WCI 3131286 Contact Us For Availability
2
PLATE - INST. MTG WCI 3203536 Contact Us For Availability
2A
BRACKET, HINGE, RH WCI 3131287 Contact Us For Availability
3
TOP SUPPORT ROD (2) WCI 3013818 Contact Us For Availability
3
WCI 3204752 WCI 3204752 Contact Us For Availability
3
PANEL B/S LH-WHITE WCI 3200792 Contact Us For Availability
3A
PANEL B/S RH-WHITE WCI 3200789 Contact Us For Availability
4
WCI 3204756 WCI 3204756 Contact Us For Availability
4
WCI 3204844 WCI 3204844 Contact Us For Availability
4
WCI 3017926 WCI 3017926 Contact Us For Availability
5
WCI 3202147 WCI 3202147 Contact Us For Availability
5
WCI 3051354 WCI 3051354 Contact Us For Availability
5
TRIM - GLASS RET LH WCI 3204753 Contact Us For Availability
5A
WCI 3051355 WCI 3051355 Contact Us For Availability
5A
TRIM - GLASS RET RH WCI 3204754 Contact Us For Availability
6
WCI 3204746 WCI 3204746 Contact Us For Availability
6
WCI 3203082 WCI 3203082 Contact Us For Availability
6A
WCI 3204747 WCI 3204747 Contact Us For Availability
7
WCI 3202148 WCI 3202148 Contact Us For Availability
7
SHIELD-RR. WALL WCI 3131123 Contact Us For Availability
7
SHIELD-LOWER WALL WCI 3203549 Contact Us For Availability
8
CLIP, RETAINER (2) WCI 3131720 Contact Us For Availability
8
WCI 3204766 WCI 3204766 Contact Us For Availability
8
WCI 3203405 WCI 3203405 Contact Us For Availability
9
SEAL, FOAM (4) WCI 3934033 Contact Us For Availability
9
WCI 3131145 WCI 3131145 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
10
WCI 3203480 WCI 3203480 Contact Us For Availability
10
RETAINER-CL. GL. (2) WCI 3201700 Contact Us For Availability
11
SUPPORT, GLASS WCI 3131323 Contact Us For Availability
11
WCI 08010418 WCI 08010418 Contact Us For Availability
11
SCREW, LEVEL (4) WCI 3203397 Contact Us For Availability
12
COVER-HINGE CUTOUT (2) WCI 3131570 Contact Us For Availability
12
FASTENER, NYLON (6) WCI 3131974 Contact Us For Availability
12
WCI 3051316 WCI 3051316 Contact Us For Availability
13
GLASS-INNER WCI 3018609 Contact Us For Availability
13
THERMOSTAT-OVEN WCI 3202350 Contact Us For Availability
13
WCI 3200825 WCI 3200825 Contact Us For Availability
13A
FASTENER-NYLON SP. (3) (NON-ILLUSTRATED) WCI 3131254 Contact Us For Availability
13B
WCI 08011735 WCI 08011735 Contact Us For Availability
14
KNOB-TOP ELEMENT (4) WCI 3204751 Contact Us For Availability
14
CHANNEL, DOOR HINGE (2) WCI 3131569 Contact Us For Availability
14A
WCI 3204841 WCI 3204841 Contact Us For Availability
14B
WCI 3204749 WCI 3204749 Contact Us For Availability
15
INSULATION-OVEN DOOR WCI 3200668 Contact Us For Availability
15
WCI 3131472 WCI 3131472 Contact Us For Availability
15
WCI 3203540 WCI 3203540 Contact Us For Availability
16
WCI 3015373 WCI 3015373 Contact Us For Availability
16
INDICATOR-LIGHT OVEN WCI 3091462 Contact Us For Availability
16
FUSE-THERMAL WCI 3051147 Contact Us For Availability
16A
INDICATOR-LIGHT S/U WCI 08037896 Contact Us For Availability
17
SCREW-HANDLE 10-24 SP. WSH. RHD. (2) WCI 3016851 Contact Us For Availability
17
WCI 08037703 WCI 08037703 Contact Us For Availability
17
BROILER PAN WCI 3013568 Contact Us For Availability
17A
RETAINER-LENS (2) (NON-ILLUSTRATED) WCI 3051224 Contact Us For Availability
18
SUPPORT-BACKGRND (2) WCI 3131237 Contact Us For Availability
18
WCI 3131356 WCI 3131356 Contact Us For Availability
20
BUSHING-CONT SHAFT WCI 3204745 Contact Us For Availability
20
WCI 08011708 WCI 08011708 Contact Us For Availability
21
WCI 3201695 WCI 3201695 Contact Us For Availability
22
RECEPTACLE, STARTER WCI 3204842 Contact Us For Availability
23
WCI 3051115 WCI 3051115 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
24
WCI 3201738 WCI 3201738 Contact Us For Availability
24
WCI 3015372 WCI 3015372 Contact Us For Availability
25
BRACKET-FLUOR LIGHT MTG LH WCI 3131576 Contact Us For Availability
25A
BRACKET-FLUOR LIGHT MTG RH WCI 3131577 Contact Us For Availability
26
RECEPTACLE - FLUOR LIGHT LH WCI 3051222 Contact Us For Availability
26
WCI 3051344 WCI 3051344 Contact Us For Availability
26A
RECEPTACLE - FLUOR LIGHT RH WCI 3051223 Contact Us For Availability
27
BULB-FLUOR WCI 3131275 Contact Us For Availability
27A
INSULATION, WRAP (NON-ILLUSTRATED) WCI 3017142 Contact Us For Availability
27A
BRACKET-BACKGUARD (NON-ILLUSTRATED) WCI 3131468 Contact Us For Availability
27B
WCI 3203541 WCI 3203541 Contact Us For Availability
27D
SCREW-HINGE MOUNT (6) (NON-ILLUSTRATED) WCI 3131143 Contact Us For Availability
27E
WCI 08067783 WCI 08067783 Contact Us For Availability
28
STARTER WCI 680T002P01 Contact Us For Availability
29
WCI 3203582 WCI 3203582 Contact Us For Availability
× ![]()
