Model Electrolux 31-2759-00-05 RANGE – Common Parts & Diagrams

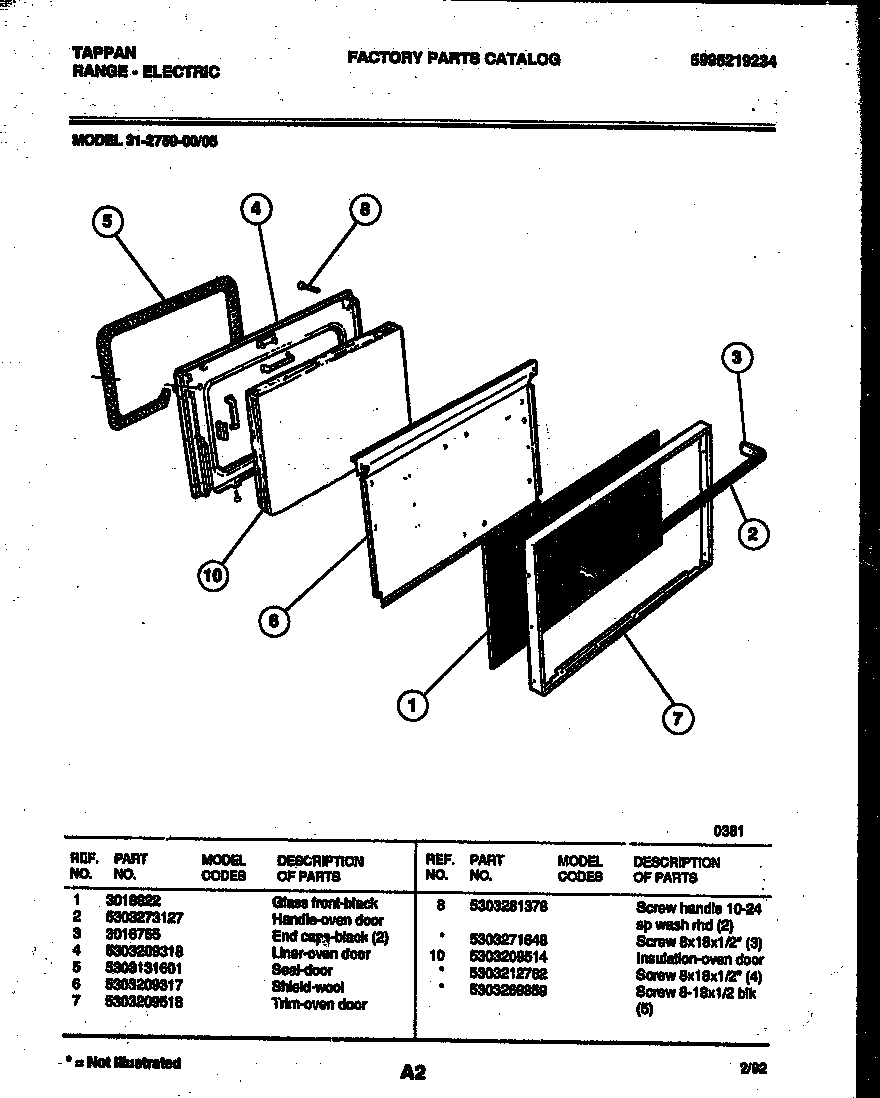

02 - DOOR PARTS

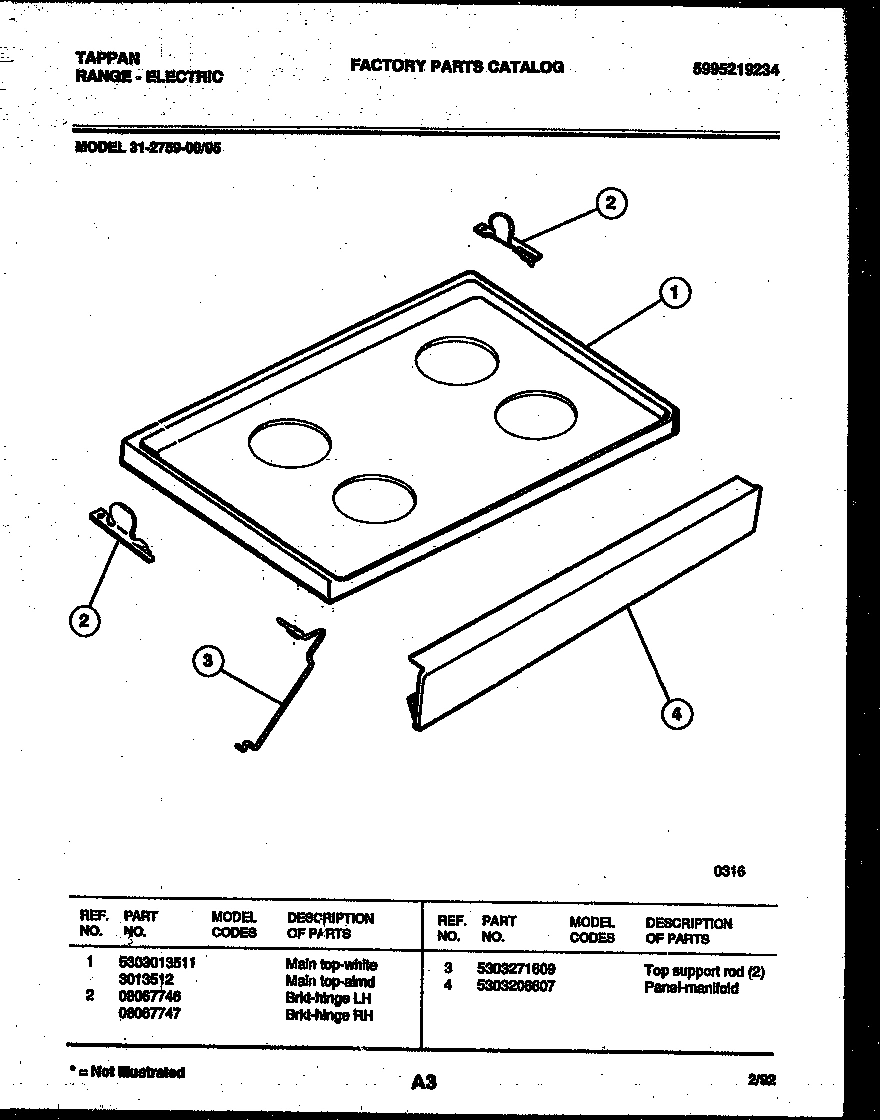

03 - COOKTOP PARTS

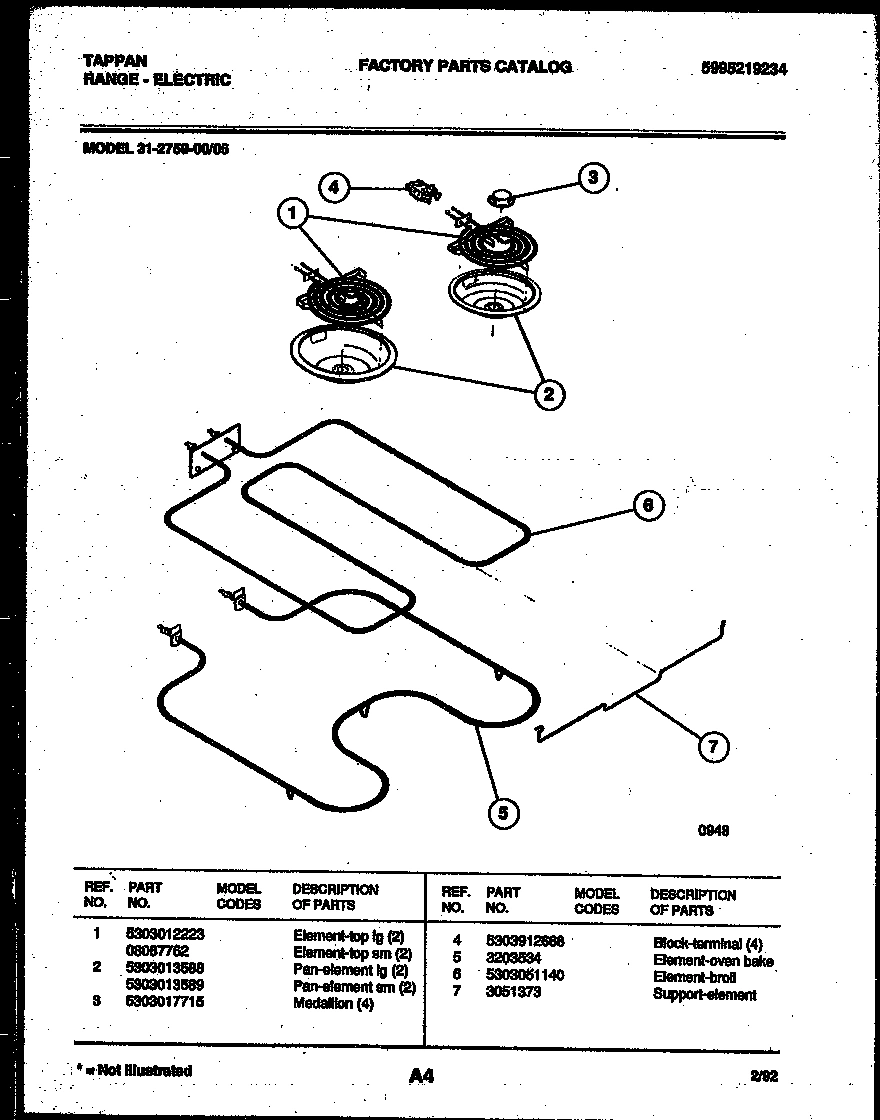

04 - BROILER PARTS

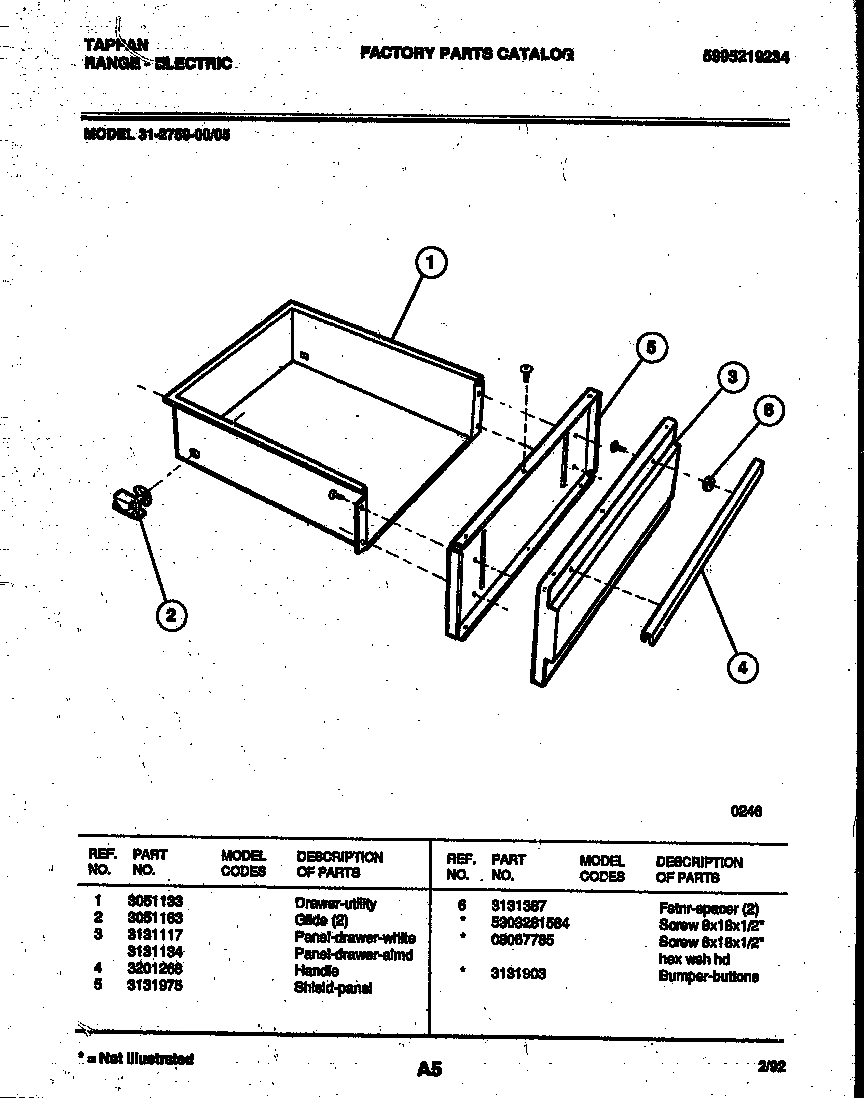

05 - DRAWER PARTS

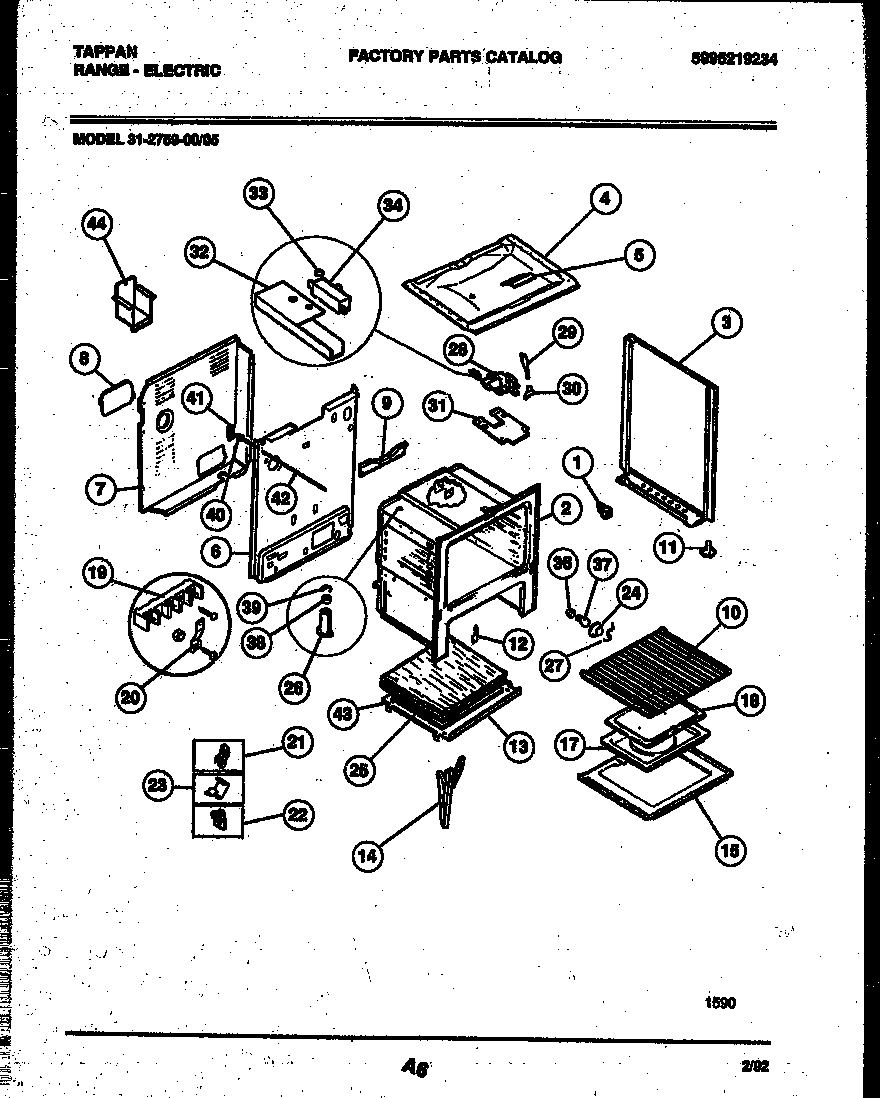

06 - BODY PARTS

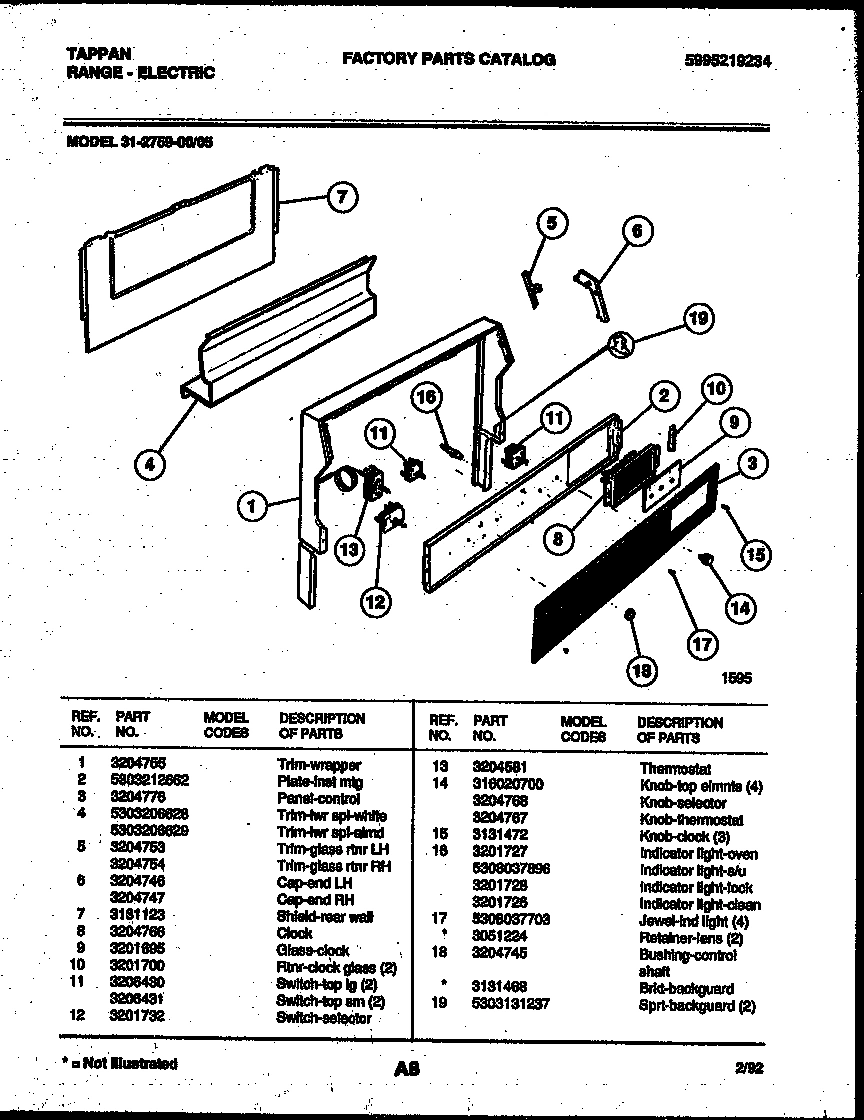

07 - BACKGUARD
Common parts from model Electrolux 31-2759-00-05 RANGE
*66720
SCREW (8 X 18 X 1/2`` HEX WSH HD) WCI 08067785 Contact Us For Availability
*66720
SCREW 8 X 18 X 1/2`` WCI 5303281584 Contact Us For Availability
*66725
ANTI-TIP KIT WCI 3934056 Contact Us For Availability
*66726
WCI 19100210010 WCI 19100210010 Contact Us For Availability
*66726
WCI 5303206618 WCI 5303206618 Contact Us For Availability
1
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
1
DRAWER, UTILITY WCI 3051133 Contact Us For Availability
1
WCI 3204755 WCI 3204755 Contact Us For Availability
2
BRKT HINGE-LH WCI 08067746 Contact Us For Availability
2
PLATE - INST MTG WCI 5303212662 Contact Us For Availability
3
WCI 3131117 WCI 3131117 Contact Us For Availability
3
PNL B/S - WHITE RH WCI 5303269518 Contact Us For Availability
3
PNL B/S - WHITE LH WCI 5303269519 Contact Us For Availability
3
WCI 3204776 WCI 3204776 Contact Us For Availability
4
WCI 3201268 WCI 3201268 Contact Us For Availability
4
WCI 5303271658 WCI 5303271658 Contact Us For Availability
4
TRIM-LWR SPL-WHITE WCI 5303206628 Contact Us For Availability
5
WCI 3131975 WCI 3131975 Contact Us For Availability
5
WCI 08067757 WCI 08067757 Contact Us For Availability
5
WCI 3204753 WCI 3204753 Contact Us For Availability
5
WCI 3204754 WCI 3204754 Contact Us For Availability
6
FSTNR, SPACER (2) WCI 3131387 Contact Us For Availability
6
WCI 3203082 WCI 3203082 Contact Us For Availability
6
WCI 3204746 WCI 3204746 Contact Us For Availability
6
WCI 3204747 WCI 3204747 Contact Us For Availability
7
SHIELD - LWR ACCESS WCI 3203549 Contact Us For Availability
7
SHIELD, REAR WALL WCI 3131123 Contact Us For Availability
8
SCREW HANDLE 10-24 SP WASH RHD (2) WCI 5303281378 Contact Us For Availability
8
COVER, LWR. ACCESS WCI 3203405 Contact Us For Availability
8
WCI 3204766 WCI 3204766 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
9
GLASS - CLOCK WCI 3201695 Contact Us For Availability
10
RTNR-CLOCK GLASS (2) WCI 3201700 Contact Us For Availability
11
SCREW-LEVEL (4) WCI 5303203397 Contact Us For Availability
12
COVER-HNG CUTOUT WCI 3131570 Contact Us For Availability
12
WCI 3201732 WCI 3201732 Contact Us For Availability
13
SHIELD-WOOL LWR WCI 3200825 Contact Us For Availability
13
WCI 3204581 WCI 3204581 Contact Us For Availability
14
CHANNEL-DR HNG (2) WCI 316007001 Contact Us For Availability
14
KNOB-TOP ELMNTS (4) WCI 316020700 Contact Us For Availability
14
WCI 3204767 WCI 3204767 Contact Us For Availability
14
WCI 3204768 WCI 3204768 Contact Us For Availability
15
WCI 3203540 WCI 3203540 Contact Us For Availability
15
WCI 3131472 WCI 3131472 Contact Us For Availability
16
WCI 3201726 WCI 3201726 Contact Us For Availability
16
WCI 3201727 WCI 3201727 Contact Us For Availability
16
INDICATOR-LIGHT LOCK WCI 3201728 Contact Us For Availability
16
WCI 5308037896 WCI 5308037896 Contact Us For Availability
17
WCI 5303013568 WCI 5303013568 Contact Us For Availability
17
JEWEL - IND LIGHT (4) WCI 5308037703 Contact Us For Availability
17A
RETAINER-LENS (2) (NON-ILLUSTRATED) WCI 3051224 Contact Us For Availability
18
WCI 5303131356 WCI 5303131356 Contact Us For Availability
18
BUSHING, CONTROL SHAFT WCI 3204745 Contact Us For Availability
18A
BRKT - BACKGUARD (NON-ILLUSTRATED) WCI 3131468 Contact Us For Availability
19
SPRT-BACKGUARD (2) WCI 5303131237 Contact Us For Availability
20
WCI 5303212739 WCI 5303212739 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
26
WCI 3051344 WCI 3051344 Contact Us For Availability
27
WIRE-GLASS RTNR (2) WCI 3204585 Contact Us For Availability
27A
INSULATION-TOP (NON-ILLUSTRATED) WCI 3131304 Contact Us For Availability
27B
WCI 3204582 WCI 3204582 Contact Us For Availability
28
WCI 5303015361 WCI 5303015361 Contact Us For Availability
29
WCI 5303131357 WCI 5303131357 Contact Us For Availability
30
WCI 3203218 WCI 3203218 Contact Us For Availability
30A
WCI 08013188 WCI 08013188 Contact Us For Availability
31
SHIELD-LATCH WCI 3051413 Contact Us For Availability
32
SHIELD, BI METAL LATCH WCI 3131593 Contact Us For Availability
33
FSTNR., PUSH ON (3) WCI 08067776 Contact Us For Availability
34
WCI 3131672 WCI 3131672 Contact Us For Availability
38
WCI 08067810 WCI 08067810 Contact Us For Availability
39
WCI 08010606 WCI 08010606 Contact Us For Availability
40
SWITCH, DOOR WCI 5303202622 Contact Us For Availability
41
BRACKET-LIGHT SW WCI 5303131289 Contact Us For Availability
42
ROD LIGHT WCI 5303209316 Contact Us For Availability
43
WCI 3200848 WCI 3200848 Contact Us For Availability
43A
INSULATION-WRAP (NON-ILLUSTRATED) WCI 3200833 Contact Us For Availability
43B
SHIELD-HEAT B/S (2) (NON-ILLUSTRATED) WCI 3200834 Contact Us For Availability
43C
FSTNR - EDGE MTG (2) (NON-ILLUSTRATED) WCI 3200846 Contact Us For Availability
44
WCI 3203582 WCI 3203582 Contact Us For Availability
× ![]()
