Model Electrolux 31-2758-23-04 RANGE – Common Parts & Diagrams
02 - DOOR PARTS
03 - COOKTOP PARTS

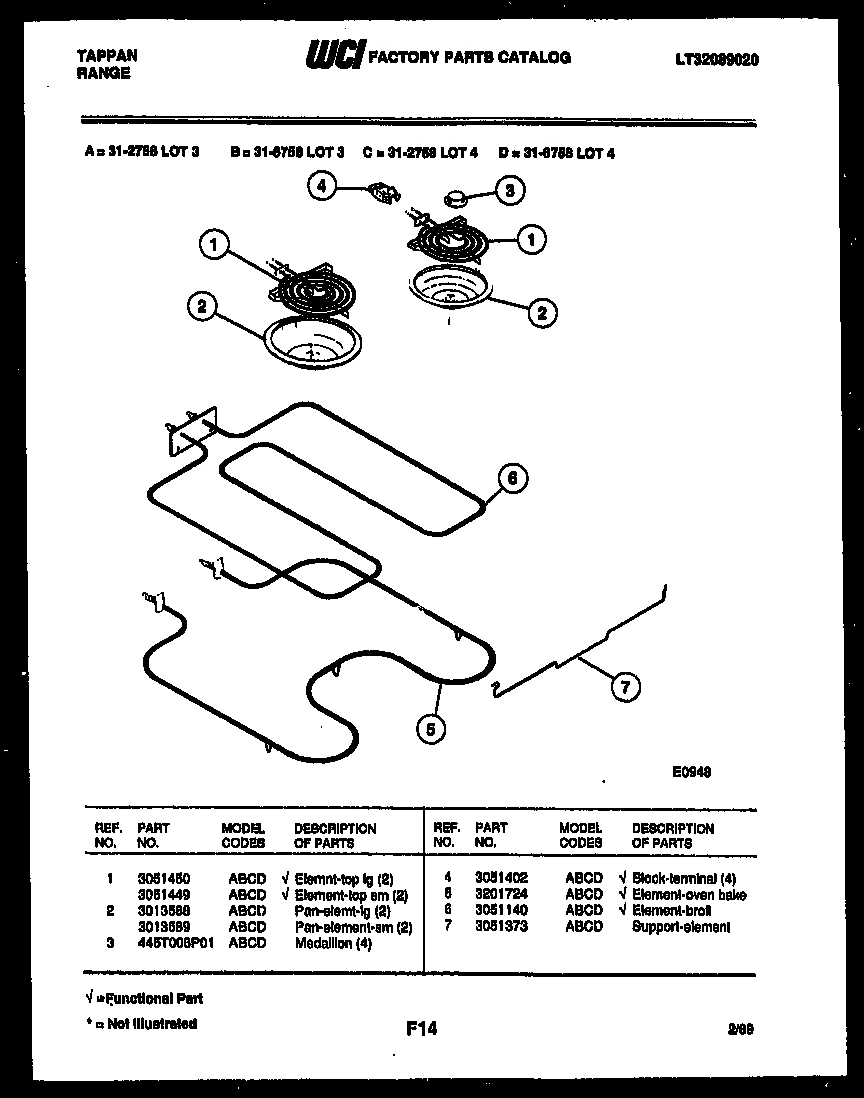

04 - BROILER PARTS

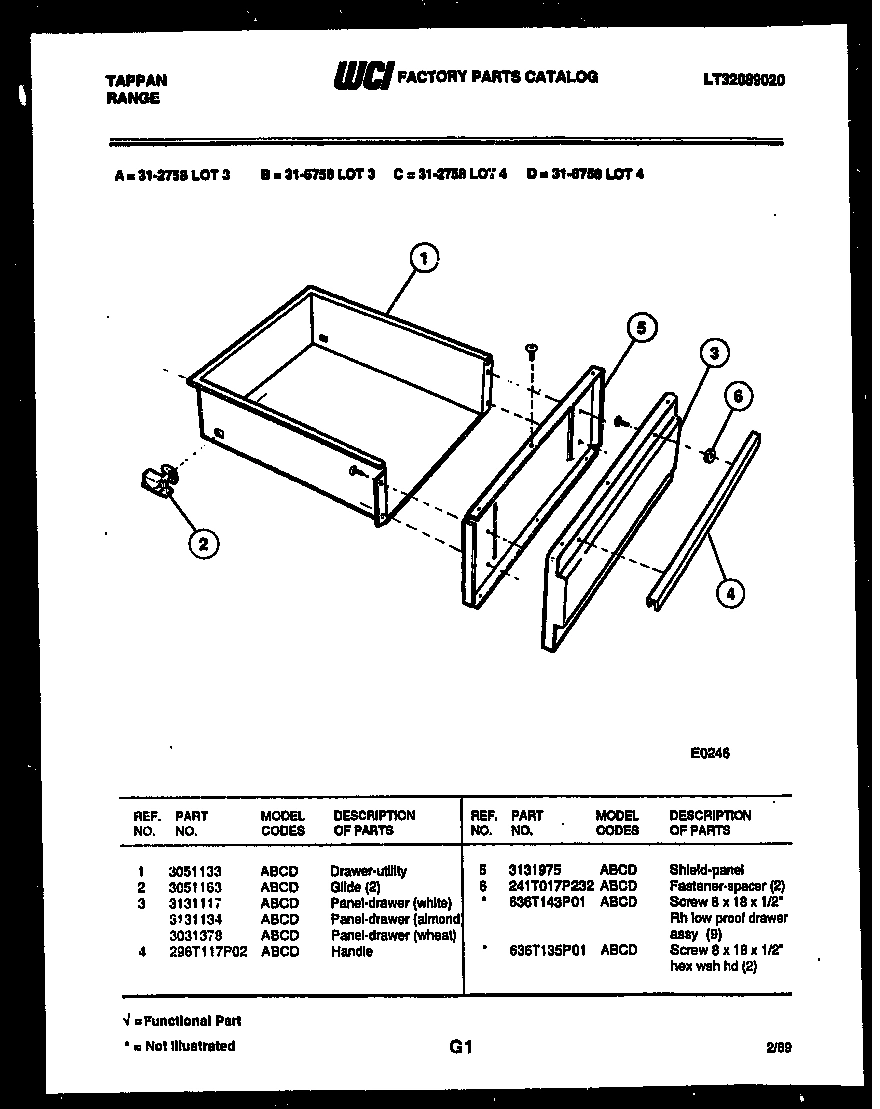

05 - DRAWER PARTS

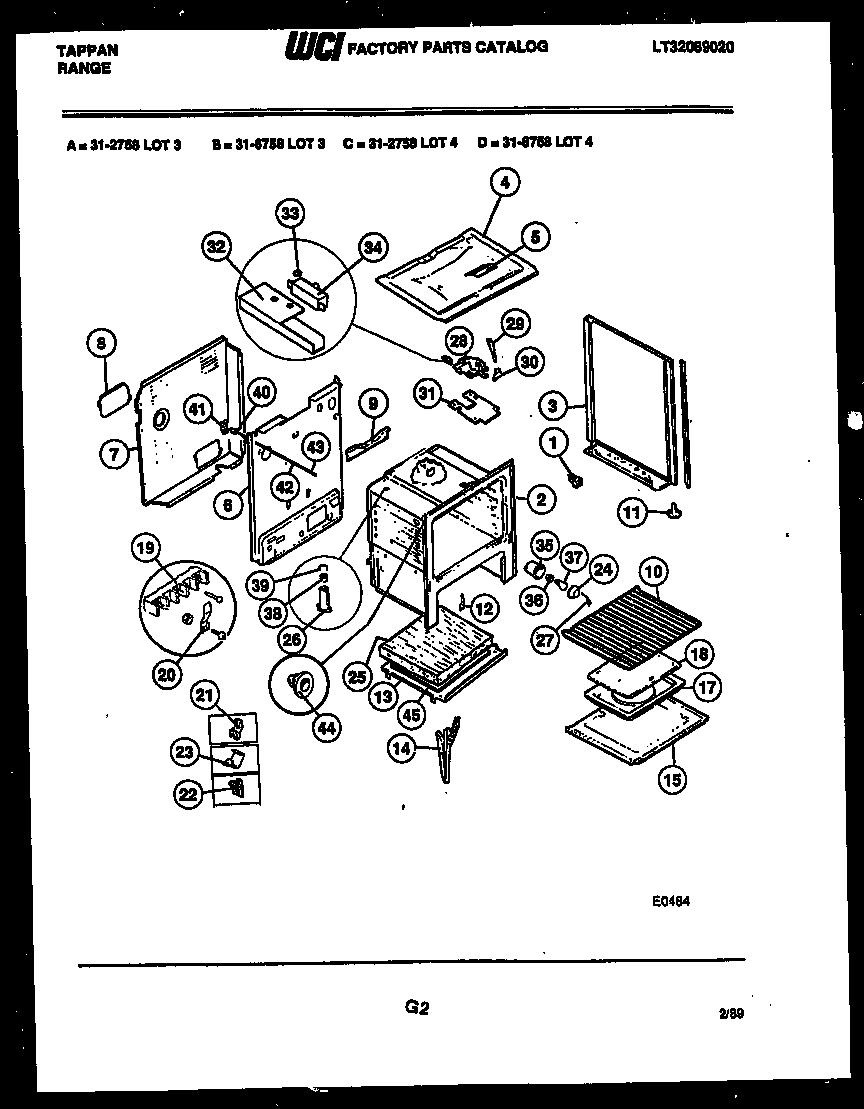

06 - BODY PARTS

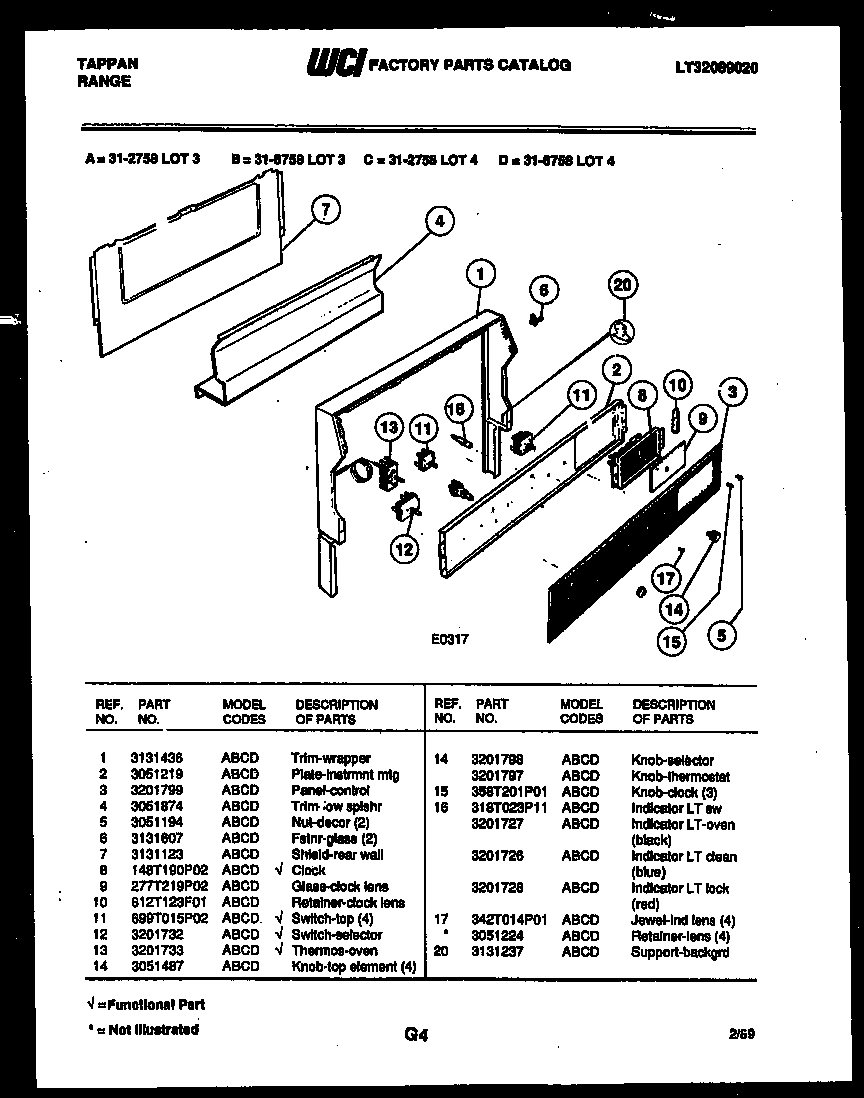

07 - BACKGUARD
Common parts from model Electrolux 31-2758-23-04 RANGE
*19204
SCREW 8 X 18 X 1/2`` HEX WSH HD (2) WCI 636T135P01 Contact Us For Availability
*19209
INSULATION, TOUCH WCI 3131305 Contact Us For Availability
*19209
INSULATION, WRAP WCI 3200833 Contact Us For Availability
*19209
SHIELD HEAT BODYSIDE (2) WCI 3200834 Contact Us For Availability
*19209
FASTENER-EDGE MTG (2) WCI 3200846 Contact Us For Availability
1
MAIN TOP, ALMOND WCI 3051285 Contact Us For Availability
1
DRAWER, UTILITY WCI 3051133 Contact Us For Availability
1
SPACER, BODYSIDE (8) WCI 3051736 Contact Us For Availability
1
WCI 3131436 WCI 3131436 Contact Us For Availability
1A
ELEMENT-TOP SM (2) WCI 3051149 Contact Us For Availability
2
BRKT-HINGE LH WCI 3011558 Contact Us For Availability
2
PLATE-INSTRMNT MTG WCI 3051219 Contact Us For Availability
2A
BRKT-HINGE RH WCI 3011559 Contact Us For Availability
3
TOP SUPPORT ROD (2) WCI 618T038P05 Contact Us For Availability
3
WCI 445T006P01 WCI 445T006P01 Contact Us For Availability
3
WCI 3131134 WCI 3131134 Contact Us For Availability
3
PANEL, BODYSIDE (LH), ALMOND WCI 3200793 Contact Us For Availability
3
WCI 3201799 WCI 3201799 Contact Us For Availability
3A
PANEL, BODYSIDE (RH), ALMOND WCI 3200790 Contact Us For Availability
4
WCI 3016766 WCI 3016766 Contact Us For Availability
4
WCI 3016767 WCI 3016767 Contact Us For Availability
4
WCI 296T117P02 WCI 296T117P02 Contact Us For Availability
4
WCI 3051109 WCI 3051109 Contact Us For Availability
4
TRIM-LOW SPLSHR WCI 3051874 Contact Us For Availability
5
WCI 3201692 WCI 3201692 Contact Us For Availability
5
WCI 3201724 WCI 3201724 Contact Us For Availability
5
WCI 3131975 WCI 3131975 Contact Us For Availability
5
WCI 3131101 WCI 3131101 Contact Us For Availability
5
NUT - DECOR (2) WCI 3051194 Contact Us For Availability
6
FASTENER, SPACER (2) WCI 241T017P232 Contact Us For Availability
6
WCI 3131567 WCI 3131567 Contact Us For Availability
6
FSTNR GLASS (2) WCI 3131607 Contact Us For Availability
7
WCI 3201693 WCI 3201693 Contact Us For Availability
7
SHIELD-LWR ACCESS WCI 3051400 Contact Us For Availability
7
SHIELD, REAR WALL WCI 3131123 Contact Us For Availability
8
CLIP, RETAINER (2) WCI 3131720 Contact Us For Availability
8
COVER-LWR ACCESS WCI 3051501 Contact Us For Availability
8
WCI 148T190P02 WCI 148T190P02 Contact Us For Availability
9
SEAL, FOAM (4) WCI 3934033 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
9
WCI 277T219P02 WCI 277T219P02 Contact Us For Availability
10
WCI 3051728 WCI 3051728 Contact Us For Availability
10
RETAINER-CLOCK LENS WCI 612T123F01 Contact Us For Availability
11
SUPPORT, GLASS WCI 3131323 Contact Us For Availability
11
SCREW, LEVEL (4) WCI 636M004P01 Contact Us For Availability
11
WCI 699T015P02 WCI 699T015P02 Contact Us For Availability
12
CVR-HNG CUTOUT WCI 3131570 Contact Us For Availability
12
FASTENER, NYLON (6) WCI 3131974 Contact Us For Availability
12
WCI 3201732 WCI 3201732 Contact Us For Availability
13
SCREW, HANDLE, 10-24 SP. WASH RHD (2) WCI 3016420 Contact Us For Availability
13
SHIELD-WOOL LWR WCI 3200825 Contact Us For Availability
13
WCI 3201733 WCI 3201733 Contact Us For Availability
14
FASTENER, NYLON SPACER (3) WCI 241T017P185 Contact Us For Availability
14
CHANNEL-DOOR HNG (2) WCI 3131569 Contact Us For Availability
14
WCI 3051487 WCI 3051487 Contact Us For Availability
14
WCI 3201798 WCI 3201798 Contact Us For Availability
14A
SCREW, 8 X 18 X 1/2`` (3) (NON-ILLUSTRATED) WCI 3131573 Contact Us For Availability
14A
WCI 3201797 WCI 3201797 Contact Us For Availability
15
INSULATION, OVEN DOOR WCI 3131384 Contact Us For Availability
15
WCI 3051104 WCI 3051104 Contact Us For Availability
15
KNOB, CLOCK (3) WCI 358T201P01 Contact Us For Availability
16
INDICATOR LT SW WCI 318T023P11 Contact Us For Availability
16A
INDICATOR LT. OVEN-BLACK WCI 3201727 Contact Us For Availability
16B
INDICATOR LT CLEAN (BLUE) WCI 3201726 Contact Us For Availability
16C
INDICATOR LT LOCK (RED) WCI 3201728 Contact Us For Availability
17
WCI 539T010F01-86 WCI 539T010F01-86 Contact Us For Availability
17
JEWEL-IND LENS (4) WCI 342T014P01 Contact Us For Availability
17A
RETAINER, LENS (4) (NON-ILLUSTRATED) WCI 3051224 Contact Us For Availability
18
WCI 3131356 WCI 3131356 Contact Us For Availability
20
WCI 711T048P01 WCI 711T048P01 Contact Us For Availability
20
SUPPORT-BACKGRD WCI 3131237 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
24
WCI 3131298 WCI 3131298 Contact Us For Availability
26
WCI 3051344 WCI 3051344 Contact Us For Availability
27
WCI 3131104 WCI 3131104 Contact Us For Availability
27A
INSULATION-TOP (NON-ILLUSTRATED) WCI 3131304 Contact Us For Availability
27B
INSULATION, BACK (NON-ILLUSTRATED) WCI 3131303 Contact Us For Availability
28
WCI 3015361 WCI 3015361 Contact Us For Availability
29
WCI 3051473 WCI 3051473 Contact Us For Availability
30
KNOB, LATCH WCI 358T158P02 Contact Us For Availability
30A
SCREW, SET, LATCH KNOB (NON-ILLUSTRATED) WCI 636T144P01 Contact Us For Availability
31
SHIELD-LATCH WCI 3051413 Contact Us For Availability
32
SHIELD, BI METAL LATCH WCI 3131593 Contact Us For Availability
33
FASTENER, PUSH ON (3) WCI 241T001P01 Contact Us For Availability
34
WCI 3131672 WCI 3131672 Contact Us For Availability
35
TUBE-OVN LIGHT WCI 3131363 Contact Us For Availability
38
WCI 244T041P01 WCI 244T041P01 Contact Us For Availability
39
RETAINER, CATALYST WCI 612T079P01 Contact Us For Availability
40
WCI 3014246 WCI 3014246 Contact Us For Availability
41
BRKT-LT SW. WCI 3131289 Contact Us For Availability
42
WCI 3051495 WCI 3051495 Contact Us For Availability
43
WCI 174T329P01 WCI 174T329P01 Contact Us For Availability
44
BUTTON-REMOTE LT SWITCH WCI 102T044P02 Contact Us For Availability
45
SHIELD-HEAT LWR WCI 3200848 Contact Us For Availability
× ![]()
