Model Electrolux 31-2752-23-01 RANGE – Common Parts & Diagrams
01 - COVER
02 - BACKGUARD

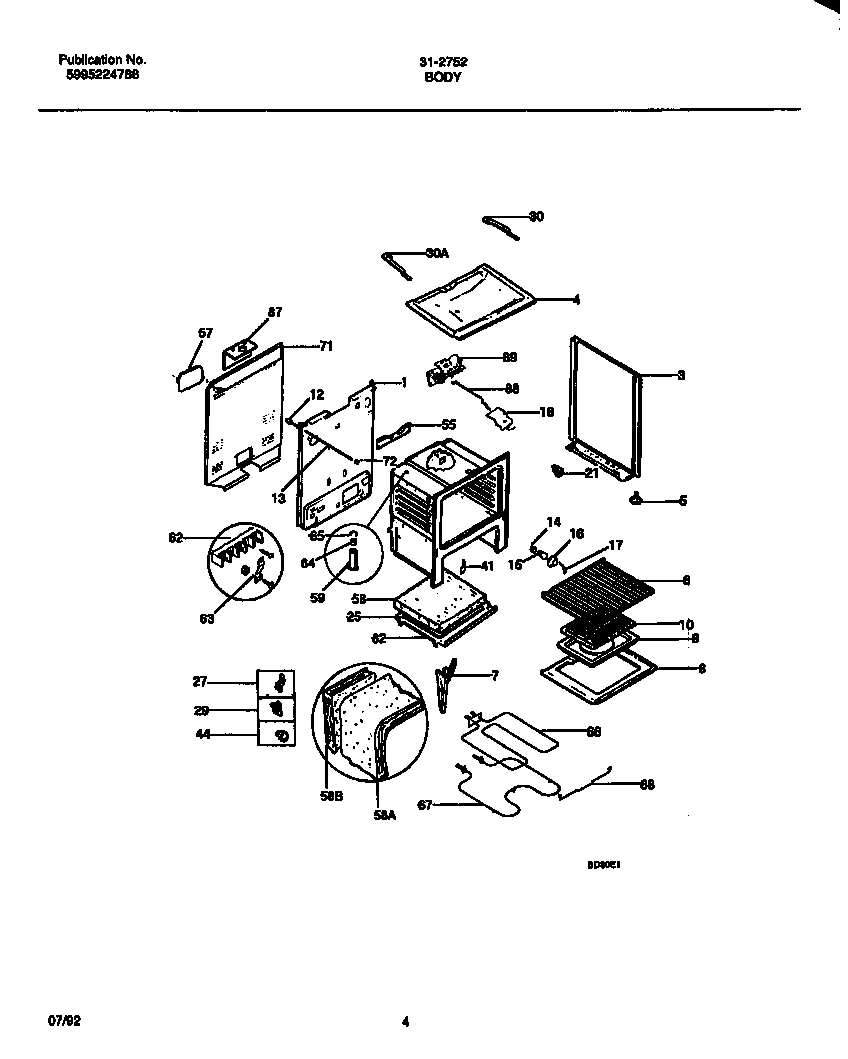

03 - BODY PARTS

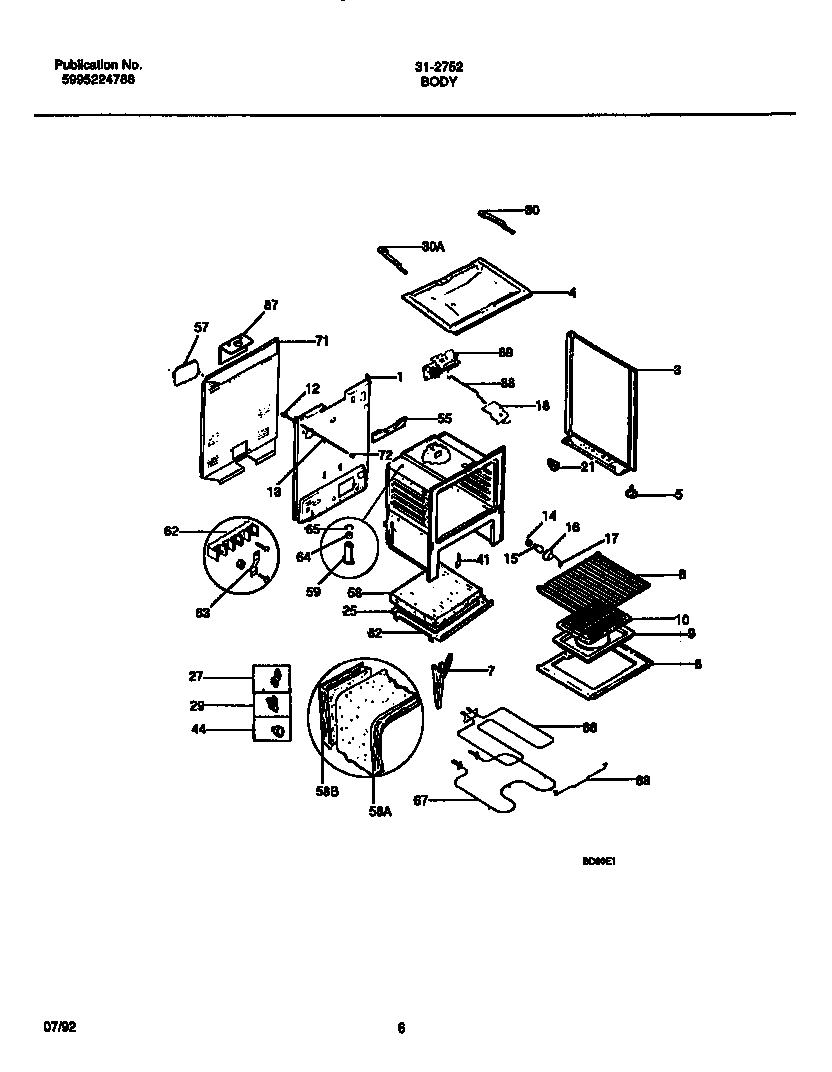

04 - BODY PARTS

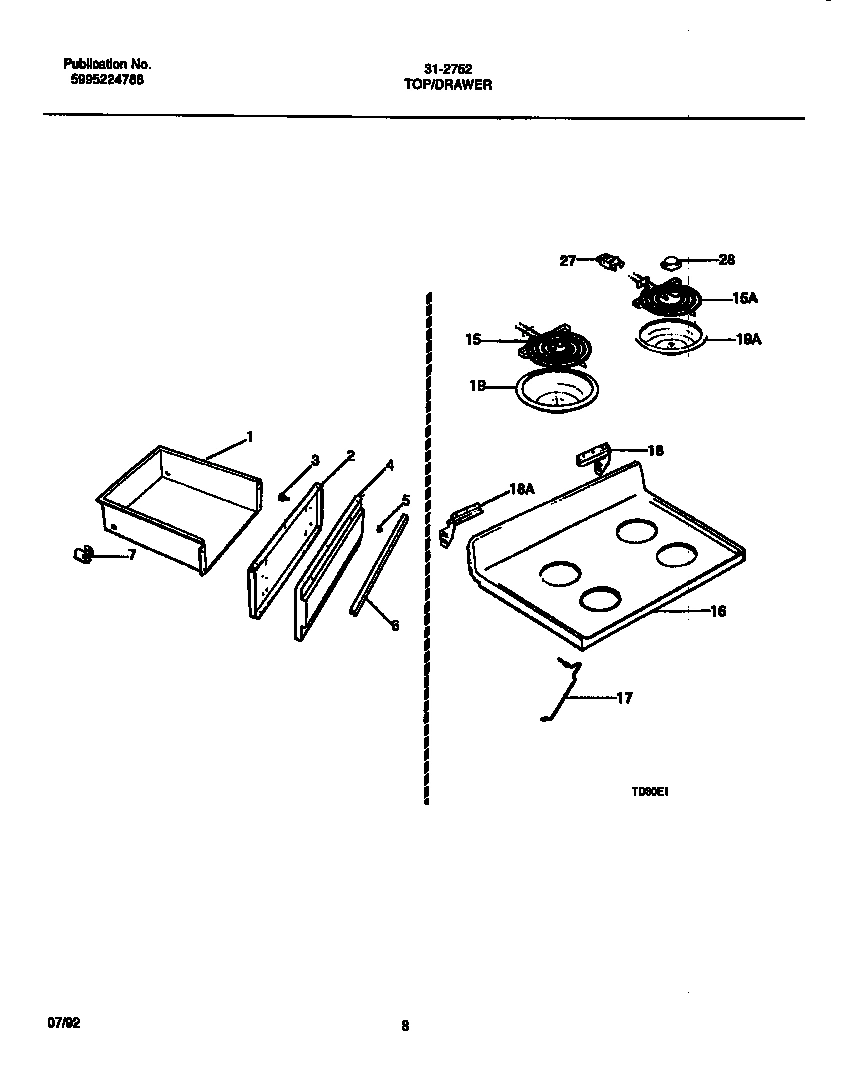

05 - COOKTOP AND DRAWER PARTS

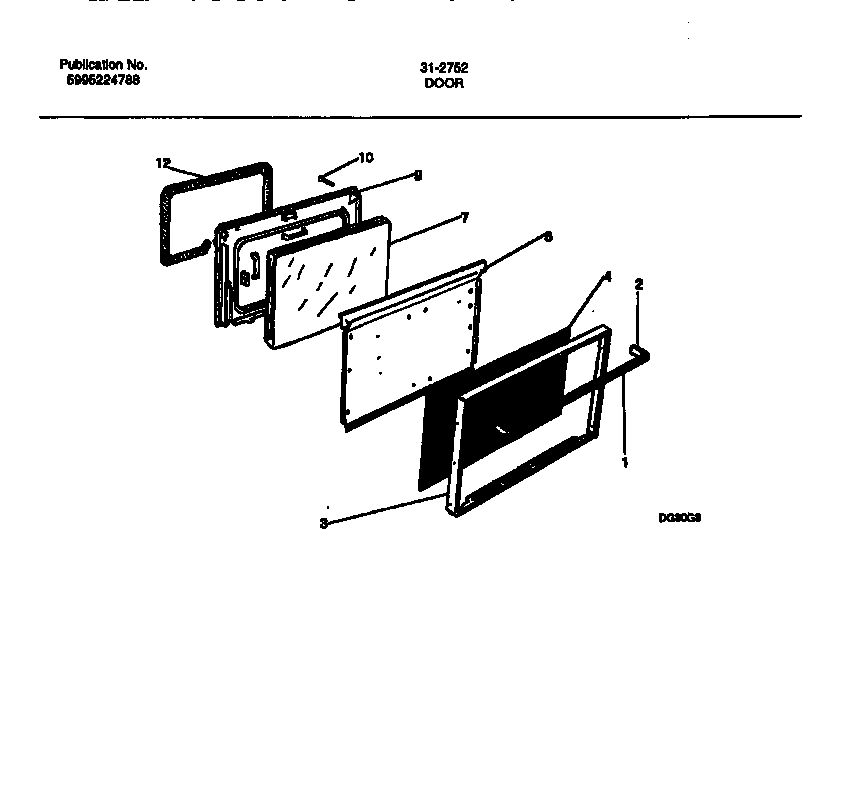

06 - DOOR PARTS

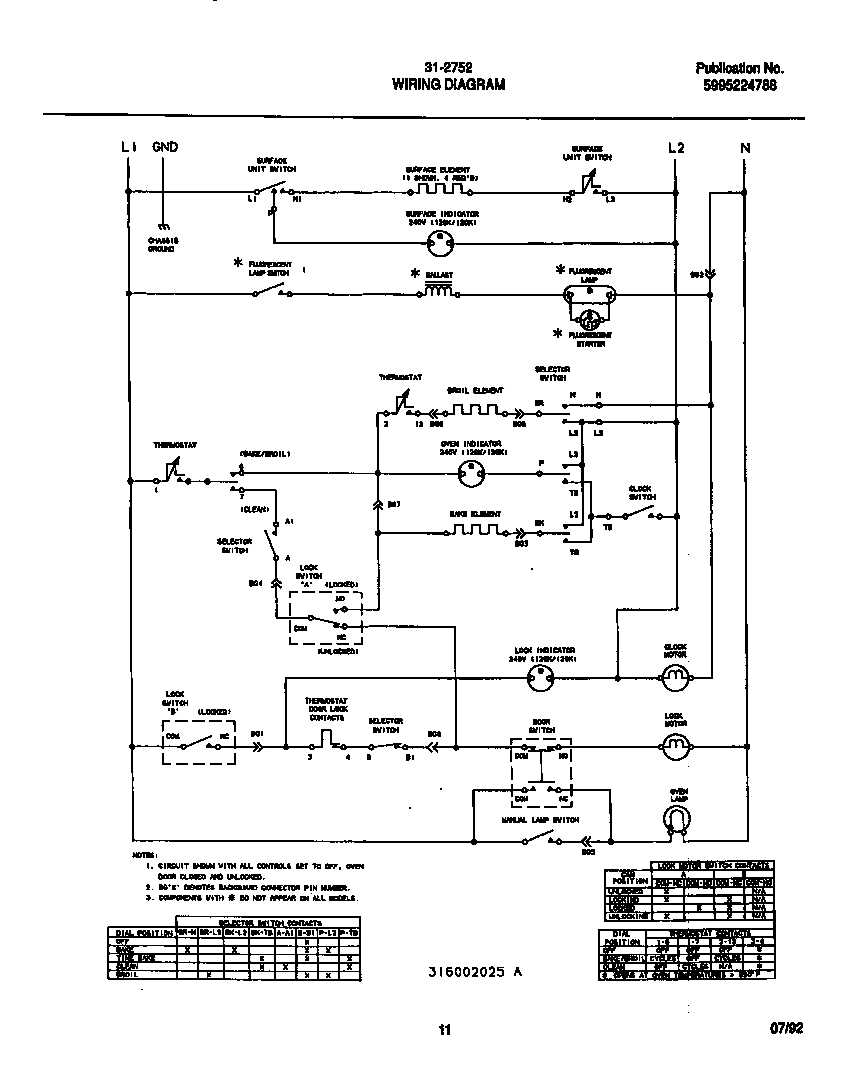

07 - WIRING DIAGRAM
Common parts from model Electrolux 31-2752-23-01 RANGE
*78009
WCI 08067961 WCI 08067961 Contact Us For Availability
*78012
WCI 5303212671 WCI 5303212671 Contact Us For Availability
*78012
WCI 5303269859 WCI 5303269859 Contact Us For Availability
1
WCI 316029401 WCI 316029401 Contact Us For Availability
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
1
HANDLE-DOOR, OVEN WCI 5303273127 Contact Us For Availability
2
WCI 3131975 WCI 3131975 Contact Us For Availability
3
SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/ WCI 5303281651 Contact Us For Availability
3
WCI 5303269543 WCI 5303269543 Contact Us For Availability
3
WCI 5303209518 WCI 5303209518 Contact Us For Availability
3A
SHIELD-HEAT, BODY SIDE (NON-ILLUSTRATED) WCI 3200834 Contact Us For Availability
3B
FASTENER-EDGE MTG (NON-ILLUSTRATED) WCI 3200846 Contact Us For Availability
3D
WCI 5303269545 WCI 5303269545 Contact Us For Availability
4
WCI 5303271756 WCI 5303271756 Contact Us For Availability
4
WCI 3131134 WCI 3131134 Contact Us For Availability
4
WCI 316019705 WCI 316019705 Contact Us For Availability
4A
WCI 08067785 WCI 08067785 Contact Us For Availability
5
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
5
FASTENER, SPACER WCI 3131387 Contact Us For Availability
5A
ANTI-TIP KIT (NON-ILLUSTRATED) WCI 3934056 Contact Us For Availability
5B
NUT-TEE, LEVELING SCREW (NON-ILLUSTRATED) WCI 5303288460 Contact Us For Availability
6
HANDLE-DRAWER, ALMOND WCI 316019502 Contact Us For Availability
6
WCI 5303209317 WCI 5303209317 Contact Us For Availability
7
HINGE-OVEN DOOR WCI 316007001 Contact Us For Availability
7
INSULATION-OVEN DOOR WCI 5303209514 Contact Us For Availability
8
BOTTOM-OVEN, ELECTRIC WCI 3203540 Contact Us For Availability
9
PAN-BROILER WCI 5303013568 Contact Us For Availability
9
LINER-OVEN DOOR WCI 5303209318 Contact Us For Availability
10
SCREW-OVEN HANDLE, WAFER HD SQD, 10-24(F) X 3 WCI 5303281378 Contact Us For Availability
10
WCI 5303131356 WCI 5303131356 Contact Us For Availability
12
WCI 316027701 WCI 316027701 Contact Us For Availability
13
WCI 316023200 WCI 316023200 Contact Us For Availability
13
ROD-LIGHT SWITCH WCI 316026800 Contact Us For Availability
16
MAIN TOP, ALMOND WCI 5303288821 Contact Us For Availability
17
RETAINER-GLASS WCI 3204585 Contact Us For Availability
18
WCI 316036300 WCI 316036300 Contact Us For Availability
18
HINGE-MAIN TOP (RH) WCI 5303273062 Contact Us For Availability
18A
HINGE-MAIN TOP (LH) WCI 5303273063 Contact Us For Availability
21
WCI 3014099 WCI 3014099 Contact Us For Availability
25
WCI 3200848 WCI 3200848 Contact Us For Availability
28
MEDALLION, SURF UNIT WCI 3017801 Contact Us For Availability
30
WCI 5303263574 WCI 5303263574 Contact Us For Availability
30A
BRACKET-HINGE, MAIN TOP, LH WCI 5303283575 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
55
WCI 3051368 WCI 3051368 Contact Us For Availability
57
COVER-ACCESS WCI 3203405 Contact Us For Availability
58A
INSULATION-OVEN-TOP (NON-ILLUSTRATED) WCI 3131304 Contact Us For Availability
58A
WCI 316047700 WCI 316047700 Contact Us For Availability
58B
INSULATION, OVEN BACK WCI 3204582 Contact Us For Availability
59
WCI 3051344 WCI 3051344 Contact Us For Availability
63
PLATE-GROUND STRAP WCI 5303212739 Contact Us For Availability
64
FILTER WCI 08067810 Contact Us For Availability
65
WCI 08010606 WCI 08010606 Contact Us For Availability
71
SHIELD-REAR WALL, LOWER WCI 316015801 Contact Us For Availability
72
WCI 5303285692 WCI 5303285692 Contact Us For Availability
82
WCI 3200825 WCI 3200825 Contact Us For Availability
87
WCI 5303206618 WCI 5303206618 Contact Us For Availability
88
WCI 316026400 WCI 316026400 Contact Us For Availability
89
WCI 316028100 WCI 316028100 Contact Us For Availability
× ![]()
