Model Electrolux 31-2649-00-10 RANGE – Common Parts & Diagrams

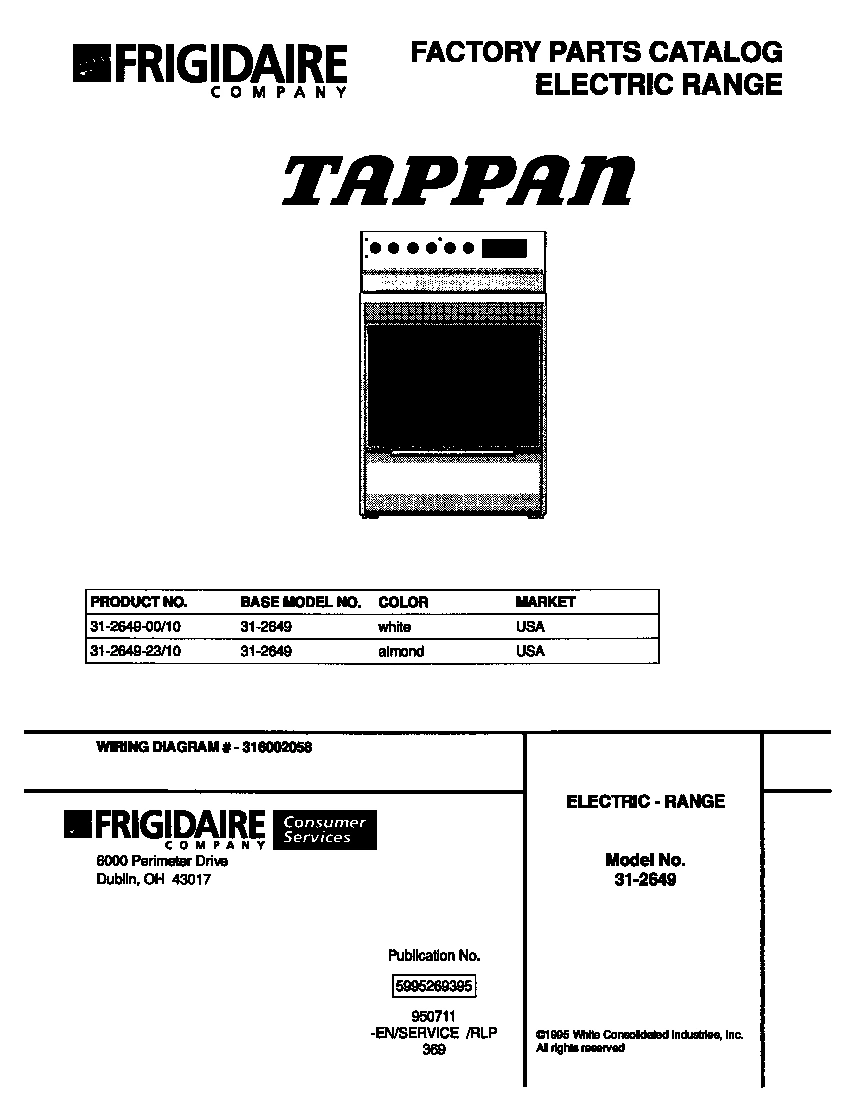

01 - COVER

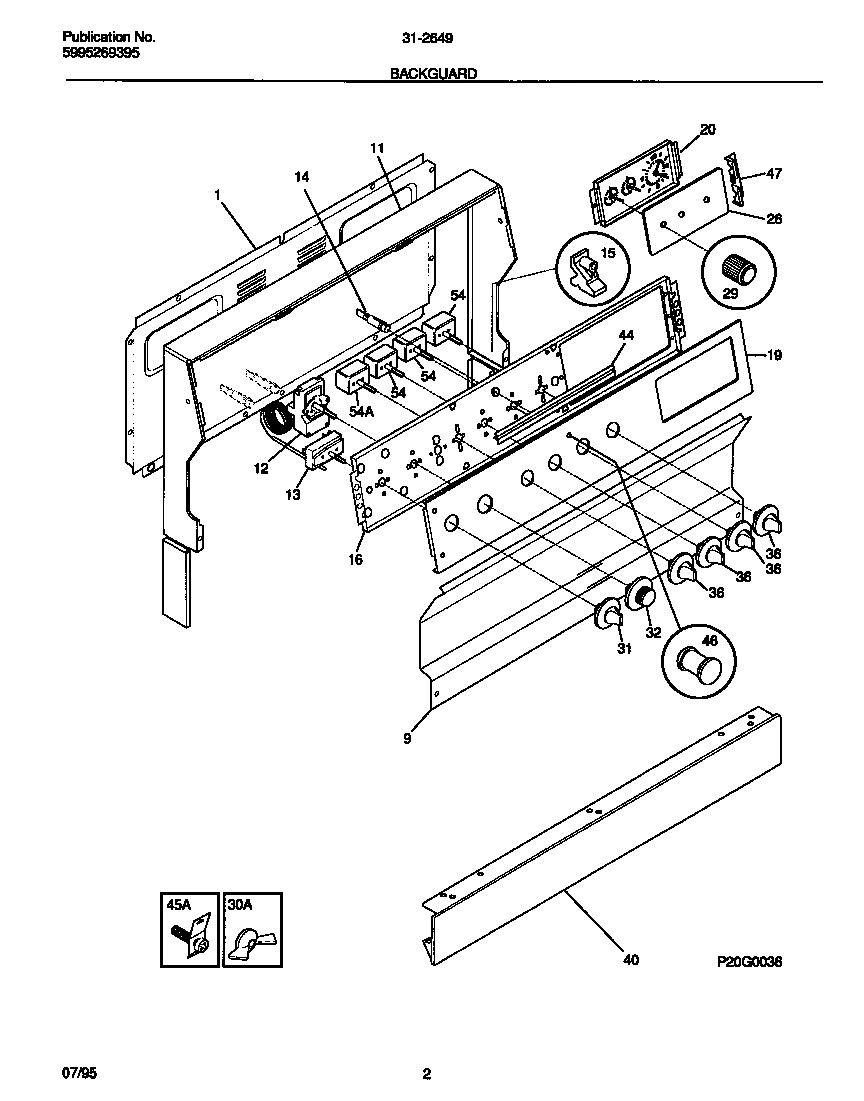

02 - BACKGUARD

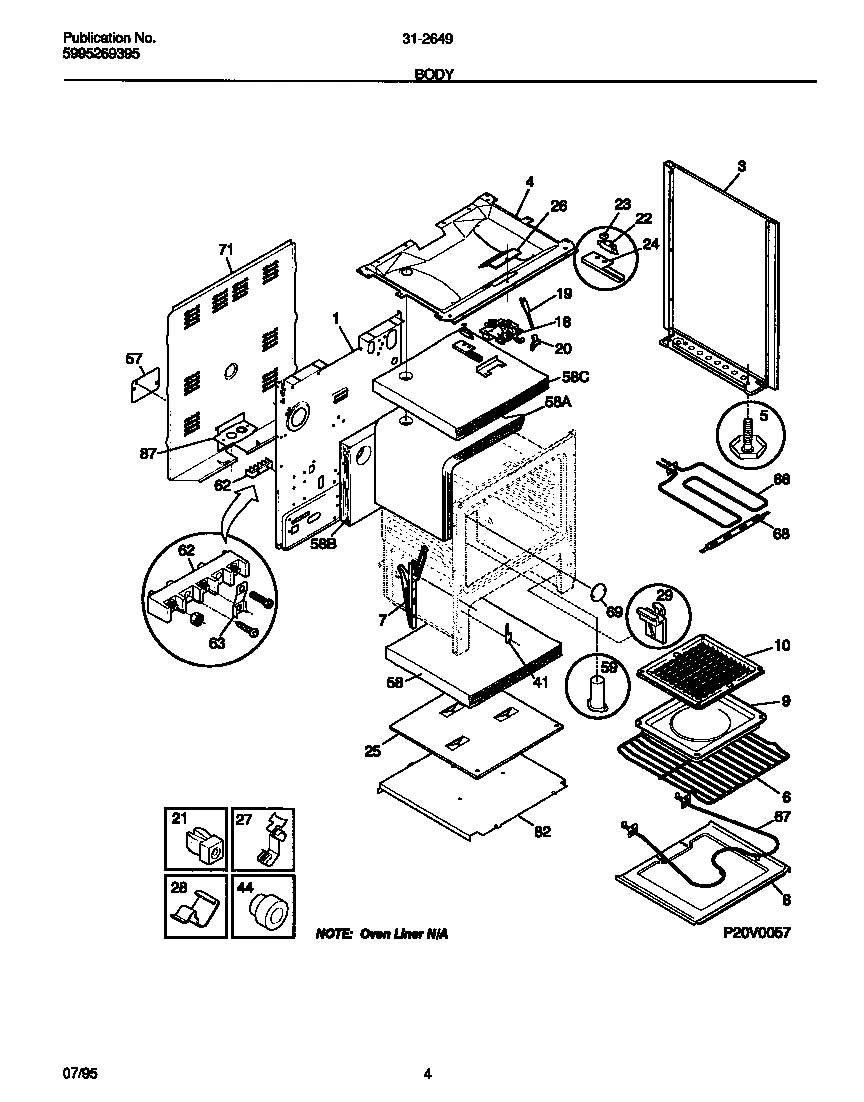

03 - BODY

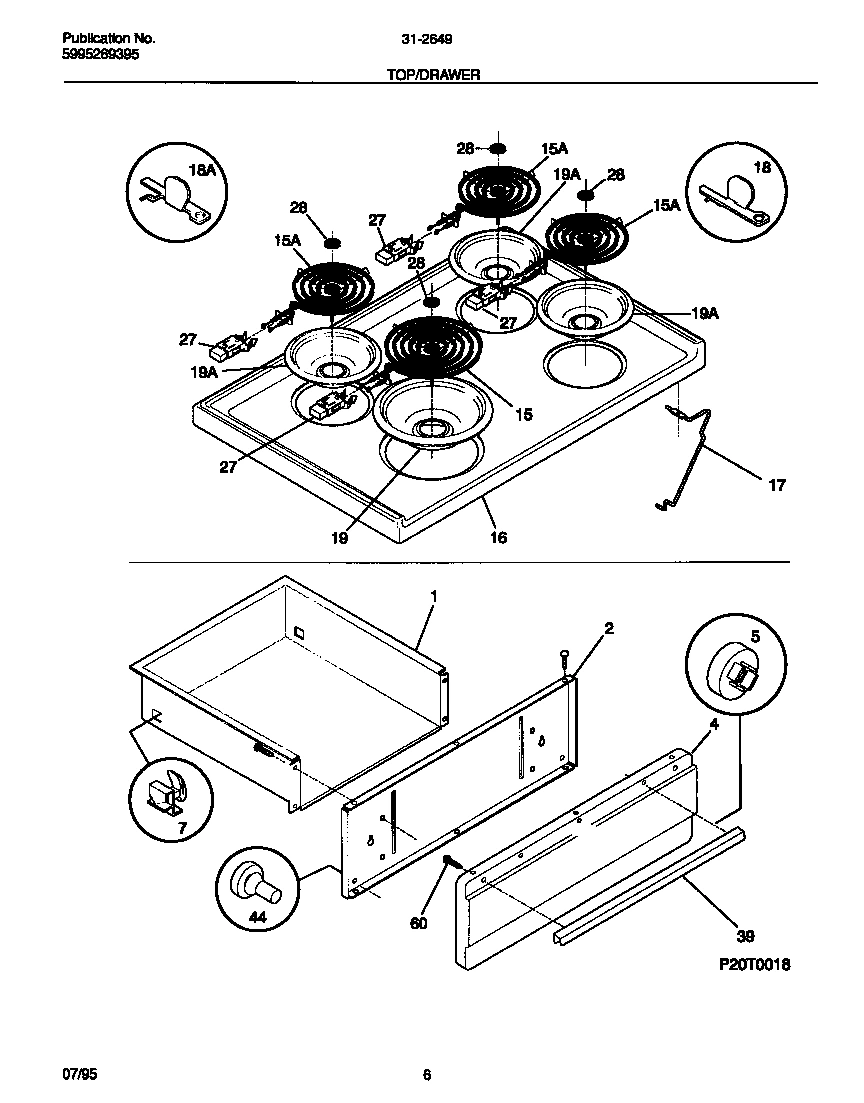

04 - TOP/DRAWER

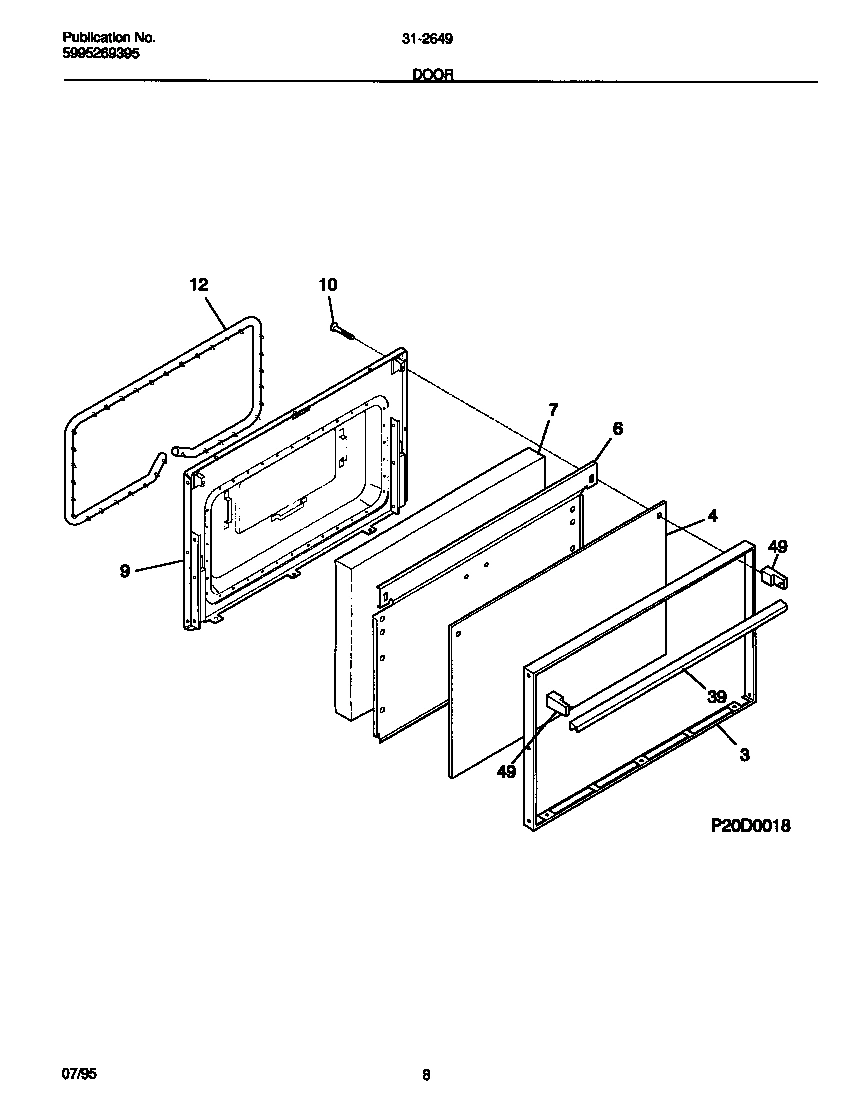

05 - DOOR

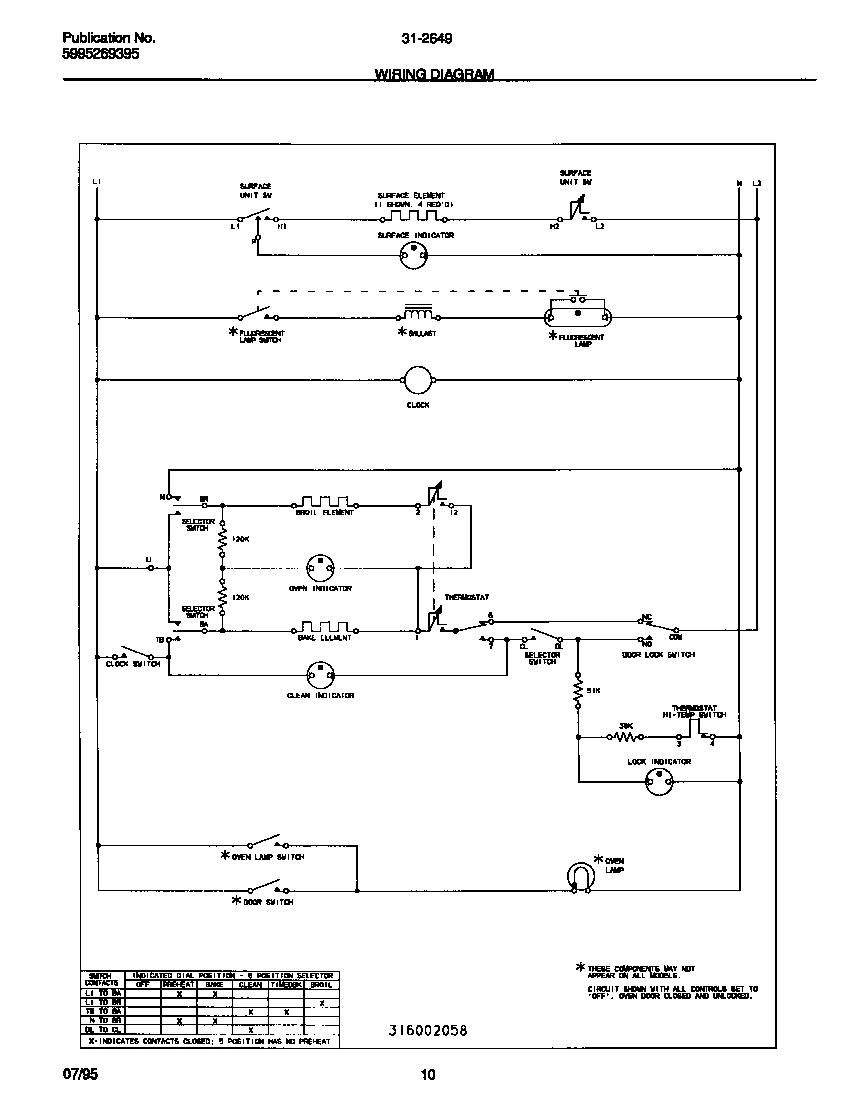

06 - WIRING DIAGRAM
Common parts from model Electrolux 31-2649-00-10 RANGE
*23484
WCI 316075400 WCI 316075400 Contact Us For Availability
*23487
WCI 316001339 WCI 316001339 Contact Us For Availability
*23488
RIVET-POP, WARING-PLATE WCI 3203618 Contact Us For Availability
*23489
WCI 5303281584 WCI 5303281584 Contact Us For Availability
*23491
WCI 316065300 WCI 316065300 Contact Us For Availability
*23492
SCREW, CR PAN HD SEMS, 8-32BP X 1.00 WCI 5303212671 Contact Us For Availability
*23494
WCI 5303269859 WCI 5303269859 Contact Us For Availability
1
WCI 316080801 WCI 316080801 Contact Us For Availability
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
1
WCI 316002058 WCI 316002058 Contact Us For Availability
2
WCI 3131975 WCI 3131975 Contact Us For Availability
3
WCI 316081004 WCI 316081004 Contact Us For Availability
3
WCI 316067802 WCI 316067802 Contact Us For Availability
3A
WCI 316081005 WCI 316081005 Contact Us For Availability
3B
SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED) WCI 3200834 Contact Us For Availability
3C
FASTENER-EDGE MTG (NOT ILLUSTRATED) WCI 3200846 Contact Us For Availability
4
WCI 5303271658 WCI 5303271658 Contact Us For Availability
4
WCI 316056205 WCI 316056205 Contact Us For Availability
4
GLASS-OVEN DOOR, SOLID BLACK, OUTER WCI 5303051153 Contact Us For Availability
4A
SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT I WCI 08067785 Contact Us For Availability
5
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
5
FASTENER-SPACER, PUSH-IN NUT, NYLON WCI 3131387 Contact Us For Availability
5A
WCI 3934058 WCI 3934058 Contact Us For Availability
5C
NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED) WCI 5303288460 Contact Us For Availability
6
SHIELD-INSULATION, BLACK WCI 5303209317 Contact Us For Availability
7
Hinge,oven door ,(2) WCI 316007001 Contact Us For Availability
7
WCI 316076400 WCI 316076400 Contact Us For Availability
8
PANEL-OVEN BOTTOM WCI 3203540 Contact Us For Availability
9
WCI 316073800 WCI 316073800 Contact Us For Availability
9
WCI 316066602 WCI 316066602 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3 WCI 5303281378 Contact Us For Availability
10
WCI 3205234 WCI 3205234 Contact Us For Availability
16
WCI 3051379 WCI 3051379 Contact Us For Availability
17
WCI 316066900 WCI 316066900 Contact Us For Availability
18
LATCH-DOOR, BIMETAL WCI 5303015361 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP RH WCI 08067747 Contact Us For Availability
18A
BRACKET-HINGE,MAIN TOP LH WCI 08067746 Contact Us For Availability
18A
SHIELD, LATCH TOP (NOT ILLUSTRATED) WCI 3131593 Contact Us For Availability
19
WCI 5303131357 WCI 5303131357 Contact Us For Availability
20
WCI 3203218 WCI 3203218 Contact Us For Availability
20A
WCI 08013188 WCI 08013188 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
22
SWITCH-LATCH WCI 5303269499 Contact Us For Availability
22A
STUD, SPACER (NOT ILLUSTRATED) WCI 08067978 Contact Us For Availability
23
WCI 08067776 WCI 08067776 Contact Us For Availability
24
SHIELD-LATCH WCI 3051413 Contact Us For Availability
25
WCI 3200848 WCI 3200848 Contact Us For Availability
26
WCI 08067757 WCI 08067757 Contact Us For Availability
28
WCI 3051367 WCI 3051367 Contact Us For Availability
28
MEDALLION, STAINLESS STEEL, SURF ELEM WCI 3017801 Contact Us For Availability
39
HANDLE-DRAWER, BRUSHED CHROME WCI 3201268 Contact Us For Availability
39
HANDLE-DOOR, BLACK, OVEN WCI 5303273127 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
44
WCI 3131468 WCI 3131468 Contact Us For Availability
45A
WCI 316056902 WCI 316056902 Contact Us For Availability
46
WCI 316065800 WCI 316065800 Contact Us For Availability
47
RETAINER, CLOCK GLASS, (2) WCI 3201700 Contact Us For Availability
57
WCI 316081101 WCI 316081101 Contact Us For Availability
58A
INSULATION, OVEN WRAPPER WCI 3200833 Contact Us For Availability
58B
WCI 316054200 WCI 316054200 Contact Us For Availability
58C
INSULATION, OVEN TOP WCI 3131304 Contact Us For Availability
59
WCI 316073600 WCI 316073600 Contact Us For Availability
60
SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/ WCI 5303281651 Contact Us For Availability
63
PLATE-GROUND STRAP WCI 5303212739 Contact Us For Availability
71
WCI 316015805 WCI 316015805 Contact Us For Availability
82
SHIELD, OVEN BOTTOM WCI 3200825 Contact Us For Availability
87
WCI 316081201 WCI 316081201 Contact Us For Availability
× ![]()
