Model Electrolux 31-2528-66-02 RANGE – Common Parts & Diagrams
02 - BODY PARTS
03 - BACKGUARD

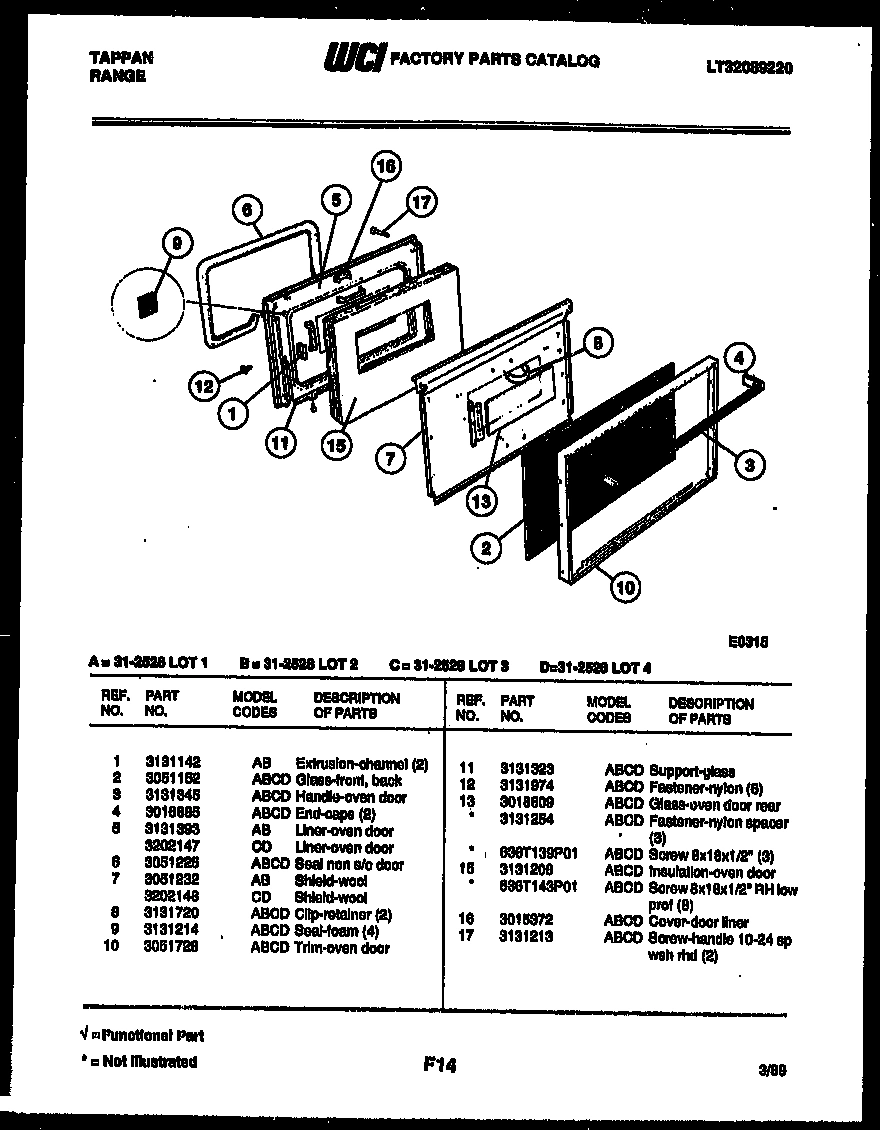

04 - DOOR PARTS

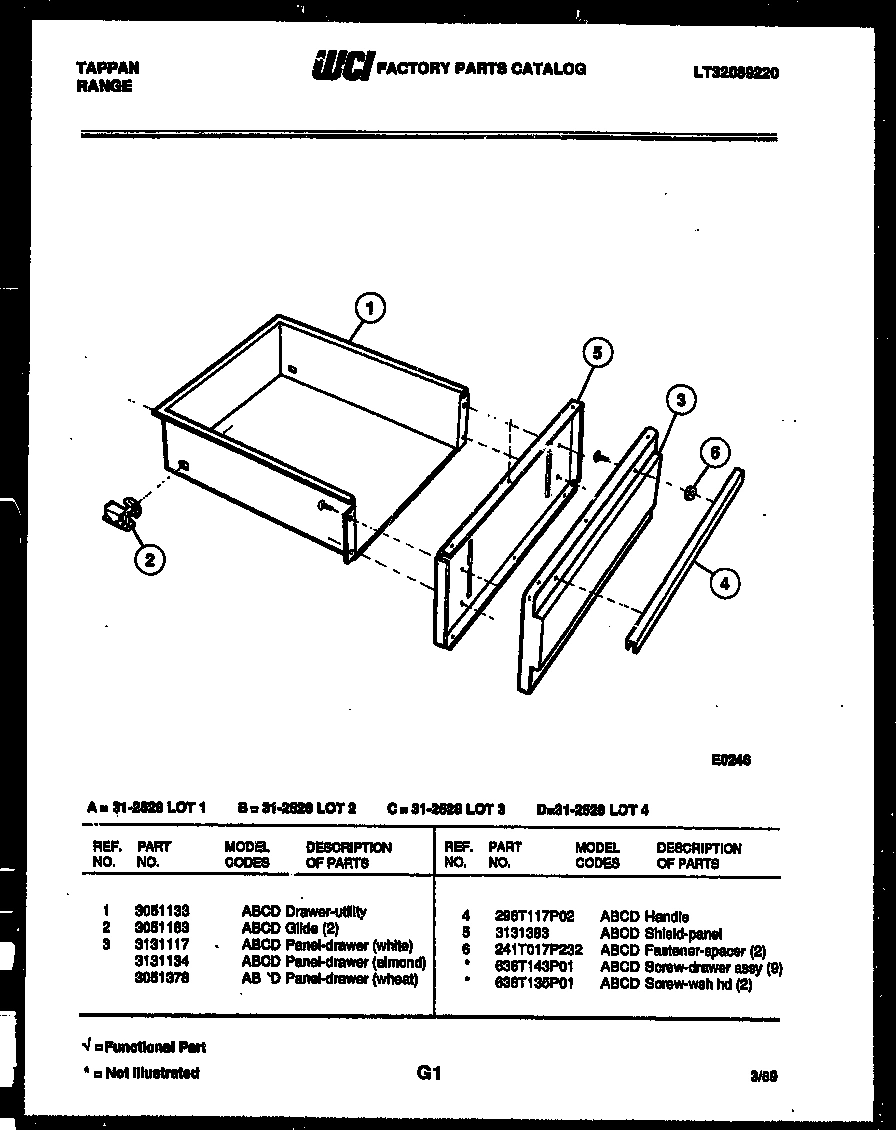

05 - DRAWER PARTS

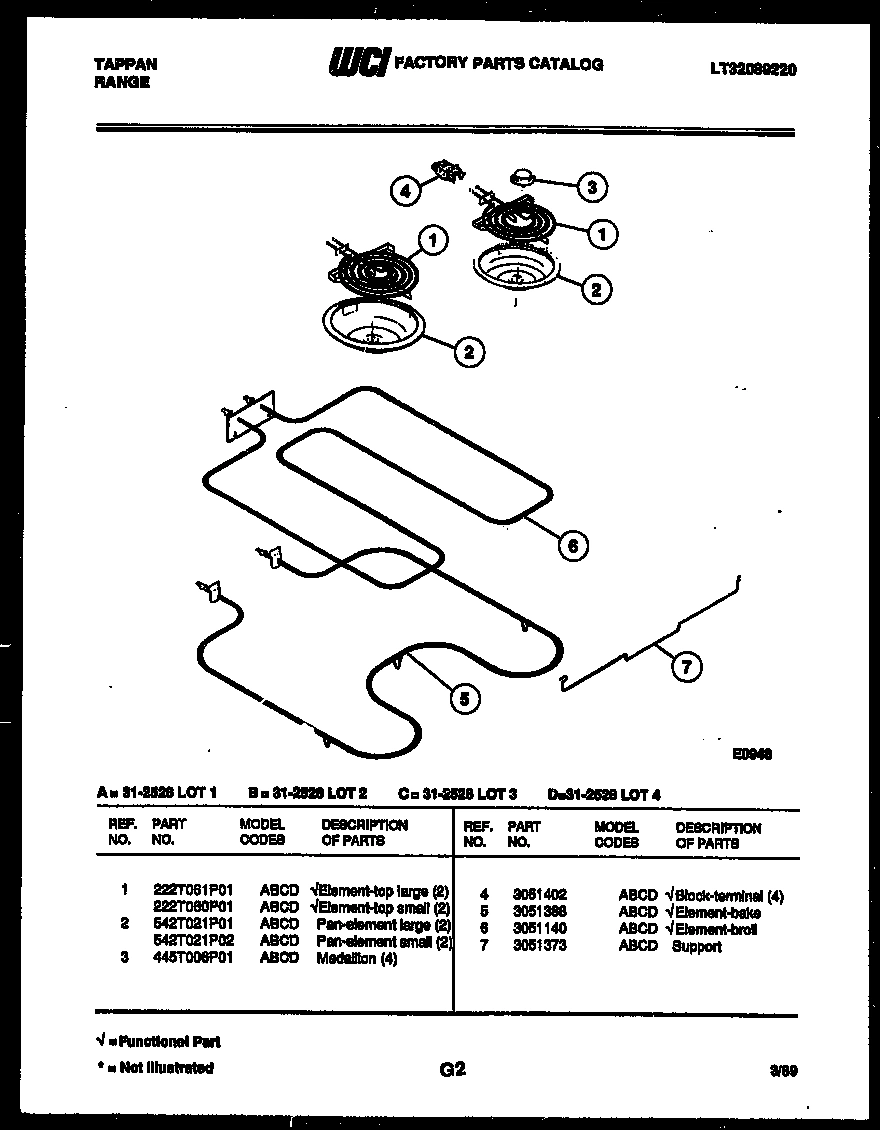

06 - BROILER PARTS

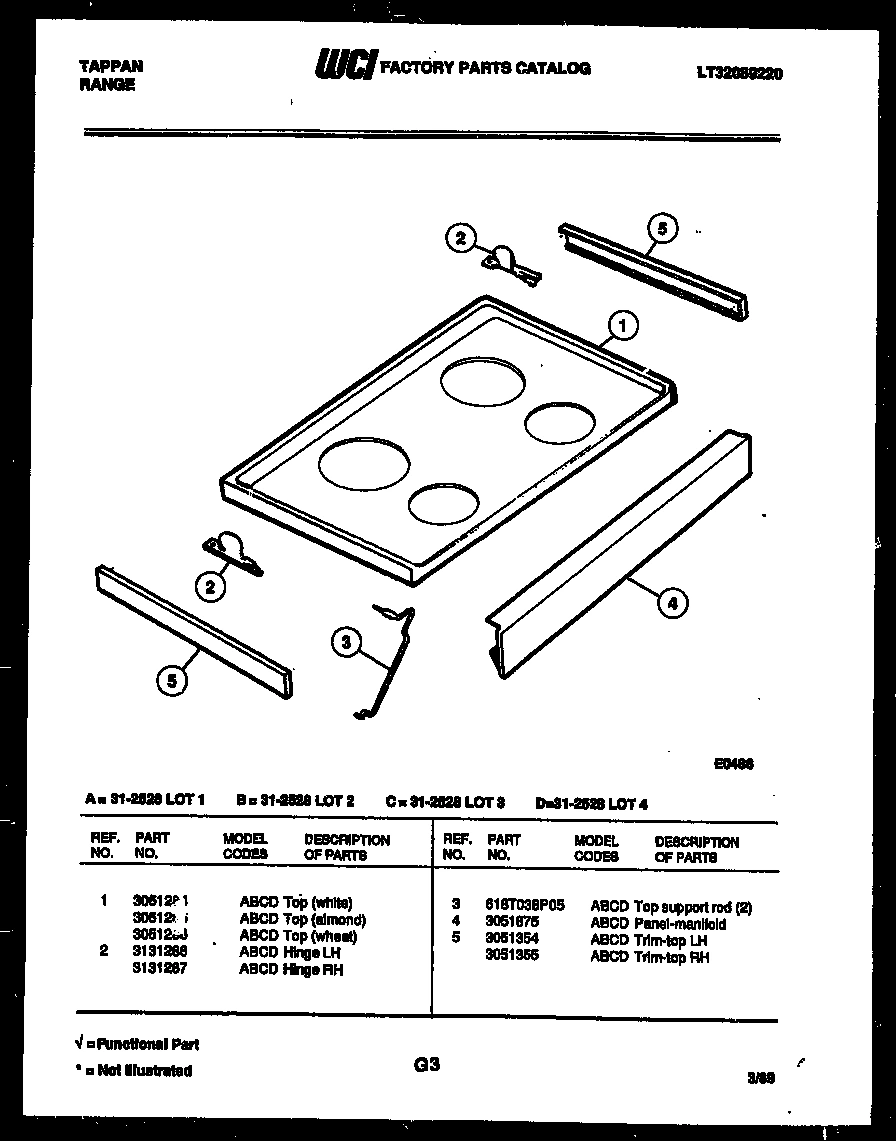

07 - COOKTOP PARTS
Common parts from model Electrolux 31-2528-66-02 RANGE
*96043
WCI 3131200 WCI 3131200 Contact Us For Availability
*96044
SCREW-HINGE (6) WCI 636T163P01 Contact Us For Availability
*96045
WCI 479T069P41 WCI 479T069P41 Contact Us For Availability
*96097
SCREW-WSH HD (2) WCI 636T135P01 Contact Us For Availability
1
SPACER, BODYSIDE (8) WCI 665T188P02 Contact Us For Availability
1
WCI 3131436 WCI 3131436 Contact Us For Availability
1
WCI 3131142 WCI 3131142 Contact Us For Availability
1
DRAWER, UTILITY WCI 3051133 Contact Us For Availability
1
TOP-WHEAT WCI 3051286 Contact Us For Availability
2
PLATE-INST MTG WCI 3051219 Contact Us For Availability
2
GLASS-FRONT, BACK WCI 3051152 Contact Us For Availability
2
HINGE (LH) WCI 3131286 Contact Us For Availability
2
HINGE (RH) WCI 3131287 Contact Us For Availability
3
P/S LH (WHEAT) WCI 3200794 Contact Us For Availability
3
WCI 3051876 WCI 3051876 Contact Us For Availability
3
HANDLE, OVEN DOOR WCI 3131345 Contact Us For Availability
3
PANEL, DRAWER, WHEAT WCI 3051378 Contact Us For Availability
3
WCI 445T006P01 WCI 445T006P01 Contact Us For Availability
3
TOP SUPPORT ROD (2) WCI 618T038P05 Contact Us For Availability
3A
P/S RH (WHEAT) WCI 3200791 Contact Us For Availability
4
WCI 3017926 WCI 3017926 Contact Us For Availability
4
TRIM-LOWER SPL WCI 3051874 Contact Us For Availability
4
WCI 296T117P02 WCI 296T117P02 Contact Us For Availability
4
WCI 3051875 WCI 3051875 Contact Us For Availability
5
WCI 479T095P02 WCI 479T095P02 Contact Us For Availability
5
WCI 3131393 WCI 3131393 Contact Us For Availability
5
WCI 3131383 WCI 3131383 Contact Us For Availability
5
WCI 3051388 WCI 3051388 Contact Us For Availability
5
TRIM-TOP LH WCI 3051354 Contact Us For Availability
5
TRIM-TOP RH WCI 3051355 Contact Us For Availability
6
WCI 021T055F02-18 WCI 021T055F02-18 Contact Us For Availability
6
FASTENER-GLASS (2) WCI 241T049P01 Contact Us For Availability
6
FASTENER, SPACER (2) WCI 241T017P232 Contact Us For Availability
7
SHIELD-LOW WALL WCI 3051400 Contact Us For Availability
7
SHIELD-REAR WALL WCI 655T430F01-18 Contact Us For Availability
7
WCI 3051232 WCI 3051232 Contact Us For Availability
8
WCI 3051408 WCI 3051408 Contact Us For Availability
8
WCI 3051411 WCI 3051411 Contact Us For Availability
8
CLIP, RETAINER (2) WCI 3131720 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
9
GLASS-CLOCK WCI 277T219P03 Contact Us For Availability
9
SEAL, FOAM (4) WCI 3131214 Contact Us For Availability
10
RETAINER-CL GL (2) WCI 612T123F01 Contact Us For Availability
10
WCI 3051728 WCI 3051728 Contact Us For Availability
11
SCREW, LEVEL (4) WCI 636M004P01 Contact Us For Availability
11
SUPPORT, GLASS WCI 3131323 Contact Us For Availability
12
COVER-HINGE (2) WCI 3131141 Contact Us For Availability
12
WCI 3016812 WCI 3016812 Contact Us For Availability
12
FASTENER, NYLON (6) WCI 3131974 Contact Us For Availability
13
SHIELD-WOOL LOW WCI 3200825 Contact Us For Availability
13
WCI 3051323 WCI 3051323 Contact Us For Availability
13
GLASS-OVEN DOOR (REAR) WCI 3018609 Contact Us For Availability
13A
FASTENER-NYLON SPACER (3) (NON-ILLUSTRATED) WCI 3131254 Contact Us For Availability
13B
SCREW 8 X 18 X 1/2`` (3) (NON-ILLUSTRATED) WCI 636T139P01 Contact Us For Availability
14
CHANNEL-HINGE (2) WCI 3131243 Contact Us For Availability
14
WCI 3051174 WCI 3051174 Contact Us For Availability
14
WCI 3051175 WCI 3051175 Contact Us For Availability
14
KNOB THERM WCI 3051185 Contact Us For Availability
15
WCI 3051104 WCI 3051104 Contact Us For Availability
15
KNOB-CLOCK (1) WCI 358T201P01 Contact Us For Availability
15
INSULATION, OVEN DOOR WCI 3131208 Contact Us For Availability
16
FUSE-THERMAL WCI 3051147 Contact Us For Availability
16
INDICATOR LT SU WCI 318T023P11 Contact Us For Availability
16
WCI 318T023P12 WCI 318T023P12 Contact Us For Availability
16
COVER-DOOR LINER WCI 3015372 Contact Us For Availability
17
WCI 539T010F01-86 WCI 539T010F01-86 Contact Us For Availability
17
JEWEL-IND INS (2) WCI 342T014P01 Contact Us For Availability
17
SCREW HANDLE 10-24 SP WSH RHD (2) WCI 3131213 Contact Us For Availability
17A
WCI 612T125P01 WCI 612T125P01 Contact Us For Availability
18
WCI 319T011F03-86 WCI 319T011F03-86 Contact Us For Availability
18
WCI 695T211P02 WCI 695T211P02 Contact Us For Availability
19
WCI 045T071P01 WCI 045T071P01 Contact Us For Availability
20
WCI 711T048P01 WCI 711T048P01 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
24
COVER-FRONT WCI 174T335P01 Contact Us For Availability
26
WCI 3051344 WCI 3051344 Contact Us For Availability
28
TUBE-OVEN LIGHT WCI 3051343 Contact Us For Availability
× ![]()
