Model Electrolux 31-2239-23-06 RANGE – Common Parts & Diagrams

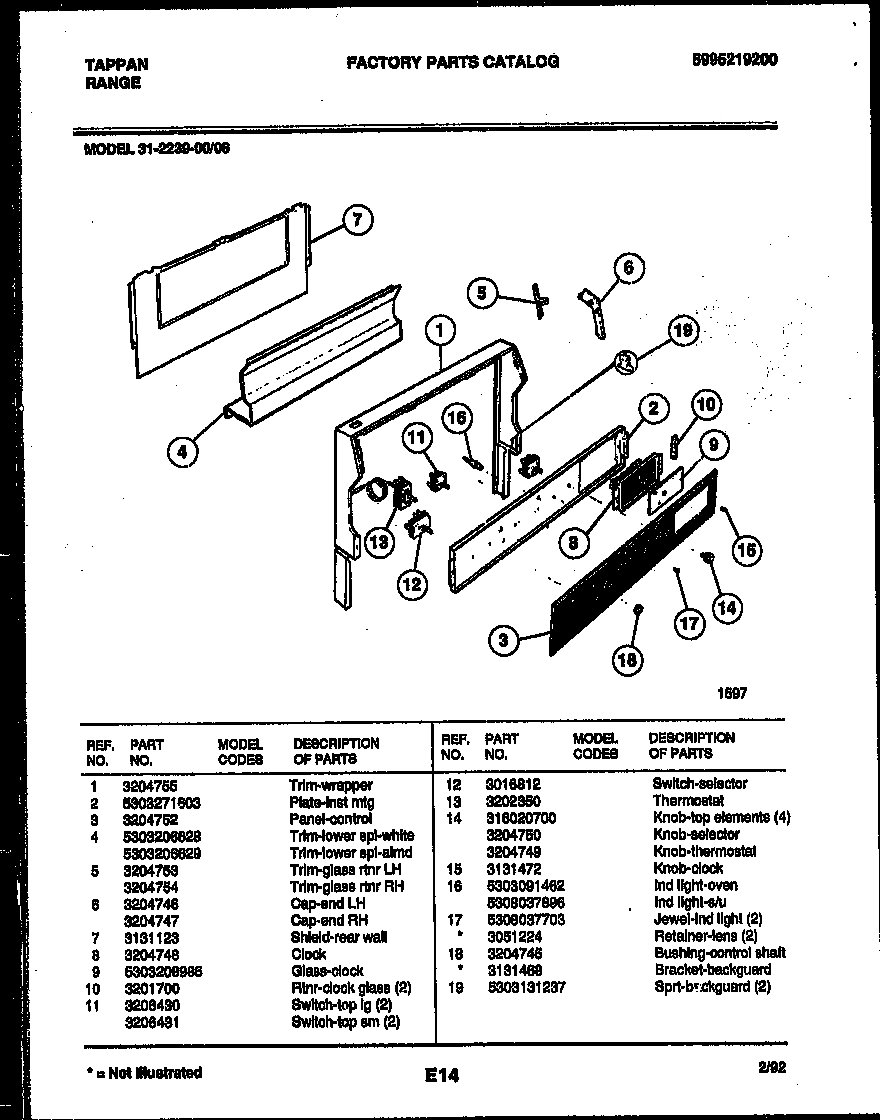

02 - BACKGUARD

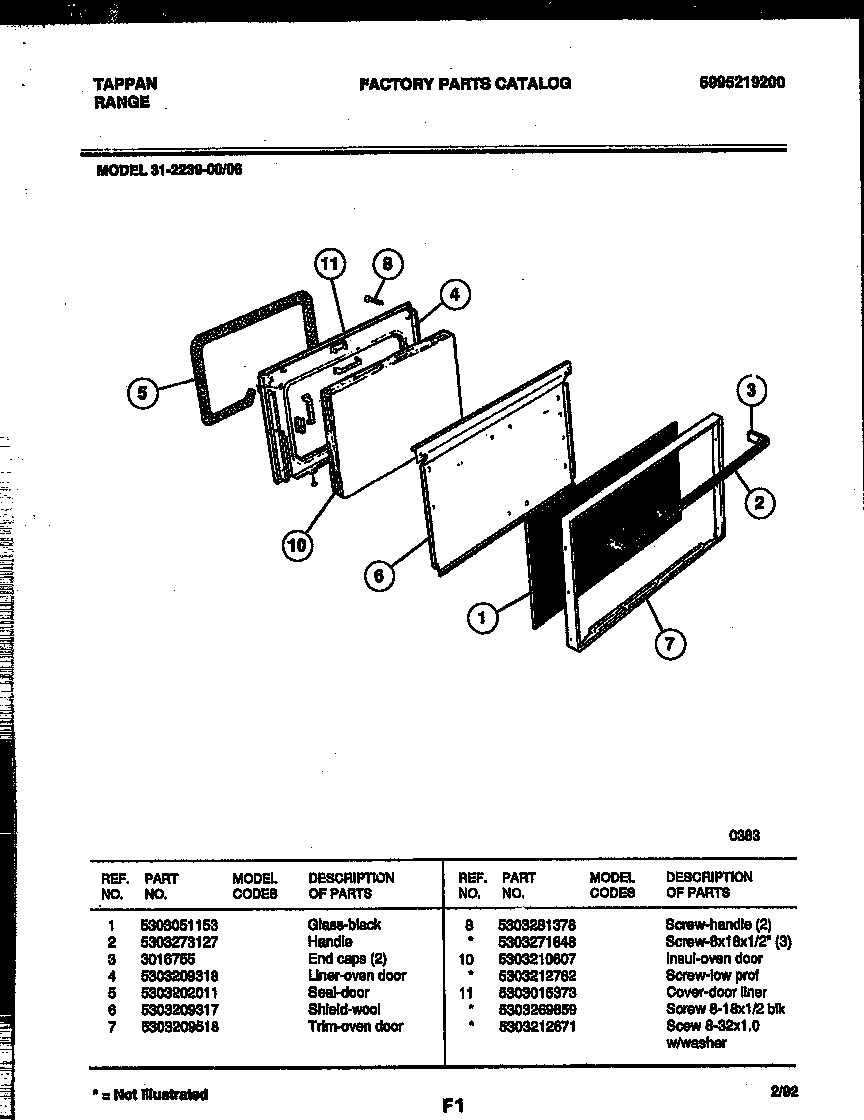

03 - DOOR PARTS

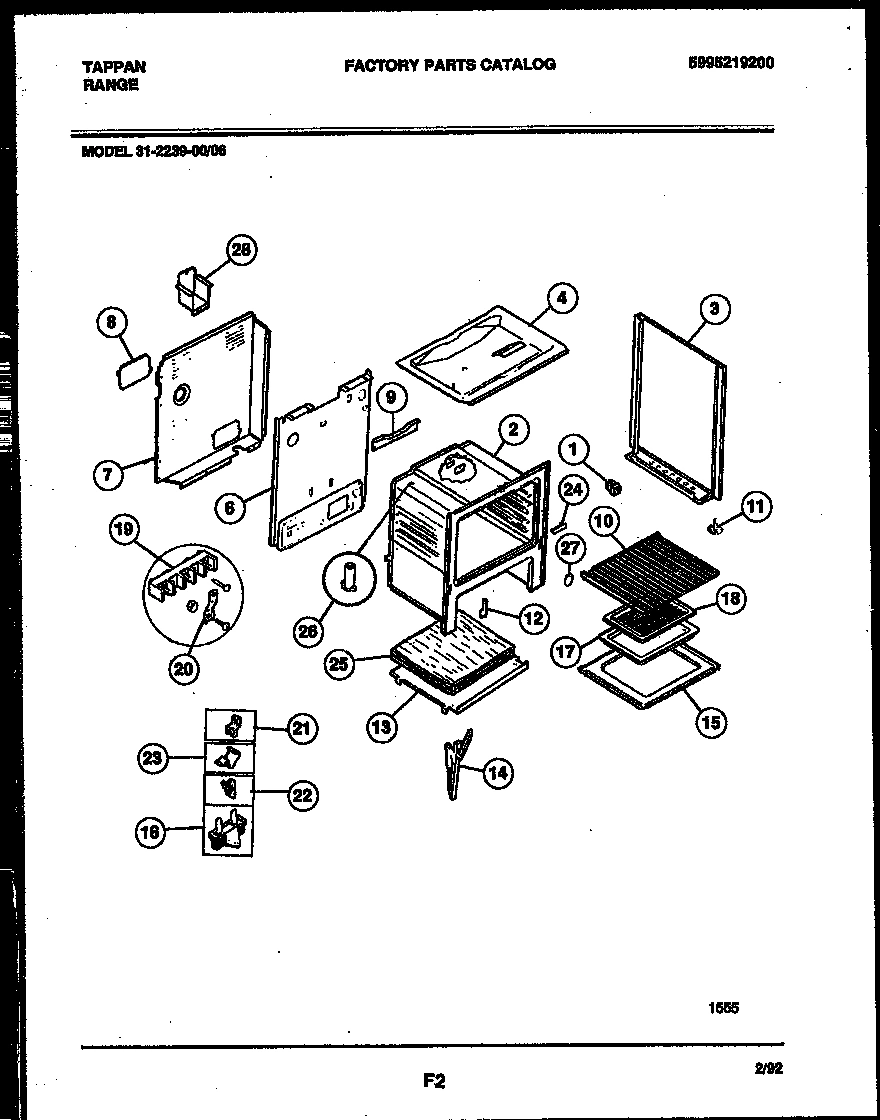

04 - BODY PARTS

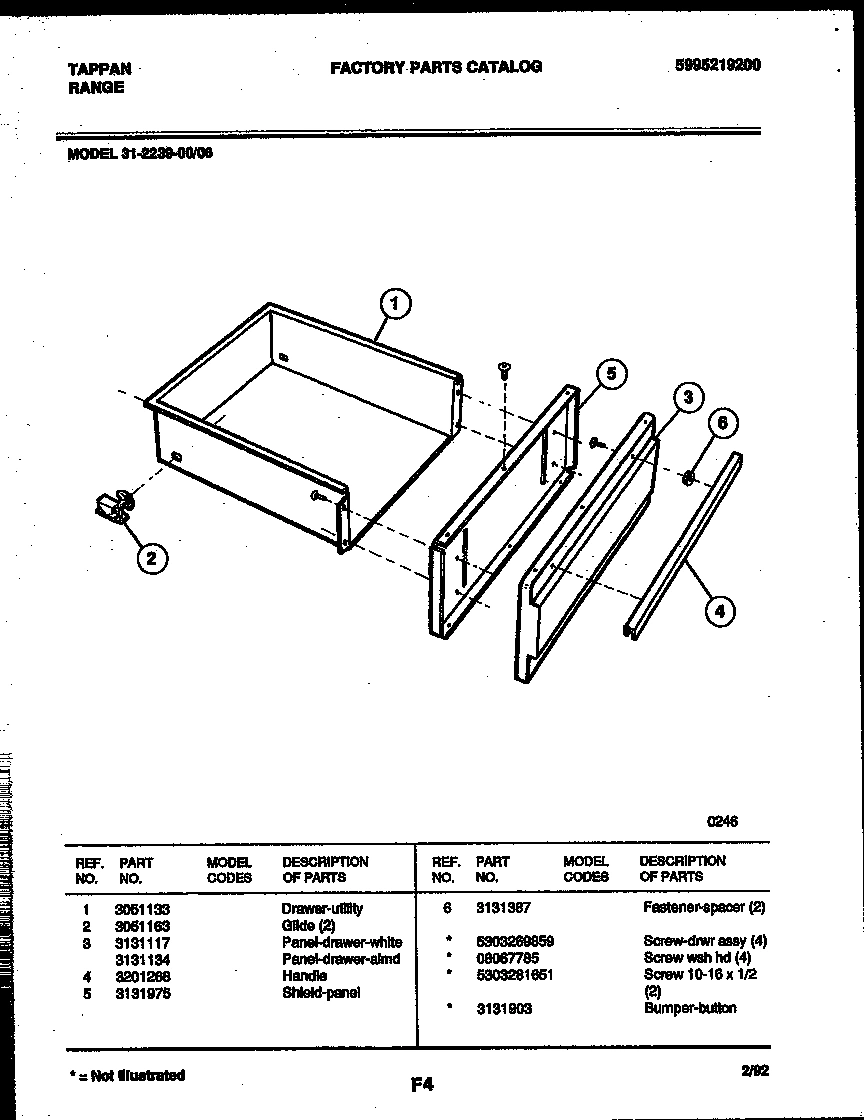

05 - DRAWER PARTS

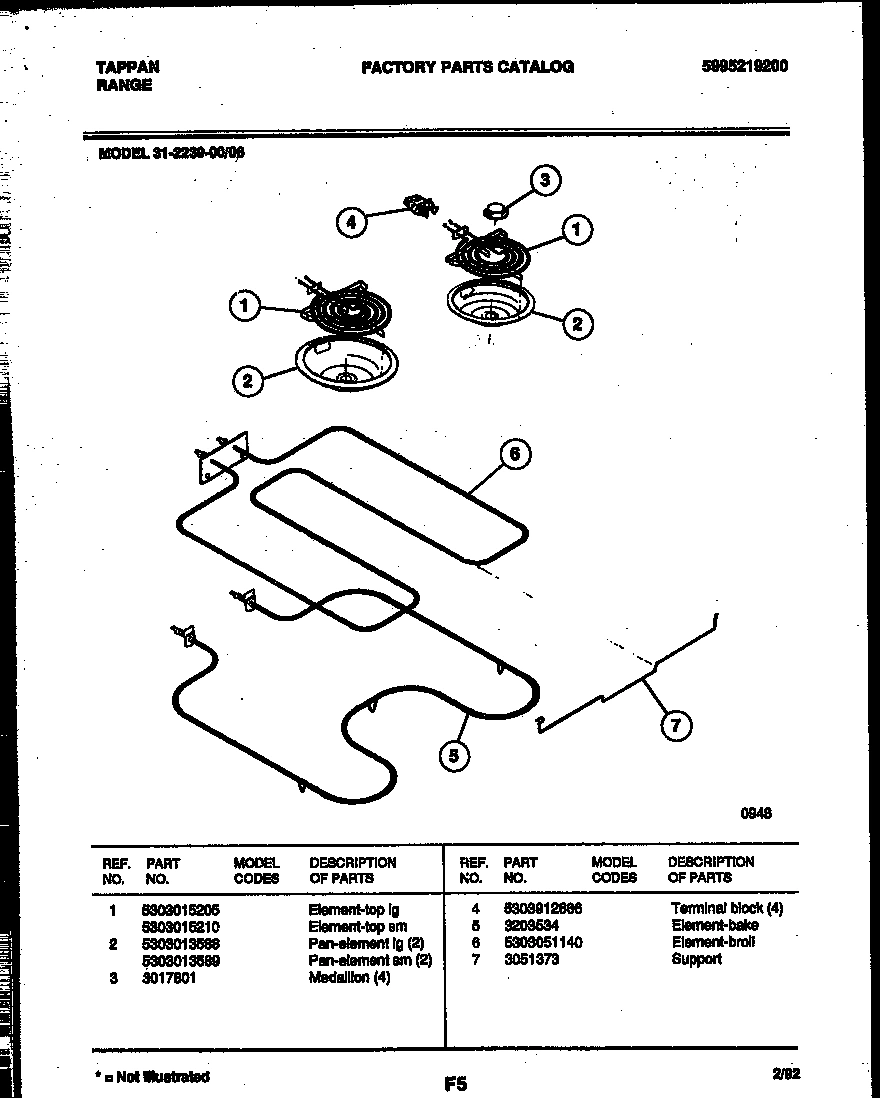

06 - BROILER PARTS

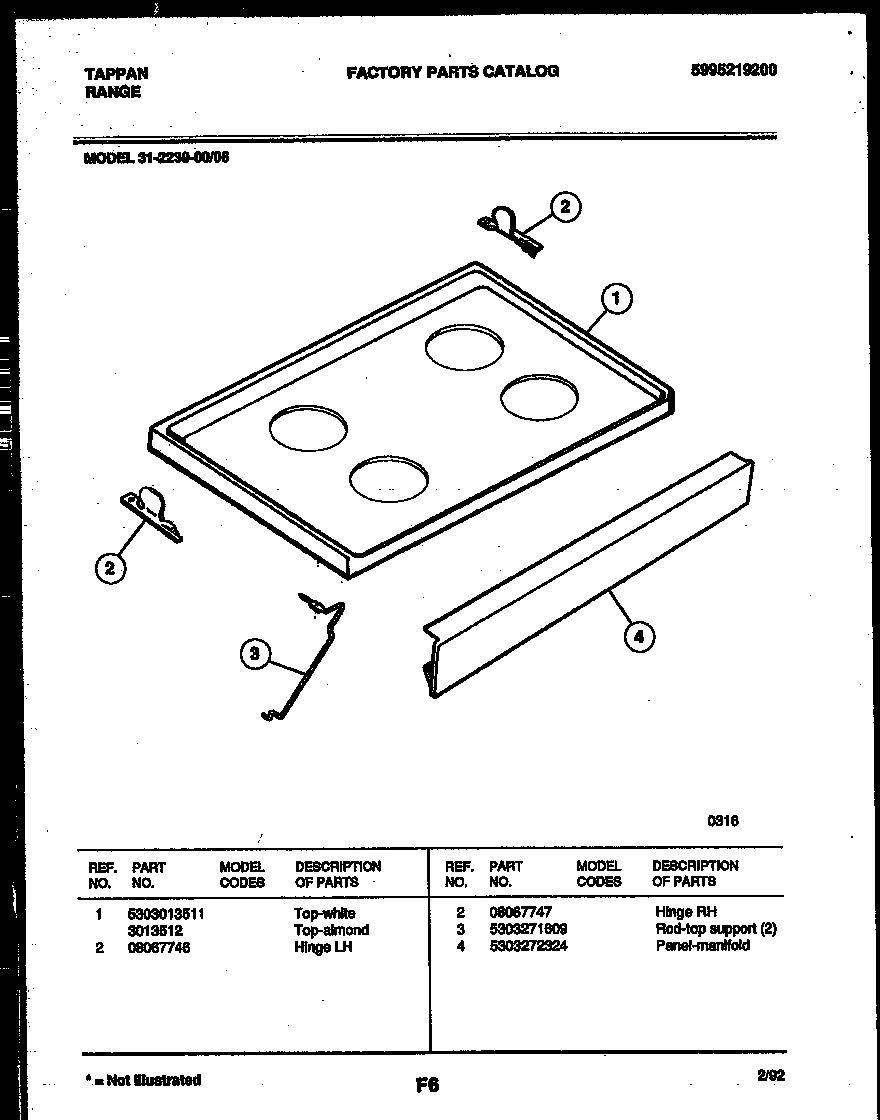

07 - COOKTOP PARTS
Common parts from model Electrolux 31-2239-23-06 RANGE
*66431
SCREW-8-32 X 1.0 W/ WASHER WCI 5303212671 Contact Us For Availability
*66435
INSULATION-WRAP WCI 3017142 Contact Us For Availability
*66435
WCI 19100210118 WCI 19100210118 Contact Us For Availability
*66435
INSULATION-BACK WCI 3203541 Contact Us For Availability
*66435
ANTI-TIP KIT WCI 3934056 Contact Us For Availability
*66435
WCI 5303206618 WCI 5303206618 Contact Us For Availability
*66436
SCREW WSH HD (4) WCI 08067785 Contact Us For Availability
*66436
SCREW 10-16 X 1/2 (2) WCI 5303281651 Contact Us For Availability
*66436
SCREW-DRWR ASSY (4) WCI 5303269859 Contact Us For Availability
1
SPACER, B/S (8) WCI 3014099 Contact Us For Availability
1
GLASS-BLACK WCI 5303051153 Contact Us For Availability
1
DRAWER, UTILITY WCI 3051133 Contact Us For Availability
1
TOP-ALMOND WCI 3013512 Contact Us For Availability
2
HINGE LH WCI 08067746 Contact Us For Availability
2
WCI 5303273127 WCI 5303273127 Contact Us For Availability
2
HINGE RH WCI 08067747 Contact Us For Availability
3
WCI 5303269545 WCI 5303269545 Contact Us For Availability
3
PANEL, DRAWER, (ALMD) WCI 3131134 Contact Us For Availability
3
WCI 3017801 WCI 3017801 Contact Us For Availability
3
ROD-TOP SUPPORT (2) WCI 5303271609 Contact Us For Availability
3A
WCI 5303269543 WCI 5303269543 Contact Us For Availability
4
LINER-OVEN DOOR WCI 5303209318 Contact Us For Availability
4
WCI 5303271756 WCI 5303271756 Contact Us For Availability
4
WCI 3201268 WCI 3201268 Contact Us For Availability
4
WCI 5303272324 WCI 5303272324 Contact Us For Availability
5
WCI 3131975 WCI 3131975 Contact Us For Availability
6
WCI 5303209317 WCI 5303209317 Contact Us For Availability
6
WCI 3203082 WCI 3203082 Contact Us For Availability
6
FASTENER-SPACER (2) WCI 3131387 Contact Us For Availability
7
WCI 5303209518 WCI 5303209518 Contact Us For Availability
7
SHIELD-LOW WALL WCI 3203549 Contact Us For Availability
8
SCREW, HANDLE (2) WCI 5303281378 Contact Us For Availability
8
COVER-LOW ACCESS WCI 3203405 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
10
INSUL-OVEN DOOR WCI 5303210607 Contact Us For Availability
11
SCREW-LEVEL (4) WCI 5303203397 Contact Us For Availability
11
WCI 5303015373 WCI 5303015373 Contact Us For Availability
12
COVER-HINGE (2) WCI 3131570 Contact Us For Availability
13
WCI 3200825 WCI 3200825 Contact Us For Availability
14
CHANNEL-HINGE (2) WCI 316007001 Contact Us For Availability
14B
WCI 3204749 WCI 3204749 Contact Us For Availability
15
KNOB-CLOCK WCI 3131472 Contact Us For Availability
15
WCI 3203540 WCI 3203540 Contact Us For Availability
16
IND LIGHT-OVEN WCI 5303091462 Contact Us For Availability
16
FUSE-THERMAL WCI 5303203651 Contact Us For Availability
16A
WCI 5308037896 WCI 5308037896 Contact Us For Availability
17
JEWEL-IND LIGHT (2) WCI 5308037703 Contact Us For Availability
17
WCI 5303013568 WCI 5303013568 Contact Us For Availability
17A
RETAINER-LENS (2) (NON-ILLUSTRATED) WCI 3051224 Contact Us For Availability
18
BUSHING, CONTROL SHAFT WCI 3204745 Contact Us For Availability
18
WCI 5303131356 WCI 5303131356 Contact Us For Availability
18A
BRACKET-BACKGUARD (NON-ILLUSTRATED) WCI 3131468 Contact Us For Availability
19
SPRT-BACKGUARD (2) WCI 5303131237 Contact Us For Availability
20
WCI 5303212739 WCI 5303212739 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
24
COVER-FRONT WCI 5303015372 Contact Us For Availability
26
WCI 5303283907 WCI 5303283907 Contact Us For Availability
28
WCI 3203582 WCI 3203582 Contact Us For Availability
× ![]()
