Model Electrolux 31-2239-00-05 RANGE – Common Parts & Diagrams

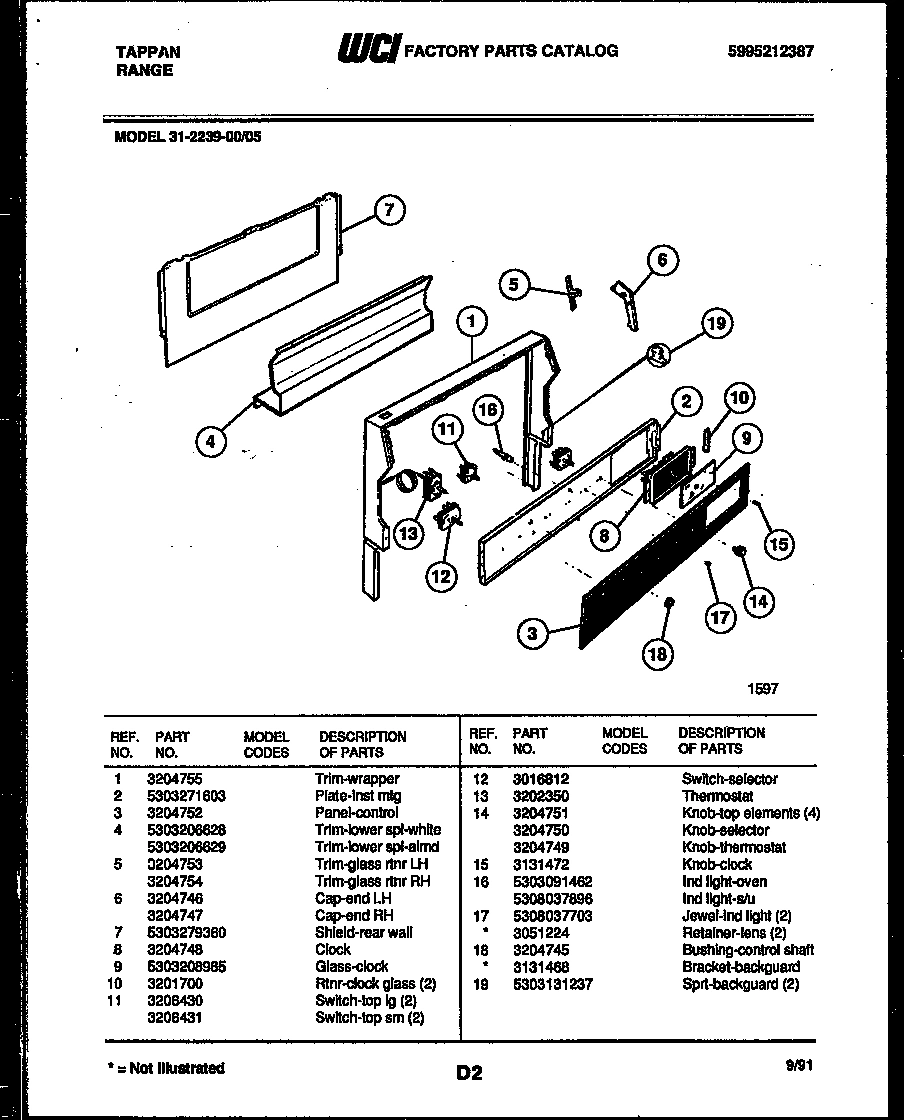

02 - BACKGUARD

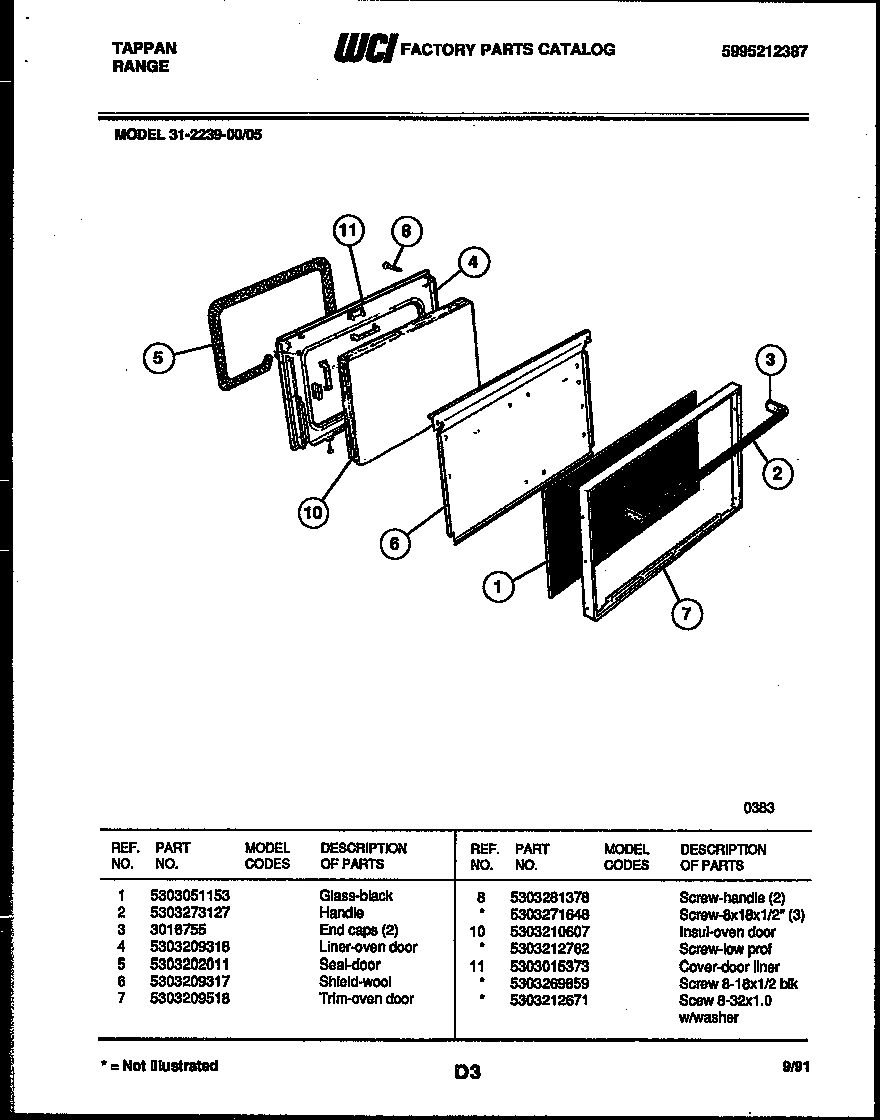

03 - DOOR PARTS
04 - BODY PARTS
05 - DRAWER PARTS
06 - BROILER PARTS
07 - COOKTOP PARTS
Common parts from model Electrolux 31-2239-00-05 RANGE
*58534
SCEW 8-32 X 1.0 W/WASHER WCI 5303212671 Contact Us For Availability
*58534
SCREW 8-18 X 1/2 BLK WCI 5303269859 Contact Us For Availability
*58539
INSULATION-WRAP WCI 3017142 Contact Us For Availability
*58539
INSULATION-BACK WCI 3203541 Contact Us For Availability
*58539
ANTI-TIP KIT WCI 3934056 Contact Us For Availability
*58540
WCI 19100210118 WCI 19100210118 Contact Us For Availability
*58540
WCI 5303206618 WCI 5303206618 Contact Us For Availability
*58541
SCREW WSH HD (4) WCI 08067785 Contact Us For Availability
*58541
SCREW 10-16 X 1/2 (2) WCI 5303281379 Contact Us For Availability
1
SPACER, B/S (8) WCI 3014099 Contact Us For Availability
1
GLASS-BLACK WCI 5303051153 Contact Us For Availability
1
DRAWER, UTILITY WCI 3051133 Contact Us For Availability
1
TOP-WHITE WCI 5303013511 Contact Us For Availability
2
HINGE LH WCI 08067746 Contact Us For Availability
2
WCI 5303273127 WCI 5303273127 Contact Us For Availability
2A
HINGE RH WCI 08067747 Contact Us For Availability
3
PANEL-SIDE LH-WHITE WCI 5303269519 Contact Us For Availability
3
WCI 3131117 WCI 3131117 Contact Us For Availability
3
WCI 3017801 WCI 3017801 Contact Us For Availability
3
ROD-TOP SUPPORT (2) WCI 5303271609 Contact Us For Availability
3A
PANEL-SIDE RH-WHITE WCI 5303269518 Contact Us For Availability
4
LINER-OVEN DOOR WCI 5303209318 Contact Us For Availability
4
WCI 5303271756 WCI 5303271756 Contact Us For Availability
4
WCI 3201268 WCI 3201268 Contact Us For Availability
4
WCI 5303272324 WCI 5303272324 Contact Us For Availability
5
WCI 3131975 WCI 3131975 Contact Us For Availability
6
WCI 5303209317 WCI 5303209317 Contact Us For Availability
6
WCI 3203082 WCI 3203082 Contact Us For Availability
6
FASTENER-SPACER (2) WCI 3131387 Contact Us For Availability
7
WCI 5303209518 WCI 5303209518 Contact Us For Availability
7
SHIELD-LOW WALL WCI 3203549 Contact Us For Availability
8
SCREW, HANDLE (2) WCI 5303281378 Contact Us For Availability
8
COVER-LOW ACCESS WCI 3203405 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
10
INSUL-OVEN DOOR WCI 5303210607 Contact Us For Availability
11
SCREW-LEVEL (4) WCI 5303203397 Contact Us For Availability
11
WCI 5303015373 WCI 5303015373 Contact Us For Availability
12
COVER-HINGE (2) WCI 3131570 Contact Us For Availability
13
WCI 3200825 WCI 3200825 Contact Us For Availability
14
WCI 3204751 WCI 3204751 Contact Us For Availability
14A
WCI 3204750 WCI 3204750 Contact Us For Availability
14B
WCI 3204749 WCI 3204749 Contact Us For Availability
15
KNOB-CLOCK WCI 3131472 Contact Us For Availability
15
WCI 3203540 WCI 3203540 Contact Us For Availability
16
IND LIGHT-OVEN WCI 5303091462 Contact Us For Availability
16
FUSE-THERMAL WCI 5303203651 Contact Us For Availability
16A
WCI 5308037896 WCI 5308037896 Contact Us For Availability
17
JEWEL-IND LIGHT (2) WCI 5308037703 Contact Us For Availability
17
WCI 5303013568 WCI 5303013568 Contact Us For Availability
17A
RETAINER-LENS (2) (NON-ILLUSTRATED) WCI 3051224 Contact Us For Availability
18
BUSHING, CONTROL SHAFT WCI 3204745 Contact Us For Availability
18
WCI 5303131356 WCI 5303131356 Contact Us For Availability
18A
BRACKET-BACKGUARD (NON-ILLUSTRATED) WCI 3131468 Contact Us For Availability
19
SPRT-BACKGUARD (2) WCI 5303131237 Contact Us For Availability
20
WCI 5303212739 WCI 5303212739 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
24
COVER-FRONT WCI 5303015372 Contact Us For Availability
26
WCI 3051344 WCI 3051344 Contact Us For Availability
27
WCI 3051218 WCI 3051218 Contact Us For Availability
28
WCI 3203582 WCI 3203582 Contact Us For Availability
× ![]()
