Model Electrolux 31-2237-23-03 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - BODY PARTS

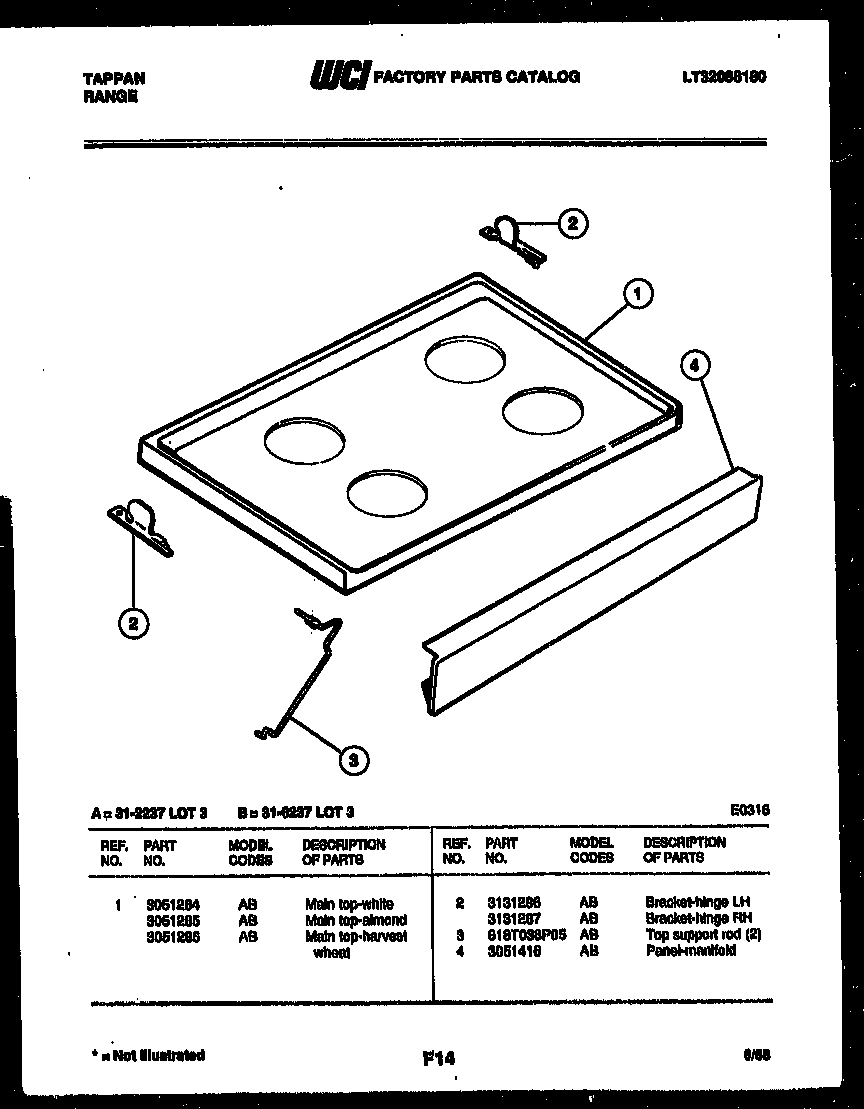

04 - COOKTOP PARTS

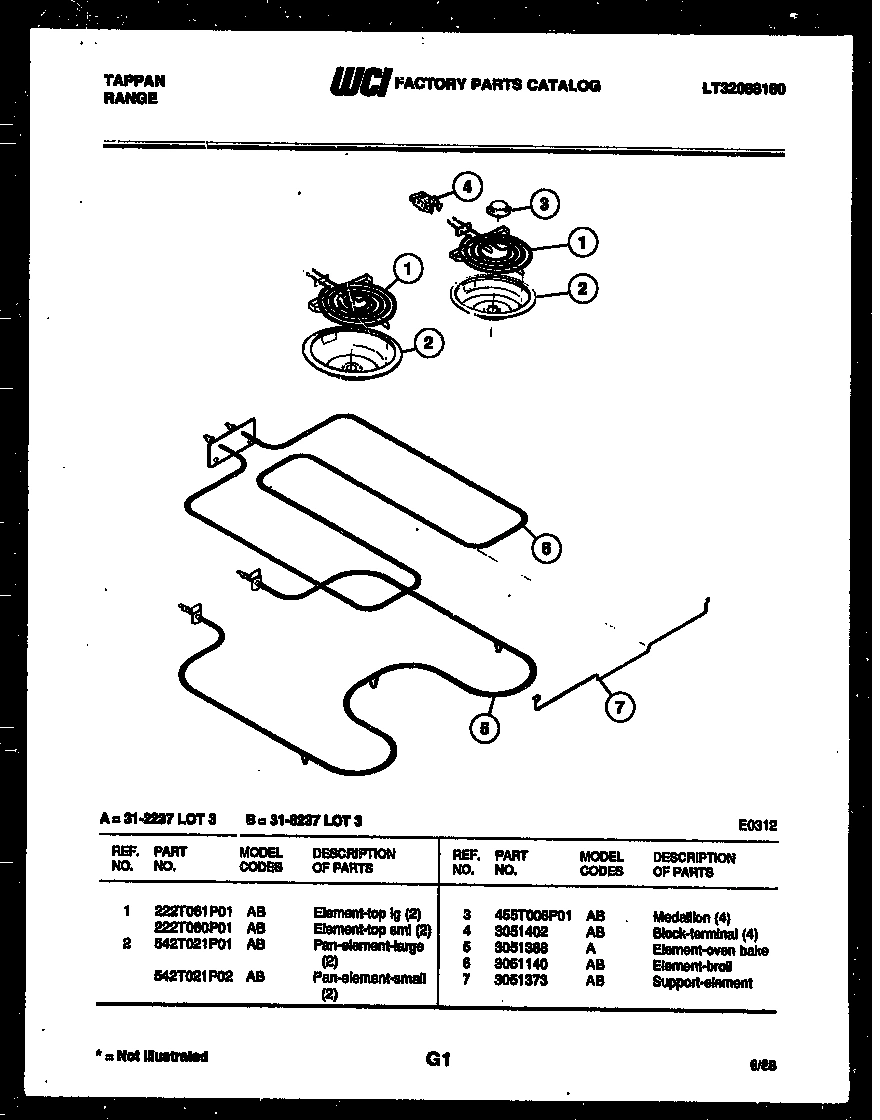

05 - BROILER PARTS

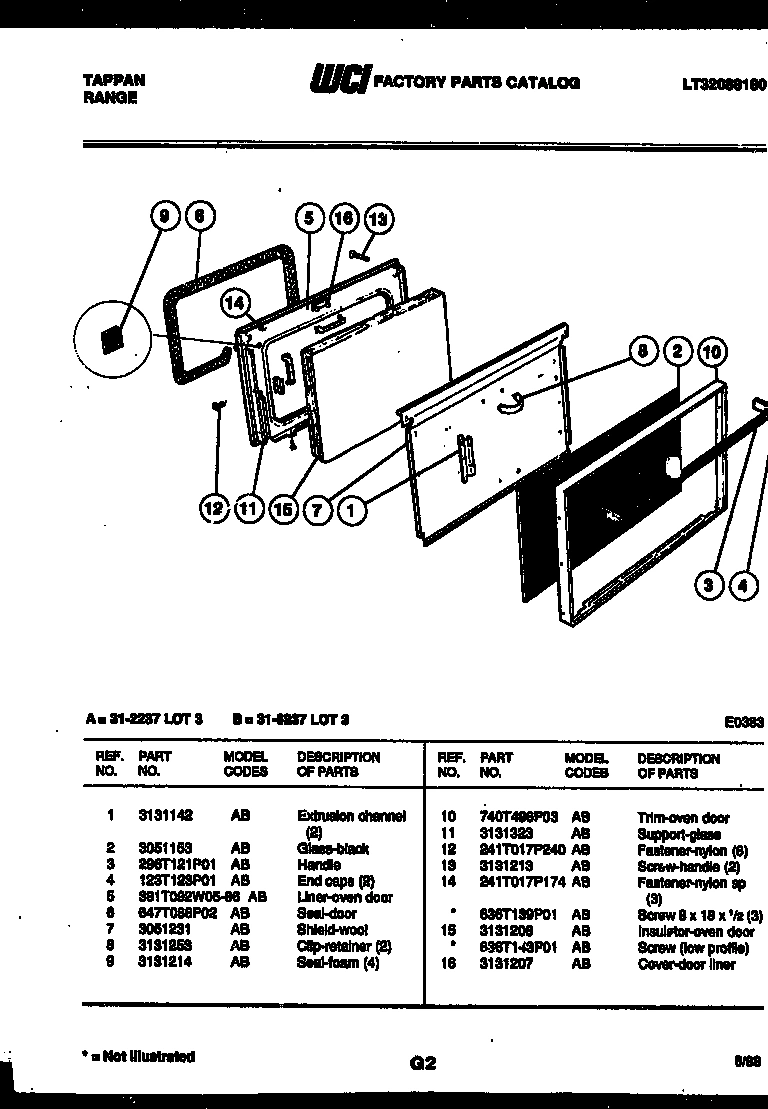

06 - DOOR PARTS

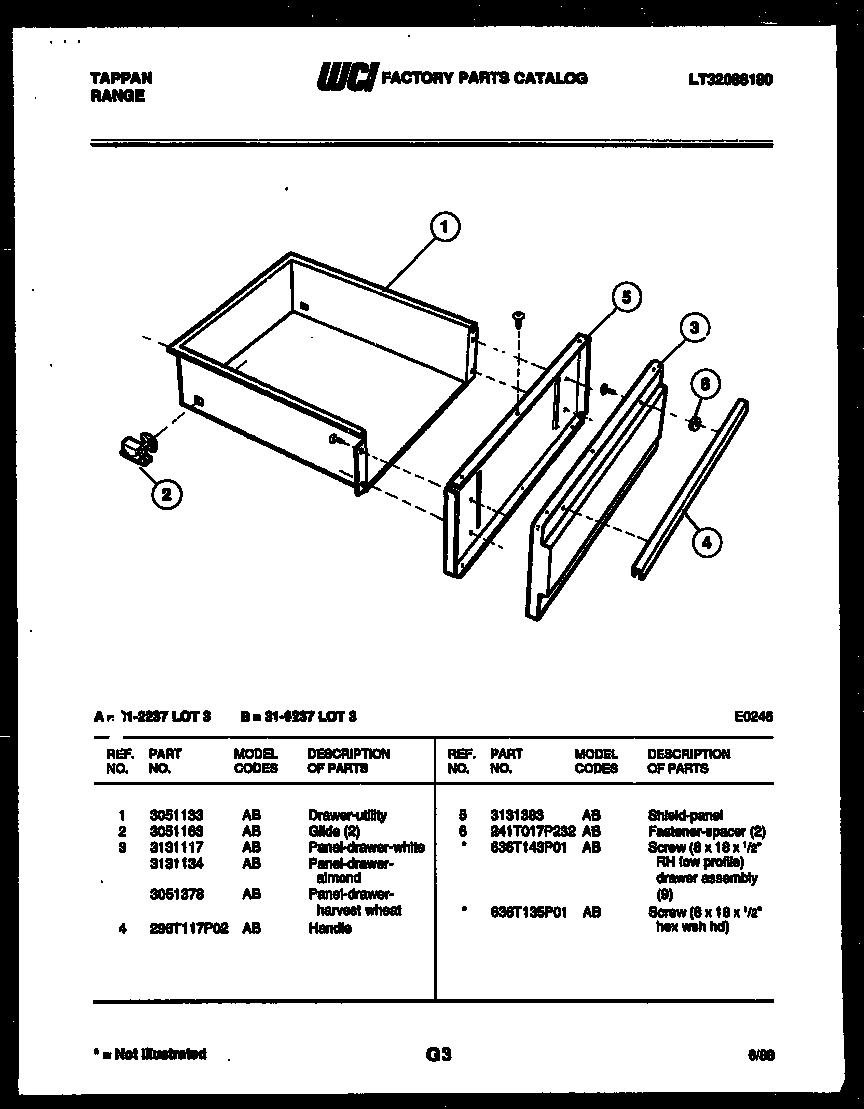

07 - DRAWER PARTS
Common parts from model Electrolux 31-2237-23-03 RANGE
*12850
INSULATOR-BACK WCI 3131200 Contact Us For Availability
*12850
INSULATOR WRAP WCI 3131201 Contact Us For Availability
*12850
WCI 479T069P41 WCI 479T069P41 Contact Us For Availability
*12850
SCREW-HINGE (6) WCI 636T163P01 Contact Us For Availability
*12854
SCREW (8 X 18 X 1/2`` HEX WSH HD) WCI 636T135P01 Contact Us For Availability
1
SPACER, BODYSIDE (8) WCI 665T188P02 Contact Us For Availability
1
MAIN TOP, ALMOND WCI 3051285 Contact Us For Availability
1
WCI 3131142 WCI 3131142 Contact Us For Availability
1
DRAWER, UTILITY WCI 3051133 Contact Us For Availability
2
BRACKET, HINGE, LH WCI 3131286 Contact Us For Availability
2
GLASS-BLACK WCI 3051153 Contact Us For Availability
2A
BRACKET, HINGE, RH WCI 3131287 Contact Us For Availability
3
WCI 3051213 WCI 3051213 Contact Us For Availability
3
PANEL-SIDE LH (ALMOND) WCI 3131453 Contact Us For Availability
3
TOP SUPPORT ROD (2) WCI 618T038P05 Contact Us For Availability
3
WCI 455T006P01 WCI 455T006P01 Contact Us For Availability
3
WCI 296T121P01 WCI 296T121P01 Contact Us For Availability
3
WCI 3131134 WCI 3131134 Contact Us For Availability
3A
PANEL-SIDE RH (ALMOND) WCI 3131454 Contact Us For Availability
4
TRIM-LOWER SPLASHER WCI 3051383 Contact Us For Availability
4
WCI 3017926 WCI 3017926 Contact Us For Availability
4
WCI 3051416 WCI 3051416 Contact Us For Availability
4
WCI 296T117P02 WCI 296T117P02 Contact Us For Availability
5
NUT-DECORATIVE (2) WCI 479T095P02 Contact Us For Availability
5
ELEMENT, OVEN BAKE WCI 3051388 Contact Us For Availability
5
LINER, OVEN DOOR WCI 381T092W05-86 Contact Us For Availability
5
WCI 3131383 WCI 3131383 Contact Us For Availability
6
FASTENER-GLASS (2) WCI 241T049P01 Contact Us For Availability
6
WCI 021T055F02-18 WCI 021T055F02-18 Contact Us For Availability
6
FASTENER, SPACER (2) WCI 241T017P232 Contact Us For Availability
7
SHIELD-REAR WALL WCI 655T430F01-18 Contact Us For Availability
7
WCI 3051400 WCI 3051400 Contact Us For Availability
7
WCI 3051231 WCI 3051231 Contact Us For Availability
8
WCI 3051411 WCI 3051411 Contact Us For Availability
8
COVER-LOWER ACCESS WCI 3051408 Contact Us For Availability
8
CLIP, RETAINER (2) WCI 3131253 Contact Us For Availability
9
GLASS-CLOCK WCI 277T219P03 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
9
SEAL, FOAM (4) WCI 3131214 Contact Us For Availability
10
WCI 612T123F01 WCI 612T123F01 Contact Us For Availability
10
TRIM OVEN DOOR WCI 740T496P03 Contact Us For Availability
11
SCREW, LEVEL (4) WCI 636M004P01 Contact Us For Availability
11
SUPPORT, GLASS WCI 3131323 Contact Us For Availability
12
WCI 3051317 WCI 3051317 Contact Us For Availability
12
COVER-HINGE (2) WCI 3131141 Contact Us For Availability
12
FASTENER-NYLON (6) WCI 241T017P240 Contact Us For Availability
13
WCI 3051323 WCI 3051323 Contact Us For Availability
13
WCI 3051398 WCI 3051398 Contact Us For Availability
13
WCI 3131213 WCI 3131213 Contact Us For Availability
14
WCI 3051174 WCI 3051174 Contact Us For Availability
14
CHANNEL-HINGE (2) WCI 3131243 Contact Us For Availability
14
FASTENER-NYLON SP (3) WCI 241T017P174 Contact Us For Availability
14A
WCI 3051175 WCI 3051175 Contact Us For Availability
14A
SCREW 8 X 18 X 1/2`` (3) (NON-ILLUSTRATED) WCI 636T139P01 Contact Us For Availability
14B
WCI 3051185 WCI 3051185 Contact Us For Availability
15
WCI 358T201P01 WCI 358T201P01 Contact Us For Availability
15
WCI 3051104 WCI 3051104 Contact Us For Availability
15
INSULATOR-OVEN DOOR WCI 3131208 Contact Us For Availability
16
WCI 318T023P12 WCI 318T023P12 Contact Us For Availability
16
FUSE-THERMAL WCI 3051147 Contact Us For Availability
16
COVER, DOOR LINER WCI 3131207 Contact Us For Availability
16A
INDICATOR-LIGHT SU WCI 318T023P11 Contact Us For Availability
17
JEWEL INDICATOR LENS (2) WCI 342T014P01 Contact Us For Availability
17
WCI 539T010F01-86 WCI 539T010F01-86 Contact Us For Availability
17A
WCI 612T125P01 WCI 612T125P01 Contact Us For Availability
18
WCI 695T211P02 WCI 695T211P02 Contact Us For Availability
18
WCI 319T011F03-86 WCI 319T011F03-86 Contact Us For Availability
19
WCI 045T071P01 WCI 045T071P01 Contact Us For Availability
20
WCI 3131237 WCI 3131237 Contact Us For Availability
20
WCI 711T048P01 WCI 711T048P01 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
24
COVER-FRONT WCI 174T335P01 Contact Us For Availability
26
WCI 3051344 WCI 3051344 Contact Us For Availability
27
WCI 622T042P01 WCI 622T042P01 Contact Us For Availability
28
TUBE-OVEN LIGHT WCI 3051343 Contact Us For Availability
× ![]()
