Model Electrolux 31-2237-23-01 RANGE – Common Parts & Diagrams

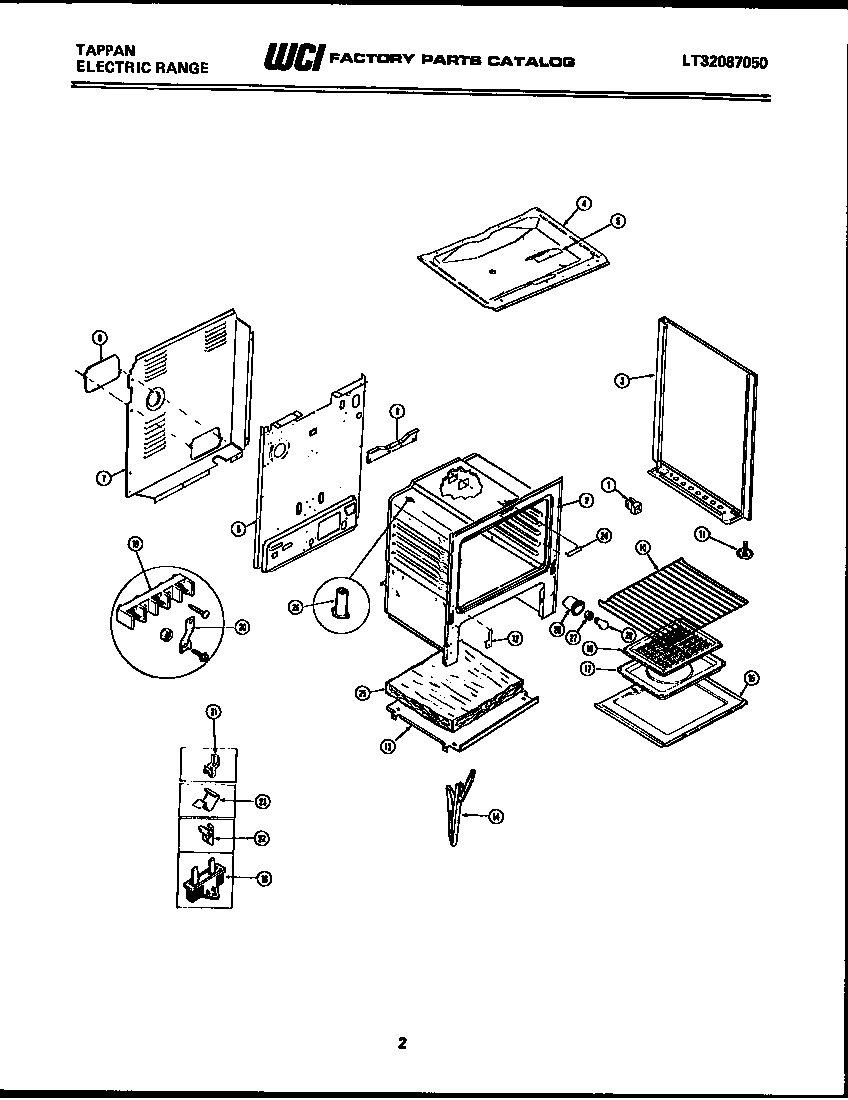

02 - BODY PARTS

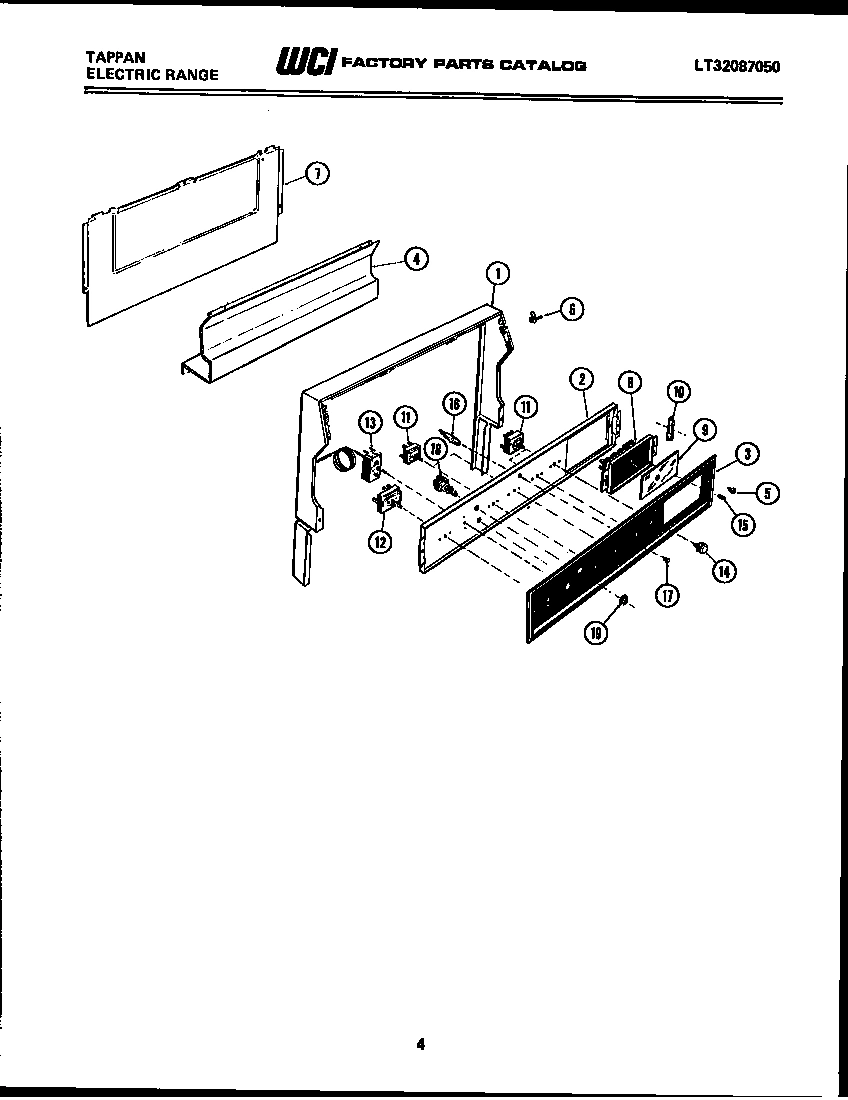

03 - CONSOLE AND CONTROL PARTS

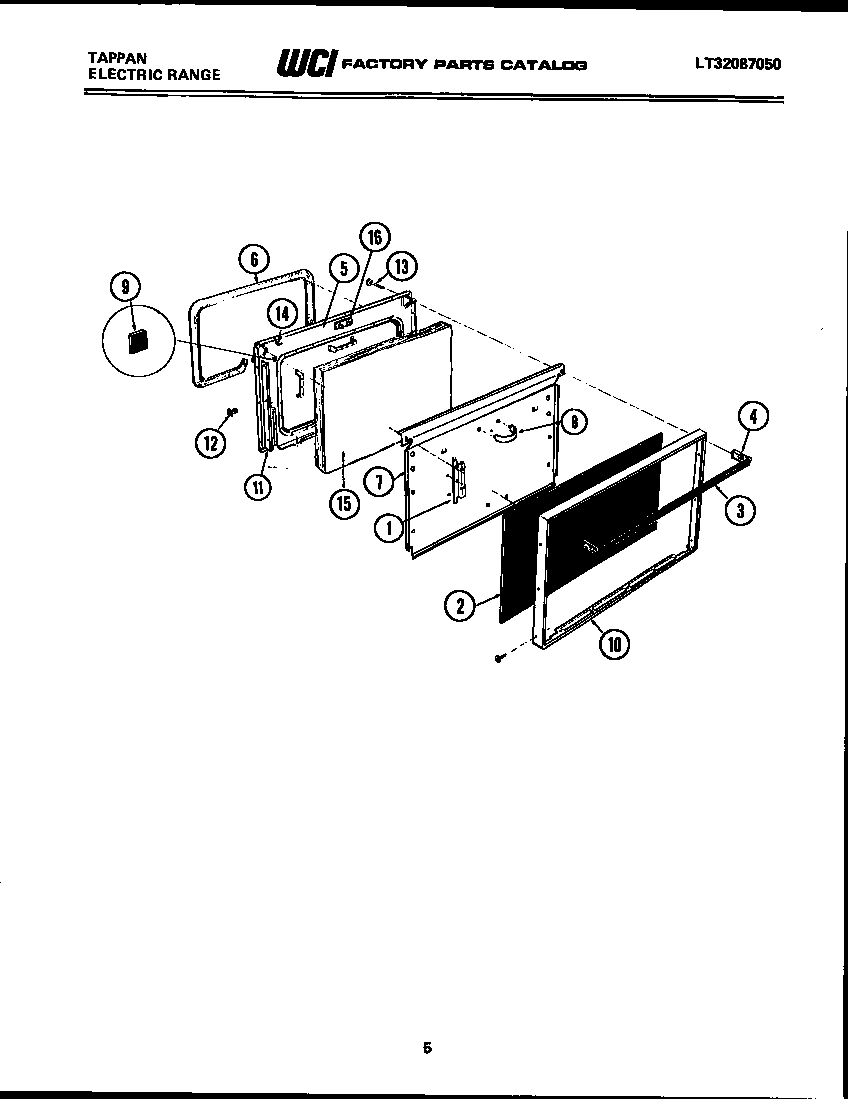

04 - DOOR PARTS

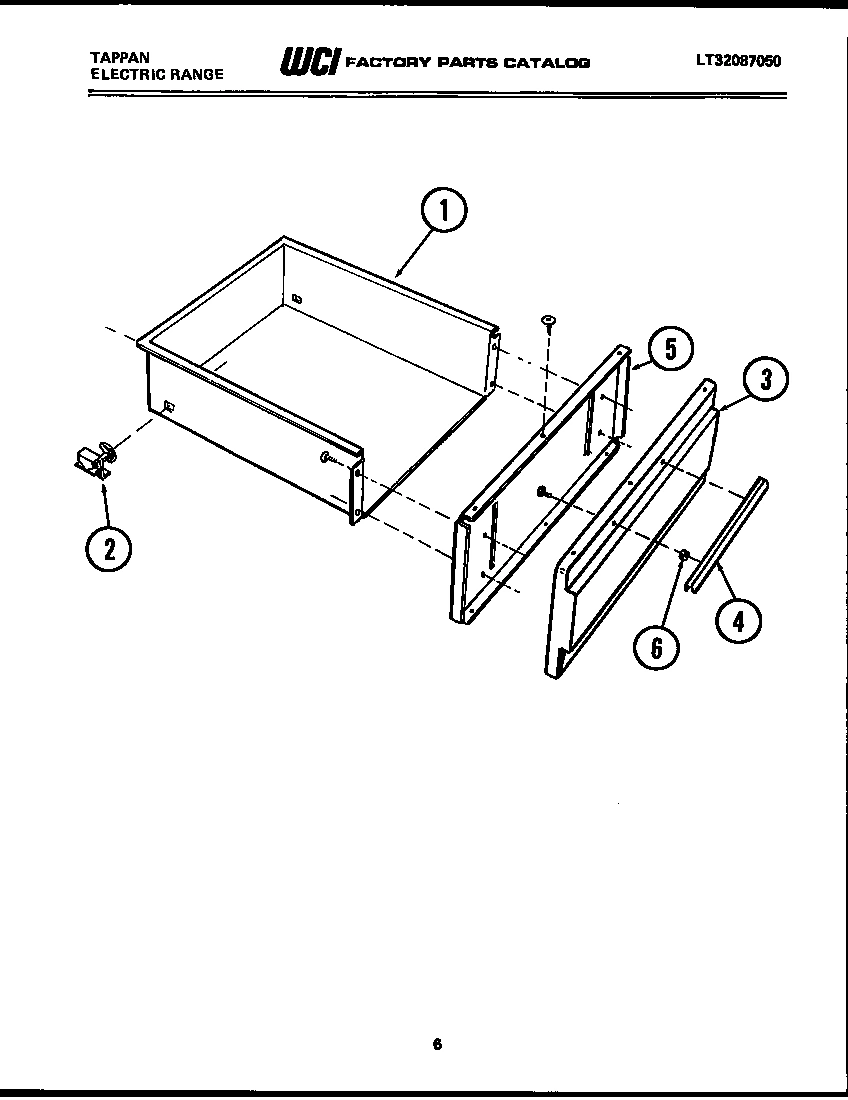

05 - DRAWER PARTS

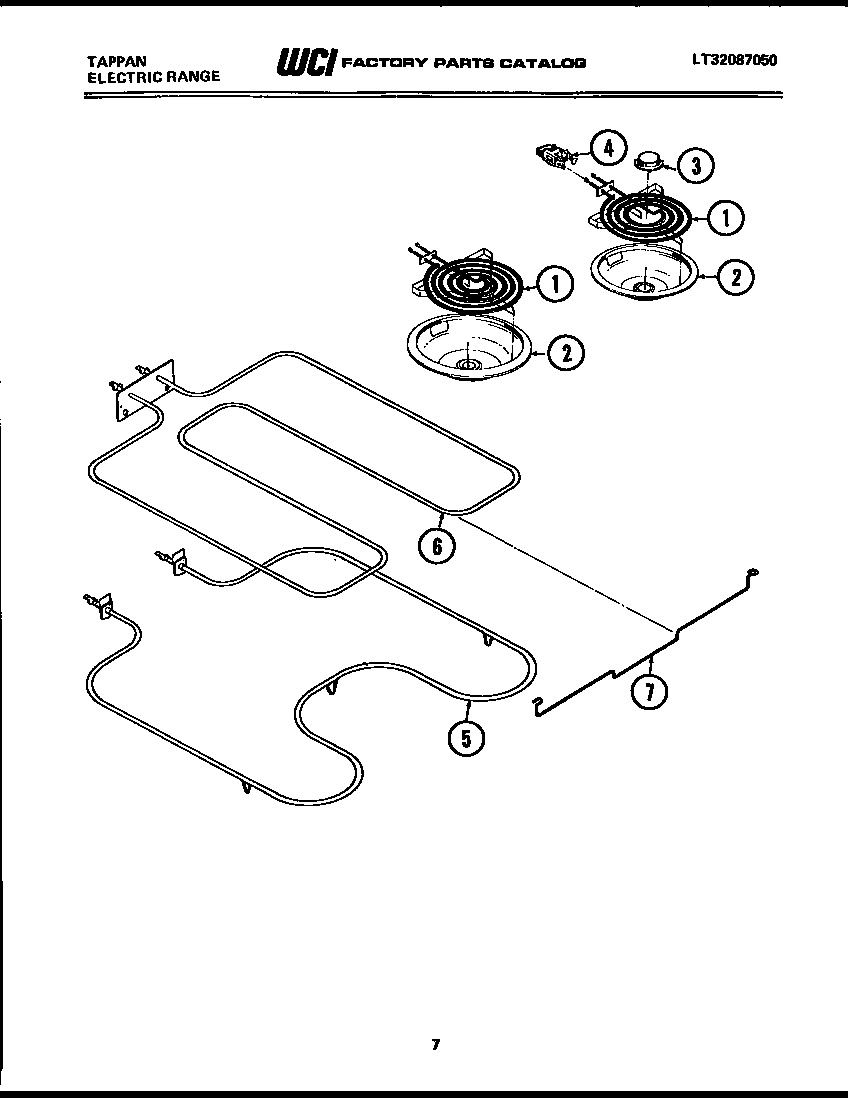

06 - BROILER PARTS

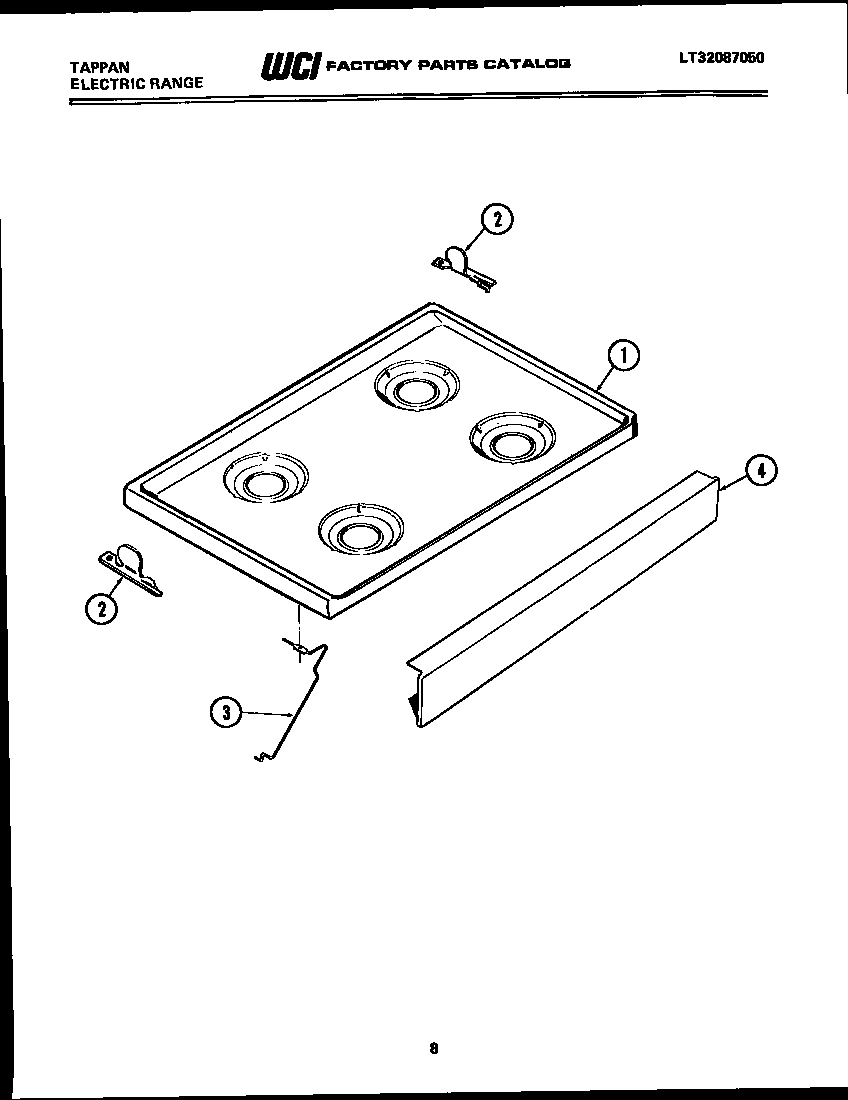

07 - COOKTOP PARTS
Common parts from model Electrolux 31-2237-23-01 RANGE
*51064
INSUL-WRAP WCI 3131201 Contact Us For Availability
*51065
SCREW-HINGE (6) WCI 636T163P01 Contact Us For Availability
*51066
NUT-HX (BRSS) (6) WCI 479T069P41 Contact Us For Availability
*51099
SCR-WSH HD (2) WCI 636T135P01 Contact Us For Availability
1
SPCR BODYSIDE (8) WCI 665T188P02 Contact Us For Availability
1
WCI 3131127 WCI 3131127 Contact Us For Availability
1
EXTRSN CHNL (2) WCI 3131142 Contact Us For Availability
1
DRAWER, UTILITY WCI 3051133 Contact Us For Availability
1
WCI 3051285 WCI 3051285 Contact Us For Availability
2
PLATE-INST MTG WCI 3051219 Contact Us For Availability
2
GLASS-BLACK WCI 3051153 Contact Us For Availability
2
HINGE (LH) WCI 3131286 Contact Us For Availability
2
HINGE (RH) WCI 3131287 Contact Us For Availability
3
PANEL-SIDE LH ALM WCI 3131453 Contact Us For Availability
3
PANEL-SIDE RH ALM WCI 3131454 Contact Us For Availability
3
WCI 3051213 WCI 3051213 Contact Us For Availability
3
WCI 296T121P01 WCI 296T121P01 Contact Us For Availability
3
PANEL-DRW (ALMD) WCI 3131134 Contact Us For Availability
3
WCI 445T006P01 WCI 445T006P01 Contact Us For Availability
3
TOP SUPT ROD (2) WCI 618T038P05 Contact Us For Availability
4
WCI 3051109 WCI 3051109 Contact Us For Availability
4
TRIM-LOWER SPL WCI 3051330 Contact Us For Availability
4
WCI 296T117P02 WCI 296T117P02 Contact Us For Availability
4
PNL-MANIFOLD WCI 3051206 Contact Us For Availability
5
WCI 3131101 WCI 3131101 Contact Us For Availability
5
WCI 479T095P02 WCI 479T095P02 Contact Us For Availability
5
WCI 381T092W05-86 WCI 381T092W05-86 Contact Us For Availability
5
WCI 3131383 WCI 3131383 Contact Us For Availability
5
ELEM-BAKE WCI 3051388 Contact Us For Availability
6
WCI 021T055F02-18 WCI 021T055F02-18 Contact Us For Availability
6
FASTNER-GLASS (2) WCI 241T049P01 Contact Us For Availability
6
FSTNR-SPACER (2) WCI 241T017P232 Contact Us For Availability
7
SHIELD-LOW WALL WCI 3051400 Contact Us For Availability
7
WCI 655T430F01-18 WCI 655T430F01-18 Contact Us For Availability
7
WCI 3051231 WCI 3051231 Contact Us For Availability
8
WCI 3051408 WCI 3051408 Contact Us For Availability
8
WCI 3051411 WCI 3051411 Contact Us For Availability
8
CLIP RETN (2) WCI 3131253 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
9
GLASS-CLOCK WCI 277T219P03 Contact Us For Availability
9
SEAL, FOAM (4) WCI 3131214 Contact Us For Availability
10
RETAINER-CL GL (2) WCI 612T123F01 Contact Us For Availability
10
WCI 740T496P03 WCI 740T496P03 Contact Us For Availability
11
SCREW, LEVEL (4) WCI 636M004P01 Contact Us For Availability
11
SUPPORT, GLASS WCI 3131323 Contact Us For Availability
12
COVER-HINGE (2) WCI 3131141 Contact Us For Availability
12
SWITCH-SEL WCI 3051317 Contact Us For Availability
12
FSTNR NYL (6) WCI 241T017P240 Contact Us For Availability
13
SHIELD-WOOL LOW WCI 3051398 Contact Us For Availability
13
THERMOSTAT-OV WCI 3051323 Contact Us For Availability
13
WCI 3131213 WCI 3131213 Contact Us For Availability
14
WCI 3131243 WCI 3131243 Contact Us For Availability
14
KNB-TP ELEM (4) WCI 3051174 Contact Us For Availability
14
KNOB-SEL WCI 3051175 Contact Us For Availability
14
KNOB THERM WCI 3051185 Contact Us For Availability
14
FSTNR NYL SP (3) WCI 241T017P174 Contact Us For Availability
14A
SCR 8 X 18 X 1/2 (3) (NON-ILLUSTRATED) WCI 636T139P01 Contact Us For Availability
15
WCI 3051104 WCI 3051104 Contact Us For Availability
15
KNOB-CLOCK (1) WCI 358T201P01 Contact Us For Availability
15
INSUL-OV DR WCI 3131208 Contact Us For Availability
16
FUSE-THERMAL WCI 3051147 Contact Us For Availability
16
INDICATOR LT SU WCI 318T023P11 Contact Us For Availability
16
INDICATOR LT OV WCI 318T023P12 Contact Us For Availability
16
WCI 3131207 WCI 3131207 Contact Us For Availability
17
WCI 539T010F01-86 WCI 539T010F01-86 Contact Us For Availability
17
JEWEL-IND INS (2) WCI 342T014P01 Contact Us For Availability
17A
WCI 612T125P01 WCI 612T125P01 Contact Us For Availability
18
INSERT-BR PAN WCI 319T011F03-86 Contact Us For Availability
18
SWITCH-OV LT WCI 695T211P02 Contact Us For Availability
19
WCI 045T071P01 WCI 045T071P01 Contact Us For Availability
20
WCI 711T048P01 WCI 711T048P01 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
24
COVER-FRONT WCI 174T335P01 Contact Us For Availability
26
WCI 3051344 WCI 3051344 Contact Us For Availability
28
TUBE-OV LT WCI 3051343 Contact Us For Availability
× ![]()
