Model Electrolux 31-2207-00-01 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - DOOR PARTS

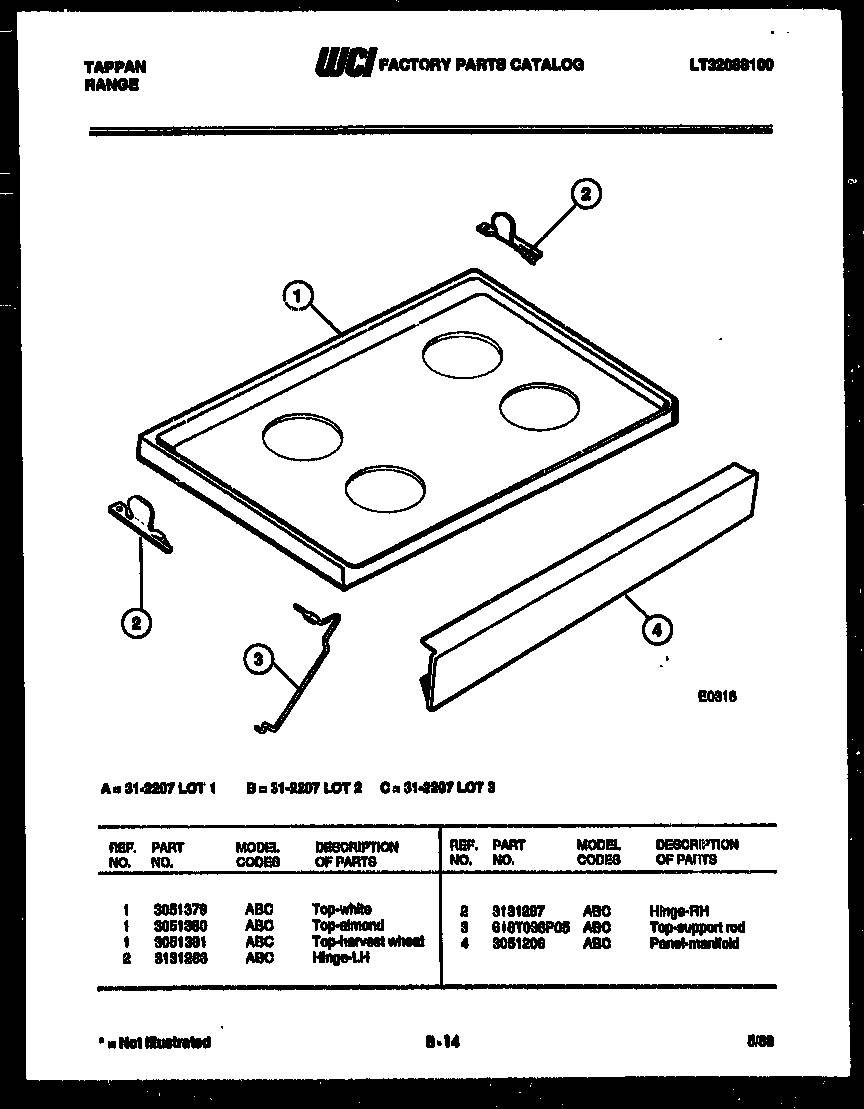

04 - COOKTOP PARTS

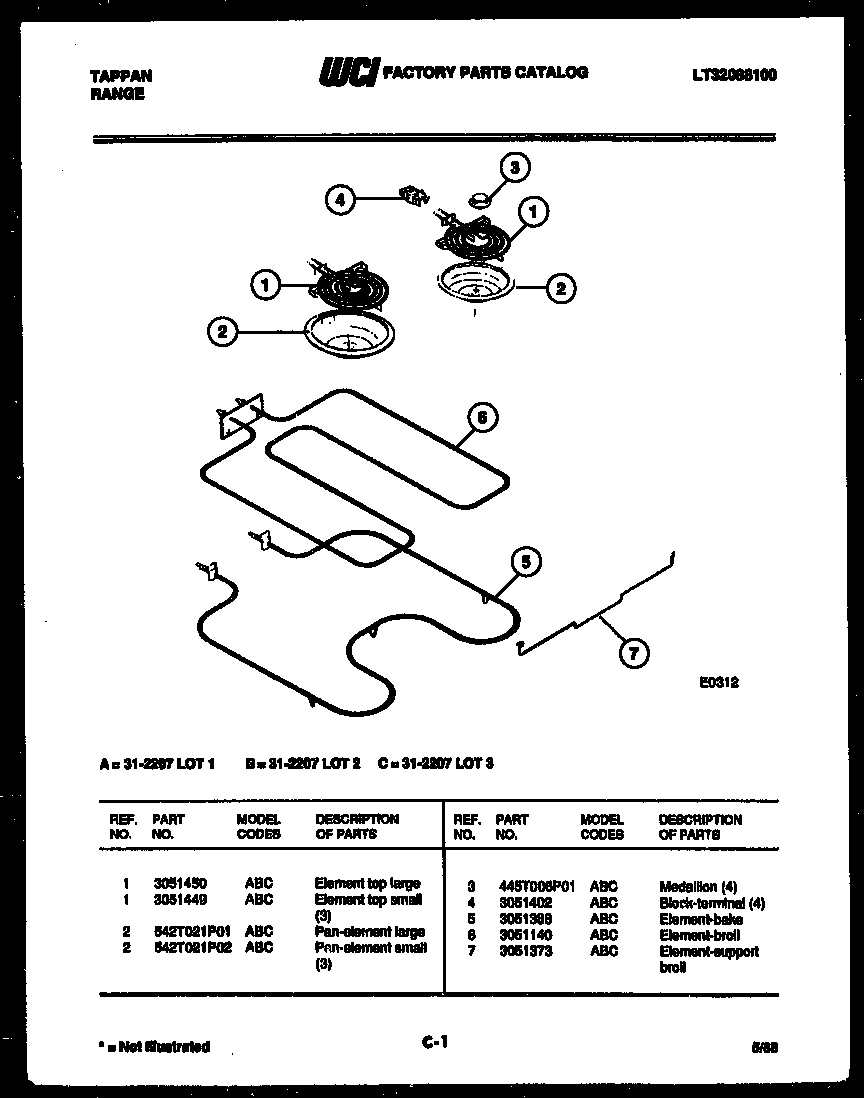

05 - BROILER PARTS

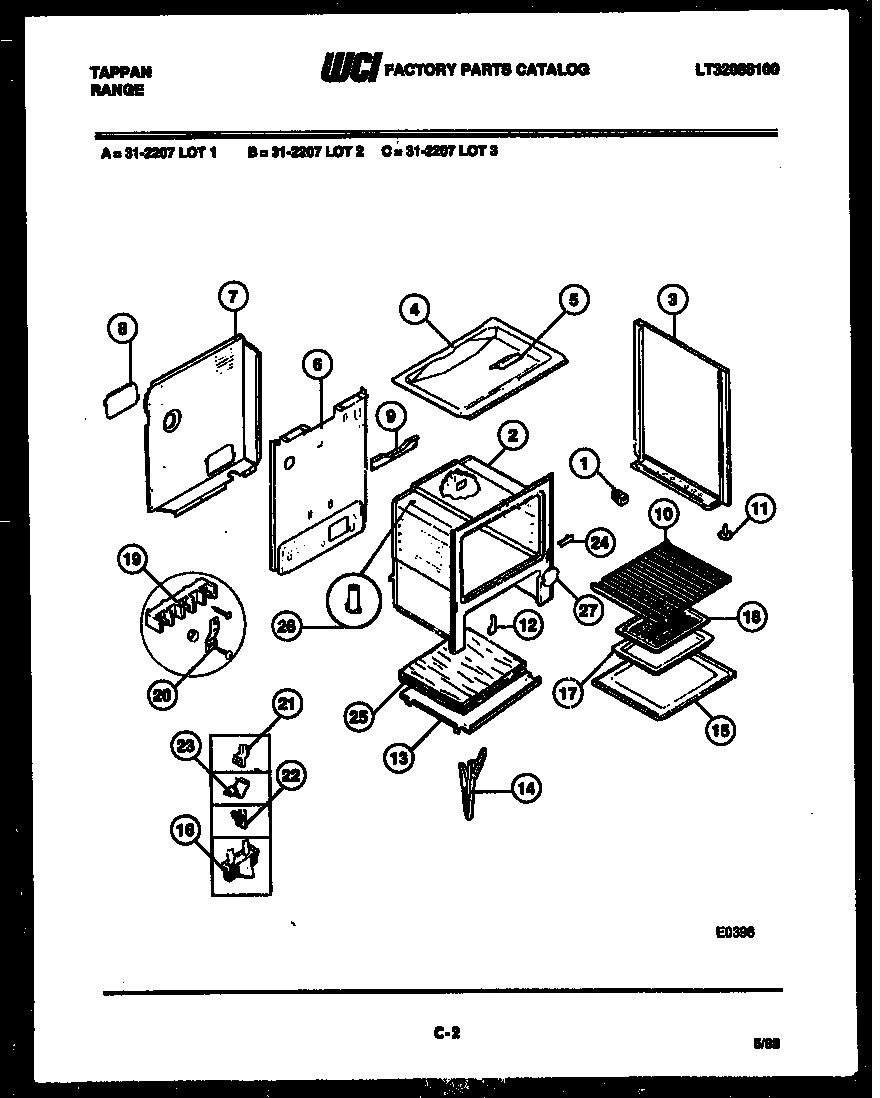

06 - BODY PARTS

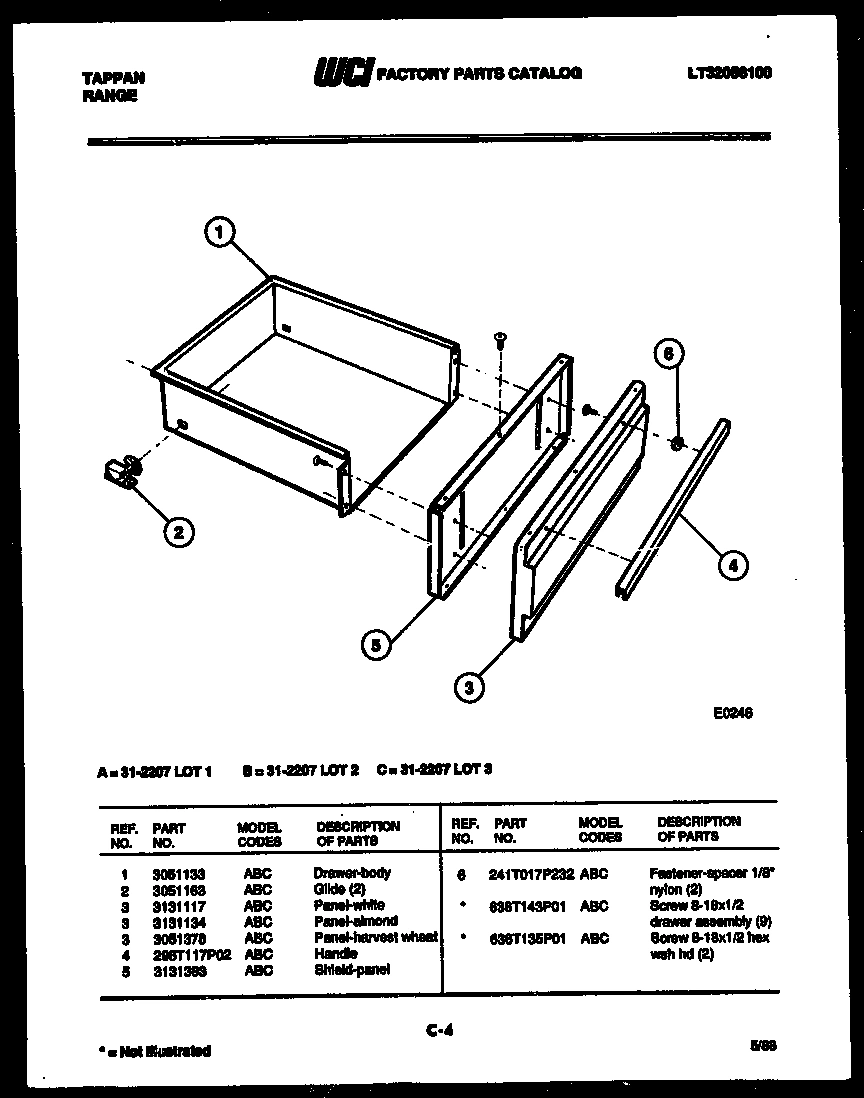

07 - DRAWER PARTS
Common parts from model Electrolux 31-2207-00-01 RANGE
*62421
INSULATION-WRAP WCI 3131201 Contact Us For Availability
*62422
WCI 3131200 WCI 3131200 Contact Us For Availability
*62422
WCI 636T163P01 WCI 636T163P01 Contact Us For Availability
*62423
WCI 479T069P41 WCI 479T069P41 Contact Us For Availability
*62428
WCI 636T135P01 WCI 636T135P01 Contact Us For Availability
1
WCI 3131323 WCI 3131323 Contact Us For Availability
1
TOP (WHITE) WCI 3051379 Contact Us For Availability
1
SPACER, BODYSIDE (8) WCI 665T188P02 Contact Us For Availability
1
WCI 3051133 WCI 3051133 Contact Us For Availability
2
GLASS-FRONT BLACK WCI 3051153 Contact Us For Availability
2
HINGE (LH) WCI 3131286 Contact Us For Availability
2
HINGE (RH) WCI 3131287 Contact Us For Availability
3
HANDLE-OVEN DOOR WCI 296T121P01 Contact Us For Availability
3
TOP-SUPPORT ROD WCI 618T038P05 Contact Us For Availability
3
WCI 445T006P01 WCI 445T006P01 Contact Us For Availability
3
PANEL-SIDE LH (WHITE) WCI 3131257 Contact Us For Availability
3
PANEL-WHITE WCI 3131117 Contact Us For Availability
3A
PANEL-SIDE RH (WHITE) WCI 3131227 Contact Us For Availability
4
WCI 3051330 WCI 3051330 Contact Us For Availability
4
WCI 3051206 WCI 3051206 Contact Us For Availability
4
WCI 3051109 WCI 3051109 Contact Us For Availability
4
WCI 296T117P02 WCI 296T117P02 Contact Us For Availability
5
NUT - DECOR (2) WCI 3051194 Contact Us For Availability
5
LINER, OVEN DOOR WCI 381T092W05-86 Contact Us For Availability
5
WCI 3051388 WCI 3051388 Contact Us For Availability
5
WCI 3131101 WCI 3131101 Contact Us For Availability
5
WCI 3131383 WCI 3131383 Contact Us For Availability
6
FASTENER, GLASS (2) WCI 3131607 Contact Us For Availability
6
WCI 3131567 WCI 3131567 Contact Us For Availability
6
FASTENER-SPACER 1/8`` NYLON (2) WCI 241T017P232 Contact Us For Availability
7
SHIELD, REAR WALL WCI 3131123 Contact Us For Availability
7
WCI 3051231 WCI 3051231 Contact Us For Availability
7
WCI 3051400 WCI 3051400 Contact Us For Availability
8
EXTRUSN-CHANNEL (2) WCI 3131142 Contact Us For Availability
8
WCI 3051369 WCI 3051369 Contact Us For Availability
9
WCI 3051317 WCI 3051317 Contact Us For Availability
9
SEAL, FOAM (4) WCI 3131214 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
10
WCI 3051323 WCI 3051323 Contact Us For Availability
10
TRIM OVEN DOOR WCI 740T496P03 Contact Us For Availability
11
WCI 3051174 WCI 3051174 Contact Us For Availability
11
WCI 3051175 WCI 3051175 Contact Us For Availability
11
WCI 3051185 WCI 3051185 Contact Us For Availability
11
SUPPORT-GLASS (2) WCI 3131253 Contact Us For Availability
11
SCREW, LEVEL (4) WCI 636M004P01 Contact Us For Availability
12
COVER-HINGE CUTOUT (2) WCI 3131570 Contact Us For Availability
12
INDICATOR LIGHT SWITCH WCI 318T023P11 Contact Us For Availability
12
WCI 318T023P12 WCI 318T023P12 Contact Us For Availability
12
FASTENER-NYLON (6) WCI 241T017P240 Contact Us For Availability
13
JEWEL INDICATOR LENS (2) WCI 342T014P01 Contact Us For Availability
13
SCREW HANDLE 10-24 SP WSH RHD (2) WCI 3131213 Contact Us For Availability
13
WCI 3051398 WCI 3051398 Contact Us For Availability
13A
RETAINER-LENS (2) (NON-ILLUSTRATED) WCI 3051224 Contact Us For Availability
14
WCI 3131237 WCI 3131237 Contact Us For Availability
14
FASTENER-NYLON SPACER (3) WCI 241T017P174 Contact Us For Availability
14
CHANNEL, DOOR HINGE (2) WCI 3131569 Contact Us For Availability
14A
SCREW, 8 X 18 X 1/2`` (3) (NON-ILLUSTRATED) WCI 3131573 Contact Us For Availability
15
INSULATION, OVEN DOOR WCI 3131208 Contact Us For Availability
15
WCI 3051104 WCI 3051104 Contact Us For Availability
16
COVER, DOOR LINER WCI 3131207 Contact Us For Availability
16
FUSE-THERMAL CUT OUT WCI 3051147 Contact Us For Availability
17
WCI 539T010F01-86 WCI 539T010F01-86 Contact Us For Availability
18
WCI 3131356 WCI 3131356 Contact Us For Availability
20
WCI 711T048P01 WCI 711T048P01 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
24
COVER-FRONT MAIN WCI 3131548 Contact Us For Availability
26
WCI 3051344 WCI 3051344 Contact Us For Availability
× ![]()
