Model Electrolux 30TESKWED-23-03 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - BROILER PARTS

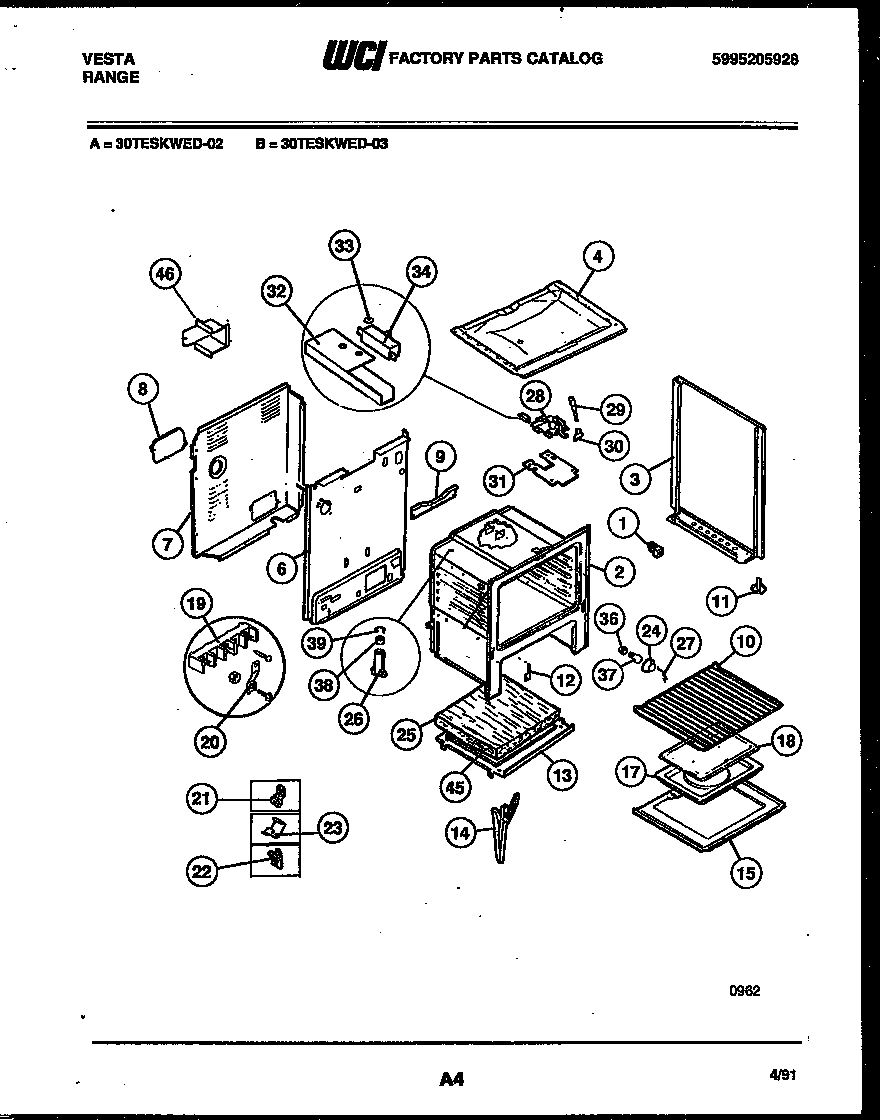

04 - BODY PARTS

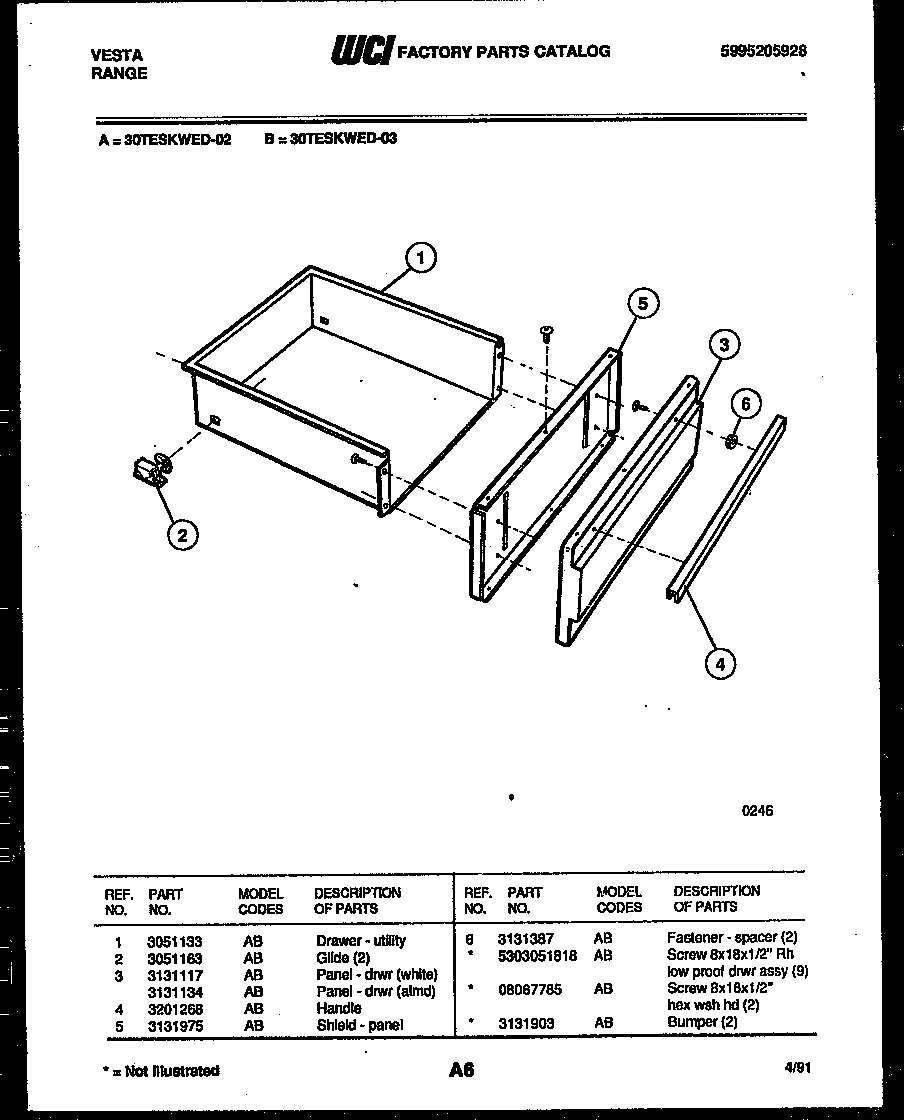

05 - DRAWER PARTS

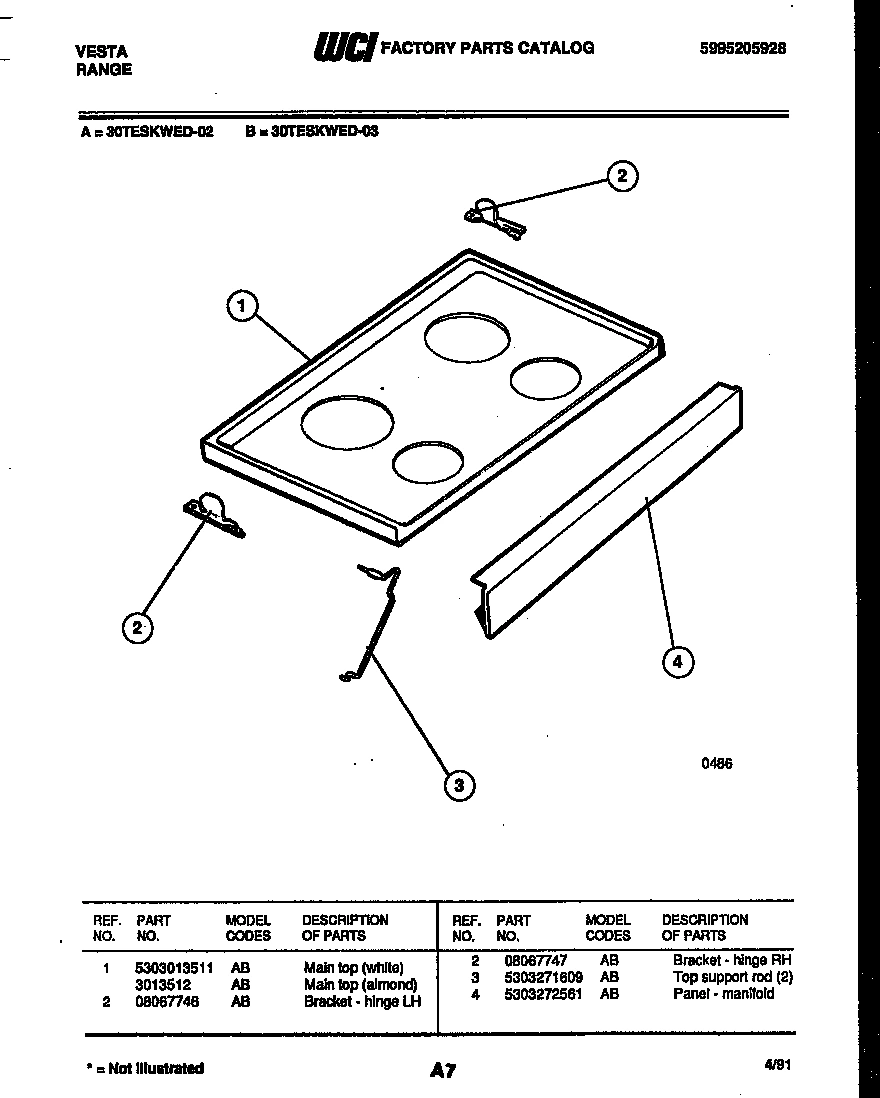

06 - COOKTOP PARTS

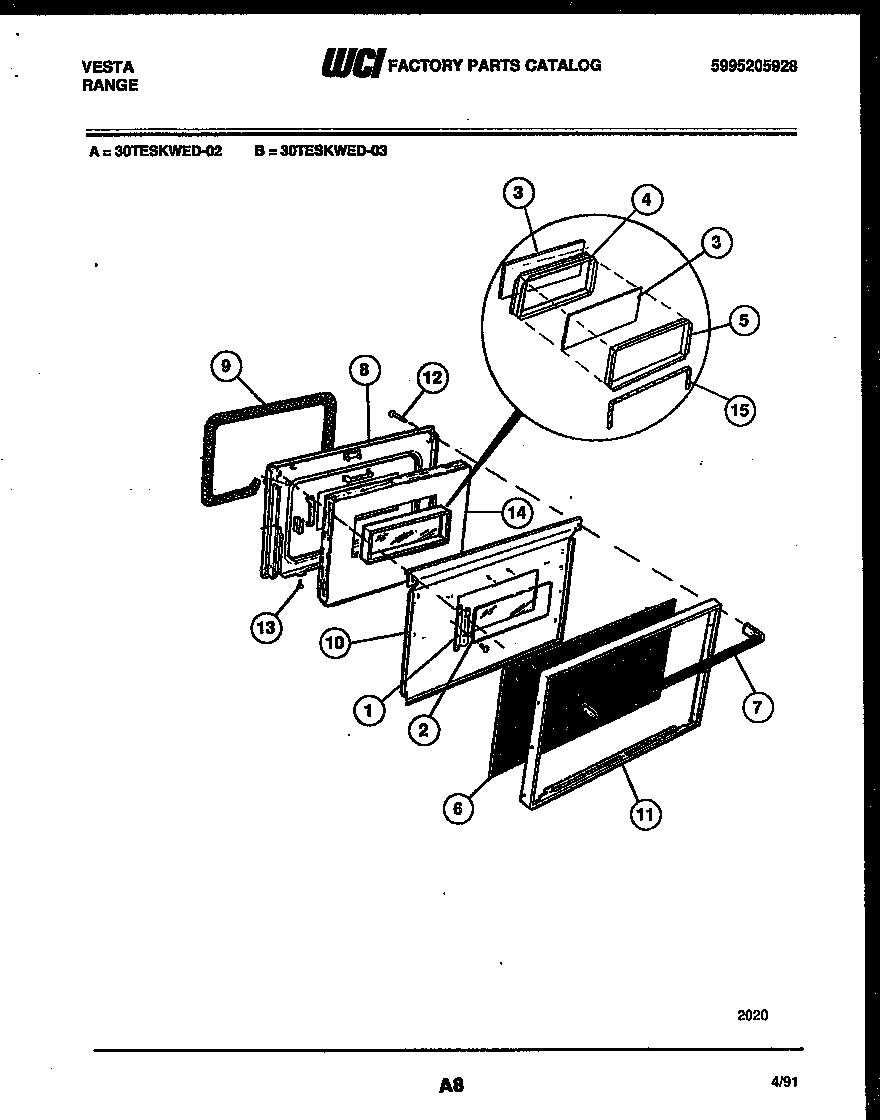

07 - DOOR PARTS
Common parts from model Electrolux 30TESKWED-23-03 RANGE
*49524
INSULATION-TOP WCI 3131304 Contact Us For Availability
*49524
ANTI-TIP KIT WCI 3934056 Contact Us For Availability
*49524
WCI 5303206618 WCI 5303206618 Contact Us For Availability
*49525
SCREW 8 X 18 X 1/2`` HEX WSH HD (2) WCI 08067785 Contact Us For Availability
*49527
FOIL-ALUM BLK WCI 5303208656 Contact Us For Availability
*49527
SCREW-8-32 X 1.0 W/ WASHER WCI 5303212671 Contact Us For Availability
*49527
FASTENER-SPACER (1) WCI 5303212674 Contact Us For Availability
*49527
SCREW 8-18 X 1/2 BLK WCI 5303269859 Contact Us For Availability
1
SPACER, B/S (8) WCI 3014099 Contact Us For Availability
1
DRAWER, UTILITY WCI 3051133 Contact Us For Availability
1
WCI 3013512 WCI 3013512 Contact Us For Availability
1
BRACKET-GLASS (2) WCI 5303209510 Contact Us For Availability
2
WCI 08067746 WCI 08067746 Contact Us For Availability
2
WCI 08067747 WCI 08067747 Contact Us For Availability
2
WCI 5303209513 WCI 5303209513 Contact Us For Availability
3
WCI 5303209512 WCI 5303209512 Contact Us For Availability
3
WCI 3017801 WCI 3017801 Contact Us For Availability
3
WCI 5303269545 WCI 5303269545 Contact Us For Availability
3
PANEL - DRWR (ALMD) WCI 3131134 Contact Us For Availability
3
TOP SUPPORT ROD (2) WCI 5303271609 Contact Us For Availability
3A
WCI 5303269543 WCI 5303269543 Contact Us For Availability
4
WCI 3202345 WCI 3202345 Contact Us For Availability
4
WCI 08067749 WCI 08067749 Contact Us For Availability
4
WCI 5303271658 WCI 5303271658 Contact Us For Availability
4
WCI 3201268 WCI 3201268 Contact Us For Availability
4
WCI 5303272561 WCI 5303272561 Contact Us For Availability
4
WCI 5303209517 WCI 5303209517 Contact Us For Availability
5
WCI 3131975 WCI 3131975 Contact Us For Availability
5
WCI 5303209511 WCI 5303209511 Contact Us For Availability
6
WCI 3203082 WCI 3203082 Contact Us For Availability
6
FASTENER-SPACER (2) WCI 3131387 Contact Us For Availability
6
GLASS-FRONT VISULITE WCI 5303131132 Contact Us For Availability
7
WCI 3203549 WCI 3203549 Contact Us For Availability
7
WCI 3200887 WCI 3200887 Contact Us For Availability
8
WCI 3203405 WCI 3203405 Contact Us For Availability
8
LINER WCI 5303209515 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
10
WCI 5303211084 WCI 5303211084 Contact Us For Availability
11
SCREW-LEVEL (4) WCI 3206285 Contact Us For Availability
11
WCI 5303209518 WCI 5303209518 Contact Us For Availability
12
COVER-HNG CUTOUT WCI 3131570 Contact Us For Availability
12
WCI 3016420 WCI 3016420 Contact Us For Availability
13
WCI 3200825 WCI 3200825 Contact Us For Availability
14
CHANNEL-DOOR HNG WCI 316007002 No Longer Available
14
WCI 5303051405 WCI 5303051405 Contact Us For Availability
14
INSULATION-WOOL WCI 5303209514 Contact Us For Availability
14A
WCI 3201730 WCI 3201730 Contact Us For Availability
14B
WCI 3201729 WCI 3201729 Contact Us For Availability
15
KNOB-CLOCK WCI 3131472 Contact Us For Availability
15
WCI 3203540 WCI 3203540 Contact Us For Availability
15
WCI 5303211085 WCI 5303211085 Contact Us For Availability
16
WCI 3201727 WCI 3201727 Contact Us For Availability
16A
WCI 5308037896 WCI 5308037896 Contact Us For Availability
16B
INDICATOR-LIGHT LOCK WCI 3201728 Contact Us For Availability
16C
WCI 3201726 WCI 3201726 Contact Us For Availability
17
JEWEL - IND LIGHT (4) WCI 5308037703 Contact Us For Availability
17
WCI 5303013568 WCI 5303013568 Contact Us For Availability
17A
RETAINER-LENS (2) (NON-ILLUSTRATED) WCI 3051224 Contact Us For Availability
17B
BRACKET-BACKGUARD (NON-ILLUSTRATED) WCI 3131468 Contact Us For Availability
18
WCI 5303131356 WCI 5303131356 Contact Us For Availability
19
SUPPORT-BACKGUARD,(2) WCI 5303131237 Contact Us For Availability
20
WCI 5303212739 WCI 5303212739 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
26
WCI 3051344 WCI 3051344 Contact Us For Availability
27
WIRE GLASS RETAINER WCI 3204585 Contact Us For Availability
27A
INSULATION-WRAP (NON-ILLUSTRATED) WCI 3200833 Contact Us For Availability
27B
WCI 3204582 WCI 3204582 Contact Us For Availability
28
WCI 5303015361 WCI 5303015361 Contact Us For Availability
29
WCI 5303131357 WCI 5303131357 Contact Us For Availability
30
WCI 3203218 WCI 3203218 Contact Us For Availability
30A
WCI 08013188 WCI 08013188 Contact Us For Availability
31
SHIELD-LATCH WCI 3051413 Contact Us For Availability
32
SHIELD, BI METAL LATCH WCI 3131593 Contact Us For Availability
33
FASTENER-PUSH ON (3) WCI 08067776 Contact Us For Availability
34
WCI 3131672 WCI 3131672 Contact Us For Availability
38
WCI 08067810 WCI 08067810 Contact Us For Availability
39
WCI 08010606 WCI 08010606 Contact Us For Availability
45
WCI 3200848 WCI 3200848 Contact Us For Availability
45A
SHIELD-HEAT B/S (2) (NON-ILLUSTRATED) WCI 3200834 Contact Us For Availability
45B
FSTNR - EDGE MTG (2) (NON-ILLUSTRATED) WCI 3200846 Contact Us For Availability
46
WCI 3203582 WCI 3203582 Contact Us For Availability
× ![]()
