Model Electrolux 30-4952-00-03 RANGE – Common Parts & Diagrams

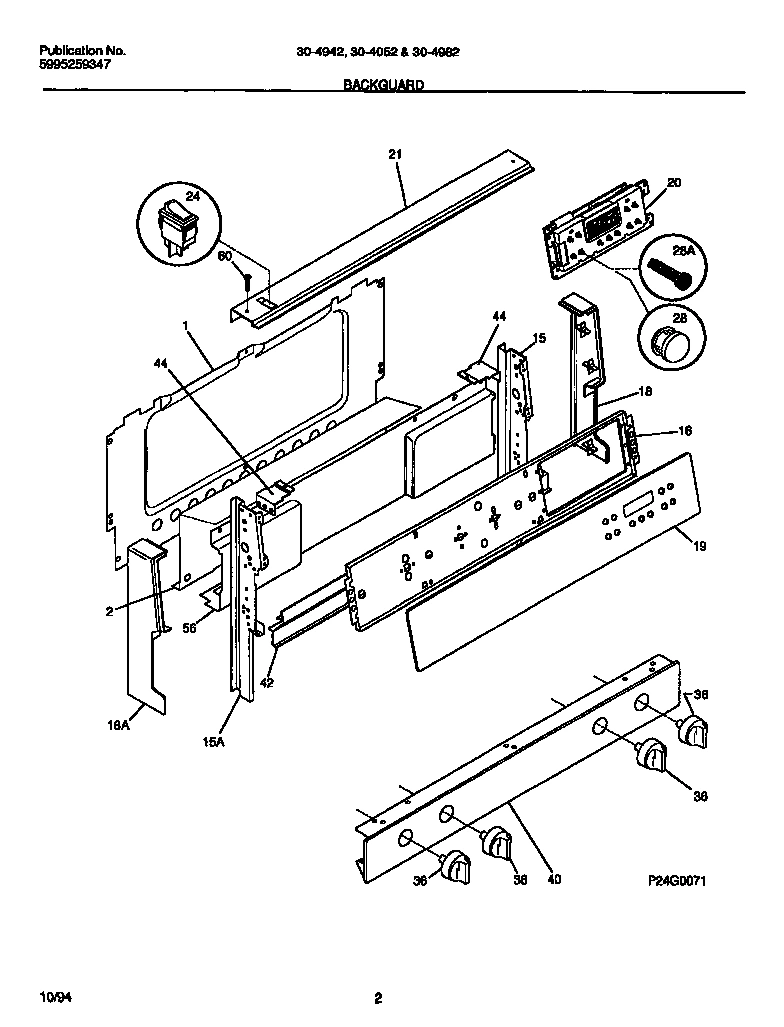

02 - BACKGUARD

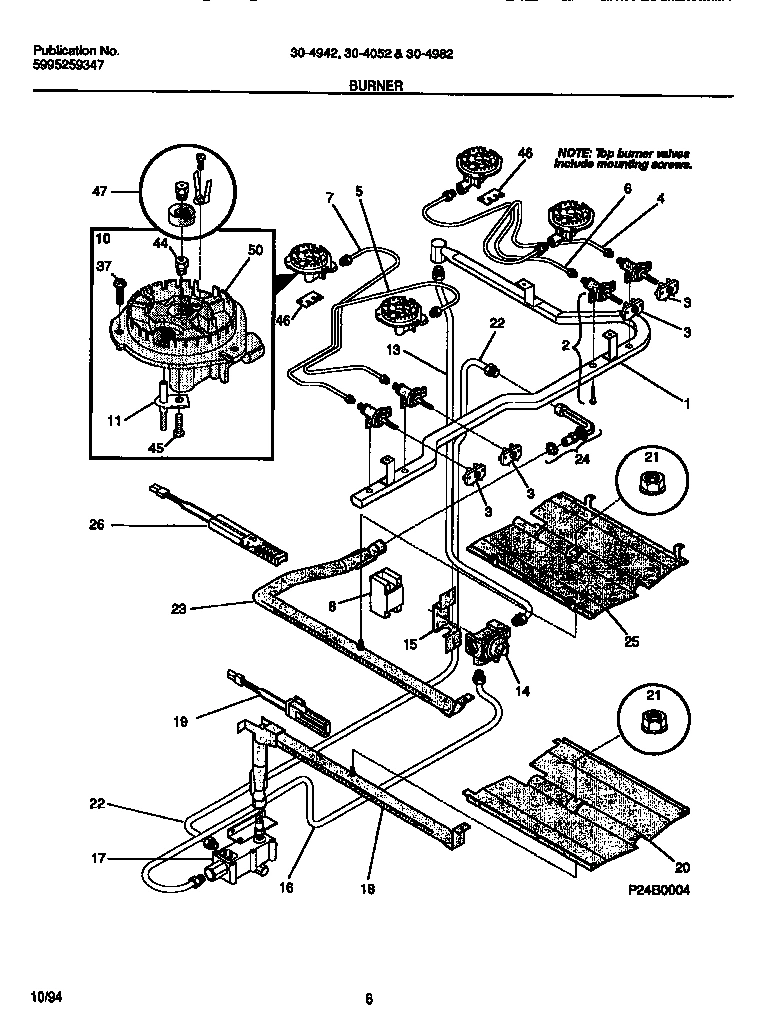

04 - BURNER

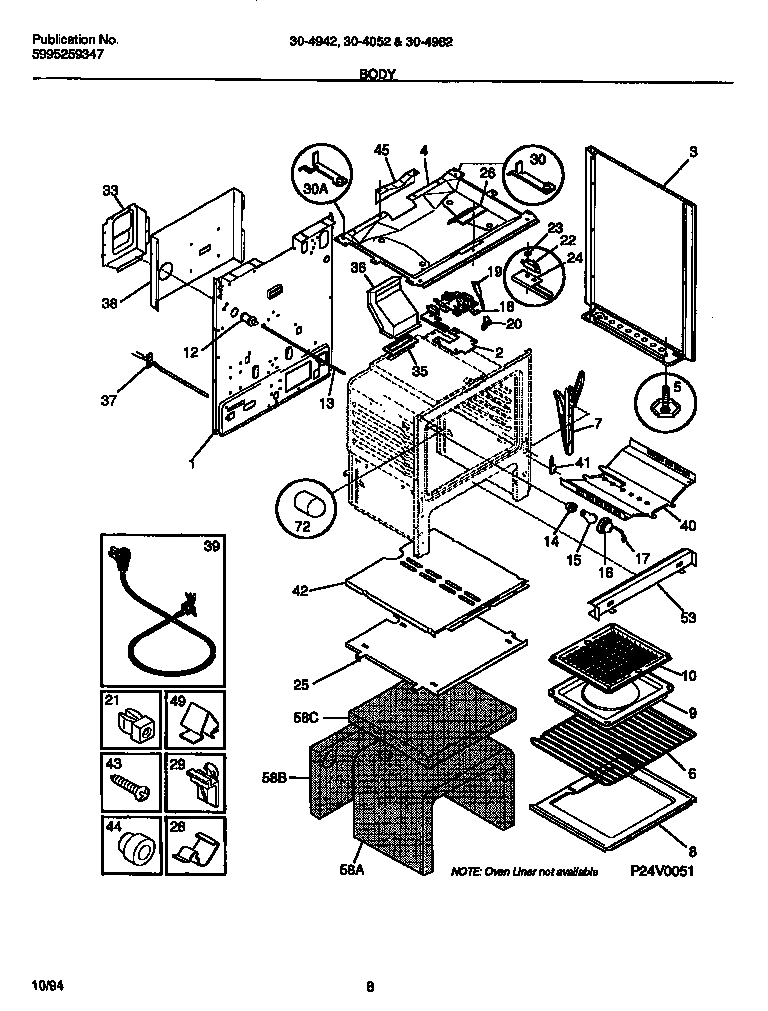

05 - BODY

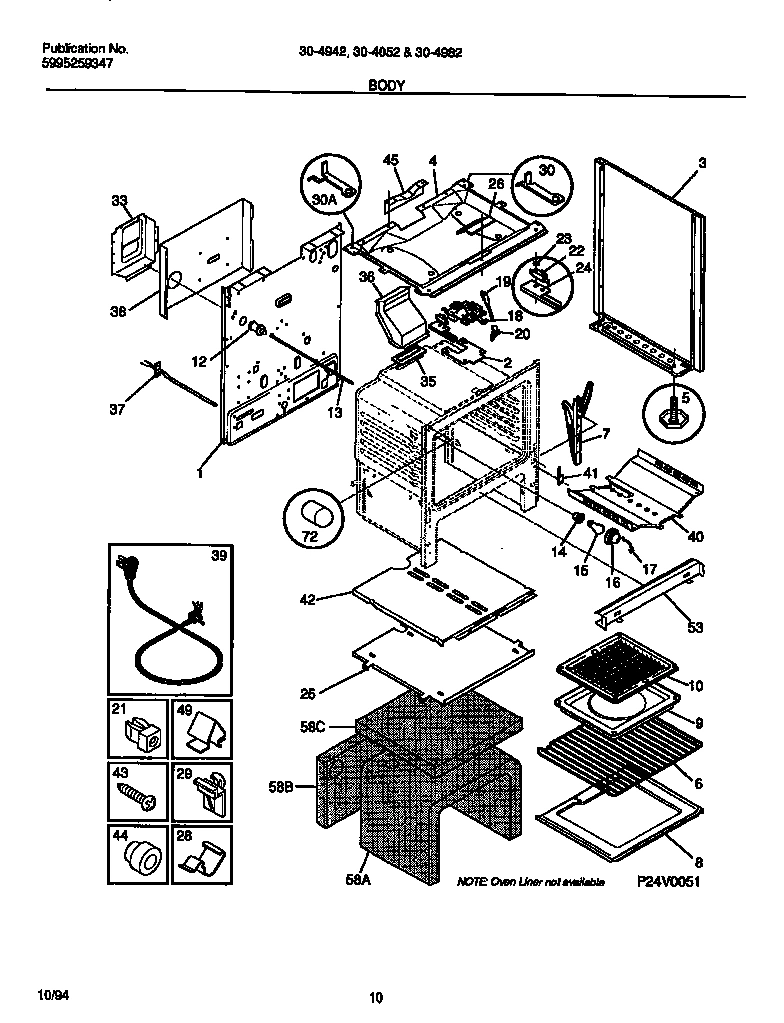

06 - BODY

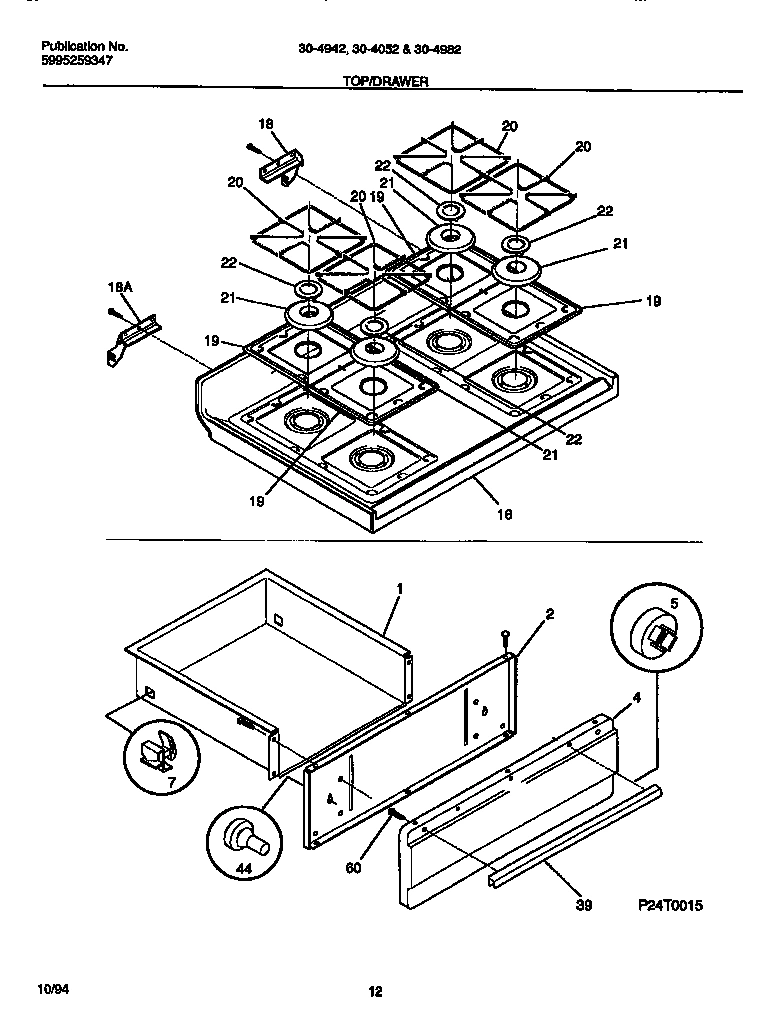

07 - TOP/DRAWER

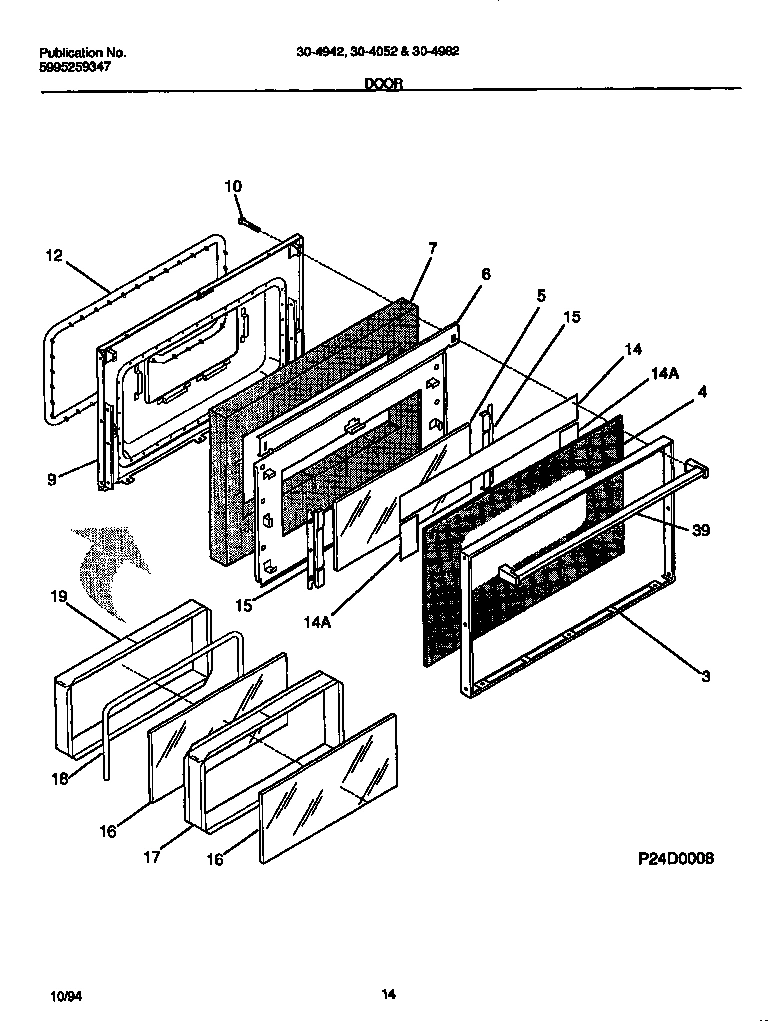

08 - DOOR

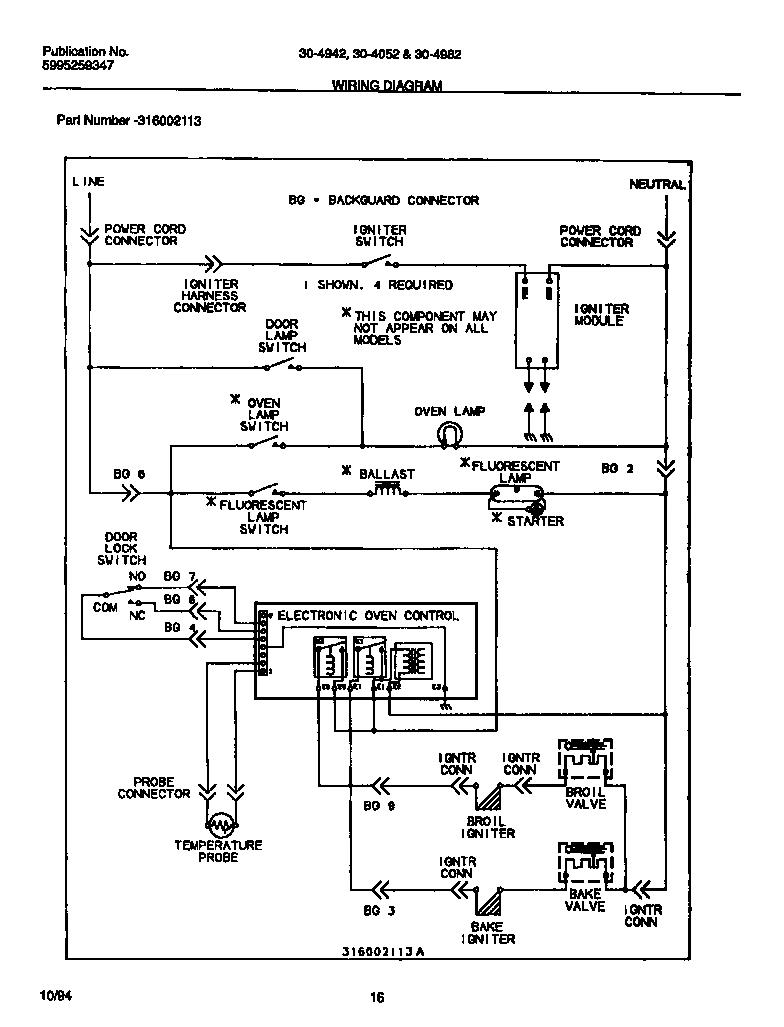

09 - WIRING DIAGRAM

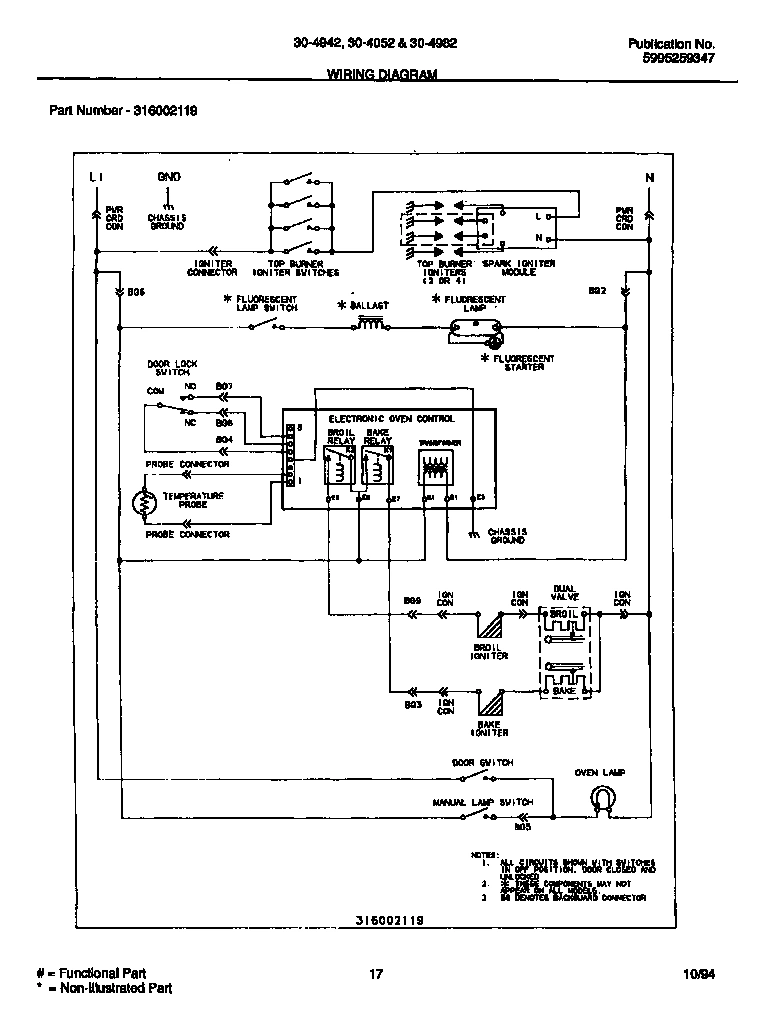

10 - WIRING DIAGRAM
Common parts from model Electrolux 30-4952-00-03 RANGE
*92762
FASTENER-EDGE MTG (NON-ILLUSTRATED) WCI 3200846 Contact Us For Availability
*92764
WCI 5303289686 WCI 5303289686 Contact Us For Availability
*92766
PLATE WARNING/CAUTION (NON-ILLUSTRATED) WCI 316065300 Contact Us For Availability
*92767
SCREW, CR PAN HD SEMS, 8-32(BP) X 1 (NON-ILLU WCI 5303212671 Contact Us For Availability
*92770
WCI 08067961 WCI 08067961 Contact Us For Availability
*92771
WCI 5303281584 WCI 5303281584 Contact Us For Availability
*92773
RIVET-POP, WARING-PLATE (NON-ILLUSTRATED) WCI 3203618 Contact Us For Availability
1
WCI 316029405 WCI 316029405 Contact Us For Availability
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
2
WCI 3131314 WCI 3131314 Contact Us For Availability
2
WCI 3131975 WCI 3131975 Contact Us For Availability
3
SWITCH-IGNITER, (4) WCI 316032000 Contact Us For Availability
3
PANEL-BODYSIDE, WHITE, RH WCI 5303269518 Contact Us For Availability
3
WCI 316067804 WCI 316067804 Contact Us For Availability
3A
PANEL-BODYSIDE, WHITE, LH (NON-ILLUSTRATED) WCI 5303269519 Contact Us For Availability
3B
SHIELD-INSULATION, GALV STEEL (NON-ILLUSTRATE WCI 08067992 Contact Us For Availability
3C
SHIELD-HEAT, BODY SIDE (NON-ILLUSTRATED) WCI 3200834 Contact Us For Availability
4
WCI 316011905 WCI 316011905 Contact Us For Availability
4
WCI 316056205 WCI 316056205 Contact Us For Availability
4
WCI 316019718 WCI 316019718 Contact Us For Availability
4A
WCI 08067785 WCI 08067785 Contact Us For Availability
5
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
5
WCI 5303288460 WCI 5303288460 Contact Us For Availability
5
FASTENER-SPACER, PUSH-IN NUT, NYLON WCI 3131387 Contact Us For Availability
5
GLASS-OVEN DOOR, INNER WCI 5303209513 Contact Us For Availability
5A
ANTI-TIP KIT (NON-ILLUSTRATED) WCI 3934058 Contact Us For Availability
6
SHIELD-INSULATION, WHITE WCI 5303271181 Contact Us For Availability
7
WCI 316007002 WCI 316007002 Contact Us For Availability
7
INSULATION-OVEN DOOR WCI 5303209514 Contact Us For Availability
8
PANEL-OVEN BOTTOM WCI 5303212540 Contact Us For Availability
9
WCI 316073800 WCI 316073800 Contact Us For Availability
9
WCI 316066603 WCI 316066603 Contact Us For Availability
10
BURNER ASSY-TOP, SEALED, (4), INCLUDES, 11, 3 WCI 5303935025 Contact Us For Availability
10
WCI 316073900 WCI 316073900 Contact Us For Availability
10
WCI 5303305325 WCI 5303305325 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24 X 3.375 WCI 316001001 Contact Us For Availability
12
WCI 316027702 WCI 316027702 Contact Us For Availability
13
WCI 316065005 WCI 316065005 Contact Us For Availability
13
WCI 316026800 WCI 316026800 Contact Us For Availability
14
REFLECTOR, ALUMINUM FOIL WCI 3131361 Contact Us For Availability
15
BRACKET-GLASS MTG WCI 5303209510 Contact Us For Availability
16
GLASS-OVEN DOOR, HEAT BARRIER, (2) WCI 5303209512 Contact Us For Availability
16
WCI 316065003 WCI 316065003 Contact Us For Availability
16
WCI 5303301546 WCI 5303301546 Contact Us For Availability
16A
WCI 5303271891 WCI 5303271891 Contact Us For Availability
16B
WCI 5303271892 WCI 5303271892 Contact Us For Availability
17
RETAINER-GLASS WCI 3204585 Contact Us For Availability
17
WCI 5303209517 WCI 5303209517 Contact Us For Availability
18
WCI 5303015453 WCI 5303015453 Contact Us For Availability
18
WCI 3131290 WCI 3131290 Contact Us For Availability
18
HINGE-MAIN TOP (RH) WCI 5303273062 Contact Us For Availability
18
SEAL-ROPE, 0.25 DIA WCI 5303211085 Contact Us For Availability
18A
SHIELD-LATCH, TOP (NON-ILLUSTRATED) WCI 3131593 Contact Us For Availability
18A
HINGE-MAIN TOP (LH) WCI 5303273063 Contact Us For Availability
19
WCI 5303131357 WCI 5303131357 Contact Us For Availability
19
WCI 316011400 WCI 316011400 Contact Us For Availability
19
COLLAR-GLASS MFG WCI 316067600 Contact Us For Availability
20
BAFFLE-OVEN BURNER WCI 3131284 Contact Us For Availability
20
WCI 316029200 WCI 316029200 Contact Us For Availability
20
WCI 316050400 WCI 316050400 Contact Us For Availability
20A
WCI 08013188 WCI 08013188 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
21
TRIM RING, BURNER, DARK GREY WCI 316035103 Contact Us For Availability
22
WCI 316065002 WCI 316065002 Contact Us For Availability
22
SWITCH-LATCH WCI 5303269499 Contact Us For Availability
22
WCI 316010903 WCI 316010903 Contact Us For Availability
22A
WCI 08067978 WCI 08067978 Contact Us For Availability
23
WCI 08067935 WCI 08067935 Contact Us For Availability
23
WCI 08067776 WCI 08067776 Contact Us For Availability
24
WCI 5303208640 WCI 5303208640 Contact Us For Availability
24
SHIELD-LATCH WCI 3051413 Contact Us For Availability
25
BAFFLE-BROILER WCI 5303210379 Contact Us For Availability
25
WCI 3131313 WCI 3131313 Contact Us For Availability
26
WCI 08067757 WCI 08067757 Contact Us For Availability
28
PUSH BUTTON, CLOCK/TIMER/EOC, GRAY, (11) WCI 316015103 Contact Us For Availability
28
CLIP-WIRE WCI 3011813 Contact Us For Availability
30
BRACKET-HINGE, MAIN TOP RH WCI 5303283574 Contact Us For Availability
30A
BRACKET-HINGE, MAIN TOP, LH WCI 5303283575 Contact Us For Availability
33
SHIELD, REAR WALL WCI 316014401 Contact Us For Availability
36
WCI 5303272844 WCI 5303272844 Contact Us For Availability
38
WCI 316035301 WCI 316035301 Contact Us For Availability
39
HANDLE-DRAWER, WHITE WCI 316019501 Contact Us For Availability
39
WCI 316008301 WCI 316008301 Contact Us For Availability
40
WCI 3200836 WCI 3200836 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
42
WCI 5303270104 WCI 5303270104 Contact Us For Availability
44
ORIFICE-TOP BURNER, (4) WCI 5303210090 No Longer Available
45
WCI 316011100 WCI 316011100 Contact Us For Availability
45
SHIELD-WIRE WCI 08068018 Contact Us For Availability
46
WCI 5303269491 WCI 5303269491 Contact Us For Availability
47
WCI 5303286386 WCI 5303286386 Contact Us For Availability
50
BURNER-TOP, (4), INCLUDES 37 WCI 5303935026 Contact Us For Availability
53
WCI 5303271047 WCI 5303271047 Contact Us For Availability
58A
INSULATION, OVEN WRAPPER WCI 3200833 Contact Us For Availability
58B
WCI 316054200 WCI 316054200 Contact Us For Availability
58C
INSULATION, OVEN TOP WCI 3131304 Contact Us For Availability
60
SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/ WCI 5303281651 Contact Us For Availability
72
COVER-LIGHT/SWITCH ROD WCI 5303285692 Contact Us For Availability
× ![]()
