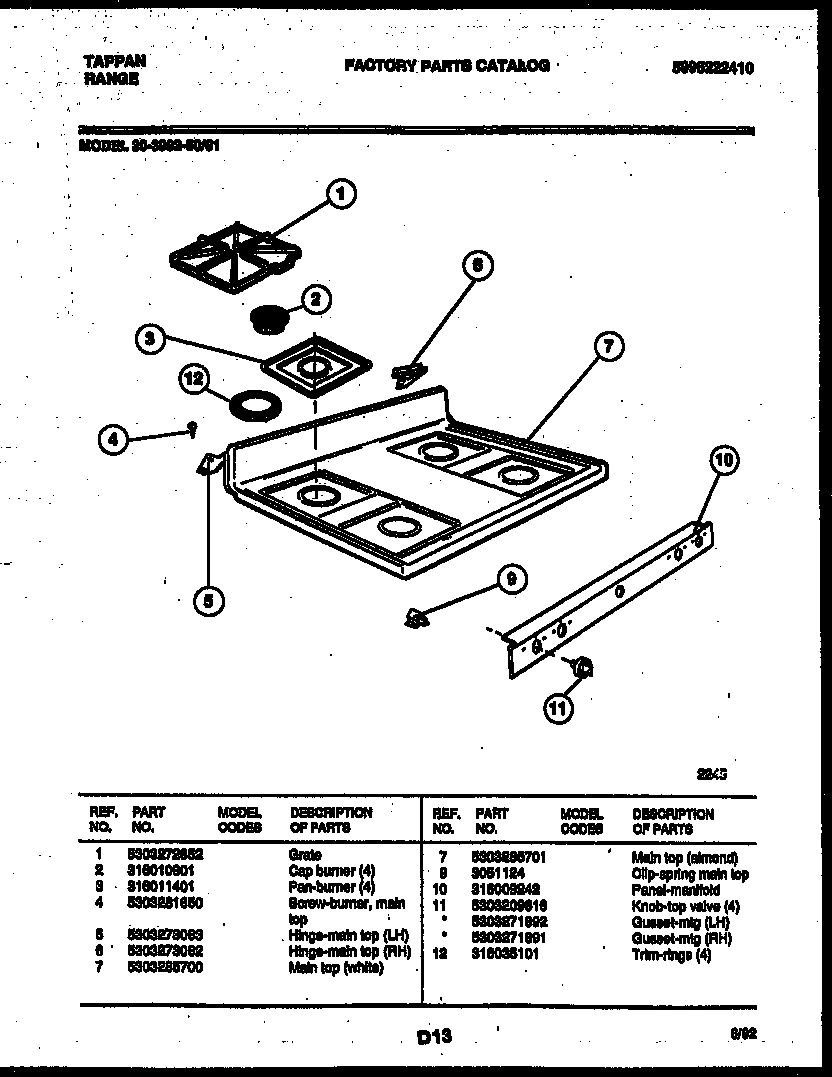

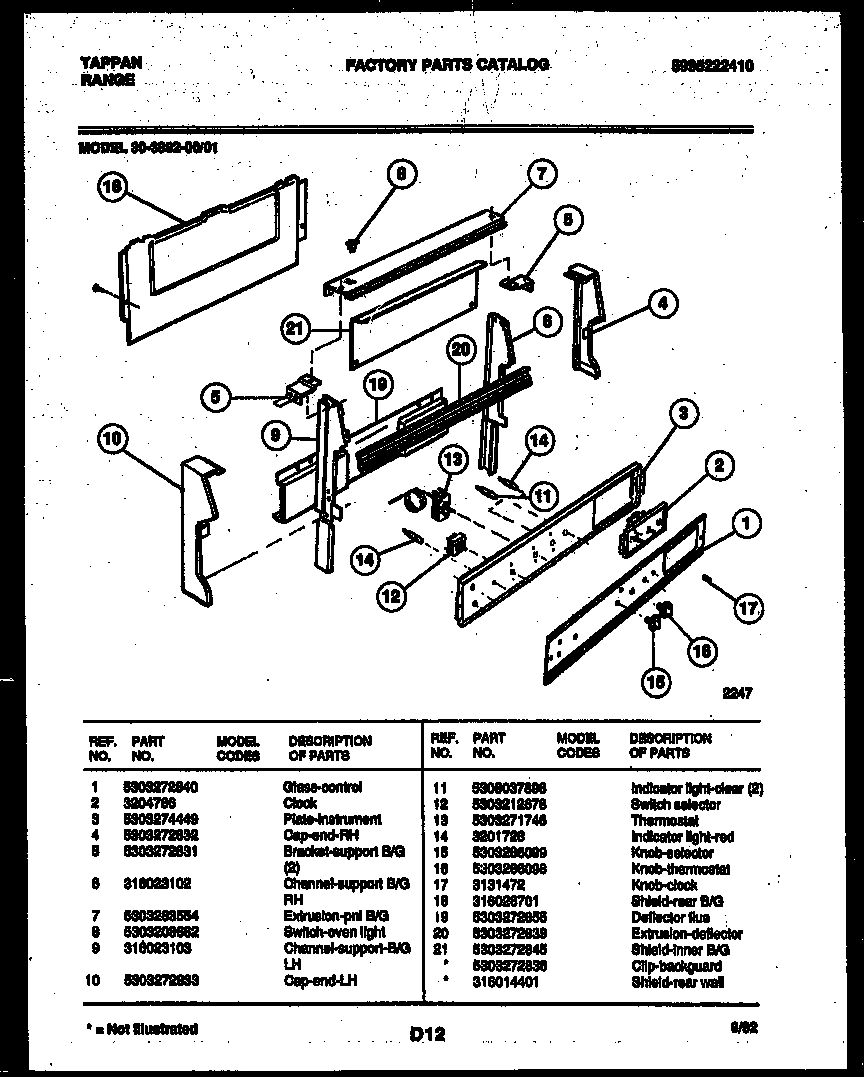

Model Electrolux 30-3982-23-01 RANGE – Common Parts &amp; Diagrams

*72589

WCI 5303281651 WCI 5303281651 Contact Us For Availability

1

GRATE WCI 5303272852 Contact Us For Availability

1

SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability

1

WCI 316008302 WCI 316008302 Contact Us For Availability

1

WCI 316011501 WCI 316011501 Contact Us For Availability

1

WCI 5303210379 WCI 5303210379 Contact Us For Availability

2

3051163 Frigidaire Oven Range Rear Broiler Dr In Stock WCI 3051163 $2.37

2

316010901 Frigidaire Burner Cap P1 In Stock WCI 316010901 $40.78

2

TRIM-OVEN DOOR (BLACK) WCI 5303209518 Contact Us For Availability

2

WCI 3131284 WCI 3131284 Contact Us For Availability

3

5304515659 Frigidaire Range Power Cord In Stock WCI 5304515659 $16.99

3

PAN-BURNER (4) WCI 316011401 Contact Us For Availability

3

WCI 08067935 WCI 08067935 Contact Us For Availability

3

WCI 5303131132 WCI 5303131132 Contact Us For Availability

3

PANEL-ALMOND WCI 3131134 Contact Us For Availability

4

316116400 Frigidaire Oven Light Socket In Stock WCI 316116400 $40.25

4

5303208655 Frigidaire Reflector Assembly Backorder WCI 5303208655 $36.74

4

HANDLE WCI 316019501 Contact Us For Availability

4

WCI 3131290 WCI 3131290 Contact Us For Availability

5

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $10.61

5

WCI 5303208656 WCI 5303208656 Contact Us For Availability

5

WCI 3131975 WCI 3131975 Contact Us For Availability

5

BURNER-ASSY (4) WCI 316010600 Contact Us For Availability

6

BRKT-GLASS (2) WCI 5303209510 Contact Us For Availability

6

FASTENER, SPACER WCI 3131387 Contact Us For Availability

6

BURNER TOP WCI 316010700 Contact Us For Availability

6

WIRE GLASS RETAINER WCI 3204585 Contact Us For Availability

7

316011200 Frigidaire Oven Top Burner Igniter In Stock WCI 316011200 $9.10

7

5304524341 Frigidaire Lens In Stock WCI 5304524341 $9.87

7

WCI 5303209513 WCI 5303209513 Contact Us For Availability

8

CHANNEL-DOOR HINGE (2) WCI 316007001 Contact Us For Availability

8

SCREW-ELECTRODE WCI 316011100 Contact Us For Availability

9

3205821 Frigidaire Clip Backorder WCI 3205821 $22.65

9

WCI 5303210090 No Longer Available

9

COVER-HINGE CUTOUT (2) WCI 3131570 Contact Us For Availability

9

SHIELD-WOOL (BLACK) WCI 5303211084 Contact Us For Availability

WCI 316009242 WCI 316009242 Contact Us For Availability

INSULATION-OVEN DOOR WCI 5303209514 Contact Us For Availability

BURNER TUBE-RF WCI 5303269492 Contact Us For Availability

SHIELD-HEAT UPPER WCI 5303270104 Contact Us For Availability

KNOB-TOP VALVE, (4) WCI 5303209616 Contact Us For Availability

SCREW-HANDLE (2) WCI 5303212671 Contact Us For Availability

BURNER TUBE-RR WCI 5303269494 Contact Us For Availability

WCI 3131313 WCI 3131313 Contact Us For Availability

11A

GUSSET-MTG (LH) (NON-ILLUSTRATED) WCI 5303271892 Contact Us For Availability

11A

WCI 08067992 WCI 08067992 Contact Us For Availability

11B

GUSSET-MTG (RH) (NON-ILLUSTRATED) WCI 5303271891 Contact Us For Availability

12

5303284616 Frigidaire Range Bulb Clip Thermos In Stock WCI 5303284616 $5.88

12

WCI 5303209512 WCI 5303209512 Contact Us For Availability

12

TRIM-RINGS (4) WCI 316035101 Contact Us For Availability

13

SWITCH-LATCH WCI 5303269499 Contact Us For Availability

13

WCI 5303209517 WCI 5303209517 Contact Us For Availability

14

WCI 5303211085 WCI 5303211085 Contact Us For Availability

14

WCI 5303271375 WCI 5303271375 Contact Us For Availability

14

WCI 08067776 WCI 08067776 Contact Us For Availability

14A

WCI 08067978 WCI 08067978 Contact Us For Availability

15

WCI 5303209511 WCI 5303209511 Contact Us For Availability

15

VALVE-TOP WCI 316020400 Contact Us For Availability

16

SWITCH-IGNITER WCI 316032000 Contact Us For Availability

16

WCI 5303209515 WCI 5303209515 Contact Us For Availability

16

WCI 3203082 WCI 3203082 Contact Us For Availability

17

5303131601 Frigidaire Oven Seal Backorder WCI 5303131601 $203.31

17

5303935068 Frigidaire Flat Igniter In Stock WCI 5303935068 $89.52

17

RODLIGHT WCI 5303269501 Contact Us For Availability

18

316282700 Frigidaire Oven Screw Backorder WCI 316282700 $6.32

18

5303935066 Frigidaire Oven Flat Igniter 17-In In Stock WCI 5303935066 $23.65

19

3131903 Frigidaire Door/Drawer Bumper Backorder WCI 3131903 $33.06

19

5304505695 Frigidaire Oven Module In Stock WCI 5304505695 $40.27

20

WCI 5303208640 WCI 5303208640 Contact Us For Availability

20

SWITCH, DOOR WCI 5303202622 Contact Us For Availability

21

TUBING REG TO MANIFOLD PIPE W/FITTING WCI 5303208495 Contact Us For Availability

21

BRACKET-LIGHT SWITCH WCI 5303131289 Contact Us For Availability

22

TUBING VALVE TO REGUL WCI 5303208494 Contact Us For Availability

22

WCI 5303272847 WCI 5303272847 Contact Us For Availability

23

TUBING VALVE TO MIXER WCI 5303208493 Contact Us For Availability

23

CLIP-WIRE WCI 3011813 Contact Us For Availability

24

5303208499 Frigidaire Gas Safety Valve In Stock WCI 5303208499 $359.54

24

WCI 5303272844 WCI 5303272844 Contact Us For Availability

25

316542102 Frigidaire Flue Gasket Backorder WCI 316542102 $7.23

25

5303935125 Frigidaire Pressure Regulator Backorder WCI 5303935125 $256.42

25A

SHIELD, BIMETAL LATCH (NON-ILLUSTRATED) WCI 3131593 Contact Us For Availability

25B

WCI 08013188 WCI 08013188 Contact Us For Availability

26

316091600 Frigidaire Oven Bracket Backorder WCI 316091600 $43.49

26

WCI 3203218 WCI 3203218 Contact Us For Availability

27

Backorder WCI 154079601 $0.28

27

WCI 5303015453 WCI 5303015453 Contact Us For Availability

28

PLATE-BURNER TUBE (2) WCI 5303269491 Contact Us For Availability

28

WCI 5303131357 WCI 5303131357 Contact Us For Availability

29

WCI 08067757 WCI 08067757 Contact Us For Availability

30

WCI 5303286386 WCI 5303286386 Contact Us For Availability

30

WCI 5303269487 WCI 5303269487 Contact Us For Availability

31

WCI 5303271047 WCI 5303271047 Contact Us For Availability

32

WCI 3051413 WCI 3051413 Contact Us For Availability

33

WCI 3200836 WCI 3200836 Contact Us For Availability

34

PANEL BODYSIDE RH ALMOND WCI 5303269519 Contact Us For Availability

34

WCI 5303269543 WCI 5303269543 Contact Us For Availability

35

SCREW-LEVELING WCI 5303203397 Contact Us For Availability

36

316067902 Frigidaire Oven Rack Backorder WCI 316067902 $65.19

37

WCI 5303131356 WCI 5303131356 Contact Us For Availability

38

PAN-BROILER WCI 5303013568 Contact Us For Availability

39

WCI 5303212540 WCI 5303212540 Contact Us For Availability

39A

316064600 Frigidaire Oven Support Backorder WCI 316064600 $11.32

39B

WCI 08067961 WCI 08067961 Contact Us For Availability

39C

WCI 3204582 WCI 3204582 Contact Us For Availability

39D

08067973 Frigidaire 0 Insulation Backorder WCI 08067973 $33.06

39E

INSULATION-TOP (NON-ILLUSTRATED) WCI 3131304 Contact Us For Availability

39F

SHIELD-HEAT, BODY SIDE (NON-ILLUSTRATED) WCI 3200834 Contact Us For Availability

39G

INSULATION, WRAP WCI 3200833 Contact Us For Availability

40

3051162 Frigidaire Oven Range Front Broiler D In Stock WCI 3051162 $1.76

40A

SHIELD, OVEN TOP (NON-ILLUSTRATED) WCI 3131314 Contact Us For Availability

40B

WCI 08068018 WCI 08068018 Contact Us For Availability

42

COVER-ROD END WCI 5303285692 Contact Us For Availability

42A

WCI 08010570 WCI 08010570 Contact Us For Availability

43

WCI 5303283575 WCI 5303283575 Contact Us For Availability

44

WCI 5303283574 WCI 5303283574 Contact Us For Availability
