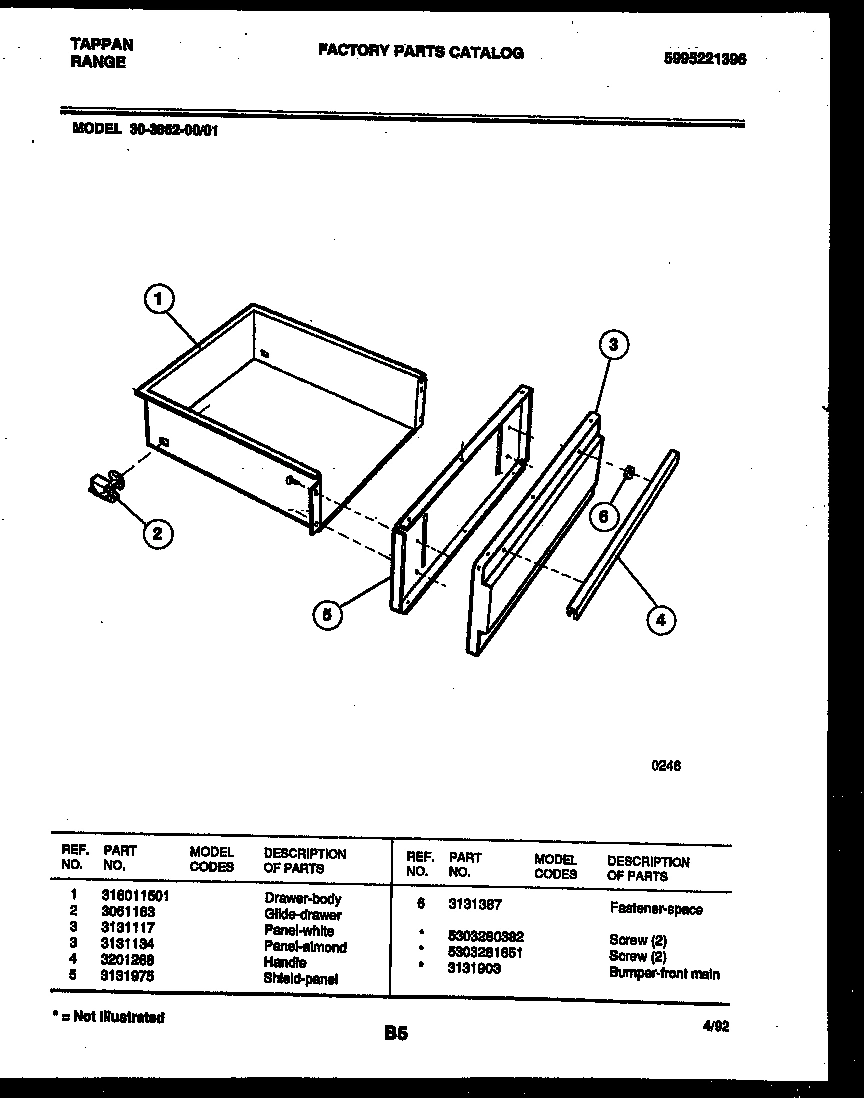

04 - DRAWER PARTS

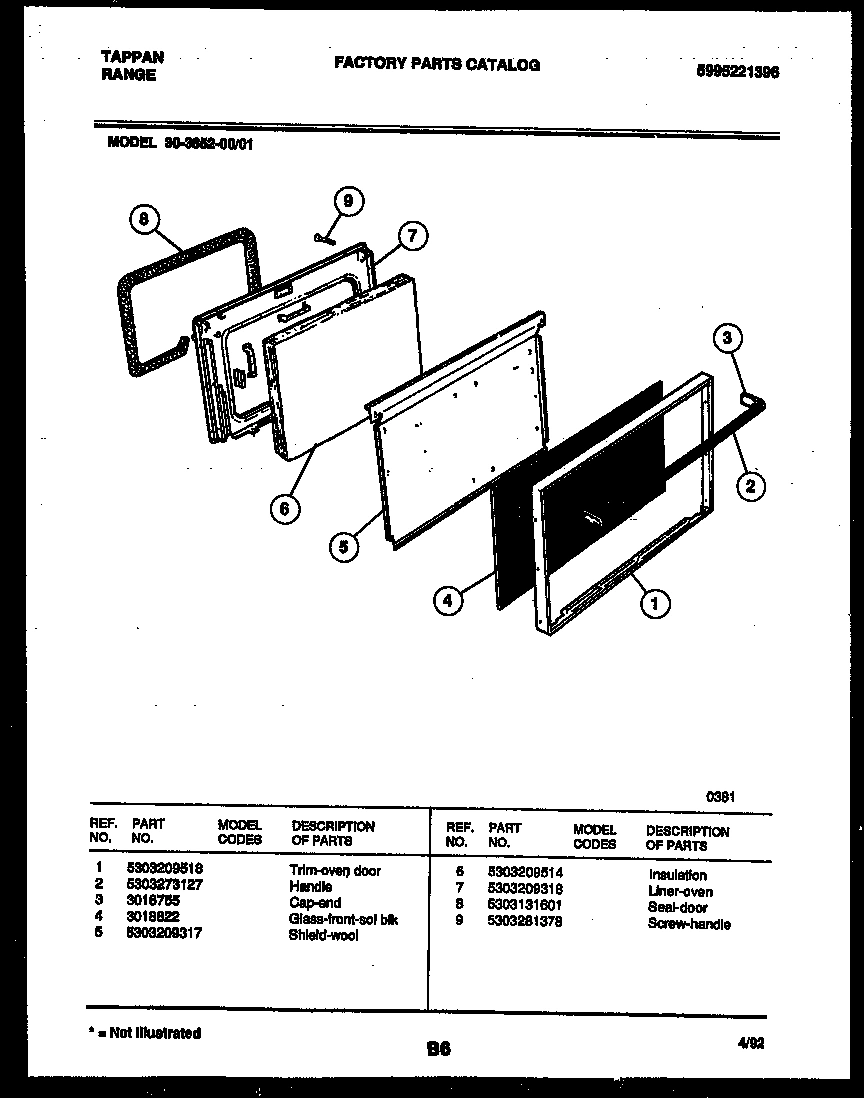

05 - DOOR PARTS

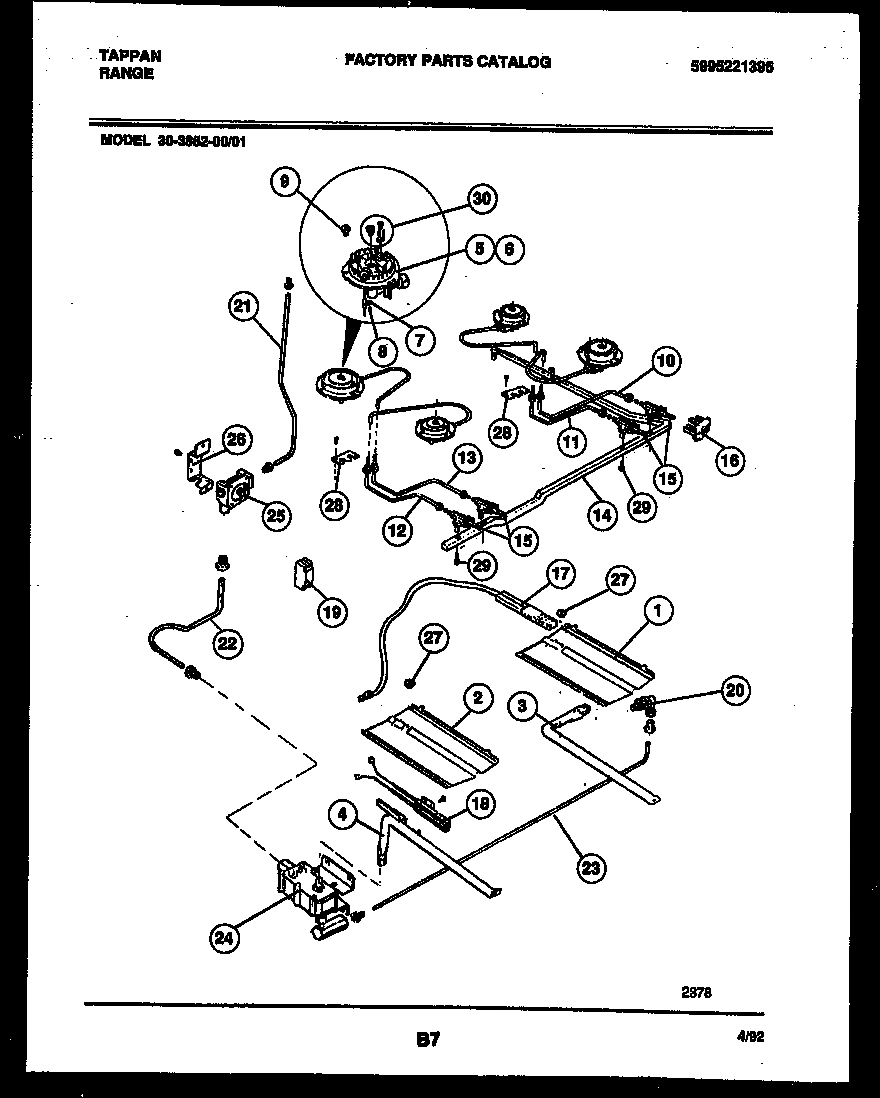

06 - BURNER, MANIFOLD AND GAS CONTROL

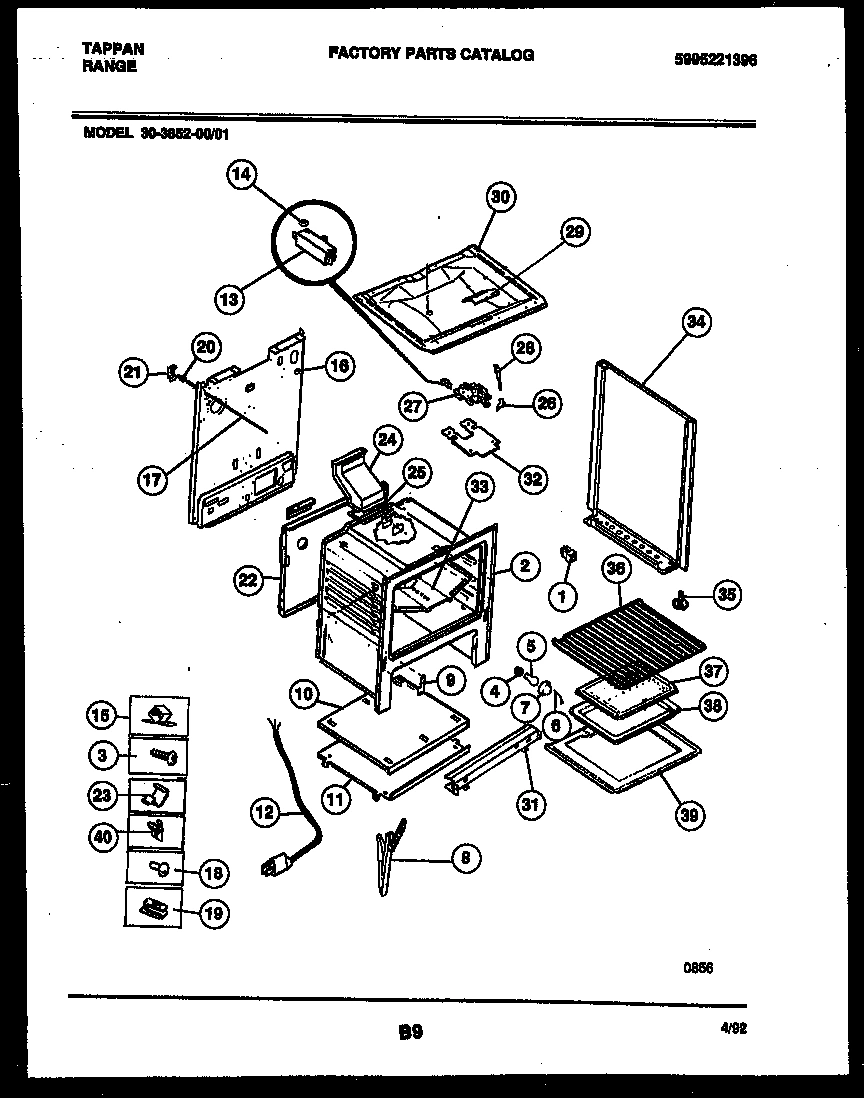

07 - BODY PARTS
Common parts from model Electrolux 30-3852-23-01 RANGE
*70793
GUSSET-MTG RH WCI 5303271891 Contact Us For Availability
*70794
GUSSET-MTG LH WCI 5303271892 Contact Us For Availability
*70795
WCI 5303281651 WCI 5303281651 Contact Us For Availability
*70810
WCI 3131314 WCI 3131314 Contact Us For Availability
*70811
SHIELD-WIRE WCI 08068018 Contact Us For Availability
*70811
WCI 19100180305 WCI 19100180305 Contact Us For Availability
*70811
ANTI-TIP BRKT WCI 3934056 Contact Us For Availability
*70811
SHIELD-REAR WALL WCI 5303269502 Contact Us For Availability
1
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
1
WCI 5303269632 WCI 5303269632 Contact Us For Availability
1
WCI 316011501 WCI 316011501 Contact Us For Availability
1
WCI 5303209518 WCI 5303209518 Contact Us For Availability
1
BAFFLE-BROILER WCI 5303210379 Contact Us For Availability
2
WCI 316010402 WCI 316010402 Contact Us For Availability
2
WCI 5303273127 WCI 5303273127 Contact Us For Availability
2
WCI 3131284 WCI 3131284 Contact Us For Availability
3
WCI 08067935 WCI 08067935 Contact Us For Availability
3
BRACKET-HINGE,MAIN TOP RH WCI 08067747 Contact Us For Availability
3
PANEL-ALMOND WCI 3131134 Contact Us For Availability
4
BRACKET-HINGE,MAIN TOP LH WCI 08067746 Contact Us For Availability
4
WCI 3201268 WCI 3201268 Contact Us For Availability
4
GLASS-FRONT-SOL BLK WCI 3018822 Contact Us For Availability
4
WCI 3131290 WCI 3131290 Contact Us For Availability
5
WCI 316009242 WCI 316009242 Contact Us For Availability
5
WCI 3131975 WCI 3131975 Contact Us For Availability
5
WCI 5303209317 WCI 5303209317 Contact Us For Availability
5
BURNER-ASSY (4) WCI 316010600 Contact Us For Availability
6
KNOB-TOP VALVE, (4) WCI 5303209616 Contact Us For Availability
6
FASTENER-SPACE WCI 3131387 Contact Us For Availability
6
INSULATION WCI 5303209514 Contact Us For Availability
6
BURNER TOP WCI 316010700 Contact Us For Availability
6
RETAINER-GLASS WCI 3204585 Contact Us For Availability
7
WCI 5303209318 WCI 5303209318 Contact Us For Availability
8
CHANNEL-HINGE WCI 316007001 Contact Us For Availability
8
PAN-BURNER WCI 316011400 Contact Us For Availability
8
SCREW-ELECTRODE WCI 316011100 Contact Us For Availability
9
WCI 5303210090 WCI 5303210090 Contact Us For Availability
9
COVER HNG. CUTOUT (2) WCI 3131570 Contact Us For Availability
9
WCI 5303281378 WCI 5303281378 Contact Us For Availability
10
TRIM-RINGS WCI 316035101 Contact Us For Availability
10
BURNER TUBE-RF WCI 5303269492 Contact Us For Availability
10
SHIELD-HEAT WCI 5303270104 Contact Us For Availability
11
BURNER TUBE-RR WCI 5303269494 Contact Us For Availability
11
WCI 3131313 WCI 3131313 Contact Us For Availability
11A
WCI 08067992 WCI 08067992 Contact Us For Availability
13
SWITCH-LATCH WCI 3131672 Contact Us For Availability
14
WCI 5303271375 WCI 5303271375 Contact Us For Availability
14
WCI 08067776 WCI 08067776 Contact Us For Availability
14A
WCI 08067978 WCI 08067978 Contact Us For Availability
15
VALVE-TOP BURNER WCI 316020400 Contact Us For Availability
16
SWITCH-IGNITER WCI 316032000 Contact Us For Availability
16
WCI 3203082 WCI 3203082 Contact Us For Availability
17
ROD LIGHT WCI 5303209316 Contact Us For Availability
20
WCI 3204747 WCI 3204747 Contact Us For Availability
20
WCI 5303208640 WCI 5303208640 Contact Us For Availability
20
SWITCH, DOOR WCI 5303202622 Contact Us For Availability
20A
WCI 3204746 WCI 3204746 Contact Us For Availability
21
WCI 3131241 WCI 3131241 Contact Us For Availability
21
TUBING REGUL MANIFOLD PIPE WCI 5303208495 Contact Us For Availability
21
BRACKET-LT SWITCH WCI 5303131289 Contact Us For Availability
22
TRIM-LOWER SPLASHER (ALMOND) WCI 3201702 Contact Us For Availability
22
TUBING VALVE TO REGUL WCI 5303208494 Contact Us For Availability
22
WCI 08067991 WCI 08067991 Contact Us For Availability
23
SHIELD, REAR WALL WCI 3131123 Contact Us For Availability
23
TUBING VALVE TO MIXER WCI 5303208493 Contact Us For Availability
23
CLIP-WIRE WCI 3011813 Contact Us For Availability
24
WCI 3131931 WCI 3131931 Contact Us For Availability
25A
SHIELD, BIMETAL LATCH (NON-ILLUSTRATED) WCI 3131593 Contact Us For Availability
25B
WCI 08013188 WCI 08013188 Contact Us For Availability
26
WCI 3203218 WCI 3203218 Contact Us For Availability
27
WCI 5303015453 WCI 5303015453 Contact Us For Availability
28
PLATE-BURNER TUBE (2) WCI 5303269491 Contact Us For Availability
28
WCI 5303131357 WCI 5303131357 Contact Us For Availability
29
WCI 08067757 WCI 08067757 Contact Us For Availability
30
WCI 5303286386 WCI 5303286386 Contact Us For Availability
30
WCI 5303269487 WCI 5303269487 Contact Us For Availability
31
WCI 5303271047 WCI 5303271047 Contact Us For Availability
32
WCI 3051413 WCI 3051413 Contact Us For Availability
33
WCI 3200836 WCI 3200836 Contact Us For Availability
33A
SHIELD-HEAT, BODY SIDE (NON-ILLUSTRATED) WCI 3200834 Contact Us For Availability
34
WCI 5303269545 WCI 5303269545 Contact Us For Availability
34A
WCI 5303269543 WCI 5303269543 Contact Us For Availability
35
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
37
WCI 5303131356 WCI 5303131356 Contact Us For Availability
38
PAN-BROILER WCI 5303013568 Contact Us For Availability
39
WCI 5303212540 WCI 5303212540 Contact Us For Availability
39B
WCI 08067961 WCI 08067961 Contact Us For Availability
39C
INSUL.-WOOL (BACK) (NON-ILLUSTRATED) WCI 3204582 Contact Us For Availability
39E
INSUL-OVEN WRAP (NON-ILLUSTRATED) WCI 3200833 Contact Us For Availability
39F
INSUL-OVEN TOP (NON-ILLUSTRATED) WCI 3131304 Contact Us For Availability
× ![]()
