Model Whirlpool 28FS-6CXWV8 ELECTRIC RANGE – Common Parts & Diagrams

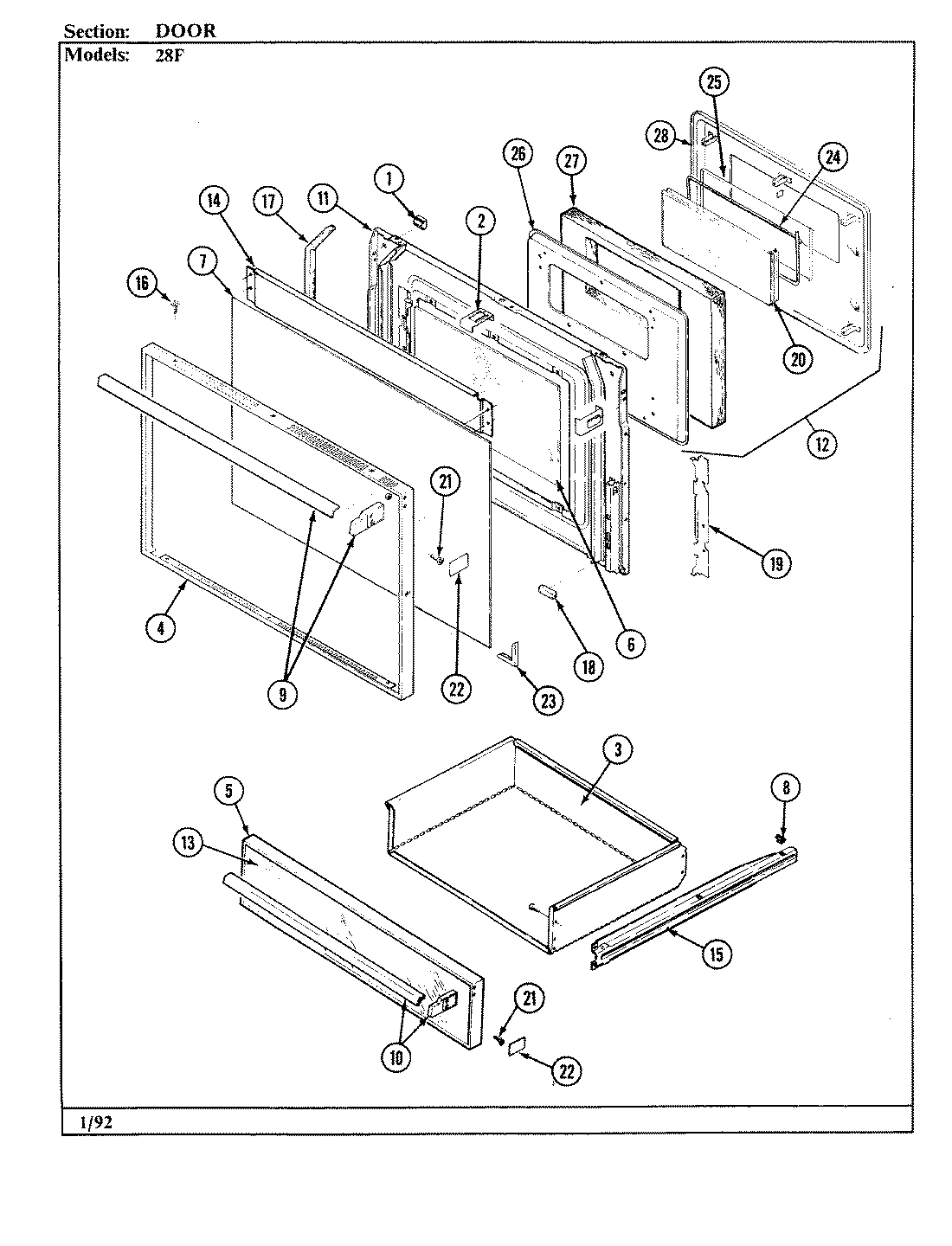

03 - DOOR (LOWER)

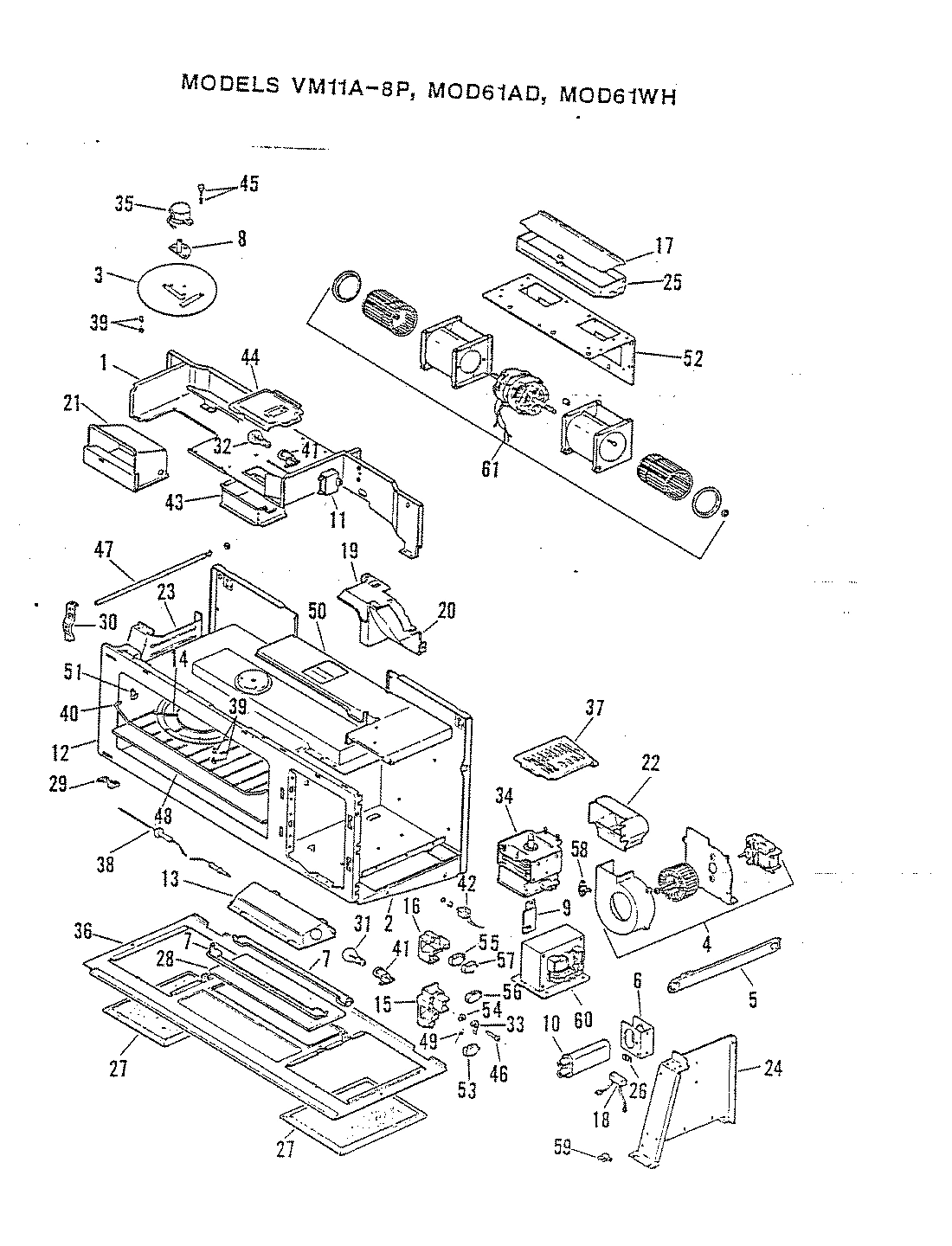

04 - MICROWAVE COMPONENTS-UPPER (VM11A-8P)

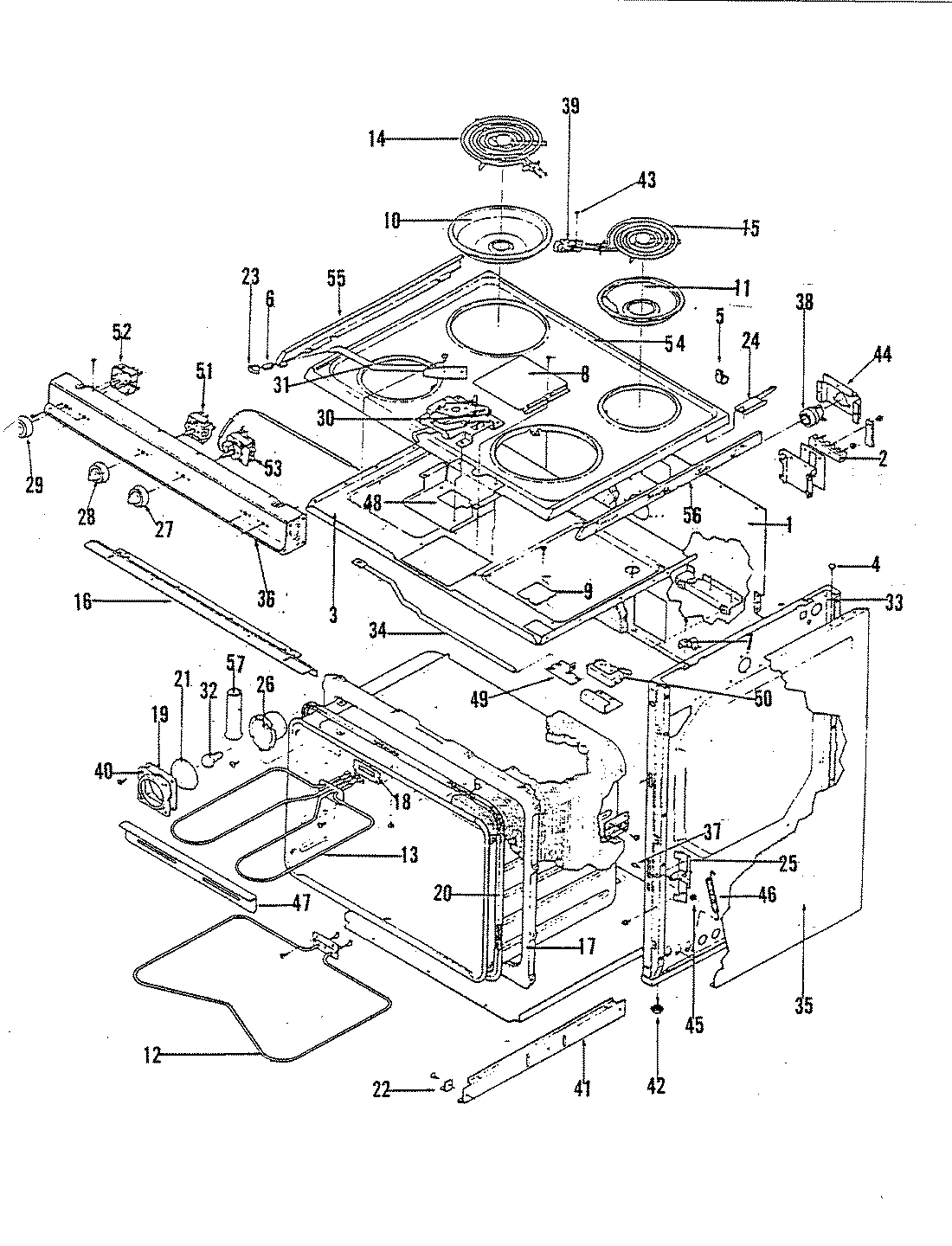

01 - BODY

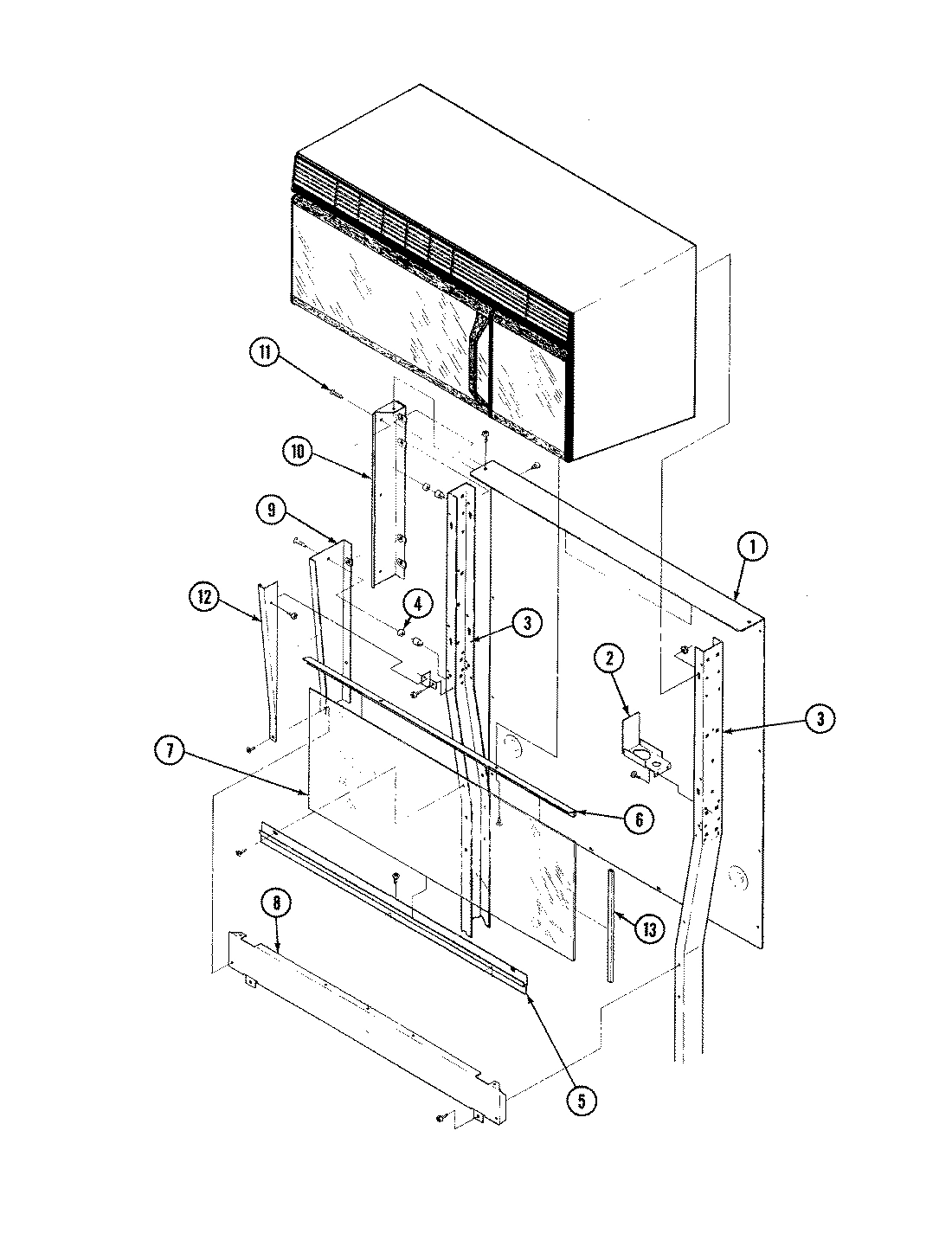

02 - BODY-UPPER

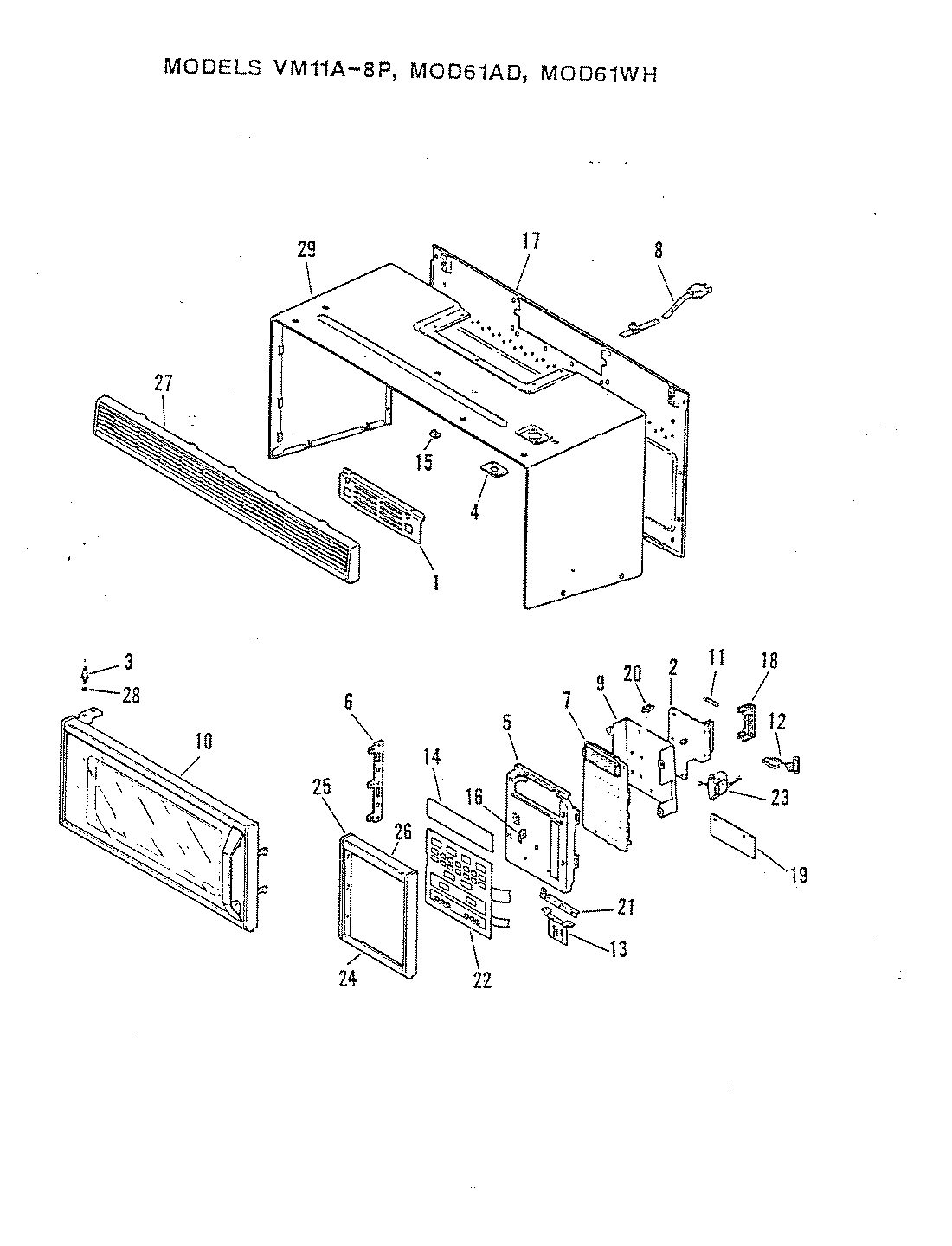

05 - MICROWAVE-UPPER (VM11A-8P)
Common parts from model Whirlpool 28FS-6CXWV8 ELECTRIC RANGE
1
CATCH WPL 1135224 Contact Us For Availability
1
BUMPER WPL 1784200 Contact Us For Availability
1
BUMPER, DOOR (SQUARE) WPL 8003P00960 Contact Us For Availability
1
BAFFLE, UPPER WPL 20450004 Contact Us For Availability
1
BACK, MAIN WPL 0903114 Contact Us For Availability
1
BLOCK WPL 1867258 Contact Us For Availability
1
BLOCK WPL 1867264 Contact Us For Availability
1
BLOCK, DISC PLUG WPL 1867274 Contact Us For Availability
1
BACK, MAIN WPL 4002F09420 Contact Us For Availability
1
DAMPER WPL 20800003 Contact Us For Availability
2
CLIP, DOOR GLASS WPL 7712E031 Contact Us For Availability
2
BASE WPL 20850003 Contact Us For Availability
2
BOLT WPL 7116P00360 Contact Us For Availability
2
BRACKET, FUSE HOLDER WPL 3801F10351 Contact Us For Availability
2
BOARD WPL 21250005 Contact Us For Availability
3
DRAWER ASSY. WPL 0384227 Contact Us For Availability
3
BLADE, STIRRER WPL 21100004 Contact Us For Availability
3
BRACE WPL 0277238 Contact Us For Availability
3
BRACKET WPL 3801F093 Contact Us For Availability
3
BOTTOM, BURNER BOX WPL 4011C069 Contact Us For Availability
3
BUMPER, MAIN TOP WPL 8003P01060 Contact Us For Availability
3
SPACER, MAIN TOP WPL 8010P04860 Contact Us For Availability
3
CHANNEL, OVEN SUPPORT WPL 3818F02951 Contact Us For Availability
3
BOLT WPL 30050112 Contact Us For Availability
4
FRAME, OVN DOOR WPL 7706E007 Contact Us For Availability
4
FRAME, OVEN DOOR WPL 7706P22260 Contact Us For Availability
4
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
4
MOTOR, BLOWER WPL 27200010 Contact Us For Availability
4
CHANNEL WPL 0310225NLA Contact Us For Availability
4
CLAMP WPL 1140202 Contact Us For Availability
4
CATALYST WPL 1566294 Contact Us For Availability
4
BUMPER WPL 1784202 Contact Us For Availability
4
CLIP, PUSHON WPL 1141240 Contact Us For Availability
4
BRACKET, CORD WPL 21450043 Contact Us For Availability
5
FRAME, SERV DOOR WPL 7706E056 Contact Us For Availability
5
BRACKET WPL 21450048 Contact Us For Availability
5
CLAMP WPL 1140201 Contact Us For Availability
5
EXTRUSION, GLASS BOT WPL 7706P16460 Contact Us For Availability
5
BRACKET, CONTROL PANEL WPL 21450051 Contact Us For Availability
6
GLASS, DOOR WPL 7902E097 Contact Us For Availability
6
BRACKET, CAPACITOR WPL 21450046 Contact Us For Availability
6
CLIP, DOOR LOCK WPL 7112E003 Contact Us For Availability
6
EXTRUSION, GLASS TOP WPL 7706P16560 Contact Us For Availability
6
BRACKET, PANEL WPL 21450045 Contact Us For Availability
7
GLASS, DOOR WPL 7902E065 Contact Us For Availability
7
BRACKET, GLASS WPL 21450047 Contact Us For Availability
7
CLIP WPL 1141237 Contact Us For Availability
7
+ CLOCK, EXPORT WPL 1895490 Contact Us For Availability
7
+ CLOCK, EXPORT (220V 60CY) WPL 1895491 Contact Us For Availability
7
+ CLOCK, EXPORT (110V 50CY) WPL 1895492 Contact Us For Availability
7
CLOCK, AUTOMATIC WPL 7601P02360 Contact Us For Availability
7
KNOB, CLOCK WPL 7711P12660 Contact Us For Availability
7
GLASS, BACKSPLASH WPL 7902P13160 Contact Us For Availability
7
CONTROL - DISPLAY WPL 21250004 Contact Us For Availability
8
GLIDE, DRAWER WPL 8016P00460 Contact Us For Availability
8
GLIDE, DRAWER WPL 8016P00960 Contact Us For Availability
8
MOUNTING, STIRRER WPL 21450049 Contact Us For Availability
8
COVER, DOOR LOCK WPL 4005J137 Contact Us For Availability
8
CORD, POWER WPL 22700001 Contact Us For Availability
9
BARRIER, H.V. TRANSFORMER WPL 21450050 Contact Us For Availability
9
COVER, LOCK SWITCH WPL 790347 Contact Us For Availability
9
PANEL, SIDE UP BT WPL 2618F04130 Contact Us For Availability
9
PANEL, SIDE UP BT WPL 2618F04230 Contact Us For Availability
9
COVER, CONTROL PANEL WPL 22750028 Contact Us For Availability
10
HANDLE, DOOR WPL 7701E019 Contact Us For Availability
10
CAPACITOR WPL 22100004 Contact Us For Availability
10
PANEL, SIDE UP WPL 2618F04330 Contact Us For Availability
10
PANEL, SIDE UP RT WPL 2618F04430 Contact Us For Availability
10
DOOR ASSY. WPL 23250005 Contact Us For Availability
11
LINING ASSY, OV DR WPL 2402W12512 Contact Us For Availability
11
LINING WPL 2402W12815 Contact Us For Availability
11
LINING WPL 2402W17315 Contact Us For Availability
11
LINING WPL 2402W17319 Contact Us For Availability
11
LINING - DOOR WPL 2422H069 Contact Us For Availability
11
MTR CAPACITOR WPL 27200009 Contact Us For Availability
11
SCREW WPL 7101P10360 Contact Us For Availability
11
FUSE WPL 24350001 Contact Us For Availability
12
PAD, ASSY. WPL 2410A04119 Contact Us For Availability
12
+ PAD ASSEMBLY WPL 2430F016 Contact Us For Availability
12
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
12
ELEMENT, BAKE WPL 7406P06760 Contact Us For Availability
12
TRIM, PNL LEFT WPL 7720P08460 Contact Us For Availability
12
TRIM, PNL RIGHT WPL 7720P08560 Contact Us For Availability
12
HEATER WPL 25150001 Contact Us For Availability
13
COVER, LIGHT WPL 22750027 Contact Us For Availability
13
ELEMENT, BROIL WPL 7406P07660 Contact Us For Availability
13
TRIM, GLASS RETAINER WPL 7720P08360 Contact Us For Availability
13
HINGE ASSEMBLY WPL 25200010 Contact Us For Availability
14
RETAINER, GLASS WPL 3804F040 Contact Us For Availability
14
COVER, STIRRER WPL 22750026 Contact Us For Availability
14
LENS WPL 26550007 Contact Us For Availability
15
RUNNER, INNER WPL 3406F02680 Contact Us For Availability
15
RUNNER WPL Y0766215 Contact Us For Availability
15
COVER, SWITCH WPL 22750030 Contact Us For Availability
15
EXTRUSION, SIDE PANEL (LT) WPL 1259599 Contact Us For Availability
15
EXTRUSION, TRIM WPL 1259600 Contact Us For Availability
15
ELEMENT, SURFACE (6``) WPL 1938255 Contact Us For Availability
15
NUT WPL 27350022 Contact Us For Availability
16
SCREW, SPECIAL WPL 1986258 Contact Us For Availability
16
COVER, SWITCH UPPER WPL 22750029 Contact Us For Availability
16
FRAME, BURNER BOX FRONT WPL 4012F013 Contact Us For Availability
16
PLATE, GROUND WPL 28450022 Contact Us For Availability
17
SEAL WPL 1726250 Contact Us For Availability
17
SEAL WPL 1726252 Contact Us For Availability
17
DOOR, DAMPER WPL 23050002 Contact Us For Availability
17
FRAME, OVEN FRONT WPL 2201C025 Contact Us For Availability
17
PLATE, MOUNTING WPL 28450021 Contact Us For Availability
17
SCREW WPL 30050111 Contact Us For Availability
18
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
18
DIODE WPL 23150004 Contact Us For Availability
18
GASKET, LAMPGUARD WPL 1313259 Contact Us For Availability
18
GASKET, BROIL ELEMENT WPL 1313274 Contact Us For Availability
18
SHIELD WPL 30300007 Contact Us For Availability
19
SUPPORT, GLASS WPL 3804J038 Contact Us For Availability
19
DUCT WPL 23350016 Contact Us For Availability
19
GASKET, LAMPGUARD RETAINER WPL 1313260 Contact Us For Availability
19
SHIELD, CONDENSER WPL 30300008 Contact Us For Availability
20
+ WINDOW, OV DR ASSY WPL 5700A08160 Contact Us For Availability
20
WINDOW PAK ASSY. WPL 5700A09160 Contact Us For Availability
20
DUCT WPL 23350017 Contact Us For Availability
20
GASKET, OVEN WPL 1313279 Contact Us For Availability
20
GLASS, CLOCK WPL 1327135 Contact Us For Availability
20
SPACER PCB WPL 30650007 Contact Us For Availability
21
SCREW WPL 7101P12360 Contact Us For Availability
21
DUCT, AIR WPL 23350015 Contact Us For Availability
21
GLASS, LIGHTGUARD WPL 1327784 Contact Us For Availability
21
SUPPORT WPL 31300016 Contact Us For Availability
22
INSERT, HANDLE (CHROME) WPL 7728P06860 Contact Us For Availability
22
AIR GUIDE SIDE WPL 23350018 Contact Us For Availability
22
GLIDE, SERVICE DRAWER (FRONT) WPL 8016E005 Contact Us For Availability
22
SWITCH, MEMBRANE WPL 31350058 Contact Us For Availability
23
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
23
DUCT, SIDE LEFT WPL 31300020 Contact Us For Availability
23
HANDLE, DOOR LOCK WPL 7701E003 Contact Us For Availability
23
TRANSFORMER WPL 32150010 Contact Us For Availability
24
GASKET, WINDOW WPL 7201P01860 Contact Us For Availability
24
DUCT, SIDE (RT) WPL 31300021 Contact Us For Availability
24
CONTROL TRIM BTM WPL 32300074 Contact Us For Availability
25
RETAINER WPL 3804F02245 Contact Us For Availability
25
DAMPER, HOOD ASSEMBLY WPL 23600003 Contact Us For Availability
25
+ HINGE, OVEN DOOR (LT) WPL Y0528261 Contact Us For Availability
25
+ HINGE WPL Y0528262 Contact Us For Availability
25
TRIM CONTROL WPL 32300075 Contact Us For Availability
26
PAD, INNER WPL 2410F01651 Contact Us For Availability
26
FASTENER WPL 23850004 Contact Us For Availability
26
INSERT, BROIL PAN WPL 0507243 Contact Us For Availability
26
HOUSING, LAMP WPL 0537253 Contact Us For Availability
26
HOUSING, LAMP WPL 4001F02019 Contact Us For Availability
26
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
26
CONTROL TRIM TOP WPL 32300073 Contact Us For Availability
27
INSULATION DOOR PAD WPL 4804F00660 Contact Us For Availability
27
FILTER, AIR WPL 23900003 Contact Us For Availability
27
FILTER(NON-VENT) WPL 23900004 Contact Us For Availability
27
KNOB, THERMOSTAT WPL 1360339 Contact Us For Availability
27
KNOB, THERMOSTAT WPL 7711P19460 Contact Us For Availability
27
KNOB, THERMOSTAT WPL 7735P01760 Contact Us For Availability
27
VENT WPL 32650003 Contact Us For Availability
28
PAD, DOOR WPL 2410W04115 Contact Us For Availability
28
PAD, DOOR WPL 2410W04119 Contact Us For Availability
28
GLASS, LAMP WPL 24550011 Contact Us For Availability
28
KNOB, SELECTOR SWITCH WPL 1362236 Contact Us For Availability
28
KNOB, SELECTOR SWITCH WPL 7711P19660 Contact Us For Availability
28
KNOB, SELECTOR SWITCH WPL 7739P01860 Contact Us For Availability
28
WASHER WPL 32800033 Contact Us For Availability
29
CLIP, BOTTOM WPL 25200012 Contact Us For Availability
29
KNOB, SURFACE SWITCH WPL 1359313 Contact Us For Availability
29
LAMP KIT (INDICATOR LOCK) WPL 1430246 Contact Us For Availability
29
+ LAMP KIT (INDICATOR) WPL 1430268 Contact Us For Availability
29
THERMOSTAT WPL 7404P01760 Contact Us For Availability
29
KNOB, SURFACE S WPL 7711P19560 Contact Us For Availability
29
WPL 7737P01560 WPL 7737P01560 Contact Us For Availability
29
WRAPPER WPL 32950001 Contact Us For Availability
30
GUIDE, MTG SHAFT WPL 25200011 Contact Us For Availability
30
INSTALLATION KIT WPL 26100003 Contact Us For Availability
30
WPL 3604F15951 WPL 3604F15951 Contact Us For Availability
30
WPL 7002P04860 WPL 7002P04860 Contact Us For Availability
30
WPL 8002E002 WPL 8002E002 Contact Us For Availability
30
WPL 8002P01460 WPL 8002P01460 Contact Us For Availability
31
LAMP WPL 26350005 Contact Us For Availability
31
WPL 8009E003 WPL 8009E003 Contact Us For Availability
31
WPL 8009P00760 WPL 8009P00760 Contact Us For Availability
31
WPL 8009P01960 WPL 8009P01960 Contact Us For Availability
32
LAMP, OVEN 30 W WPL 26350004 Contact Us For Availability
32
WPL 7730P00160 WPL 7730P00160 Contact Us For Availability
32
WPL 7407P01760 WPL 7407P01760 Contact Us For Availability
32
WPL 7407P08160 WPL 7407P08160 Contact Us For Availability
32
WPL 7730P00860 WPL 7730P00860 Contact Us For Availability
33
LEVER, HOOK WPL 26600017 Contact Us For Availability
33
WPL 4009W05980 WPL 4009W05980 Contact Us For Availability
33
WPL 4019J022 WPL 4019J022 Contact Us For Availability
34
MAGNETRON WPL 27050004 Contact Us For Availability
34
WPL 7807P01260 WPL 7807P01260 Contact Us For Availability
34
WPL 8021E001 WPL 8021E001 Contact Us For Availability
34
WPL Y3401F02019 WPL Y3401F02019 Contact Us For Availability
35
MOTOR, STIRRER WPL 27200011 Contact Us For Availability
35
MOUNTING NUT WPL 27350025 Contact Us For Availability
36
PANEL, ACCESS WPL 28000014 Contact Us For Availability
36
WPL 7722A07260 WPL 7722A07260 Contact Us For Availability
36
WPL 7722E046 WPL 7722E046 Contact Us For Availability
37
PLUG, MOUNTING PLATE WPL 28500004 Contact Us For Availability
37
WPL 1584204 WPL 1584204 Contact Us For Availability
37
WPL 1636254 WPL 1636254 Contact Us For Availability
38
PROBE WPL 28600002 Contact Us For Availability
38
WPL 1657202 WPL 1657202 Contact Us For Availability
39
RIVET, PUSH WPL 29500006 Contact Us For Availability
40
RACK WPL 29050006 Contact Us For Availability
40
WPL 0749227 WPL 0749227 Contact Us For Availability
41
RECEPTACLE, LAMP WPL 29150007 Contact Us For Availability
41
WPL 1986313 WPL 1986313 Contact Us For Availability
41
WPL 3406F02751 WPL 3406F02751 Contact Us For Availability
41
WPL Y0766216 WPL Y0766216 Contact Us For Availability
42
RECEPTACLE, PROBE WPL 29150006 Contact Us For Availability
42
WPL 1986214 WPL 1986214 Contact Us For Availability
43
REFLECTOR WPL 29200002 Contact Us For Availability
43
WPL 0787391 WPL 0787391 Contact Us For Availability
43
WPL 0787407 WPL 0787407 Contact Us For Availability
44
REFLECTOR, LAMP WPL 29200003 Contact Us For Availability
44
WPL 0787392 WPL 0787392 Contact Us For Availability
44
WPL 3604F055 WPL 3604F055 Contact Us For Availability
44
WPL 3604J069 WPL 3604J069 Contact Us For Availability
45
PUSH RIVET WPL 29500005 Contact Us For Availability
45
WPL 1013207 WPL 1013207 Contact Us For Availability
46
SCREW, CAM WPL 30050114 Contact Us For Availability
46
WPL 1808299 WPL 1808299 Contact Us For Availability
47
SHAFT, THREADED WPL 30200004 Contact Us For Availability
47
WPL Y0862419 WPL Y0862419 Contact Us For Availability
48
SHELF, W/GASKET WPL 30250003 Contact Us For Availability
48
WPL 3807F188 WPL 3807F188 Contact Us For Availability
49
SPRING, HOOK WPL 30700024 Contact Us For Availability
49
WPL 7105P00260 WPL 7105P00260 Contact Us For Availability
49
WPL 3807F193 WPL 3807F193 Contact Us For Availability
49
WPL 3807F42245 WPL 3807F42245 Contact Us For Availability
50
SUPPORT, MOTOR WPL 31300017 Contact Us For Availability
50
WPL 1832414 WPL 1832414 Contact Us For Availability
50
WPL 7403E045 WPL 7403E045 Contact Us For Availability
51
RACK, SUPPORT WPL 31300018 Contact Us For Availability
52
BRACKET, MOTOR WPL 31300019 Contact Us For Availability
53
SWITCH WPL 31350063 Contact Us For Availability
54
CAM, SWITCH WPL 21950007 Contact Us For Availability
55
SWITCH, LOGIC WPL 31350060 Contact Us For Availability
56
SWITCH, MONITOR WPL 31350059 Contact Us For Availability
57
SWITCH, PRIMARY WPL 31350061 Contact Us For Availability
58
THERMOSTAT WPL 31600005 Contact Us For Availability
59
THERMOSTAT - HOOD WPL 31600006 Contact Us For Availability
60
TRANSFORMER WPL 32150009 Contact Us For Availability
61
VENTILATION MOTOR CO WPL 27200008 Contact Us For Availability
× ![]()
Login and Registration Form
