Model Whirlpool 2570B00 ELECTRIC RANGE – Common Parts & Diagrams

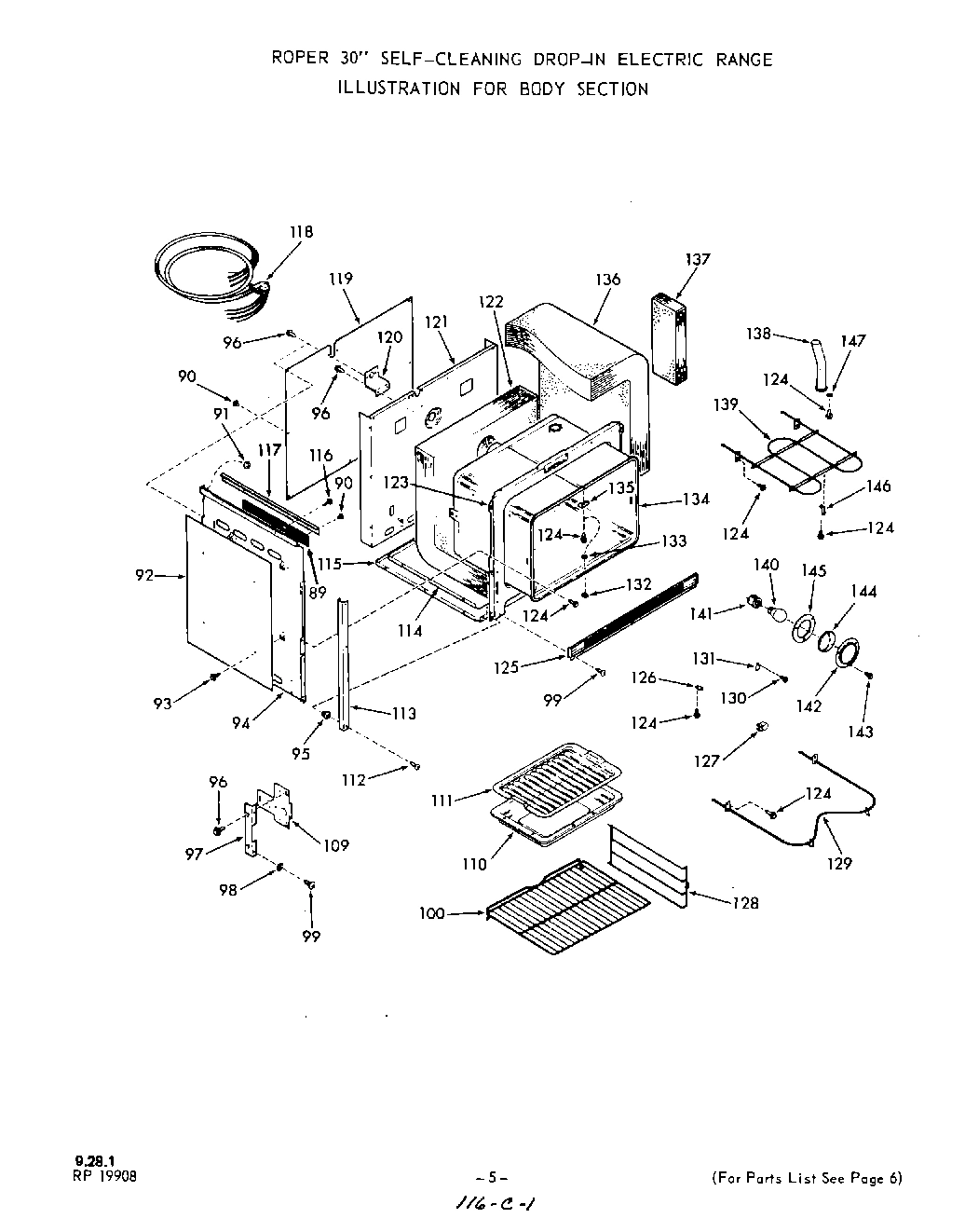

04 - BODY
09 - SECTION

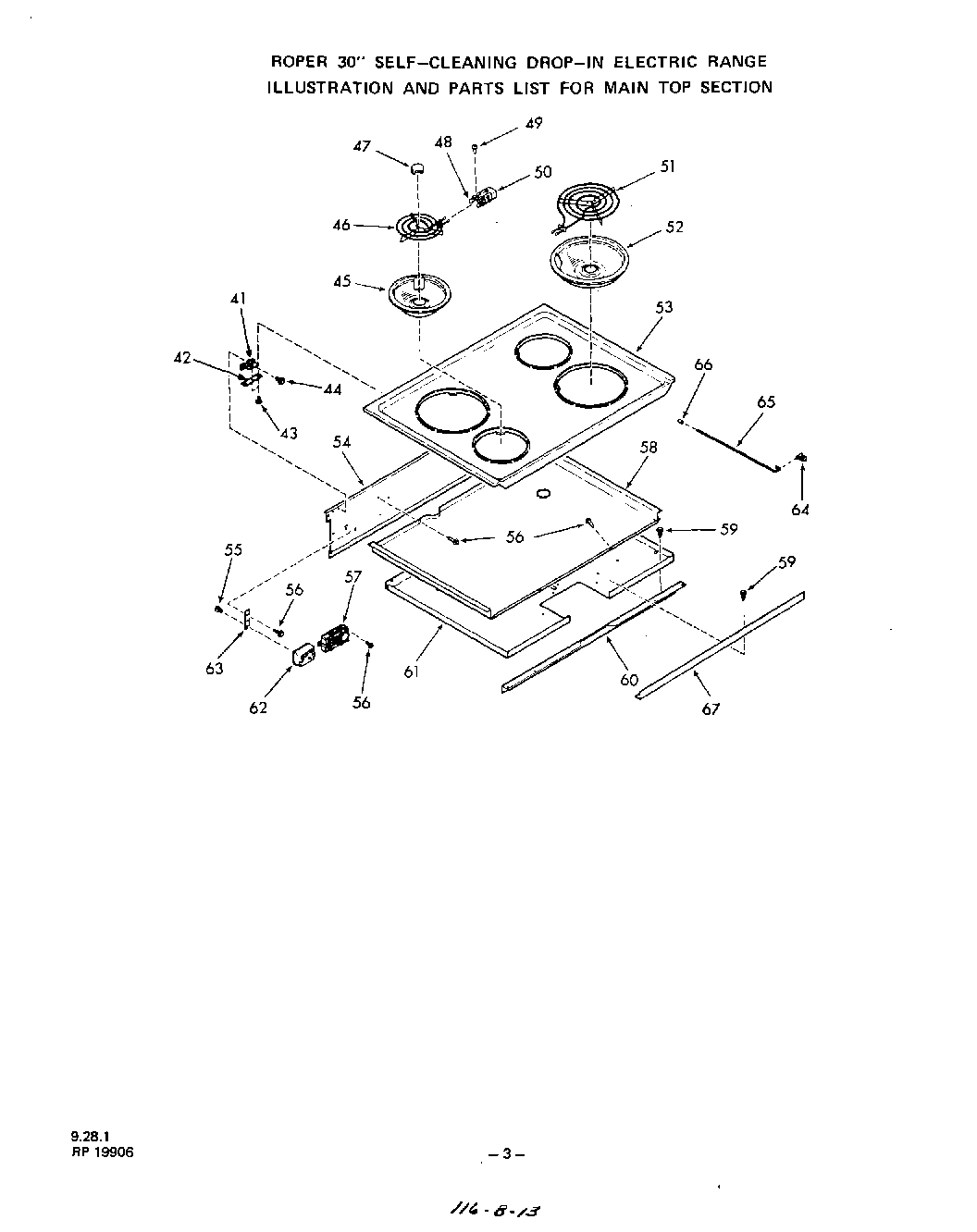

02 - MAIN TOP
03 - POWER LOCK

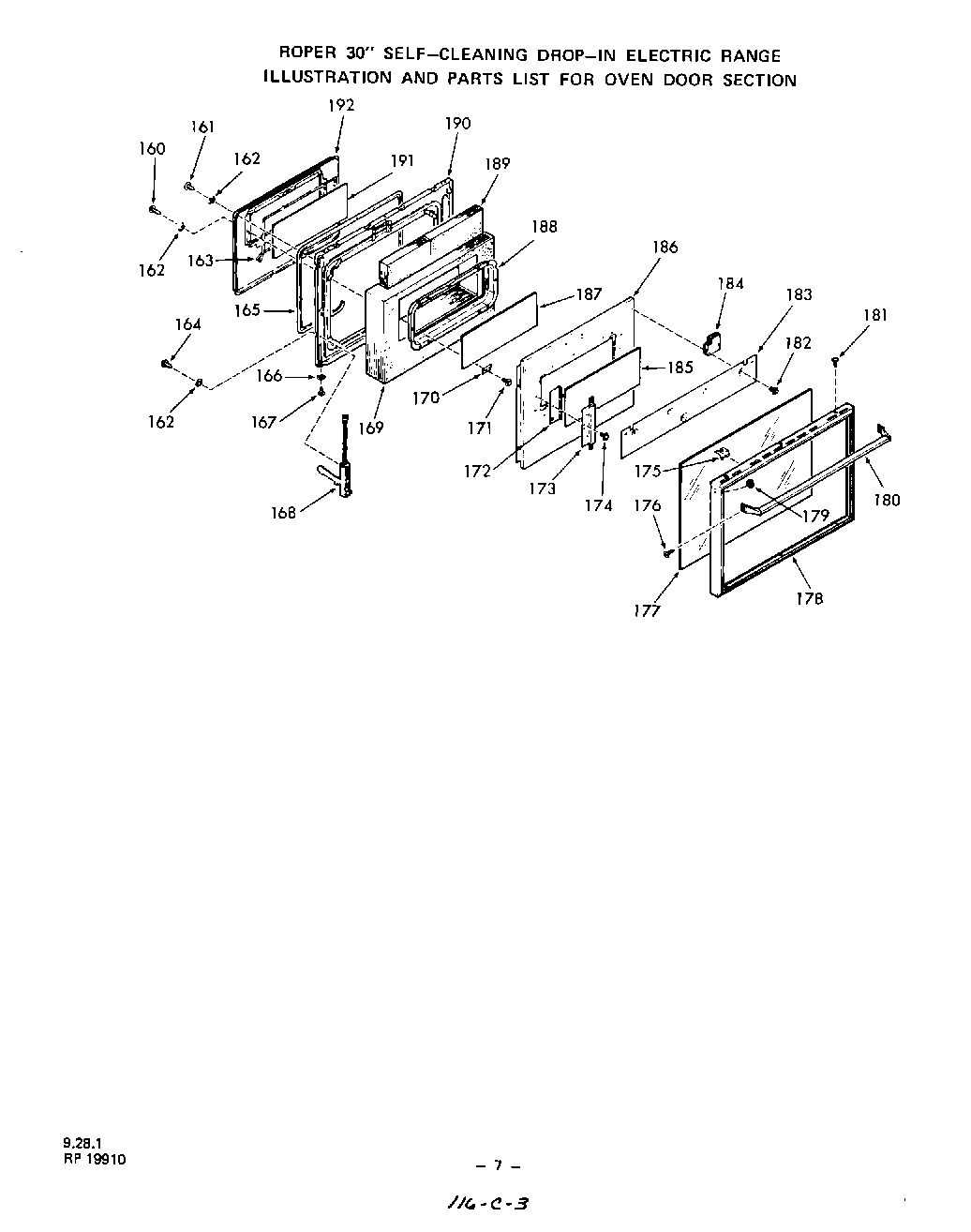

05 - OVEN DOOR , LIT/OPTIONAL
07 - MODEL 2570B00

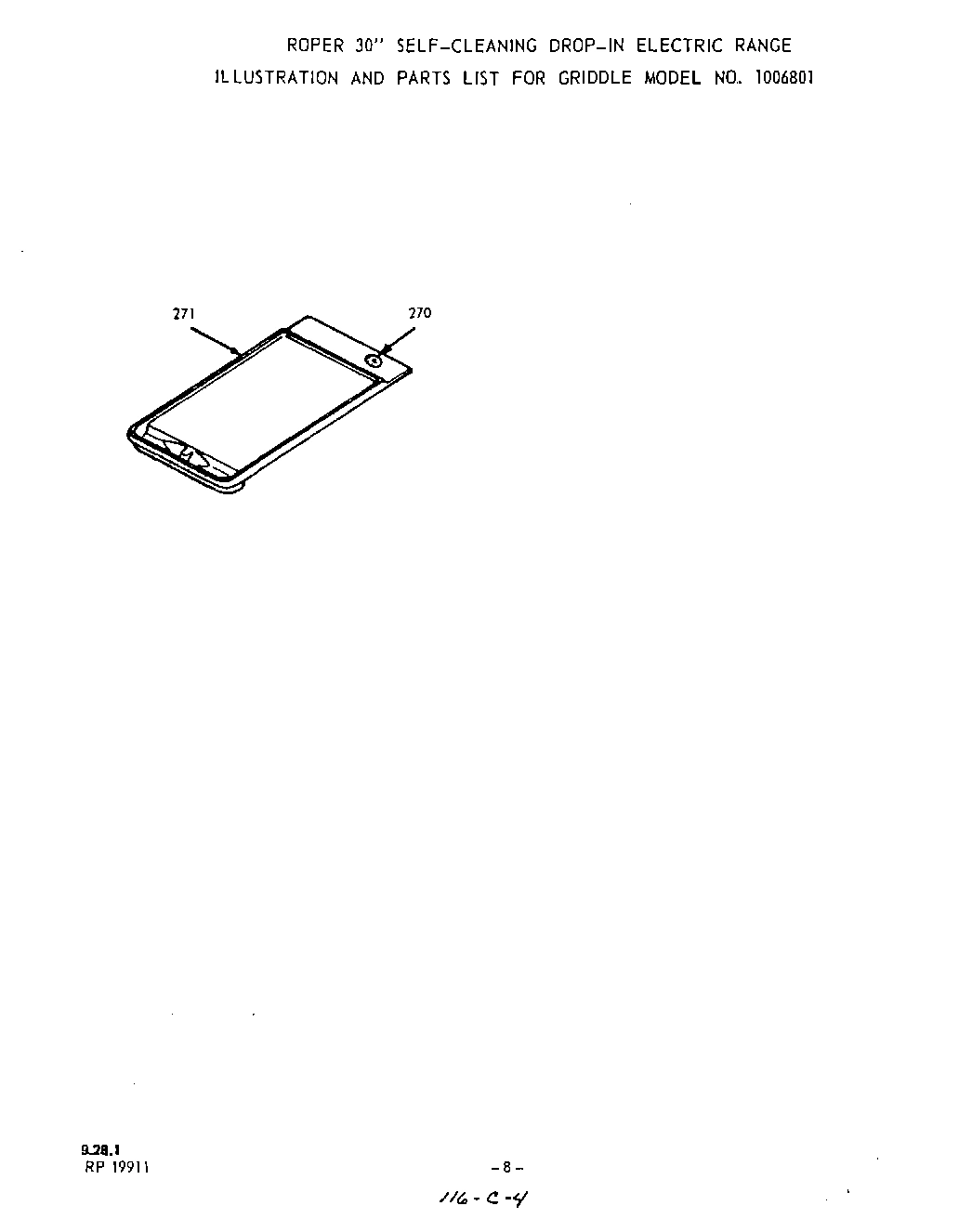

06 - GRIDDLE

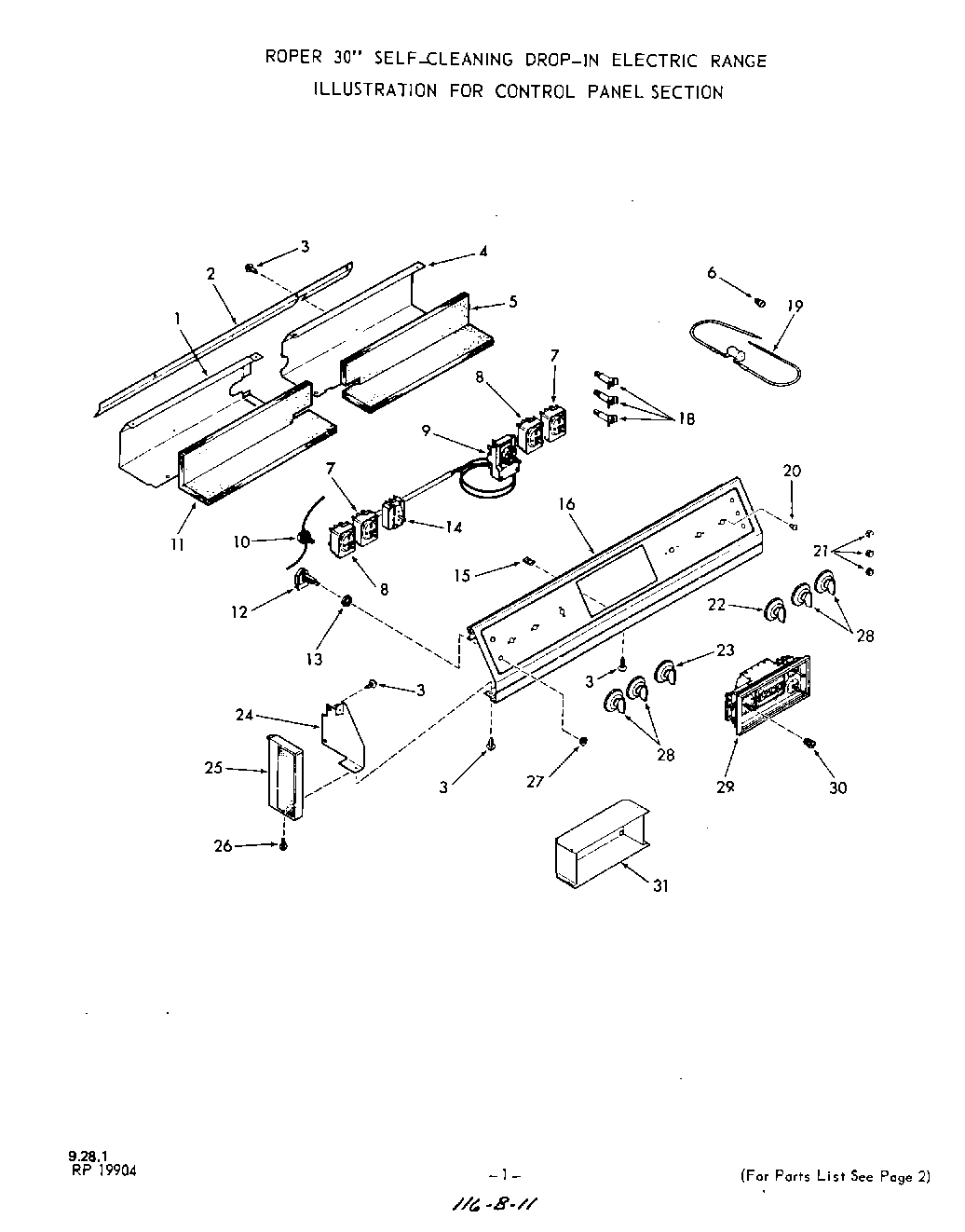

01 - CONTROL PANEL
Common parts from model Whirlpool 2570B00 ELECTRIC RANGE
xWire Harness WPL ARI11390A6 Contact Us For Availability
1
Wire Cover-Controls (Left) WPL 313197 Contact Us For Availability
2
Baffle-Wires WPL 314656 Contact Us For Availability
4
Wire Cover-Controls (Right) WPL 313196 Contact Us For Availability
5
Insulation-Controls (Right) WPL 314657 Contact Us For Availability
6
Wire Connector (2 Required) WPL 66763 Contact Us For Availability
7
2570B00 WPL 301666 Contact Us For Availability
7
Infinite Control-Rt. Frt. & Lt. Rr. WPL ARI11371A4 Contact Us For Availability
8
2570B10 WPL 320944 Contact Us For Availability
8
2570B00 WPL 301667 Contact Us For Availability
8
Infinite Control-Rt. Rr. & Lt. Frt. WPL ARI11372A2 Contact Us For Availability
9
2570B00 WPL 291268 Contact Us For Availability
9
2570B10 WPL 320776 Contact Us For Availability
9
Oven Thermostat WPL ARI11373A9 Contact Us For Availability
10
Push Switch (Lock-Unlock) WPL 305928 Contact Us For Availability
11
Insulation-Controls (Left) WPL 314658 Contact Us For Availability
12
Push Switch-Oven Light WPL 298794 Contact Us For Availability
13
Pal Nut (1 Ea. for Keys 10 & 12) WPL 236129 Contact Us For Availability
14
2570B00 WPL 315608 Contact Us For Availability
14
2570B10 WPL 320835 Contact Us For Availability
14
Selector Switch WPL ARI11374A7 Contact Us For Availability
15
Speed Nut 10 - 32 WPL 108069 Contact Us For Availability
16
Control Panel WPL 312942 Contact Us For Availability
18
Indicator Light WPL 288247 Contact Us For Availability
19
Wire Lead w/Resistor WPL 316936 Contact Us For Availability
21
Lens-Indicator Light WPL 233161 Contact Us For Availability
22
2570B00 WPL 313987 Contact Us For Availability
22
2570B10 WPL 321080 Contact Us For Availability
22
Knob-Oven Thermostat WPL ARI11375A6 Contact Us For Availability
23
2570B00 WPL 302446 Contact Us For Availability
23
2570B10 WPL 321077 Contact Us For Availability
23
Knob-Selector Switch WPL ARI11376A9 Contact Us For Availability
24
Right WPL 315398 Contact Us For Availability
24
Left WPL 315400 Contact Us For Availability
24
Bracket-End Cap & Control Panel WPL ARI11377A9 Contact Us For Availability
25
Left WPL 315578 Contact Us For Availability
25
Right WPL 315579 Contact Us For Availability
25
End Cap WPL ARI11378A9 Contact Us For Availability
26
Screw 10Ax1/2`` WPL 69014 Contact Us For Availability
27
Knurled Nut (1 Ea. for Keys 10 & 12) WPL 87403 Contact Us For Availability
28
2570B00 WPL 298555 Contact Us For Availability
28
2570B10 WPL 321078 Contact Us For Availability
28
Knob-Infinite Control WPL ARI11379A7 Contact Us For Availability
29
Clock w/1 Hr. Timer WPL 318036 Contact Us For Availability
30
Knob-Clock (Start & Stop Time) (3) WPL 109225 Contact Us For Availability
31
Cover-Clock WPL 316971 Contact Us For Availability
41
Hinge-Main Top (Lt. or Rt.) WPL 315568 Contact Us For Availability
42
Mounting Bracket-Main Top (Lt. or Rt.) WPL 315782 Contact Us For Availability
43
Screw 6-32x3/16`` WPL 315919 Contact Us For Availability
45
6`` Chrome Bowl-Lt., Rt. Rear & Lt. Front WPL 296481 Contact Us For Availability
46
2570B00 WPL 303251 Contact Us For Availability
46
2570B10 WPL 321014 Contact Us For Availability
46
6`` Surface Element (Lt. Frt. & Rt. Rr.) WPL ARI11380A6 Contact Us For Availability
47
2570B00 WPL 294328 Contact Us For Availability
47
2570B10 WPL 318586 Contact Us For Availability
47
Medallion (4 Required) WPL ARI11381A8 Contact Us For Availability
48
Bracket-Terminal Block-2570B00 WPL 293977 Contact Us For Availability
49
Screw 7-32x5/16`` WPL 299632 Contact Us For Availability
50
2570B10 WPL 304645 Contact Us For Availability
50
2570B00 WPL 306179 Contact Us For Availability
50
Terminal Block w/Wire Lead (4 Required) WPL ARI11382A6 Contact Us For Availability
51
2570B10 WPL 321012 Contact Us For Availability
51
8`` Surface Element (Rt. Frt. & Lt. Rr.) WPL ARI11383A7 Contact Us For Availability
52
8`` Burner Bowl (Rt. Frt. & Lt. Rr.) WPL 304969 Contact Us For Availability
53
Main Top WPL 307215 Contact Us For Availability
54
Upper Wire Cover WPL 315802 Contact Us For Availability
55
Screw 8-32x3/16`` WPL 78565 Contact Us For Availability
57
Relay WPL 239802 Contact Us For Availability
58
Top-Burner Box WPL 313561 Contact Us For Availability
60
Extension-Burner Box WPL 306071 Contact Us For Availability
61
Burner Box Bottom WPL 313081 Contact Us For Availability
62
Fixed Input Control WPL 293428 Contact Us For Availability
63
Bracket-Fixed Input Control WPL 313833 Contact Us For Availability
64
Clip WPL 285945 Contact Us For Availability
65
Support-Main Top WPL 315379 Contact Us For Availability
66
Bumper Tip WPL 316939 Contact Us For Availability
67
Wire Shield WPL 315810 Contact Us For Availability
71
Spring-Solenoid WPL 299704 Contact Us For Availability
73
Lock Plate WPL 306072 Contact Us For Availability
74
Spring-Lock Handle WPL 299599 Contact Us For Availability
76
Rod-Oven Door Lock WPL 313088 Contact Us For Availability
78
Solenoid w/Switch WPL 314659 Contact Us For Availability
79
Bracket-Solenoid WPL 313076 Contact Us For Availability
80
Oven Door Lock Box Asm. (Inc. Key 74) WPL 305698 Contact Us For Availability
81
Screw 6 - 32 x 17/32`` WPL 313768 Contact Us For Availability
82
Knob-Oven Door Lock Handle WPL 314843 Contact Us For Availability
89
Screen-Burn. Box (Lt. or Rt.) WPL 315805 Contact Us For Availability
90
Clip WPL 70588 Contact Us For Availability
91
Pal Nut WPL 235421 Contact Us For Availability
92
Baffle-Lt. or Rt. WPL 304873 Contact Us For Availability
93
Screw 10 - 32 x 7/16`` WPL 295850 Contact Us For Availability
94
Right WPL 312925 Contact Us For Availability
94
Left WPL 312927 Contact Us For Availability
94
Insulation Retainer WPL ARI11384A2 Contact Us For Availability
97
Hinge Angle-Lt. or Rt. WPL 313267 Contact Us For Availability
99
Screw 8ABx5/8`` WPL 315393 Contact Us For Availability
100
Oven Rack (2 Req) WPL 305346 Contact Us For Availability
109
Hinge Box - Lt. or Rt. WPL 313266 Contact Us For Availability
110
Broiler Pan WPL 282278 Contact Us For Availability
111
Broiler Pan Grid WPL 282273 Contact Us For Availability
112
Screw 8AB x 1/2`` WPL 282634 Contact Us For Availability
113
Right WPL 306843 Contact Us For Availability
113
Left WPL 306844 Contact Us For Availability
113
Side Trim WPL ARI11385A3 Contact Us For Availability
114
Insulation Retainer-Oven Bottom WPL 304864 Contact Us For Availability
115
Main Bottom WPL 315477 Contact Us For Availability
116
Screw No.8 x 1`` WPL 105953 Contact Us For Availability
117
Trim - Burner Box Side (Lt. or Rt.) WPL 316928 Contact Us For Availability
118
Harness-Conduit Asm. WPL 313195 Contact Us For Availability
119
Wire Cover WPL 312945 Contact Us For Availability
120
Bracket-Conduit Mounting WPL 312987 Contact Us For Availability
121
Main Back WPL 304842 Contact Us For Availability
122
Insulation-Oven Back & Bottom WPL 282635 Contact Us For Availability
123
Front Frame WPL 315482 Contact Us For Availability
124
Screw 10 - 32 x 17/32`` WPL 102428 Contact Us For Availability
125
Bottom Trim-Door WPL 315484 Contact Us For Availability
126
Thermostat Bulb Plate WPL 237762 Contact Us For Availability
127
Retainer-Thermostat Bulb WPL 238052 Contact Us For Availability
128
Oven Rack Guide-Rt. or Lt. WPL 305350 Contact Us For Availability
129
Bake Element WPL 320421 Contact Us For Availability
130
Screw 10 - 32 x 1/2`` WPL 289730 Contact Us For Availability
131
Cover Plate, Rotisserie WPL 229607 Contact Us For Availability
132
Speed Nut 10-32 WPL 107956 Contact Us For Availability
134
Oven Body WPL 314892 Contact Us For Availability
135
Cover WPL 304835 Contact Us For Availability
136
Insulation - Oven Top & Sides (1 piece) WPL 282636 Contact Us For Availability
137
Insulation-Rt. or Lt. WPL 303097 Contact Us For Availability
138
Vent Tube WPL 313765 Contact Us For Availability
139
Broiler Element WPL 319526 Contact Us For Availability
140
Oven Lamp Bulb WPL 111257 Contact Us For Availability
141
Holder-Oven Lamp Bulb WPL 87883 Contact Us For Availability
142
Retainer-Oven Light Lens WPL 229372 Contact Us For Availability
143
Screw 10 - 32 x 1/2`` WPL 102430 Contact Us For Availability
144
Oven Light Lens WPL 114989 Contact Us For Availability
145
Gasket-Lens WPL 229371 Contact Us For Availability
146
Support-Broiler Element WPL 285840 Contact Us For Availability
147
Washer WPL 313189 Contact Us For Availability
160
Screw 10ABx1 WPL 105799 Contact Us For Availability
161
Screw 10-32 x 1/2`` WPL 102376 Contact Us For Availability
162
Washer WPL 21067 Contact Us For Availability
163
Asbestos Seal WPL 302935 Contact Us For Availability
164
Screw 10-32x3/8`` WPL 239113 Contact Us For Availability
165
Gasket-Oven Door WPL 292244 Contact Us For Availability
166
Washer WPL 106462 Contact Us For Availability
167
Screw 10-32x5/16`` WPL 286628 Contact Us For Availability
168
Hinge-Lt. or Rt. WPL 313045 Contact Us For Availability
170
Retainer-Door Glass (4 Required) WPL 312888 Contact Us For Availability
171
Screw 10-32x17/32`` WPL 295849 Contact Us For Availability
172
Spacer-Oven Door Glass (Lt. or Rt.) WPL 307841 Contact Us For Availability
174
Screw 10-32 x 17/32`` WPL 104520 Contact Us For Availability
175
Retainer-Door Glass (6 Required) 2570B00 WPL 299596 Contact Us For Availability
176
Screw 8-32 x 1/2`` WPL 319447 Contact Us For Availability
177
2570B00 WPL 312951 Contact Us For Availability
177
2570B10 WPL 321354 Contact Us For Availability
177
Outer Glass-Oven Door WPL ARI11386A9 Contact Us For Availability
178
Frame-Door WPL 312948 Contact Us For Availability
179
Keps Nut 8-32 WPL 239764 Contact Us For Availability
180
Handle-Oven Door WPL 318939 Contact Us For Availability
181
Screw 10-32x1/2`` WPL 112013 Contact Us For Availability
182
Screw 10 - 32 x 1/4`` WPL 105771 Contact Us For Availability
183
2570B00 WPL 315589 Contact Us For Availability
183
2570B10 WPL 321353 Contact Us For Availability
183
Baffle-Oven Door Lining WPL ARI11387A4 Contact Us For Availability
184
Insulation-Top Corner (Rt. or Lt.) 2570B00 WPL 303138 Contact Us For Availability
185
Center Glass-Oven Door WPL 308239 Contact Us For Availability
186
2570B00 WPL 311695 Contact Us For Availability
186
2570B10 WPL 321351 Contact Us For Availability
186
Retainer-Oven Door Insulation WPL ARI11388A1 Contact Us For Availability
187
2570B00 WPL 296214 Contact Us For Availability
187
2570B10 WPL 299921 Contact Us For Availability
187
Center Glass-Oven Door WPL ARI11389A6 Contact Us For Availability
188
Retainer-Oven Door Glass WPL 314352 Contact Us For Availability
189
Insulation-Oven Door (Top) WPL 299930 Contact Us For Availability
190
Lining-Oven Door WPL 314895 Contact Us For Availability
191
Inner Glass-Oven Door WPL 312426 Contact Us For Availability
192
Selector Switch WPL 312953 Contact Us For Availability
192
Controls WPL 312954 Contact Us For Availability
192
Plug-Oven Door Lining WPL 315055 Contact Us For Availability
192
Infinites-2570B00 WPL 316938 Contact Us For Availability
192
Infinites-2570B10 WPL 321806 Contact Us For Availability
270
Thermometer WPL 87996 Contact Us For Availability
271
Set-On Griddle WPL 236766 Contact Us For Availability
× ![]()
