Model Kenmore 25374863400 REFRIGERATOR – Common Parts & Diagrams
01 - COVER
03 - DOOR
05 - CABINET

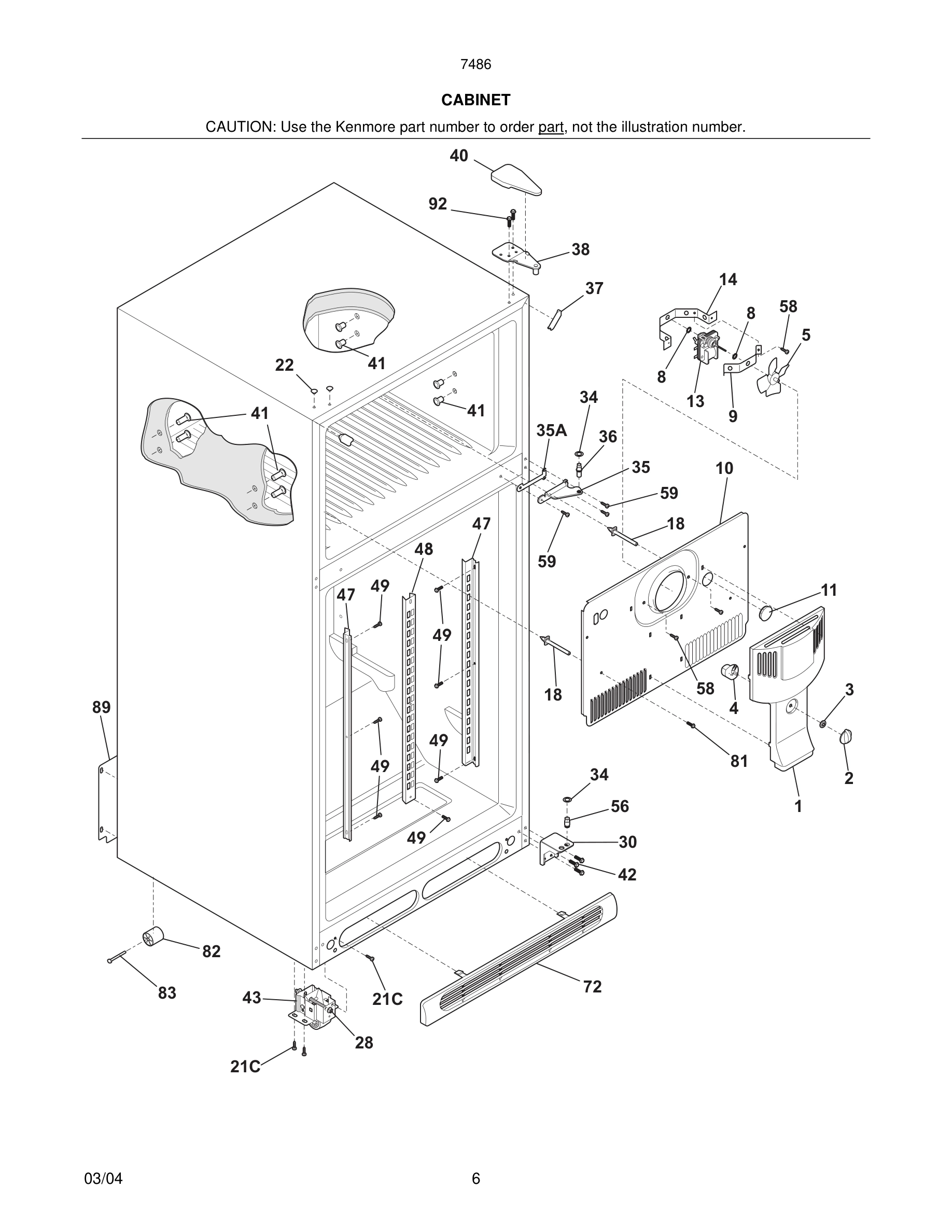

07 - CABINET

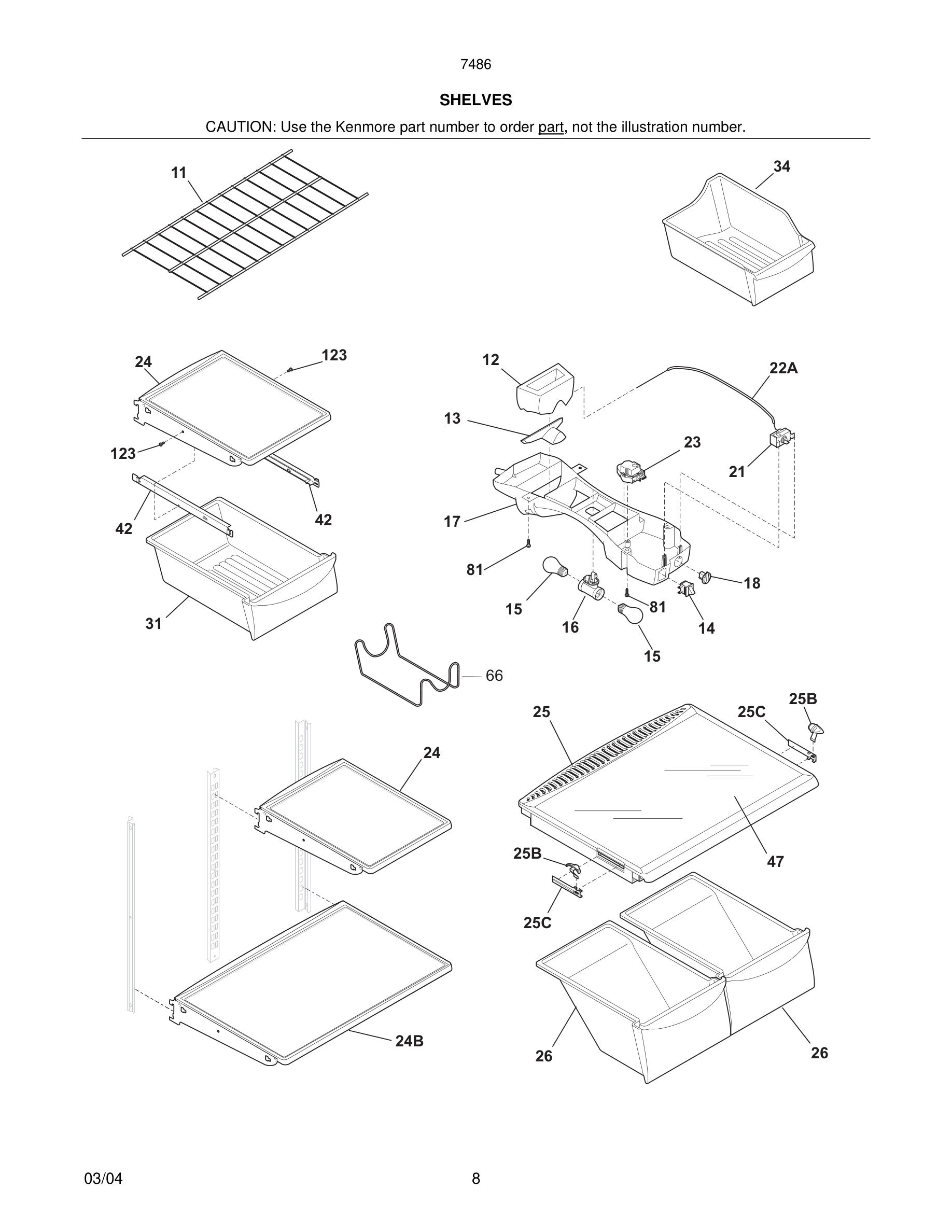

09 - SHELVES

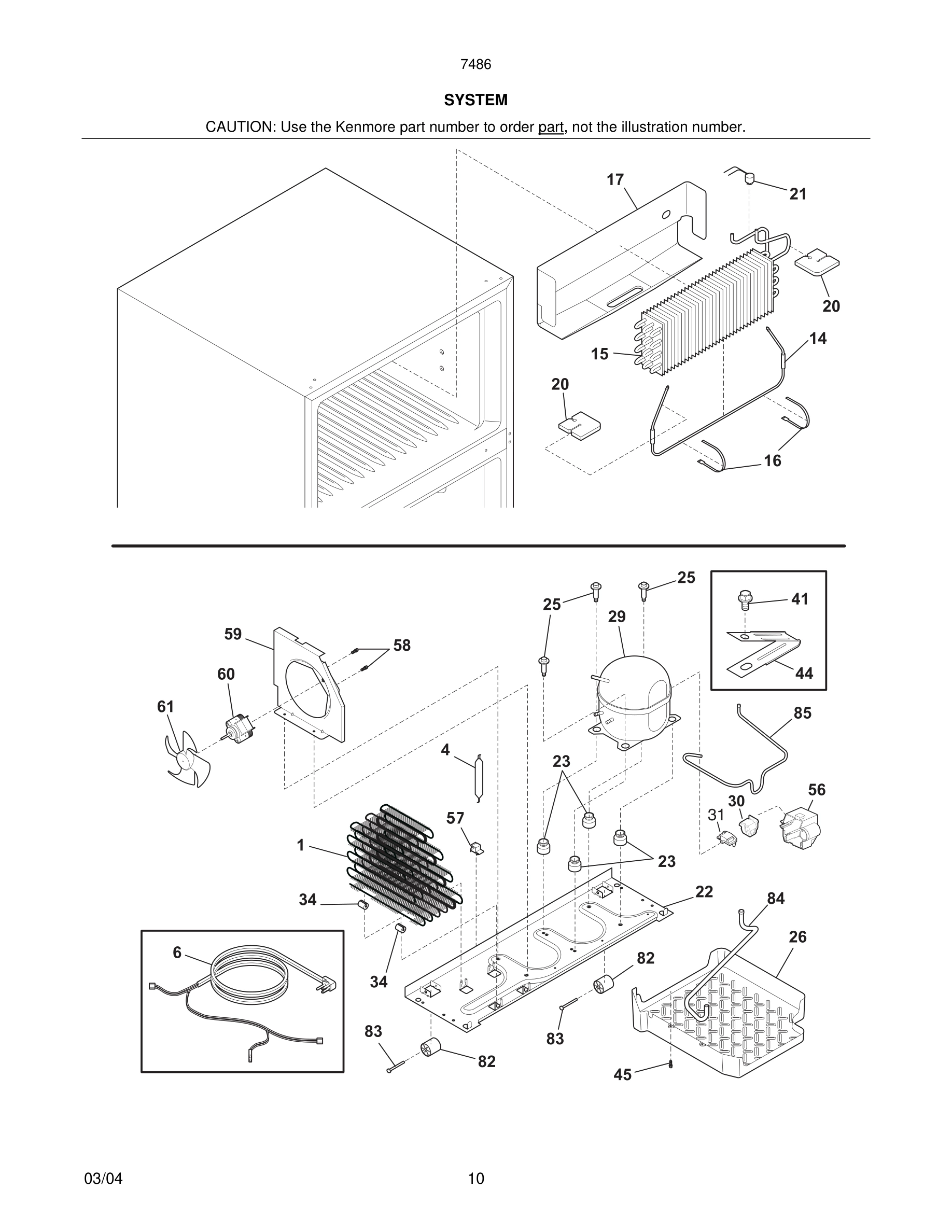

11 - SYSTEM

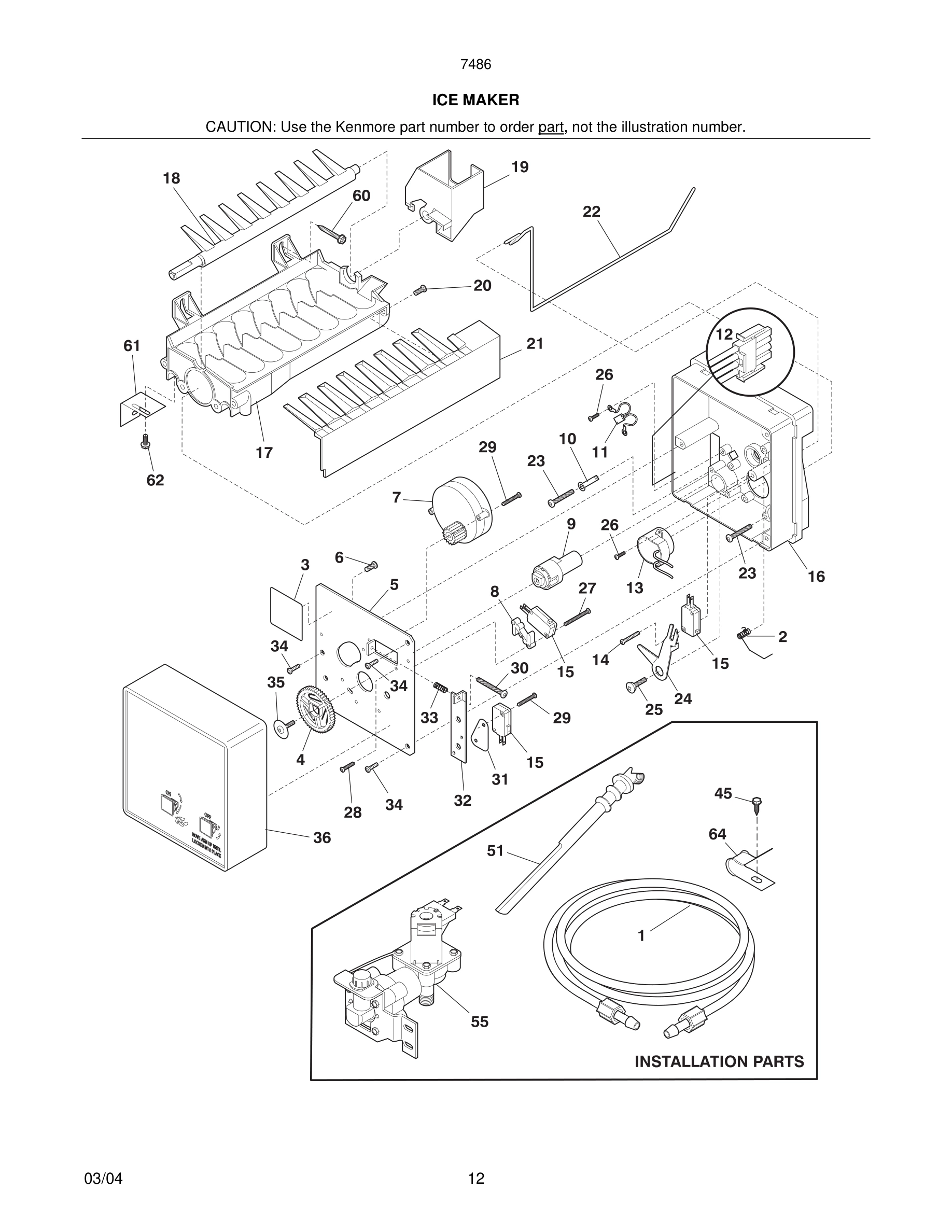

13 - ICE MAKER

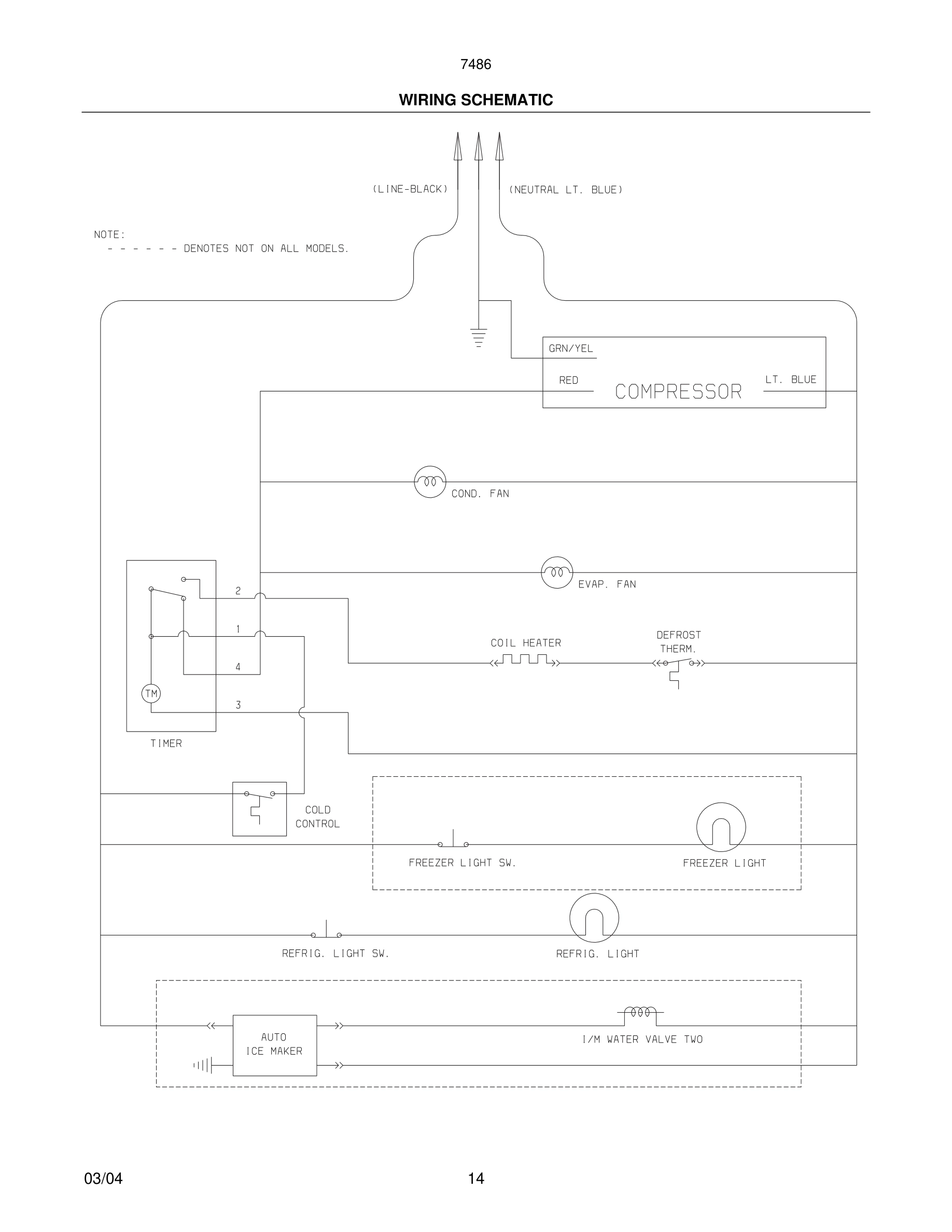

14 - WIRING SCHEMATIC

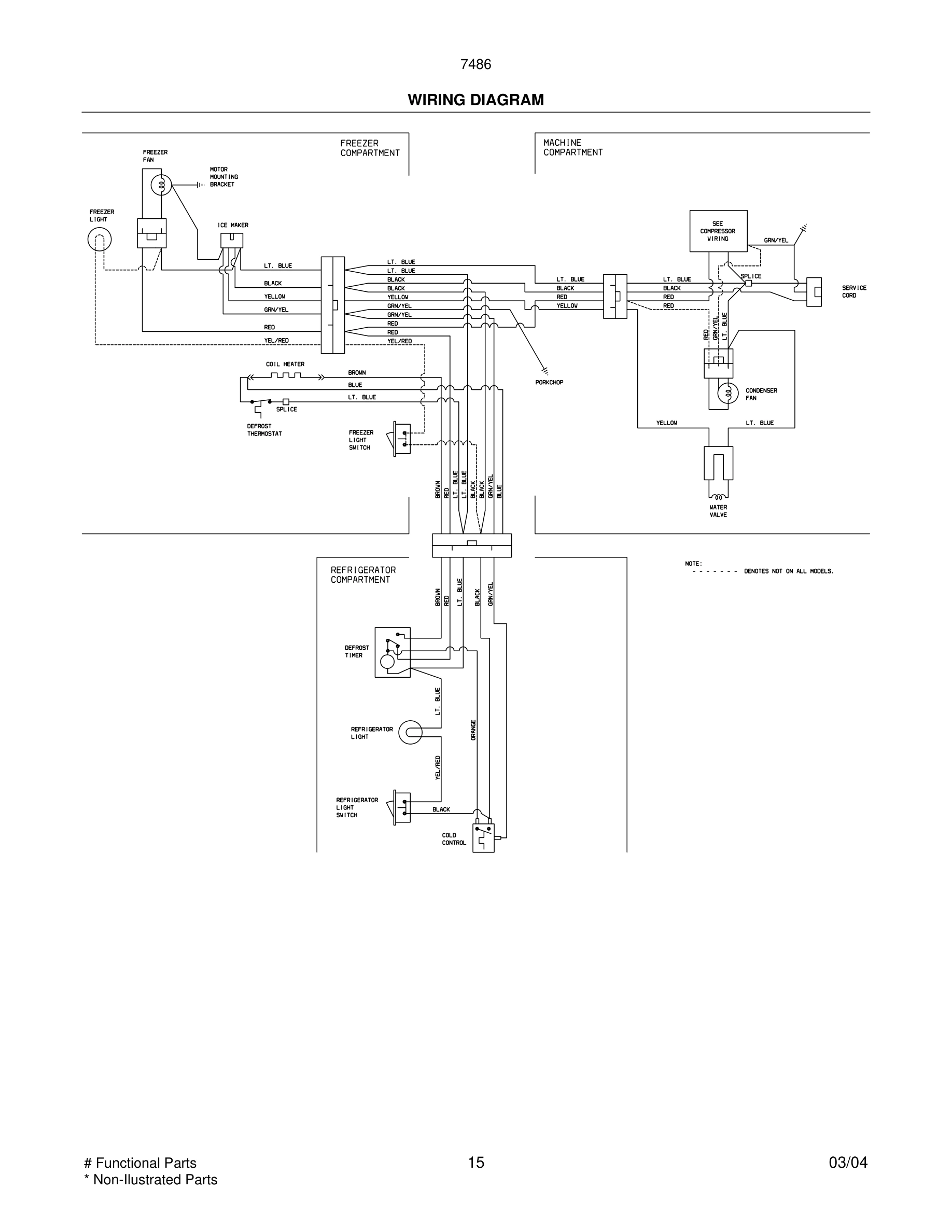

15 - WIRING DIAGRAM
Common parts from model Kenmore 25374863400 REFRIGERATOR
*
Hot Tube Repair Kit, Service WCI 5303918222 Contact Us For Availability
2
Spring, shut-off arm WCI 5304420650 Contact Us For Availability
3
Label, ID plate WCI 3206299 Contact Us For Availability
4
Damper-fan cover WCI 241523701 Contact Us For Availability
5
Plate-mounting WCI 3206303 Contact Us For Availability
6#
Harness-wiring, machine compt WCI 240581701 Contact Us For Availability
6*
Harness-wiring WCI 241520701 Contact Us For Availability
8
Spacer-hold switch WCI 3206312 Contact Us For Availability
9
Bracket-motor mtg, front WCI 5303292396 Contact Us For Availability
9
Cam WCI 3206313 Contact Us For Availability
10
Clamp WCI 3206315 Contact Us For Availability
12
Diffuser, air, top WCI 240545001 Contact Us For Availability
12#
Wiring Harness, ICE MAKER, internal, with plu WCI 5304420651 Contact Us For Availability
13#
Thermostat Assy, ICE MAKER WCI 3206322 Contact Us For Availability
13A
Door Stop, black, frzr WCI 240312406 Contact Us For Availability
14
Screw, 4 x 0.750, switch mtg. WCI 5304420652 Contact Us For Availability
16
Support, phenolic WCI 5304420653 Contact Us For Availability
18
Handle-door, charcoal gray, refr, w/block & s WCI 218779903 Contact Us For Availability
18
Knob, temp control WCI 240360801 Contact Us For Availability
18
Ejector-ice WCI 3206328 Contact Us For Availability
18A
Handle-door, charcoal gray, frzr, w/nameplate WCI 218779811 Contact Us For Availability
19
Bearing & Inlet WCI 3206330 Contact Us For Availability
20
Screw, 8-32 x 0.375 WCI 5304408581 Contact Us For Availability
21
Ice Stripper WCI 3206332 Contact Us For Availability
22
Shut-off Arm WCI 3206333 Contact Us For Availability
23
Screw, 8-32 x 0.875, mold-to-support, (3) WCI 5304408582 Contact Us For Availability
25
Screw-compressor mtg, 1/4-28 x 1.16, shoulder WCI 240491501 Contact Us For Availability
25
Screw, 8-18 x 0.562, lever arm/sprt WCI 3206336 Contact Us For Availability
26
Screw-thermo/sprt, 4-24 x 0.375, (4) WCI 5304420654 Contact Us For Availability
27
Screw, 4-40 x 1.000, hold switch mtg, (2) WCI 3206338 Contact Us For Availability
28
Screw-timing stop, 4-40 x 0.375 WCI 3206339 Contact Us For Availability
29
Screw, 4-24 x 0.750, (6) WCI 3206323 Contact Us For Availability
30
Screw-timing adj, 8-32 x 1.000 WCI 3206341 Contact Us For Availability
31
Insulator WCI 3206342 Contact Us For Availability
32
Plate-valve switch WCI 3206343 Contact Us For Availability
33
Spring-timing adj WCI 5304408583 Contact Us For Availability
34
Screw, plazscrew, 8-10, (3) WCI 5304420655 Contact Us For Availability
35
Screw WCI 5304408585 Contact Us For Availability
36
Cover-ice maker WCI 3206347 Contact Us For Availability
37
Trim-cabinet corner, black, (2) WCI 240337603 Contact Us For Availability
37A*
Lock-handle trim, stick-on WCI 218776501 Contact Us For Availability
48
Channel-shelf mtg, center WCI 5303292395 Contact Us For Availability
56
Cover-terminal WCI 240582001 Contact Us For Availability
59
Bracket-cond motor assy WCI 5304430246 Contact Us For Availability
85
Tube-connector, suction WCI 240493101 Contact Us For Availability
× ![]()
