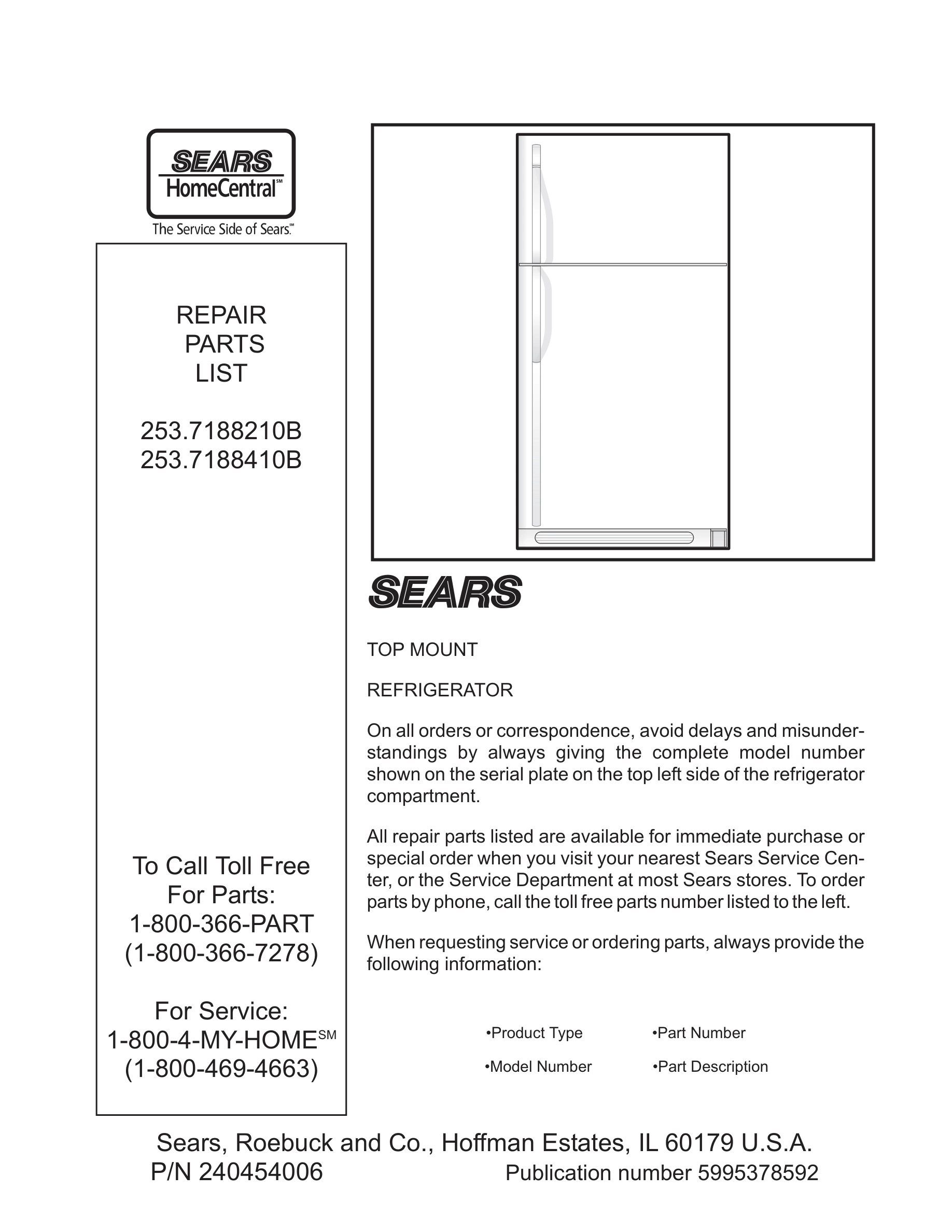

01 - COVER

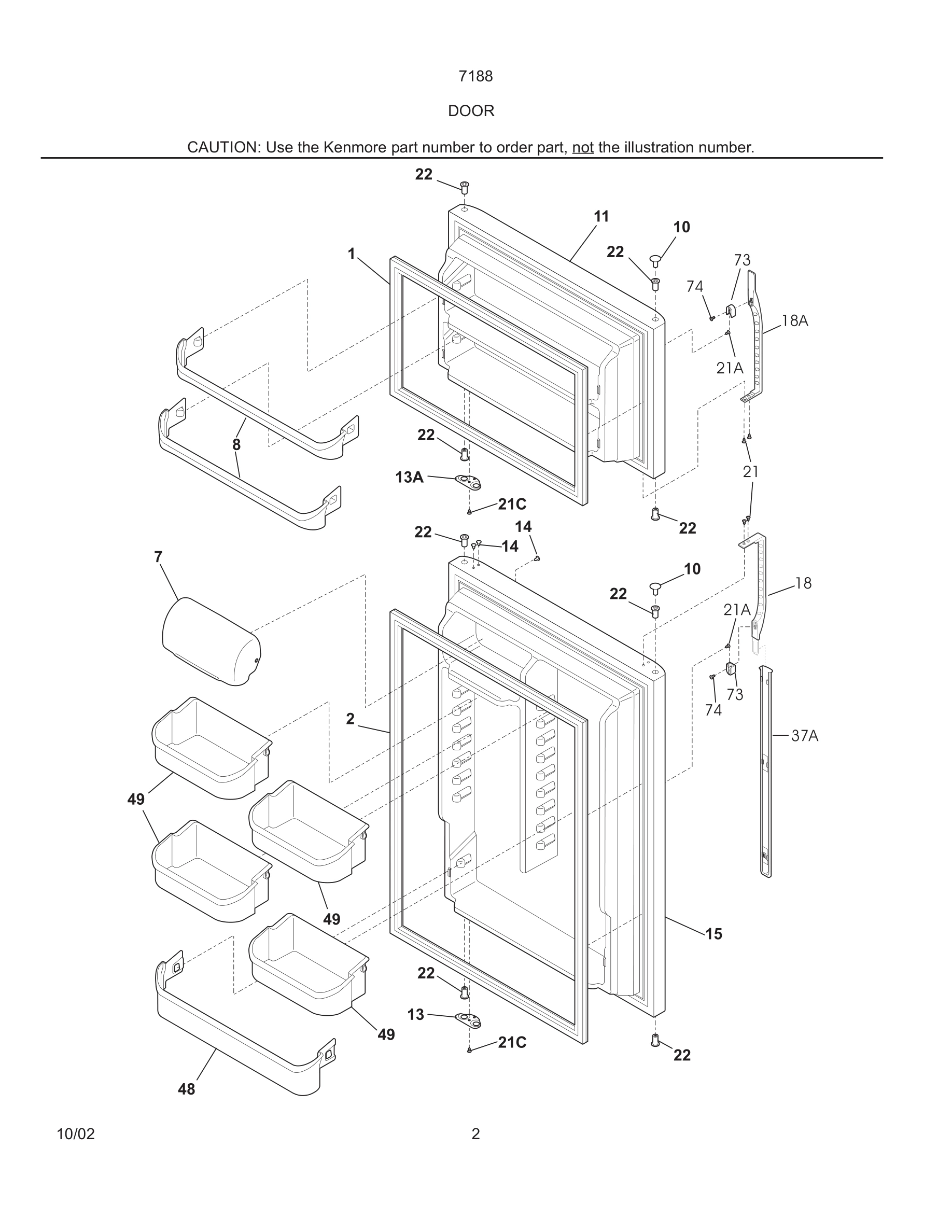

03 - DOOR

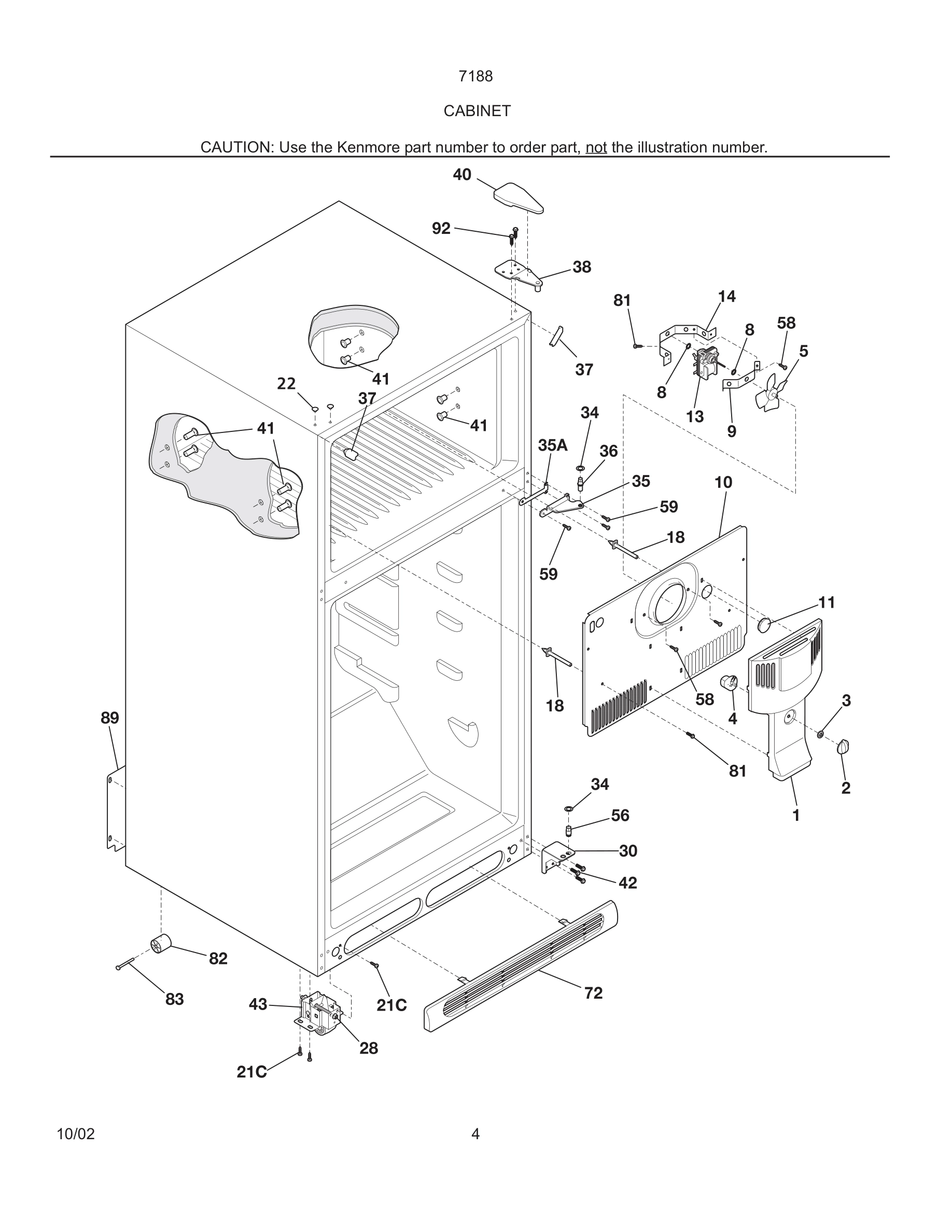

05 - CABINET

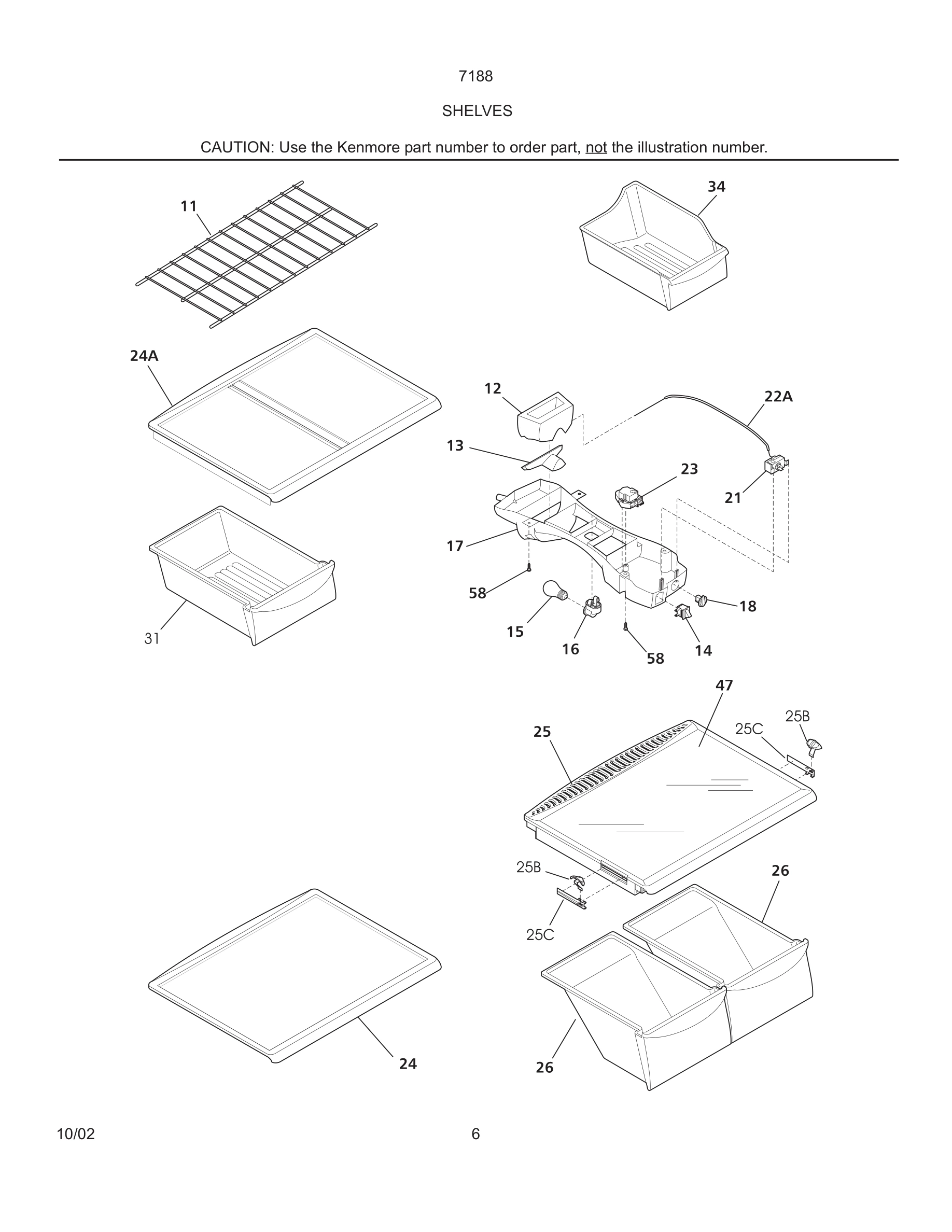

07 - SHELVES

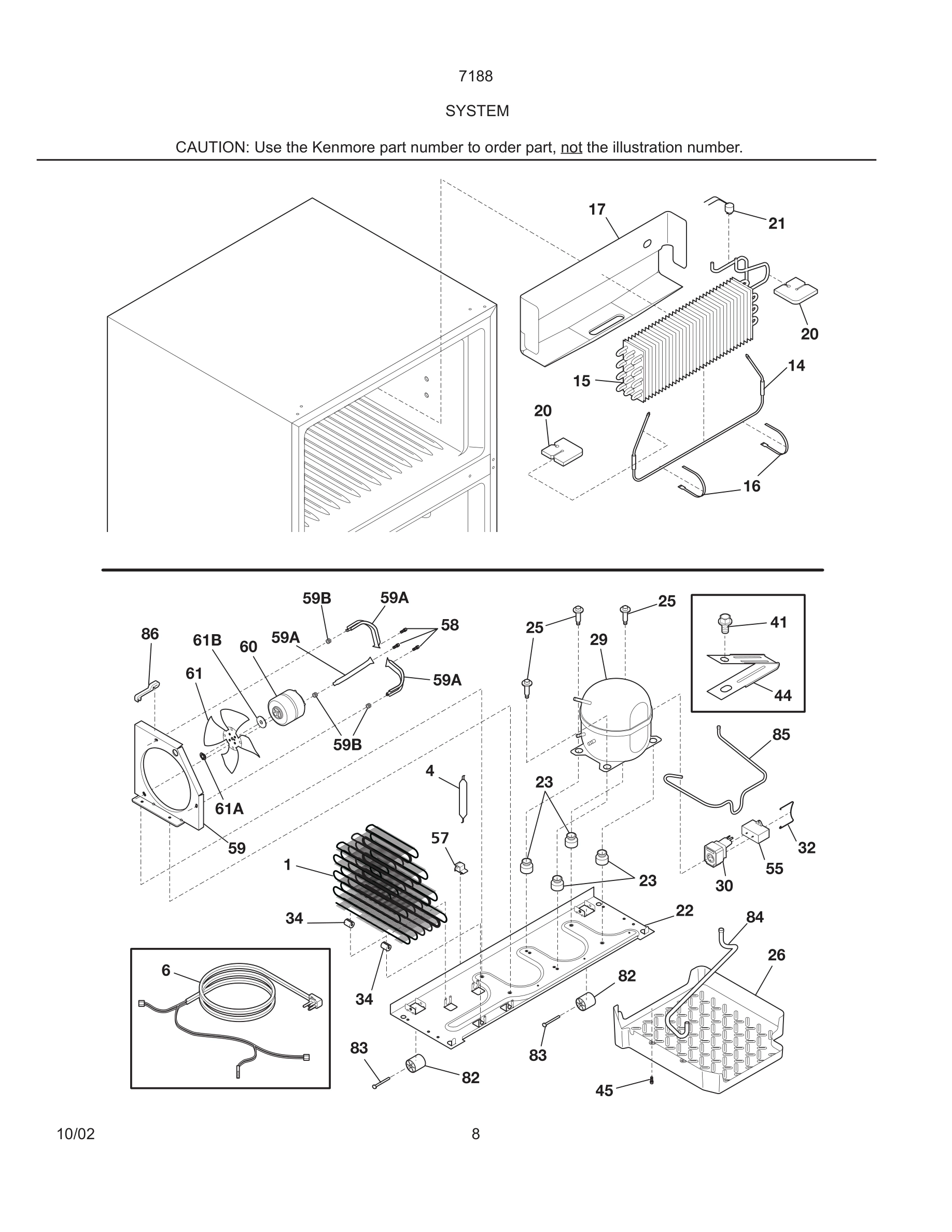

09 - SYSTEM

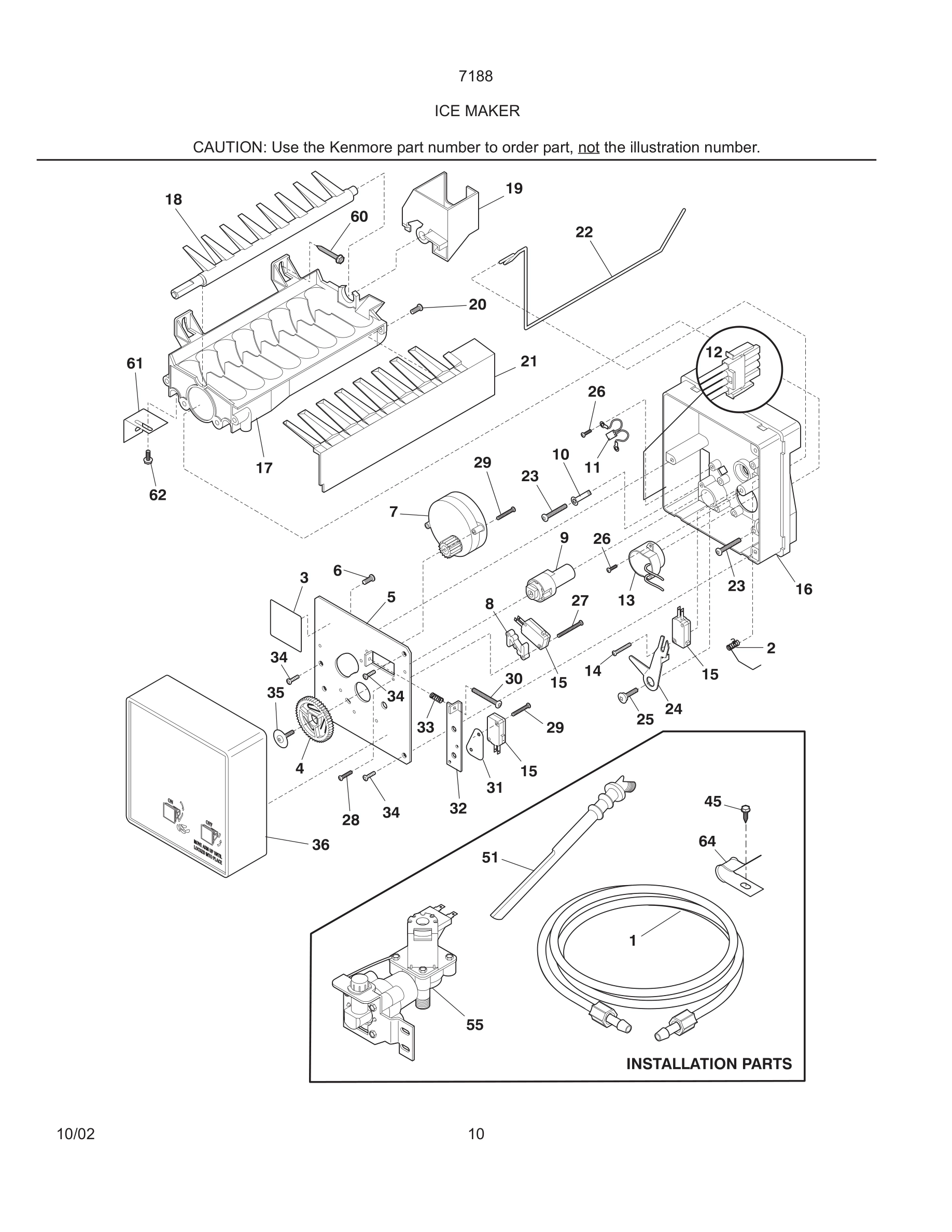

11 - ICE MAKER

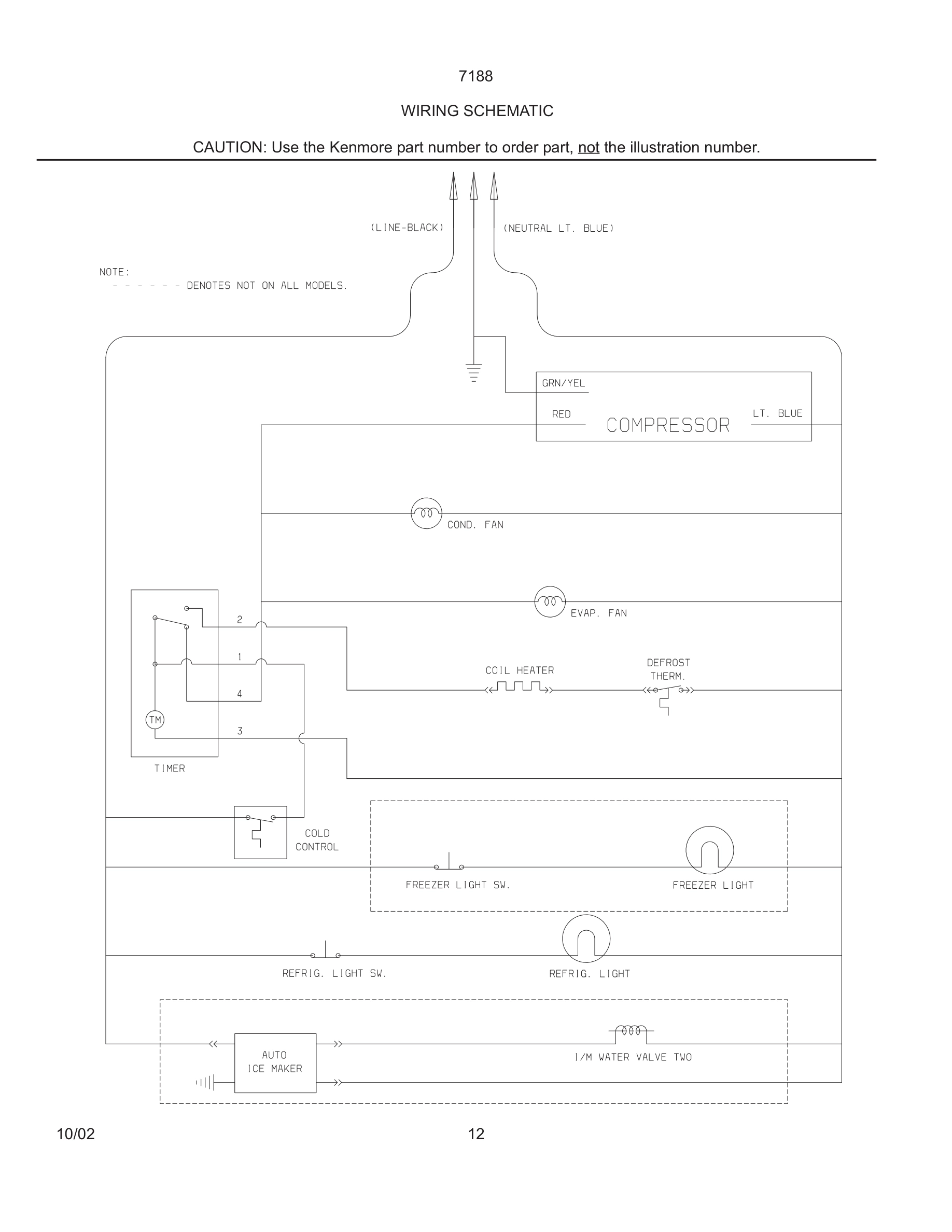

12 - WIRING SCHEMATIC

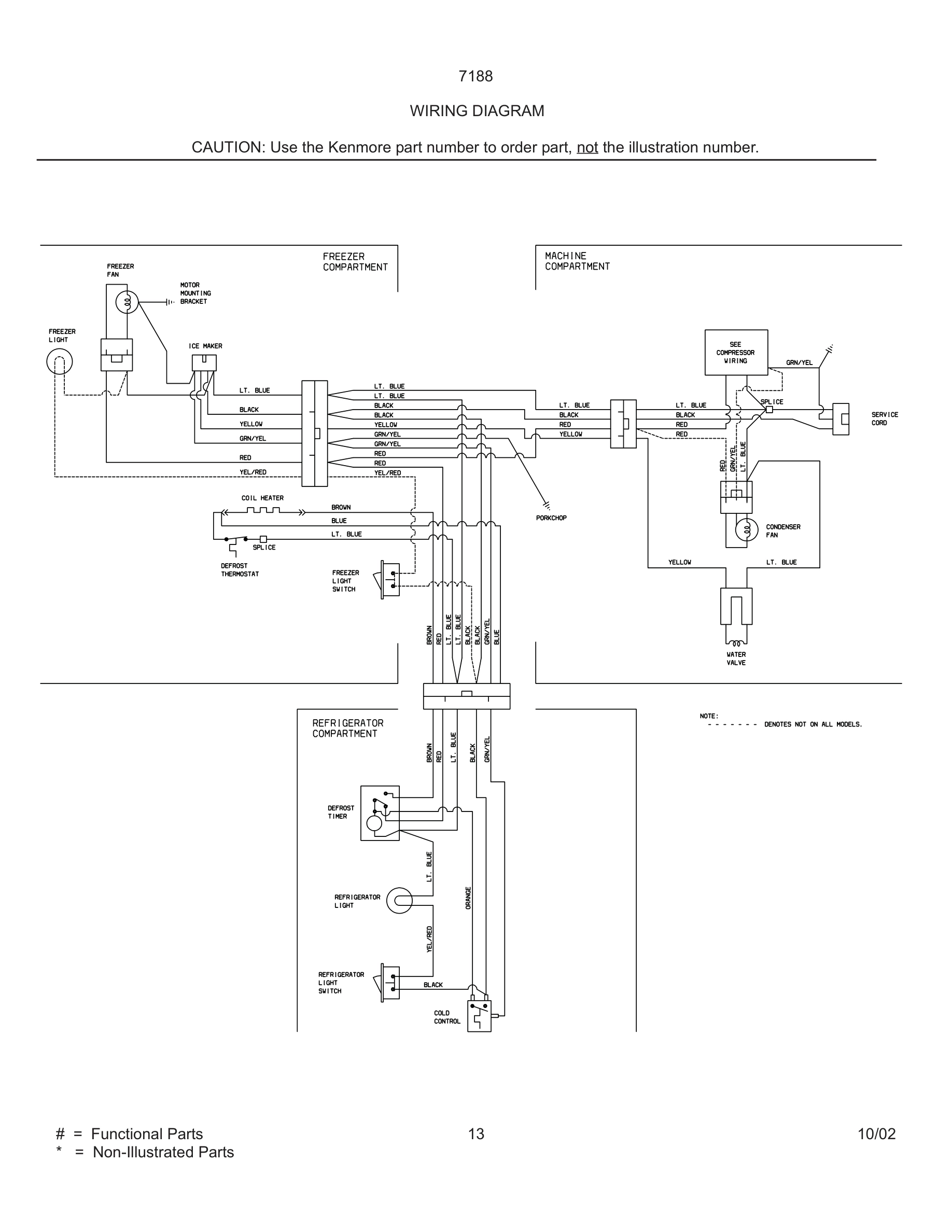

13 - WIRING DIAGRAM
Common parts from model Kenmore 2537188210B REFRIGERATOR
*
Hot Tube Repair Kit,Service WCI 5303918222 Contact Us For Availability
*
Adapter-water supply,nut & sleeve ,compressio WCI 218888001 Contact Us For Availability
2
Spring,shut-off arm WCI 5304420650 Contact Us For Availability
3
Label,ID plate WCI 3206299 Contact Us For Availability
4
Damper-fan cover WCI 240367401 Contact Us For Availability
5
Plate-mounting WCI 3206303 Contact Us For Availability
8
Spacer-hold switch WCI 3206312 Contact Us For Availability
9
Bracket-motor mtg,front WCI 5303292396 Contact Us For Availability
9
Cam WCI 3206313 Contact Us For Availability
10
Clamp WCI 3206315 Contact Us For Availability
12
Diffuser,air ,top WCI 240545001 Contact Us For Availability
12#
Wiring Harness,ice maker ,internal ,with plug WCI 5304420651 Contact Us For Availability
13#
Thermostat Assy,ice maker WCI 3206322 Contact Us For Availability
14
Screw,4 x 0.750 ,switch mtg. WCI 5304420652 Contact Us For Availability
16
Support,phenolic WCI 5304420653 Contact Us For Availability
18
Knob,temp control WCI 240360801 No Longer Available
18
Ejector-ice WCI 3206328 Contact Us For Availability
18A
Handle-door,white ,frzr ,w/nameplate ,block & WCI 218779809 No Longer Available
19
Bearing & Inlet WCI 3206330 Contact Us For Availability
20
Screw,8-32 x 0.375 WCI 5304408581 Contact Us For Availability
21
Ice Stripper WCI 3206332 Contact Us For Availability
22
Shut-off Arm WCI 3206333 Contact Us For Availability
23
Screw,8-32 x 0.875 ,mold-to-support ,(3) WCI 5304408582 Contact Us For Availability
25
Screw-compressor mtg,1/4-28 x 1.16,shoulder,t WCI 240491501 Contact Us For Availability
25
Screw,8-18 x 0.562 ,lever arm/sprt WCI 3206336 Contact Us For Availability
26
Screw-thermo/sprt,4-24 x 0.375 ,(4) WCI 5304420654 Contact Us For Availability
27
Screw,4-40 x 1.000 ,hold switch mtg ,(2) WCI 3206338 Contact Us For Availability
28
Screw-timing stop,4-40 x 0.375 WCI 3206339 Contact Us For Availability
29
Screw,4-24 x 0.750 ,(6) WCI 3206323 Contact Us For Availability
30
Screw-timing adj,8-32 x 1.000 WCI 3206341 Contact Us For Availability
31
Insulator WCI 3206342 Contact Us For Availability
32
Plate-valve switch WCI 3206343 Contact Us For Availability
33
Spring-timing adj WCI 5304408583 Contact Us For Availability
34
Screw,plazscrew ,8-10 ,(3) WCI 5304420655 Contact Us For Availability
35
Screw WCI 5304408585 Contact Us For Availability
36
Cover-ice maker WCI 3206347 Contact Us For Availability
37A
Trim-handle,28.18" ,white ,lower ,w/mtg locks WCI 218779310 Contact Us For Availability
37A*
Lock-handle trim,stick-on WCI 218776501 Contact Us For Availability
37A*
Plug-button,white ,refr door front ,1 ,lower WCI 218074001 Contact Us For Availability
41
Screw,hex washer head ,8-32 x 1/4 WCI 218897001 Contact Us For Availability
59
Shroud-cond fan WCI 240315501 Contact Us For Availability
59B
Grommet-bracket,(3) WCI 240346601 Contact Us For Availability
61#
Fan Blade,galv steel ,condenser fan WCI 240315401 Contact Us For Availability
61*
Connector-shaft WCI 240397201 Contact Us For Availability
61A
Nut,speed WCI 218956700 Contact Us For Availability
61B
Grommet-silencer WCI 218956801 Contact Us For Availability
85
Tube-connector,suction WCI 240493101 Contact Us For Availability
× ![]()
