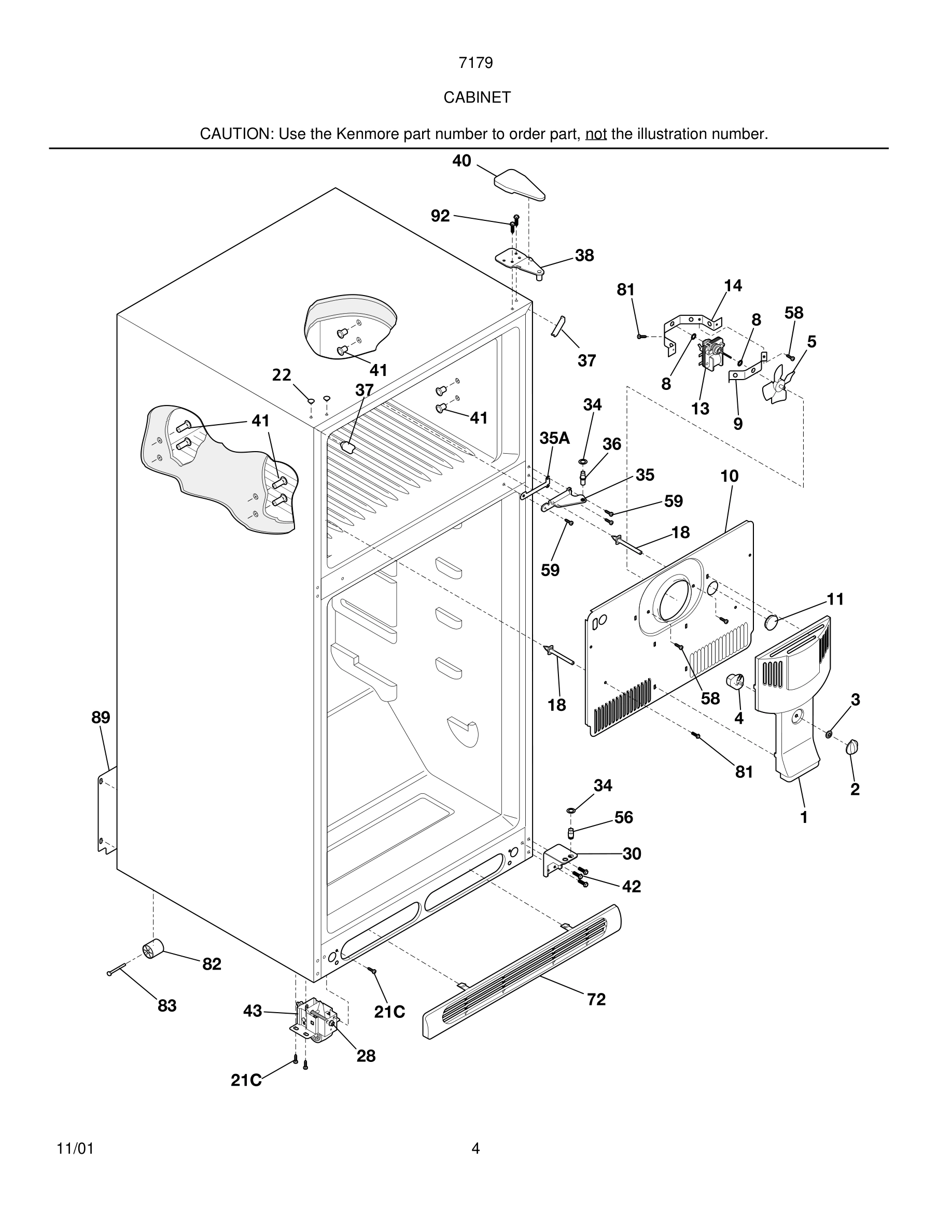

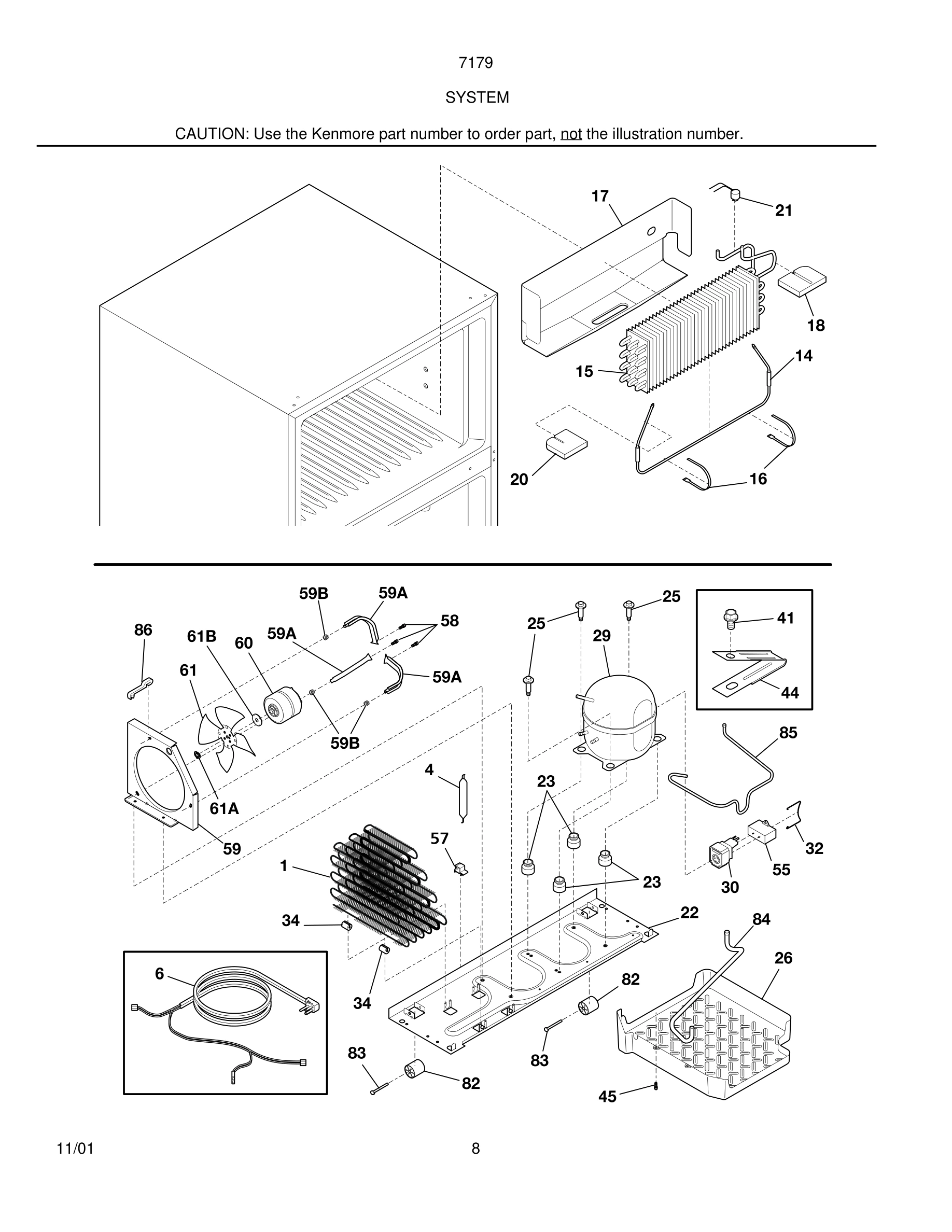

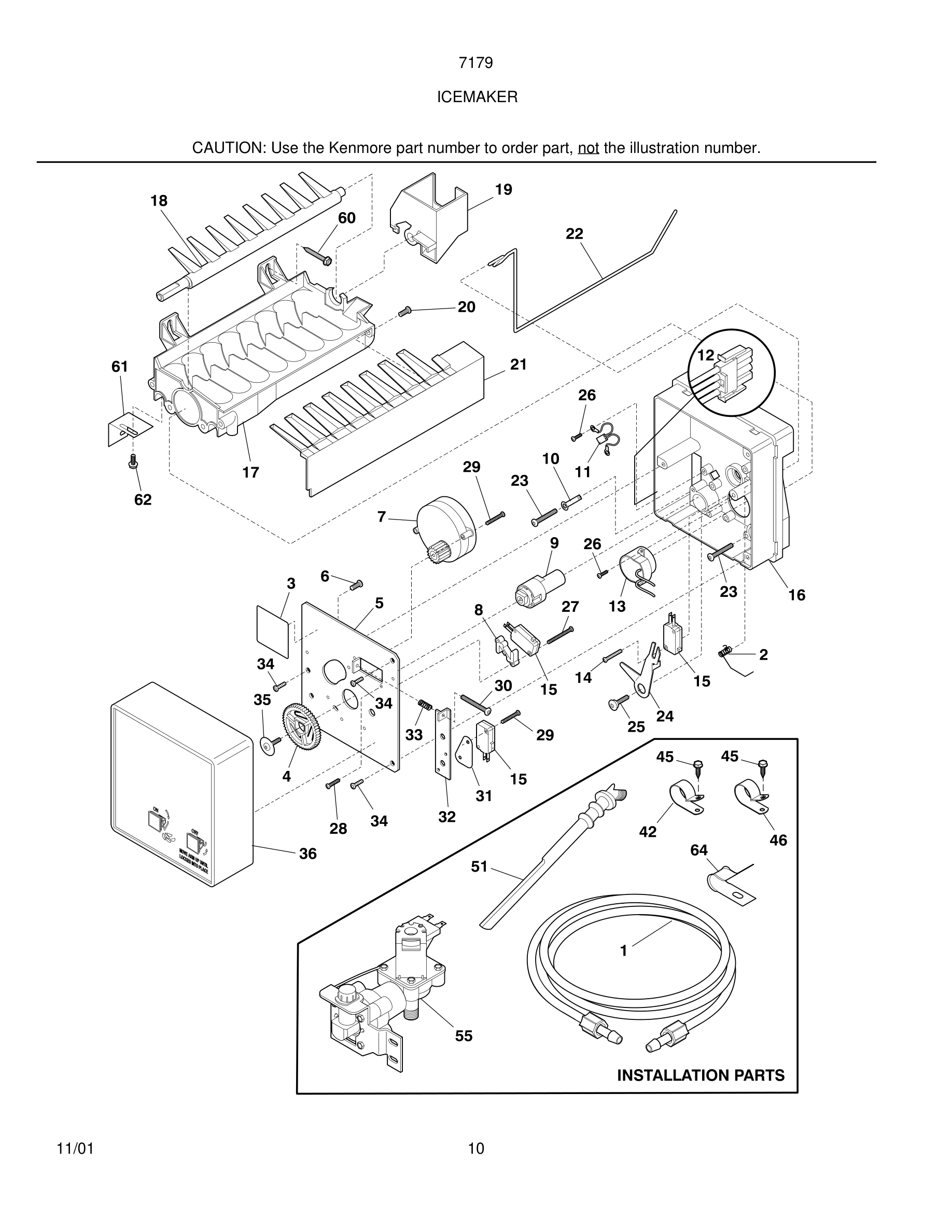

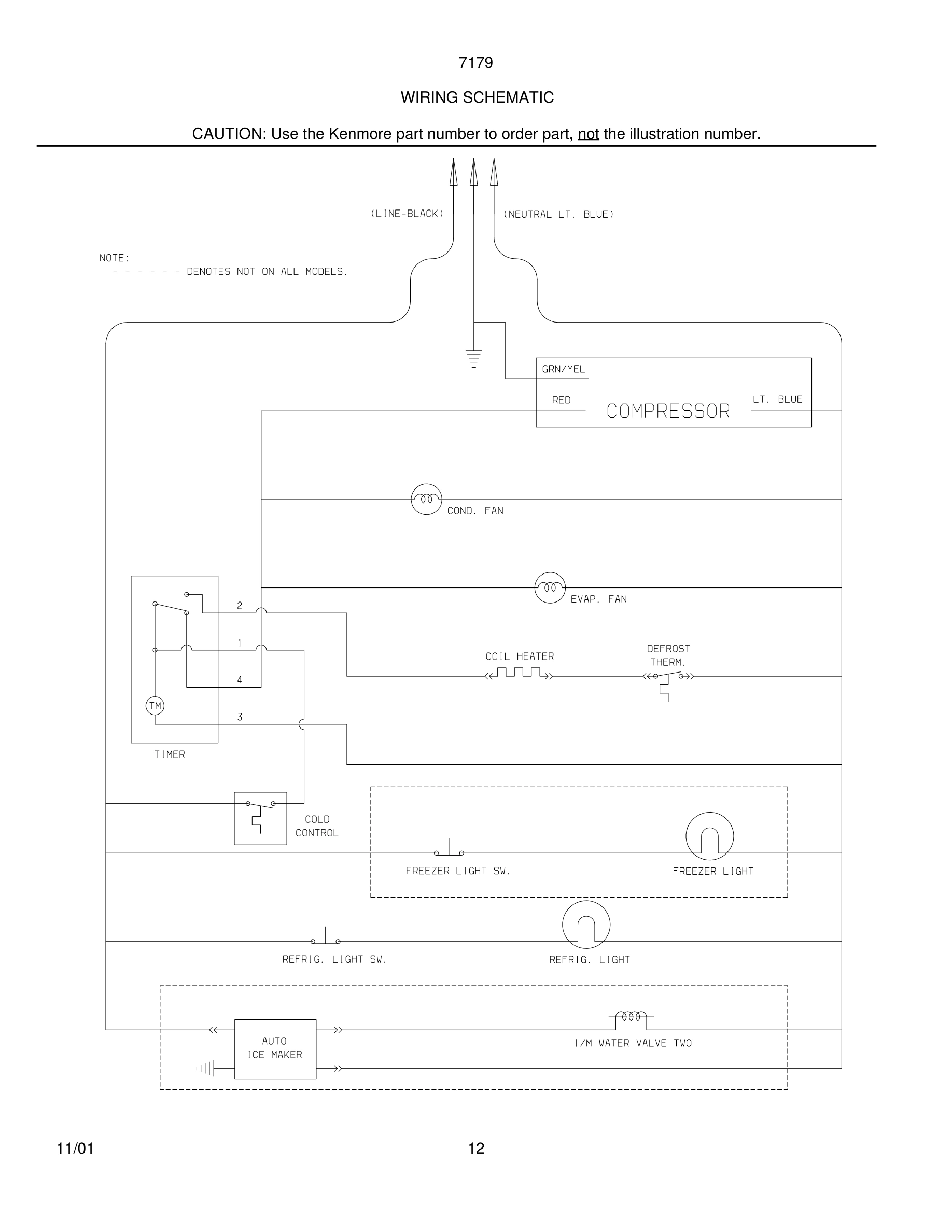

Model Kenmore 25371799106 REFRIGERATOR – Common Parts &amp; Diagrams

*

5303918263 Frigidaire Refrigerator Primary He In Stock WCI 5303918263 $316.98

*

5303918277 Frigidaire Refrigerator Ice Maker In Stock WCI 5303918277 $72.17

*

Hot Tube Repair Kit,Service WCI 5303918222 Contact Us For Availability

*

Adapter-water supply, nut & sleeve, compressi WCI 218888001 Contact Us For Availability

1

218976901 Frigidaire Refrigerator P1 Water In Backorder WCI 218976901 $51.52

2

240367001 Frigidaire Refrigerator Air Damper In Stock WCI 240367001 $34.41

2

Spring,shut-off arm WCI 5304420650 Contact Us For Availability

3

Label,ID plate WCI 3206299 Contact Us For Availability

4

5304469403 Frigidaire Gear Backorder WCI 5304469403 $12.74

4

Damper-fan cover WCI 240367401 Contact Us For Availability

5

240311502 Frigidaire Right Hand Door Rack Sup In Stock WCI 240311502 $3.16

5

Plate-mounting WCI 3206303 Contact Us For Availability

5#

5308000010 Frigidaire Refrigerator Evaporator In Stock WCI 5308000010 $31.93

5A

240331502 Frigidaire Right-Hand Gallon Door S In Stock WCI 240331502 $2.14

6

218359202 Frigidaire Refrigerator Screw Backorder WCI 218359202 $6.79

6

240311501 Frigidaire Left Hand Door Rack Supp In Stock WCI 240311501 $3.16

6*#

240388701 Frigidaire Refrigerator Wiring Harn Backorder WCI 240388701 $50.64

6A

240331501 Frigidaire Left Hand Gallon Door Su In Stock WCI 240331501 $2.24

7

240337701 Frigidaire Refrigerator Dairy Door In Stock WCI 240337701 $26.87

8

Spacer-hold switch WCI 3206312 Contact Us For Availability

9

Bracket-motor mtg,front WCI 5303292396 Contact Us For Availability

9

Cam WCI 3206313 Contact Us For Availability

10

240381301 Frigidaire Refrigerator Button Plug In Stock WCI 240381301 $11.32

10

Clamp WCI 3206315 Contact Us For Availability

11

5303208309 Frigidaire Refrigerator Plug Hole Backorder WCI 5303208309 $27.18

11

5303282284 Frigidaire Wire Shelf In Stock WCI 5303282284 $60.96

11#

3206319 Frigidaire Refrigerator Thermal Cut-O Backorder WCI 3206319 $31.29

12#

Wiring Harness, ice maker, internal, with plu WCI 5304420651 Contact Us For Availability

13

240312421 Frigidaire Refrigerator Door Stop In Stock WCI 240312421 $9.06

13

240362601 Frigidaire Refrigerator P1 Diffuser Backorder WCI 240362601 $26.72

13#

Thermostat Assy,ice maker WCI 3206322 Contact Us For Availability

13*

Seal-diffuser WCI 240392601 Contact Us For Availability

13A

240312414 Frigidaire Refrigerator Door Stop Backorder WCI 240312414 $12.20

14

240438003 Frigidaire Refrigerator Bracket and Backorder WCI 240438003 $10.41

14

240494001 Frigidaire Refrigerator Plug Button In Stock WCI 240494001 $10.85

14

Screw,4 x 0.750 ,switch mtg. WCI 5304420652 Contact Us For Availability

14#

240505801 Frigidaire Light Switch In Stock WCI 240505801 $42.13

14#

5303918208 Frigidaire Defrost Heater Kit In Stock WCI 5303918208 $69.03

15#

5304456667 Frigidaire Refrigerator Micro Swit Backorder WCI 5304456667 $54.68

16

5308000110 Frigidaire Refrigerator Evaporator In Stock WCI 5308000110 $39.44

16

Support,phenolic WCI 5304420653 Contact Us For Availability

17#

241798231 Frigidaire Refrigerator Ice Maker A In Stock WCI 241798231 $104.49

218779901 Frigidaire Refrigerator White Fresh In Stock WCI 218779901 $43.91

Knob-control WCI 240360801 No Longer Available

Insulation Block,RH WCI 240362301 Contact Us For Availability

Ejector-ice WCI 3206328 Contact Us For Availability

18A

Handle-door,white ,frzr WCI 218779809 No Longer Available

19

Bearing & Inlet WCI 3206330 Contact Us For Availability

20

Insulation Block,LH WCI 240362401 Contact Us For Availability

20

Screw, 8-32 x 0.375 WCI 5304408581 Contact Us For Availability

21

Ice Stripper WCI 3206332 Contact Us For Availability

21#

241537103 Frigidaire Refrigerator Temperature In Stock WCI 241537103 $38.99

21#

5303918202 Frigidaire Refrigerator Defrost Th In Stock WCI 5303918202 $11.09

22

215774901 Frigidaire Refrigerator Button Plug In Stock WCI 215774901 $10.87

22

Plate-compr mtg WCI 240330001 Contact Us For Availability

22

Shut-off Arm WCI 3206333 Contact Us For Availability

22*

218252201 Frigidaire Refrigerator Screw In Stock WCI 218252201 $9.04

22A

240468202 Frigidaire Refrigerator Tube Backorder WCI 240468202 $5.42

23

218513300 Frigidaire Refrigerator Compressor In Stock WCI 218513300 $27.16

23

Screw, 8-32 x 0.875 , mold-to-support, (3) WCI 5304408582 Contact Us For Availability

24

5304456675 Frigidaire Refrigerator Lever Arm Backorder WCI 5304456675 $42.12

25

242201802 Frigidaire Refrigerator Crisper Pan In Stock WCI 242201802 $74.09

25

Screw-compressor mtg,1/4-28 x 1.16,shoulder,t WCI 240491501 Contact Us For Availability

25

Screw, 8-18 x 0.562, lever arm/sprt WCI 3206336 Contact Us For Availability

215817806 Frigidaire Refrigerator Egg Tray In Stock WCI 215817806 $8.14

241920605 Frigidaire Refrigerator Defrost Pan In Stock WCI 241920605 $32.71

Pan-crisper,white ,(2) ,no graphics WCI 240337101 Contact Us For Availability

Screw-thermo/sprt,4-24 x 0.375 ,(4) WCI 5304420654 Contact Us For Availability

27

Screw, 4-40 x 1.000, hold switch mtg, (2) WCI 3206338 Contact Us For Availability

28

Screw-timing stop,4-40 x 0.375 WCI 3206339 Contact Us For Availability

29

Screw,4-24 x 0.750 ,(6) WCI 3206323 Contact Us For Availability

29#

5304511983 Frigidaire Refrigerator Compressor In Stock WCI 5304511983 $487.91

30

Screw-timing adj,8-32 x 1.000 WCI 3206341 Contact Us For Availability

30#

Starter-PTC WCI 218721112 Contact Us For Availability

31

Insulator WCI 3206342 Contact Us For Availability

32

218740800 Frigidaire Refrigerator Clamp Backorder WCI 218740800 $41.22

32

Plate-valve switch WCI 3206343 Contact Us For Availability

33

Spring-timing adj WCI 5304408583 Contact Us For Availability

34

240385201 Frigidaire Refrigerator Ice Contain In Stock WCI 240385201 $67.44

34

240405201 Frigidaire Refrigerator Grommet Backorder WCI 240405201 $12.67

34

Screw,plazscrew ,8-10 ,(3) WCI 5304420655 Contact Us For Availability

35

240313802 Frigidaire Refrigerator Center Hing In Stock WCI 240313802 $44.37

35

Screw WCI 5304408585 Contact Us For Availability

36

Cover-ice maker WCI 3206347 Contact Us For Availability

37A

Trim-handle,1.34" ,white WCI 218771201 Contact Us For Availability

40

240354401 Frigidaire Upper Hinge Cover Backorder WCI 240354401 $37.05

41

Screw,hex washer head ,8-32 x 1/4 WCI 218897001 Contact Us For Availability

41*

5304500407 Frigidaire Refrigerator Shelf Moun In Stock WCI 5304500407 $4.07

41*

5308000039 Frigidaire Refrigerator Screw Backorder WCI 5308000039 $7.67

44

5303001199 Frigidaire Refrigerator Wiring Har Backorder WCI 5303001199 $41.66

45

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $9.06

47

240350608 Frigidaire Refrigerator Crisper Gla In Stock WCI 240350608 $46.32

51

241796405 Frigidaire Refrigerator Fill Water In Stock WCI 241796405 $11.76

55#

242252603 Frigidaire Refrigerator Water Inlet In Stock WCI 242252603 $48.50

55#

5304464438 Frigidaire Compressor Run Capacito In Stock WCI 5304464438 $20.34

57

240542601 Frigidaire Wiring Harness Clip Backorder WCI 240542601 $57.37

59

Shroud-cond fan WCI 240315501 Contact Us For Availability

59*

240346701 Frigidaire Refrigerator Foam Seal T In Stock WCI 240346701 $19.01

59*

240359403 Frigidaire Refrigerator Fan Shroud Backorder WCI 240359403 $2.26

59A

240346501 Frigidaire Refrigerator Support Bra Backorder WCI 240346501 $14.05

59B

Grommet-bracket,(3) WCI 240346601 Contact Us For Availability

60

218362501 Frigidaire Refrigerator Screw Backorder WCI 218362501 $7.71

60

5303918774 Frigidaire Fan Motor Kit Condenser In Stock WCI 5303918774 $111.27

61

218721500 Frigidaire Refrigerator Leveling Br Backorder WCI 218721500 $46.16

61#

Fan Blade,galv steel ,condenser fan WCI 240315401 Contact Us For Availability

61*

Connector-shaft WCI 240397201 Contact Us For Availability

61A

Nut,speed WCI 218956700 Contact Us For Availability

61B

Grommet-silencer WCI 218956801 Contact Us For Availability

62

240555002 Frigidaire Refrigerator Screw #8-32 In Stock WCI 240555002 $8.58

64

5304455846 Frigidaire Refrigerator Clamp In Stock WCI 5304455846 $6.79

72

Button-handle mtg,dovetail WCI 218397000 No Longer Available

73

218396700 Frigidaire Door Handle Mounting Blo In Stock WCI 218396700 $28.99

82

5304418225 Frigidaire Refrigerator Roller P-1 In Stock WCI 5304418225 $30.80

83

5304455655 Frigidaire Refrigerator Rivet Backorder WCI 5304455655 $23.04

84

240500801 Frigidaire Refrigerator Drain Tube Backorder WCI 240500801 $41.24

85

Tube-connector,suction WCI 240346201 Contact Us For Availability

86

240409302 Frigidaire Refrigerator Condenser T Backorder WCI 240409302 $39.88
