Model Kenmore 25352322202 REFRIGERATOR – Common Parts & Diagrams
01 - COVER
03 - FREEZER DOOR

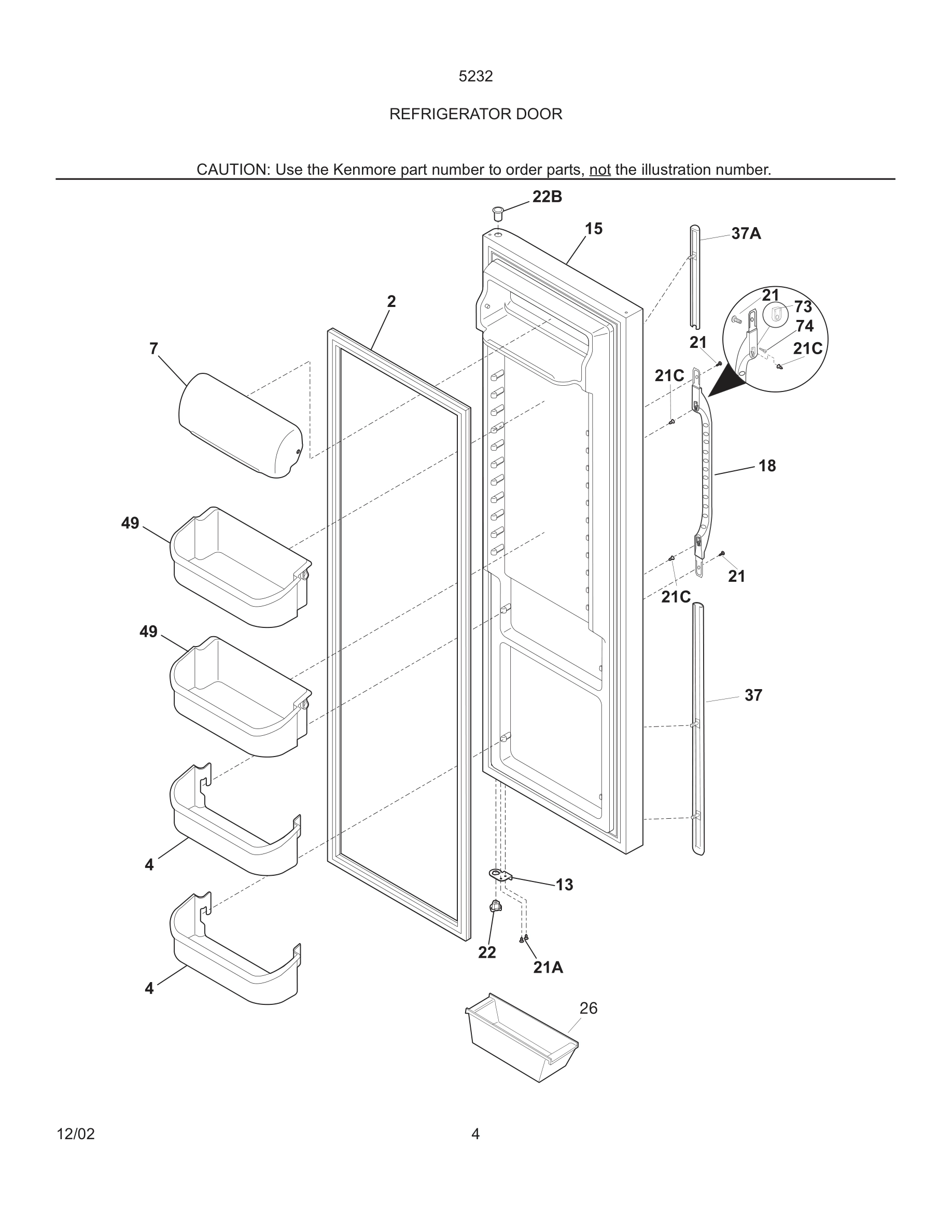

05 - REFRIGERATOR DOOR
07 - CABINET

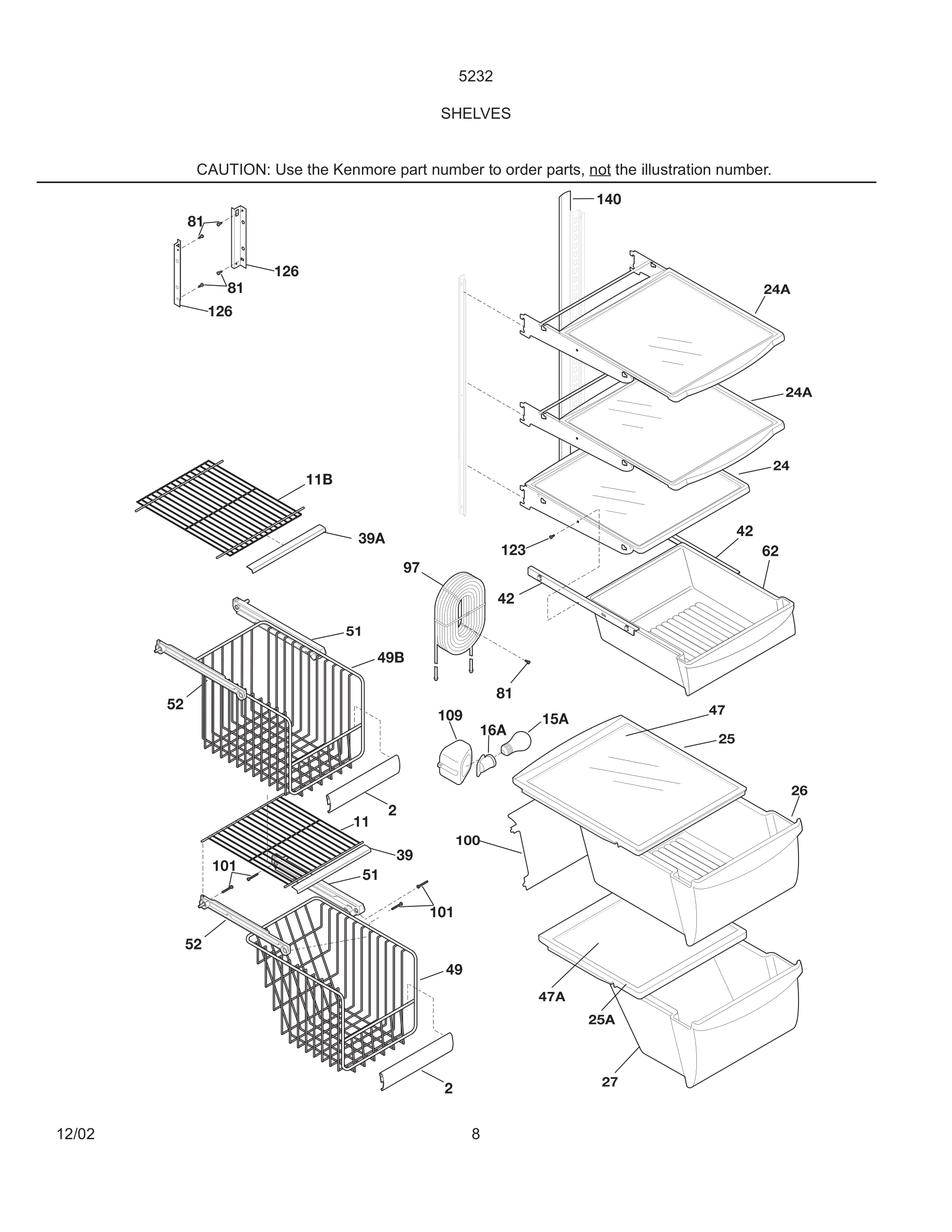

09 - SHELVES

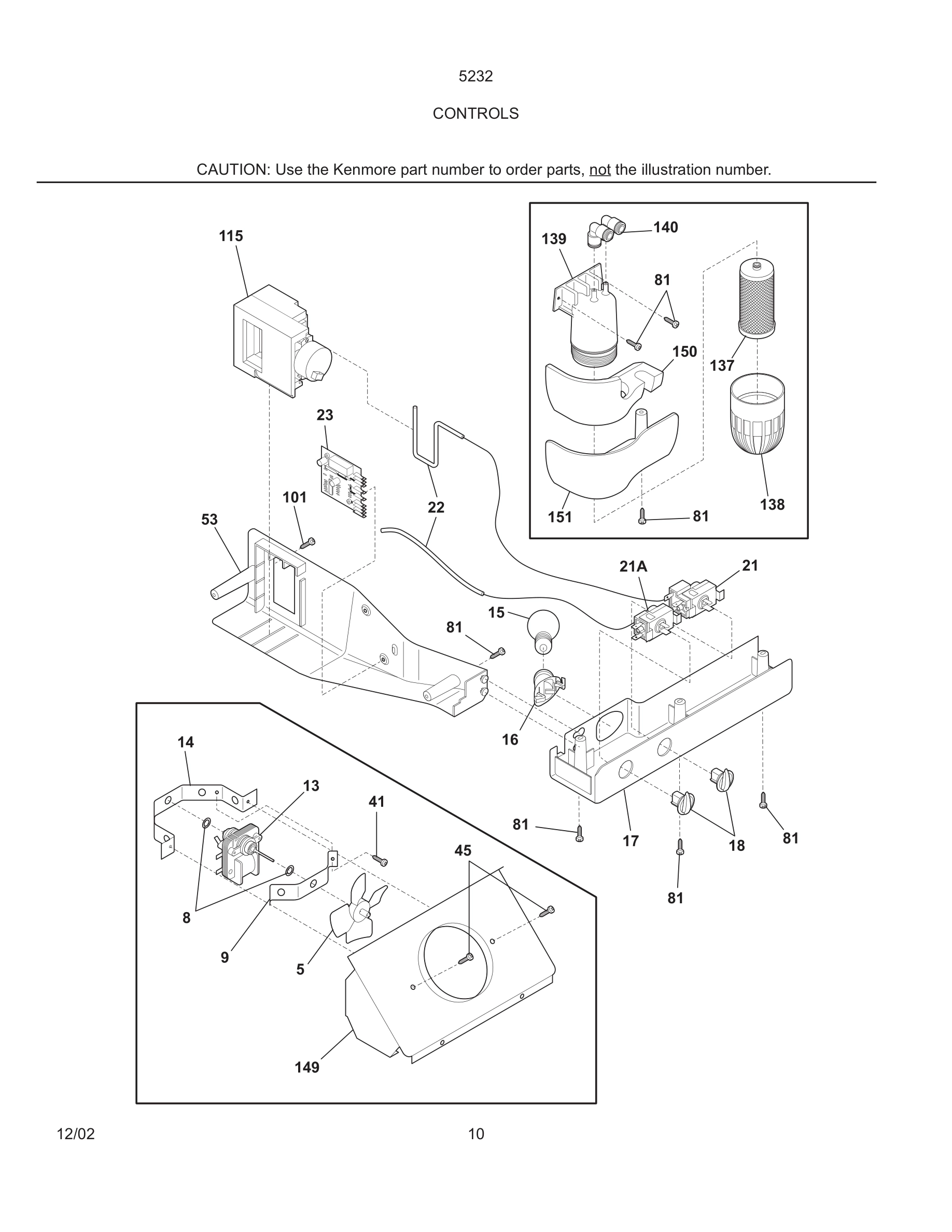

11 - CONTROLS

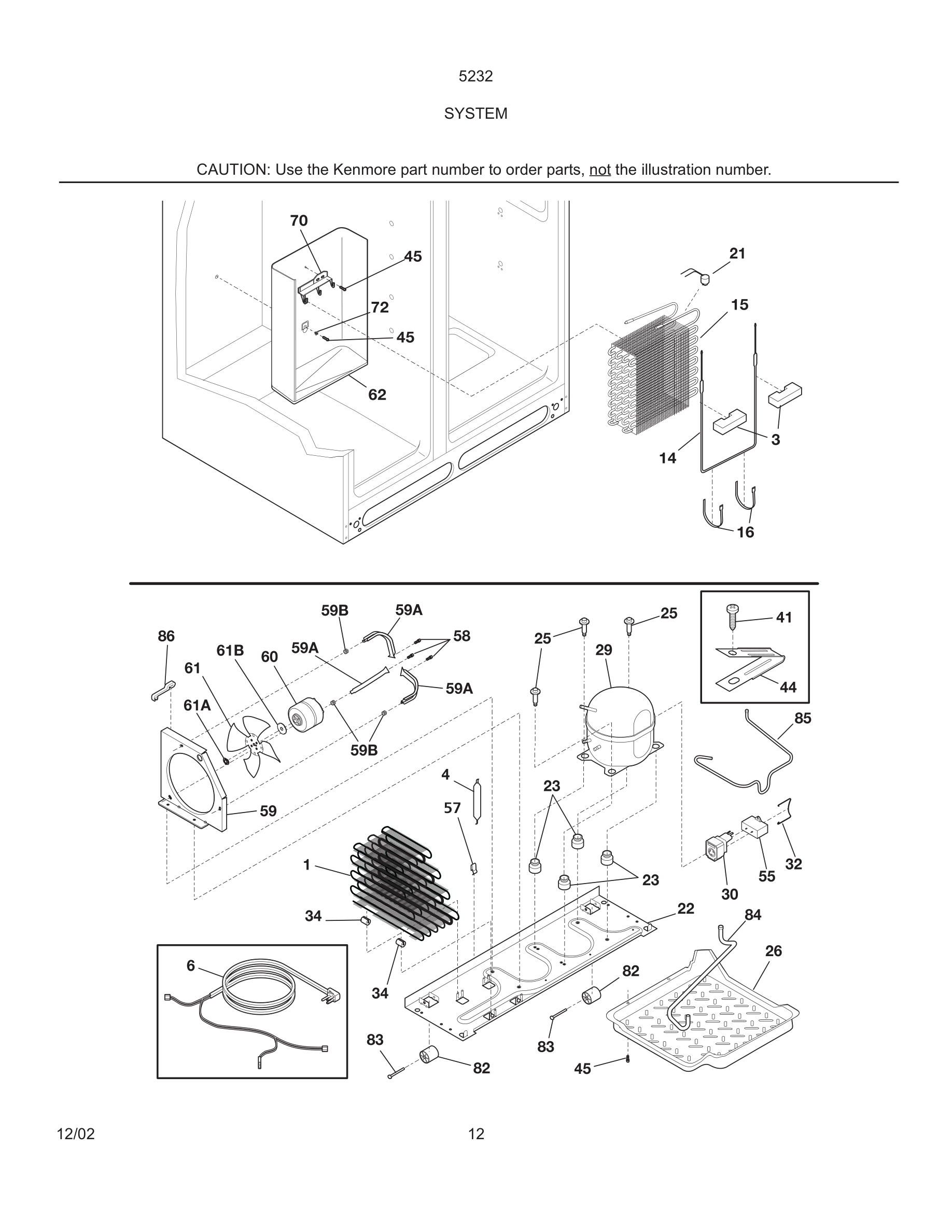

13 - SYSTEM
15 - DISPENSER

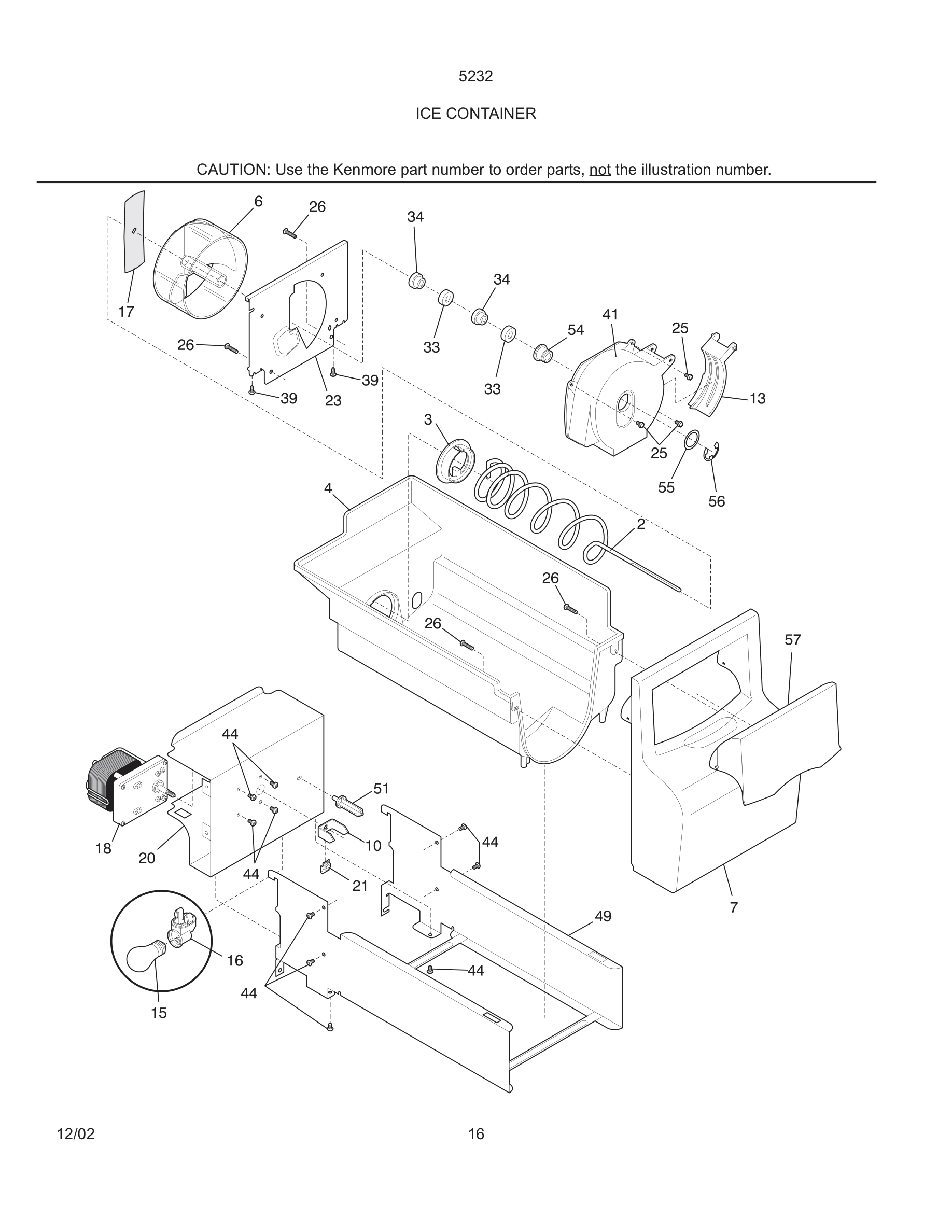

17 - ICE CONTAINER

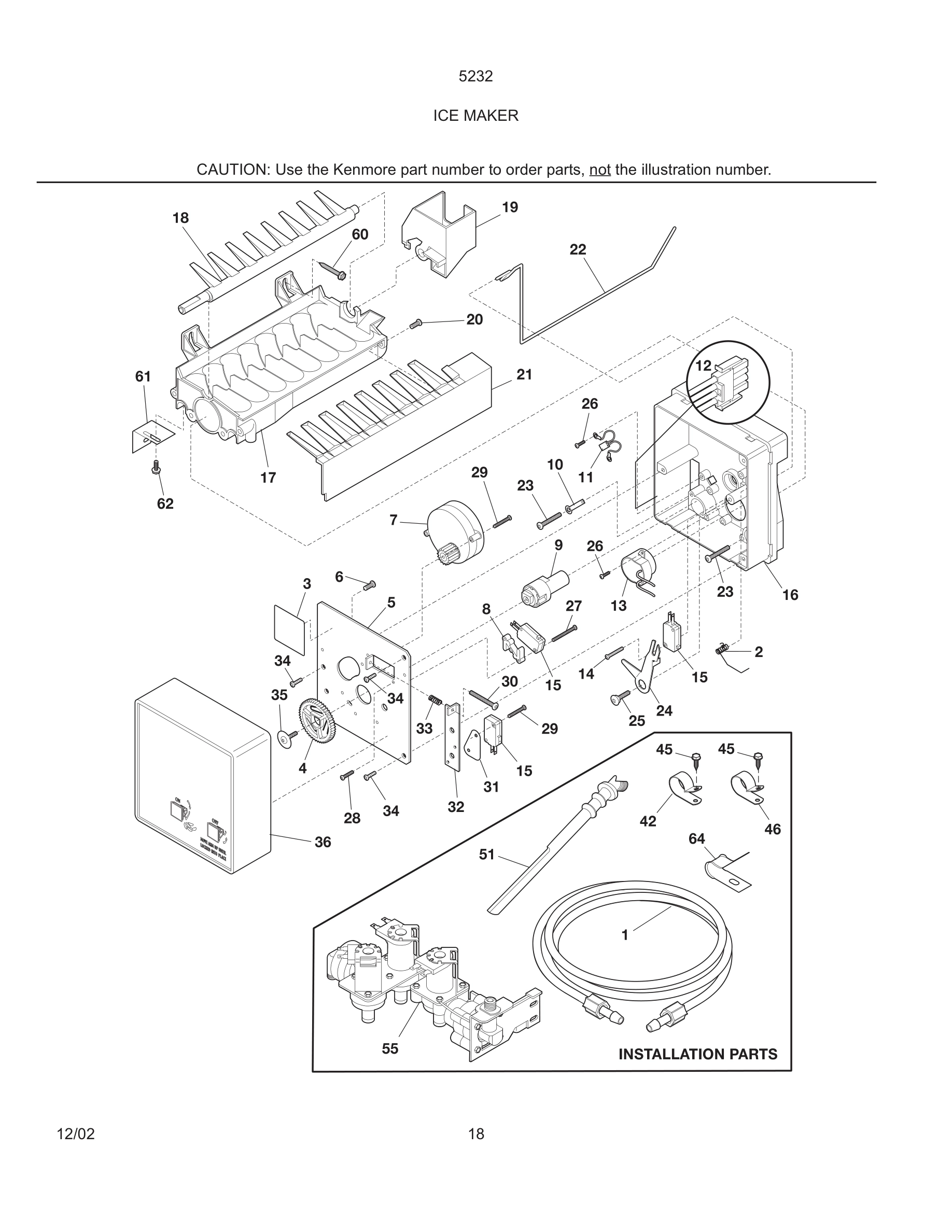

19 - ICE MAKER

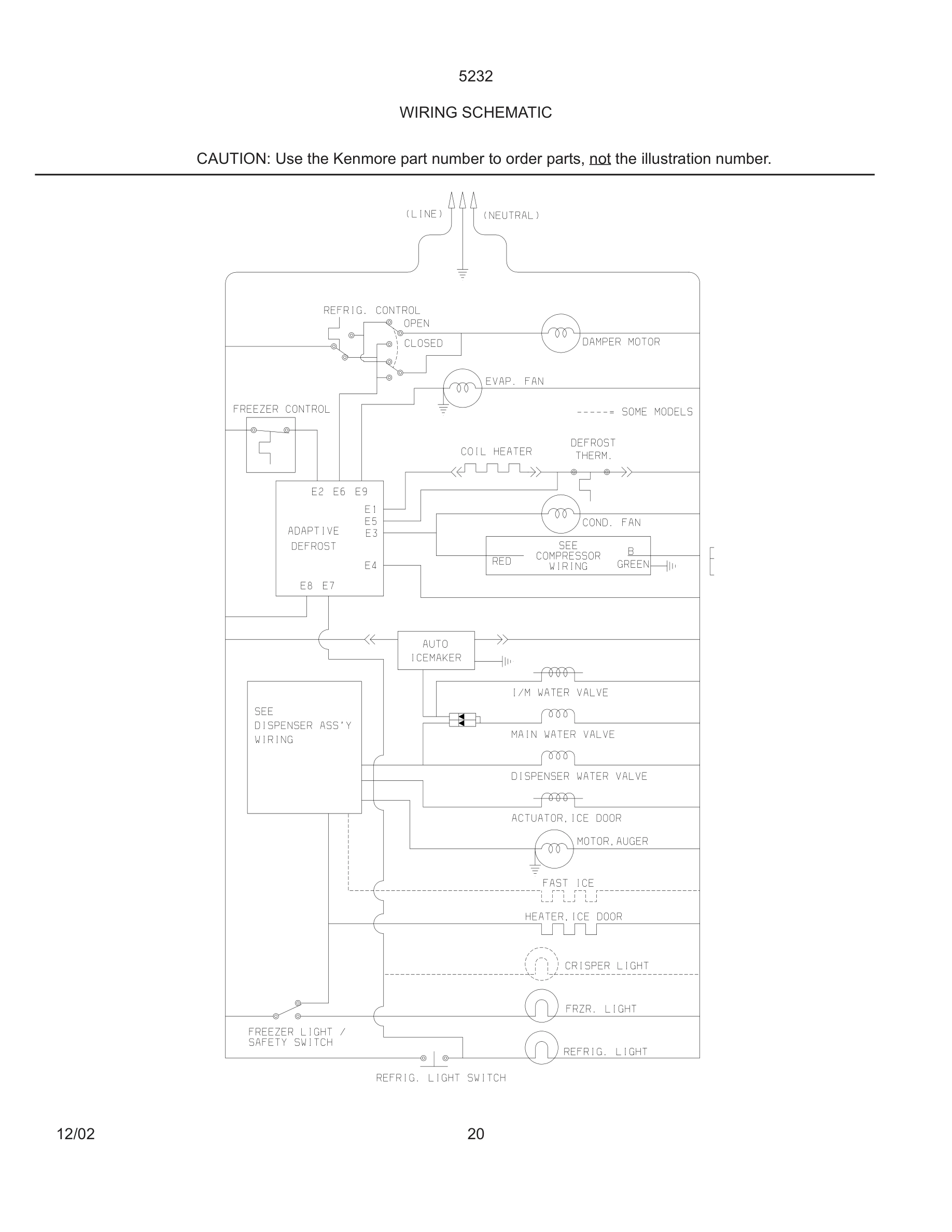

20 - WIRING SCHEMATIC

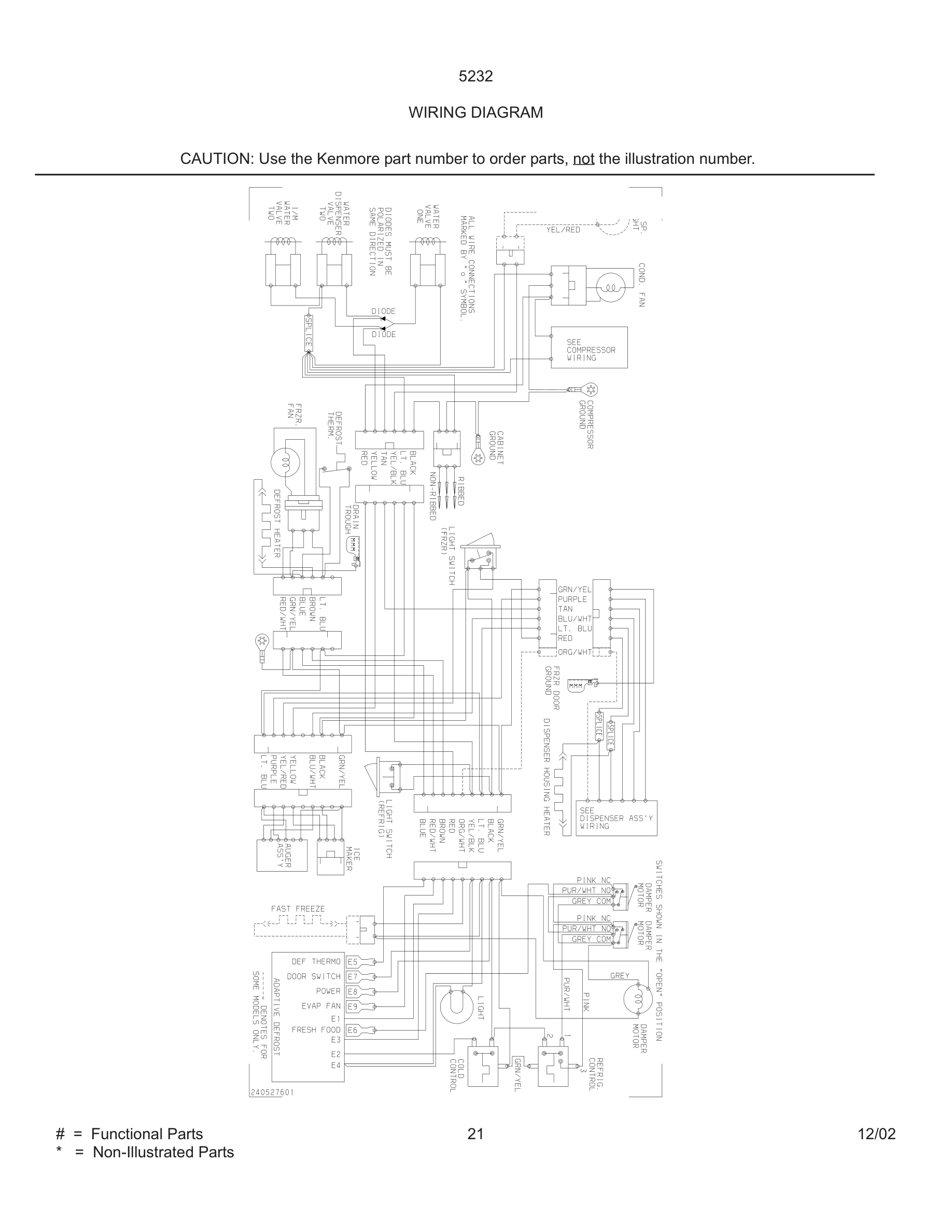

21 - WIRING DIAGRAM
Common parts from model Kenmore 25352322202 REFRIGERATOR
*
Hot Tube Repair Kit,Service WCI 5303918222 Contact Us For Availability
*
Clip-dispenser cover WCI 240411501 Contact Us For Availability
*
Ice Container Assy,w/moving parts WCI 240323807 Contact Us For Availability
*#
Harness-wiring WCI 5304431169 Contact Us For Availability
1
Condenser WCI 240333602 Contact Us For Availability
1*
Tube-water inlet, valve to door WCI 218976907 Contact Us For Availability
2
Spring,shut-off arm WCI 5304420650 Contact Us For Availability
3
Label,ID plate WCI 3206299 Contact Us For Availability
4
Cover-module, white WCI 5304421641 Contact Us For Availability
5
Plate-mounting WCI 3206303 Contact Us For Availability
6
Harness-wiring,machine compt WCI 240346402 No Longer Available
6*
Harness-wiring WCI 240449601 Contact Us For Availability
6*
Harness-wiring,control box WCI 240439902 Contact Us For Availability
8
Module-dispenser, white WCI 5304421823 Contact Us For Availability
8
Spacer-hold switch WCI 3206312 Contact Us For Availability
9
Bracket-motor mtg,front WCI 5303292396 Contact Us For Availability
9
Cam WCI 3206313 Contact Us For Availability
10
Clamp WCI 3206315 Contact Us For Availability
12#
Wiring Harness, ice maker, internal, with plu WCI 240352601 Contact Us For Availability
13#
Thermostat Assy,ice maker WCI 3206322 Contact Us For Availability
14
Label-module cover, white WCI 240418301 Contact Us For Availability
14
Screw,4 x 0.750 ,switch mtg. WCI 5304420652 Contact Us For Availability
15
Light Bulb WCI 5304421616 Contact Us For Availability
16
Support, phenolic WCI 5304420653 Contact Us For Availability
18
Knob,temp control WCI 240360801 Contact Us For Availability
18
Ejector-ice WCI 3206328 Contact Us For Availability
18*
Wiring Harness,auger motor WCI 5304407107 Contact Us For Availability
19
Bearing & Inlet WCI 3206330 Contact Us For Availability
20
Cover-motor WCI 5304407106 Contact Us For Availability
20
Screw, 8-32 x 0.375 WCI 5304408581 Contact Us For Availability
21
Ice Stripper WCI 3206332 Contact Us For Availability
22
Plate-compr mtg WCI 240330002 Contact Us For Availability
22
Shut-off Arm WCI 3206333 Contact Us For Availability
22B
Bearing-hinge,upper WCI 240328401 Contact Us For Availability
23
Screw-#10-32 x 1/4 flat hd WCI 240402701 Contact Us For Availability
23
Drip Tray, white WCI 240411701 Contact Us For Availability
23
Screw, 8-32 x 0.875, mold-to-support, (3) WCI 5304408582 Contact Us For Availability
24
Actuator-water, white WCI 5304422032 Contact Us For Availability
24A
Actuator-ice, white WCI 5304422031 Contact Us For Availability
25
Screw-compressor mtg, 1/4-28 x 1.16,shoulder, WCI 240491501 Contact Us For Availability
25
Screw, 8-18 x 0.562, lever arm/sprt WCI 3206336 Contact Us For Availability
26
Screw-thermo/sprt,4-24 x 0.375 ,(4) WCI 5304420654 Contact Us For Availability
27
Screw, 4-40 x 1.000, hold switch mtg, (2) WCI 3206338 Contact Us For Availability
28
Screw-timing stop,4-40 x 0.375 WCI 3206339 Contact Us For Availability
29
Screw,4-24 x 0.750 ,(6) WCI 3206323 Contact Us For Availability
30
Screw-timing adj,8-32 x 1.000 WCI 3206341 Contact Us For Availability
31
Insulator WCI 3206342 Contact Us For Availability
32
Plate-valve switch WCI 3206343 Contact Us For Availability
33
Spring-timing adj WCI 5304408583 Contact Us For Availability
34
Screw,plazscrew ,8-10 ,(3) WCI 5304420655 Contact Us For Availability
35
Damper-rotary WCI 5304421620 Contact Us For Availability
35
Screw WCI 5304408585 Contact Us For Availability
36
Cover-ice maker WCI 3206347 Contact Us For Availability
37
Trim-handle, 29.64", white, lower, w/mtg lock WCI 218779318 Contact Us For Availability
37A
Trim-handle, 12.08", white, upper, w/mtg lock WCI 218779307 Contact Us For Availability
39
Trim-shelf,front WCI 240430705 Contact Us For Availability
39A
Trim-shelf,front WCI 240430701 Contact Us For Availability
42*
Clip,(2) ,tube mtg. WCI 218515402 Contact Us For Availability
43
Screw,plask h/l ,#6 x 3/8 WCI 215296300 Contact Us For Availability
44
Screw, pan head, 8-32 x 0.250 WCI 218359200 Contact Us For Availability
49
Rail Assy WCI 5304404329 Contact Us For Availability
49B
Basket-sliding,upper ,full WCI 240530503 No Longer Available
51
Rotation Stop WCI 5304404336 Contact Us For Availability
56
Screw-micro switch,pan head WCI 5304421830 Contact Us For Availability
59
Shroud-cond fan WCI 240315501 Contact Us For Availability
59B
Grommet-bracket,(3) WCI 240346601 Contact Us For Availability
61#
Fan Blade,galv steel ,condenser fan WCI 240315401 Contact Us For Availability
61A
Nut,speed WCI 215004700 Contact Us For Availability
61B
Grommet-silencer WCI 215004800 Contact Us For Availability
62
Trough-drain WCI 240429401 Contact Us For Availability
66B
Diffuser-air WCI 240374301 Contact Us For Availability
72
Button-handle mtg,dovetail WCI 218397000 No Longer Available
85
Tube-connector,suction WCI 240346201 Contact Us For Availability
88
Shield-light WCI 5304421615 Contact Us For Availability
115
Damper Assy,w/seal WCI 240521103 Contact Us For Availability
138
Cup-water filter WCI 240370203 Contact Us For Availability
139
Housing-wtr filter WCI 240369901 Contact Us For Availability
149
Shroud-fan orfice WCI 240331601 Contact Us For Availability
150
Insulation-water filter cover WCI 240394102 Contact Us For Availability
151
Cover-water filter WCI 240376002 Contact Us For Availability
× ![]()
