Model Electrolux 253.78842792 Top-Mount Refrigerator (Kenmore 25378842792) – Common Parts &amp; Diagrams

1

Refrigerator Freezer Door Gasket (White) WCI 215608916 Contact Us For Availability

1

Refrigerator Mullion WCI 218874301 Contact Us For Availability

1

Refrigerator Fan Cover WCI 218672501 Contact Us For Availability

1A

Refrigerator Freezer Gasket WCI 215608906 Contact Us For Availability

1A

Refrigerator Mullion WCI 218874311 Contact Us For Availability

2

5303207345 Frigidaire Refrigerator Door Gaske In Stock WCI 5303207345 $110.18

2

Refrigerator Knob Damper WCI 5303307351 Contact Us For Availability

3

Refrigerator Panel WCI 218360701 Contact Us For Availability

3

Refrigerator Push Nut WCI 5303001028 Contact Us For Availability

4

Refrigerator Air Damper Control WCI 218722200 Contact Us For Availability

5

5308000010 Frigidaire Refrigerator Evaporator In Stock WCI 5308000010 $31.93

5

Heater Mullion WCI 218781003 Contact Us For Availability

5A

215473602 Frigidaire Refrigerator White Left In Stock WCI 215473602 $2.85

6

Tapping Plate WCI 218845602 Contact Us For Availability

6

Refrigerator Hole Cover WCI 218448301 Contact Us For Availability

6A

Refrigerator Cover WCI 218448302 Contact Us For Availability

7

Refrigerator Dairy Door WCI 215058116 Contact Us For Availability

7

Refrigerator Panel WCI 218814800 Contact Us For Availability

8

215366002 Frigidaire Refrigerator Wide Door R In Stock WCI 215366002 $34.21

8

Foam Divider WCI 218814600 Contact Us For Availability

8

Refrigerator Bushing WCI 5300157666 Contact Us For Availability

8A

Refrigerator Wire Harness WCI 218878500 Contact Us For Availability

9

Refrigerator Inner Panel WCI 218360101 Contact Us For Availability

9

Bottom Freezer Panel WCI 218814700 Contact Us For Availability

9

Refrigerator Bracket WCI 5303205118 Contact Us For Availability

10

Refrigerator Door Hinge Hole Cover (White) WCI 5308000134 Contact Us For Availability

10

Refrigerator Cover WCI 3206451 Contact Us For Availability

10A

Refrigerator Button (Almond) WCI 5303001308 Contact Us For Availability

10A

Refrigerator Nut WCI 5303209814 Contact Us For Availability

5303208309 Frigidaire Refrigerator Plug Hole In Stock WCI 5303208309 $27.18

Kenmore Pro Refrigerator Ice Maker Thermal Cu WCI 3206319 Contact Us For Availability

Refrigerator Freezer Outer Panel WCI 5303917955 Contact Us For Availability

Refrigerator Freezer Shelf WCI 5303288242 Contact Us For Availability

11A

5303299664 Frigidaire Refrigerator Shelf Spac In Stock WCI 5303299664 $15.40

11A

Refrigerator Freezer Outer Panel WCI 5303917956 Contact Us For Availability

12

Refrigerator Air Deflector WCI 218730000 Contact Us For Availability

12

Refrigerator Ice Maker Wire Harness Connector WCI 3206321 Contact Us For Availability

12A

5303001449 Frigidaire Refrigerator Seal Backorder WCI 5303001449 $1.35

12A

Refrigerator Ice Maker Wire Harness WCI 3206349 Contact Us For Availability

5300158289 Frigidaire Evaporator Fan Motor In Stock WCI 5300158289 $91.31

Refrigerator Air Damper Cover WCI 218631001 Contact Us For Availability

Refrigerator Ice Maker Thermostat WCI 3206322 Contact Us For Availability

Refrigerator Door Stop WCI 218800300 Contact Us For Availability

13A

Refrigerator Door Stop (White) WCI 218249001 Contact Us For Availability

13AA

Refrigerator Door Stop (Red) WCI 218249002 Contact Us For Availability

14

3206453 Frigidaire Refrigerator Defrost Heate Backorder WCI 3206453 $150.04

14

5309918806 Frigidaire Refrigerator Light Swit Backorder WCI 5309918806 $14.02

14

Refrigerator Mounting Bracket WCI 5303322992 Contact Us For Availability

14A

240494001 Frigidaire Refrigerator Plug Button In Stock WCI 240494001 $10.85

14AA

Refrigerator Button Plug WCI 218110902 Contact Us For Availability

14B

Refrigerator Lower Door Handle Trim Hole Plug WCI 218074001 Contact Us For Availability

14BA

Refrigerator Button Plug WCI 218074002 Contact Us For Availability

14C

Refrigerator Door Hinge Hole Plug WCI 5308000181 Contact Us For Availability

15

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $10.61

15

Refrigerator Panel WCI 5303917957 Contact Us For Availability

15A

Rf Dr Panel WCI 5303917958 Contact Us For Availability

16

5308000110 Frigidaire Refrigerator Evaporator In Stock WCI 5308000110 $39.44

16A

218906802 Frigidaire Light Lamp Socket In Stock WCI 218906802 $11.32

17

Refrigerator Control Box WCI 5303321455 Contact Us For Availability

17

Refrigerator Drain Trough WCI 218725700 Contact Us For Availability

18

218779901 Frigidaire Refrigerator White Fresh In Stock WCI 218779901 $43.91

18

Refrigerator Temperature Complete Knob WCI 5303311079 Contact Us For Availability

18

Refrigerator Support Evaporator WCI 215245000 Contact Us For Availability

18A

Refrigerator Door Handle (White) WCI 218779801 Contact Us For Availability

18AA

Refrigerator Freezer Handle WCI 218779802 Contact Us For Availability

18AB

Refrigerator Door Handle WCI 218778201 Contact Us For Availability

18AC

Refrigerator Door Handle WCI 218778202 Contact Us For Availability

18B

Refrigerator Door Handle (Almond) WCI 218779902 Contact Us For Availability

19

Refrigerator Rocker Switch WCI 5303286905 Contact Us For Availability

19

Refrigerator Tube WCI 5303001198 Contact Us For Availability

21

5304404821 Frigidaire Cold Control Thermostat In Stock WCI 5304404821 $94.62

21A

Refrigerator Screw WCI 5303001260 Contact Us For Availability

21C

218252201 Frigidaire Refrigerator Screw Backorder WCI 218252201 $9.04

22

215774901 Frigidaire Refrigerator Button Plug In Stock WCI 215774901 $10.87

22

Refrigerator Door Hinge Bushing WCI 218519300 Contact Us For Availability

22A

5303916855 Frigidaire Refrigerator Tube Backorder WCI 5303916855 $38.55

22A

Refrigerator Button Plug WCI 215774911 Contact Us For Availability

22B

Refrigerator Air Deflector Tube WCI 218731104 Contact Us For Availability

23

215846602 Frigidaire Refrigerator 8-Hour Defr In Stock WCI 215846602 $17.29

23

Refrigerator Drain Tube WCI 5303269702 Contact Us For Availability

23A

5304455649 Frigidaire Refrigerator Screw Backorder WCI 5304455649 $10.85

24

Refrigerator Drain Tube Seal WCI 5303207353 Contact Us For Availability

24

Refrigerator Washer WCI 5308003633 Contact Us For Availability

25

Refrigerator Compressor Mounting Clip WCI 5308003596 Contact Us For Availability

25

Refrigerator Crisper Cover WCI 215681400 Contact Us For Availability

25

Spout Drain WCI 215774100 Contact Us For Availability

25A

Refrigerator Crisper Drawer Trim WCI 5304401377 Contact Us For Availability

25B

Refrigerator Electronic Control Board WCI 5303307715 Contact Us For Availability

26

215817806 Frigidaire Refrigerator Egg Tray Backorder WCI 215817806 $8.14

26

3206438 Frigidaire Refrigerator Crisper Pan Backorder WCI 3206438 $129.66

26

Defrost Drai WCI 215372500 Contact Us For Availability

26A

5303307583 Frigidaire Refrigerator P1 Pad Noi In Stock WCI 5303307583 $42.57

27

Refrigerator Nut WCI 5303001348 Contact Us For Availability

28

Refrigerator Freezer Shelf End Cap WCI 3201150 Contact Us For Availability

28

Refrigerator Defrost Drain Pan Retainer Kit WCI 5303916001 Contact Us For Availability

29

5304511983 Frigidaire Refrigerator Compressor Backorder WCI 5304511983 $487.91

29

Refrigerator Washer WCI 5308000186 Contact Us For Availability

29A

Refrigerator Roller Wheel Washer WCI 5308011326 Contact Us For Availability

30

Refrigerator Bracket WCI 3206136 Contact Us For Availability

30A

Tapping Plate WCI 215882300 Contact Us For Availability

31

215742602 Frigidaire Refrigerator Meat Pan Backorder WCI 215742602 $107.28

32

218740800 Frigidaire Refrigerator Clamp Backorder WCI 218740800 $41.22

32

Refrigerator Deli Drawer Trim WCI 5303307361 Contact Us For Availability

32

Refrigerator Cabinet Hole Plug (White) WCI 215217701 Contact Us For Availability

32A

Refrigerator Button Plug WCI 215217703 Contact Us For Availability

34

5303212918 Frigidaire Refrigerator Control Backorder WCI 5303212918 $61.86

35

Refrigerator Crisper Trim WCI 5303317500 Contact Us For Availability

35

Refrigerator Bracket WCI 218220101 Contact Us For Availability

35A

Refrigerator Bracket WCI 218220102 Contact Us For Availability

36

218251300 Frigidaire Refrigerator Center Hing Backorder WCI 218251300 $37.63

36

Refrigerator Spill Shelf WCI 215406133 Contact Us For Availability

37

Refrigerator Corner Trim WCI 5303321081 Contact Us For Availability

37A

Refrigerator Corner Trim (Almond) WCI 5303321082 Contact Us For Availability

37A

Refrigerator Handle Trim WCI 218779301 Contact Us For Availability

37AA

TRIM-HANDLE, ALMOND, LOWER WCI `218779302 Contact Us For Availability

37AB

Refrigerator Door Handle Trim Cap WCI 218776501 Contact Us For Availability

38

Refrigerator Bracket WCI 3206100 Contact Us For Availability

40

5305877995 Frigidaire Refrigerator P-1 Sealin In Stock WCI 5305877995 $27.08

40

Refrigerator Hinge Cover (White) WCI 3206101 Contact Us For Availability

40A

Refrigerator Door Hinge Cover WCI 3206105 Contact Us For Availability

41

5304509705 Frigidaire Refrigerator Grommet In Stock WCI 5304509705 $5.97

41

5308000039 Frigidaire Refrigerator Screw Backorder WCI 5308000039 $7.67

41A

5304500407 Frigidaire Refrigerator Shelf Moun Backorder WCI 5304500407 $4.07

42

218971202 Frigidaire Refrigerator Pan/Tray Ha In Stock WCI 218971202 $38.53

42

241710601 Frigidaire Refrigerator Screw In Stock WCI 241710601 $8.60

42A

218971302 Frigidaire Refrigerator Right Rail Backorder WCI 218971302 $46.60

43

5303001199 Frigidaire Refrigerator Wiring Har Backorder WCI 5303001199 $41.66

43

Refrigerator Roller WCI 218724000 Contact Us For Availability

43A

Refrigerator Roller WCI 218703002 Contact Us For Availability

43B

Refrigerator Roller WCI 5308009760 Contact Us For Availability

43C

Refrigerator Screw WCI 5308009761 Contact Us For Availability

43D

Refrigerator Spring WCI 5308009790 Contact Us For Availability

44

5308000133 Frigidaire Refrigerator Clamp Backorder WCI 5308000133 $7.25

44

Refrigerator Roller Assembly WCI 5303283014 Contact Us For Availability

45

5304455651 Frigidaire Refrigerator Screw In Stock WCI 5304455651 $8.58

45A

5304455852 Frigidaire Refrigerator Screw Backorder WCI 5304455852 $8.14

46

5303001193 Frigidaire Refrigerator Clamp Backorder WCI 5303001193 $10.41

46

Refrigerator Crisper Drawer Front WCI 5303307359 Contact Us For Availability

47

Refrigerator Pan Insert WCI 218498140 Contact Us For Availability

47

Refrigerator Shelf Mounting Channel WCI 218233300 Contact Us For Availability

48

Refrigerator Shelf Channel WCI 5303292395 Contact Us For Availability

48

Refrigerator Door Bucket WCI 218286008 Contact Us For Availability

49

218362501 Frigidaire Refrigerator Screw Backorder WCI 218362501 $7.71

49

Refrigerator Door Bucket WCI 5304401374 Contact Us For Availability

52

215456100 Frigidaire Refrigerator Water Inlet In Stock WCI 215456100 $66.78

55

5304464438 Frigidaire Compressor Run Capacito In Stock WCI 5304464438 $20.34

56

Lower Hinge Pin WCI 218220300 Contact Us For Availability

58

216858001 Frigidaire Refrigerator Screw Backorder WCI 216858001 $6.80

59

240442708 Frigidaire Refrigerator Screw - #10 In Stock WCI 240442708 $4.97

61

218721500 Frigidaire Refrigerator Leveling Br Backorder WCI 218721500 $46.16

67

Refrigerator Deli Drawer Front Cover WCI 5303307363 Contact Us For Availability

72

Refrigerator Door Handle Mounting Grommet WCI 218397000 No Longer Available

73

218396700 Frigidaire Door Handle Mounting Blo In Stock WCI 218396700 $28.99

74

215503203 Frigidaire Refrigerator Door Handle In Stock WCI 215503203 $4.51

81

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $9.06

83

Refrigerator Bracket WCI 5308000107 Contact Us For Availability

98

Refrigerator Door Hole Plug WCI 215099701 Contact Us For Availability

98A

Refrigerator Plug Button (Red) WCI 215099711 Contact Us For Availability

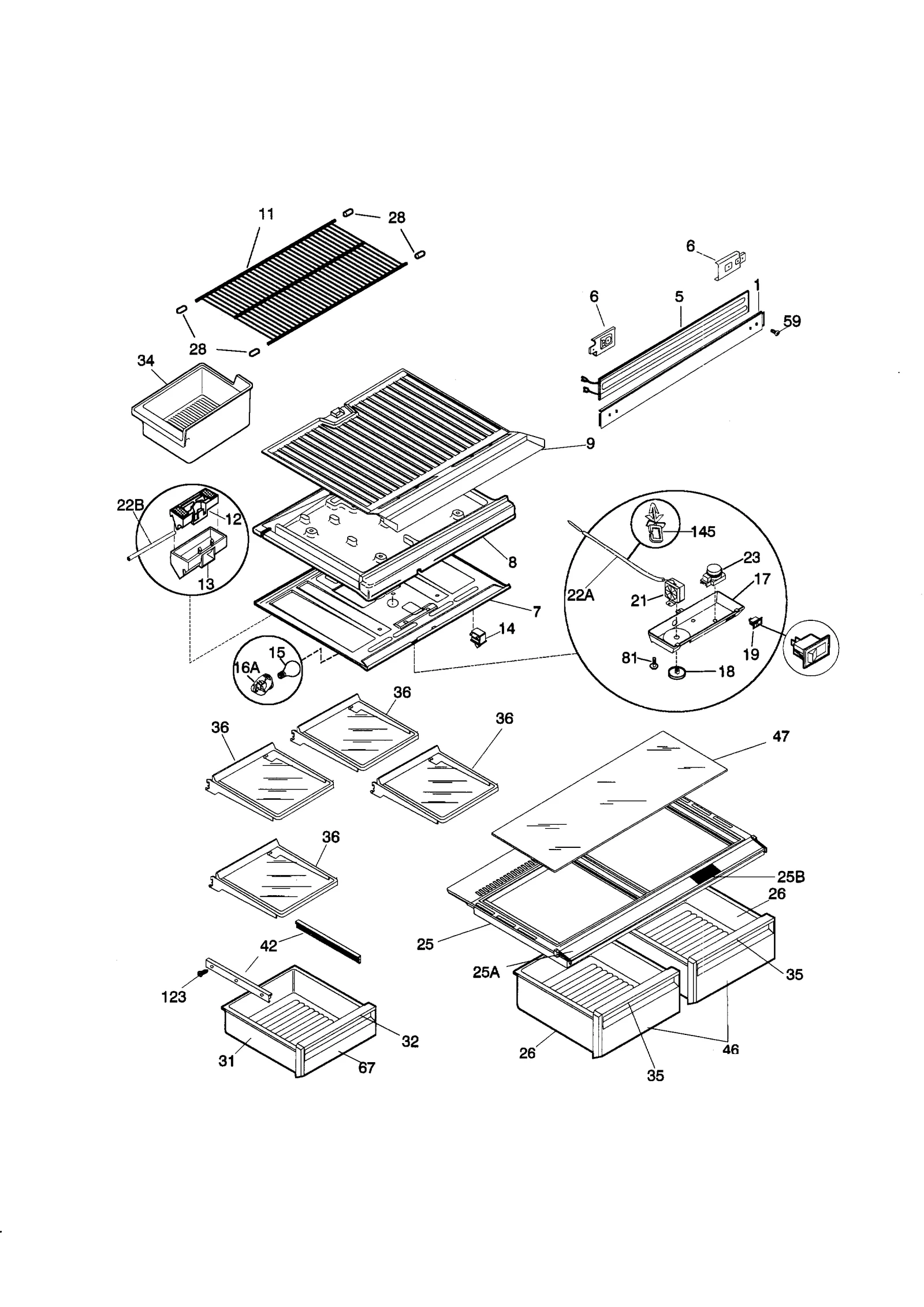

123

215005101 Frigidaire Refrigerator Screw Backorder WCI 215005101 $9.50

145

Refrigerator Clip WCI 218660800 Contact Us For Availability

218827100 Frigidaire Owner's Manual Backorder WCI 218827100 $8.69

5303321319 Frigidaire Refrigerator White Touc In Stock WCI 5303321319 $9.23

Refrigerator Door Insulation WCI 5303917276 Contact Us For Availability

Refrigerator Pad WCI 08000185 Contact Us For Availability

Technical Data Sheet WCI 218758400 Contact Us For Availability

Refrigerator Heater WCI 3916557 Contact Us For Availability

Refrigerator Label WCI 5303270944 Contact Us For Availability

Touch Paint WCI 5303305325 Contact Us For Availability

Refrigerator Repair Parts List WCI 5995311569 Contact Us For Availability
