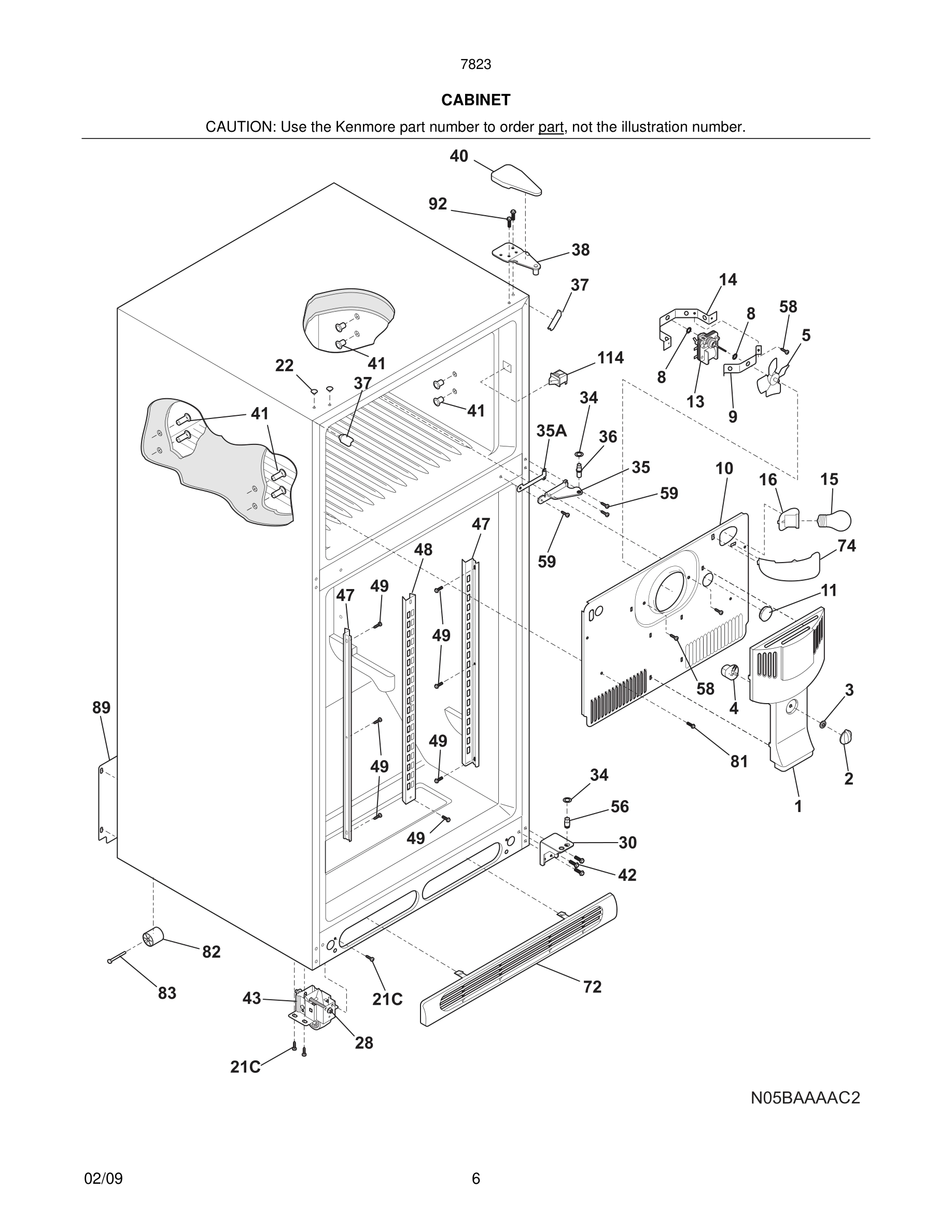

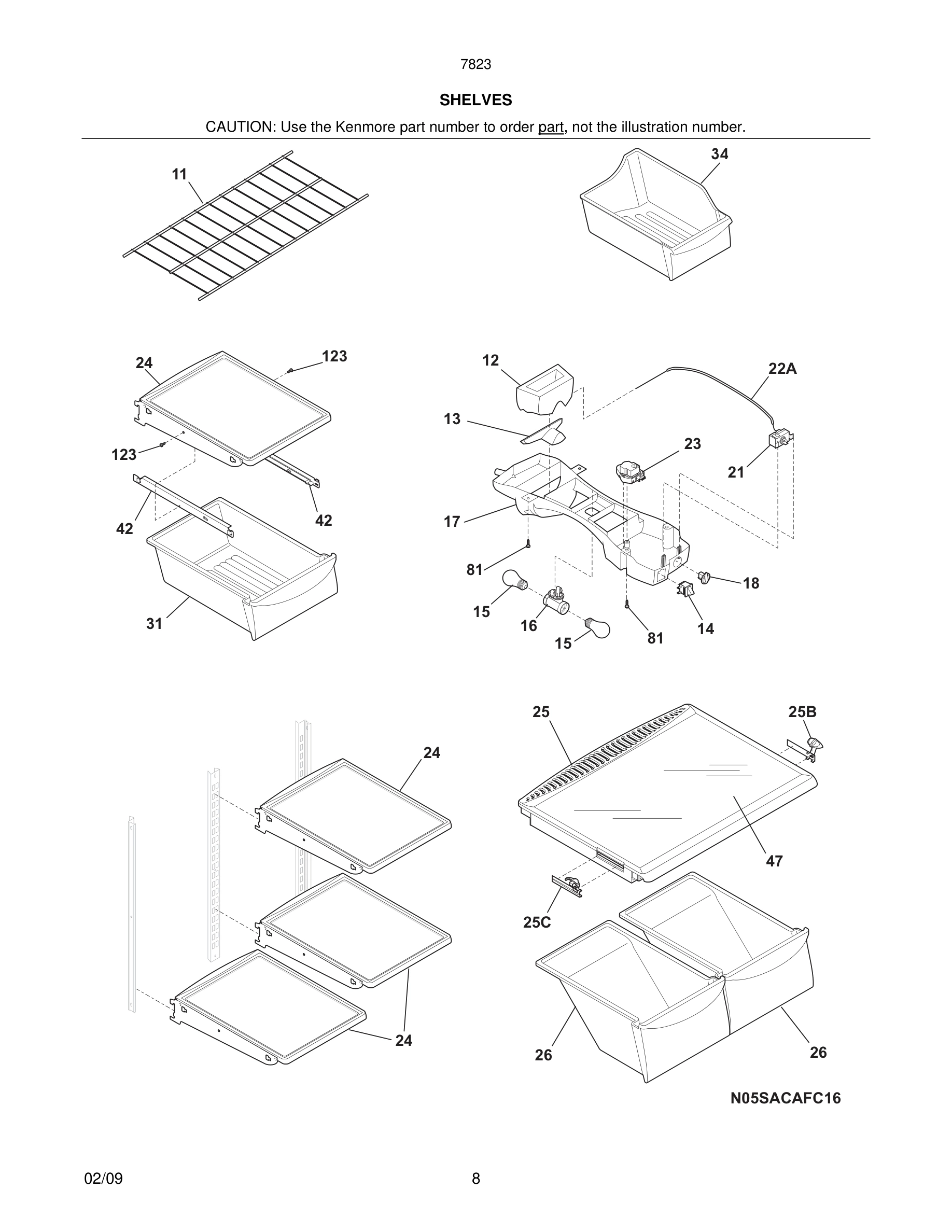

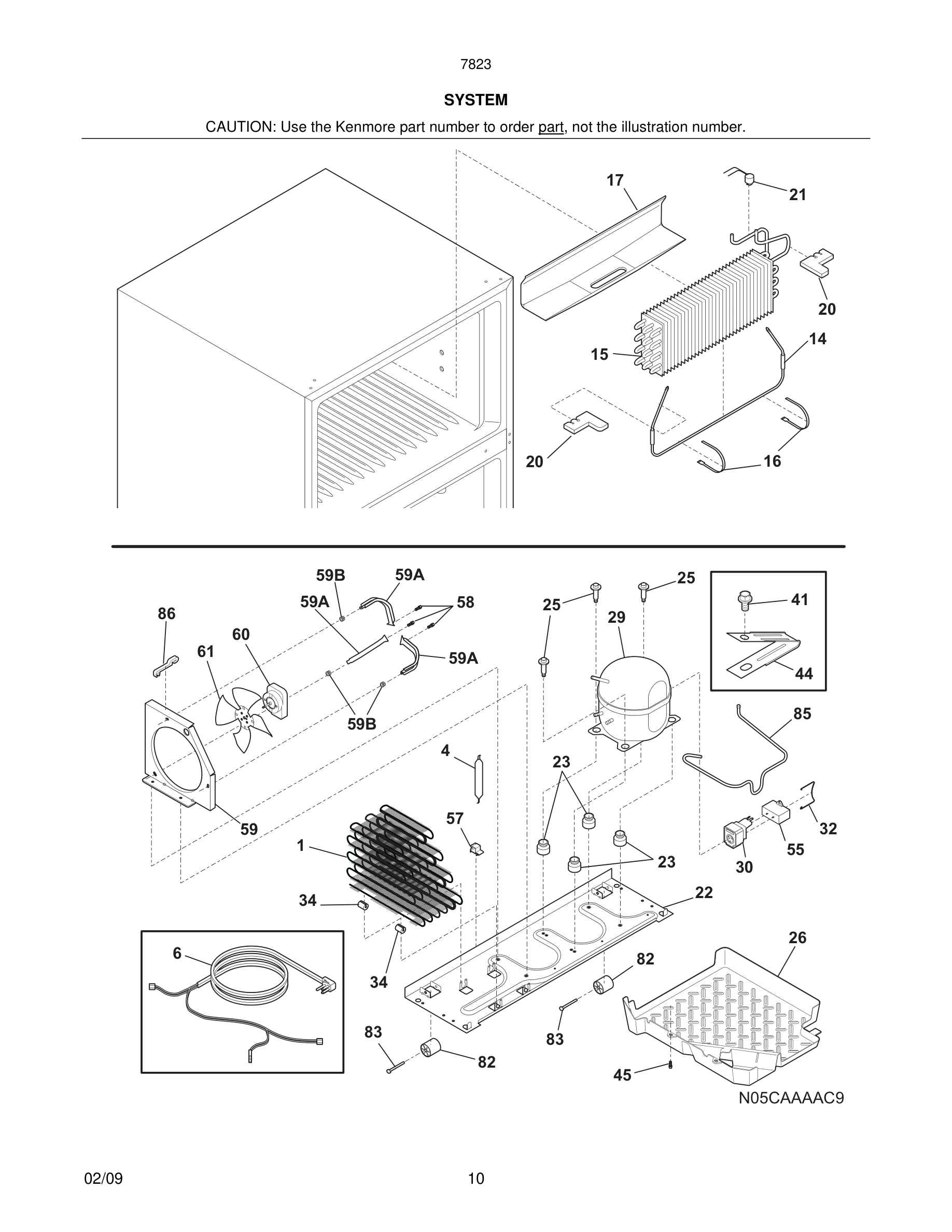

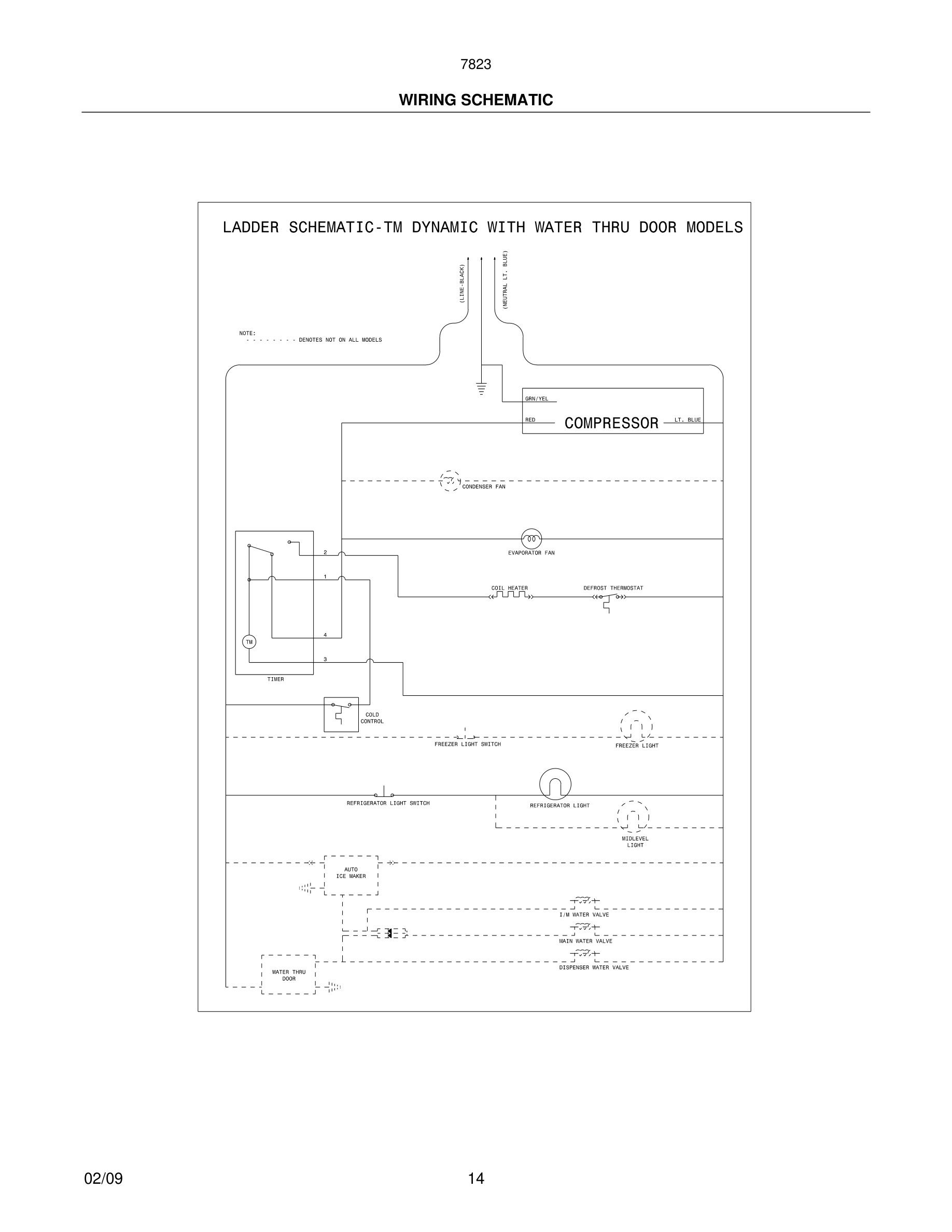

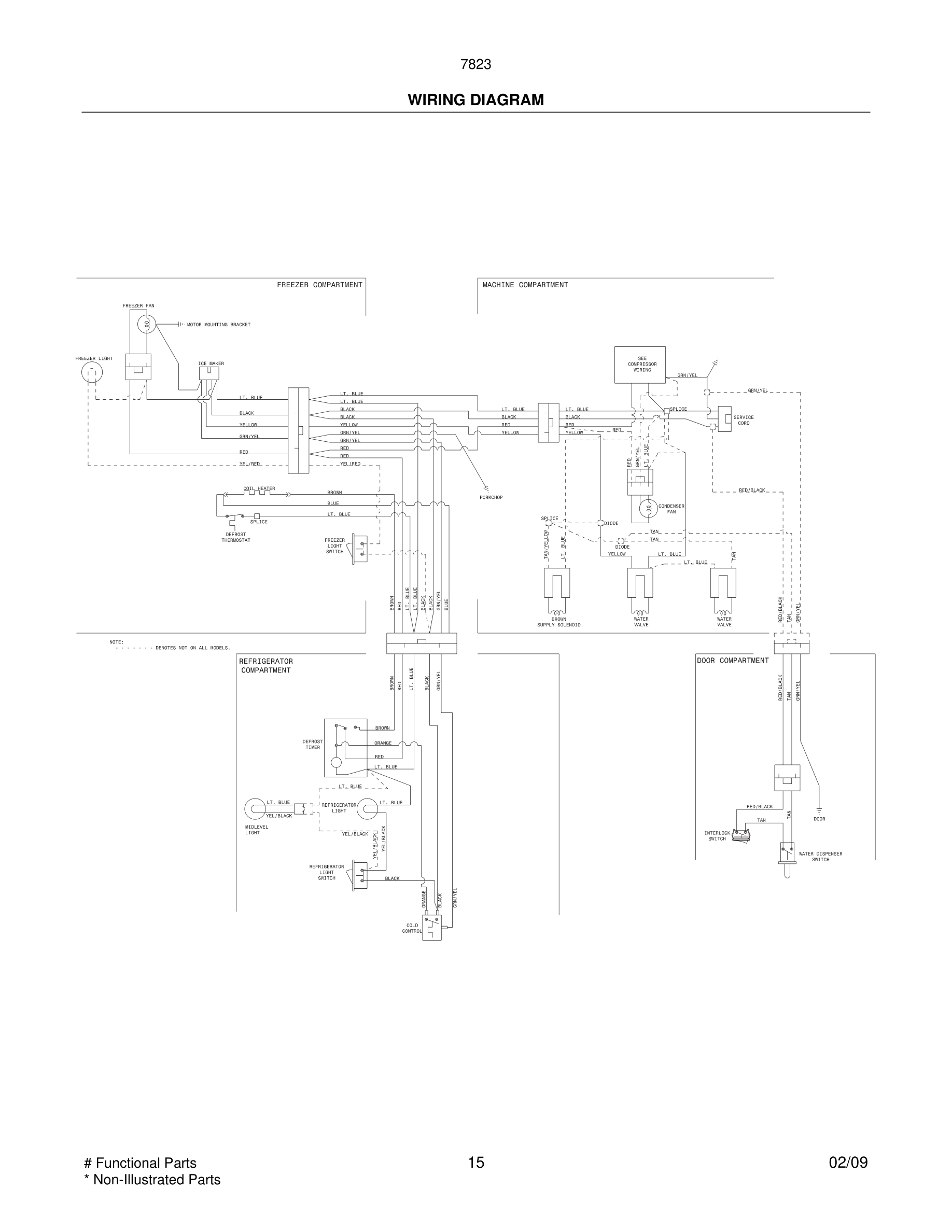

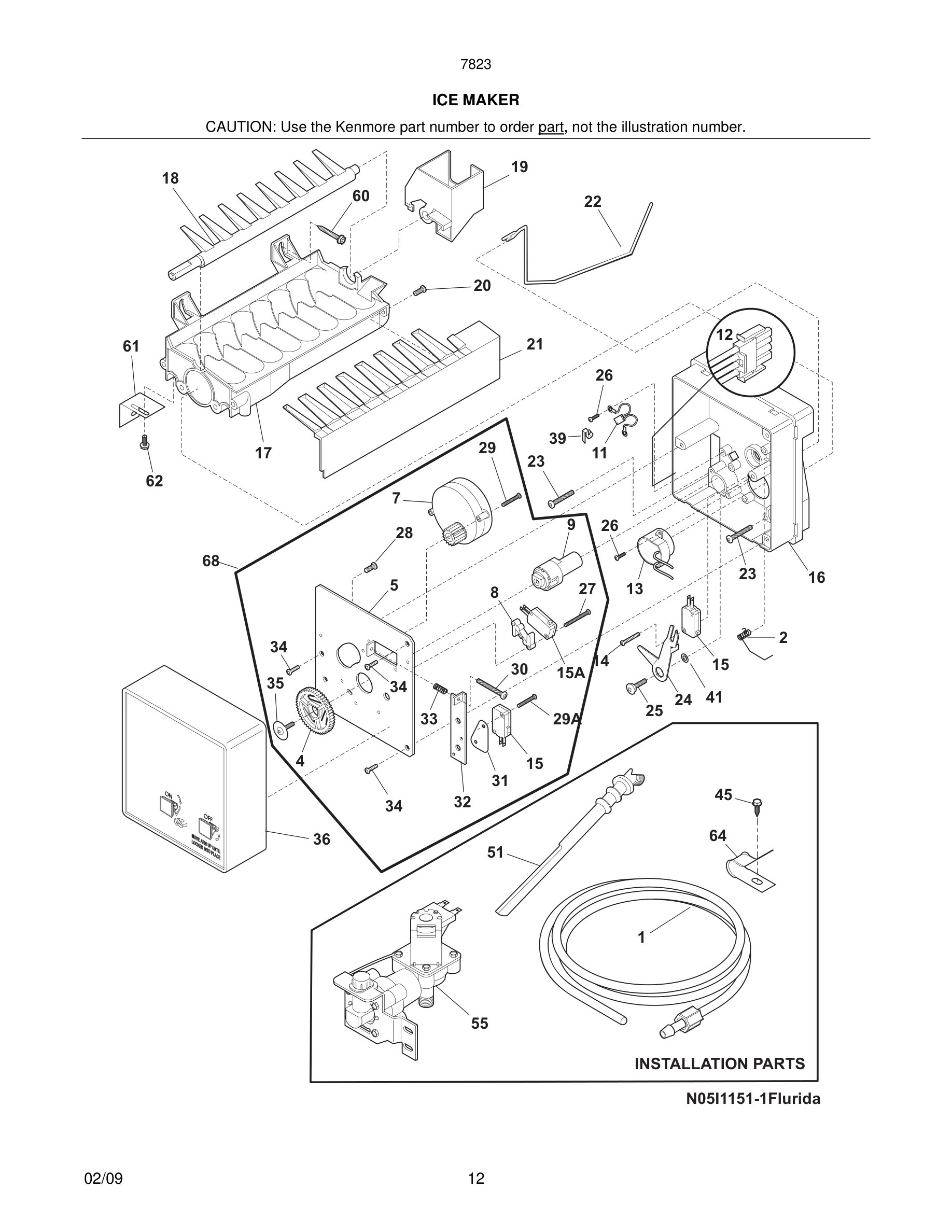

Model Kenmore 253.78232801 REFRIGERATOR – Common Parts &amp; Diagrams

*

241798231 Frigidaire Refrigerator Ice Maker A In Stock WCI 241798231 $49.65

*

5303321319 Frigidaire Refrigerator White Touc In Stock WCI 5303321319 $9.23

*

5303321321 Frigidaire Refrigerator Black Touc Backorder WCI 5303321321 $13.61

*

5304414035 Frigidaire Refrigerator Touch Up P Backorder WCI 5304414035 $9.00

*#

5303918330 Frigidaire Refrigerator Heat Excha In Stock WCI 5303918330 $194.59

*#

Hot Tube Repair Kit, service WCI 5304421289 Contact Us For Availability

1

241850615 Frigidaire Ice Maker Fill Tube Asse In Stock WCI 241850615 $22.19

1

242193205 Frigidaire Refrigerator White Freez Backorder WCI 242193205 $112.48

1#

242193211 Frigidaire Refrigerator Door Gasket In Stock WCI 242193211 $115.11

1*

240561701 Frigidaire Refrigerator Seal Backorder WCI 240561701 $13.13

2

240367001 Frigidaire Refrigerator Air Damper In Stock WCI 240367001 $34.41

2

Spring-shutoff arm, ice maker WCI 5304469396 Contact Us For Availability

2#

242193213 Frigidaire Refrigerator Door Gasket In Stock WCI 242193213 $77.91

2#

242193214 Frigidaire Refrigerator Door Gasket In Stock WCI 242193214 $121.85

3

Nut WCI 5303212803 Contact Us For Availability

4

5304469403 Frigidaire Gear Backorder WCI 5304469403 $12.74

4

Damper-fan cover WCI 240367401 Contact Us For Availability

5#

5308000010 Frigidaire Refrigerator Evaporator In Stock WCI 5308000010 $31.93

6*#

240388701 Frigidaire Refrigerator Wiring Harn Backorder WCI 240388701 $2.66

7#

5304469407 Frigidaire Refrigerator Ice Maker Backorder WCI 5304469407 $97.46

8

240495804 Frigidaire Refrigerator Replacement In Stock WCI 240495804 $19.15

9

Bracket-motor mtg, front WCI 5303292396 Contact Us For Availability

9

Cam WCI 5304469402 Contact Us For Availability

10

240381301 Frigidaire Refrigerator Button Plug In Stock WCI 240381301 $11.32

10

240381303 Frigidaire Hinge Plug Backorder WCI 240381303 $41.22

10

Plug-button, bisque, hinge brg hole, (2) WCI 240381302 Contact Us For Availability

10*

240568606 Frigidaire Refrigerator Coil Cover Backorder WCI 240568606 $8.15

11

5303208309 Frigidaire Refrigerator Plug Hole Backorder WCI 5303208309 $27.18

11

5304530262 Frigidaire Refrigerator Shelf Backorder WCI 5304530262 $66.32

12

240545901 Frigidaire Refrigerator Air Diffuse Backorder WCI 240545901 $44.37

12#

Harness-wiring WCI 5304469390 Contact Us For Availability

240312421 Frigidaire Refrigerator Door Stop Backorder WCI 240312421 $9.06

240312422 Frigidaire Refrigerator Door Stop Backorder WCI 240312422 $9.06

240312423 Frigidaire Refrigerator Door Stop Backorder WCI 240312423 $7.25

240362601 Frigidaire Refrigerator P1 Diffuser In Stock WCI 240362601 $26.72

Thermostat Assy, ice maker WCI 5304469387 Contact Us For Availability

13#

241854501 Frigidaire Refrigerator Evaporator In Stock WCI 241854501 $109.97

13*

215474201 Frigidaire Refrigerator Washer Backorder WCI 215474201 $11.78

13A

240312414 Frigidaire Refrigerator Door Stop Backorder WCI 240312414 $12.20

13A

Door Stop, black, frzr WCI 240312406 Contact Us For Availability

240438003 Frigidaire Refrigerator Bracket and Backorder WCI 240438003 $10.41

240494001 Frigidaire Refrigerator Plug Button In Stock WCI 240494001 $10.85

240494003 Frigidaire Refrigerator Button Plug In Stock WCI 240494003 $10.85

241554901 Frigidaire Refrigerator Light/Lamp In Stock WCI 241554901 $44.82

Plug-button, bisque WCI 240494002 Contact Us For Availability

15

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $10.61

15#

5303918274 Frigidaire Refrigerator Evaporator In Stock WCI 5303918274 $190.06

15#

Switch-micro, 2 WCI 5304469388 Contact Us For Availability

15A#

Switch-micro WCI 5304469405 Contact Us For Availability

16

240364201 Frigidaire Refrigerator Light/Lamp Backorder WCI 240364201 $63.54

16

5308000110 Frigidaire Refrigerator Evaporator In Stock WCI 5308000110 $39.44

16

Housing, control WCI 5304469379 Contact Us For Availability

17

241801301 Frigidaire Refrigerator Drain Troug Backorder WCI 241801301 $38.09

17#

5304469413 Frigidaire Refrigerator Ice Maker Backorder WCI 5304469413 $122.90

218779901 Frigidaire Refrigerator White Fresh In Stock WCI 218779901 $43.91

Handle-door, bisque, refr, w/block & screw WCI 218779904 No Longer Available

Handle-door, charcoal gray, refr, w/block & s WCI 218779903 Contact Us For Availability

Knob, temp control WCI 240360801 Contact Us For Availability

Ejector-ice WCI 5304469384 Contact Us For Availability

18A

Handle-door, white, frzr, w/nameplate, block WCI 218779812 Contact Us For Availability

18A

Handle-door, charcoal gray, frzr, w/nameplate WCI 218779814 Contact Us For Availability

20

241551902 Frigidaire Refrigerator Insulation Backorder WCI 241551902 $7.23

240383407 Frigidaire Refrigerator Screw Backorder WCI 240383407 $8.15

240383408 Frigidaire Refrigerator Screw In Stock WCI 240383408 $8.12

Ice Stripper WCI 5304469378 Contact Us For Availability

Screw, truss hd quad, #10-16 x .500, bisque WCI 240383409 Contact Us For Availability

21#

5303918202 Frigidaire Refrigerator Defrost Th In Stock WCI 5303918202 $11.09

21A

240521303 Frigidaire Refrigerator Screw In Stock WCI 240521303 $9.04

215774901 Frigidaire Refrigerator Button Plug In Stock WCI 215774901 $10.87

215774918 Frigidaire Refrigerator Button Plug Backorder WCI 215774918 $5.88

5304507146 Frigidaire Refrigerator Hinge Bear In Stock WCI 5304507146 $4.51

5304507147 Frigidaire Refrigerator Hinge Bear In Stock WCI 5304507147 $4.51

Shut-off Arm WCI 5304469377 Contact Us For Availability

22*

218252201 Frigidaire Refrigerator Screw Backorder WCI 218252201 $9.04

22A

240468202 Frigidaire Refrigerator Tube Backorder WCI 240468202 $5.42

25

Cover-crisper pan WCI 240364729 Contact Us For Availability

25

Screw-compressor mtg, 1/4-28 x 1.16, (4) WCI 240491503 Contact Us For Availability

25B

241613501 Frigidaire Refrigerator Humidity Co Backorder WCI 241613501 $7.69

25C

241613502 Frigidaire Refrigerator Humidity Co Backorder WCI 241613502 $28.51

26

240343803 Frigidaire Refrigerator Clear Crisp In Stock WCI 240343803 $68.49

30#

241707701 Frigidaire Refrigerator Starter In Stock WCI 241707701 $49.29

34

240311303 Frigidaire Refrigerator Nylon Hinge In Stock WCI 240311303 $6.88

34

240385201 Frigidaire Refrigerator Ice Contain In Stock WCI 240385201 $67.44

34

240405201 Frigidaire Refrigerator Grommet Backorder WCI 240405201 $12.67

35

240313803 Frigidaire Refrigerator Center Hing Backorder WCI 240313803 $99.00

35

Bracket-ctr hinge, zinc WCI 240313806 Contact Us For Availability

35A

240336802 Frigidaire Refrigerator Hinge Space In Stock WCI 240336802 $11.76

35A

240336803 Frigidaire Refrigerator Hinge Space Backorder WCI 240336803 $7.25

36

Cover-ice maker WCI 5304469385 Contact Us For Availability

37

Trim-cabinet corner, black, (2) WCI 240337610 Contact Us For Availability

37A

Trim-handle, 1.34", white WCI 218771201 Contact Us For Availability

37A

Trim-handle, 1.34", bisque, lower WCI 218771204 Contact Us For Availability

37A

Trim-handle, 1.34", gray WCI 218771203 Contact Us For Availability

40

240354401 Frigidaire Upper Hinge Cover Backorder WCI 240354401 $37.05

40

240354404 Frigidaire Refrigerator Upper Hinge In Stock WCI 240354404 $37.05

40

Cover-upper hinge, bisque WCI 240354403 Contact Us For Availability

41

240555002 Frigidaire Refrigerator Screw #8-32 In Stock WCI 240555002 $8.58

41

5304500407 Frigidaire Refrigerator Shelf Moun Backorder WCI 5304500407 $4.07

42

240356501 Frigidaire Tray Hanger Pan In Stock WCI 240356501 $36.26

42

240365401 Frigidaire Refrigerator Left-Hand M In Stock WCI 240365401 $36.77

42

240578902 Frigidaire Screw Mounting Hinge In Stock WCI 240578902 $9.04

43

5304499445 Frigidaire Refrigerator Roller Ass Backorder WCI 5304499445 $19.99

47

240350609 Frigidaire Refrigerator Crisper Cov In Stock WCI 240350609 $96.18

48

240338101 Frigidaire Refrigerator Bottom Door In Stock WCI 240338101 $34.13

48

Channel-shelf mtg, center WCI 5303292395 Contact Us For Availability

49

241808201 Frigidaire Refrigerator Door Bin In Stock WCI 241808201 $48.12

56

240516502 Frigidaire Refrigerator Lower Hinge In Stock WCI 240516502 $43.03

59

240442707 Frigidaire Refrigerator Screw #10-3 In Stock WCI 240442707 $1.79

59

240442708 Frigidaire Refrigerator Screw - #10 In Stock WCI 240442708 $4.97

59*

240346701 Frigidaire Refrigerator Foam Seal T Backorder WCI 240346701 $19.01

59*

240359403 Frigidaire Refrigerator Fan Shroud Backorder WCI 240359403 $2.26

60

218362501 Frigidaire Refrigerator Screw Backorder WCI 218362501 $7.71

61

241639502 Frigidaire Refrigerator Condenser F In Stock WCI 241639502 $11.41

64

5304455846 Frigidaire Refrigerator Clamp In Stock WCI 5304455846 $6.79

68

Mounting Plate, assy WCI 5304469398 Contact Us For Availability

72

241839405 Frigidaire Refrigerator Kickplate/G Backorder WCI 241839405 $38.55

72

241839407 Frigidaire Refrigerator Kickplate/G Backorder WCI 241839407 $37.19

72

Grille/Kickplate, bisque WCI 241839406 Contact Us For Availability

73

218396700 Frigidaire Door Handle Mounting Blo In Stock WCI 218396700 $28.99

74

Screw, cr pan hd, 10-16 WCI 215503204 Contact Us For Availability

74

Shield-light, frzr WCI 240354302 Contact Us For Availability

81

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $9.06

82

5304418225 Frigidaire Refrigerator Roller P-1 In Stock WCI 5304418225 $30.80

83

5304455655 Frigidaire Refrigerator Rivet Backorder WCI 5304455655 $23.04

86

240409302 Frigidaire Refrigerator Condenser T Backorder WCI 240409302 $39.88

89

241733911 Frigidaire Refrigerator Access Cove In Stock WCI 241733911 $32.30

89*

241500303 Frigidaire Refrigerator Screw Backorder WCI 241500303 $2.72

92

241710601 Frigidaire Refrigerator Screw In Stock WCI 241710601 $8.60

114

240505801 Frigidaire Light Switch In Stock WCI 240505801 $42.13

123

215005101 Frigidaire Refrigerator Screw Backorder WCI 215005101 $9.50
