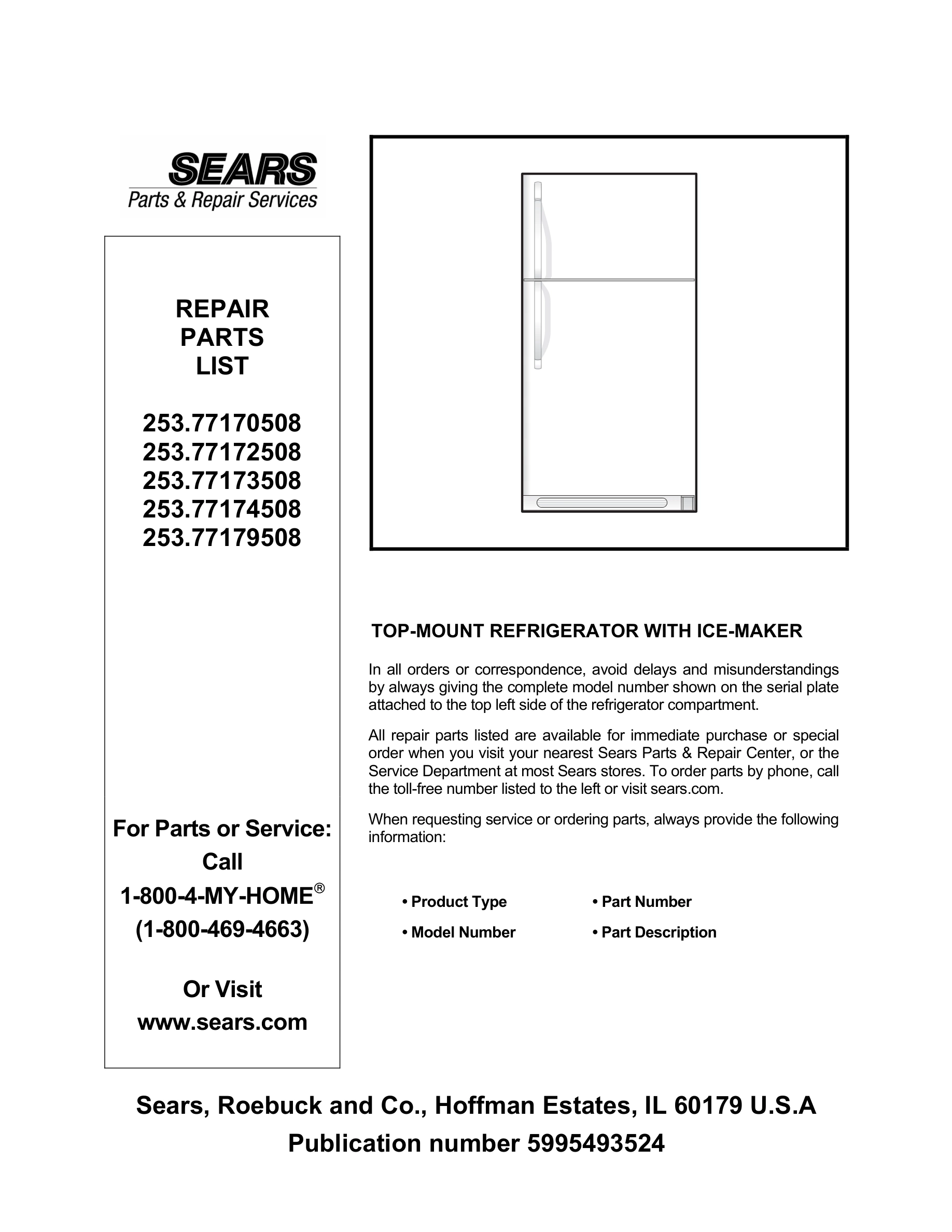

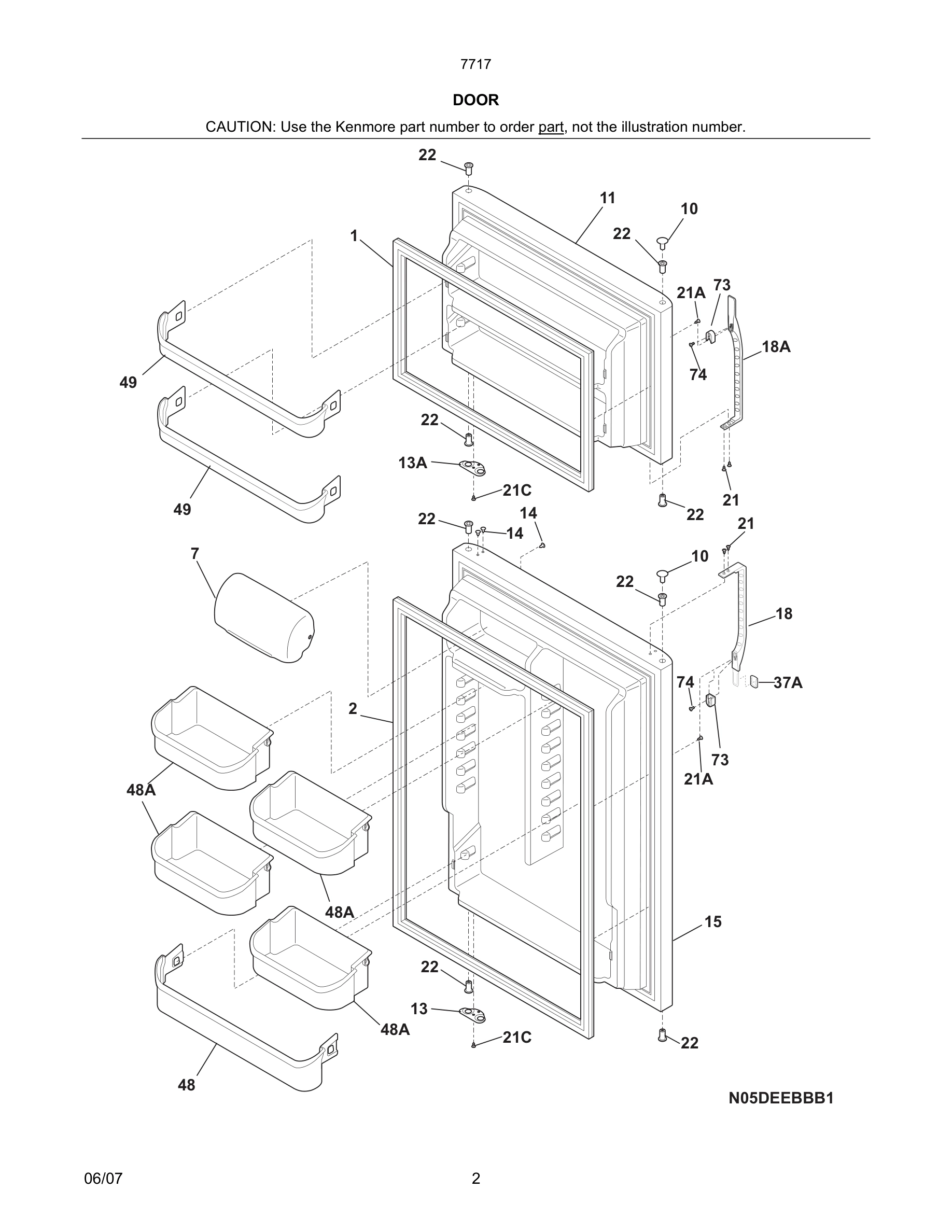

Model Kenmore 253.77170508 REFRIGERATOR – Common Parts &amp; Diagrams

*

241798231 Frigidaire Refrigerator Ice Maker A In Stock WCI 241798231 $104.49

*

5303321319 Frigidaire Refrigerator White Touc In Stock WCI 5303321319 $9.23

*

5303321321 Frigidaire Refrigerator Black Touc In Stock WCI 5303321321 $13.61

*

5304414035 Frigidaire Refrigerator Touch Up P Backorder WCI 5304414035 $9.00

*#

5303918330 Frigidaire Refrigerator Heat Excha Backorder WCI 5303918330 $194.59

*#

Hot Tube Repair Kit, service WCI 5304421289 Contact Us For Availability

1

218976901 Frigidaire Refrigerator P1 Water In Backorder WCI 218976901 $51.52

1*

240561701 Frigidaire Refrigerator Seal Backorder WCI 240561701 $13.13

2

240367001 Frigidaire Refrigerator Air Damper In Stock WCI 240367001 $34.41

3

Nut WCI 5303212803 Contact Us For Availability

4

Damper-fan cover WCI 241523701 Contact Us For Availability

5

5308000010 Frigidaire Refrigerator Evaporator In Stock WCI 5308000010 $31.93

6*#

240388701 Frigidaire Refrigerator Wiring Harn Backorder WCI 240388701 $50.64

9

Bracket-motor mtg, front WCI 5303292396 Contact Us For Availability

10

240381301 Frigidaire Refrigerator Button Plug In Stock WCI 240381301 $11.32

10

240381303 Frigidaire Hinge Plug Backorder WCI 240381303 $41.22

10

Plug-button, bisque, hinge brg hole, (2) WCI 240381302 Contact Us For Availability

10*

240568606 Frigidaire Refrigerator Coil Cover Backorder WCI 240568606 $8.15

11

5303208309 Frigidaire Refrigerator Plug Hole Backorder WCI 5303208309 $27.18

11

5304530262 Frigidaire Refrigerator Shelf In Stock WCI 5304530262 $66.32

12

240545901 Frigidaire Refrigerator Air Diffuse Backorder WCI 240545901 $44.37

240312421 Frigidaire Refrigerator Door Stop In Stock WCI 240312421 $9.06

240312422 Frigidaire Refrigerator Door Stop In Stock WCI 240312422 $9.06

240312423 Frigidaire Refrigerator Door Stop Backorder WCI 240312423 $7.25

240362601 Frigidaire Refrigerator P1 Diffuser Backorder WCI 240362601 $26.72

5304456665 Frigidaire Refrigerator Thermostat Backorder WCI 5304456665 $79.31

13*

215474201 Frigidaire Refrigerator Washer Backorder WCI 215474201 $11.78

13A

240312414 Frigidaire Refrigerator Door Stop Backorder WCI 240312414 $12.20

13A

Door Stop, black, frzr WCI 240312406 Contact Us For Availability

240438003 Frigidaire Refrigerator Bracket and Backorder WCI 240438003 $10.41

240494001 Frigidaire Refrigerator Plug Button In Stock WCI 240494001 $10.85

240494002 Frigidaire Refrigerator Button Plug Backorder WCI 240494002 $26.26

240494003 Frigidaire Refrigerator Button Plug In Stock WCI 240494003 $10.85

14#

240356217 Frigidaire Refrigerator Defrost Hea Backorder WCI 240356217 $69.03

14#

241554901 Frigidaire Refrigerator Light/Lamp In Stock WCI 241554901 $44.82

15

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $10.61

15#

5303918274 Frigidaire Refrigerator Evaporator In Stock WCI 5303918274 $197.78

15#

5304456667 Frigidaire Refrigerator Micro Swit Backorder WCI 5304456667 $54.68

16

241559801 Frigidaire Light Socket Refrigerato In Stock WCI 241559801 $45.94

16

5308000110 Frigidaire Refrigerator Evaporator In Stock WCI 5308000110 $39.44

218779901 Frigidaire Refrigerator White Fresh In Stock WCI 218779901 $43.91

Handle-door, bisque, refr, w/block & screw WCI 218779904 No Longer Available

Knob, temp control WCI 240360801 No Longer Available

Handle-door, charcoal gray, refr, w/block & s WCI 218779903 Contact Us For Availability

18A

Handle-door, white, frzr, w/nameplate, block WCI 218779812 Contact Us For Availability

18A

Handle-door, charcoal gray, frzr, w/nameplate WCI 218779814 Contact Us For Availability

20

241551902 Frigidaire Refrigerator Insulation Backorder WCI 241551902 $7.23

21

240383407 Frigidaire Refrigerator Screw In Stock WCI 240383407 $8.15

21

240383408 Frigidaire Refrigerator Screw In Stock WCI 240383408 $8.12

21

Screw, truss hd quad, #10-16 x .500, bisque WCI 240383409 Contact Us For Availability

21#

5303918202 Frigidaire Refrigerator Defrost Th In Stock WCI 5303918202 $11.09

21A

240521303 Frigidaire Refrigerator Screw In Stock WCI 240521303 $9.04

215774901 Frigidaire Refrigerator Button Plug In Stock WCI 215774901 $10.87

215774918 Frigidaire Refrigerator Button Plug In Stock WCI 215774918 $5.88

5304507146 Frigidaire Refrigerator Hinge Bear In Stock WCI 5304507146 $4.51

5304507147 Frigidaire Refrigerator Hinge Bear In Stock WCI 5304507147 $4.51

22*

218252201 Frigidaire Refrigerator Screw In Stock WCI 218252201 $9.04

22A

240468202 Frigidaire Refrigerator Tube Backorder WCI 240468202 $5.42

24

240358928 Frigidaire Refrigerator Spill Safe In Stock WCI 240358928 $107.28

24

5304456675 Frigidaire Refrigerator Lever Arm Backorder WCI 5304456675 $42.12

25

Cover-crisper pan WCI 240364729 Contact Us For Availability

25

Screw-compressor mtg, 1/4-28 x 1.16, (4) WCI 240491503 Contact Us For Availability

25B

241613501 Frigidaire Refrigerator Humidity Co Backorder WCI 241613501 $7.69

25C

241613502 Frigidaire Refrigerator Humidity Co In Stock WCI 241613502 $28.51

26

240343803 Frigidaire Refrigerator Clear Crisp In Stock WCI 240343803 $100.66

30#

241707701 Frigidaire Refrigerator Starter In Stock WCI 241707701 $47.49

34

240311303 Frigidaire Refrigerator Nylon Hinge In Stock WCI 240311303 $6.82

34

240385201 Frigidaire Refrigerator Ice Contain In Stock WCI 240385201 $67.44

34

240405201 Frigidaire Refrigerator Grommet Backorder WCI 240405201 $12.67

35

240313803 Frigidaire Refrigerator Center Hing In Stock WCI 240313803 $99.00

35

Bracket-ctr hinge, zinc WCI 240313806 Contact Us For Availability

35A

240336802 Frigidaire Refrigerator Hinge Space In Stock WCI 240336802 $11.76

35A

240336803 Frigidaire Refrigerator Hinge Space In Stock WCI 240336803 $7.25

37

242161202 Frigidaire Refrigerator Trim-Cabine In Stock WCI 242161202 $4.97

37A

Trim-handle, 1.34", white WCI 218771201 Contact Us For Availability

37A

Trim-handle, 1.34", bisque, lower WCI 218771204 Contact Us For Availability

37A

Trim-handle, 1.34", gray WCI 218771203 Contact Us For Availability

40

240354401 Frigidaire Upper Hinge Cover Backorder WCI 240354401 $37.05

40

240354404 Frigidaire Refrigerator Upper Hinge In Stock WCI 240354404 $37.05

40

Cover-upper hinge, bisque WCI 240354403 Contact Us For Availability

41

5304500407 Frigidaire Refrigerator Shelf Moun In Stock WCI 5304500407 $4.07

42

240578902 Frigidaire Screw Mounting Hinge In Stock WCI 240578902 $9.04

47

240350609 Frigidaire Refrigerator Crisper Cov In Stock WCI 240350609 $93.34

48

240338101 Frigidaire Refrigerator Bottom Door In Stock WCI 240338101 $34.13

48A

240338201 Frigidaire Refrigerator Door Bin In Stock WCI 240338201 $41.71

49

240495804 Frigidaire Refrigerator Replacement In Stock WCI 240495804 $28.97

56

240516502 Frigidaire Refrigerator Lower Hinge In Stock WCI 240516502 $43.03

59

240442707 Frigidaire Refrigerator Screw #10-3 In Stock WCI 240442707 $1.79

59

240442708 Frigidaire Refrigerator Screw - #10 In Stock WCI 240442708 $4.97

59*

240346701 Frigidaire Refrigerator Foam Seal T In Stock WCI 240346701 $19.01

59*

240359403 Frigidaire Refrigerator Fan Shroud Backorder WCI 240359403 $2.26

60

218362501 Frigidaire Refrigerator Screw Backorder WCI 218362501 $7.71

64

5304455846 Frigidaire Refrigerator Clamp In Stock WCI 5304455846 $6.79

73

218396700 Frigidaire Door Handle Mounting Blo In Stock WCI 218396700 $28.99

74

Screw, cr pan hd, 10-16 WCI 215503204 Contact Us For Availability

81

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $9.06

82

5304418225 Frigidaire Refrigerator Roller P-1 In Stock WCI 5304418225 $30.80

83

5304455655 Frigidaire Refrigerator Rivet Backorder WCI 5304455655 $23.04

89

241733911 Frigidaire Refrigerator Access Cove Backorder WCI 241733911 $32.30

89*

241500303 Frigidaire Refrigerator Screw Backorder WCI 241500303 $2.72

92

241710601 Frigidaire Refrigerator Screw In Stock WCI 241710601 $8.60
