Model Kenmore 253.77170503 REFRIGERATOR – Common Parts &amp; Diagrams

*

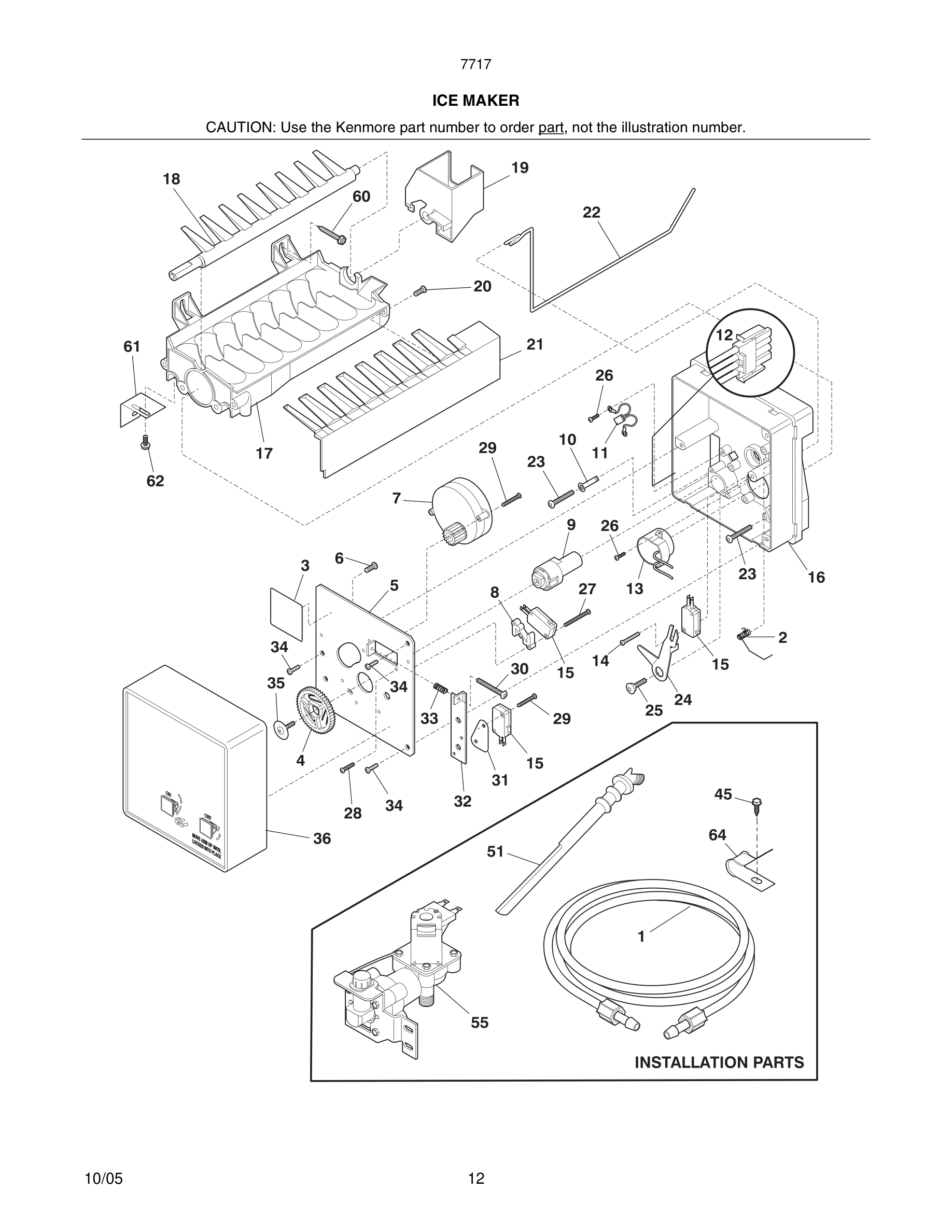

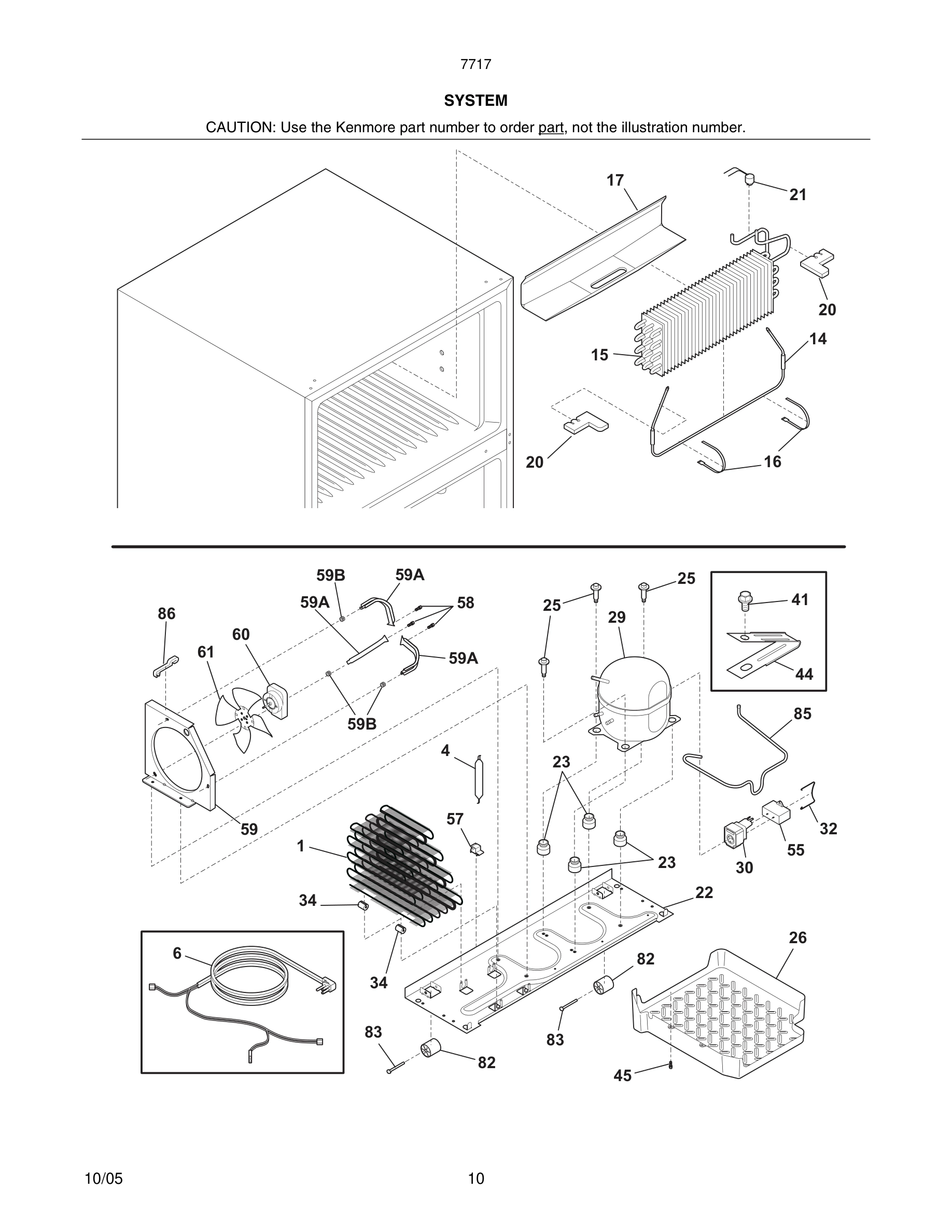

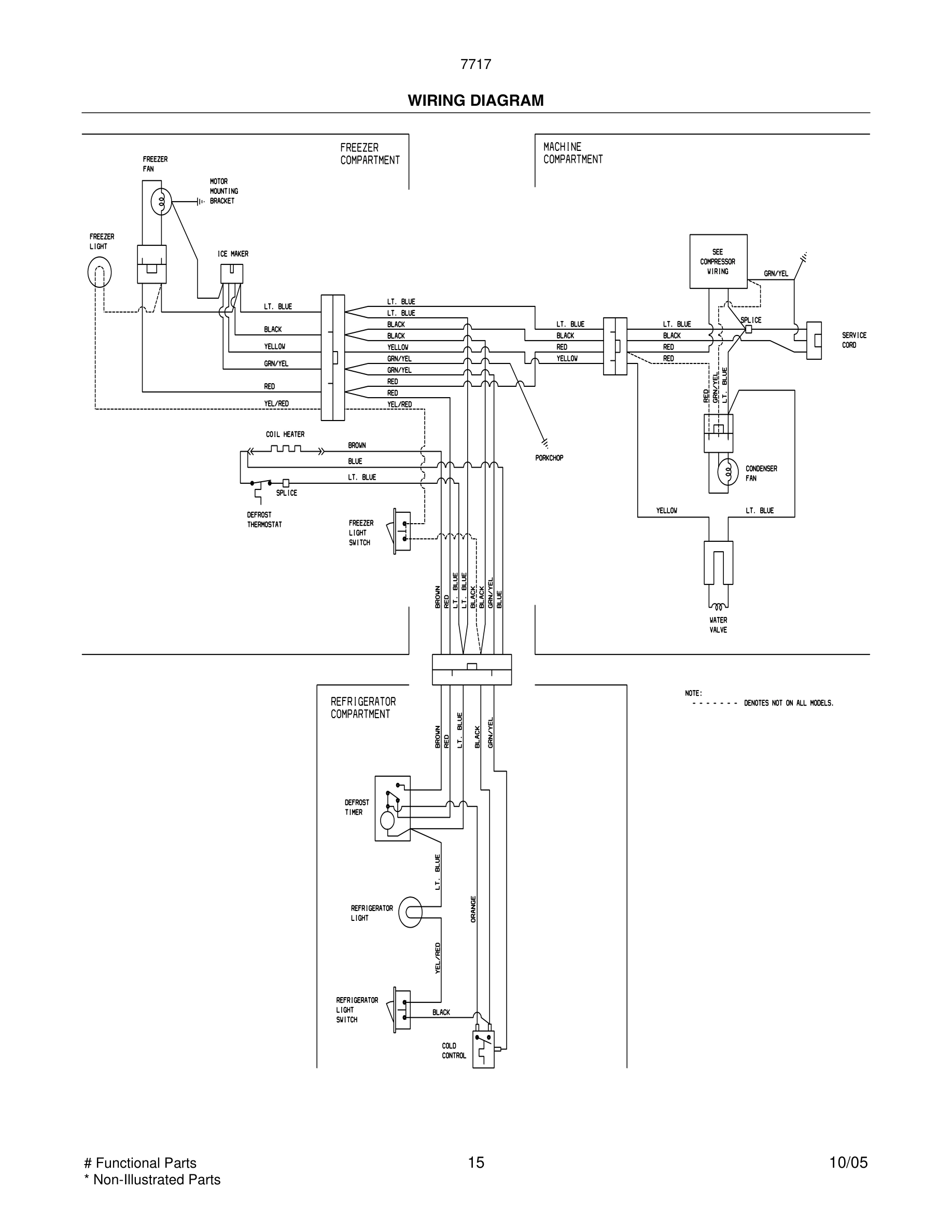

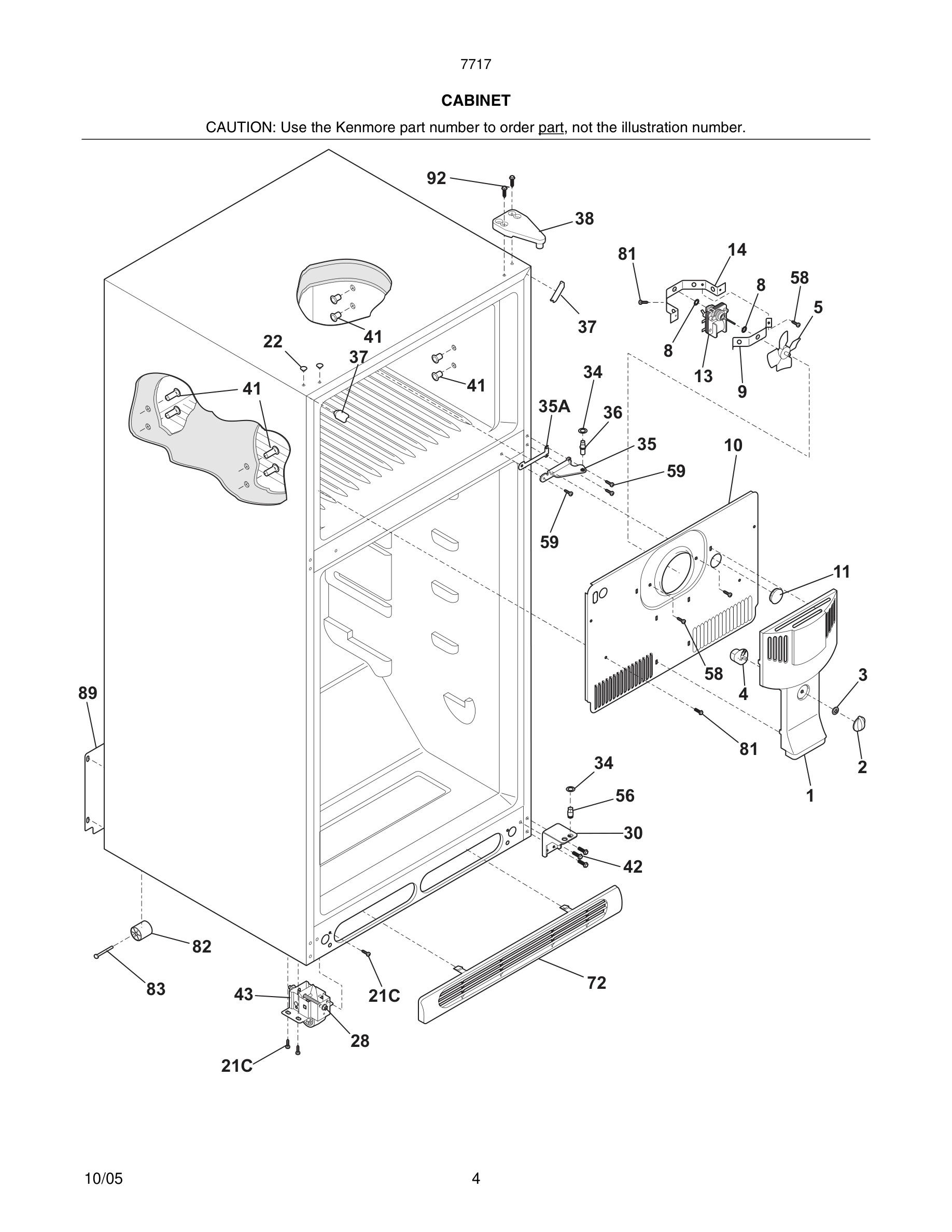

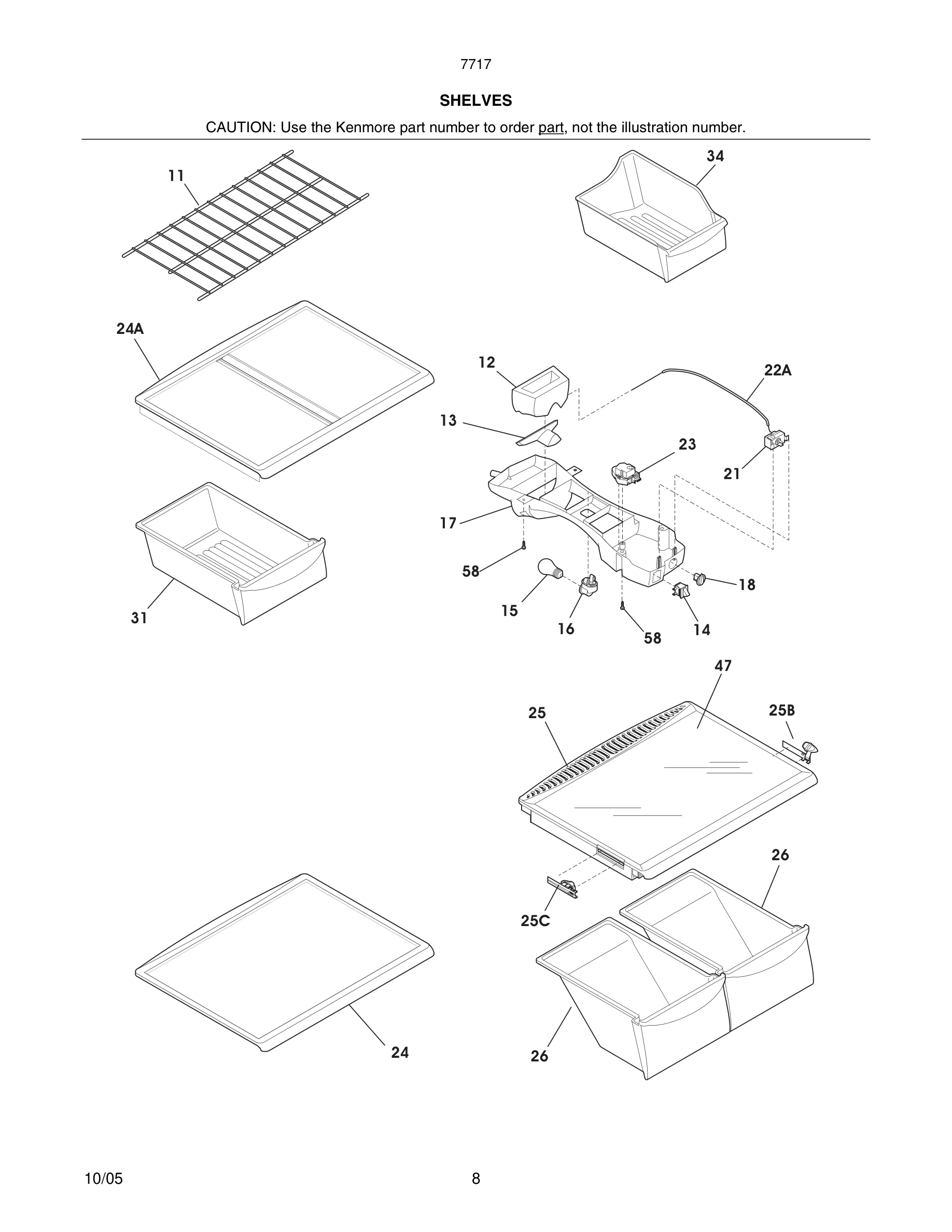

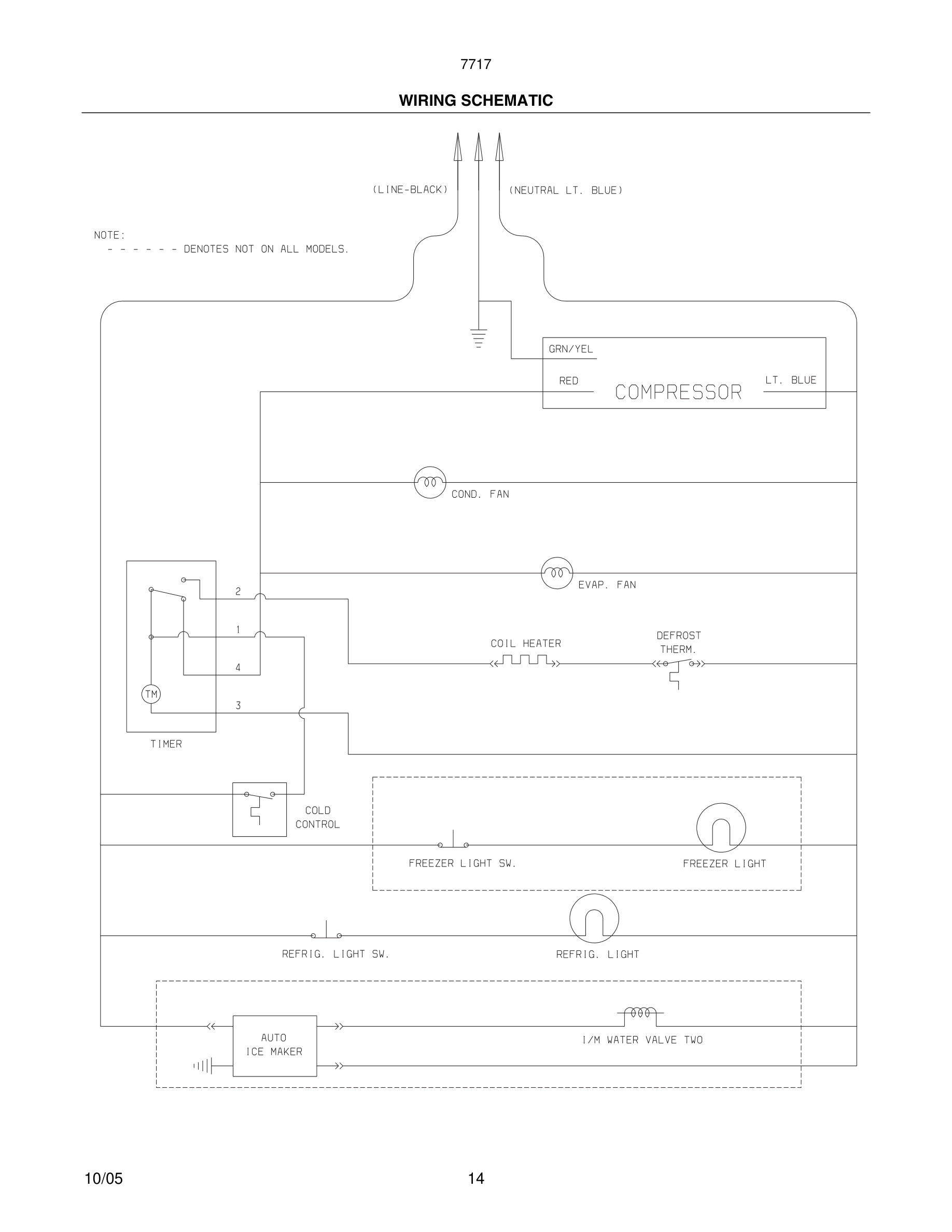

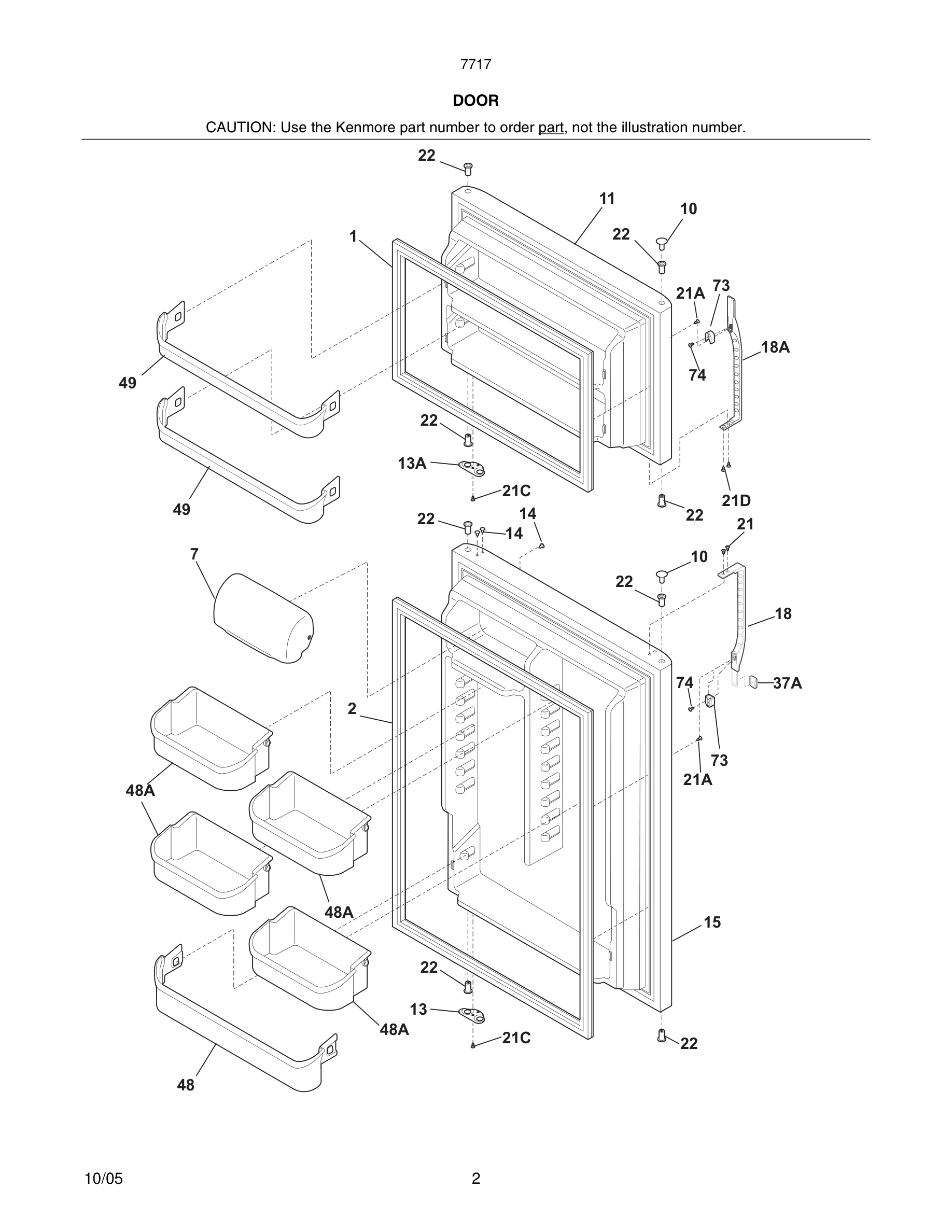

240396801 Frigidaire Refrigerator Tube Clamp Backorder WCI 240396801 $12.24

*

5304414035 Frigidaire Refrigerator Touch Up P Backorder WCI 5304414035 $9.00

*

5304458371 Frigidaire Refrigerator Ice Maker In Stock WCI 5304458371 $101.39

*

Adapter-water supply, nut & sleeve, compressi WCI 218888001 Contact Us For Availability

*#

Hot Tube Repair Kit, service WCI 5304421289 Contact Us For Availability

1

218976901 Frigidaire Refrigerator P1 Water In Backorder WCI 218976901 $51.52

1*

240561701 Frigidaire Refrigerator Seal Backorder WCI 240561701 $13.13

2

240367001 Frigidaire Refrigerator Air Damper In Stock WCI 240367001 $34.41

2

Spring, shut-off arm WCI 5304420650 Contact Us For Availability

3

Nut WCI 5303212803 Contact Us For Availability

3

Label, ID plate WCI 3206299 Contact Us For Availability

4

5304469403 Frigidaire Gear Backorder WCI 5304469403 $12.74

4

Damper-fan cover WCI 241523701 Contact Us For Availability

5

5308000010 Frigidaire Refrigerator Evaporator In Stock WCI 5308000010 $31.93

5

Plate-mounting WCI 3206303 Contact Us For Availability

6

218359202 Frigidaire Refrigerator Screw Backorder WCI 218359202 $6.79

6*#

240388701 Frigidaire Refrigerator Wiring Harn Backorder WCI 240388701 $50.64

7#

5303918277 Frigidaire Refrigerator Ice Maker In Stock WCI 5303918277 $72.17

8

Spacer-hold switch WCI 3206312 Contact Us For Availability

9

Bracket-motor mtg, front WCI 5303292396 Contact Us For Availability

9

Cam WCI 3206313 Contact Us For Availability

240381301 Frigidaire Refrigerator Button Plug In Stock WCI 240381301 $11.32

240381303 Frigidaire Hinge Plug Backorder WCI 240381303 $41.22

Plug-button, bisque, hinge brg hole, (2) WCI 240381302 Contact Us For Availability

Clamp WCI 3206315 Contact Us For Availability

10*

240568606 Frigidaire Refrigerator Coil Cover Backorder WCI 240568606 $8.15

11

3206319 Frigidaire Refrigerator Thermal Cut-O Backorder WCI 3206319 $31.29

11

5303208309 Frigidaire Refrigerator Plug Hole Backorder WCI 5303208309 $27.18

11

5304530262 Frigidaire Refrigerator Shelf In Stock WCI 5304530262 $66.32

12

240545901 Frigidaire Refrigerator Air Diffuse Backorder WCI 240545901 $44.37

12#

Wiring Harness, ICE MAKER, internal, with plu WCI 5304420651 Contact Us For Availability

12*

218843801 Frigidaire Refrigerator Screw Backorder WCI 218843801 $8.58

240312421 Frigidaire Refrigerator Door Stop In Stock WCI 240312421 $9.06

240312422 Frigidaire Refrigerator Door Stop In Stock WCI 240312422 $9.06

240312423 Frigidaire Refrigerator Door Stop Backorder WCI 240312423 $7.25

240362601 Frigidaire Refrigerator P1 Diffuser Backorder WCI 240362601 $26.72

Thermostat Assy, ICE MAKER WCI 3206322 Contact Us For Availability

13A

240312414 Frigidaire Refrigerator Door Stop Backorder WCI 240312414 $12.20

13A

Door Stop, black, frzr WCI 240312406 Contact Us For Availability

240438003 Frigidaire Refrigerator Bracket and Backorder WCI 240438003 $10.41

240494001 Frigidaire Refrigerator Plug Button In Stock WCI 240494001 $10.85

240494002 Frigidaire Refrigerator Button Plug Backorder WCI 240494002 $26.26

240494003 Frigidaire Refrigerator Button Plug In Stock WCI 240494003 $10.85

Screw, 4 x 0.750, switch mtg. WCI 5304420652 Contact Us For Availability

14#

240356217 Frigidaire Refrigerator Defrost Hea Backorder WCI 240356217 $69.03

14#

241554901 Frigidaire Refrigerator Light/Lamp In Stock WCI 241554901 $44.82

15

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $10.61

15#

5303918274 Frigidaire Refrigerator Evaporator In Stock WCI 5303918274 $197.78

15#

5304456667 Frigidaire Refrigerator Micro Swit Backorder WCI 5304456667 $54.68

16

241559801 Frigidaire Light Socket Refrigerato In Stock WCI 241559801 $45.94

16

5308000110 Frigidaire Refrigerator Evaporator In Stock WCI 5308000110 $39.44

16

Support, phenolic WCI 5304420653 Contact Us For Availability

17#

241798231 Frigidaire Refrigerator Ice Maker A In Stock WCI 241798231 $104.49

218779901 Frigidaire Refrigerator White Fresh In Stock WCI 218779901 $43.91

Handle-door, bisque, refr, w/block & screw WCI 218779904 No Longer Available

Knob, temp control WCI 240360801 No Longer Available

Handle-door, charcoal gray, refr, w/block & s WCI 218779903 Contact Us For Availability

Ejector-ice WCI 3206328 Contact Us For Availability

18A

Handle-door, white, frzr, w/nameplate, block WCI 218779812 Contact Us For Availability

18A

Handle-door, charcoal gray, frzr, w/nameplate WCI 218779814 Contact Us For Availability

19

Bearing & Inlet WCI 3206330 Contact Us For Availability

20

241551902 Frigidaire Refrigerator Insulation Backorder WCI 241551902 $7.23

20

Screw, 8-32 x 0.375 WCI 5304408581 Contact Us For Availability

21

Ice Stripper WCI 3206332 Contact Us For Availability

21#

5303918202 Frigidaire Refrigerator Defrost Th In Stock WCI 5303918202 $11.09

215774901 Frigidaire Refrigerator Button Plug In Stock WCI 215774901 $10.87

215774918 Frigidaire Refrigerator Button Plug In Stock WCI 215774918 $5.88

5304507146 Frigidaire Refrigerator Hinge Bear In Stock WCI 5304507146 $4.51

5304507147 Frigidaire Refrigerator Hinge Bear In Stock WCI 5304507147 $4.51

Shut-off Arm WCI 3206333 Contact Us For Availability

22A

240468202 Frigidaire Refrigerator Tube Backorder WCI 240468202 $5.42

23

218513300 Frigidaire Refrigerator Compressor In Stock WCI 218513300 $27.16

23

Screw, 8-32 x 0.875, mold-to-support, (3) WCI 5304408582 Contact Us For Availability

24

240358928 Frigidaire Refrigerator Spill Safe In Stock WCI 240358928 $107.28

24

5304456675 Frigidaire Refrigerator Lever Arm Backorder WCI 5304456675 $42.12

25

Screw, 8-18 x 0.562, lever arm/sprt WCI 3206336 Contact Us For Availability

25B

241613501 Frigidaire Refrigerator Humidity Co Backorder WCI 241613501 $7.69

25C

241613502 Frigidaire Refrigerator Humidity Co In Stock WCI 241613502 $28.51

26

240343803 Frigidaire Refrigerator Clear Crisp In Stock WCI 240343803 $100.66

26

Screw-thermo/sprt, 4-24 x 0.375, (4) WCI 5304420654 Contact Us For Availability

27

Screw, 4-40 x 1.000, hold switch mtg, (2) WCI 3206338 Contact Us For Availability

28

Screw-timing stop, 4-40 x 0.375 WCI 3206339 Contact Us For Availability

29

Screw, 4-24 x 0.750, (6) WCI 3206323 Contact Us For Availability

30

Screw-timing adj, 8-32 x 1.000 WCI 3206341 Contact Us For Availability

30#

216954235 Frigidaire Refrigerator Compressor In Stock WCI 216954235 $51.56

31

Insulator WCI 3206342 Contact Us For Availability

32

Plate-valve switch WCI 3206343 Contact Us For Availability

33

Spring-timing adj WCI 5304408583 Contact Us For Availability

240311303 Frigidaire Refrigerator Nylon Hinge In Stock WCI 240311303 $6.82

240385201 Frigidaire Refrigerator Ice Contain In Stock WCI 240385201 $67.44

240405201 Frigidaire Refrigerator Grommet Backorder WCI 240405201 $12.67

Screw, plazscrew, 8-10, (3) WCI 5304420655 Contact Us For Availability

35

240313803 Frigidaire Refrigerator Center Hing In Stock WCI 240313803 $99.00

35

Screw WCI 5304408585 Contact Us For Availability

35A

240336802 Frigidaire Refrigerator Hinge Space In Stock WCI 240336802 $11.76

36

Cover-ice maker WCI 3206347 Contact Us For Availability

37

242161202 Frigidaire Refrigerator Trim-Cabine In Stock WCI 242161202 $4.97

37A

Trim-handle, 1.34", white WCI 218771201 Contact Us For Availability

37A

Trim-handle, 1.34", bisque, lower WCI 218771204 Contact Us For Availability

37A

Trim-handle, 1.34", gray, lower WCI 218771203 Contact Us For Availability

41

5304500407 Frigidaire Refrigerator Shelf Moun In Stock WCI 5304500407 $4.07

45

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $9.06

45

5304455651 Frigidaire Refrigerator Screw In Stock WCI 5304455651 $8.58

47

240350609 Frigidaire Refrigerator Crisper Cov In Stock WCI 240350609 $93.34

48

240338101 Frigidaire Refrigerator Bottom Door In Stock WCI 240338101 $34.13

48A

240338201 Frigidaire Refrigerator Door Bin In Stock WCI 240338201 $41.71

49

240495804 Frigidaire Refrigerator Replacement In Stock WCI 240495804 $28.97

51

241796405 Frigidaire Refrigerator Fill Water In Stock WCI 241796405 $11.76

55

297286803 Frigidaire Refrigerator Run Capacit In Stock WCI 297286803 $24.91

55#

242252603 Frigidaire Refrigerator Water Inlet In Stock WCI 242252603 $48.50

57

240542601 Frigidaire Wiring Harness Clip Backorder WCI 240542601 $57.37

58

240569202 Frigidaire Refrigerator Screw In Stock WCI 240569202 $1.35

59

241946105 Frigidaire Refrigerator Condenser S Backorder WCI 241946105 $16.75

59*

240346701 Frigidaire Refrigerator Foam Seal T In Stock WCI 240346701 $19.01

59*

240359403 Frigidaire Refrigerator Fan Shroud Backorder WCI 240359403 $2.26

59A

240346501 Frigidaire Refrigerator Support Bra Backorder WCI 240346501 $14.05

59B

Grommet-bracket, (3) WCI 240346601 Contact Us For Availability

60

218362501 Frigidaire Refrigerator Screw Backorder WCI 218362501 $7.71

60

297279500 Frigidaire Refrigerator Condenser F In Stock WCI 297279500 $87.15

61

218721500 Frigidaire Refrigerator Leveling Br Backorder WCI 218721500 $46.16

61

241639502 Frigidaire Refrigerator Condenser F In Stock WCI 241639502 $11.41

62

240555002 Frigidaire Refrigerator Screw #8-32 In Stock WCI 240555002 $8.58

64

5304455846 Frigidaire Refrigerator Clamp In Stock WCI 5304455846 $6.79

73

218396700 Frigidaire Door Handle Mounting Blo In Stock WCI 218396700 $28.99

82

5304418225 Frigidaire Refrigerator Roller P-1 In Stock WCI 5304418225 $30.80

83

5304455655 Frigidaire Refrigerator Rivet Backorder WCI 5304455655 $23.04

85

241856901 Frigidaire Refrigerator Connector T Backorder WCI 241856901 $46.16

86

240409302 Frigidaire Refrigerator Condenser T Backorder WCI 240409302 $39.88
