Model Kenmore 253.74844404 REFRIGERATOR – Common Parts & Diagrams
01 - COVER
03 - DOOR

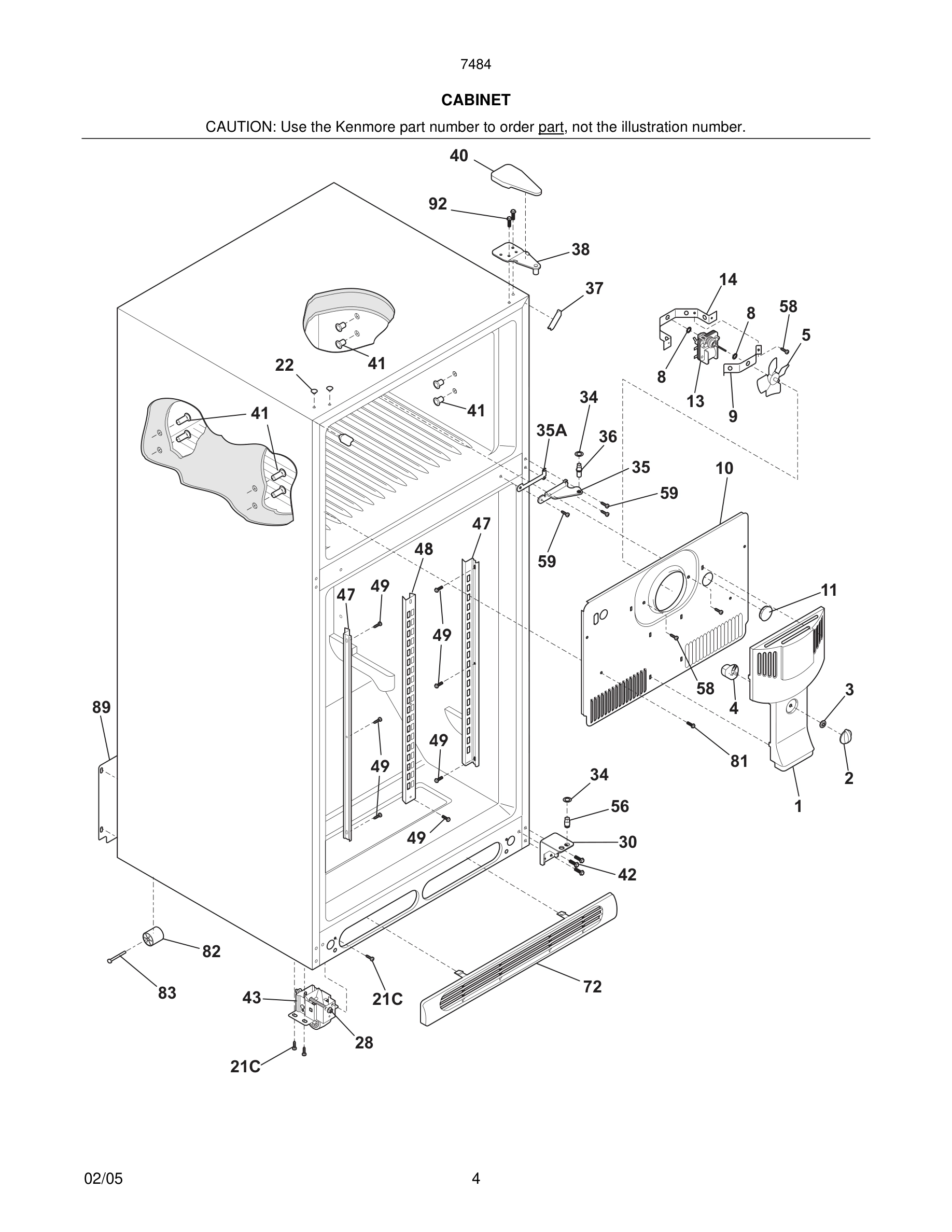

05 - CABINET
07 - SHELVES

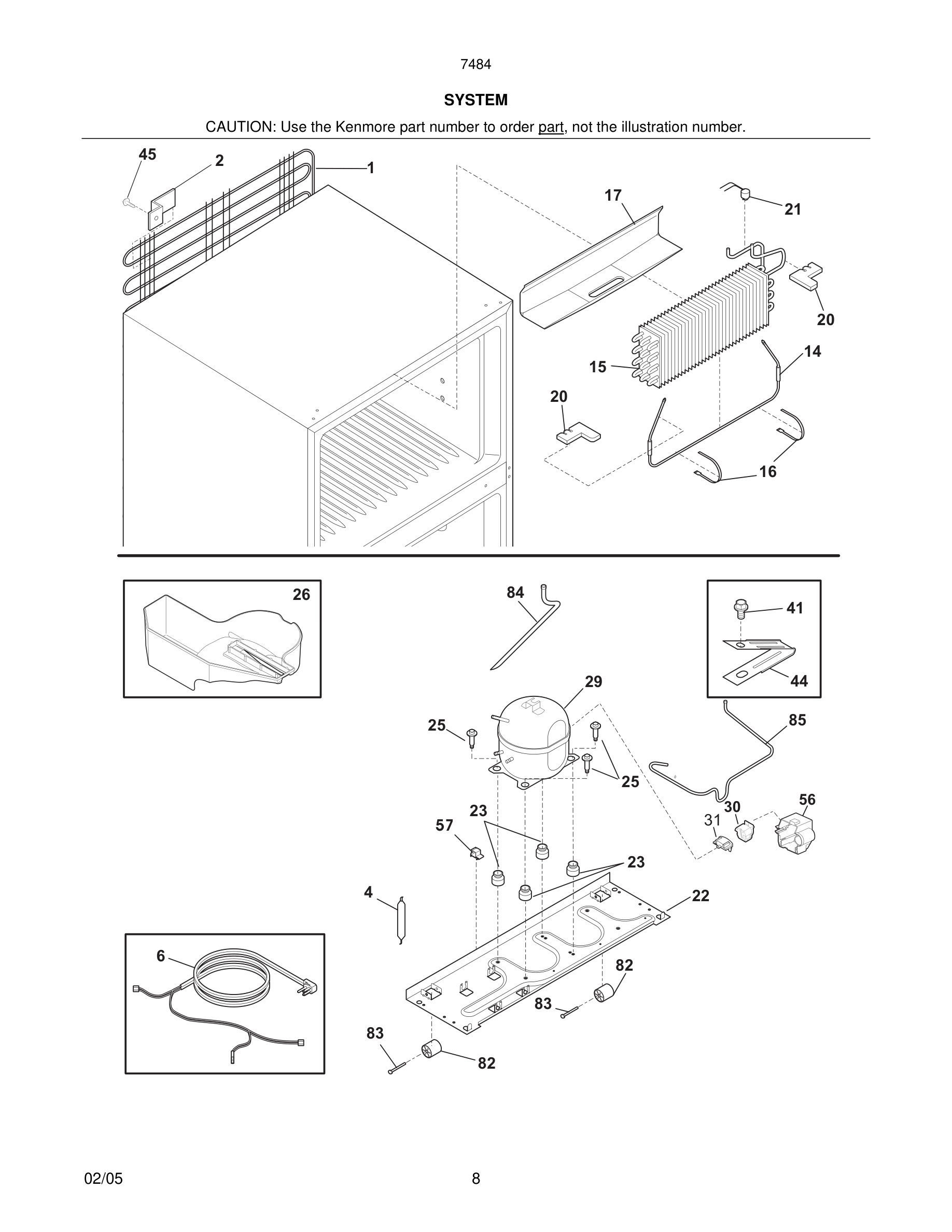

09 - SYSTEM

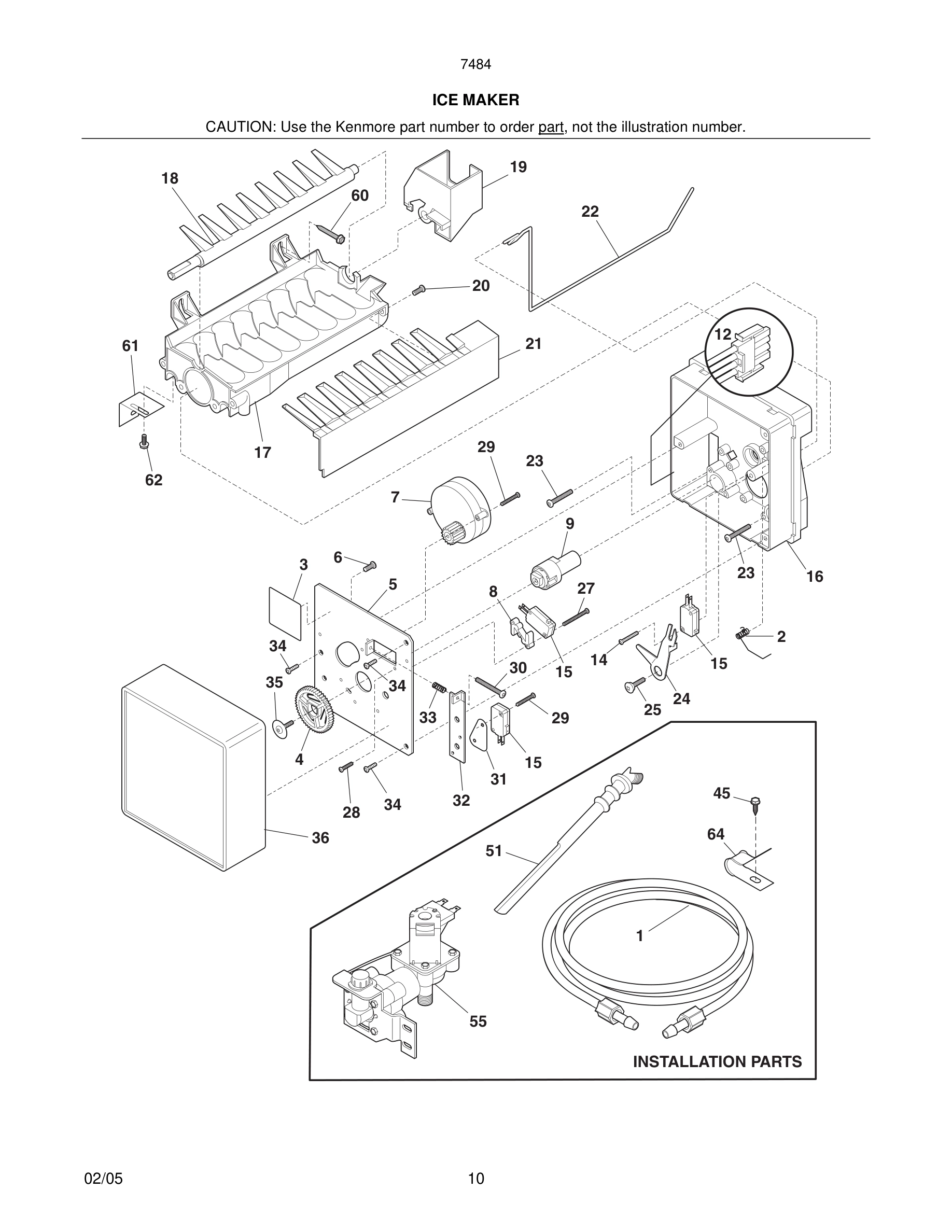

11 - ICE MAKER

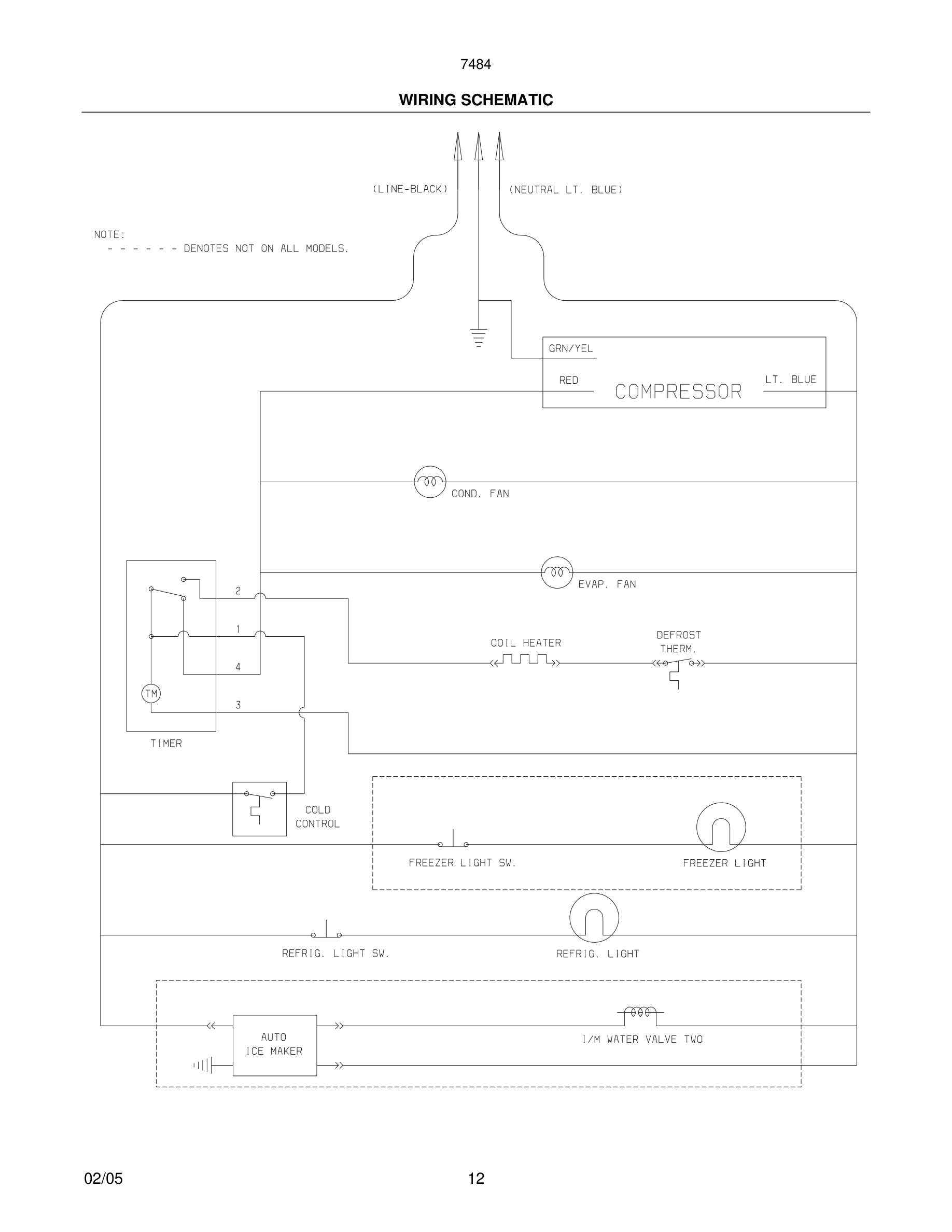

12 - WIRING SCHEMATIC

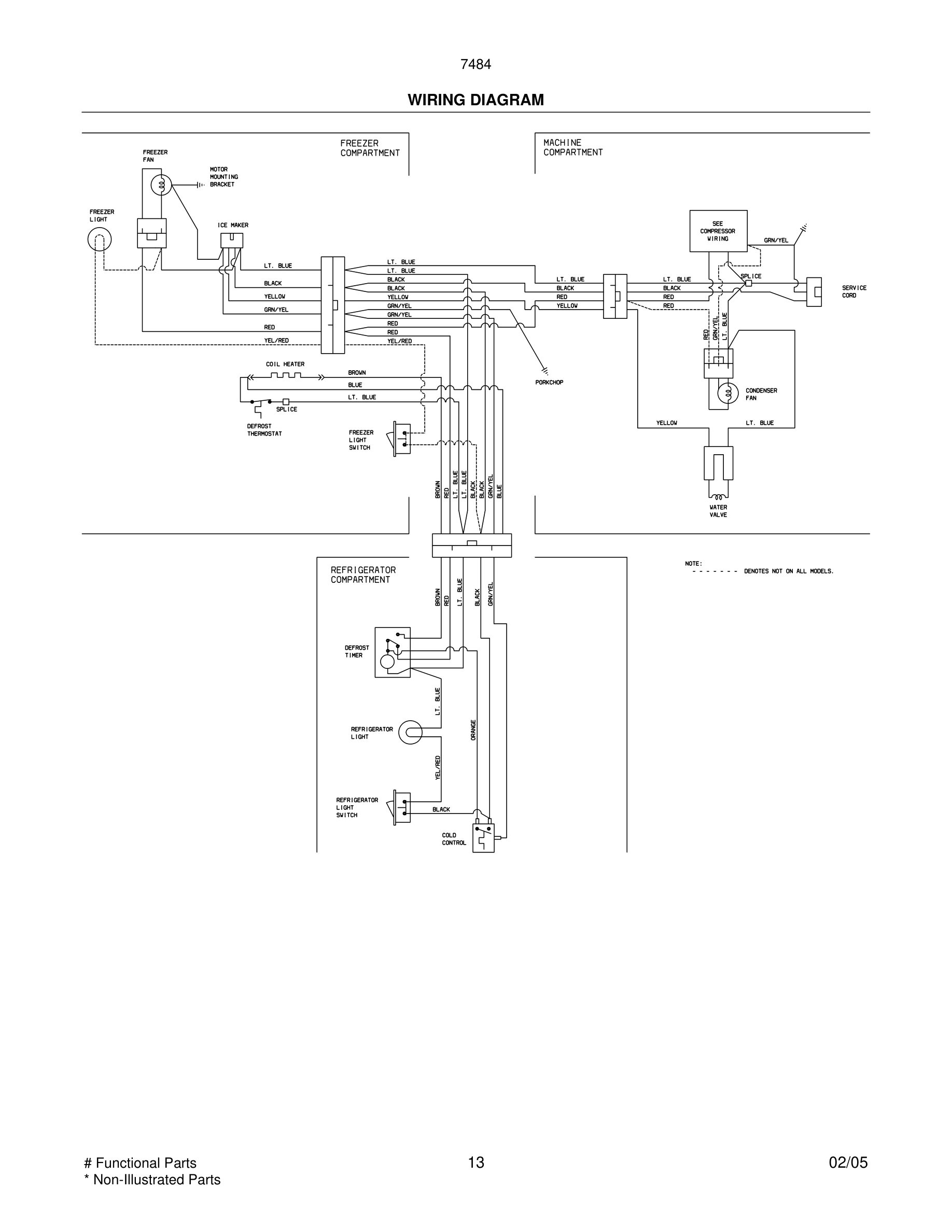

13 - WIRING DIAGRAM
Common parts from model Kenmore 253.74844404 REFRIGERATOR
*
Harness-wiring WCI 241642601 Contact Us For Availability
*#
Hot Tube Repair Kit, service WCI 5303918234 Contact Us For Availability
2
Spring, shut-off arm WCI 5304420650 Contact Us For Availability
3
Label, ID plate WCI 3206299 Contact Us For Availability
4
Damper-fan cover WCI 241523701 Contact Us For Availability
5
Plate-mounting WCI 3206303 Contact Us For Availability
7*
Spring Beam WCI 5304445223 Contact Us For Availability
8
Spacer-hold switch WCI 3206312 Contact Us For Availability
9
Bracket-motor mtg, front WCI 5303292396 Contact Us For Availability
9
Cam WCI 3206313 Contact Us For Availability
10
Plug-button, bisque, hinge brg hole, (2) WCI 240381302 Contact Us For Availability
10*
Harness-wiring, freezer WCI 241520701 Contact Us For Availability
12#
Wiring Harness, ICE MAKER, internal, with plu WCI 5304420651 Contact Us For Availability
14
Plug-button, bisque WCI 240494002 Contact Us For Availability
14
Screw, 4 x 0.750, switch mtg. WCI 5304420652 Contact Us For Availability
15
Panel-refr door, bisque, complete assy WCI 240437502 Contact Us For Availability
16
Support, phenolic WCI 5304420653 Contact Us For Availability
18
Handle-door, bisque, refr, w/block & screw WCI 218779904 No Longer Available
18
Knob, temp control WCI 240360801 Contact Us For Availability
18
Ejector-ice WCI 3206328 Contact Us For Availability
18A
Handle-door, bisque, frzr, w/nameplate, block WCI 218779810 No Longer Available
19
Bearing & Inlet WCI 3206330 Contact Us For Availability
20
Screw, 8-32 x 0.375 WCI 5304408581 Contact Us For Availability
21
Ice Stripper WCI 3206332 Contact Us For Availability
22
Shut-off Arm WCI 3206333 Contact Us For Availability
23
Screw, 8-32 x 0.875, mold-to-support, (3) WCI 5304408582 Contact Us For Availability
25
Screw-compressor mtg, 1/4-28 x 1.16, shoulder WCI 240491501 Contact Us For Availability
25
Screw, 8-18 x 0.562, lever arm/sprt WCI 3206336 Contact Us For Availability
26
Pan-defrost drain WCI 240598501 Contact Us For Availability
27
Screw, 4-40 x 1.000, hold switch mtg, (2) WCI 3206338 Contact Us For Availability
28
Screw-timing stop, 4-40 x 0.375 WCI 3206339 Contact Us For Availability
29
Trim-shelf, 24.48", front WCI 240357701 Contact Us For Availability
29
Screw, 4-24 x 0.750, (6) WCI 3206323 Contact Us For Availability
29#
Compressor, w/electricals WCI 5303918297 Contact Us For Availability
30
Screw-timing adj, 8-32 x 1.000 WCI 3206341 Contact Us For Availability
31
Insulator WCI 3206342 Contact Us For Availability
32
Plate-valve switch WCI 3206343 Contact Us For Availability
33
Spring-timing adj WCI 5304408583 Contact Us For Availability
34
Screw, plazscrew, 8-10, (3) WCI 5304420655 Contact Us For Availability
35
Screw WCI 5304408585 Contact Us For Availability
36
Cover-ice maker WCI 3206347 Contact Us For Availability
37A
Trim-handle, 1.34", bisque, lower WCI 218771204 Contact Us For Availability
40
Cover-upper hinge, bisque WCI 240354403 Contact Us For Availability
41
Trim-shelf, 24.48", rear WCI 240357801 Contact Us For Availability
44
Trim, shelf, 11.95", rear WCI 240357802 Contact Us For Availability
48
Channel-shelf mtg, center WCI 5303292395 Contact Us For Availability
56
Cover-terminal WCI 240582001 Contact Us For Availability
84
Tube-drain, lower WCI 241505701 Contact Us For Availability
85
Tube-connector, suction WCI 241544301 Contact Us For Availability
× ![]()
