Model Kenmore 253.74153402 REFRIGERATOR – Common Parts & Diagrams
01 - COVER
03 - DOOR

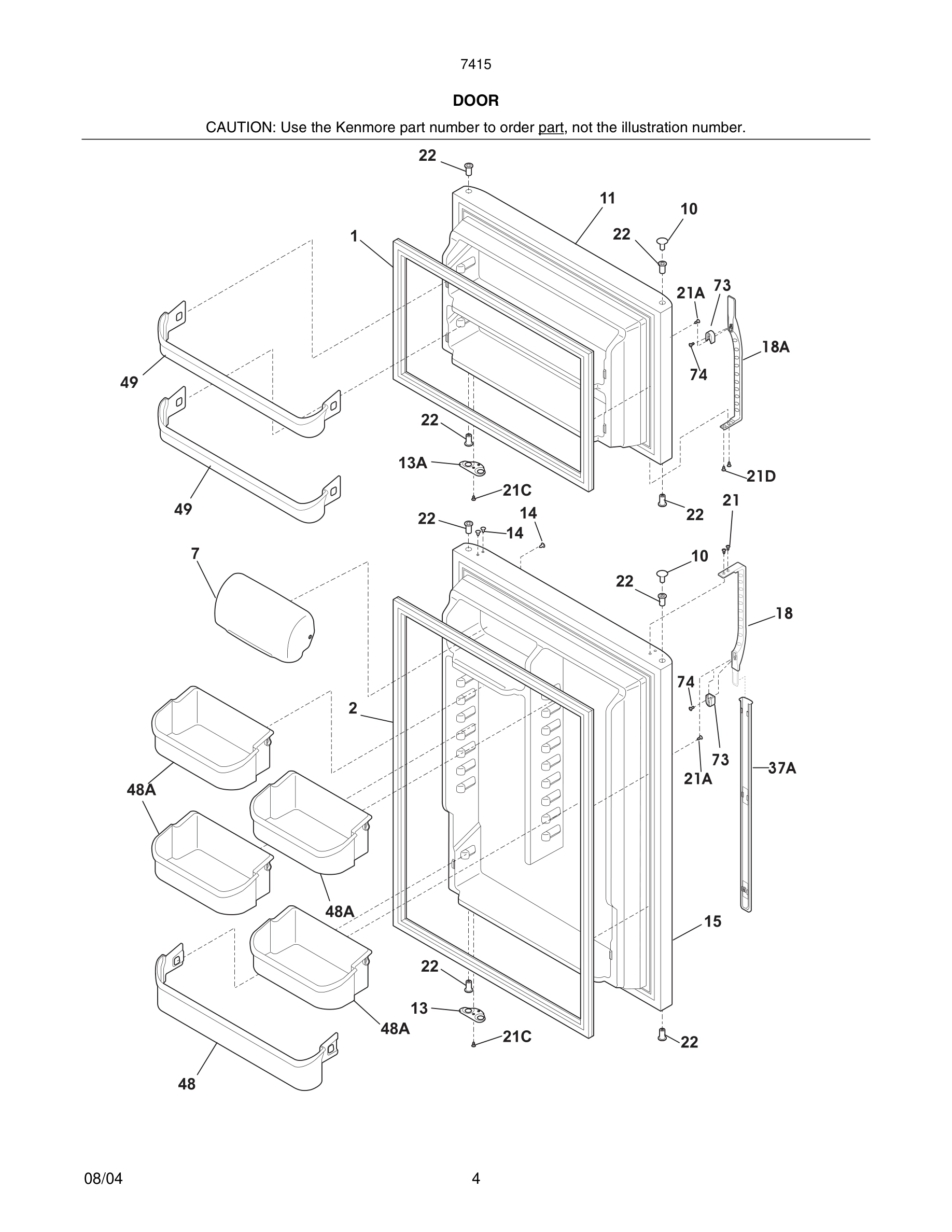

05 - DOOR
07 - CABINET
09 - CABINET
11 - SHELVES

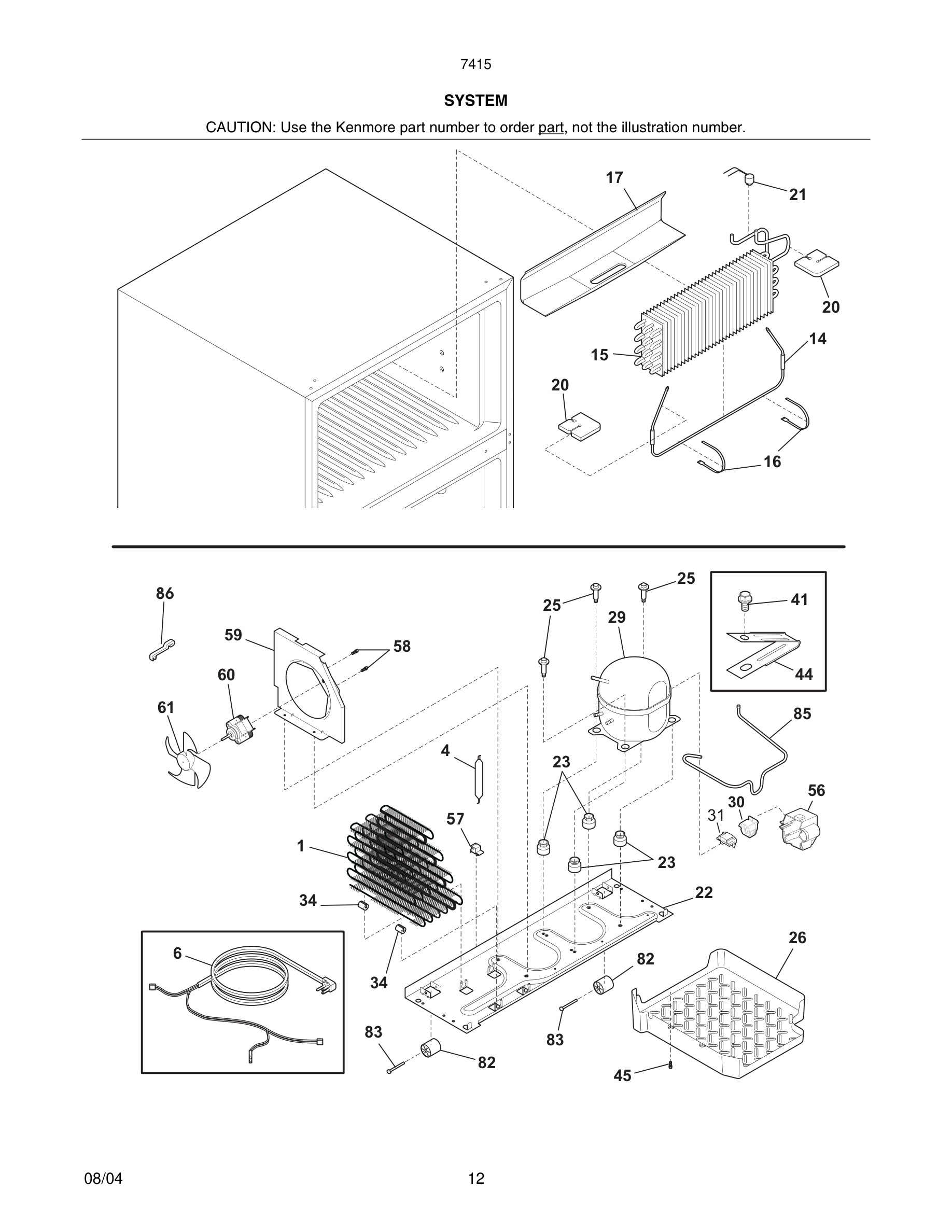

13 - SYSTEM

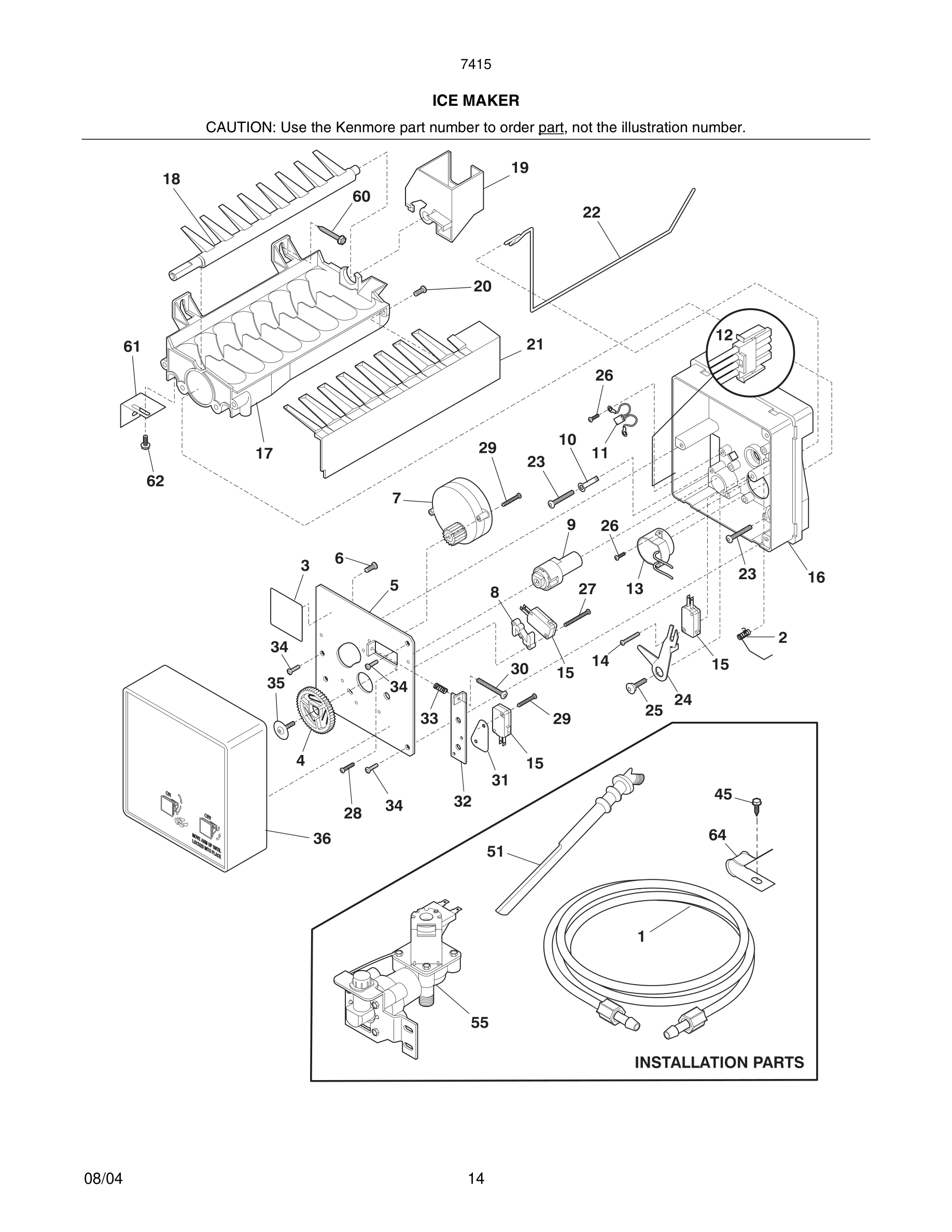

15 - ICE MAKER

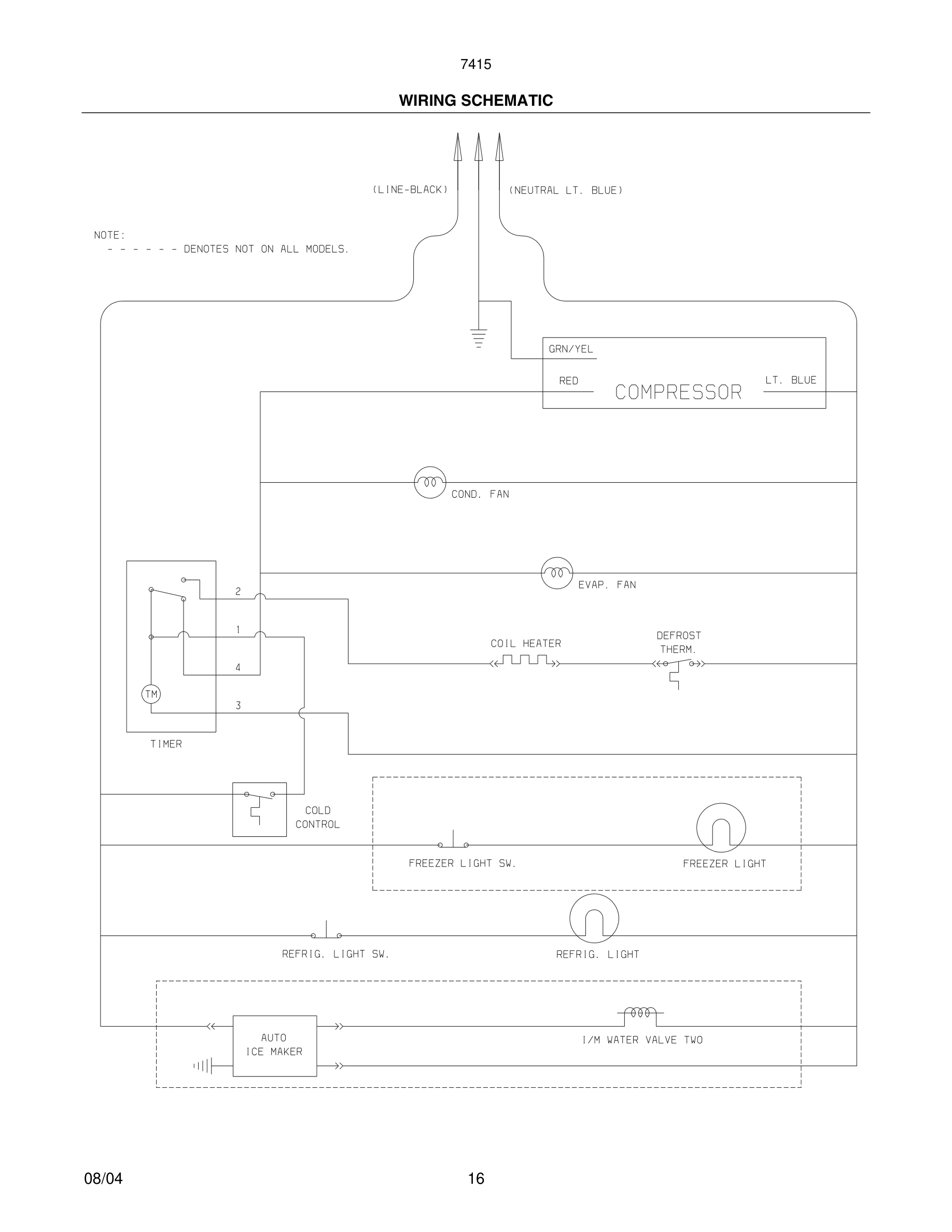

16 - WIRING SCHEMATIC

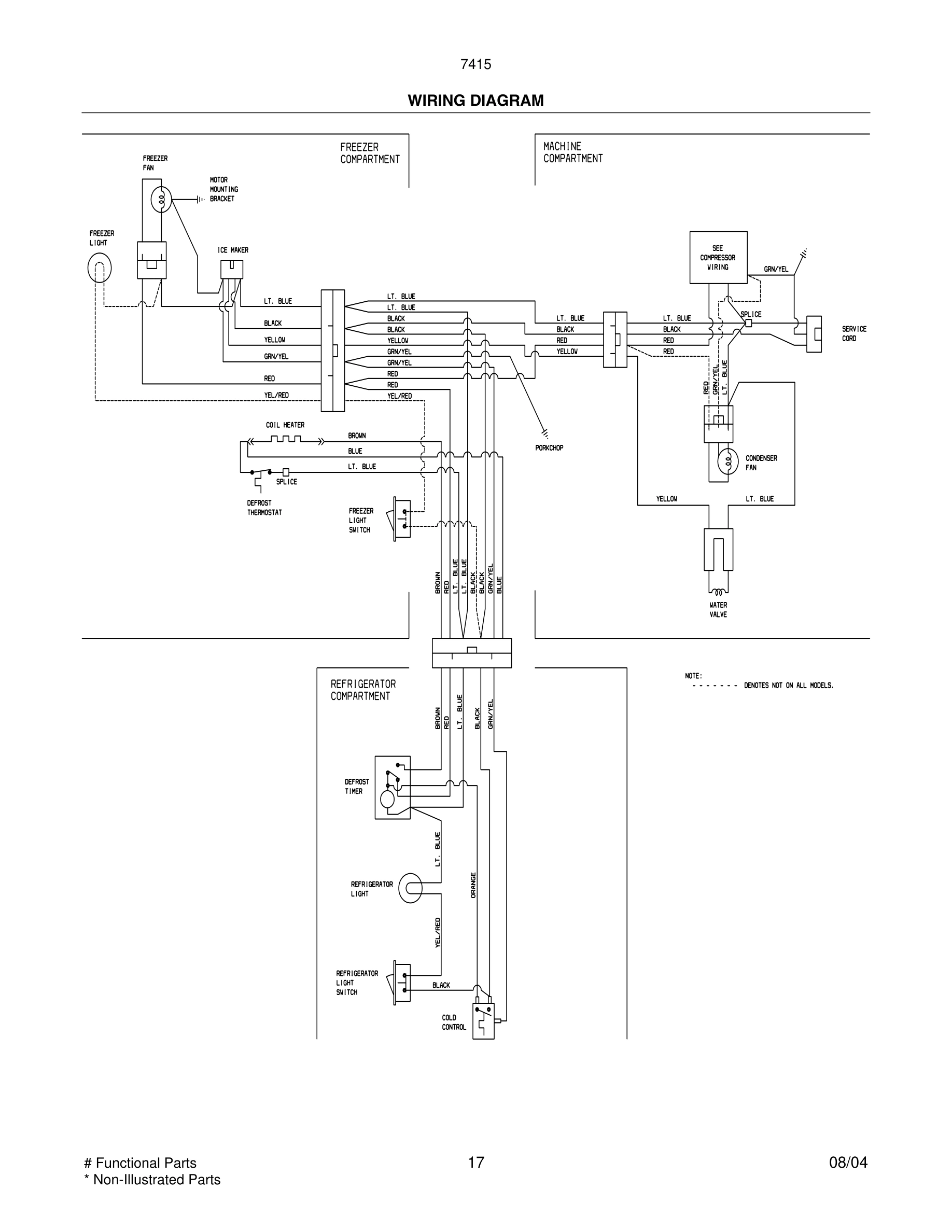

17 - WIRING DIAGRAM
Common parts from model Kenmore 253.74153402 REFRIGERATOR
*#
Hot Tube Repair Kit, Service WCI 5304421289 Contact Us For Availability
1
Tube-water inlet, inlet valve, to ice maker WCI 218976901 Contact Us For Availability
1*
Seal-water inlet, inlet valve, to ice maker WCI 240561701 Contact Us For Availability
2
Knob-damper control WCI 240367001 Contact Us For Availability
2
Spring, shut-off arm WCI 5304420650 Contact Us For Availability
3
Label, ID plate WCI 3206299 Contact Us For Availability
4
Damper-fan cover WCI 241523701 Contact Us For Availability
5
Fan Blade, red, evaporator fan WCI 5308000010 Contact Us For Availability
5
Plate-mounting WCI 3206303 Contact Us For Availability
6#
Harness-wiring, machine compt WCI 240581701 Contact Us For Availability
6*#
Wiring Harness, control box WCI 240388701 Contact Us For Availability
8
Spacer-hold switch WCI 3206312 Contact Us For Availability
9
Bracket-motor mtg, front WCI 5303292396 Contact Us For Availability
9
Cam WCI 3206313 Contact Us For Availability
10
Clamp WCI 3206315 Contact Us For Availability
12#
Wiring Harness, ICE MAKER, internal, with plu WCI 5304420651 Contact Us For Availability
13
Diffuser, air, bottom WCI 240362601 Contact Us For Availability
13#
Thermostat Assy, ICE MAKER WCI 3206322 Contact Us For Availability
13A
Door Stop, black, frzr WCI 240312406 Contact Us For Availability
14
Screw, 4 x 0.750, switch mtg. WCI 5304420652 Contact Us For Availability
14#
Defrost Heater Kit WCI 5303918247 Contact Us For Availability
15#
Evaporator Kit WCI 5303918274 Contact Us For Availability
16
Strap-evap/heater, aluminum, (2) WCI 5308000110 Contact Us For Availability
16
Support, phenolic WCI 5304420653 Contact Us For Availability
18
Handle-door, charcoal gray, refr, w/block & s WCI 218779903 Contact Us For Availability
18
Knob, temp control WCI 240360801 Contact Us For Availability
18
Ejector-ice WCI 3206328 Contact Us For Availability
18A
Handle-door, charcoal gray, frzr, w/nameplate WCI 218779814 Contact Us For Availability
19
Bearing & Inlet WCI 3206330 Contact Us For Availability
20
Insulation, evap block, foam, LH/RH WCI 240518402 Contact Us For Availability
20
Screw, 8-32 x 0.375 WCI 5304408581 Contact Us For Availability
21
Ice Stripper WCI 3206332 Contact Us For Availability
21#
Thermostat-defrost, kit WCI 5303918202 Contact Us For Availability
22
Plate-compr mtg WCI 240330001 Contact Us For Availability
22
Shut-off Arm WCI 3206333 Contact Us For Availability
22A
Tube, sensor sleeve, plastic, clear WCI 5303916855 Contact Us For Availability
23
Screw, 8-32 x 0.875, mold-to-support, (3) WCI 5304408582 Contact Us For Availability
25
Screw-compressor mtg, 1/4-28 x 1.16, shoulder WCI 240491501 Contact Us For Availability
25
Screw, 8-18 x 0.562, lever arm/sprt WCI 3206336 Contact Us For Availability
26
Pan, crisper, (2) WCI 240343803 Contact Us For Availability
26
Screw-thermo/sprt, 4-24 x 0.375, (4) WCI 5304420654 Contact Us For Availability
27
Screw, 4-40 x 1.000, hold switch mtg, (2) WCI 3206338 Contact Us For Availability
28
Screw-timing stop, 4-40 x 0.375 WCI 3206339 Contact Us For Availability
29
Screw, 4-24 x 0.750, (6) WCI 3206323 Contact Us For Availability
29#
Compressor, w/electricals WCI 5303918297 Contact Us For Availability
30
Screw-timing adj, 8-32 x 1.000 WCI 3206341 Contact Us For Availability
31
Insulator WCI 3206342 Contact Us For Availability
32
Plate-valve switch WCI 3206343 Contact Us For Availability
33
Spring-timing adj WCI 5304408583 Contact Us For Availability
34
Container, ice bin WCI 240385201 Contact Us For Availability
34
Screw, plazscrew, 8-10, (3) WCI 5304420655 Contact Us For Availability
35
Screw WCI 5304408585 Contact Us For Availability
36
Cover-ice maker WCI 3206347 Contact Us For Availability
37A*
Lock-handle trim, stick-on WCI 218776501 Contact Us For Availability
40
Cover-upper hinge, black WCI 240354404 Contact Us For Availability
42
Track, meat pan hanger, RH WCI 240356501 Contact Us For Availability
42
Track, meat pan hanger, LH WCI 240365401 Contact Us For Availability
48
Bin-door, pseudo, bottom WCI 240338101 Contact Us For Availability
48
Channel-shelf mtg, center WCI 5303292395 Contact Us For Availability
49
Bin-door, pseudo, frzr WCI 240495804 Contact Us For Availability
56
Cover-terminal WCI 240582001 Contact Us For Availability
57
Clip-wiring harness WCI 240542601 Contact Us For Availability
59
Bracket-cond motor assy WCI 5304430246 Contact Us For Availability
61
Bracket-leveling, ICE MAKER WCI 218721500 Contact Us For Availability
82
Roller, compressor base, rear, (2) WCI 5304418225 Contact Us For Availability
85
Tube-connector, suction WCI 240493101 Contact Us For Availability
86
Spacer-cond tube, black WCI 240409302 Contact Us For Availability
× ![]()
