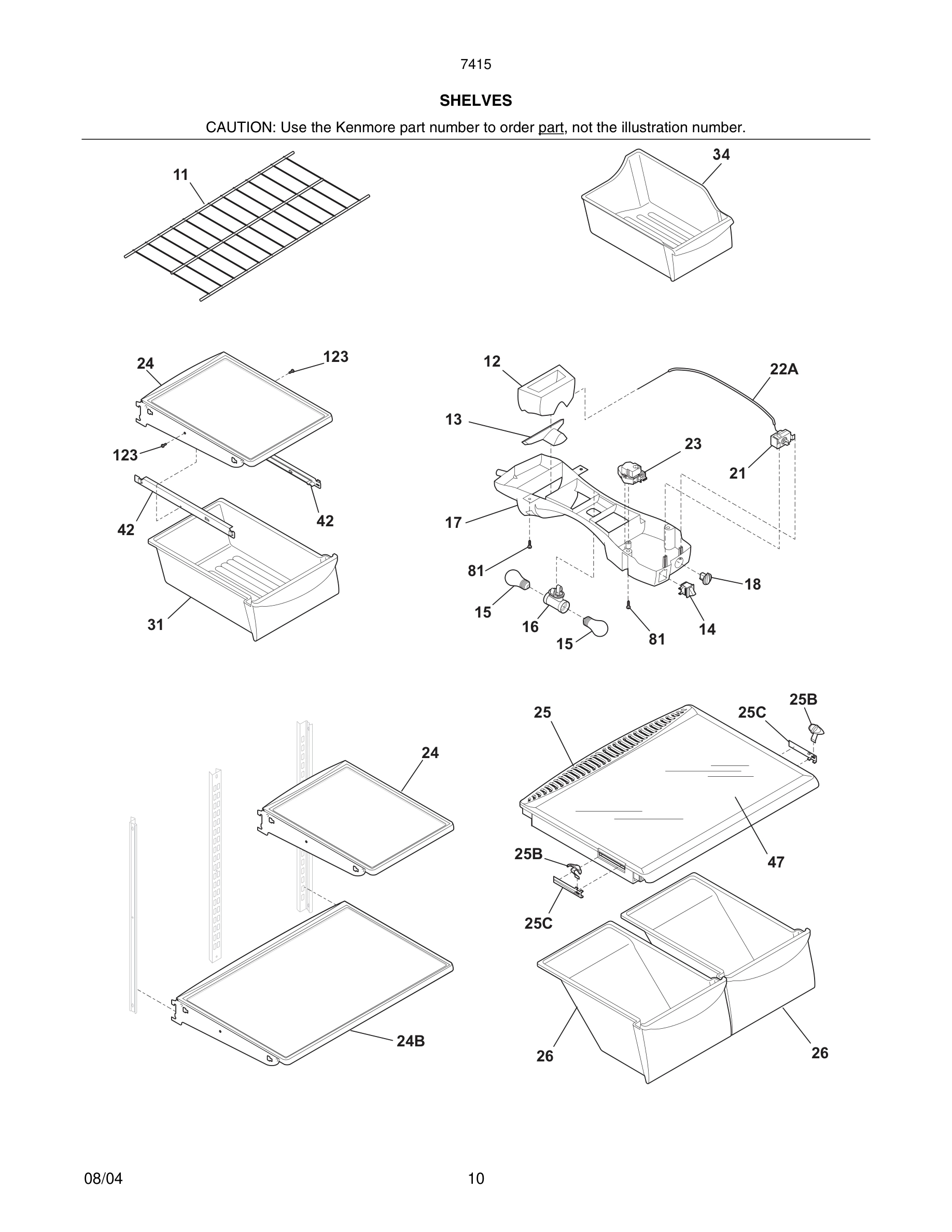

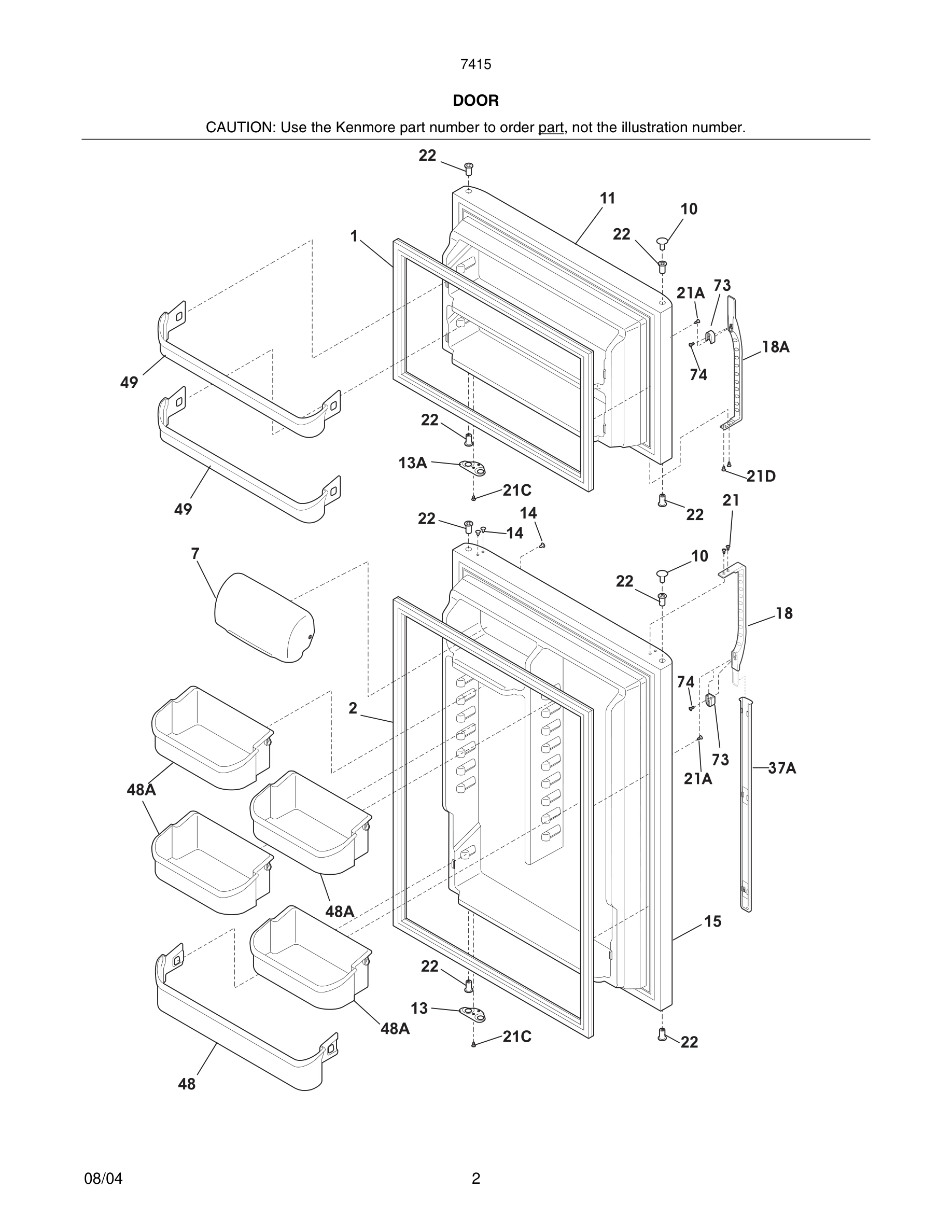

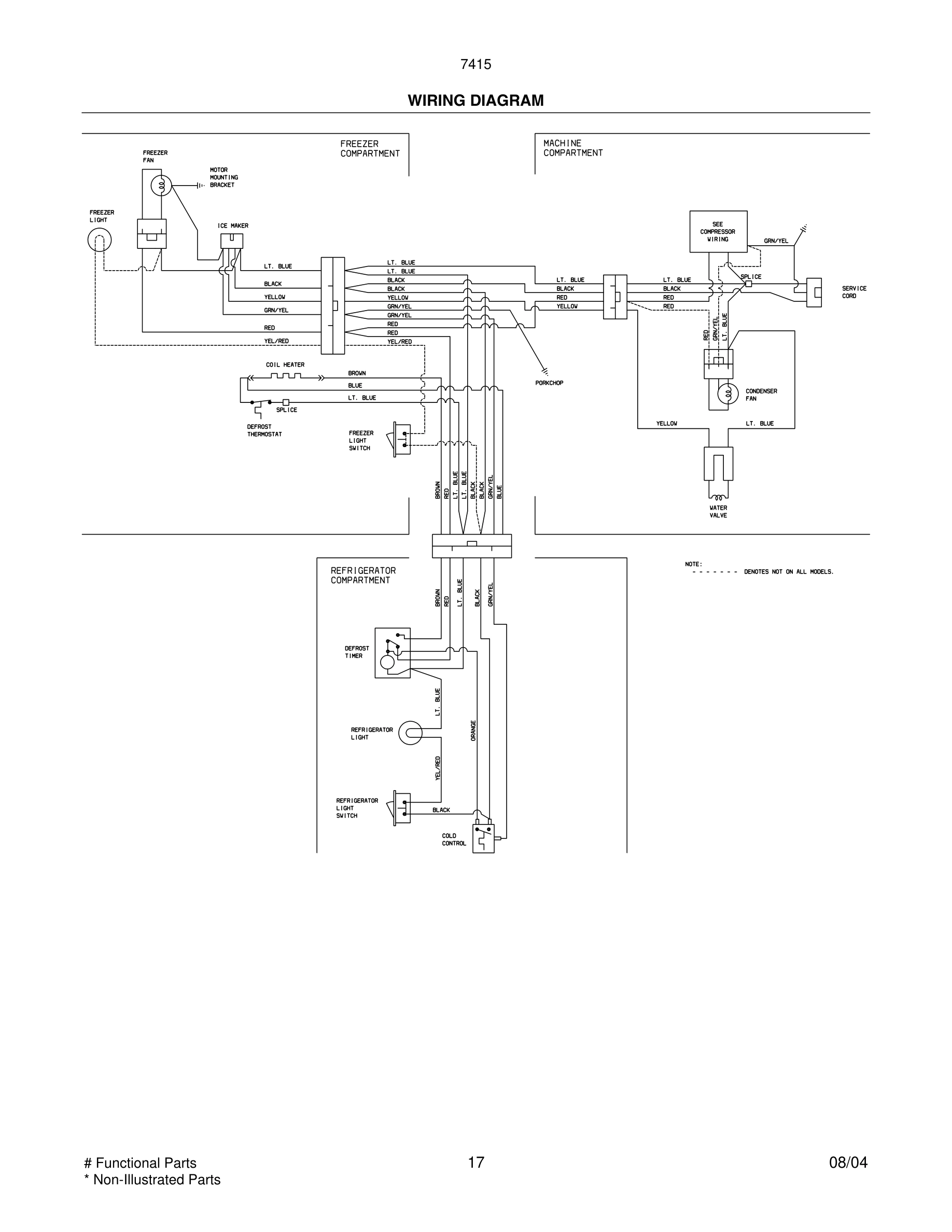

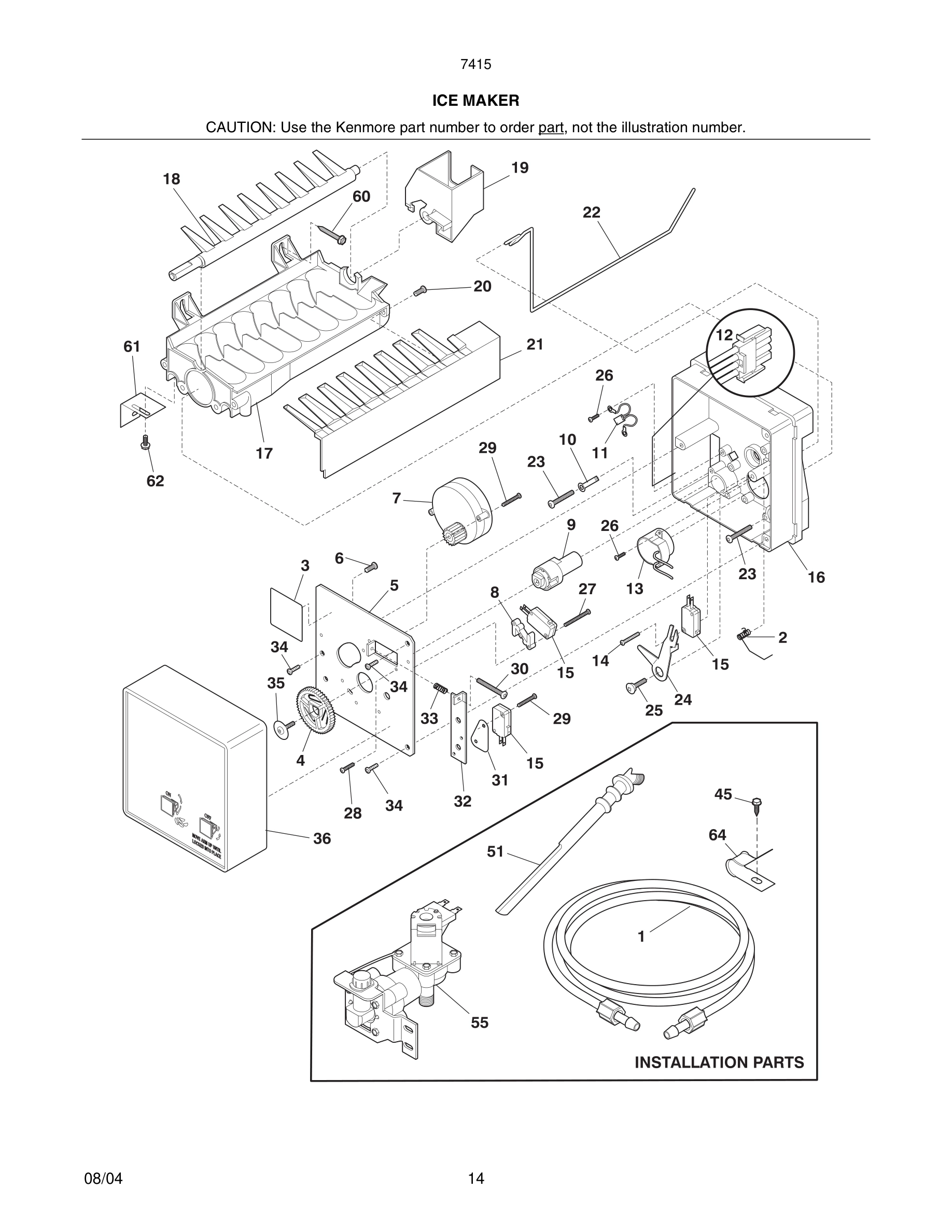

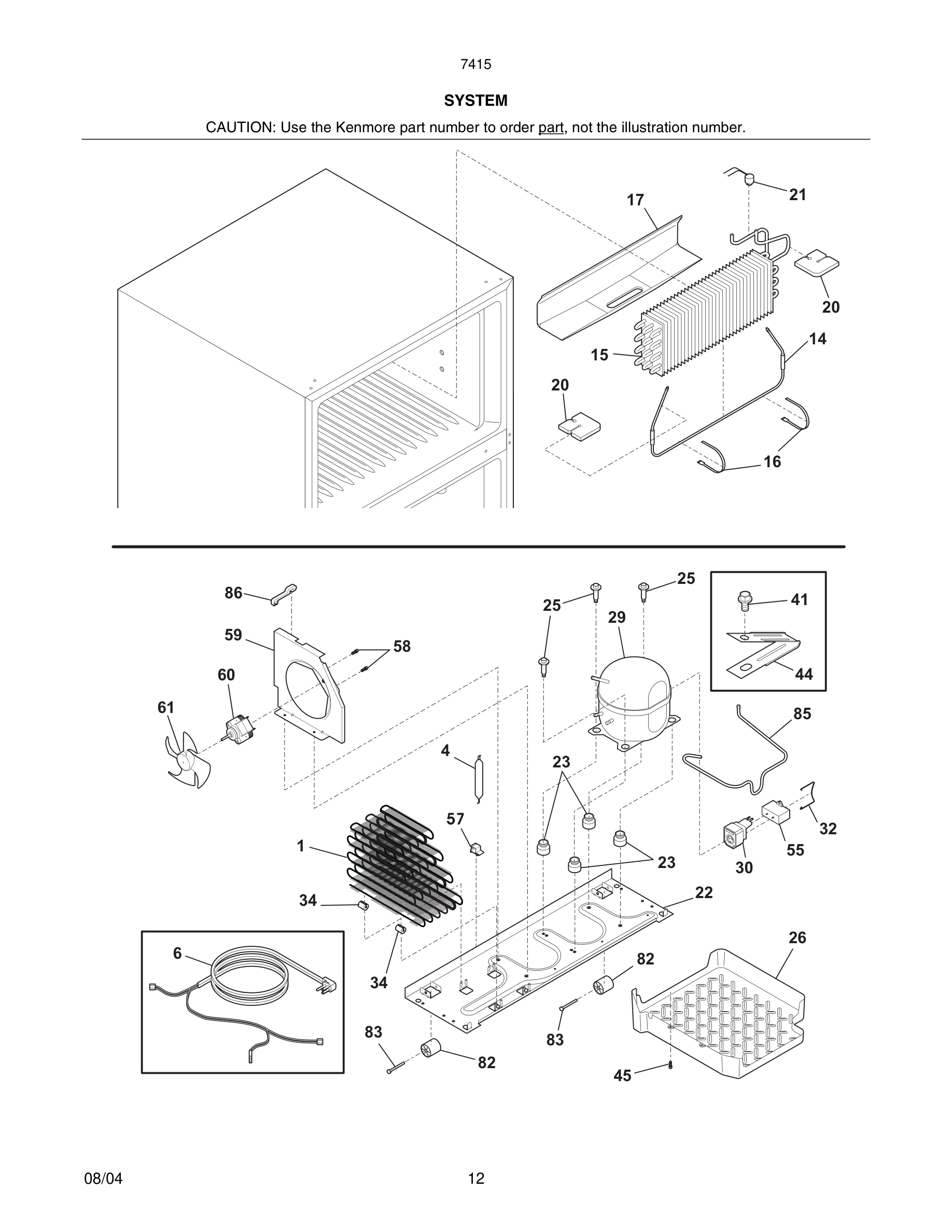

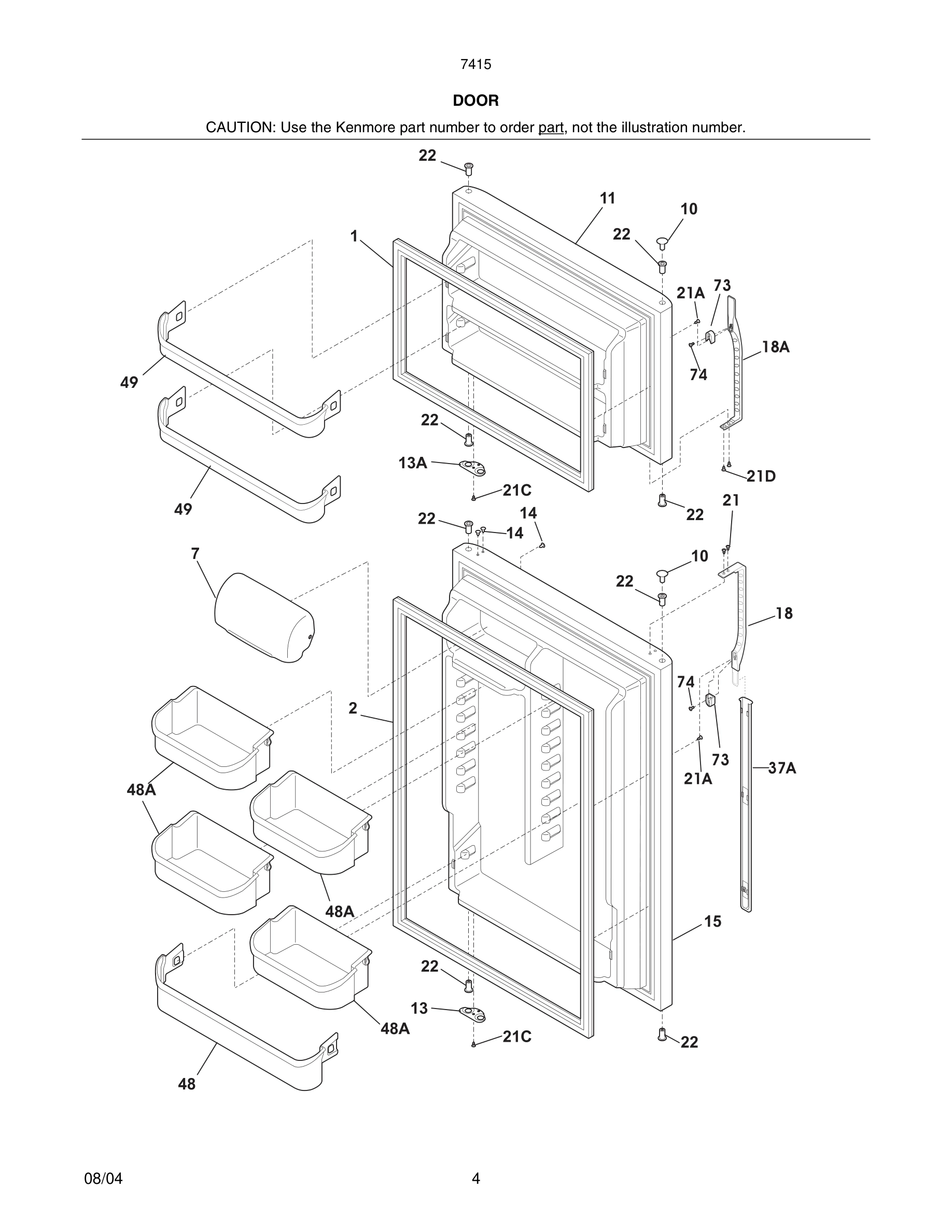

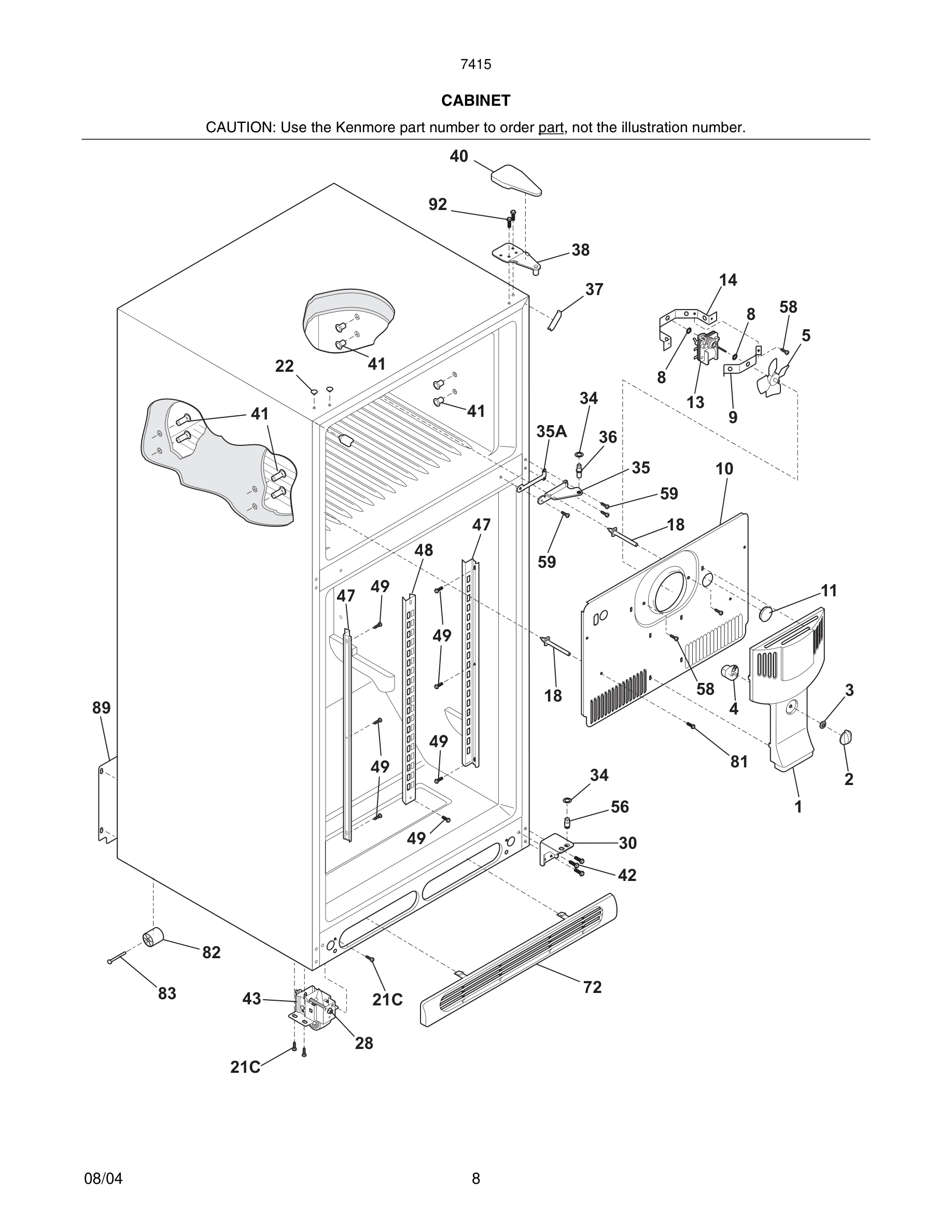

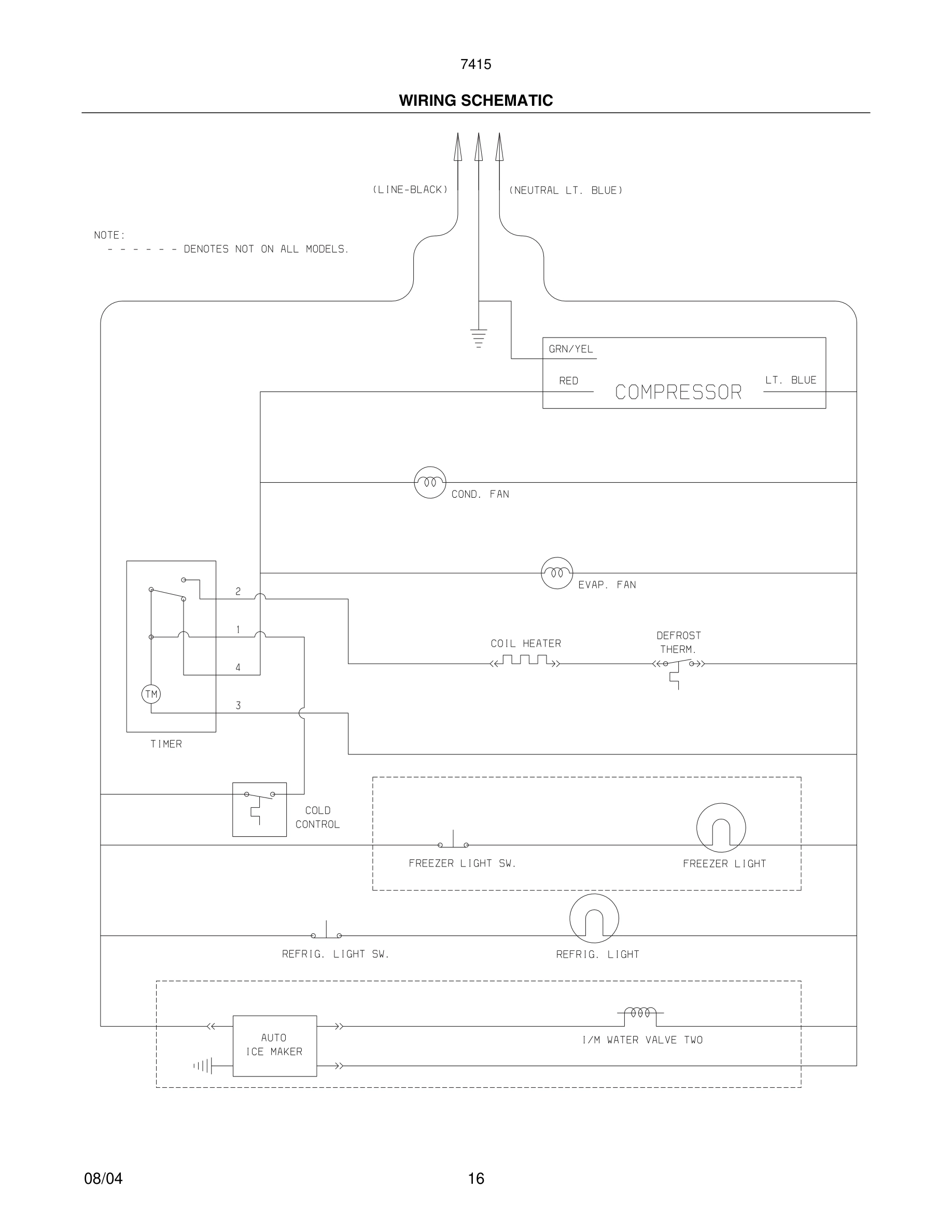

Model Kenmore 253.74153401 REFRIGERATOR – Common Parts &amp; Diagrams

*#

Hot Tube Repair Kit, Service WCI 5304421289 Contact Us For Availability

1

218976901 Frigidaire Refrigerator P1 Water In Backorder WCI 218976901 $51.52

1*

240561701 Frigidaire Refrigerator Seal Backorder WCI 240561701 $13.13

2

240367001 Frigidaire Refrigerator Air Damper In Stock WCI 240367001 $34.41

2

Spring, shut-off arm WCI 5304420650 Contact Us For Availability

3

Label, ID plate WCI 3206299 Contact Us For Availability

4

5304469403 Frigidaire Gear Backorder WCI 5304469403 $12.74

4

Damper-fan cover WCI 241523701 Contact Us For Availability

5

5308000010 Frigidaire Refrigerator Evaporator In Stock WCI 5308000010 $31.93

5

Plate-mounting WCI 3206303 Contact Us For Availability

6

218359202 Frigidaire Refrigerator Screw Backorder WCI 218359202 $6.79

6

Wiring Harness, machine compt, w/electric cor WCI 240496101 Contact Us For Availability

6*#

240388701 Frigidaire Refrigerator Wiring Harn Backorder WCI 240388701 $2.66

6*#

Wiring Harness, freezer section WCI 240524701 Contact Us For Availability

7#

5303918277 Frigidaire Refrigerator Ice Maker In Stock WCI 5303918277 $55.75

8

Spacer-hold switch WCI 3206312 Contact Us For Availability

9

Bracket-motor mtg, front WCI 5303292396 Contact Us For Availability

9

Cam WCI 3206313 Contact Us For Availability

10

Clamp WCI 3206315 Contact Us For Availability

10*

240568606 Frigidaire Refrigerator Coil Cover Backorder WCI 240568606 $8.15

11

5303208309 Frigidaire Refrigerator Plug Hole Backorder WCI 5303208309 $27.18

11#

3206319 Frigidaire Refrigerator Thermal Cut-O Backorder WCI 3206319 $31.29

12

240545901 Frigidaire Refrigerator Air Diffuse Backorder WCI 240545901 $44.37

12#

Wiring Harness, ICE MAKER, internal, with plu WCI 5304420651 Contact Us For Availability

13

240312422 Frigidaire Refrigerator Door Stop Backorder WCI 240312422 $9.06

13

240362601 Frigidaire Refrigerator P1 Diffuser In Stock WCI 240362601 $26.72

13#

Thermostat Assy, ICE MAKER WCI 3206322 Contact Us For Availability

13A

Door Stop, black, frzr WCI 240312406 Contact Us For Availability

14

240438003 Frigidaire Refrigerator Bracket and Backorder WCI 240438003 $10.41

14

241554901 Frigidaire Refrigerator Light/Lamp In Stock WCI 241554901 $44.82

14

Screw, 4 x 0.750, switch mtg. WCI 5304420652 Contact Us For Availability

14#

5303918247 Frigidaire Refrigerator Defrost He Backorder WCI 5303918247 $102.46

15

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $10.61

15#

5303918274 Frigidaire Refrigerator Evaporator In Stock WCI 5303918274 $190.06

15#

5304456667 Frigidaire Refrigerator Micro Swit Backorder WCI 5304456667 $54.68

16

240364201 Frigidaire Refrigerator Light/Lamp Backorder WCI 240364201 $63.54

16

5308000110 Frigidaire Refrigerator Evaporator In Stock WCI 5308000110 $39.44

16

Support, phenolic WCI 5304420653 Contact Us For Availability

17

241801301 Frigidaire Refrigerator Drain Troug Backorder WCI 241801301 $38.09

17#

241798231 Frigidaire Refrigerator Ice Maker A In Stock WCI 241798231 $49.65

18

Handle-door, charcoal gray, refr, w/block & s WCI 218779903 Contact Us For Availability

18

Knob, temp control WCI 240360801 Contact Us For Availability

18

Ejector-ice WCI 3206328 Contact Us For Availability

18A

Handle-door, charcoal gray, frzr, w/nameplate WCI 218779814 Contact Us For Availability

19

Bearing & Inlet WCI 3206330 Contact Us For Availability

20

Insulation, evap block, foam, LH/RH WCI 240518402 Contact Us For Availability

20

Screw, 8-32 x 0.375 WCI 5304408581 Contact Us For Availability

21

Ice Stripper WCI 3206332 Contact Us For Availability

21#

241537103 Frigidaire Refrigerator Temperature In Stock WCI 241537103 $52.96

21#

5303918202 Frigidaire Refrigerator Defrost Th In Stock WCI 5303918202 $11.09

215774918 Frigidaire Refrigerator Button Plug In Stock WCI 215774918 $5.88

5304507147 Frigidaire Refrigerator Hinge Bear In Stock WCI 5304507147 $4.51

Plate-compr mtg WCI 240330001 Contact Us For Availability

Shut-off Arm WCI 3206333 Contact Us For Availability

22*

218252201 Frigidaire Refrigerator Screw Backorder WCI 218252201 $9.04

22A

5303916855 Frigidaire Refrigerator Tube Backorder WCI 5303916855 $38.55

23

218513300 Frigidaire Refrigerator Compressor In Stock WCI 218513300 $27.16

23

Screw, 8-32 x 0.875, mold-to-support, (3) WCI 5304408582 Contact Us For Availability

24

5304456675 Frigidaire Refrigerator Lever Arm Backorder WCI 5304456675 $42.12

25

Screw-compressor mtg, 1/4-28 x 1.16, shoulder WCI 240491501 Contact Us For Availability

25

Screw, 8-18 x 0.562, lever arm/sprt WCI 3206336 Contact Us For Availability

26

240343803 Frigidaire Refrigerator Clear Crisp In Stock WCI 240343803 $68.49

26

241697603 Frigidaire Defrost Pan Backorder WCI 241697603 $47.70

26

Screw-thermo/sprt, 4-24 x 0.375, (4) WCI 5304420654 Contact Us For Availability

27

Screw, 4-40 x 1.000, hold switch mtg, (2) WCI 3206338 Contact Us For Availability

28

Screw-timing stop, 4-40 x 0.375 WCI 3206339 Contact Us For Availability

29

Screw, 4-24 x 0.750, (6) WCI 3206323 Contact Us For Availability

29#

5304511983 Frigidaire Refrigerator Compressor In Stock WCI 5304511983 $487.91

30

Screw-timing adj, 8-32 x 1.000 WCI 3206341 Contact Us For Availability

30#

5304491941 Frigidaire Refrigerator Starter Re In Stock WCI 5304491941 $82.43

31

Insulator WCI 3206342 Contact Us For Availability

32

218973501 Frigidaire Refrigerator Clamp Backorder WCI 218973501 $14.05

32

Plate-valve switch WCI 3206343 Contact Us For Availability

33

Spring-timing adj WCI 5304408583 Contact Us For Availability

240311303 Frigidaire Refrigerator Nylon Hinge In Stock WCI 240311303 $6.88

240385201 Frigidaire Refrigerator Ice Contain In Stock WCI 240385201 $67.44

240405201 Frigidaire Refrigerator Grommet Backorder WCI 240405201 $12.67

Screw, plazscrew, 8-10, (3) WCI 5304420655 Contact Us For Availability

35

240313803 Frigidaire Refrigerator Center Hing Backorder WCI 240313803 $99.00

35

Screw WCI 5304408585 Contact Us For Availability

35A

240336802 Frigidaire Refrigerator Hinge Space In Stock WCI 240336802 $11.76

36

Cover-ice maker WCI 3206347 Contact Us For Availability

37

Trim-cabinet corner, black, (2) WCI 240337603 Contact Us For Availability

37A*

Lock-handle trim, stick-on WCI 218776501 Contact Us For Availability

40

240354404 Frigidaire Refrigerator Upper Hinge In Stock WCI 240354404 $37.05

41*

5304500407 Frigidaire Refrigerator Shelf Moun Backorder WCI 5304500407 $4.07

42

240356501 Frigidaire Tray Hanger Pan In Stock WCI 240356501 $36.26

42

240365401 Frigidaire Refrigerator Left-Hand M In Stock WCI 240365401 $36.77

44

5303001199 Frigidaire Refrigerator Wiring Har Backorder WCI 5303001199 $41.66

45

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $9.06

47

240350609 Frigidaire Refrigerator Crisper Cov In Stock WCI 240350609 $96.18

48

240338101 Frigidaire Refrigerator Bottom Door In Stock WCI 240338101 $34.13

48

Channel-shelf mtg, center WCI 5303292395 Contact Us For Availability

48A

240338201 Frigidaire Refrigerator Door Bin In Stock WCI 240338201 $46.75

49

240495804 Frigidaire Refrigerator Replacement In Stock WCI 240495804 $19.15

51

241796405 Frigidaire Refrigerator Fill Water In Stock WCI 241796405 $11.76

55

5304464438 Frigidaire Compressor Run Capacito In Stock WCI 5304464438 $14.74

55#

242252603 Frigidaire Refrigerator Water Inlet In Stock WCI 242252603 $31.75

57

240542601 Frigidaire Wiring Harness Clip Backorder WCI 240542601 $57.37

59

Bracket-cond motor assy WCI 5304430246 Contact Us For Availability

59*

240346701 Frigidaire Refrigerator Foam Seal T Backorder WCI 240346701 $19.01

59*

240359403 Frigidaire Refrigerator Fan Shroud Backorder WCI 240359403 $2.26

60

218362501 Frigidaire Refrigerator Screw Backorder WCI 218362501 $7.71

60#

5303918774 Frigidaire Fan Motor Kit Condenser In Stock WCI 5303918774 $111.27

61

218721500 Frigidaire Refrigerator Leveling Br Backorder WCI 218721500 $46.16

61#

240524102 Frigidaire Refrigerator Condenser F In Stock WCI 240524102 $15.86

62

240555002 Frigidaire Refrigerator Screw #8-32 In Stock WCI 240555002 $8.58

64

5304455846 Frigidaire Refrigerator Clamp In Stock WCI 5304455846 $6.79

73

218396700 Frigidaire Door Handle Mounting Blo In Stock WCI 218396700 $28.99

82

5304418225 Frigidaire Refrigerator Roller P-1 In Stock WCI 5304418225 $30.80

83

5304455655 Frigidaire Refrigerator Rivet Backorder WCI 5304455655 $23.04

85

Tube-connector, suction WCI 240346201 Contact Us For Availability

86

240409302 Frigidaire Refrigerator Condenser T Backorder WCI 240409302 $39.88
