Model Kenmore 253.71822104 REFRIGERATOR – Common Parts & Diagrams

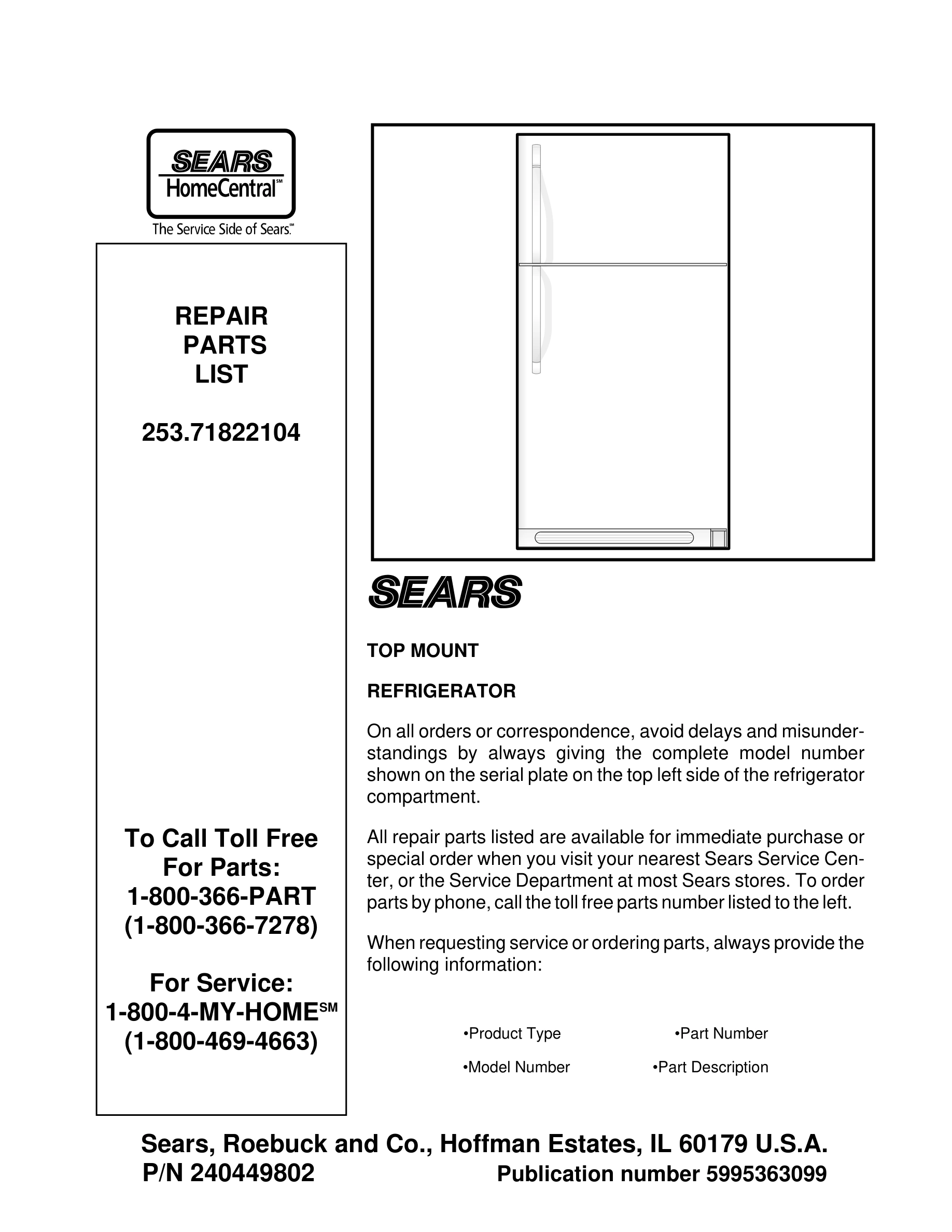

01 - COVER

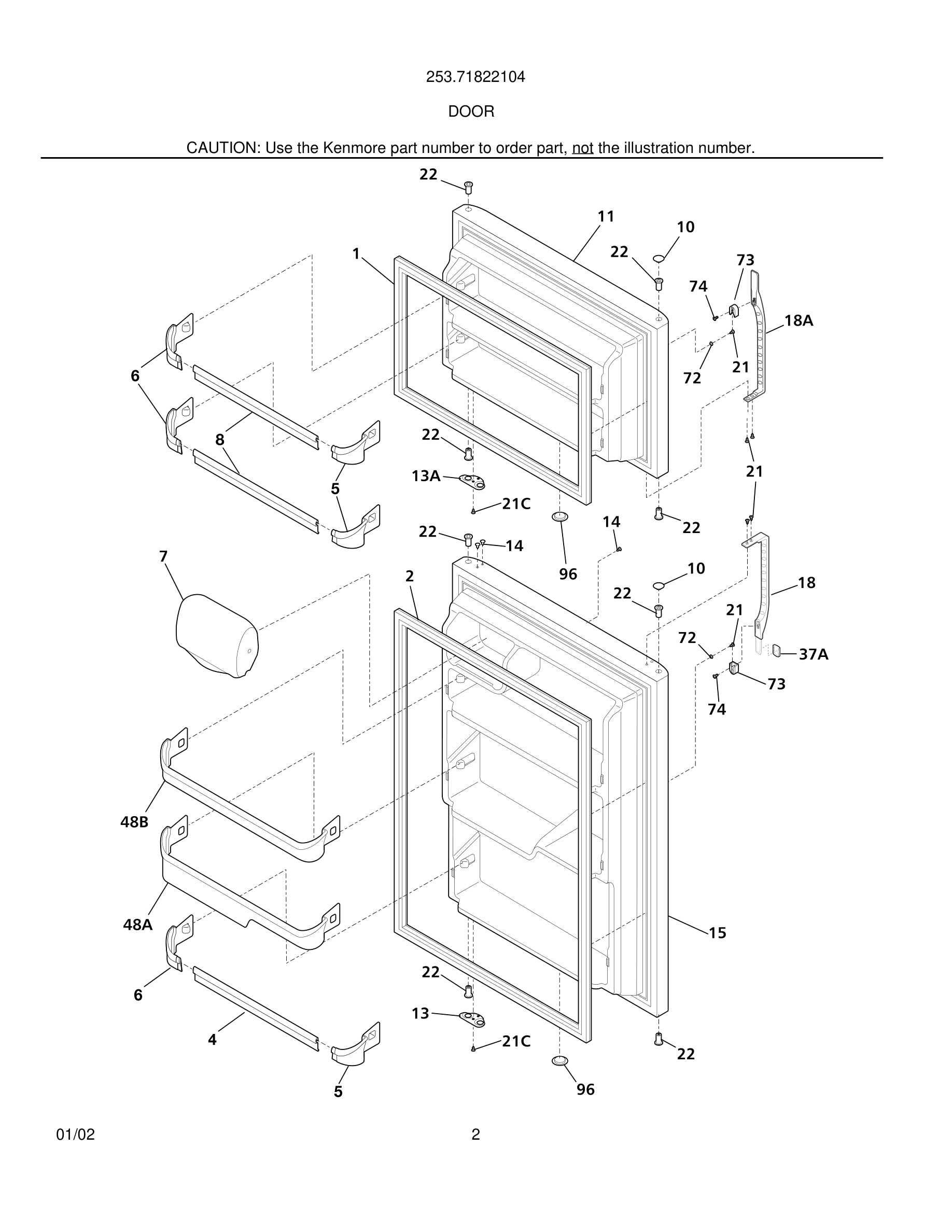

03 - DOOR

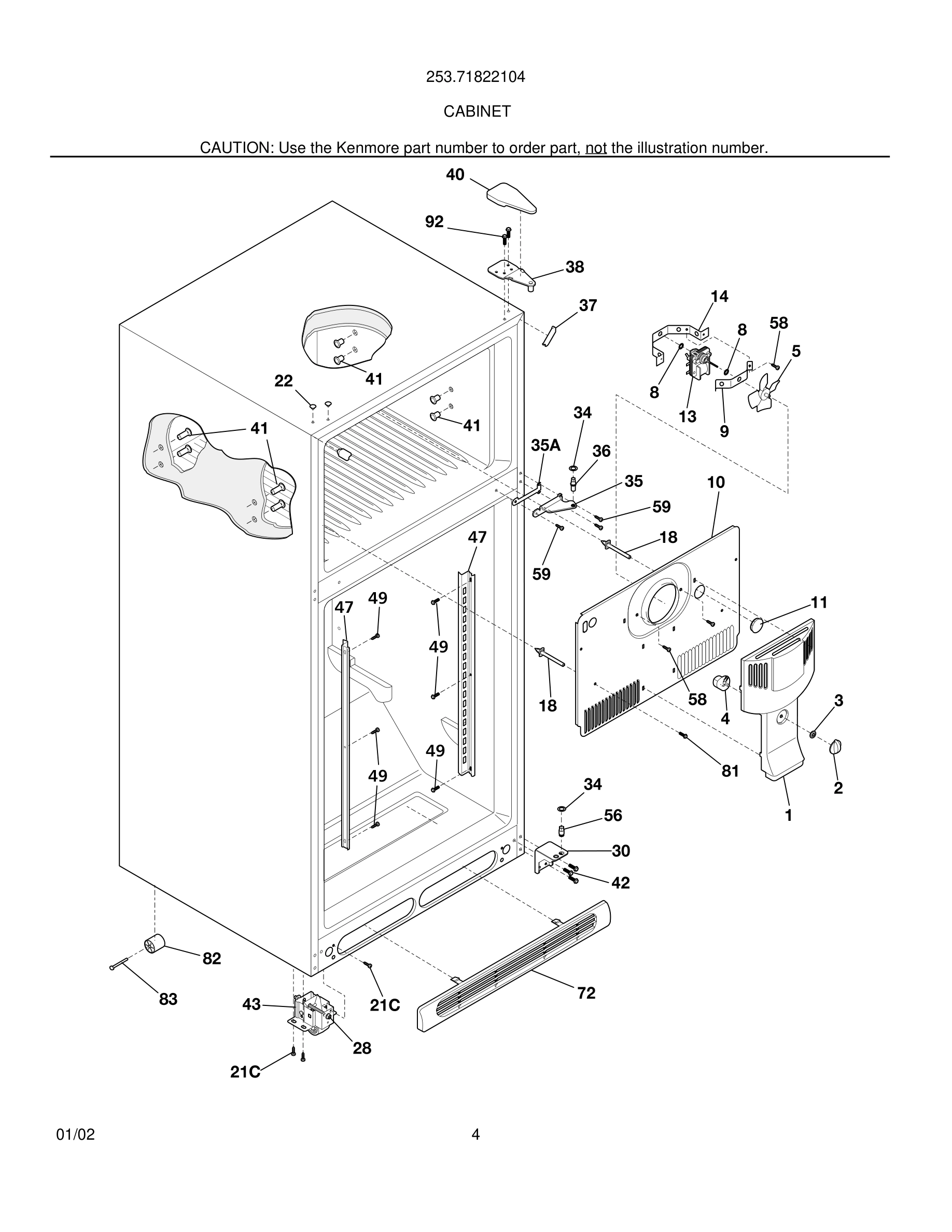

05 - CABINET

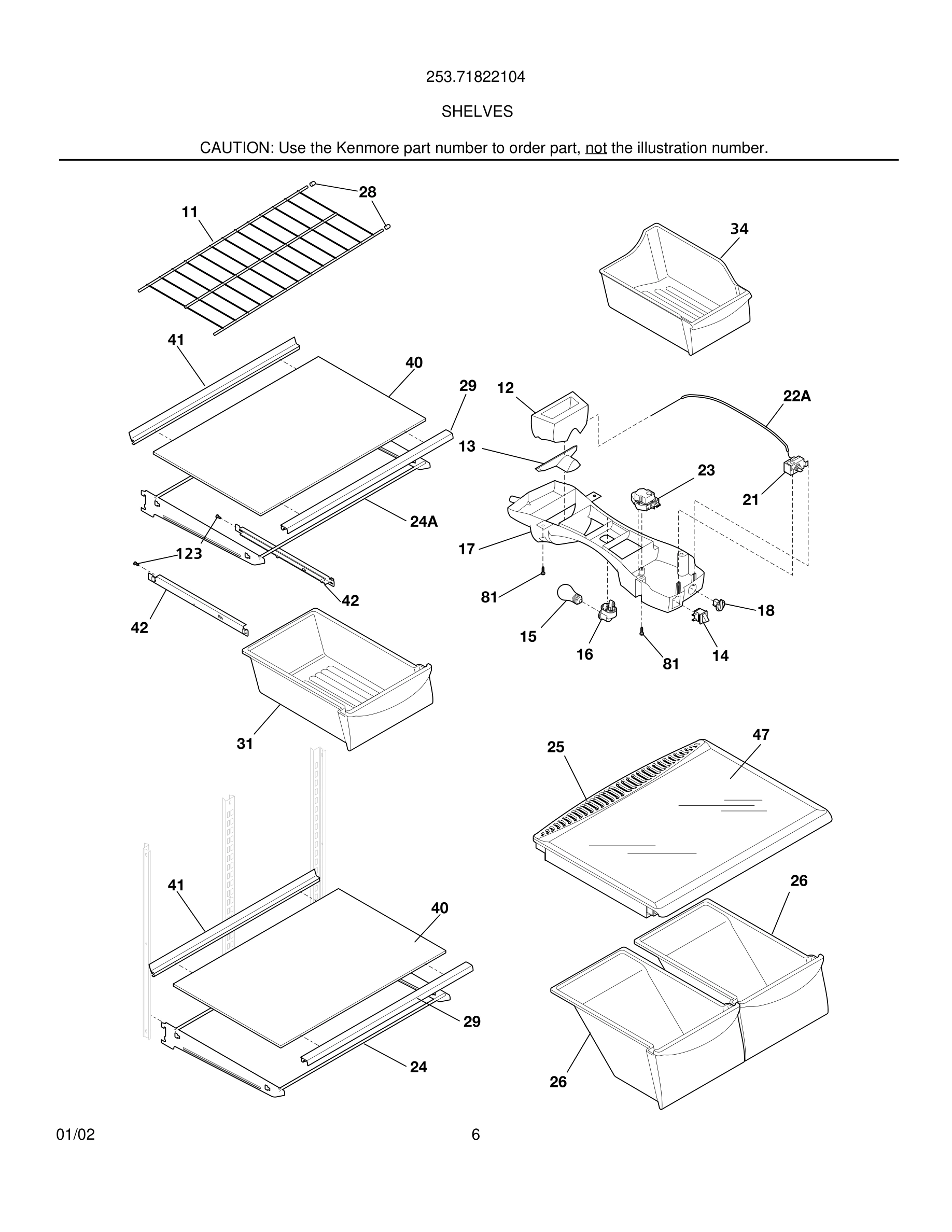

07 - SHELVES

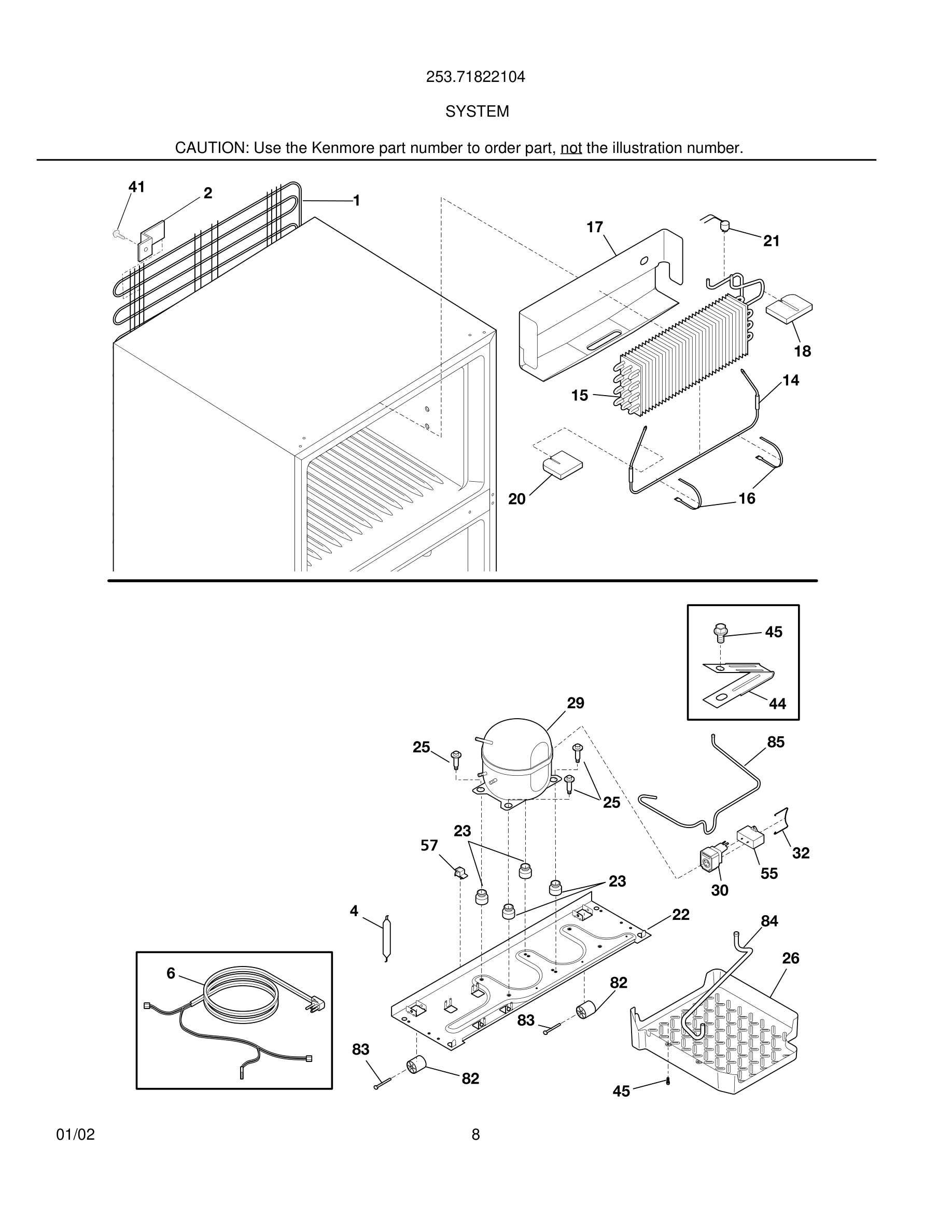

09 - SYSTEM

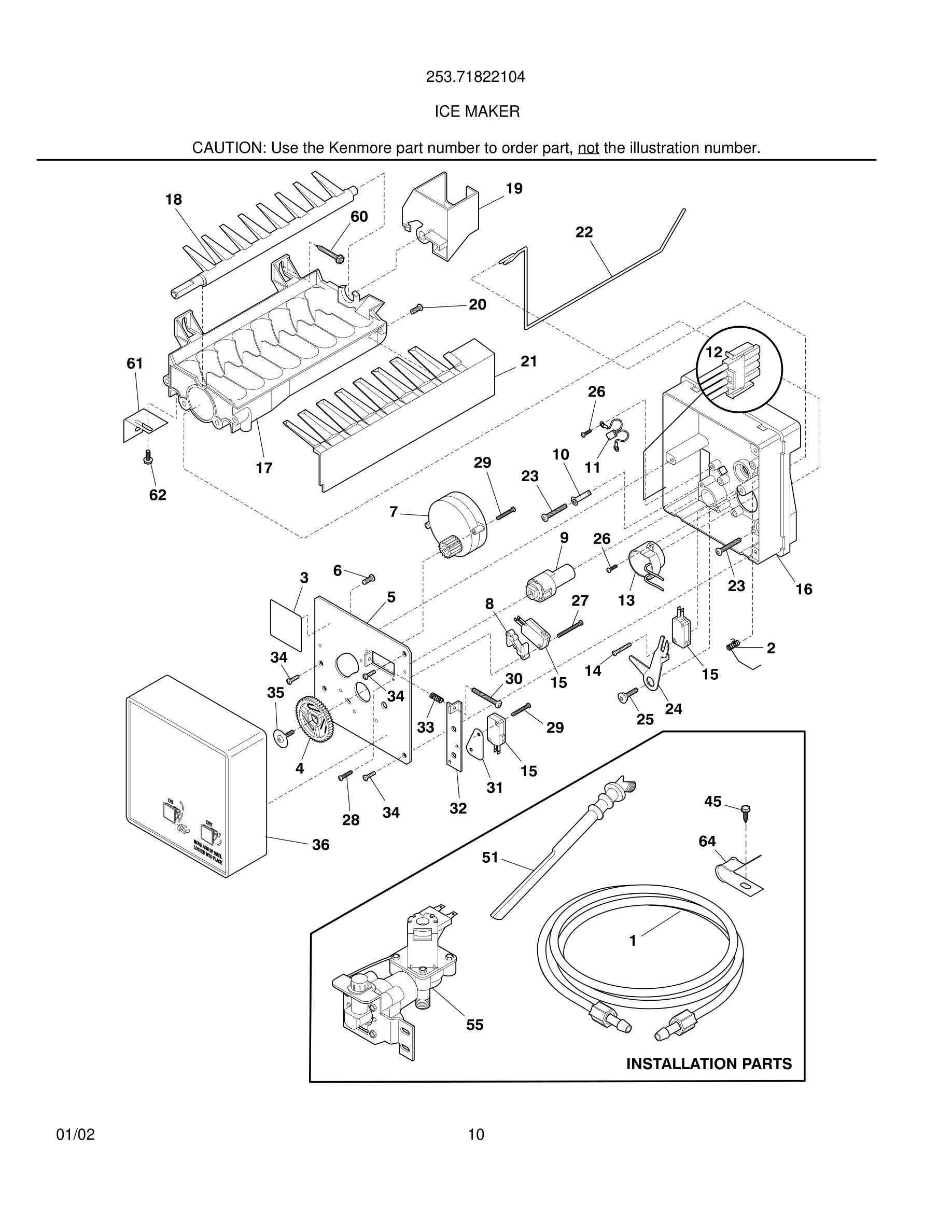

11 - ICE MAKER

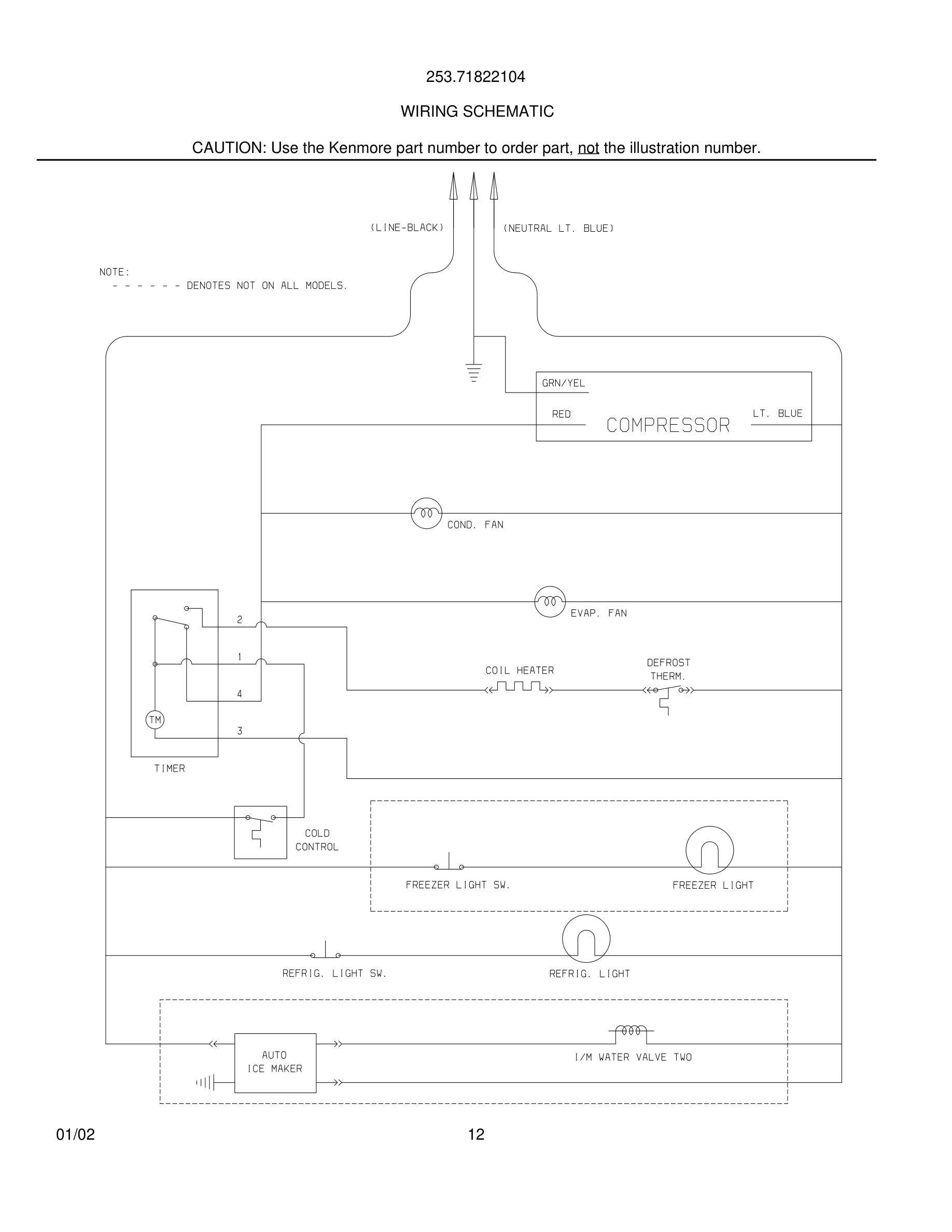

12 - WIRING SCHEMATIC

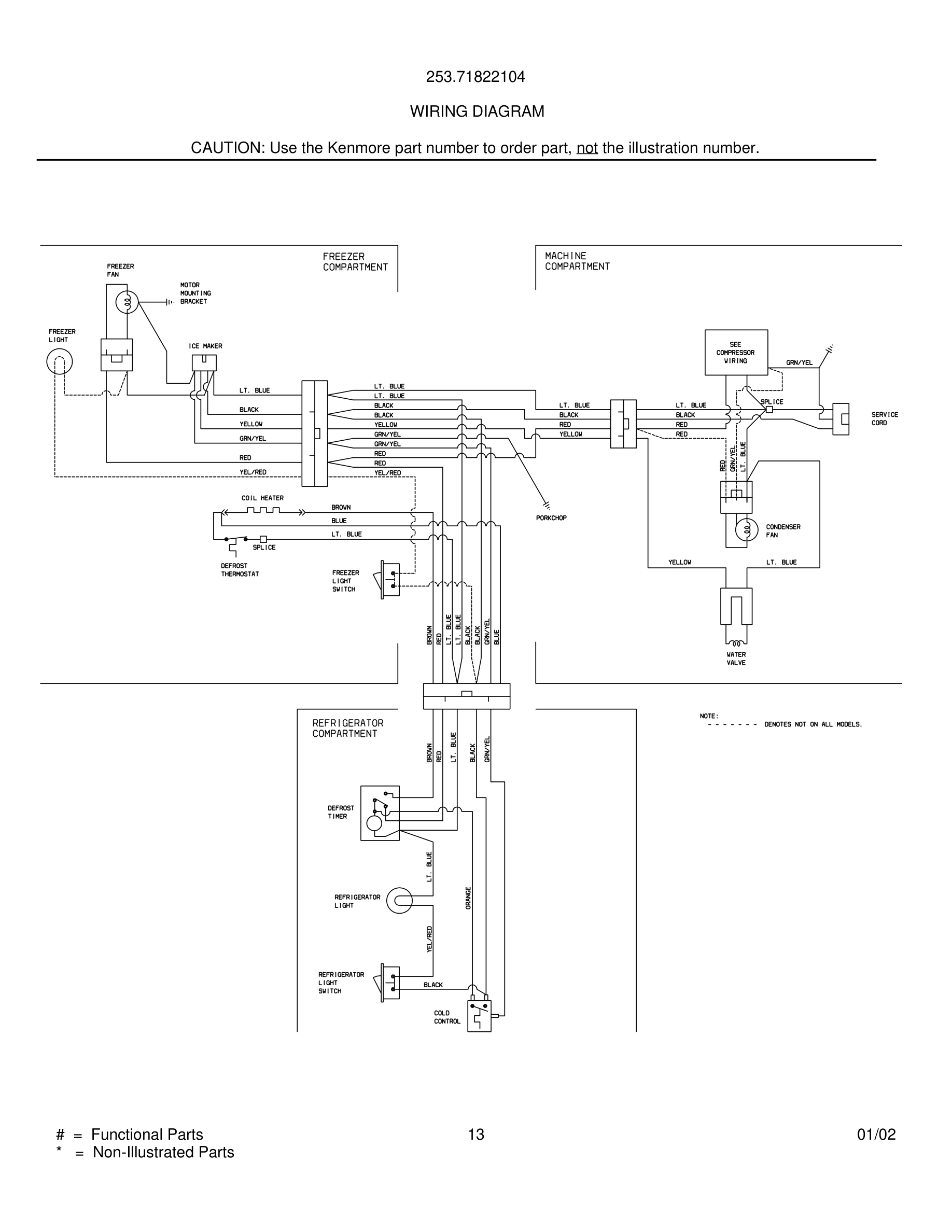

13 - WIRING DIAGRAM
Common parts from model Kenmore 253.71822104 REFRIGERATOR
*
Adapter-water supply,nut & sleeve, compressio WCI 218888001 Contact Us For Availability
*#
Hot Tube Repair Kit,Service WCI 5303918234 Contact Us For Availability
1#
Condenser,static WCI 240406401 Contact Us For Availability
1*
Spacer-cond tube,black WCI 5303208866 Contact Us For Availability
2
Bracket,condenser mtg ,(4) WCI 5308000296 Contact Us For Availability
2
Spring,shut-off arm WCI 5304420650 Contact Us For Availability
2*
Washer,ext tooth lock ,#10 ,grounding WCI 5308009617 Contact Us For Availability
3
Label,ID plate WCI 3206299 Contact Us For Availability
4
Damper-fan cover WCI 240367401 Contact Us For Availability
5
Plate-mounting WCI 3206303 Contact Us For Availability
6#
Wiring Harness, machine compt, w/ service cor WCI 240375401 Contact Us For Availability
6*#
Wiring Harness, freezer section WCI 240385401 Contact Us For Availability
8
Spacer-hold switch WCI 3206312 Contact Us For Availability
9
Bracket-motor mtg,front WCI 5303292396 Contact Us For Availability
9
Cam WCI 3206313 Contact Us For Availability
10
Clamp WCI 3206315 Contact Us For Availability
12#
Wiring Harness, ice maker, internal, with plu WCI 5304420651 Contact Us For Availability
13#
Thermostat Assy, ice maker WCI 3206322 Contact Us For Availability
13*
Seal-diffuser WCI 240392601 Contact Us For Availability
14
Screw, 4 x 0.750, switch mtg. WCI 5304420652 Contact Us For Availability
15
Panel-refr door,white ,complete assy WCI 240437501 Contact Us For Availability
16
Support,phenolic WCI 5304420653 Contact Us For Availability
18
Knob-control WCI 240360801 Contact Us For Availability
18
Insulation Block,RH WCI 240362301 Contact Us For Availability
18
Ejector-ice WCI 3206328 Contact Us For Availability
18A
Handle-door,white, frzr, w/nameplate, block & WCI 218779809 Contact Us For Availability
19
Bearing & Inlet WCI 3206330 Contact Us For Availability
20
Insulation Block,LH WCI 240362401 Contact Us For Availability
20
Screw,8-32 x 0.375 WCI 5304408581 Contact Us For Availability
21
Ice Stripper WCI 3206332 Contact Us For Availability
22
Plate-compr mtg WCI 240330001 Contact Us For Availability
22
Shut-off Arm WCI 3206333 Contact Us For Availability
23
Screw, 8-32 x 0.875, mold-to-support, (3) WCI 5304408582 Contact Us For Availability
24A
Frame-shelf, cantilever, full width, w/hanger WCI 240373101 Contact Us For Availability
25
Screw-compressor mtg, 1/4-28 x 1.16,shoulder, WCI 240491501 Contact Us For Availability
25
Screw,8-18 x 0.562 ,lever arm/sprt WCI 3206336 Contact Us For Availability
26
Screw-thermo/sprt,4-24 x 0.375 ,(4) WCI 5304420654 Contact Us For Availability
27
Screw, 4-40 x 1.000, hold switch mtg, (2) WCI 3206338 Contact Us For Availability
28
End Cap,freezer shelf ,protector WCI 3201150 No Longer Available
28
Screw-timing stop, 4-40 x 0.375 WCI 3206339 Contact Us For Availability
29
Trim-shelf,24.48" ,front WCI 240357701 Contact Us For Availability
29
Screw,4-24 x 0.750 ,(6) WCI 3206323 Contact Us For Availability
30
Screw-timing adj,8-32 x 1.000 WCI 3206341 Contact Us For Availability
31
Insulator WCI 3206342 Contact Us For Availability
32
Plate-valve switch WCI 3206343 Contact Us For Availability
33
Spring-timing adj WCI 5304408583 Contact Us For Availability
34
Screw,plazscrew ,8-10 ,(3) WCI 5304420655 Contact Us For Availability
35
Screw WCI 5304408585 Contact Us For Availability
36
Cover-ice maker WCI 3206347 Contact Us For Availability
37A
Trim-handle,1.34" ,white WCI 218771201 Contact Us For Availability
41
Trim-shelf,24.48" ,rear WCI 240357801 Contact Us For Availability
72
Button-handle mtg,dovetail WCI 218397000 No Longer Available
85
Tube-connector,suction WCI 240493101 Contact Us For Availability
× ![]()
