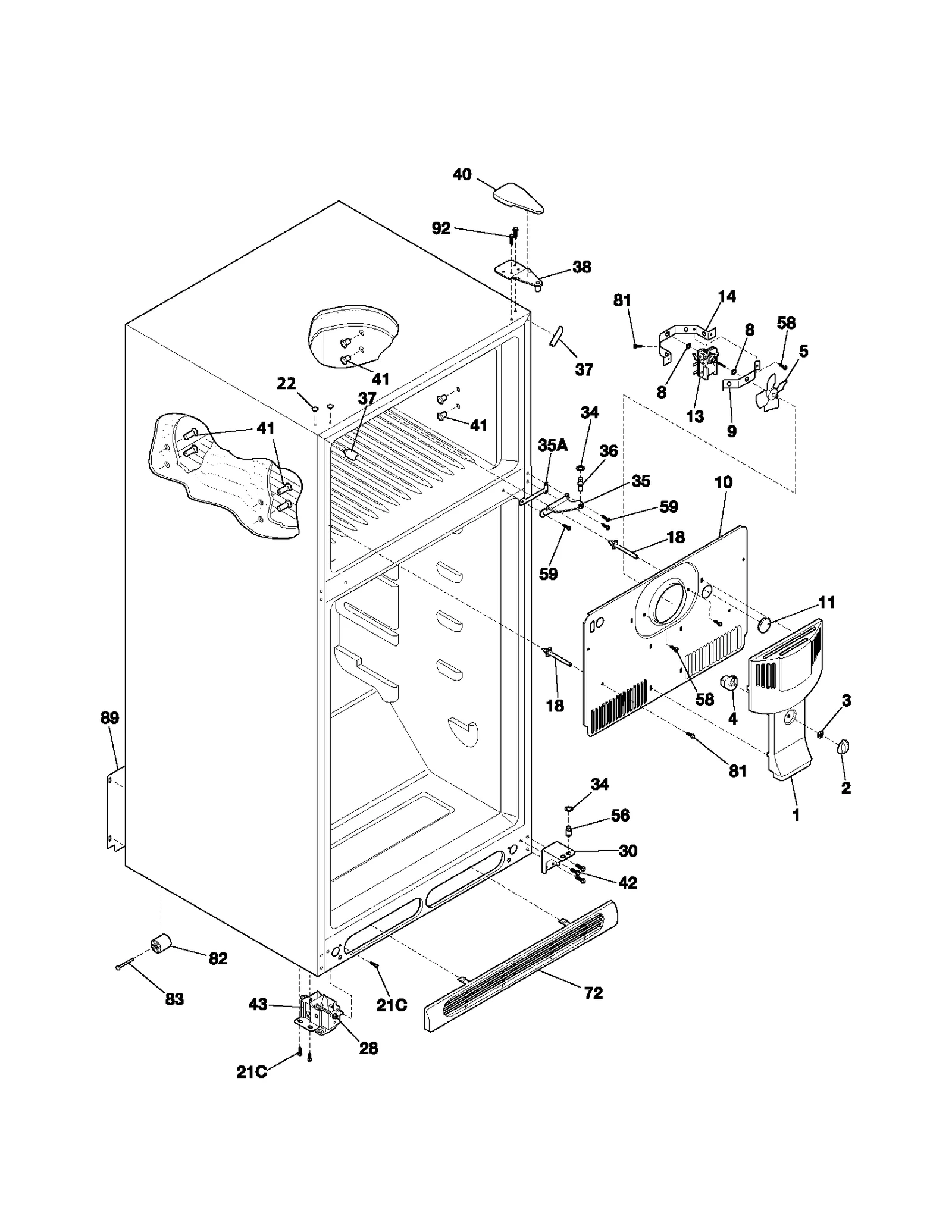

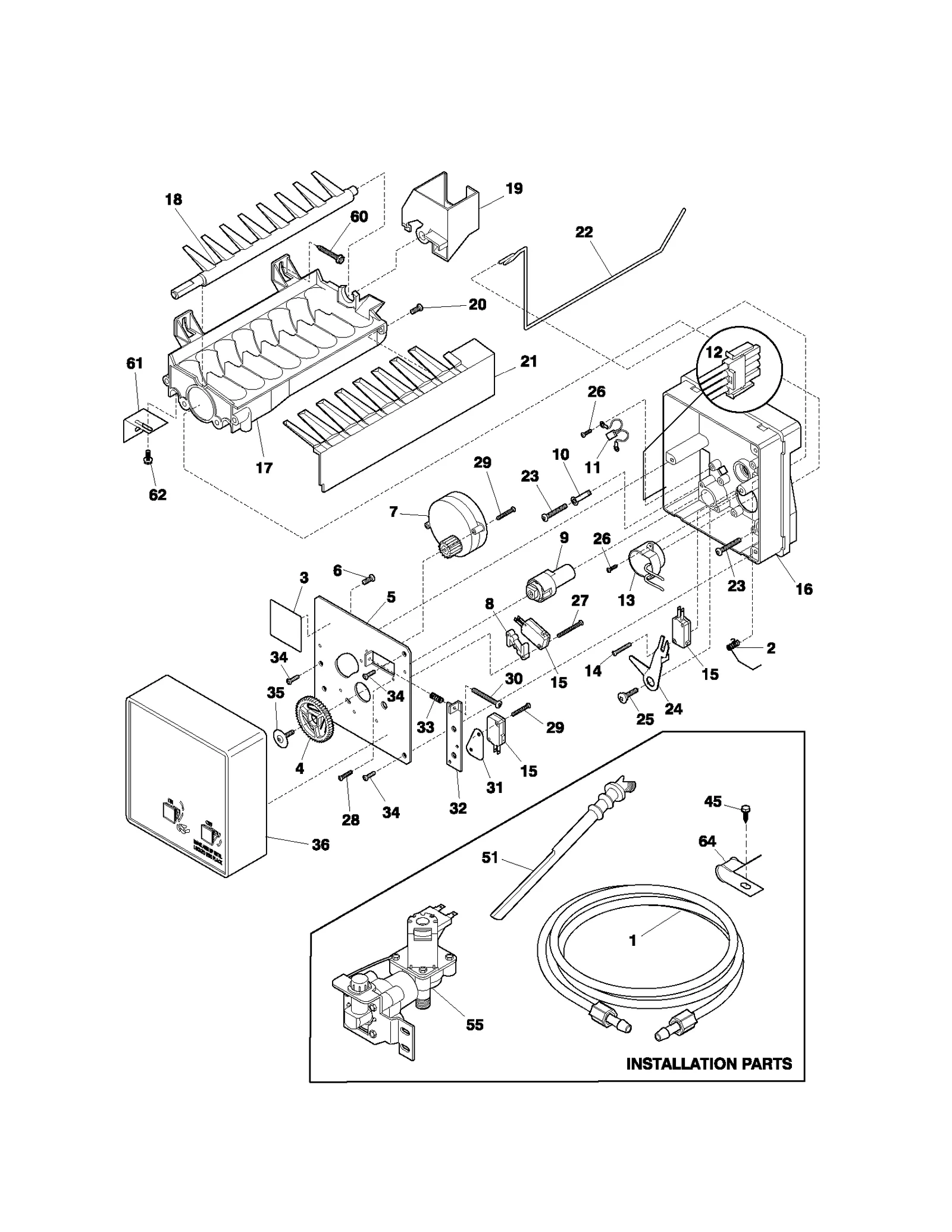

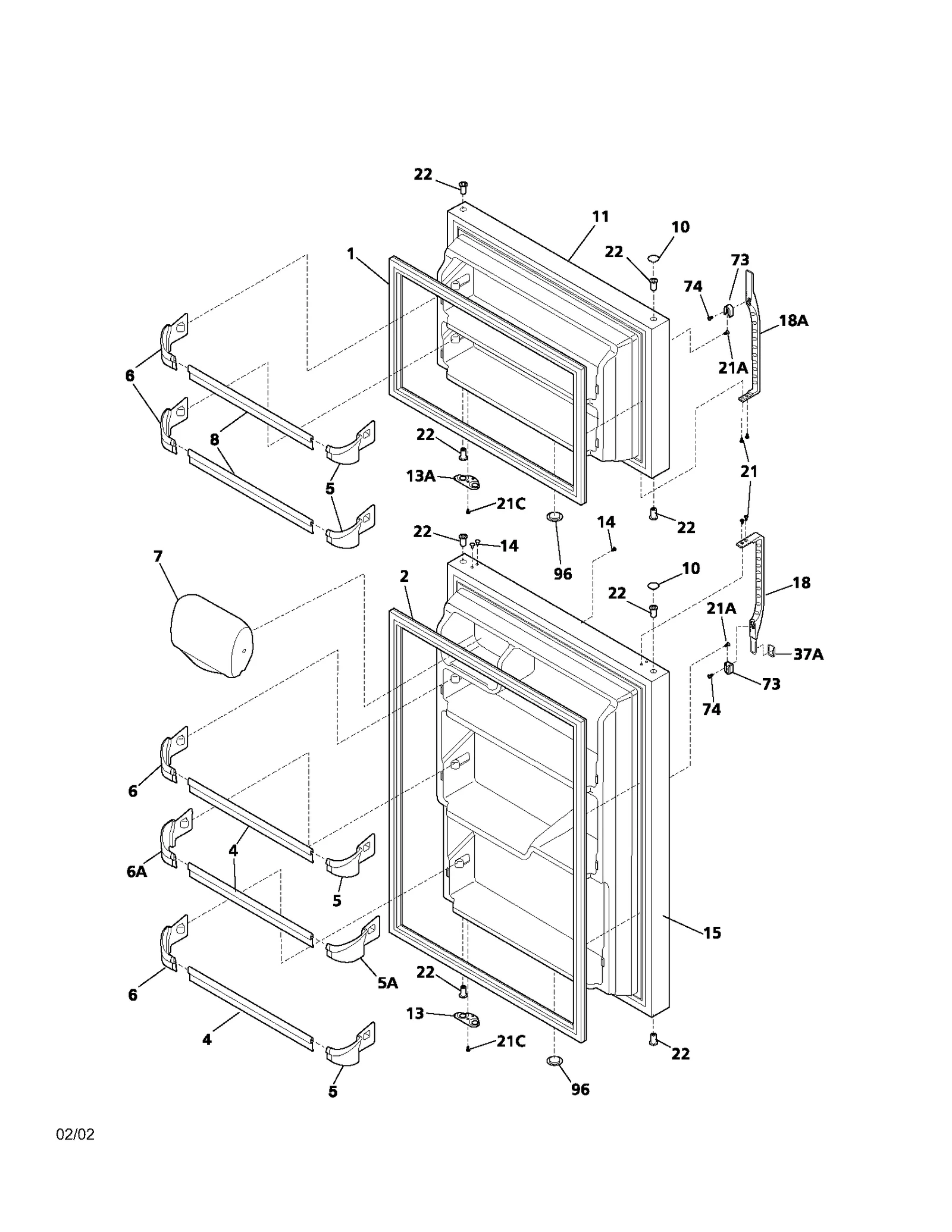

Model Electrolux 253.71112101 Top-Mount Refrigerator (Kenmore 25371112101) – Common Parts &amp; Diagrams

1

242193205 Frigidaire Refrigerator White Freez In Stock WCI 242193205 $112.48

1

Refrigerator Fan Cover WCI 240355402 Contact Us For Availability

2

240367001 Frigidaire Refrigerator Air Damper Backorder WCI 240367001 $34.41

2

242193213 Frigidaire Refrigerator Door Gasket In Stock WCI 242193213 $115.11

3

Refrigerator Push Nut WCI 5303001028 Contact Us For Availability

4

Refrigerator Air Damper WCI 240367401 Contact Us For Availability

5

240311502 Frigidaire Right Hand Door Rack Sup In Stock WCI 240311502 $3.31

5

5308000010 Frigidaire Refrigerator Evaporator In Stock WCI 5308000010 $31.93

5A

240331502 Frigidaire Right-Hand Gallon Door S In Stock WCI 240331502 $2.16

6

240311501 Frigidaire Left Hand Door Rack Supp In Stock WCI 240311501 $3.16

6A

240331501 Frigidaire Left Hand Gallon Door Su In Stock WCI 240331501 $2.16

7

240337712 Frigidaire Refrigerator Dairy Door In Stock WCI 240337712 $27.18

8

240331401 Frigidaire 20.27 Inch Door Rack In Stock WCI 240331401 $28.55

8

Refrigerator Bushing WCI 5300157666 Contact Us For Availability

9

Refrigerator Evaporator Fan Motor Bracket, Fr WCI 5303292396 Contact Us For Availability

10

240381301 Frigidaire Refrigerator Button Plug In Stock WCI 240381301 $11.32

10

Refrigerator Door Hinge Bearing Hole Plug WCI 240381302 Contact Us For Availability

10

Refrigerator Evaporator Cover WCI 240313606 Contact Us For Availability

5303208309 Frigidaire Refrigerator Plug Hole In Stock WCI 5303208309 $27.18

Kenmore Pro Refrigerator Ice Maker Thermal Cu WCI 3206319 Contact Us For Availability

Refrigerator Freezer Panel WCI 240450304 Contact Us For Availability

Refrigerator Freezer Panel WCI 240450308 Contact Us For Availability

240312421 Frigidaire Refrigerator Door Stop Backorder WCI 240312421 $9.06

240312423 Frigidaire Refrigerator Door Stop Backorder WCI 240312423 $7.25

240362601 Frigidaire Refrigerator P1 Diffuser In Stock WCI 240362601 $26.72

5303918549 Frigidaire Refrigerator Evaporator In Stock WCI 5303918549 $44.91

Refrigerator Ice Maker Thermostat WCI 3206322 Contact Us For Availability

13A

240312414 Frigidaire Refrigerator Door Stop Backorder WCI 240312414 $12.20

13A

Refrigerator Door Stop WCI 240312408 Contact Us For Availability

240438003 Frigidaire Refrigerator Bracket and Backorder WCI 240438003 $10.41

240494001 Frigidaire Refrigerator Plug Button In Stock WCI 240494001 $10.85

240505801 Frigidaire Light Switch In Stock WCI 240505801 $42.13

5303918247 Frigidaire Refrigerator Defrost He Backorder WCI 5303918247 $102.46

Refrigerator Door Hole Plug (Bisque) WCI 240494002 Contact Us For Availability

15

Refrigerator Door Assembly (White) WCI 240450404 Contact Us For Availability

15

Refrigerator Panel WCI 240450408 Contact Us For Availability

16

5308000110 Frigidaire Refrigerator Evaporator In Stock WCI 5308000110 $39.44

218779901 Frigidaire Refrigerator White Fresh In Stock WCI 218779901 $43.91

Refrigerator Temperature Control Knob WCI 240360801 Contact Us For Availability

Refrigerator Door Handle (Bisque) WCI 218779904 Contact Us For Availability

Refrigerator Support Evaporator WCI 240411901 Contact Us For Availability

18A

Refrigerator Freezer Door Handle Assembly (Wh WCI 218779812 Contact Us For Availability

18A

Refrigerator Freezer Door Handle Assembly (Bi WCI 218779813 Contact Us For Availability

240383407 Frigidaire Refrigerator Screw Backorder WCI 240383407 $8.15

241537103 Frigidaire Refrigerator Temperature In Stock WCI 241537103 $38.99

5303918202 Frigidaire Refrigerator Defrost Th In Stock WCI 5303918202 $11.09

Refrigerator Screw WCI 240383404 Contact Us For Availability

21A

240521303 Frigidaire Refrigerator Screw In Stock WCI 240521303 $9.04

21C

218252201 Frigidaire Refrigerator Screw Backorder WCI 218252201 $9.04

22

215774901 Frigidaire Refrigerator Button Plug In Stock WCI 215774901 $10.87

22

5304507146 Frigidaire Refrigerator Hinge Bear In Stock WCI 5304507146 $4.51

22A

5303916855 Frigidaire Refrigerator Tube Backorder WCI 5303916855 $38.55

23

218513300 Frigidaire Refrigerator Compressor In Stock WCI 218513300 $27.16

24

Refrigerator Shelf Frame WCI 240372407 Contact Us For Availability

24A

240372408 Frigidaire Refrigerator Shelf Frame Backorder WCI 240372408 $103.36

25

Screw WCI 3206336 Contact Us For Availability

26

240343803 Frigidaire Refrigerator Clear Crisp In Stock WCI 240343803 $100.66

26

Screw-ther WCI 5304420654 Contact Us For Availability

27

Screw WCI 3206338 Contact Us For Availability

28

Refrigerator Freezer Shelf End Cap WCI 3201150 Contact Us For Availability

28

Screw WCI 3206339 Contact Us For Availability

29

240357704 Frigidaire Refrigerator Front Shelf In Stock WCI 240357704 $43.47

29

Refrigerator Ice Maker Motor Screw WCI 3206323 Contact Us For Availability

30

240314011 Frigidaire Refrigerator Lower Brack In Stock WCI 240314011 $48.85

30

Screw WCI 3206341 Contact Us For Availability

31

Insulator WCI 3206342 Contact Us For Availability

32

Refrigerator Ice Maker Fill Switch Bracket WCI 3206343 Contact Us For Availability

33

Spring-timin WCI 5304408583 Contact Us For Availability

240311303 Frigidaire Refrigerator Nylon Hinge In Stock WCI 240311303 $6.88

240385201 Frigidaire Refrigerator Ice Contain In Stock WCI 240385201 $67.44

240405201 Frigidaire Refrigerator Grommet Backorder WCI 240405201 $12.67

Screw WCI 5304420655 Contact Us For Availability

35

240313802 Frigidaire Refrigerator Center Hing Backorder WCI 240313802 $44.37

35

Refrigerator Door Hinge Bracket, Center WCI 240313804 Contact Us For Availability

35

Screw WCI 5304408585 Contact Us For Availability

35A

240336802 Frigidaire Refrigerator Hinge Space Backorder WCI 240336802 $11.76

36

241708002 Frigidaire Refrigerator Center Hing Backorder WCI 241708002 $13.59

36

Cover WCI 3206347 Contact Us For Availability

37

242161201 Frigidaire Refrigerator Cabinet Cor In Stock WCI 242161201 $1.89

37

242161203 Frigidaire Refrigerator Corner Cabi In Stock WCI 242161203 $4.53

37A

Refrigerator Door Handle Trim WCI 218771201 Contact Us For Availability

37A

Refrigerator Door Handle End Cap, Lower (Bisq WCI 218771204 Contact Us For Availability

38

240313703 Frigidaire Refrigerator Hinge In Stock WCI 240313703 $20.62

40

240354401 Frigidaire Upper Hinge Cover Backorder WCI 240354401 $37.05

40

Refrigerator Glass Shelf WCI 240350692 Contact Us For Availability

40

Refrigerator Freezer Door Hinge Cover WCI 240354403 Contact Us For Availability

41

5304509705 Frigidaire Refrigerator Grommet In Stock WCI 5304509705 $5.97

42

240530601 Frigidaire Refrigerator Left Meat P In Stock WCI 240530601 $38.99

42

240530701 Frigidaire Refrigerator Right Meat In Stock WCI 240530701 $38.99

42

240578902 Frigidaire Screw Mounting Hinge Backorder WCI 240578902 $9.04

43

5304499445 Frigidaire Refrigerator Roller Ass Backorder WCI 5304499445 $19.99

47

Refrigerator Glass Shelf WCI 240350689 Contact Us For Availability

51

241796405 Frigidaire Refrigerator Fill Water In Stock WCI 241796405 $11.76

55

242252603 Frigidaire Refrigerator Water Inlet In Stock WCI 242252603 $41.22

56

240516502 Frigidaire Refrigerator Lower Hinge Backorder WCI 240516502 $43.03

58

5304455651 Frigidaire Refrigerator Screw In Stock WCI 5304455651 $8.58

59

240442708 Frigidaire Refrigerator Screw - #10 In Stock WCI 240442708 $4.97

60

218362501 Frigidaire Refrigerator Screw Backorder WCI 218362501 $7.71

61

218721500 Frigidaire Refrigerator Leveling Br Backorder WCI 218721500 $46.16

61

Refrigerator Condenser Fan Blade WCI 240315401 Contact Us For Availability

62

240555002 Frigidaire Refrigerator Screw #8-32 In Stock WCI 240555002 $8.58

64

5304455846 Frigidaire Refrigerator Clamp In Stock WCI 5304455846 $6.79

72

241839405 Frigidaire Refrigerator Kickplate/G Backorder WCI 241839405 $38.55

72

Kick Grille WCI 240368202 Contact Us For Availability

73

218396700 Frigidaire Door Handle Mounting Blo In Stock WCI 218396700 $28.99

74

215503203 Frigidaire Refrigerator Door Handle In Stock WCI 215503203 $4.51

81

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $9.06

82

5304418225 Frigidaire Refrigerator Roller P-1 In Stock WCI 5304418225 $30.80

83

5304455655 Frigidaire Refrigerator Rivet Backorder WCI 5304455655 $23.04

84

240500801 Frigidaire Refrigerator Drain Tube In Stock WCI 240500801 $41.24

86

240409302 Frigidaire Refrigerator Condenser T Backorder WCI 240409302 $39.88

89

241733911 Frigidaire Refrigerator Access Cove In Stock WCI 241733911 $32.30

92

241710601 Frigidaire Refrigerator Screw In Stock WCI 241710601 $8.60

96

Refrigerator Freezer Door Foam Hole Plug (Whi WCI 240345505 Contact Us For Availability

218843801 Frigidaire Refrigerator Screw Backorder WCI 218843801 $8.58

218990901 Frigidaire Clip Backorder WCI 218990901 $47.05

240346701 Frigidaire Refrigerator Foam Seal T Backorder WCI 240346701 $19.01

240388701 Frigidaire Refrigerator Wiring Harn Backorder WCI 240388701 $50.64

240396801 Frigidaire Refrigerator Tube Clamp Backorder WCI 240396801 $12.24

241500303 Frigidaire Refrigerator Screw Backorder WCI 241500303 $2.72

241953902 Frigidaire Refrigerator Screw In Stock WCI 241953902 $10.93

5303299664 Frigidaire Refrigerator Shelf Spac In Stock WCI 5303299664 $15.40

5303321319 Frigidaire Refrigerator White Touc In Stock WCI 5303321319 $9.23

5303918277 Frigidaire Refrigerator Ice Maker In Stock WCI 5303918277 $48.72

5304434189 Frigidaire Refrigerator Seal Kit Backorder WCI 5304434189 $42.12

5304500407 Frigidaire Refrigerator Shelf Moun Backorder WCI 5304500407 $4.07

Appliance Touch-Up Paint, 0.6-oz (Bisque) WCI 5304414035 Contact Us For Availability

Hot Tube WCI 5304421289 Contact Us For Availability

Refrigerator Water Tube Fitting WCI 218888001 Contact Us For Availability

Refrigerator Motor Clamp WCI 218931001 Contact Us For Availability

Refrigerator Wiring Harness WCI 240385402 Contact Us For Availability
