Model Kenmore 253.7088940B REFRIGERATOR – Common Parts & Diagrams
01 - COVER
03 - DOOR

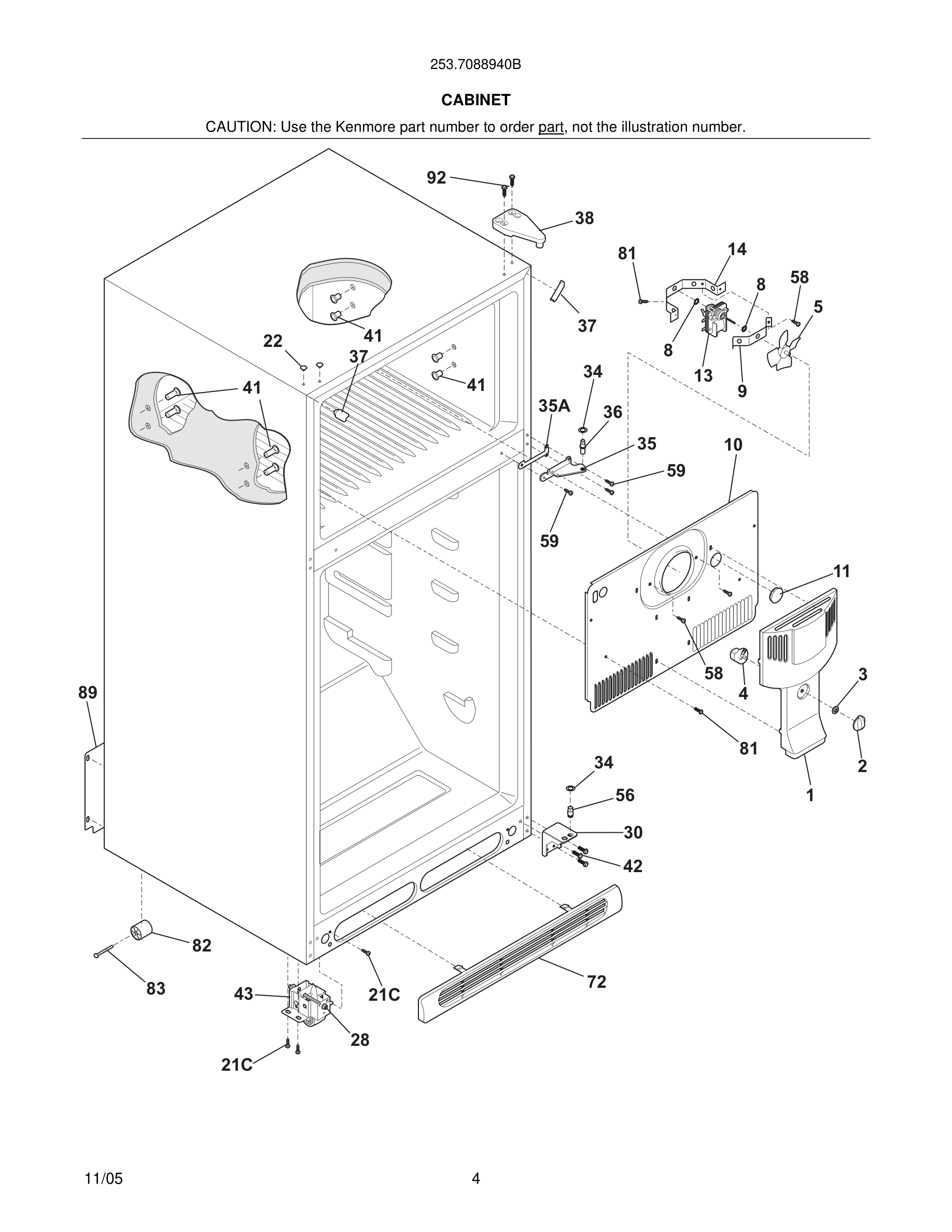

05 - CABINET

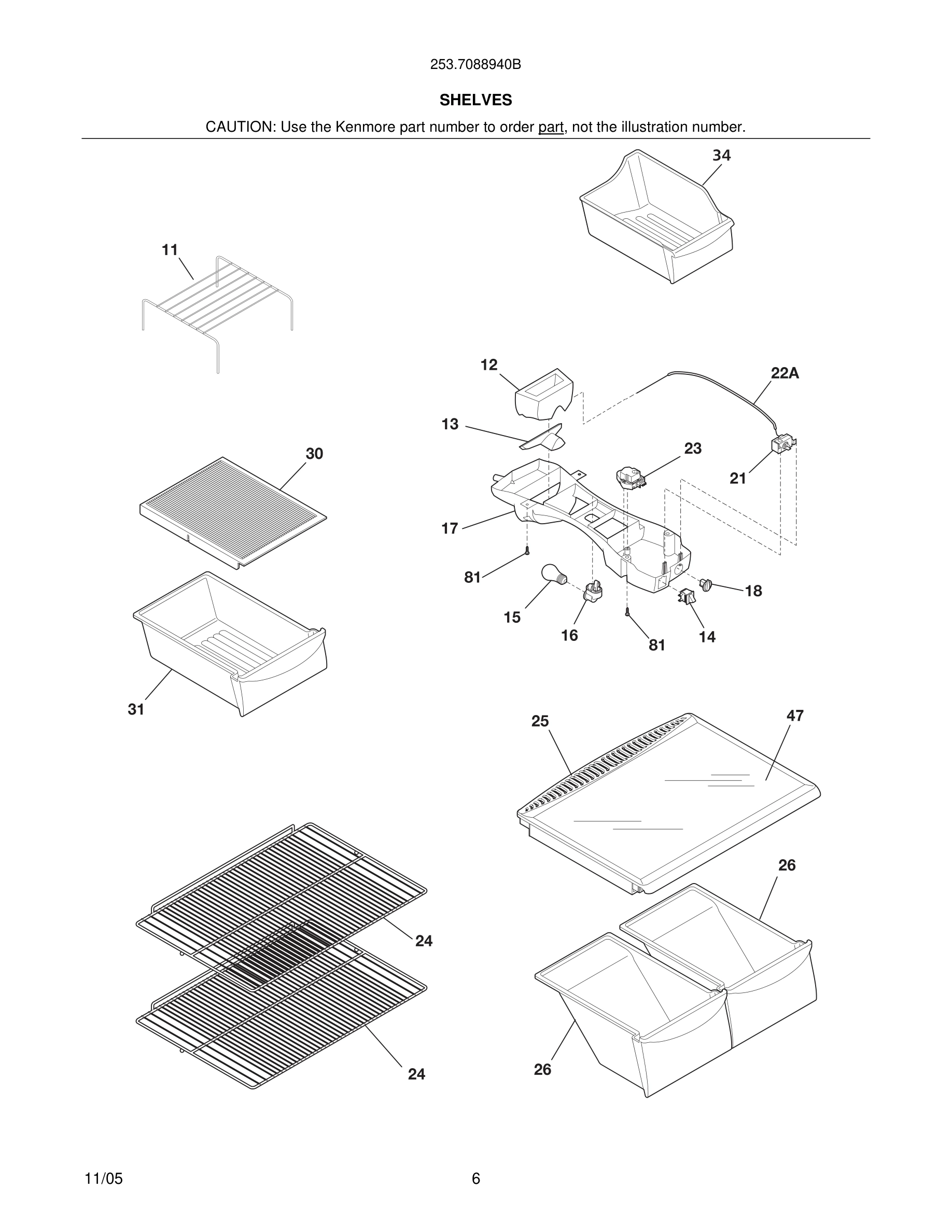

07 - SHELVES

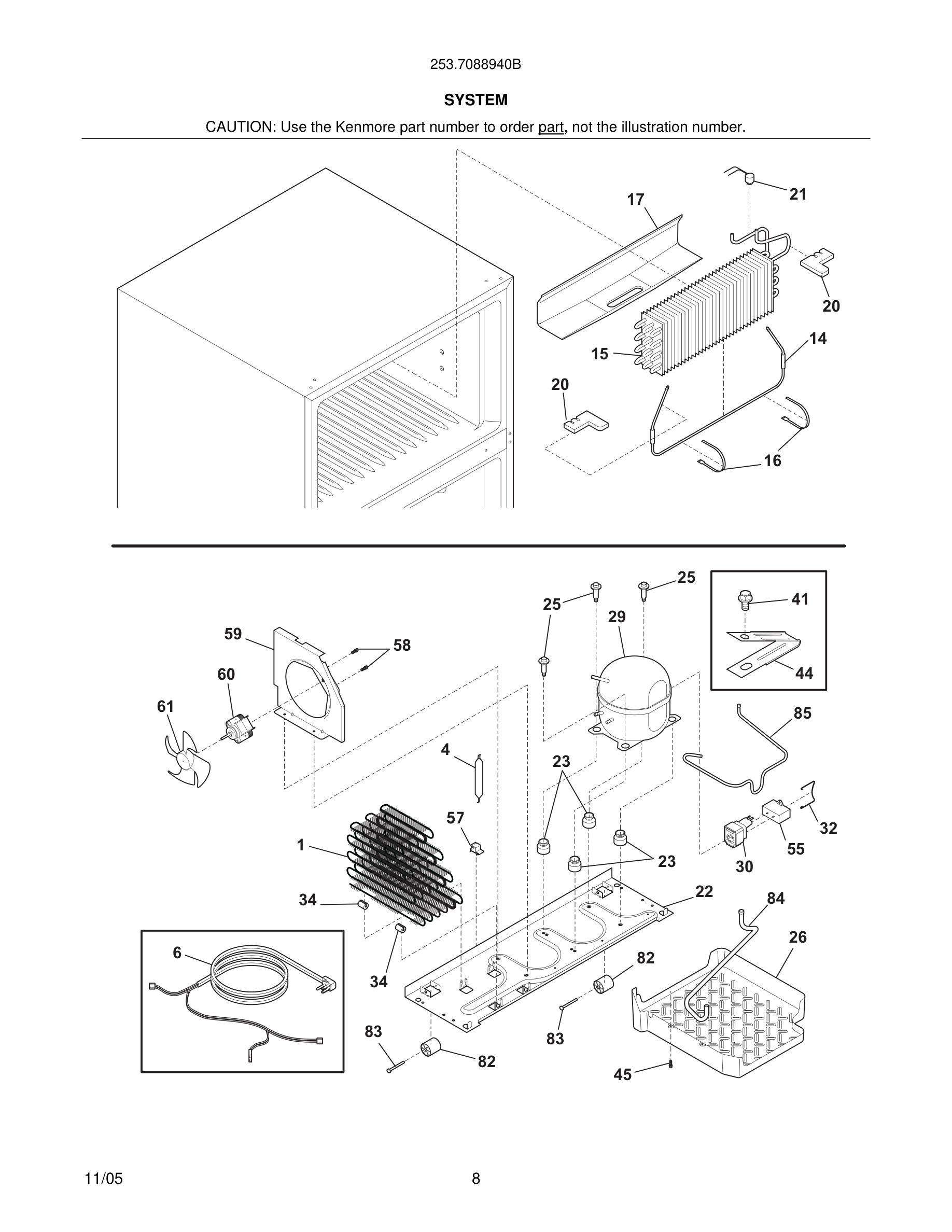

09 - SYSTEM

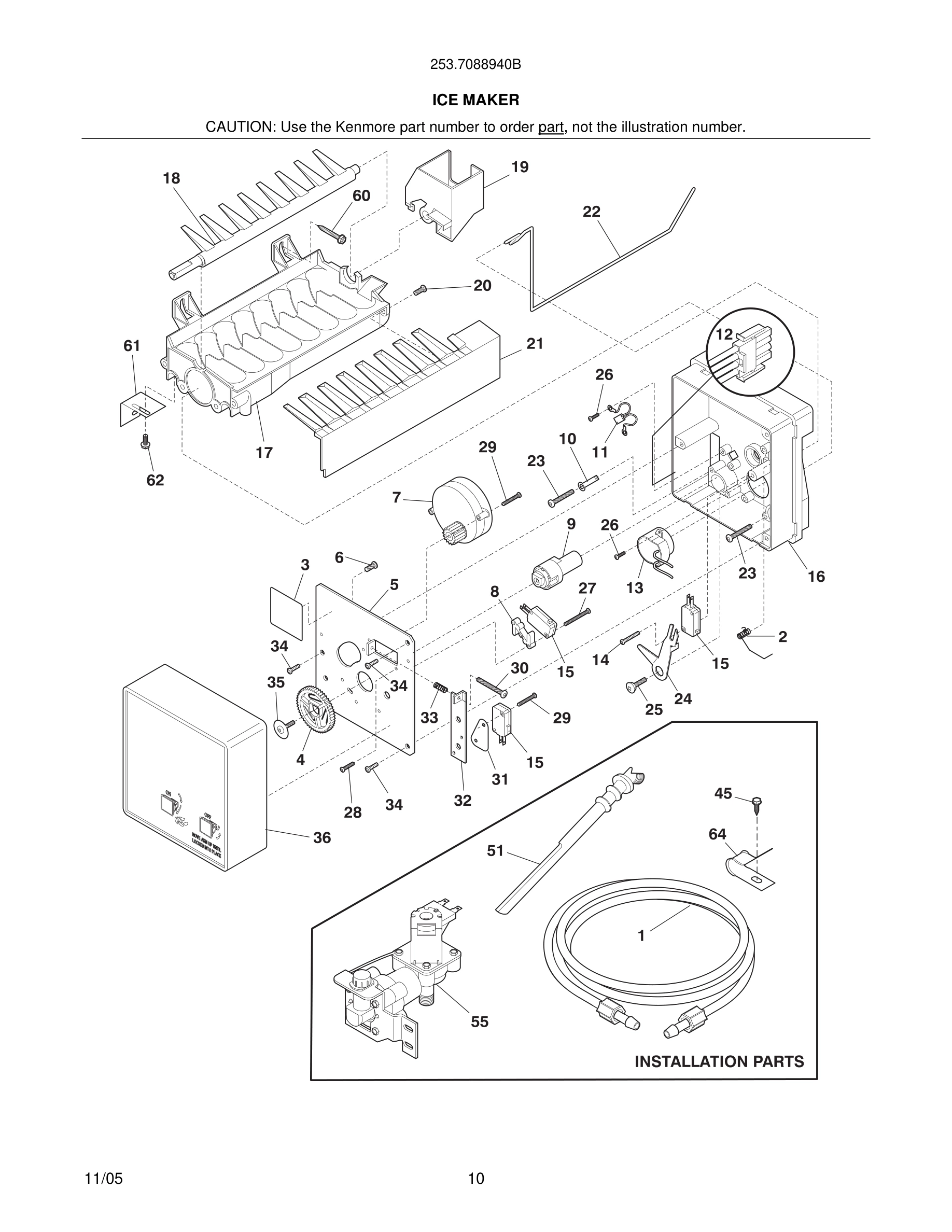

11 - ICE MAKER

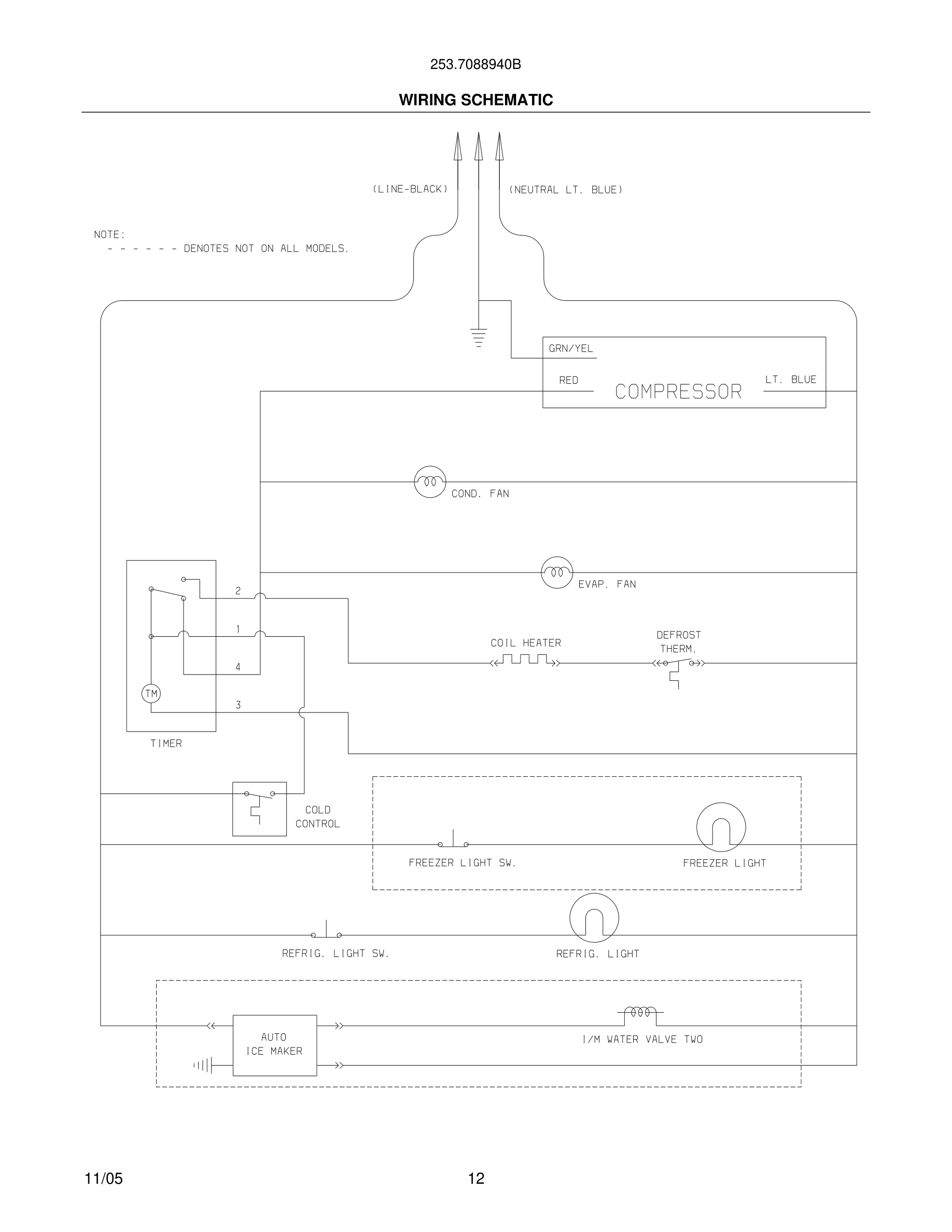

12 - WIRING SCHEMATIC

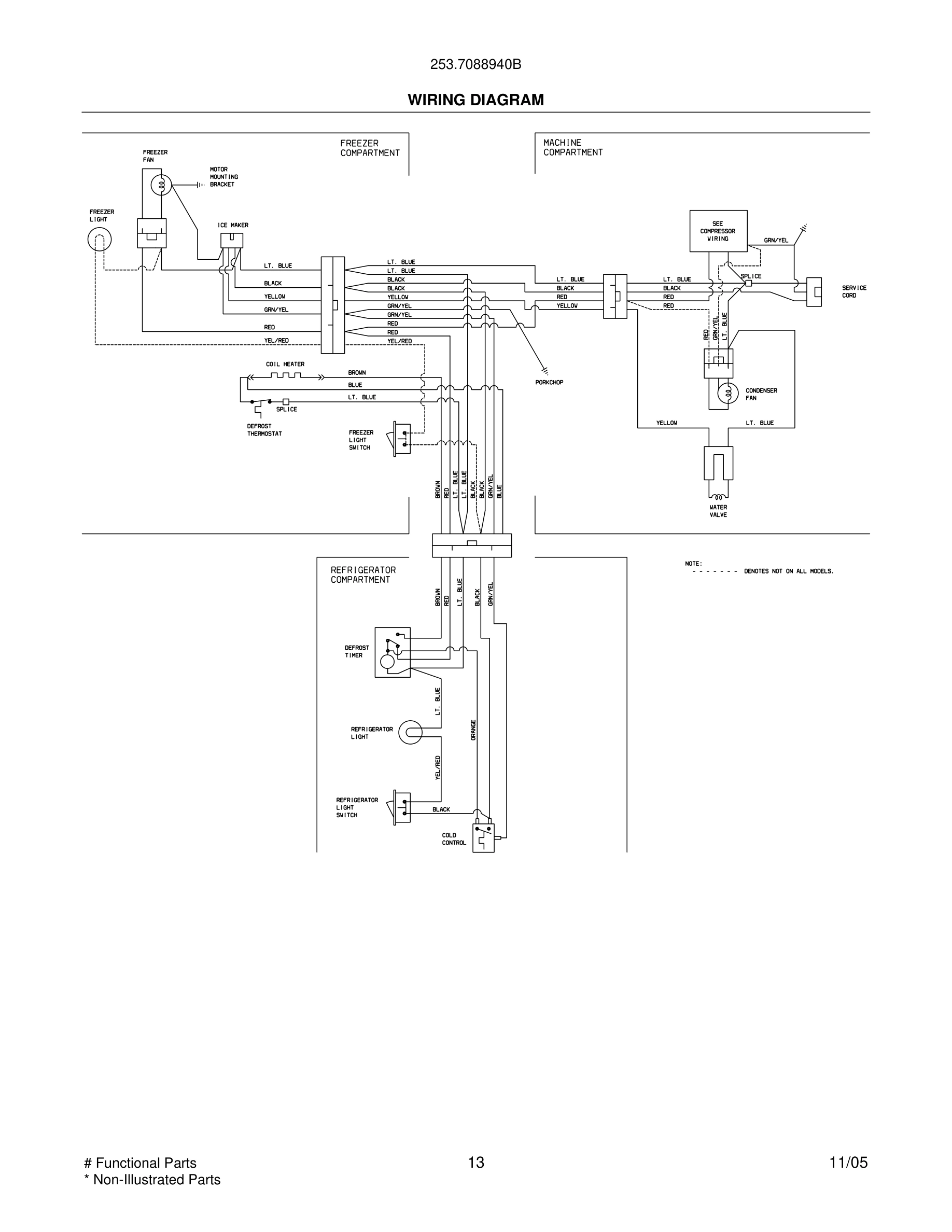

13 - WIRING DIAGRAM
Common parts from model Kenmore 253.7088940B REFRIGERATOR
*
Hot Tube Repair Kit, service WCI 5303918222 Contact Us For Availability
2
Spring, shut-off arm WCI 5304420650 Contact Us For Availability
3
Label, ID plate WCI 3206299 Contact Us For Availability
4
Damper-fan cover WCI 241523701 Contact Us For Availability
5
Plate-mounting WCI 3206303 Contact Us For Availability
6*
Harness-wiring, freezer WCI 241520701 Contact Us For Availability
8
Spacer-hold switch WCI 3206312 Contact Us For Availability
9
Bracket-motor mtg, front WCI 5303292396 Contact Us For Availability
9
Cam WCI 3206313 Contact Us For Availability
10
Clamp WCI 3206315 Contact Us For Availability
12#
Wiring Harness, ICE MAKER, internal, with plu WCI 5304420651 Contact Us For Availability
13
Thermostat Assy, ICE MAKER WCI 3206322 Contact Us For Availability
13A
Door Stop, black, frzr WCI 240312406 Contact Us For Availability
14
Screw, 4 x 0.750, switch mtg. WCI 5304420652 Contact Us For Availability
16
Support, phenolic WCI 5304420653 Contact Us For Availability
18
Handle-door, charcoal gray, refr, w/block & s WCI 218779903 Contact Us For Availability
18
Knob, temp control WCI 240360801 Contact Us For Availability
18
Ejector-ice WCI 3206328 Contact Us For Availability
18A
Handle-door, charcoal gray, frzr, w/nameplate WCI 218779811 Contact Us For Availability
19
Bearing & Inlet WCI 3206330 Contact Us For Availability
20
Screw, 8-32 x 0.375 WCI 5304408581 Contact Us For Availability
21
Ice Stripper WCI 3206332 Contact Us For Availability
22
Shut-off Arm WCI 3206333 Contact Us For Availability
23
Screw, 8-32 x 0.875, mold-to-support, (3) WCI 5304408582 Contact Us For Availability
25
Screw, 8-18 x 0.562, lever arm/sprt WCI 3206336 Contact Us For Availability
26
Pan-crisper, white, (2), no graphics WCI 240337101 Contact Us For Availability
26
Screw-thermo/sprt, 4-24 x 0.375, (4) WCI 5304420654 Contact Us For Availability
27
Screw, 4-40 x 1.000, hold switch mtg, (2) WCI 3206338 Contact Us For Availability
28
Screw-timing stop, 4-40 x 0.375 WCI 3206339 Contact Us For Availability
29
Screw, 4-24 x 0.750, (6) WCI 3206323 Contact Us For Availability
30
Screw-timing adj, 8-32 x 1.000 WCI 3206341 Contact Us For Availability
31
Insulator WCI 3206342 Contact Us For Availability
32
Plate-valve switch WCI 3206343 Contact Us For Availability
33
Spring-timing adj WCI 5304408583 Contact Us For Availability
34
Screw, plazscrew, 8-10, (3) WCI 5304420655 Contact Us For Availability
35
Screw WCI 5304408585 Contact Us For Availability
36
Cover-ice maker WCI 3206347 Contact Us For Availability
37A
Trim-handle, 1.34", gray, lower WCI 218771203 Contact Us For Availability
× ![]()
