Model Kenmore 253.70889401 REFRIGERATOR – Common Parts & Diagrams
01 - COVER
03 - DOOR

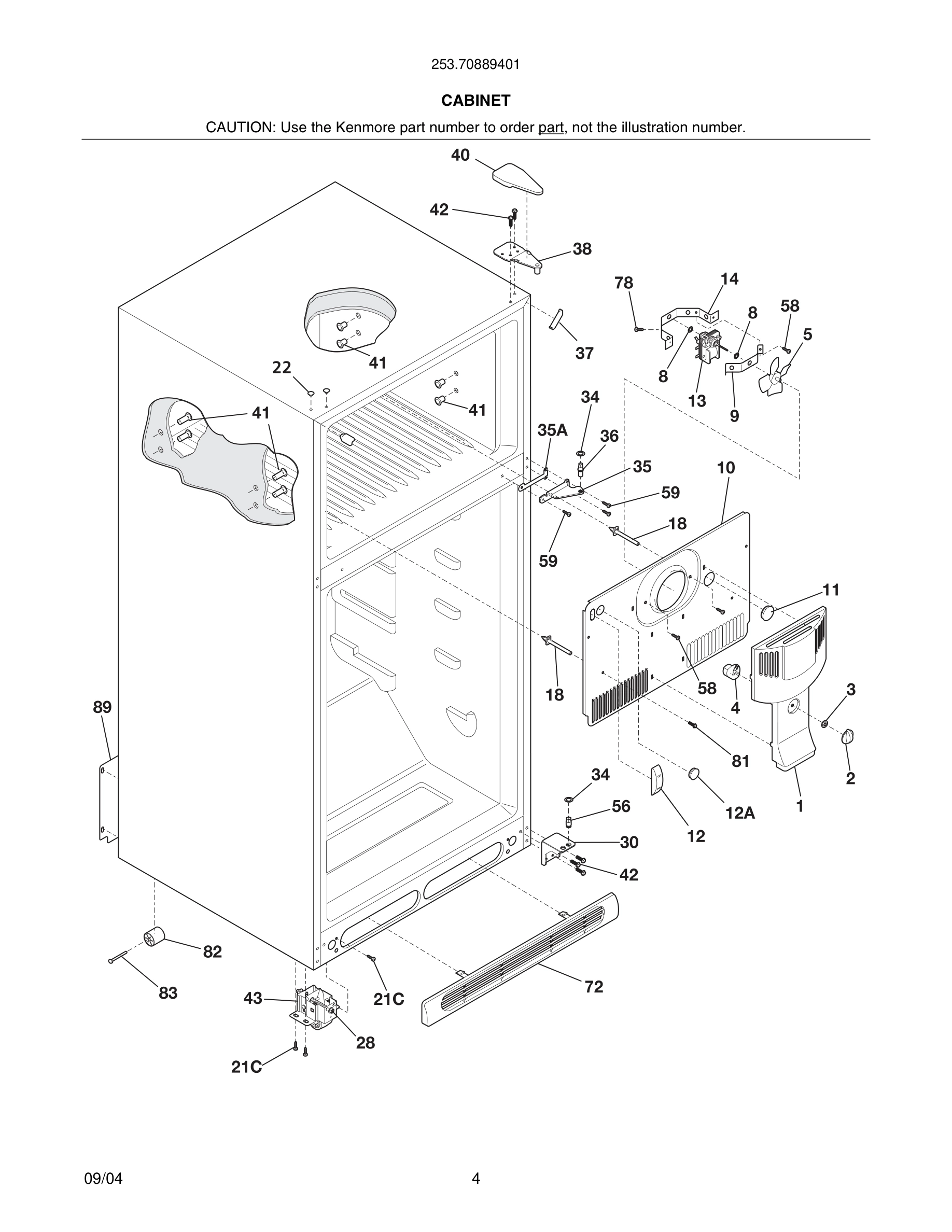

05 - CABINET

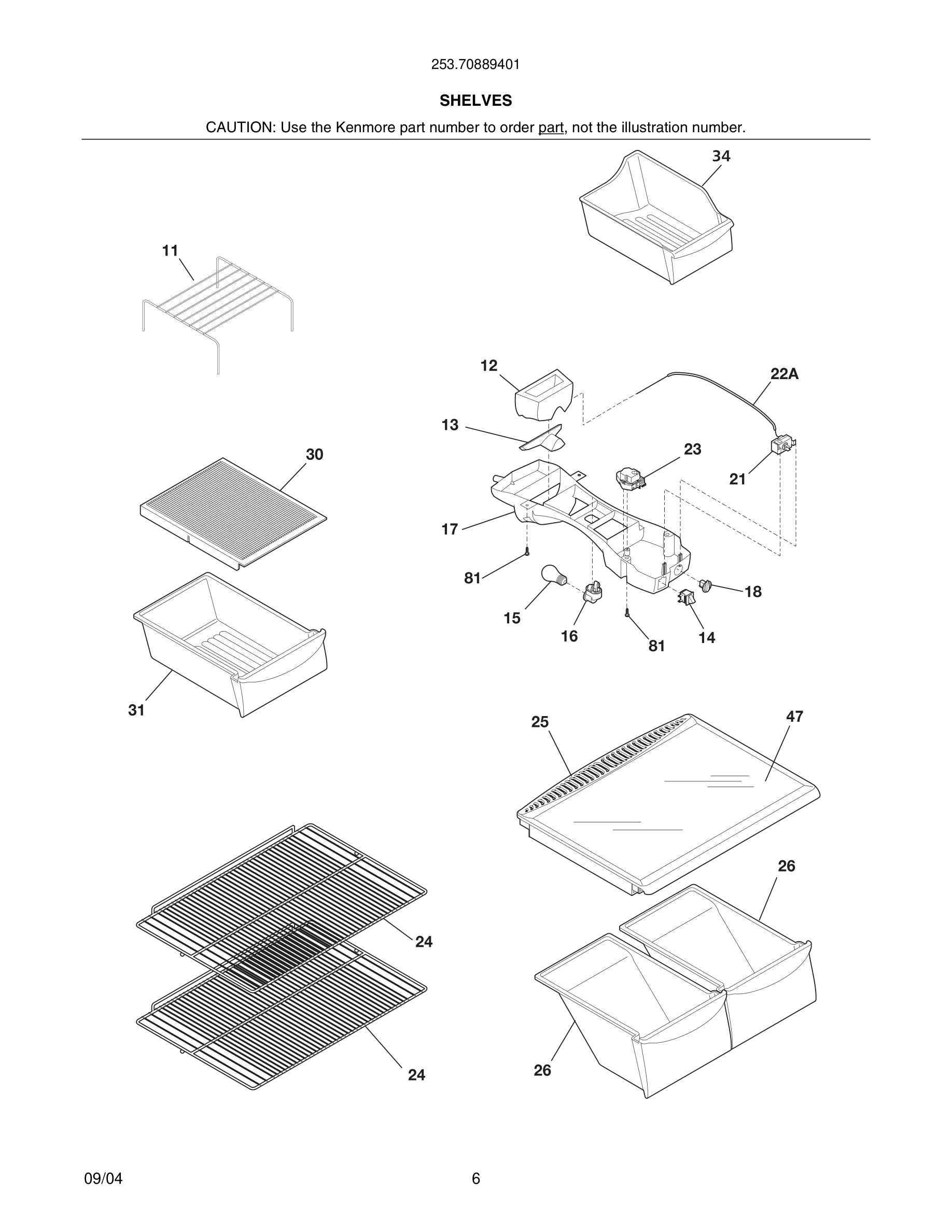

07 - SHELVES

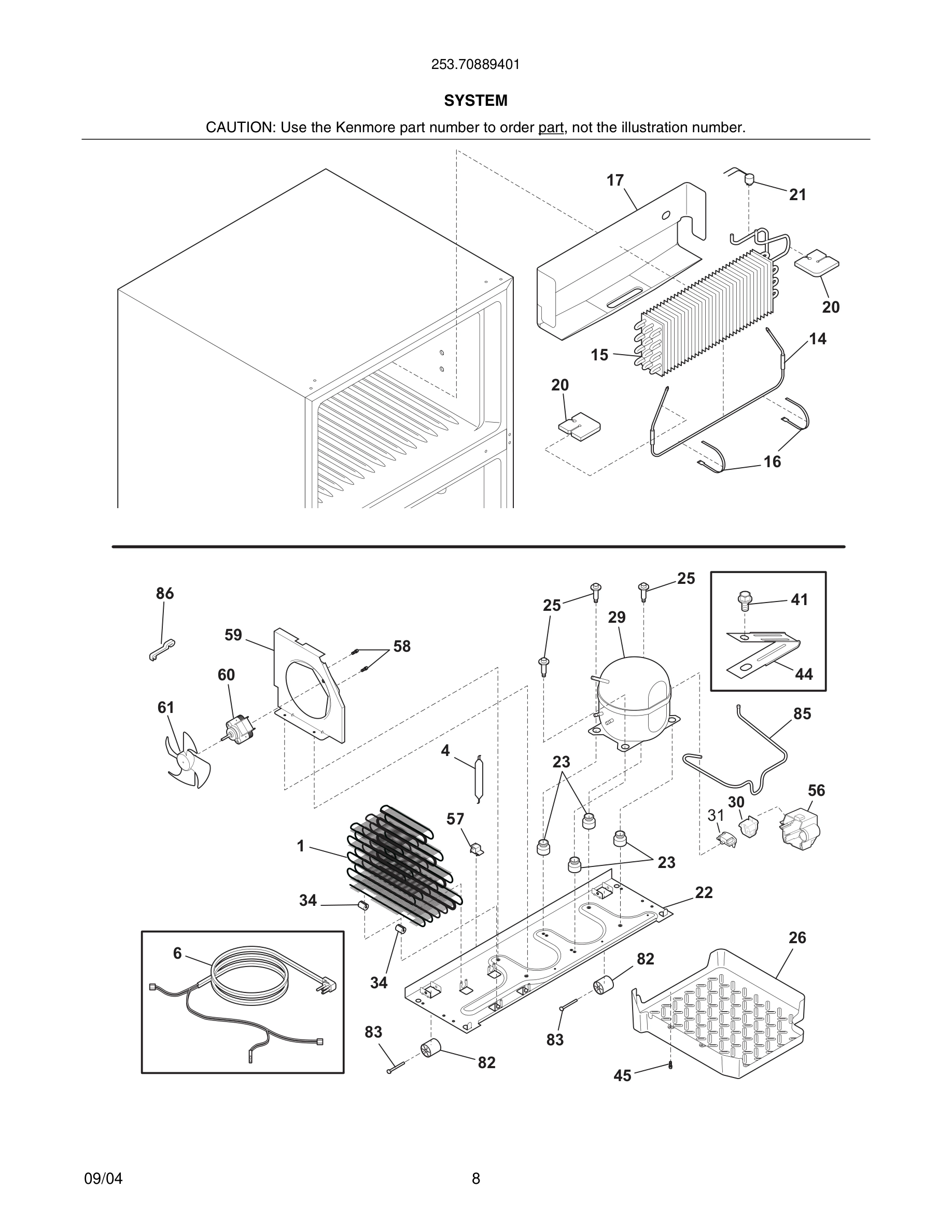

09 - SYSTEM

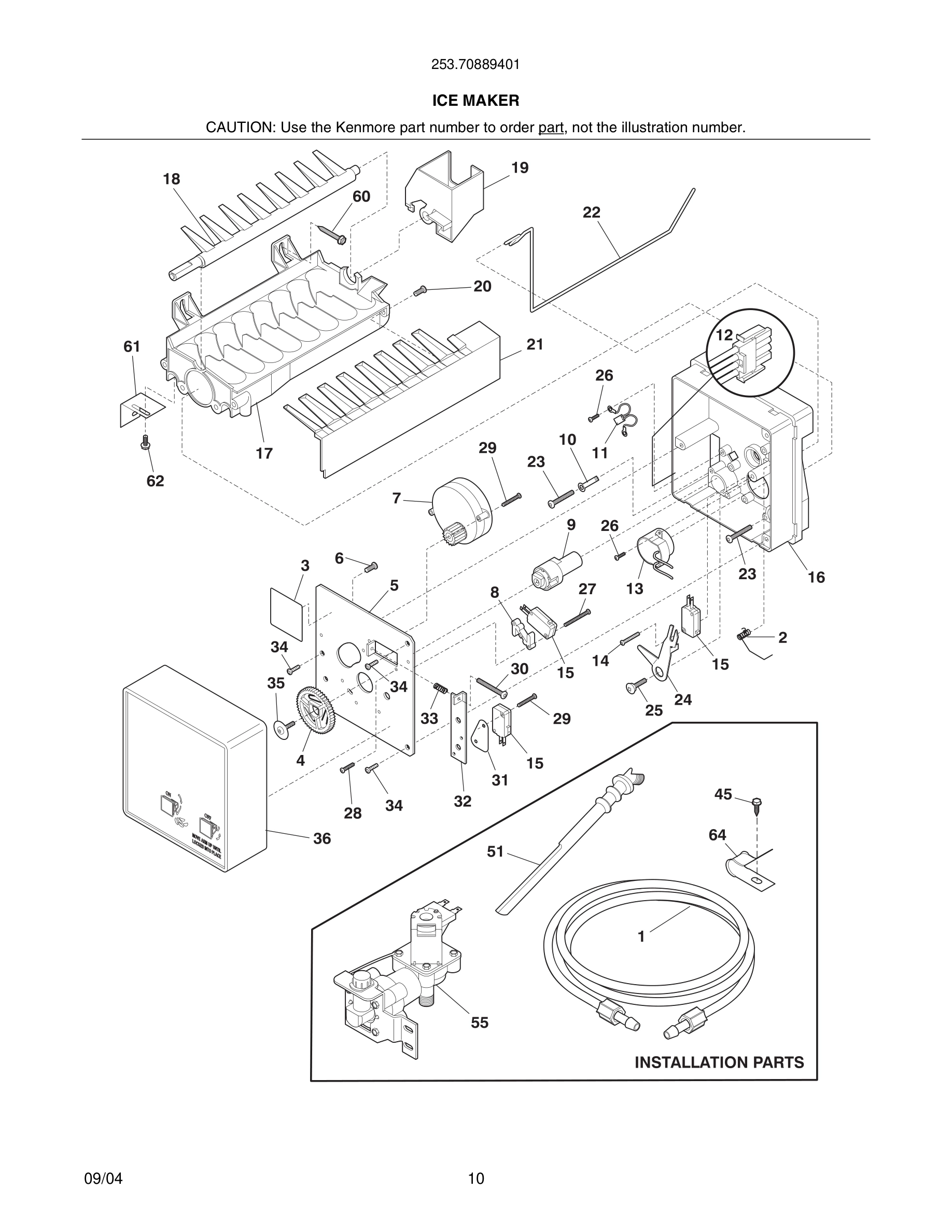

11 - ICE MAKER

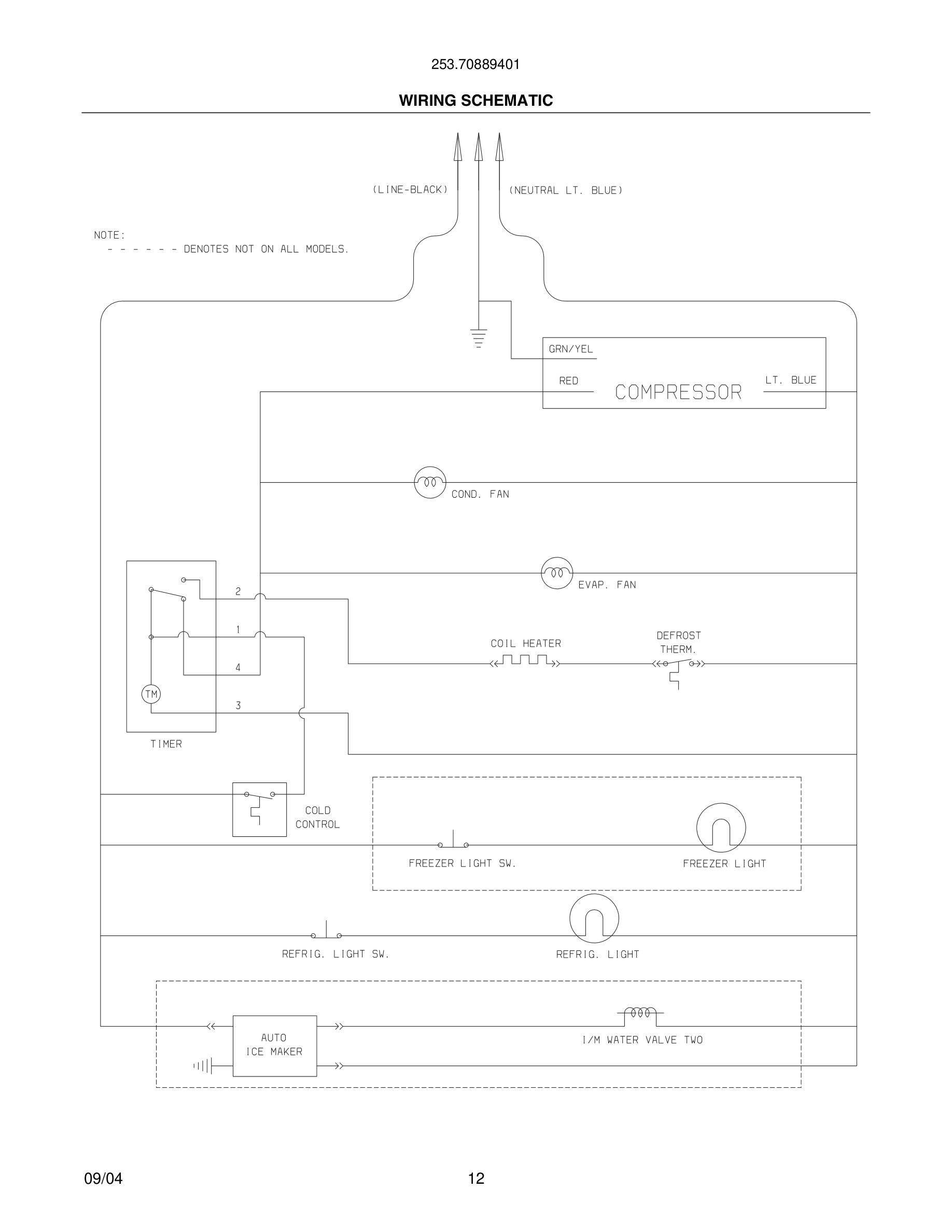

12 - WIRING SCHEMATIC

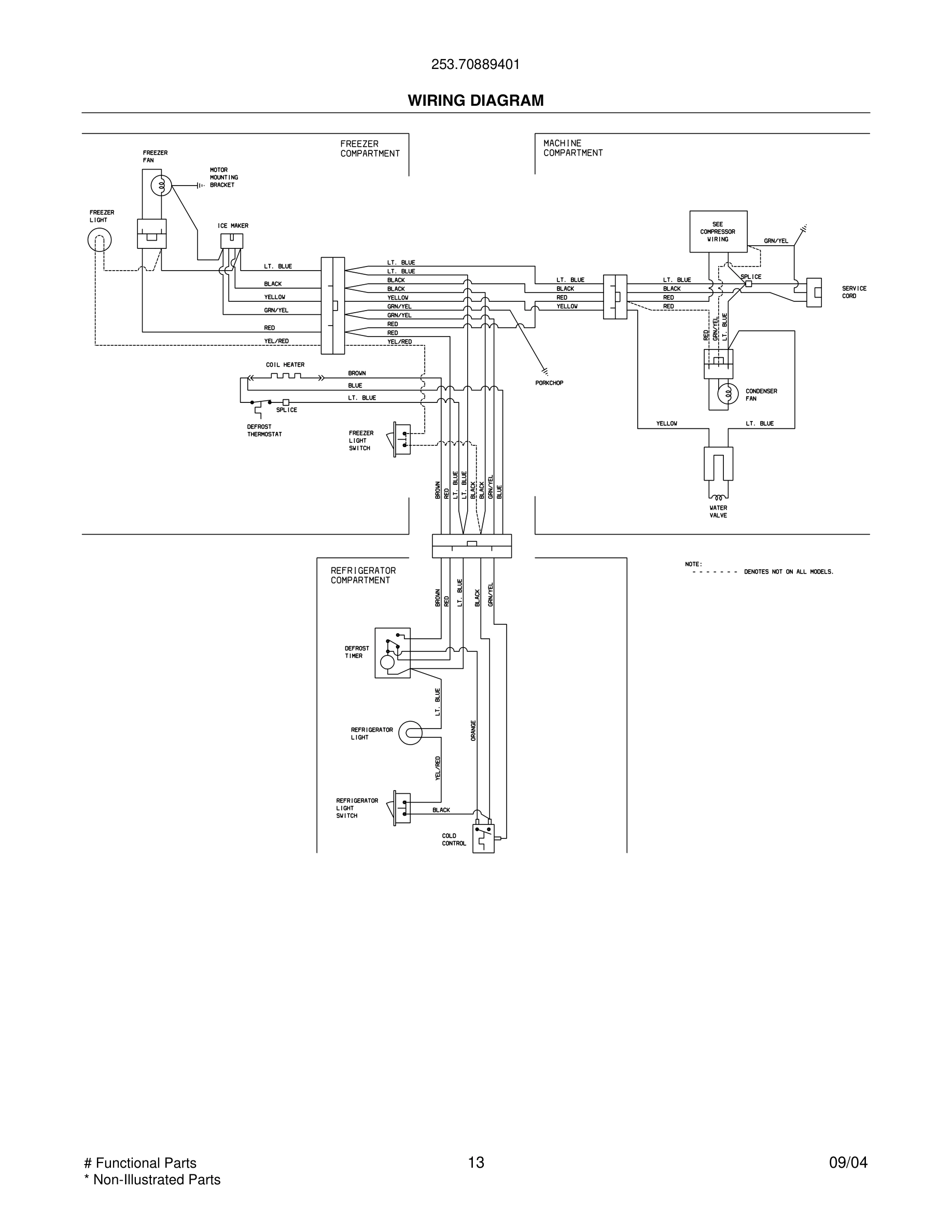

13 - WIRING DIAGRAM
Common parts from model Kenmore 253.70889401 REFRIGERATOR
*
Hot Tube Repair Kit, Service WCI 5303918222 Contact Us For Availability
*
Adapter-water supply, nut & sleeve, compressi WCI 218888001 Contact Us For Availability
1
Tube-water inlet, inlet valve, to ice maker WCI 218976901 Contact Us For Availability
1*
Seal-water inlet, inlet valve, to ice maker WCI 240561701 Contact Us For Availability
2
Knob-damper control WCI 240367001 Contact Us For Availability
4
Rack-door WCI 240534901 Contact Us For Availability
4
Damper-fan cover WCI 240367401 Contact Us For Availability
4B
Rack-door, 4B WCI 240534701 Contact Us For Availability
5
Plate-mounting WCI 3206303 Contact Us For Availability
5#
Fan Blade, red, evaporator fan WCI 5308000010 Contact Us For Availability
6#
Harness-wiring, machine compt WCI 240581701 Contact Us For Availability
7
Door-dairy, w/o graphics, white WCI 240337701 Contact Us For Availability
8
Rack-door WCI 240534801 Contact Us For Availability
8
Spacer-hold switch WCI 3206312 Contact Us For Availability
9
Bracket-motor mtg, front WCI 5303292396 Contact Us For Availability
9
Cam WCI 3206313 Contact Us For Availability
10
Clamp WCI 3206315 Contact Us For Availability
12
Diffuser, air, top WCI 240545001 Contact Us For Availability
12#
Wiring Harness, ICE MAKER, internal, with plu WCI 5304420651 Contact Us For Availability
13
Diffuser, air, bottom WCI 240362601 Contact Us For Availability
13#
Thermostat Assy, ICE MAKER WCI 3206322 Contact Us For Availability
13A
Door Stop, black, frzr WCI 240312406 Contact Us For Availability
14
Plug-button, black WCI 240494003 Contact Us For Availability
14
Screw, 4 x 0.750, switch mtg. WCI 5304420652 Contact Us For Availability
14#
Defrost Heater Kit WCI 5303918208 Contact Us For Availability
15#
Evaporator Kit WCI 5303918274 Contact Us For Availability
16
Strap-evap/heater, aluminum, (2) WCI 5308000110 Contact Us For Availability
16
Support, phenolic WCI 5304420653 Contact Us For Availability
17*#
Wiring Harness, control box WCI 240388701 Contact Us For Availability
18
Handle-door, charcoal gray, refr, w/block & s WCI 218779903 Contact Us For Availability
18
Knob, temp control WCI 240360801 Contact Us For Availability
18
Ejector-ice WCI 3206328 Contact Us For Availability
18A
Handle-door, charcoal gray, frzr, w/nameplate WCI 218779811 Contact Us For Availability
19
Bearing & Inlet WCI 3206330 Contact Us For Availability
20
Screw, 8-32 x 0.375 WCI 5304408581 Contact Us For Availability
21
Ice Stripper WCI 3206332 Contact Us For Availability
21#
Thermostat-defrost, kit WCI 5303918202 Contact Us For Availability
22
Shut-off Arm WCI 3206333 Contact Us For Availability
22A
Tube, sensor sleeve, plastic, clear WCI 5303916855 Contact Us For Availability
23
Screw, 8-32 x 0.875, mold-to-support, (3) WCI 5304408582 Contact Us For Availability
25
Screw, 8-18 x 0.562, lever arm/sprt WCI 3206336 Contact Us For Availability
26
Pan-crisper, white, (2), no graphics WCI 240337101 Contact Us For Availability
26
Screw-thermo/sprt, 4-24 x 0.375, (4) WCI 5304420654 Contact Us For Availability
27
Screw, 4-40 x 1.000, hold switch mtg, (2) WCI 3206338 Contact Us For Availability
28
Screw-timing stop, 4-40 x 0.375 WCI 3206339 Contact Us For Availability
29
Screw, 4-24 x 0.750, (6) WCI 3206323 Contact Us For Availability
30
Screw-timing adj, 8-32 x 1.000 WCI 3206341 Contact Us For Availability
31
Insulator WCI 3206342 Contact Us For Availability
32
Plate-valve switch WCI 3206343 Contact Us For Availability
33
Spring-timing adj WCI 5304408583 Contact Us For Availability
34
Container, ice bin WCI 240385201 Contact Us For Availability
34
Screw, plazscrew, 8-10, (3) WCI 5304420655 Contact Us For Availability
35
Screw WCI 5304408585 Contact Us For Availability
36
Cover-ice maker WCI 3206347 Contact Us For Availability
37A
Trim-handle, 1.34", gray, lower WCI 218771203 Contact Us For Availability
40
Cover-upper hinge, black WCI 240354404 Contact Us For Availability
47
Insert-pan cover, 23.82" x 15.50", glass WCI 240350608 Contact Us For Availability
61
Bracket-leveling, ICE MAKER WCI 218721500 Contact Us For Availability
82
Roller, compressor base, rear, (2) WCI 5304418225 Contact Us For Availability
86
Spacer-cond tube, black WCI 240409302 Contact Us For Availability
× ![]()
