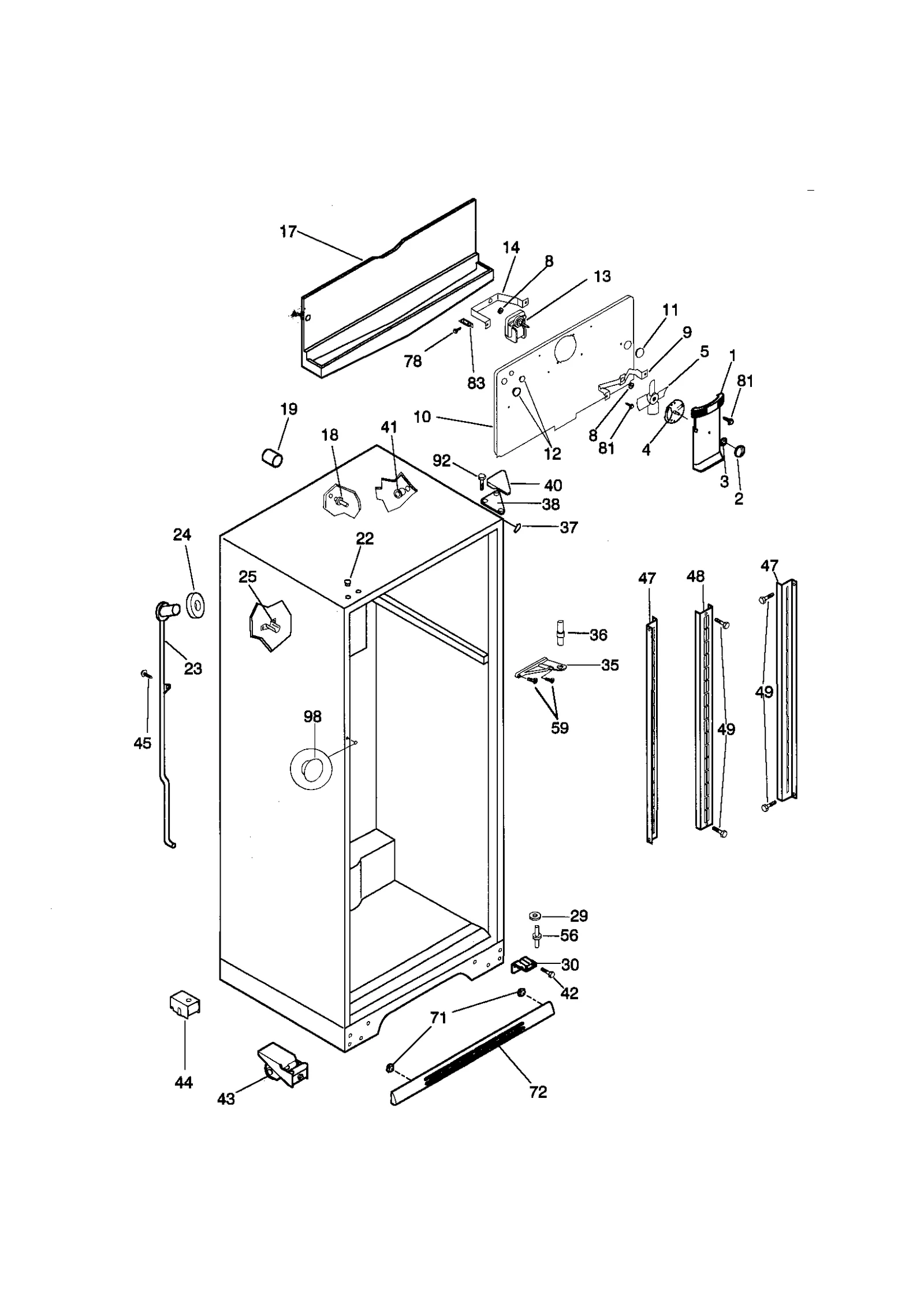

CABINET

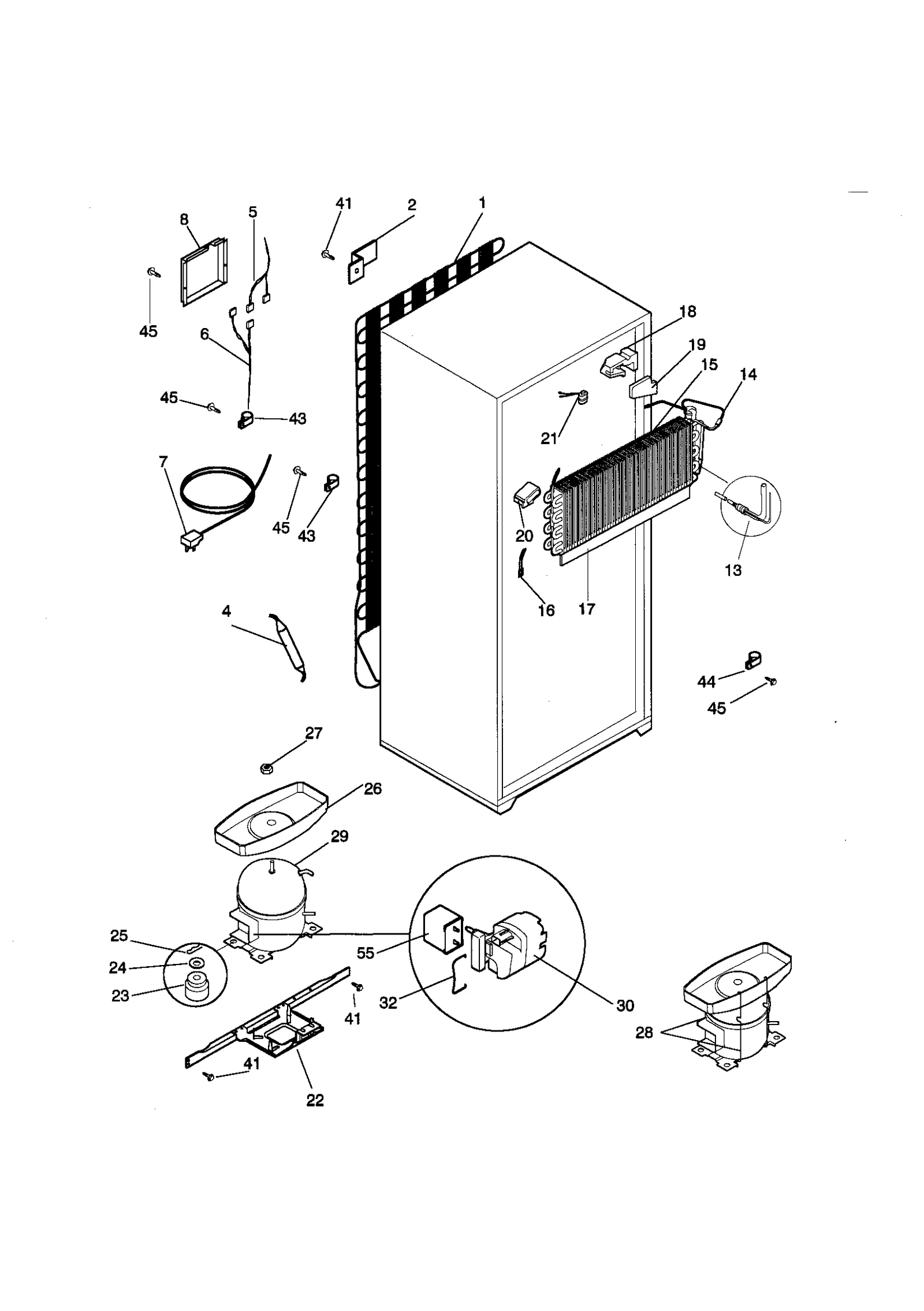

SYSTEM

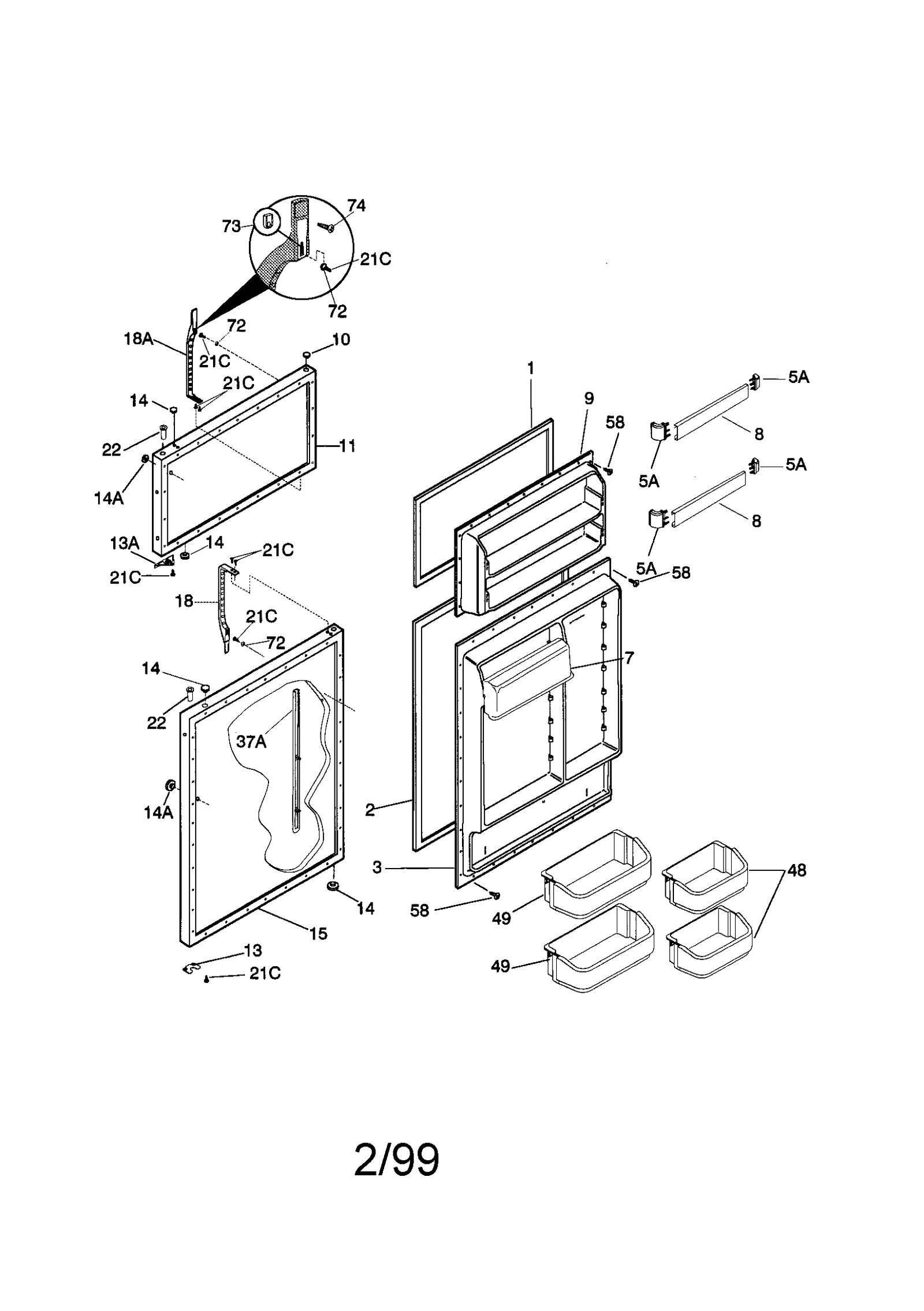

DOOR
Common parts from model Electrolux 253.69837990 Top-Mount Refrigerator (Kenmore 25369837990)
1
Refrigerator Freezer Door Gasket (White) WCI 215608916 Contact Us For Availability
1
Refrigerator Condenser WCI 218173900 Contact Us For Availability
1A
Refrigerator Freezer Gasket WCI 215608906 Contact Us For Availability
2
Refrigerator Bracket WCI 5308000296 Contact Us For Availability
2A
Washer WCI 5308009617 Contact Us For Availability
3
Refrigerator Panel WCI 218360701 Contact Us For Availability
5
Refrigerator Wire Harness WCI 218878500 Contact Us For Availability
6
Refrigerator Wire Harness WCI 215257004 Contact Us For Availability
7
Refrigerator Cord WCI 5316254901 Contact Us For Availability
7
Refrigerator Dairy Door WCI 215058116 Contact Us For Availability
8
Refrigerator Freezer Door Rack WCI 218763630 Contact Us For Availability
8
Refrigerator Divider WCI 218872903 Contact Us For Availability
8
Refrigerator Cover WCI 5303001197 Contact Us For Availability
9
Refrigerator Inner Panel WCI 218360101 Contact Us For Availability
10
Refrigerator Door Hinge Hole Cover (White) WCI 5308000134 Contact Us For Availability
10A
Refrigerator Button (Almond) WCI 5303001308 Contact Us For Availability
11
Wh Fz Dr Pnl WCI 5303917963 Contact Us For Availability
11A
Refrigerator Freezer Door Panel WCI 5303917964 Contact Us For Availability
12
Refrigerator Air Deflector WCI 218730000 Contact Us For Availability
12
Refrigerator Ice Maker Wire Harness Hole Plug WCI 215079000 Contact Us For Availability
12A
Refrigerator Evaporator Cover Water Supply Tu WCI 215079100 Contact Us For Availability
13
Refrigerator Air Damper Cover WCI 218631001 Contact Us For Availability
13
Refrigerator Heat Exchange WCI 218429306 Contact Us For Availability
13
Refrigerator Door Stop WCI 218800300 Contact Us For Availability
13A
Refrigerator Door Stop (White) WCI 218249001 Contact Us For Availability
13AA
Refrigerator Door Stop (Red) WCI 218249002 Contact Us For Availability
14AA
Refrigerator Button Plug WCI 218110902 Contact Us For Availability
14B
Refrigerator Button Plug WCI 218915702 Contact Us For Availability
15
Refrigerator Evaporator WCI 3206452 Contact Us For Availability
15
Refrigerator Drive Panel WCI 5303917965 Contact Us For Availability
15A
Refrigerator Drive Panel WCI 5303917994 Contact Us For Availability
17
Refrigerator Insulator WCI 5303207493 Contact Us For Availability
18
Refrigerator Insulation WCI 5308013648 Contact Us For Availability
18A
Refrigerator Door Handle (White) WCI 218779801 Contact Us For Availability
18AA
Refrigerator Freezer Handle WCI 218779802 Contact Us For Availability
18AB
Refrigerator Door Handle WCI 218778201 Contact Us For Availability
18AC
Refrigerator Door Handle WCI 218778202 Contact Us For Availability
18B
Refrigerator Door Handle (Almond) WCI 218779902 Contact Us For Availability
19
Refrigerator Rocker Switch WCI 5303286905 Contact Us For Availability
19
Refrigerator Plug WCI 5303007287 Contact Us For Availability
20
Refrigerator Block WCI 5308017227 Contact Us For Availability
22
Refrigerator Door Hinge Bushing WCI 218519300 Contact Us For Availability
22
Compressor Plate WCI 218802500 Contact Us For Availability
22A
Refrigerator Button Plug WCI 215774911 Contact Us For Availability
22B
Refrigerator Air Deflector Tube WCI 218731104 Contact Us For Availability
23
Refrigerator Drain Tube WCI 5303269702 Contact Us For Availability
24
Refrigerator Drain Tube Seal WCI 5303207353 Contact Us For Availability
24
Refrigerator Washer WCI 5308003633 Contact Us For Availability
25
Spout Drain WCI 215774100 Contact Us For Availability
25
Refrigerator Compressor Mounting Clip WCI 5308003596 Contact Us For Availability
25B
Refrigerator Electronic Control Board WCI 5303307715 Contact Us For Availability
26
Defrost Drai WCI 215372500 Contact Us For Availability
27
Refrigerator Nut WCI 5303001348 Contact Us For Availability
28
Refrigerator Freezer Shelf End Cap WCI 3201150 Contact Us For Availability
28
Refrigerator Defrost Drain Pan Retainer Kit WCI 5303916001 Contact Us For Availability
29
Washer WCI 5308000007 Contact Us For Availability
29A
Refrigerator Roller Wheel Washer WCI 5308011326 Contact Us For Availability
30
Refrigerator Door Hinge, Lower WCI 5304409595 Contact Us For Availability
30A
Tapping Plate WCI 215882300 Contact Us For Availability
35
Refrigerator Bracket WCI 218220101 Contact Us For Availability
35A
Refrigerator Bracket WCI 218220102 Contact Us For Availability
37
Refrigerator Corner Trim WCI 5303321081 Contact Us For Availability
37A
Refrigerator Door Handle Trim WCI 218771201 Contact Us For Availability
37A
Refrigerator Corner Trim (Almond) WCI 5303321082 Contact Us For Availability
37AA
Lo Trim Hand WCI 218771202 Contact Us For Availability
38
Refrigerator Bracket WCI 3206100 Contact Us For Availability
40
Refrigerator Hinge Cover (White) WCI 3206101 Contact Us For Availability
40A
Refrigerator Door Hinge Cover WCI 3206105 Contact Us For Availability
43
Refrigerator Roller WCI 218724000 Contact Us For Availability
43A
Refrigerator Roller WCI 218703002 Contact Us For Availability
43B
Refrigerator Screw WCI 5308009761 Contact Us For Availability
43C
Refrigerator Spring WCI 5308009790 Contact Us For Availability
44
Refrigerator Roller Assembly WCI 5303283014 Contact Us For Availability
46
Refrigerator Crisper Drawer Front WCI 5303307359 Contact Us For Availability
47
Refrigerator Shelf Mounting Channel WCI 218233300 Contact Us For Availability
48
Refrigerator Shelf Channel WCI 5303292395 Contact Us For Availability
48
Refrigerator Door Bin WCI 215441812 Contact Us For Availability
49
Refrigerator Door Gallon Bin WCI 215441515 Contact Us For Availability
56
Lower Hinge Pin WCI 218220300 Contact Us For Availability
71
Mounting Grille WCI 218896804 Contact Us For Availability
72
Refrigerator Door Handle Mounting Grommet WCI 218397000 No Longer Available
72
Refrigerator Grille WCI 218896601 Contact Us For Availability
72A
Refrigerator Grille WCI 218896602 Contact Us For Availability
83
Refrigerator Bracket WCI 5308000107 Contact Us For Availability
98
Refrigerator Door Hole Plug WCI 215099701 Contact Us For Availability
98A
Refrigerator Plug Button (Red) WCI 215099711 Contact Us For Availability
NI
Refrigerator Door Insulation WCI 5303917276 Contact Us For Availability
NI
Refrigerator Liner Button Hole Plug WCI 5308016571 Contact Us For Availability
× ![]()
