Model Kenmore 253.64152402 REFRIGERATOR – Common Parts & Diagrams
01 - COVER
03 - DOOR

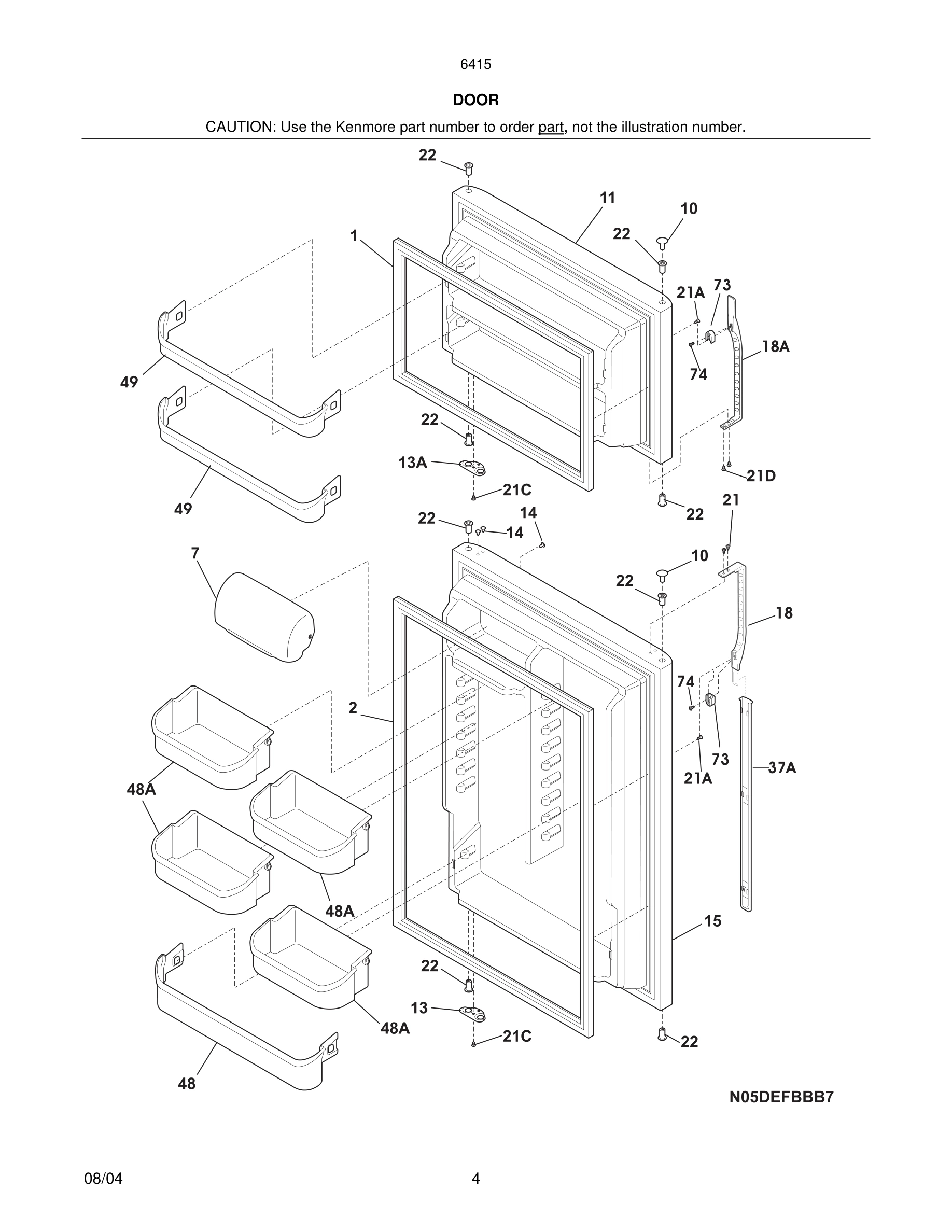

05 - DOOR

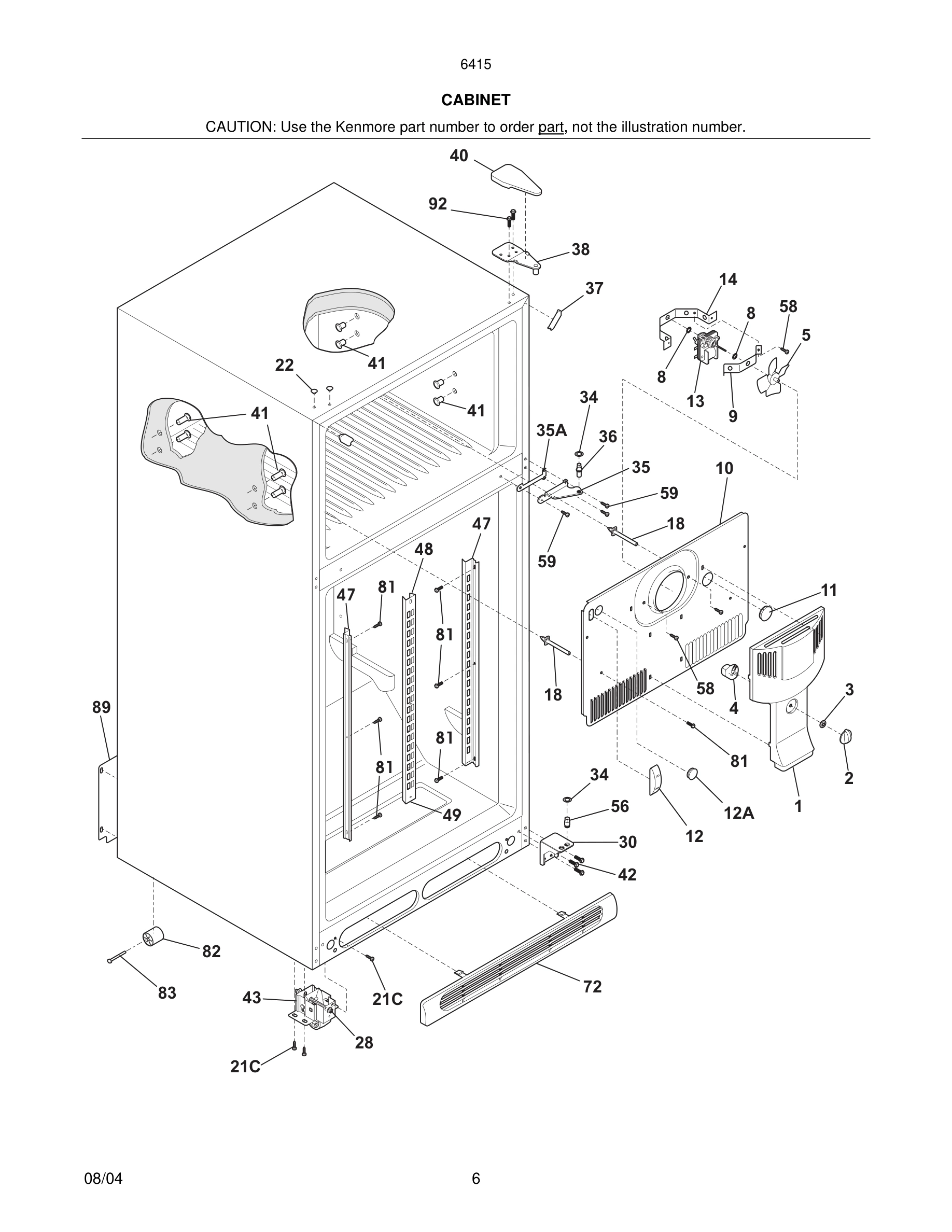

07 - CABINET

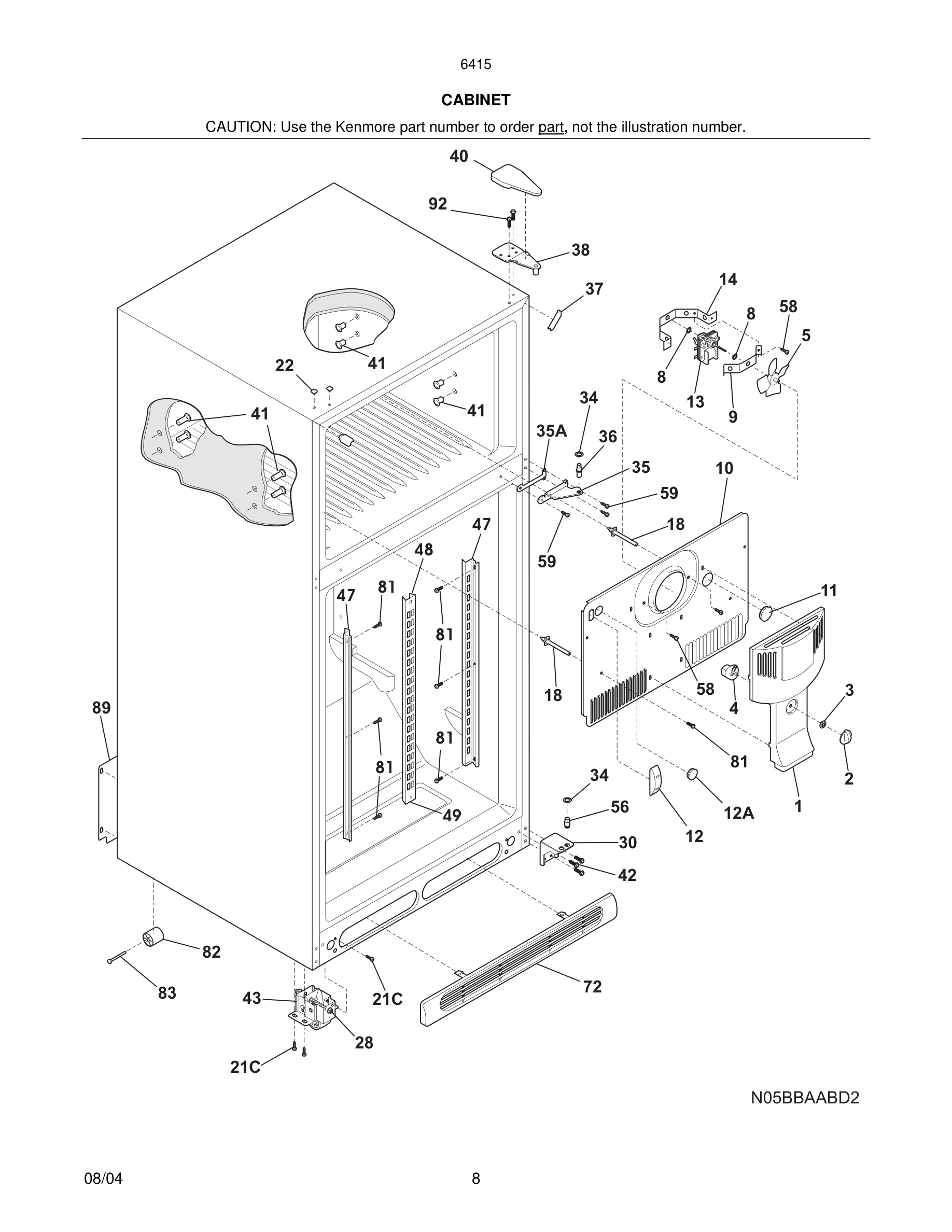

09 - CABINET

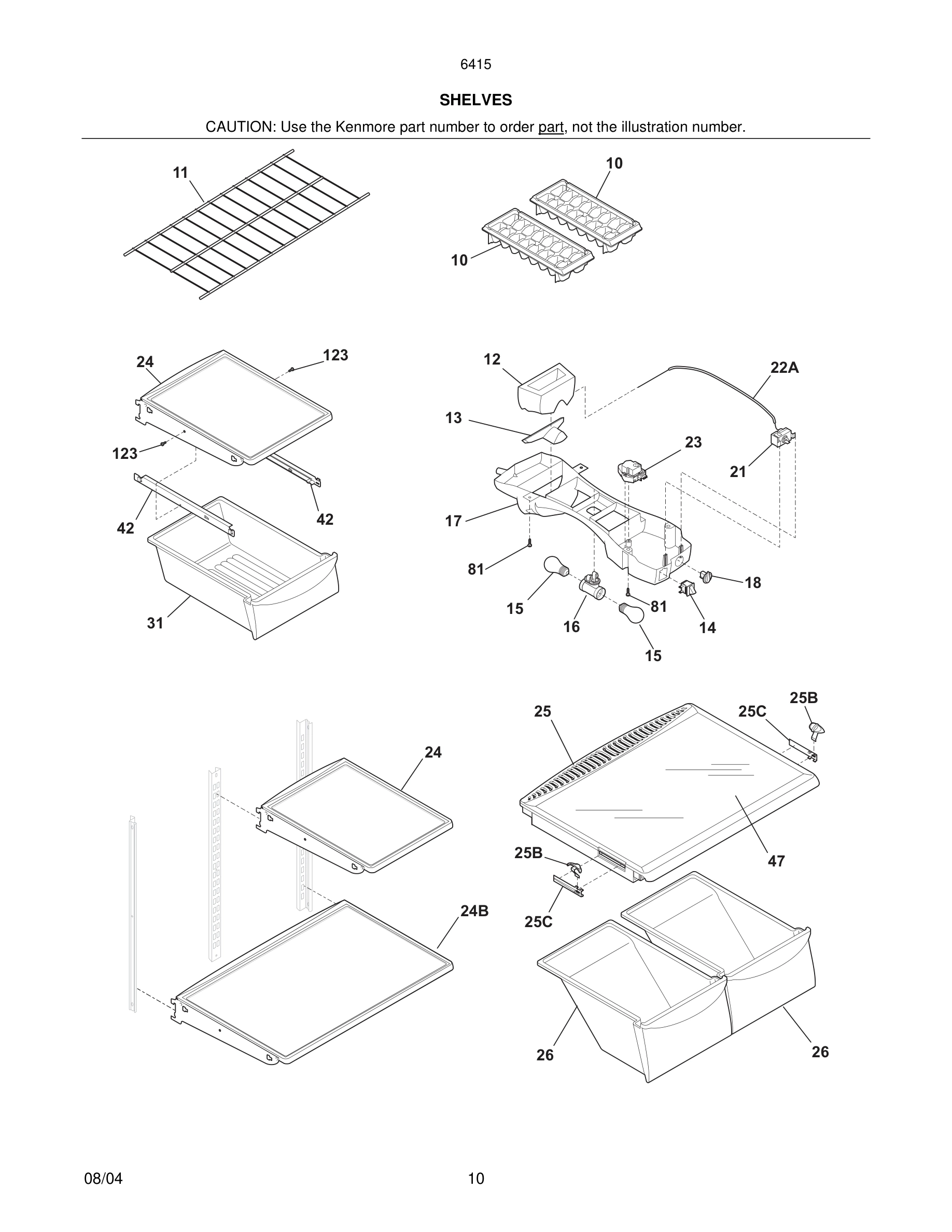

11 - SHELVES

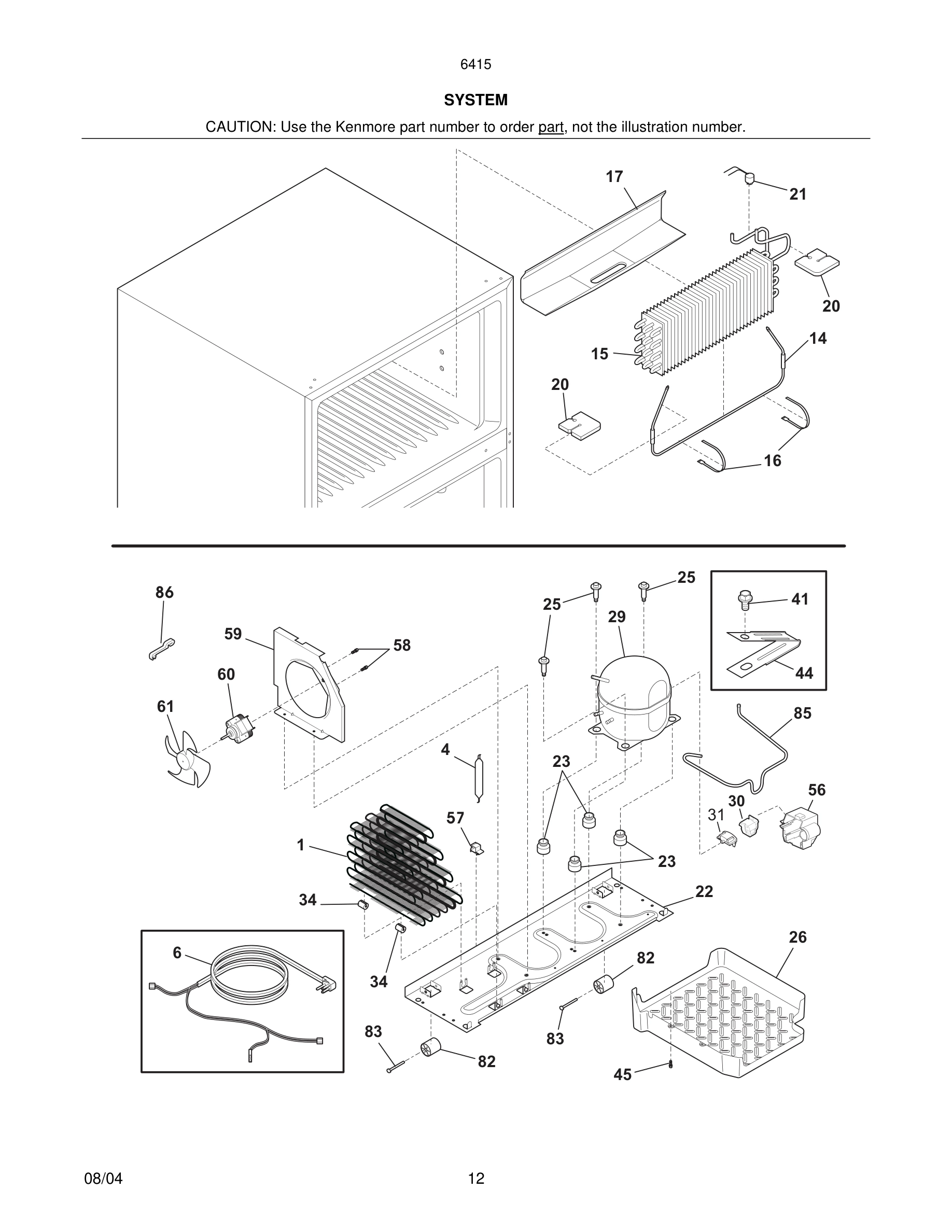

13 - SYSTEM
14 - WIRING SCHEMATIC

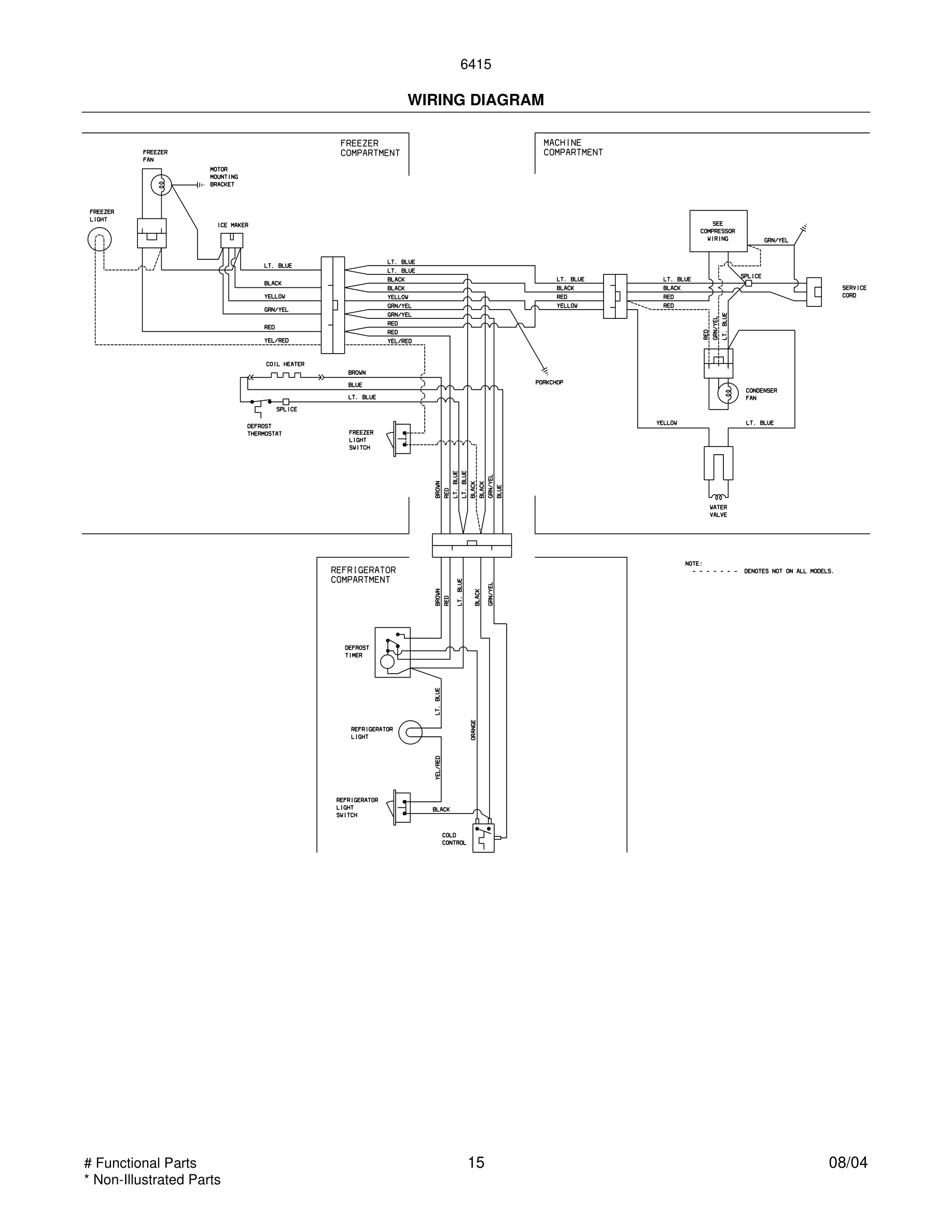

15 - WIRING DIAGRAM
Common parts from model Kenmore 253.64152402 REFRIGERATOR
*#
Hot Tube Repair Kit, Service WCI 5304421289 Contact Us For Availability
2
Knob-damper control WCI 240367001 Contact Us For Availability
3
Nut WCI 5303212803 Contact Us For Availability
4
Damper-fan cover WCI 241523701 Contact Us For Availability
5
Fan Blade, red, evaporator fan WCI 5308000010 Contact Us For Availability
6#
Harness-wiring, machine compt WCI 240581701 Contact Us For Availability
9
Bracket-motor mtg, front WCI 5303292396 Contact Us For Availability
10
Plug-button, white, hinge brg hole, (2) WCI 240381301 Contact Us For Availability
12
Plug-ice maker harness, rectangular WCI 240366801 Contact Us For Availability
12A
Plug-wtr inlet tube, round, 1" WCI 240374401 Contact Us For Availability
13
Diffuser, air, bottom WCI 240362601 Contact Us For Availability
14
Plug-button, white WCI 240494001 Contact Us For Availability
14#
Defrost Heater Kit WCI 5303918247 Contact Us For Availability
15#
Evaporator Kit WCI 5303918274 Contact Us For Availability
16
Strap-evap/heater, aluminum, (2) WCI 5308000110 Contact Us For Availability
17*#
Wiring Harness, control box WCI 240388701 Contact Us For Availability
18
Handle-door, white, refr, w/block & screw WCI 218779901 Contact Us For Availability
18
Knob, temp control WCI 240360801 Contact Us For Availability
18A
Handle-door, white, frzr, w/nameplate, block WCI 218779812 Contact Us For Availability
21#
Thermostat-defrost, kit WCI 5303918202 Contact Us For Availability
22A
Tube, sensor sleeve, plastic, clear WCI 5303916855 Contact Us For Availability
25
Screw-compressor mtg, 1/4-28 x 1.16, shoulder WCI 240491501 Contact Us For Availability
26
Pan, crisper, (2) WCI 240343803 Contact Us For Availability
29#
Compressor, w/electricals WCI 5303918297 Contact Us For Availability
37A
Trim-handle, 28.18", white, lower, w/mtg lock WCI 218779310 Contact Us For Availability
37A*
Lock-handle trim, stick-on WCI 218776501 Contact Us For Availability
37A*
Plug-button, white, refr door front, 1, lower WCI 218074001 Contact Us For Availability
40
Cover-upper hinge, white WCI 240354401 Contact Us For Availability
42
Track, meat pan hanger, RH WCI 240356501 Contact Us For Availability
42
Track, meat pan hanger, LH WCI 240365401 Contact Us For Availability
48
Bin-door, pseudo, bottom WCI 240338101 Contact Us For Availability
48
Channel-shelf mtg, center WCI 5303292395 Contact Us For Availability
49
Bin-door, pseudo, frzr WCI 240495804 Contact Us For Availability
56
Cover-terminal WCI 240582001 Contact Us For Availability
57
Clip-wiring harness WCI 240542601 Contact Us For Availability
59
Bracket-cond motor assy WCI 5304430246 Contact Us For Availability
82
Roller, compressor base, rear, (2) WCI 5304418225 Contact Us For Availability
85
Tube-connector, suction WCI 240493101 Contact Us For Availability
86
Spacer-cond tube, black WCI 240409302 Contact Us For Availability
× ![]()
