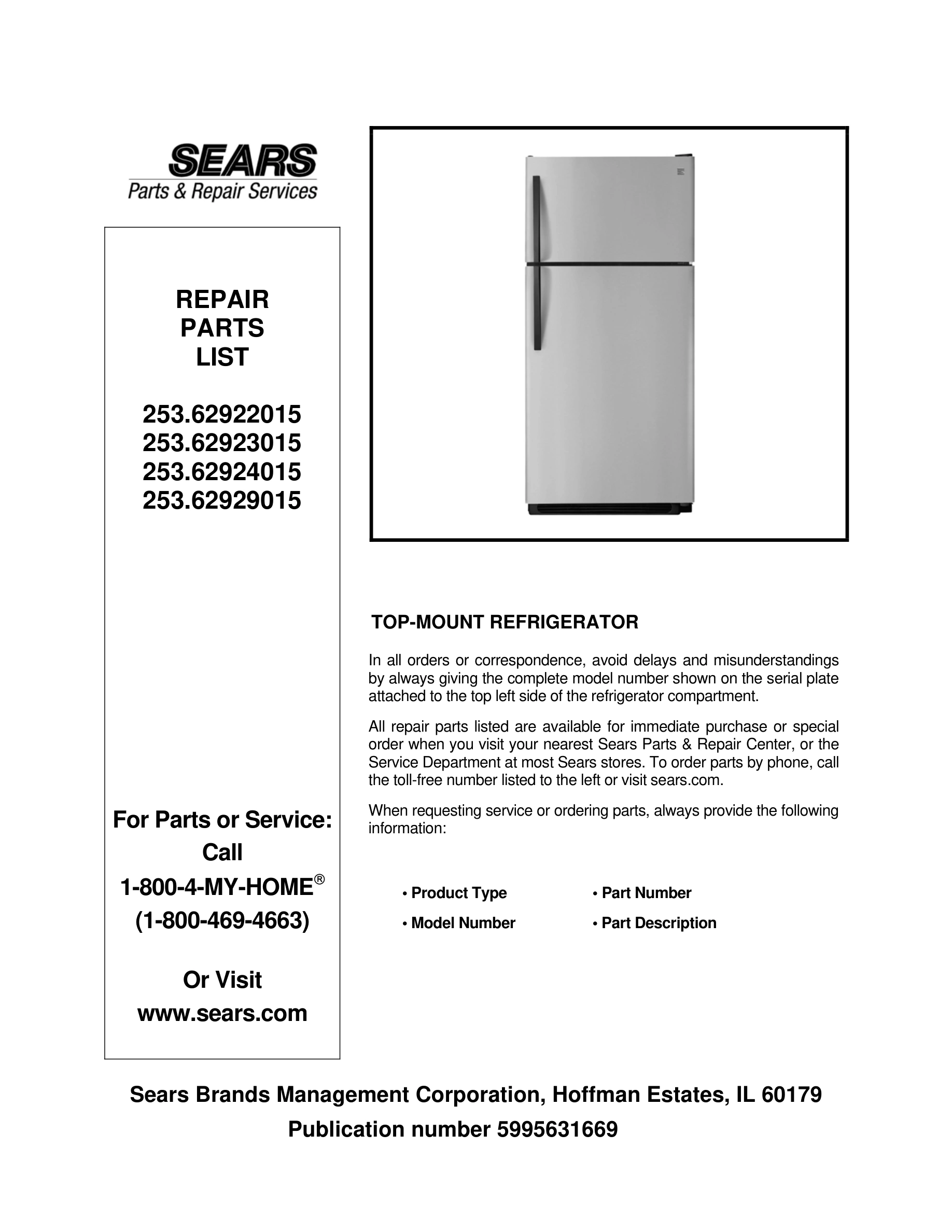

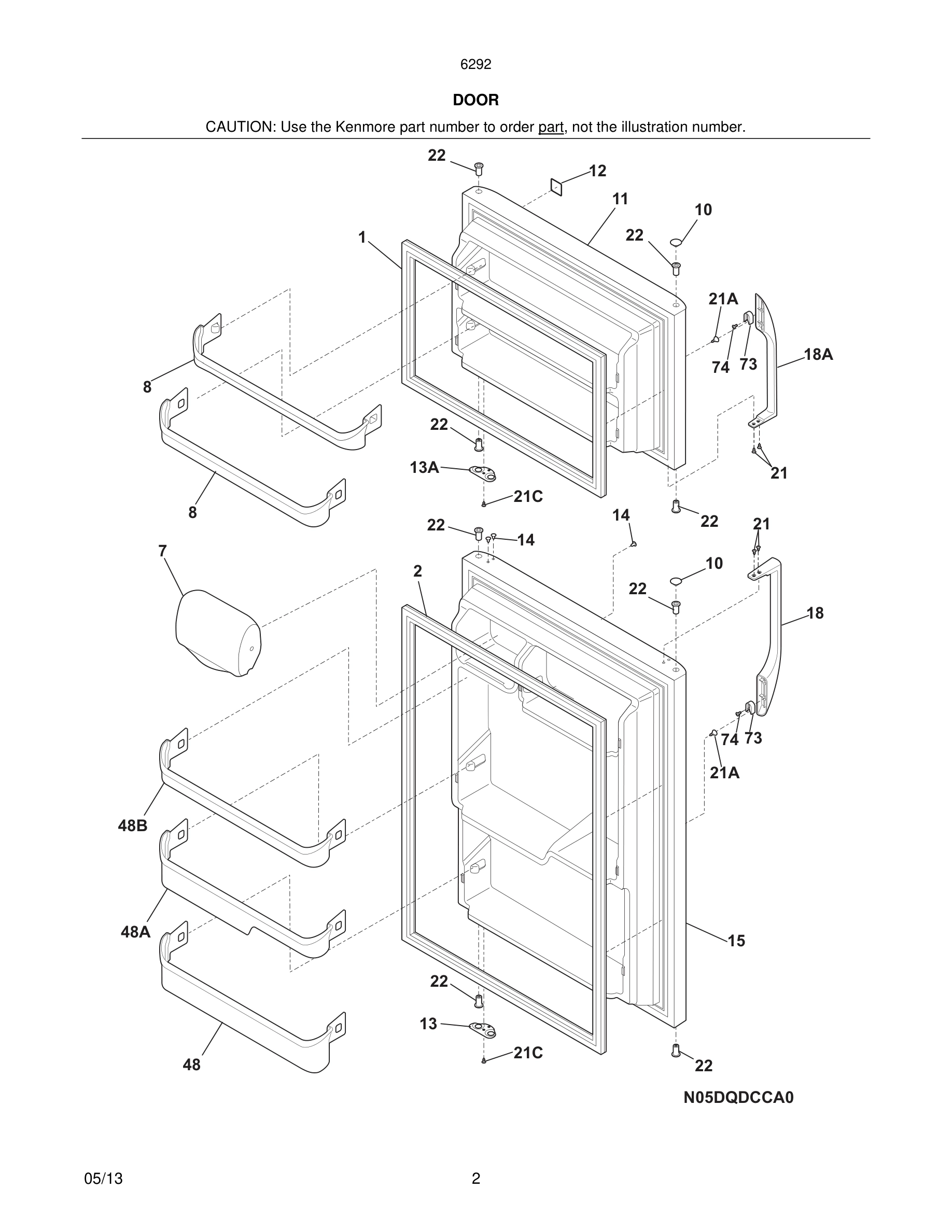

Model Kenmore 253.62922015 REFRIGERATOR – Common Parts &amp; Diagrams

*

5303321319 Frigidaire Refrigerator White Touc In Stock WCI 5303321319 $9.23

*

5303321321 Frigidaire Refrigerator Black Touc In Stock WCI 5303321321 $13.61

*

5304414035 Frigidaire Refrigerator Touch Up P Backorder WCI 5304414035 $9.00

*

Hot Tube Repair Kit, service WCI 5303918222 Contact Us For Availability

*#

5303918263 Frigidaire Refrigerator Primary He In Stock WCI 5303918263 $316.98

1

241872507 Frigidaire Refrigerator Door Gasket In Stock WCI 241872507 $97.13

1#

241785404 Frigidaire Refrigerator Condenser Backorder WCI 241785404 $104.20

1#

242193201 Frigidaire Refrigerator Door Gasket In Stock WCI 242193201 $113.46

2

240367001 Frigidaire Refrigerator Air Damper In Stock WCI 240367001 $34.41

2

241872510 Frigidaire Refrigerator Door Gasket In Stock WCI 241872510 $118.42

2#

242193204 Frigidaire Refrigerator Door Gasket In Stock WCI 242193204 $102.99

4

Damper-fan cover WCI 241523701 Contact Us For Availability

5#

5308000010 Frigidaire Refrigerator Evaporator In Stock WCI 5308000010 $31.93

6#

5304521786 Frigidaire Refrigerator Wiring Har Backorder WCI 5304521786 $74.84

6*#

240388701 Frigidaire Refrigerator Wiring Harn Backorder WCI 240388701 $50.64

7

240337712 Frigidaire Refrigerator Dairy Door In Stock WCI 240337712 $27.18

8

240438003 Frigidaire Refrigerator Bracket and Backorder WCI 240438003 $10.41

8

240535001 Frigidaire Refrigerator Shelf Bar D In Stock WCI 240535001 $30.79

9

Bracket-motor mtg, front WCI 5303292396 Contact Us For Availability

240381301 Frigidaire Refrigerator Button Plug In Stock WCI 240381301 $11.32

240381303 Frigidaire Hinge Plug Backorder WCI 240381303 $41.22

240381307 Frigidaire Refrigerator Gray Hinge In Stock WCI 240381307 $9.95

Cover-evap coil WCI 241652215 Contact Us For Availability

Plug-button, bisque, hinge brg hole, (2) WCI 240381302 Contact Us For Availability

11

5303208309 Frigidaire Refrigerator Plug Hole Backorder WCI 5303208309 $27.18

11

Door, frzr, stainless WCI 240415405 Contact Us For Availability

241542001 Frigidaire Refrigerator Deflector In Stock WCI 241542001 $47.07

242052401 Frigidaire Refrigerator Nameplate L Backorder WCI 242052401 $2.26

242193602 Frigidaire Refrigerator Plug Hole Backorder WCI 242193602 $8.62

Nameplate, black, Kenmore WCI 242052402 Contact Us For Availability

12A

Plug-wtr inlet tube, round, 1" WCI 240374401 Contact Us For Availability

12A*

241586701 Frigidaire Refrigerator Plug In Stock WCI 241586701 $11.32

240312421 Frigidaire Refrigerator Door Stop In Stock WCI 240312421 $9.06

240312422 Frigidaire Refrigerator Door Stop In Stock WCI 240312422 $9.06

240312423 Frigidaire Refrigerator Door Stop Backorder WCI 240312423 $7.25

240362601 Frigidaire Refrigerator P1 Diffuser Backorder WCI 240362601 $26.72

13#

241854301 Frigidaire Refrigerator Evaporator In Stock WCI 241854301 $113.94

13*

215474201 Frigidaire Refrigerator Washer Backorder WCI 215474201 $11.78

13*

218515401 Frigidaire Refrigerator Clip In Stock WCI 218515401 $11.32

13A

240312414 Frigidaire Refrigerator Door Stop Backorder WCI 240312414 $12.20

13A

240312415 Frigidaire Refrigerator Door Stop In Stock WCI 240312415 $13.59

13A

Door Stop, bisque, frzr WCI 240312416 Contact Us For Availability

240494001 Frigidaire Refrigerator Plug Button In Stock WCI 240494001 $10.85

240494002 Frigidaire Refrigerator Button Plug Backorder WCI 240494002 $26.26

240494003 Frigidaire Refrigerator Button Plug In Stock WCI 240494003 $10.85

Plug-button, silver mist WCI 240494006 No Longer Available

242044007 Frigidaire Refrigerator Defrost Hea In Stock WCI 242044007 $28.31

14#

241554901 Frigidaire Refrigerator Light/Lamp In Stock WCI 241554901 $44.82

15

Door-refr, stainless WCI 240420205 Contact Us For Availability

15

Door, refr, white WCI 240420201 Contact Us For Availability

15

Door-refr, black, complete assy WCI 240420204 Contact Us For Availability

15#

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $10.61

16

5308000110 Frigidaire Refrigerator Evaporator In Stock WCI 5308000110 $39.44

16#

241559801 Frigidaire Light Socket Refrigerato In Stock WCI 241559801 $45.94

17

241801302 Frigidaire Refrigerator Drain Troug Backorder WCI 241801302 $49.29

Knob, temp control WCI 240360801 No Longer Available

242110509 Frigidaire Refrigerator White Door In Stock WCI 242110509 $47.97

242110510 Frigidaire Refrigerator Door Handle In Stock WCI 242110510 $22.65

242110511 Frigidaire Refrigerator Door Handle In Stock WCI 242110511 $47.04

18A

242110512 Frigidaire Refrigerator Door Handle In Stock WCI 242110512 $50.64

18A

242110514 Frigidaire Refrigerator Door Handle In Stock WCI 242110514 $40.38

18A

Handle-door, bisque, refr-LH/frzr-RH WCI 242110513 Contact Us For Availability

20

241551902 Frigidaire Refrigerator Insulation Backorder WCI 241551902 $7.23

21

5304515677 Frigidaire Package of 4 Screws In Stock WCI 5304515677 $5.40

21#

241537103 Frigidaire Refrigerator Temperature In Stock WCI 241537103 $38.99

21#

5303918634 Frigidaire Kit Thermostat In Stock WCI 5303918634 $19.69

21A

240521303 Frigidaire Refrigerator Screw In Stock WCI 240521303 $9.04

215774901 Frigidaire Refrigerator Button Plug In Stock WCI 215774901 $10.87

215774918 Frigidaire Refrigerator Button Plug In Stock WCI 215774918 $5.88

5304507146 Frigidaire Refrigerator Hinge Bear In Stock WCI 5304507146 $4.51

5304507147 Frigidaire Refrigerator Hinge Bear In Stock WCI 5304507147 $4.51

22*

218252201 Frigidaire Refrigerator Screw In Stock WCI 218252201 $9.04

22A

240468202 Frigidaire Refrigerator Tube Backorder WCI 240468202 $5.42

23

218513300 Frigidaire Refrigerator Compressor In Stock WCI 218513300 $27.16

24

241812301 Frigidaire Refrigerator Compressor Backorder WCI 241812301 $7.71

24

Frame, sliding shelf, full width WCI 240372401 Contact Us For Availability

25

242037701 Frigidaire Refrigerator Compressor Backorder WCI 242037701 $1.78

25

242120501 Frigidaire Refrigerator Crisper Pan In Stock WCI 242120501 $87.84

26

240364503 Frigidaire Refrigerator Clear Crisp In Stock WCI 240364503 $97.37

26

241920605 Frigidaire Refrigerator Defrost Pan In Stock WCI 241920605 $32.71

29

240357703 Frigidaire Refrigerator Front Trim In Stock WCI 240357703 $40.34

30

Controller, compressor WCI 297259503 Contact Us For Availability

30

Bracket-lower hinge WCI 240357106 Contact Us For Availability

34

240311303 Frigidaire Refrigerator Nylon Hinge In Stock WCI 240311303 $6.82

34

240405201 Frigidaire Refrigerator Grommet Backorder WCI 240405201 $12.67

35

Bracket-ctr hinge WCI 240357006 Contact Us For Availability

35

Bracket, center hinge, black WCI 240357003 Contact Us For Availability

35A

240336802 Frigidaire Refrigerator Hinge Space In Stock WCI 240336802 $11.76

35A

240336803 Frigidaire Refrigerator Hinge Space In Stock WCI 240336803 $7.25

37

242161201 Frigidaire Refrigerator Cabinet Cor In Stock WCI 242161201 $1.89

37

242161202 Frigidaire Refrigerator Trim-Cabine In Stock WCI 242161202 $4.97

37

242161203 Frigidaire Refrigerator Corner Cabi In Stock WCI 242161203 $4.53

38

Bracket-upper hinge WCI 240356903 Contact Us For Availability

240350619 Frigidaire Glass Shelf Backorder WCI 240350619 $90.69

240354401 Frigidaire Upper Hinge Cover Backorder WCI 240354401 $37.05

240354404 Frigidaire Refrigerator Upper Hinge In Stock WCI 240354404 $37.05

Cover-upper hinge, bisque WCI 240354403 Contact Us For Availability

41

240561501 Frigidaire Refrigerator Shelf Trim In Stock WCI 240561501 $28.53

41

5304500407 Frigidaire Refrigerator Shelf Moun In Stock WCI 5304500407 $4.07

42

240578902 Frigidaire Screw Mounting Hinge In Stock WCI 240578902 $9.04

43

241889002 Frigidaire Refrigerator Roller Asse In Stock WCI 241889002 $39.88

43*

241889001 Frigidaire Refrigerator Roller Asse In Stock WCI 241889001 $38.11

48

240535101 Frigidaire Refrigerator Door Rack In Stock WCI 240535101 $17.58

48A

240383901 Frigidaire Refrigerator 2-Liter Doo In Stock WCI 240383901 $31.71

48B

240383801 Frigidaire Gallon Door Bin In Stock WCI 240383801 $33.98

55#

297286803 Frigidaire Refrigerator Run Capacit In Stock WCI 297286803 $24.91

56

240516502 Frigidaire Refrigerator Lower Hinge In Stock WCI 240516502 $43.03

59

240442707 Frigidaire Refrigerator Screw #10-3 In Stock WCI 240442707 $1.79

59

240442708 Frigidaire Refrigerator Screw - #10 In Stock WCI 240442708 $4.97

59*

240346701 Frigidaire Refrigerator Foam Seal T In Stock WCI 240346701 $19.01

59*

240359403 Frigidaire Refrigerator Fan Shroud Backorder WCI 240359403 $2.26

60#

242018404 Frigidaire Refrigerator Condenser F In Stock WCI 242018404 $113.07

61

240524102 Frigidaire Refrigerator Condenser F In Stock WCI 240524102 $15.86

72

240368301 Frigidaire Refrigerator Kickplate G In Stock WCI 240368301 $43.91

72

240368303 Frigidaire Refrigerator Kick Plate Backorder WCI 240368303 $54.68

73

242116001 Frigidaire Refrigerator Handle Moun In Stock WCI 242116001 $9.50

74

Screw, cr pan hd, 10-16 WCI 215503204 Contact Us For Availability

81

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $9.06

82

5304418225 Frigidaire Refrigerator Roller P-1 In Stock WCI 5304418225 $30.80

83

5304455655 Frigidaire Refrigerator Rivet Backorder WCI 5304455655 $23.04

84

240500801 Frigidaire Refrigerator Drain Tube Backorder WCI 240500801 $41.24

89

241733906 Frigidaire Refrigerator Access Cove Backorder WCI 241733906 $32.71

89*

241500305 Frigidaire Refrigerator Screw In Stock WCI 241500305 $1.83

92

241710601 Frigidaire Refrigerator Screw In Stock WCI 241710601 $8.60
