Model Kenmore 253.61894804 REFRIGERATOR – Common Parts & Diagrams

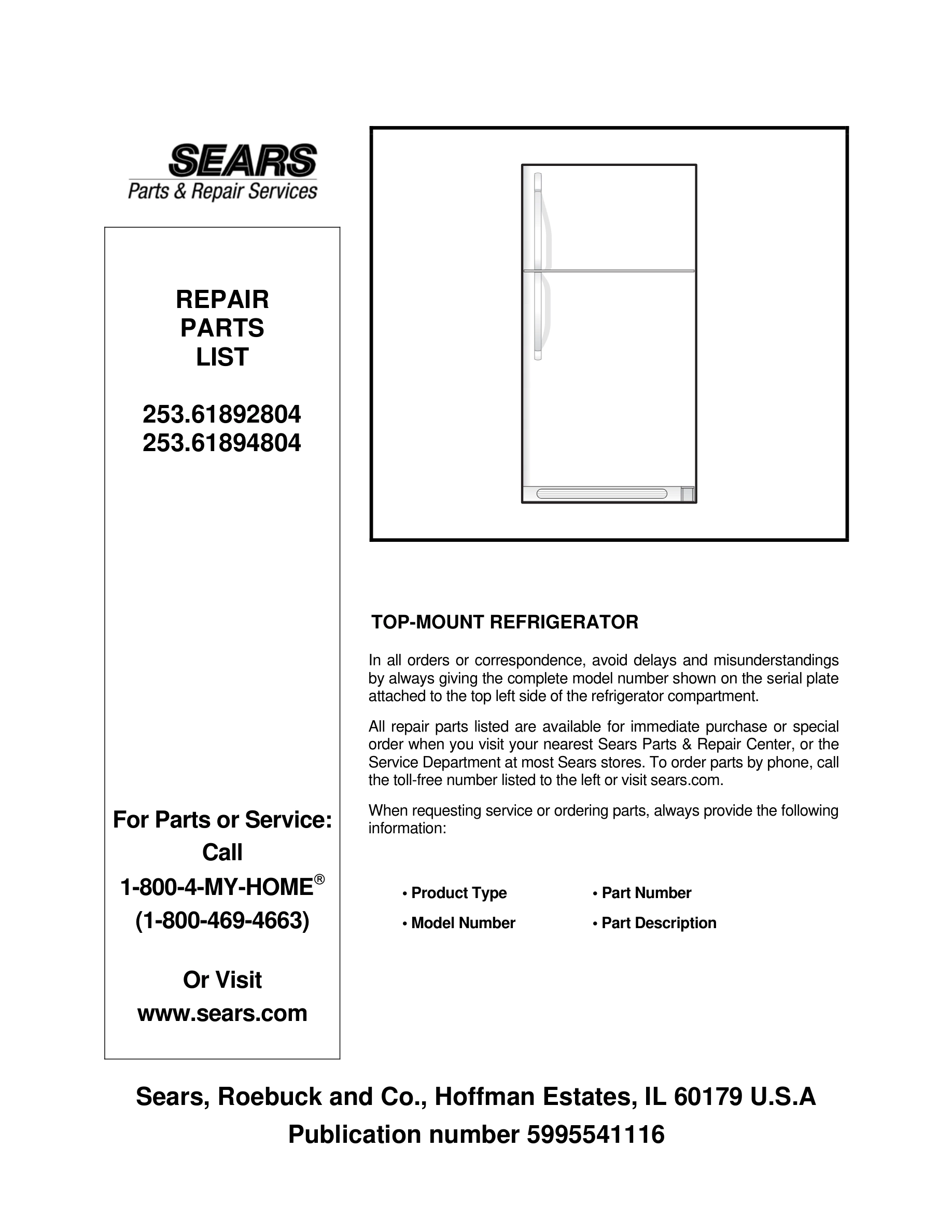

01 - COVER

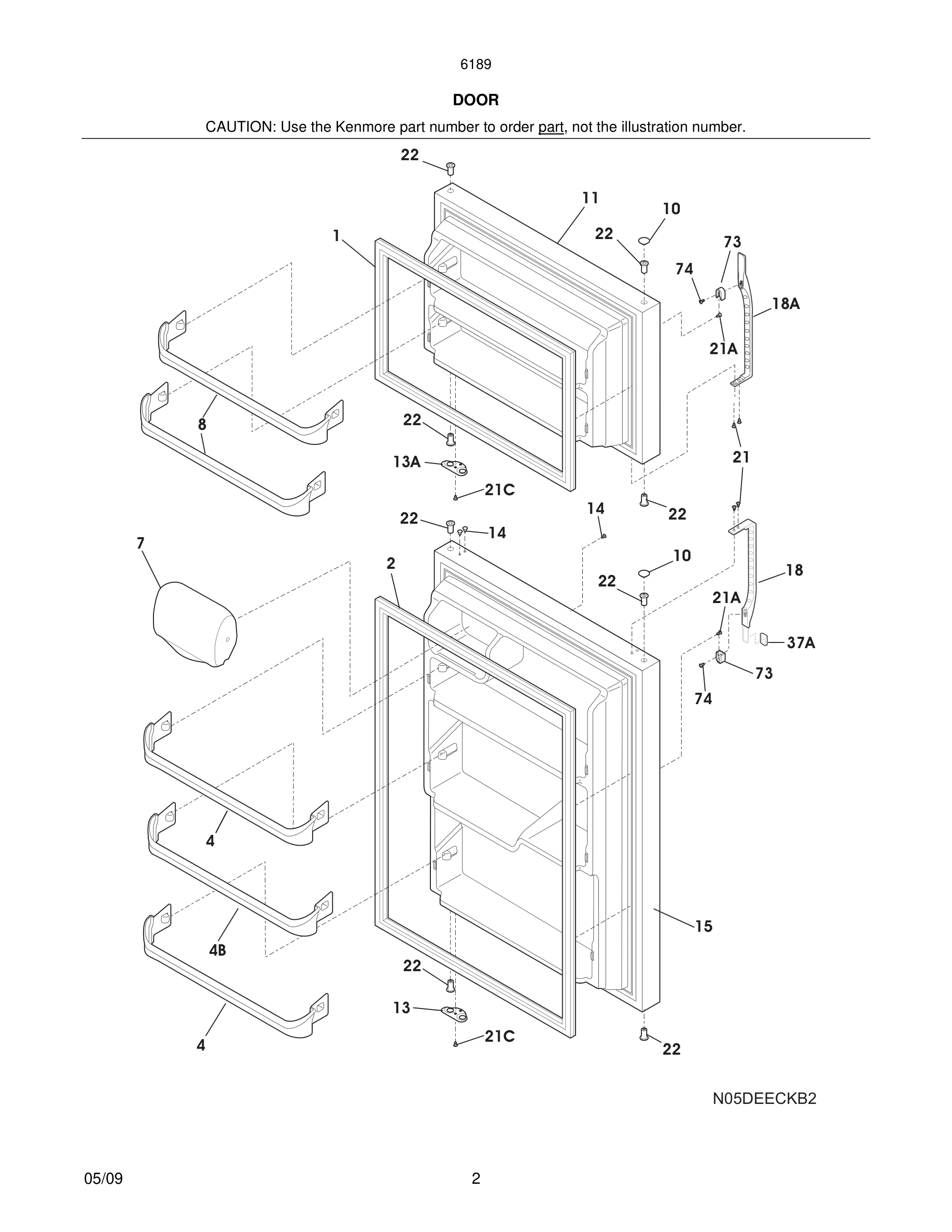

03 - DOOR

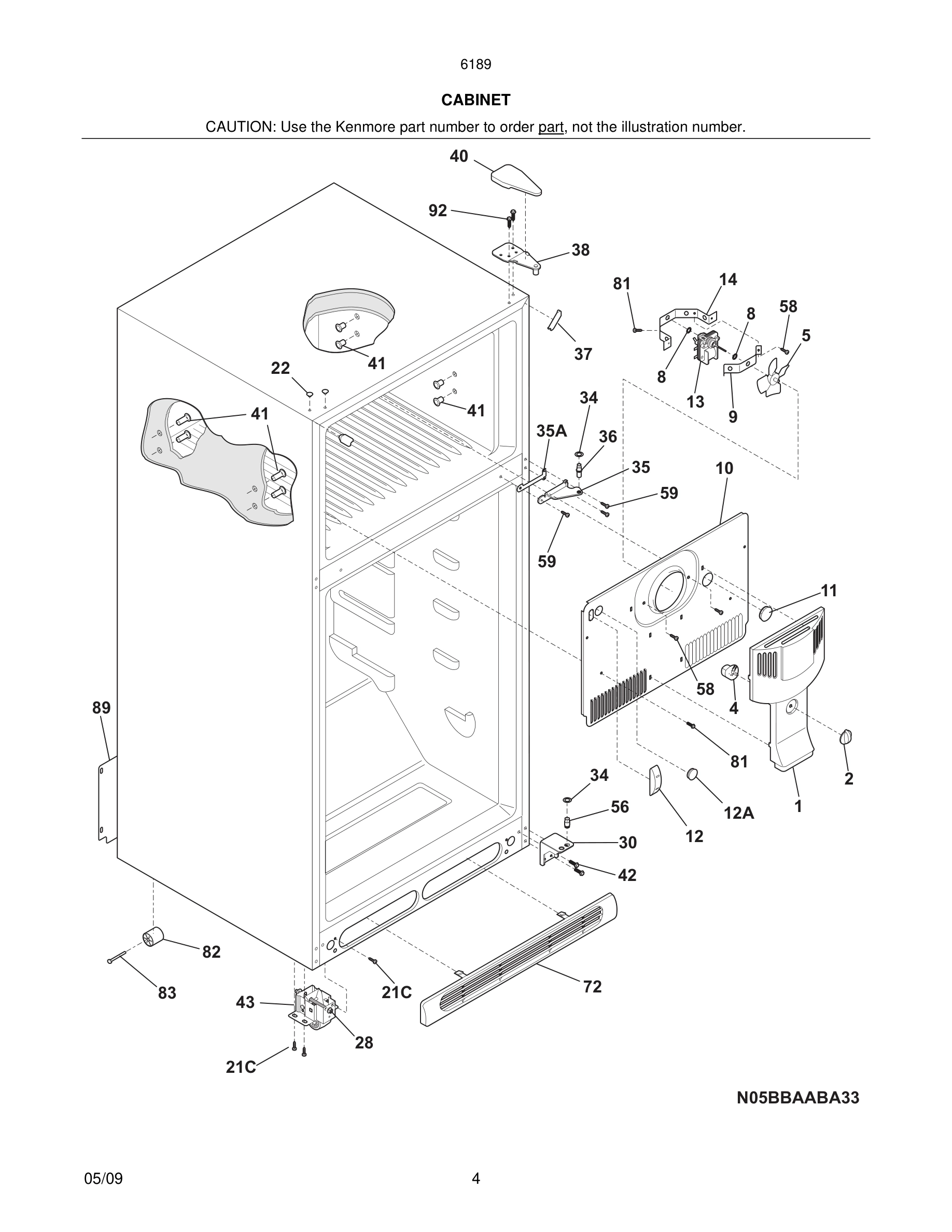

05 - CABINET

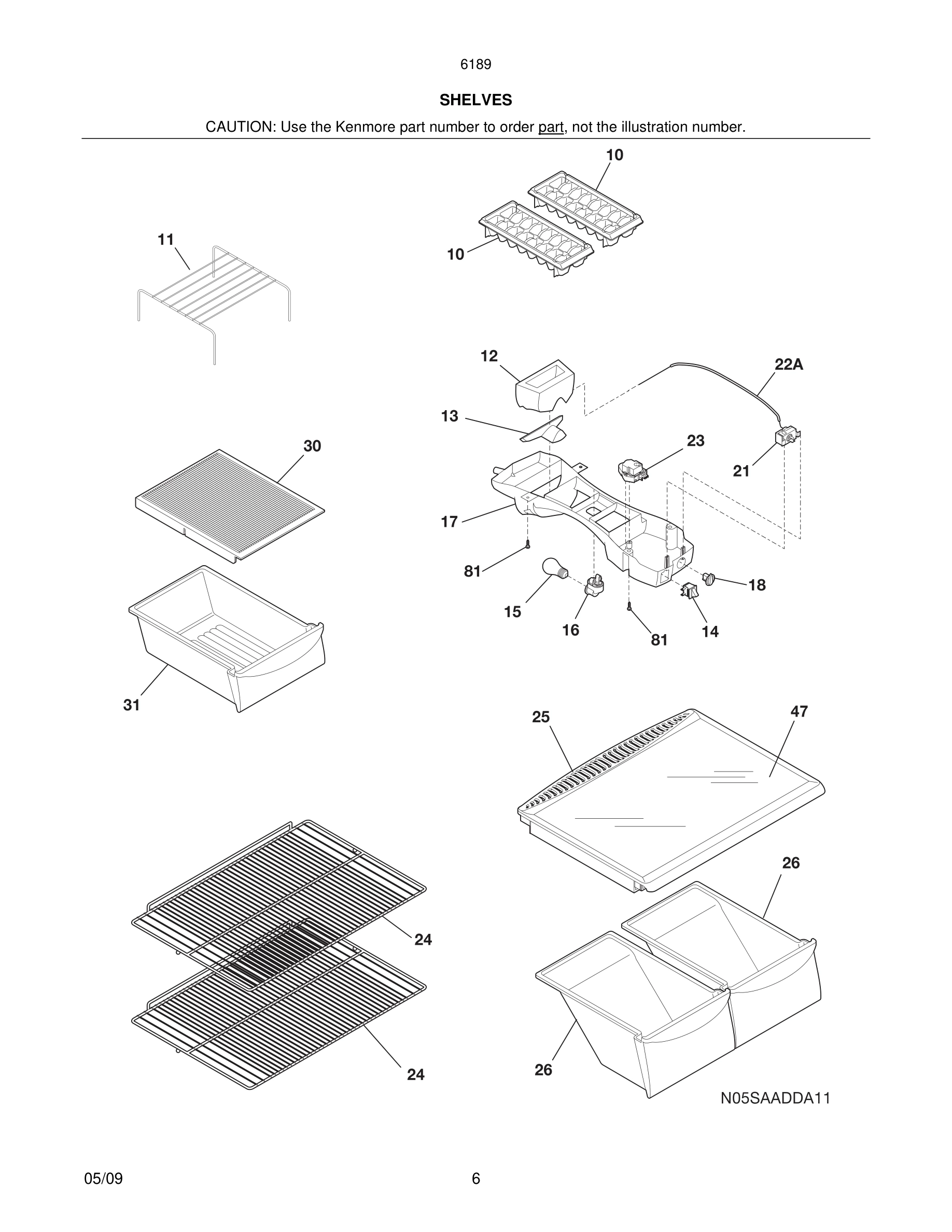

07 - SHELVES

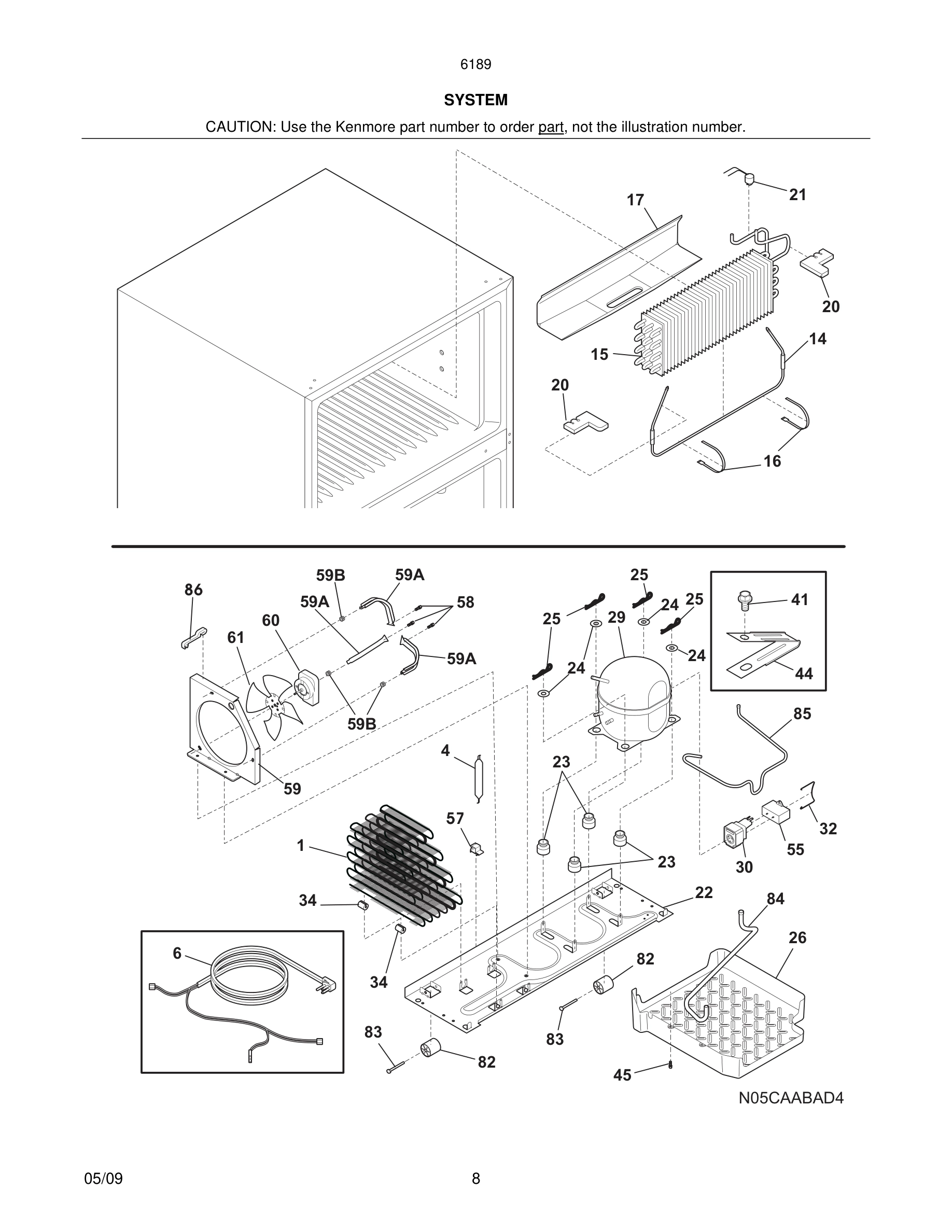

09 - SYSTEM

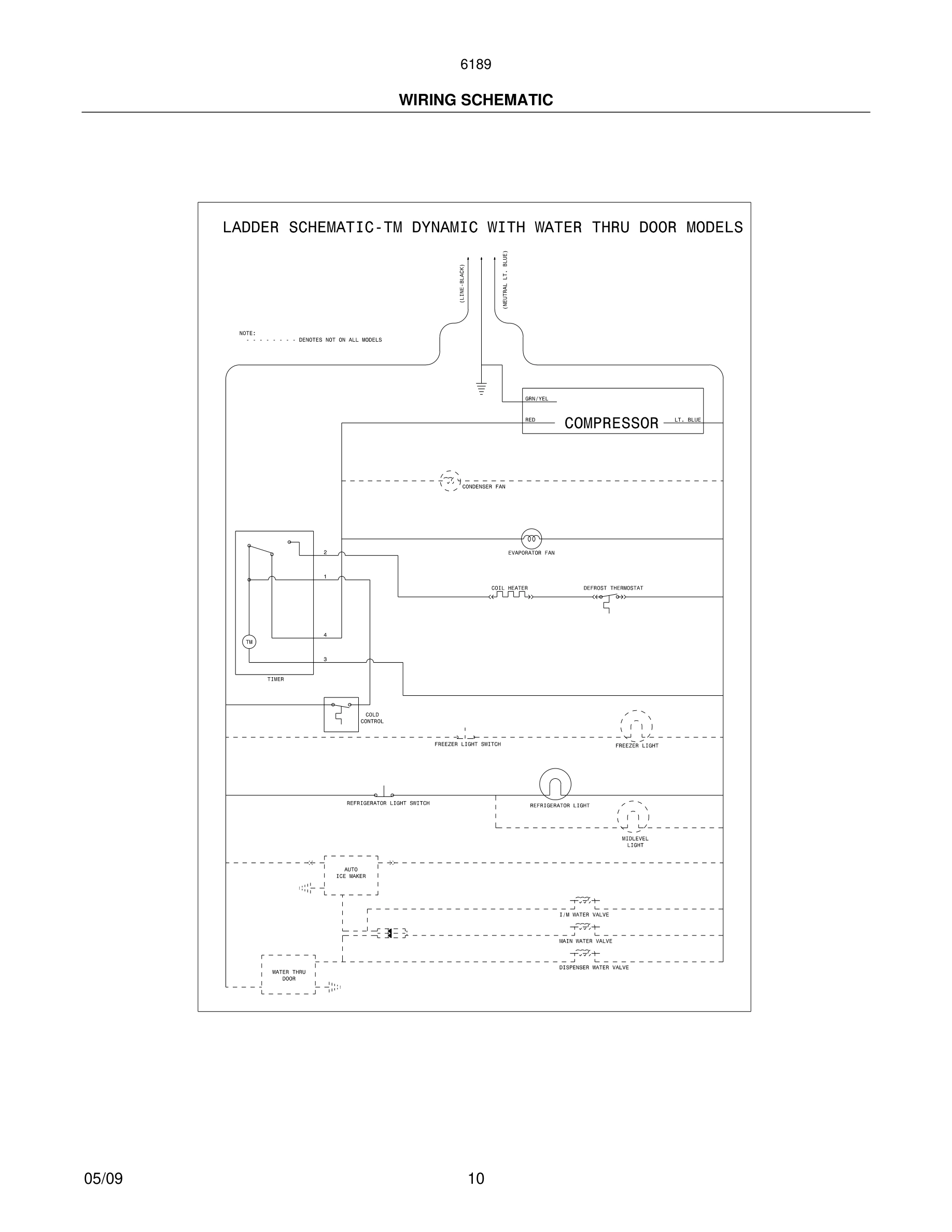

10 - WIRING SCHEMATIC

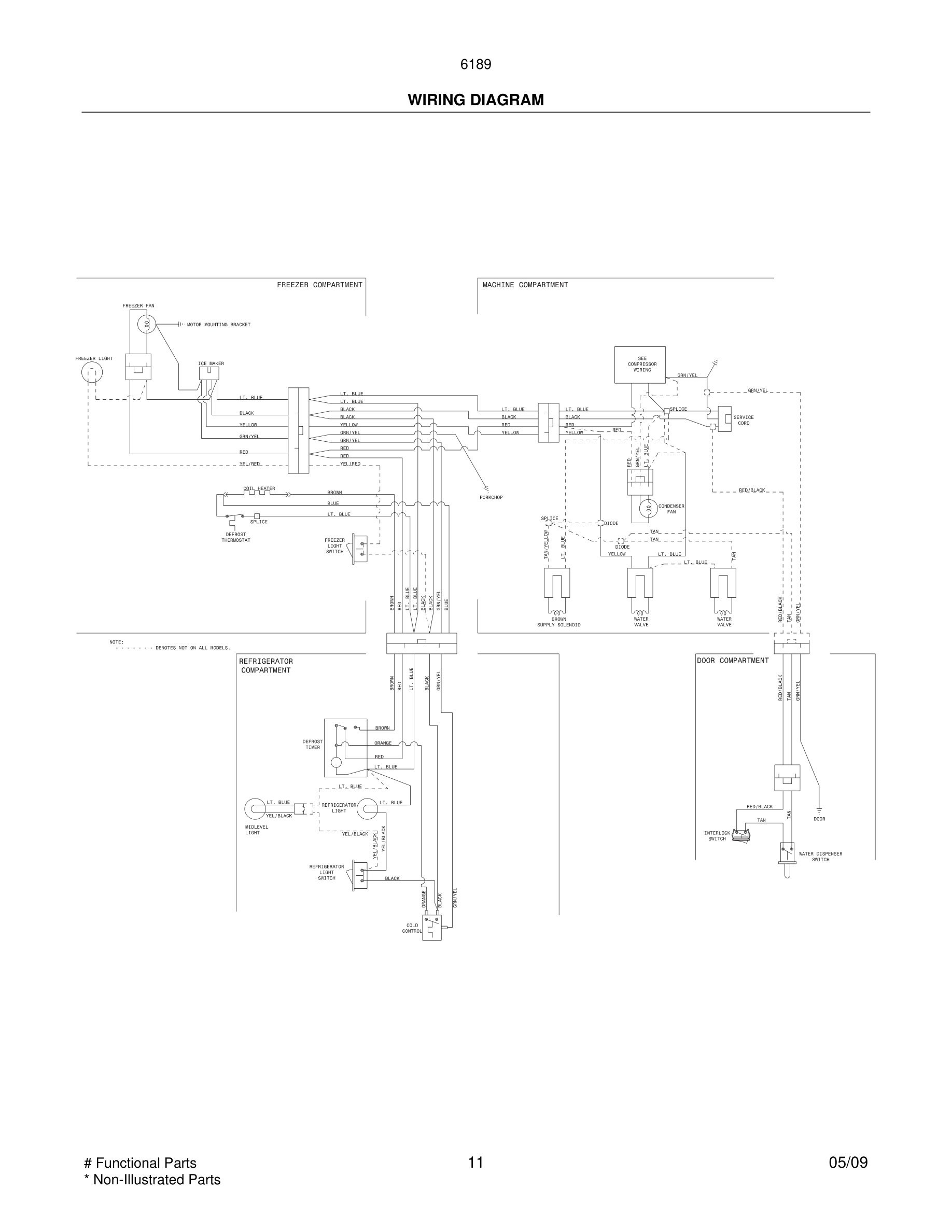

11 - WIRING DIAGRAM
Common parts from model Kenmore 253.61894804 REFRIGERATOR
*
Hot Tube Repair Kit, service WCI 5303918222 Contact Us For Availability
*
Paint, touch-up, bisque WCI 5304414035 Contact Us For Availability
1#
Condenser, dynamic WCI 241785402 Contact Us For Availability
4
Damper-fan cover WCI 241523701 Contact Us For Availability
9
Bracket-motor mtg, front WCI 5303292396 Contact Us For Availability
10
Plug-button, bisque, hinge brg hole, (2) WCI 240381302 Contact Us For Availability
12A
Plug-wtr inlet tube, round, 1" WCI 240374401 Contact Us For Availability
14
Plug-button, bisque WCI 240494002 Contact Us For Availability
17
Control Box WCI 240352702 Contact Us For Availability
18
Knob, temp control WCI 240360801 Contact Us For Availability
18
Handle-door, bisque, refr, w/block & screw WCI 218779904 Contact Us For Availability
18A
Handle-door, bisque, frzr, w/nameplate, block WCI 218779810 Contact Us For Availability
21
Screw, truss hd quad, #10-16 x .500, bisque WCI 240383409 Contact Us For Availability
22
Base-compressor WCI 241665606 Contact Us For Availability
26
Pan-crisper, white, (2), no graphics WCI 240337101 Contact Us For Availability
29#
Compressor Kit WCI 5303918415 Contact Us For Availability
30#
Starter-PTC WCI 241707720 Contact Us For Availability
35
Bracket-ctr hinge, zinc WCI 240313806 Contact Us For Availability
37A
Trim-handle, 1.34", bisque, lower WCI 218771204 Contact Us For Availability
40
Cover-upper hinge, bisque WCI 240354403 Contact Us For Availability
72
Grille/Kickplate, bisque WCI 241839406 Contact Us For Availability
× ![]()
