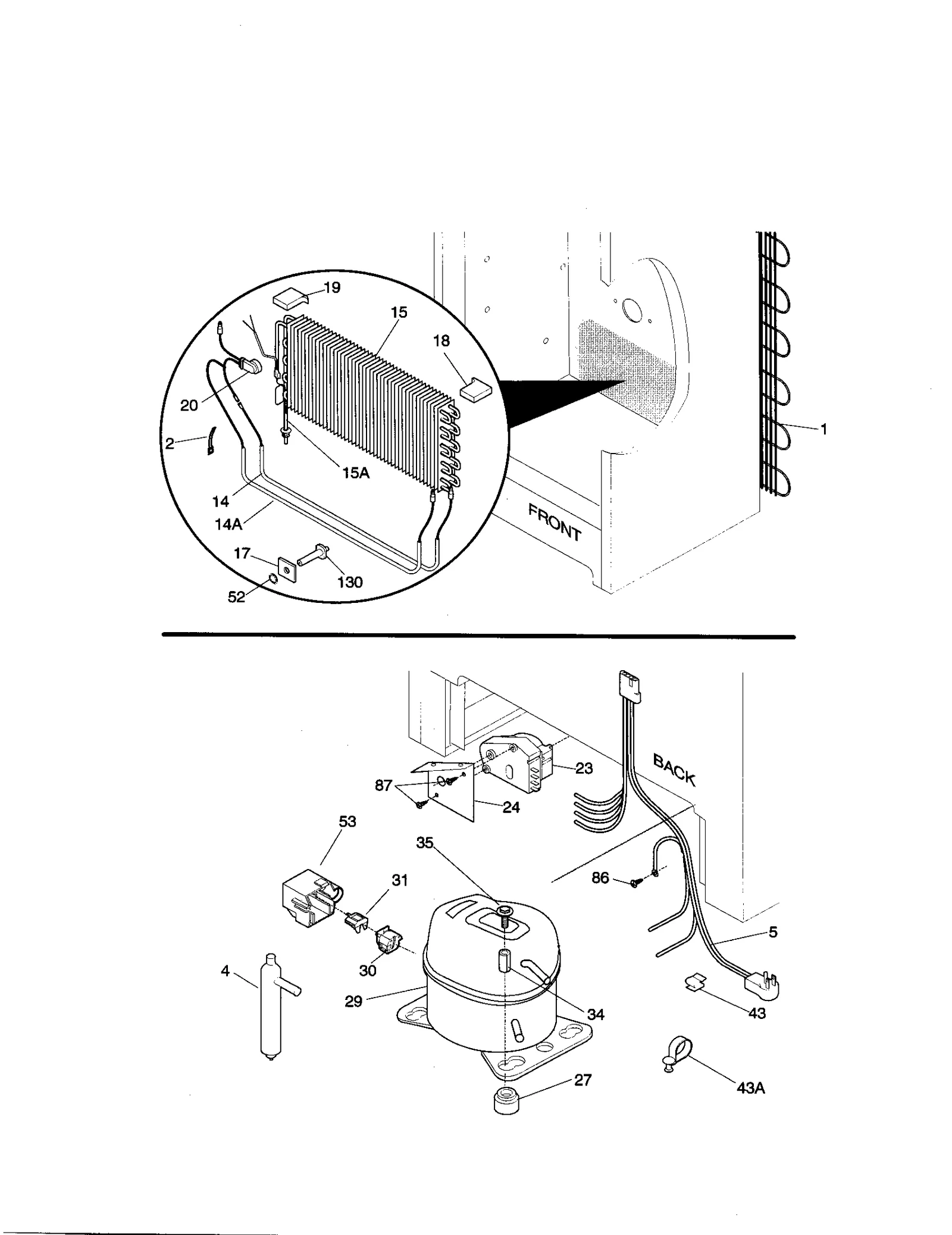

Model Electrolux 253.60721001 Refrigerator (Kenmore 25360721001) – Common Parts & Diagrams

5
Refrigerator Main Harness
Refrigerator Main Harness WCI 216722200 Contact Us For Availability
View on Model
11
Refrigerator Outer Panel
Refrigerator Outer Panel WCI 216526517 Contact Us For Availability
View on Model
12A
Insert Nameplate
Insert Nameplate WCI 216482500 Contact Us For Availability
View on Model
13
Freezer Door Stop
Freezer Door Stop WCI 08016354 Contact Us For Availability
View on Model
14
Washer
Washer WCI 5303313518 Contact Us For Availability
View on Model
14A
Refrigerator Heater
Refrigerator Heater WCI 216694700 Contact Us For Availability
View on Model
15
Freezer Evaporator
Freezer Evaporator WCI 216195900 Contact Us For Availability
View on Model
16
Freezer Light Socket
Freezer Light Socket WCI 5300136117 Contact Us For Availability
View on Model
17
Freezer Evaporator Support Spacer
Freezer Evaporator Support Spacer WCI 06599546 Contact Us For Availability
View on Model
18
Seal
Seal WCI 06599531 Contact Us For Availability
View on Model
19
Refrigerator Evaporator Cover Seal
Refrigerator Evaporator Cover Seal WCI 216204900 Contact Us For Availability
View on Model
19
Seal
Seal WCI 3017674 Contact Us For Availability
View on Model
20
THERMOSTAT-DEFROST
THERMOSTAT-DEFROST WCI 530440473 Contact Us For Availability
View on Model
21
Refrigerator Temperature Control Thermostat
Refrigerator Temperature Control Thermostat WCI 216717900 Contact Us For Availability
View on Model
21A
Screw
Screw WCI 08005520 Contact Us For Availability
View on Model
22
Freezer Door Hinge Bearing
Freezer Door Hinge Bearing WCI 216443600 Contact Us For Availability
View on Model
24
Bracket
Bracket WCI 08016580 Contact Us For Availability
View on Model
25
Freezer Door Inner Liner Screw
Freezer Door Inner Liner Screw WCI 216022800 Contact Us For Availability
View on Model
26
Freezer Door Closer Bearing
Freezer Door Closer Bearing WCI 216503300 Contact Us For Availability
View on Model
29
Compressor
Compressor WCI 216681000 Contact Us For Availability
View on Model
30
Starter
Starter WCI 216681100 Contact Us For Availability
View on Model
31
Overload Protector
Overload Protector WCI 216100118 Contact Us For Availability
View on Model
32
Freezer Breather Valve
Freezer Breather Valve WCI 5309950074 Contact Us For Availability
View on Model
34
Sleeve
Sleeve WCI 5306594529 Contact Us For Availability
View on Model
35
Freezer Compressor Mounting Screw
Freezer Compressor Mounting Screw WCI 5303272328 Contact Us For Availability
View on Model
37
Refrigerator Door Handle Trim
Refrigerator Door Handle Trim WCI 218771201 Contact Us For Availability
View on Model
43
Clip
Clip WCI 09950610 Contact Us For Availability
View on Model
52
Retainer
Retainer WCI 08013198 Contact Us For Availability
View on Model
53
Cover
Cover WCI 216347800 Contact Us For Availability
View on Model
64
Freezer Breather Valve
Freezer Breather Valve WCI 216403700 Contact Us For Availability
View on Model
72
Refrigerator Door Handle Mounting Grommet
Refrigerator Door Handle Mounting Grommet WCI 218397000 No Longer Available
View on Model
80
Freezer Temperature Control Thermostat Tube B
Freezer Temperature Control Thermostat Tube B WCI 06594601 Contact Us For Availability
View on Model
87
Screw
Screw WCI 08037849 Contact Us For Availability
View on Model
93A
Refrigeration Appliance Screw
Refrigeration Appliance Screw WCI 5303302760 Contact Us For Availability
View on Model
130
Freezer Evaporator Support
Freezer Evaporator Support WCI 06599544 Contact Us For Availability
View on Model
132
Screw
Screw WCI 5303283898 Contact Us For Availability
View on Model
NI
Freezer Drain Tube Insulation
Freezer Drain Tube Insulation WCI 09948773 Contact Us For Availability
View on Model
NI
Refrigerator Drain Pan
Refrigerator Drain Pan WCI 216460000 Contact Us For Availability
View on Model
NI
Refrigerator Owner's Manual
Refrigerator Owner's Manual WCI 216697700 Contact Us For Availability
View on Model
NI
HARNESS-LID/DEFROST
HARNESS-LID/DEFROST WCI 216722100 Contact Us For Availability
View on Model
NI
Service Data
Service Data WCI 216722400 Contact Us For Availability
View on Model
NI
Refrigerator Parts List
Refrigerator Parts List WCI 5995332375 Contact Us For Availability
View on Model
